Heatilator NBV30-IFT Instruction Manual

1
Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
Models:
NOTICE: DO NOT discard this manual!

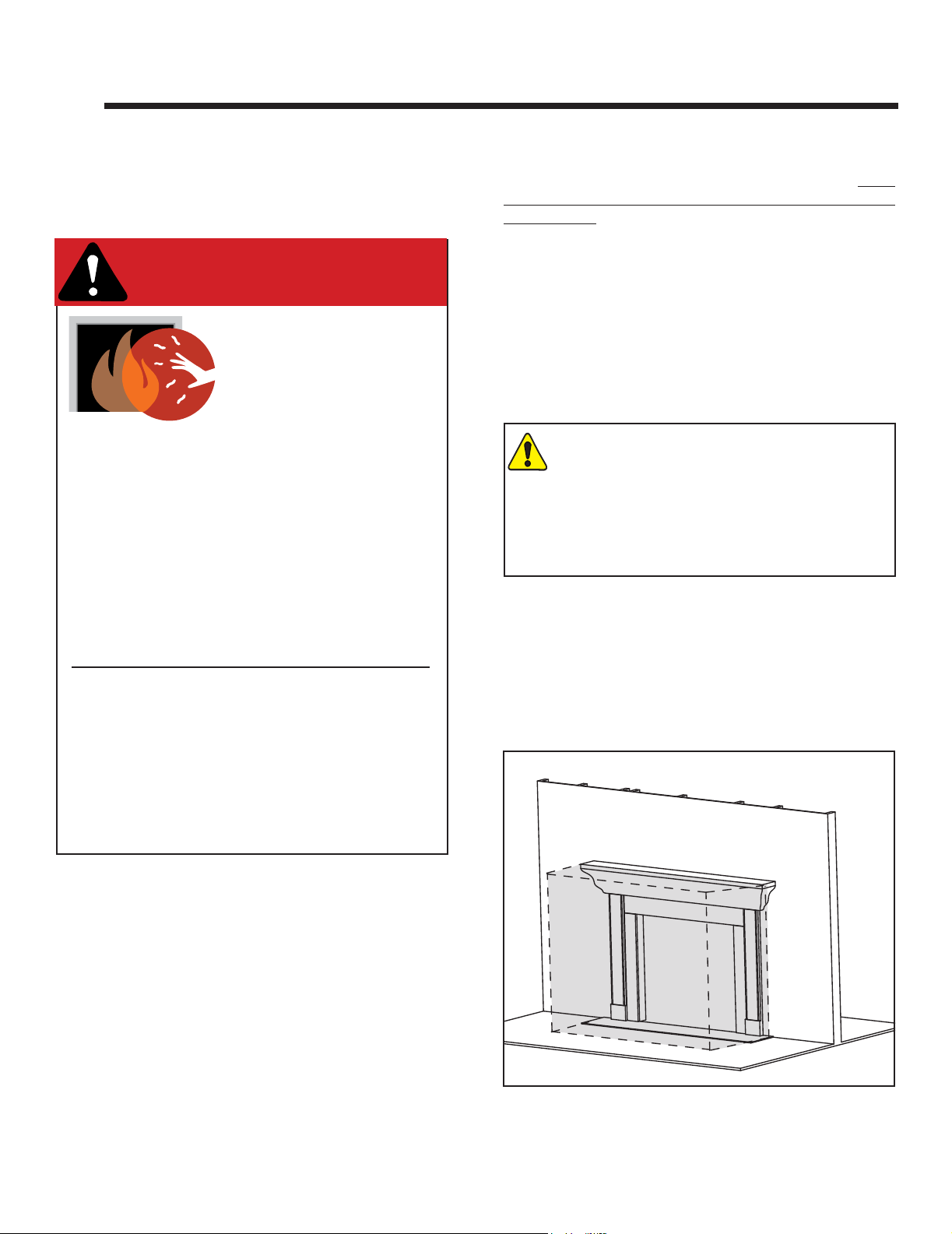

DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
• DO NOT store or use gasoline or other am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
- If you cannot reach your gas supplier, call
the re department.
• Installation and service must be performed
by a qualied installer, service agency, or the
gas supplier.
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
NBV30-IFT
NBV33-IFT
NBV36-IFT
NBV42-IFT
Owner’s Manual
Operation and Maintenance
CAUTION! Risk of Fire! DO NOT store instruction manuals inside replace cavity.
High temperatures could cause a re.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
Contact your dealer with questions regarding installation, operation or service.
Decorative barrier front must be ordered separately at
time of appliance purchase. See Section 3.A.

2Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20

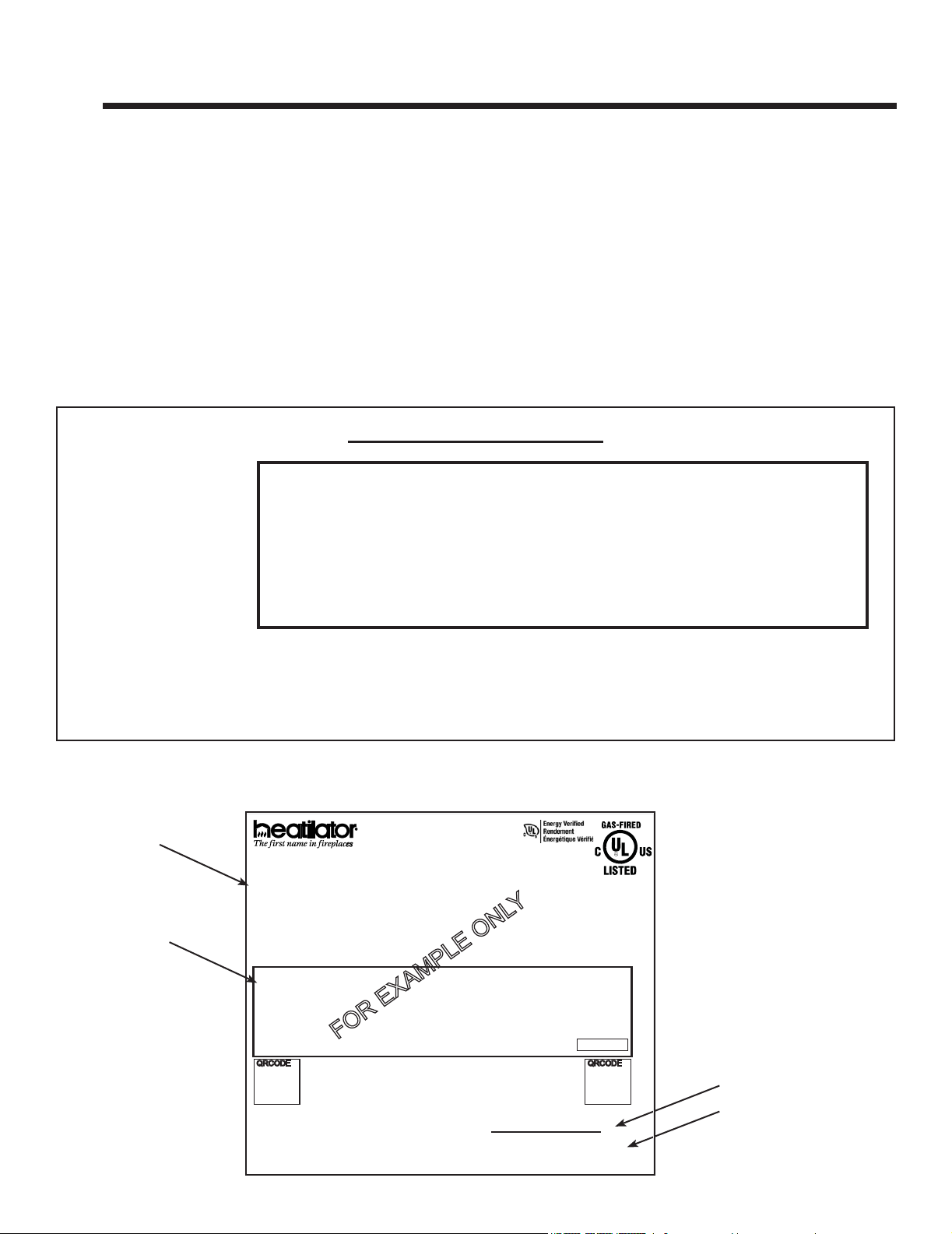

Listing Label Information/Location
A. Congratulations
Congratulations on selecting a Heatilator gas replace, an
elegant and clean alternative to wood burning replaces.
The Heatilator gas replace you have selected is designed
to provide the utmost in safety, reliability, and efciency.
As the owner of a new replace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.
This owner’s manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Heatilator gas replace will give you years of
durable use and trouble-free enjoyment. Welcome to the
Heatilator family of replace products!
The model information regarding your specic replace can be found on
the rating plate usually located in the control area of the replace.
Read this manual before operating this appliance.
Please retain this Owner’s Manual for future reference.
Read the Installation Manual before making any installation or nishing changes.
11 Welcome
Brand: ________________________________________________ Model Name: ___________________________
Serial Number:__________________________________________ Date Installed: __________________________
Appliance Information:
Local Dealer Information
DEALER: Fill in
your name, address,
phone and email
information here and
appliance information
below.
Dealer Name: ________________________________________________________
Address: ____________________________________________________________
____________________________________________________________
Phone: _____________________________________________________________
Email: _____________________________________________________________
Gas and Electric
Information
Serial Number
Type of Gas
Model Number
Minimum Permissible Gas Supply for Purposes of Input Adjustment.
Approved Minimum (De Gaz) Acceptable ............................ x.x in. w.c. (Po. Col. d’eau)
Maximum Pressure (Pression) ............................................xx.x in. w.c. (Po. Col. D’eau)
Maximum Manifold Pressure (Pression)................................x.x in. w.c. (Po. Col. d’eau)
Minimum Manifold Pressure (Pression).................................x.x in. w.c. (Po. Col. d’eau)
Minimum rate with variable regulator on control valve
Total Electrical Requirements: 120Vac, 60Hz., less than 12 Amperes
MADE IN USA
USA CANADA
ALTITUDE:..............................0-2000 FT................0-4500 FT.
MAX. INPUT BTU/h ................xx,xxxx....................xx.xxx
MIN. INPUT BTU/h .................xx.xxx......................xx.xxx
ORIFICE SIZE ........................#xx DMS .................#xx DMS
Model:
(Modèle): XXXXXXXXX
Serial:
(Série):
Xxxx-xxx
Heatilator, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
Vented gas fireplace heater - Not for use with solid fuel.Appareil de
de foyer avec conduit d’évacuation des gaz–n’utilisez pas avec des
NATURAL GAS
Type of Gas (Sorte De Gaz):
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the
Natural Gas and Propane Installation Code, CSA B149.1 le. Cet appareil doit être installé conformément aux codes locaux, s’il y a lieu; sinon, suivez
National Fuel Gas Code, ANSI Z223.1/NFPA 54, ou le Code d’installation du gaz naturel et du propane (Natural Gas and Propane Installation Code),
CSAB149.1.
Foramanufactured home (USA only) or mobile home OEM installation: This appliance must be installed in accordance with the Standard for
Manufactured Housing, CAN/CSA Z240MH Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in Canada; or with the in
the United States; or when suchastandard is not applicable, the Standard for Manufactured Home Installations Standard, ANSI/NCSBCS
A225.1/NFPA 501A. Pour une installation dans une maison préfabriquée (É.-U. seulement) ou dans une maison mobile du constructeur OEM: Ce
poêle doit être installé en conformité avec la norme visant les maisons préfabriquées, au Canada; ou avec la deru
tcafunaM,HM042ZASC/NAC rofdradnatS0823traP,RFC42eltiT,dradnatSytefaSdnanoitcurtsnoCemoH aux États-Unis; ou, si une telle norme n’est pas applicable, la
Manufactured Home Installations, ANSI/NCSBCSA225.1/NFPA 501A.
QRCODEQRCODE
INSTALLATION MANUAL OWNER’S MANUAL
For use only with barrier(s): N’utiliser qu’avec la (les) barrière(s) :
____________ ____________
Follow installation instructions. Suivre les instructions d'installation.
M XXXXXH
ANSIXX.XX-XXXX·CSAX.XX-XXXX
CAN/CSA - P.X.X-XX · FE: ___%
FOREXAMPLEONLY
chauffage
combustibles solides.

3
Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Note: The term “recommend” or “recommended” does not indicate a requirement. It is a best practice suggested by Hearth
& Home Technologies®. Failure to perform the recommended task will not result in a safety concern.
Table of Contents
1 Welcome
A. Congratulations .................................2
B. Limited Lifetime Warranty..........................4
2 Product Specic Information
A. Appliance Certication ............................6
B. Glass Specications..............................6
C. BTU Specications...............................6
3 Important Safety and Operating Information
A. Appliance Safety ................................7
B. General Operating Parts ..........................8
C. Fuel Specications...............................8
D. Wall and Mantel Temperatures .....................8
E. Good Faith Wall Surface/TV Guidelines ..............8
F. Before Lighting Appliance. . . . . . . . . . . . . . . . . . . . . . . . . 10
G. Outside Air Kit (Optional) .........................10
H. Lighting Instructions (IPI) ......................... 11
I. Appliance Break-In..............................12
J. Heat Management ..............................12
K. Operation During A Power Outage .................13
L. Detailed Component Operating Instructions - IntelliFire
Touch®.......................................14
4 Maintenance and Service
A. Maintenance: Frequency and Tasks ................ 16
B. Maintenance Tasks - Homeowner .................. 16
C. Maintenance Tasks - Qualied Service Technician .....18
5 Frequently Asked Questions and Troubleshooting
A. Frequently Asked Questions ......................19
B. Frequently Asked Questions - IntelliFire Touch Controls
(Optional IFT-RC400) ............................20
C. Troubleshooting ................................21
6 Reference Materials
A. Accessories ...................................23
B. Service Parts ..................................24
C. Contact Information .............................30
= Contains updated information.

4Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
B. Limited Lifetime Warranty Hearth & Home Technologies
LIMITED LIFETIME WARRANTY
Hearth & Home Technologies, on behalf of its hearth brands (“HHT”), extends the following warranty for HHT gas, wood, pellet and
electric hearth appliances that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the HHT appliance at the site of installaon, and to any transferee taking ownership of the
appliance at the site of installaon within two years following the date of original purchase, that the HHT appliance will be free from
defects in materials and workmanship at the me of manufacture. Aer installaon, if covered components manufactured by HHT
are found to be defecve in materials or workmanship during the applicable warranty period, HHT will, at its opon, repair or replace
the covered components. HHT, at its own discreon, may fully discharge all of its obligaons under such warranes by replacing the
product itself or refunding the veried purchase price of the product itself. The maximum amount recoverable under this warranty
is limited to the purchase price of the product. This warranty is subject to condions, exclusions and limitaons as described below.
WARRANTY PERIOD:
Warranty coverage for consumers begins at the date of installaon. In the case of new home construcon, warranty coverage begins
on the date of rst occupancy of the dwelling or six months aer the sale of the product by an independent, authorized HHT dealer/
distributor, whichever occurs earlier. However, the warranty shall commence no later than 24 months following the date of product
shipment from HHT, regardless of the installaon or occupancy date. The warranty period for parts and labor for covered components
is produced in the following table.
The term “Limited Lifeme” in the table below is dened as: 20 years from the beginning date of warranty coverage for gas appliances,
and 10 years from the beginning date of warranty coverage for wood and pellet appliances. These me periods reect the minimum
expected useful lives of the designated components under normal operang condions.
Page 1 of 2
4021-645K 1/20
Parts Labor Gas Pellet Wood Electric Venting Components Covered
X X Igniters, Auger Motors, Electronic Components, and
Glass
X
Electrical components limited to modules, remotes/wall
switches, valves, pilots, blowers, junction boxes, wire
harnesses, transformers and lights (excluding light bulbs)
X X Molded Refractory Panels, Glass Liners
XVent Free Burners, Vent Free Logs
X X Castings, Medallions and Baffles
6 years 3 years XCatalyst - Limitations Listed
7 years 3 years X X Manifold tubes, HHT Chimney and Terminations
10 years 1 year XBurners, logs and refractory
Limited
Lifetime 3 years XXX Firebox and heat exchanger, FlexBurn®System
(engine, inner cover,access cover and fireback)
1 Year None XXXXXAll replacement parts beyond warranty period
Warranty Period HHT Manufactured Appliances and Venting
All parts including handles, external enamaled
components and other material except as covered by
Conditions, Exclusions, and Limitations listed
2 years
3 years X
x1 Year XXXX
5 years 1 year
Firepots, burnpots, mechanical feeders/auger
assemblies
See conditions, exclusions and limitations on the next page

5
Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
WARRANTY CONDITIONS:
• This warranty only covers HHT appliances that are purchased through an HHT authorized dealer or distributor. A list of HHT
authorized dealers is available on the HHT branded websites.
• This warranty is only valid while the HHT appliance remains at the site of original installaon.
• This warranty is only valid in the country in which the HHT authorized dealer or distributor that sold the appliance resides.
• Contact your installing dealer for warranty service. If the installing dealer or distributor is unable to provide necessary parts,
contact the nearest HHT authorized dealer or supplier. Addional service fees may apply if you are seeking warranty service from
a dealer other than the dealer from whom you originally purchased the product.
•
Check with your dealer in advance for any costs to you when arranging a warranty call. Travel and shipping charges for parts are not
covered by this warranty.
• Limited Catalyst Warranty
o
For wood burning products containing a catalyst, the catalyst will be warranted for a six-year period to the original purchaser at
the site of original installaon. The purchaser must provide the name, address, and telephone number of the locaon where
the product is installed, proof of original purchase date, date of failure, and any relevant informaon regarding the failure of the
catalyst.
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
•
Changes in surface nishes as a result of normal use. As a heang appliance, some changes in color of interior and exterior surface
nishes may occur. This is not a aw and is not covered under warranty.
• Damage to printed, plated, or enameled surfaces caused by ngerprints, accidents, misuse, scratches, melted items, or other
external sources and residues le on the plated surfaces from the use of abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty period are not covered. These parts
include: paint, wood and pellet gaskets, rebricks, grates, ame guides, baeries and the discoloraon of glass.
• Expansion, contracon, or movement of certain parts causing noise. These condions are normal and complaints related to this
noise are not covered by this warranty.
• Damages resulng from: (1) failure to install, operate, or maintain the appliance in accordance with the installaon instrucons,
operang instrucons, and lisng agent idencaon label furnished with the appliance; (2) failure to install the appliance in
accordance with local building codes; (3) shipping or improper handling; (4) improper operaon, abuse, misuse, connued operaon
with damaged, corroded or failed components, accident, or improperly/incorrectly performed repairs (5) environmental condions,
inadequate venlaon, negave pressure, or draing caused by ghtly sealed construcons, insucient make-up air supply, or
handling devices such as exhaust fans or forced air furnaces or other such causes; (6) use of fuels other than those specied in
the operaon instrucons; (7) installaon or use of components not supplied with the appliance or any other components not
expressly authorized and approved by HHT; (8) modicaon of the appliance not expressly authorized and approved by HHT in
wring; and/or (9) interrupons or uctuaons of electrical power supply to the appliance.
• Non-HHT venng components, hearth connecons or other accessories used in conjuncon with the appliance.
• Any part of a pre-exisng replace system in which an insert or a decorave gas appliance is installed.
•
HHT’s obligaon under this warranty does not extend to the appliance’s capability to heat the desired space. Informaon is provided
to assist the consumer and the dealer in selecng the proper appliance for the applicaon. Consideraon must be given to the
appliance locaon and conguraon, environmental condions, insulaon and air ghtness of the structure.
This warranty is void if:
• The appliance has been over-red, operated in atmospheres contaminated by chlorine, uorine, or other damaging chemicals.
Over-ring can be idened by, but not limited to, warped plates or tubes, deformaon/warping of interior cast iron structure or
components, rust colored cast iron, bubbling, cracking and discoloraon of steel or enamel nishes.
• The appliance is subjected to prolonged periods of dampness or condensaon.
• There is any damage to the appliance or other components due to water or weather damage which is the result of, but not limited
to, improper chimney or venng installaon.
LIMITATIONS OF LIABILITY
• The owner’s exclusive remedy and HHT’s sole obligaon under this warranty, under any other warranty, express or implied, or in
contract, tort or otherwise, shall be limited to replacement, repair, or refund, as specied above. In no event will HHT be liable for
any incidental or consequenal damages caused by defects in the appliance. Some states do not allow exclusions or limitaon of
incidental or consequenal damages, so these limitaons may not apply to you. This warranty gives you specic rights; you may also
have other rights, which vary from state to state. EXCEPT TO THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES
OTHER THAN THE WARRANTY SPECIFICED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE
EXPRESSED WARRANTY SPECIFIED ABOVE.
Page 2 of 2
4021-645K 1/20

6Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
B. Glass Specications
Hearth & Home Technologies appliances manufactured
with tempered glass may be installed in hazardous lo-
cations such as bathtub enclosures as dened by the
Consumer Product Safety Commission (CPSC). The
tempered glass has been tested and certied to the re-
quirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certication Council SGCC# 1595 and
1597. Architectural Testing, Inc. Reports 02-31919.01
and 02-31917.01).
This statement is in compliance with CPSC 16 CFR Sec-
tion 1201.5 “Certication and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certicate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
C. BTU Specications
A. Appliance Certication
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
22 Product Specic Information
This product is listed to ANSI standards for “Vented Gas
Fireplaces”.May be installed in a sleeping room when the
provisions for combustion, ventilation and dilution air are met
per the requirements of ANSI Z223.1/NFPA 54 National
Fuel Gas Code. In Canada, installation in a sleeping room
requires installation with a thermostat certied for use with
this product. Consult your local authorities having jurisdic-
tion.
Models
(U.S. or Canada)
Maximum
Input
BTU/h
Minimum
Input
BTU/h
Orice
Size
(DMS)
NBV30-IFT
(NG) (0-2000 FT) 20,000 14,000 .083 in.
NBV30-IFT
(Propane) (0-2000 FT) 17,000 14,000 .053 in.
NBV33-IFT
(NG) (0-2000 FT) 22,000 15,000 #43
NBV33-IFT
(Propane) (0-2000 FT) 22,000 15,000 #54
NBV36-IFT
(NG) (0-2000 FT) 25,000 17,000 #42
NBV36-IFT
(Propane) (0-2000 FT) 25,000 17,000 .058 in.
NBV42-IFT
(NG) (0-2000 FT) 30,000 20,500 #37
NBV42-IFT
(Propane) (0-2000 FT) 30,000 22,500 #52
MODELS: NBV30-IFT, NBV33-IFT,
NBV36-IFT, NBV42-IFT
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Vented Gas Fireplaces
STANDARD: CSA / ANSI Z21.88:19 • CSA 2.33:19
Installation and service of this appliance should be performed by
qualied personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certied professionals.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.

7
Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
WARNING! DO NOT operate replace before reading
and understanding operating instructions. Failure
to operate replace according to operating instructions
could cause re or injury.
A. Appliance Safety
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
must be installed for the protection of children and other
at-risk individuals. DO NOT operate the appliance with
the barrier removed. If the barrier becomes damaged,
the barrier must be replaced with the manufacturer’s
barrier for this appliance.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
33 Important Safety and Operating Information
Figure 3.1 Clear Space Requirement - All Models
CLEAR SPACE
3 FT. IN
FRONT OF
FIREPLACE
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
• Keep children away.
• CAREFULLY SUPERVISE children in same room
as replace.
• Alert children and adults to hazards of high
temperatures.
High temperatures may ignite clothing or other
ammable materials.
• Clothing, furniture, draperies, and other ammable
materials must not be placed on or near the
appliance.
WARNING: This product and the fuels used to
operate this product (liquid propane or natural
gas), and the products of combustion of such fuels, can
expose you to chemicals including benzene, which is
known to the State of California to cause cancer and
reproductive harm. For more information go to: www.
P65Warnings.ca.gov.
• Young children should be carefully supervised when they
are in the same room as the appliance. Toddlers, young
children and others may be susceptible to accidental
contact burns.
A physical barrier is recommended if there are at risk
individuals in the house. To restrict access to a replace
or stove, install an adjustable safety gate to keep
toddlers, young children and other at risk individuals out
of the room and away from hot surfaces.
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
• Never leave children alone near a hot replace, whether
operating or cooling down.
• Teach children to NEVER touch the replace.
• Consider not using the replace when children will be
present.
Contact your dealer for more information, or visit: www.
hpba.org/Product-Info/Fireplace-Stove-Heater/Glass-
Fronts-Safety.
To prevent unintended operation when not using your re-
place for an extended period of time (summer months,
vacations, trips, etc):
• Remove batteries from remote controls.
• Turn off wall controls.
• Unplug 6 volt adapter plug.
Clear Space
WARNING! DO NOT place combustible objects in front of
the replace or block replace openings. High tempera-
tures could start a re. See Figure 3.1.
Avoid placing candles and other heat-sensitive objects on
mantel or hearth. Heat could damage these objects.

8Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
6 in.
18 in.
24 in.
30 in.
36 in.
48 in.
TO CEILING
42 in.
12 in.
123°F
115°F
120°F
132°F
145°F
170°F
180°F
APPLIANCE FRONT
APPLIANCE OPENING
110°F
HEARTH
(not required)
MANTEL
DECORATIVE BARRIER FRONTS
(NOT SHOWN)
SECTION 4.B.
FIXED GLASS ASSEMBLY
(NOT SHOWN)
SECTION 4.B.
FAN KIT
SECTION 6.A
CLEAR SPACE
SECTION 3.A.
CONTROL CAVITY
SECTION 3.K

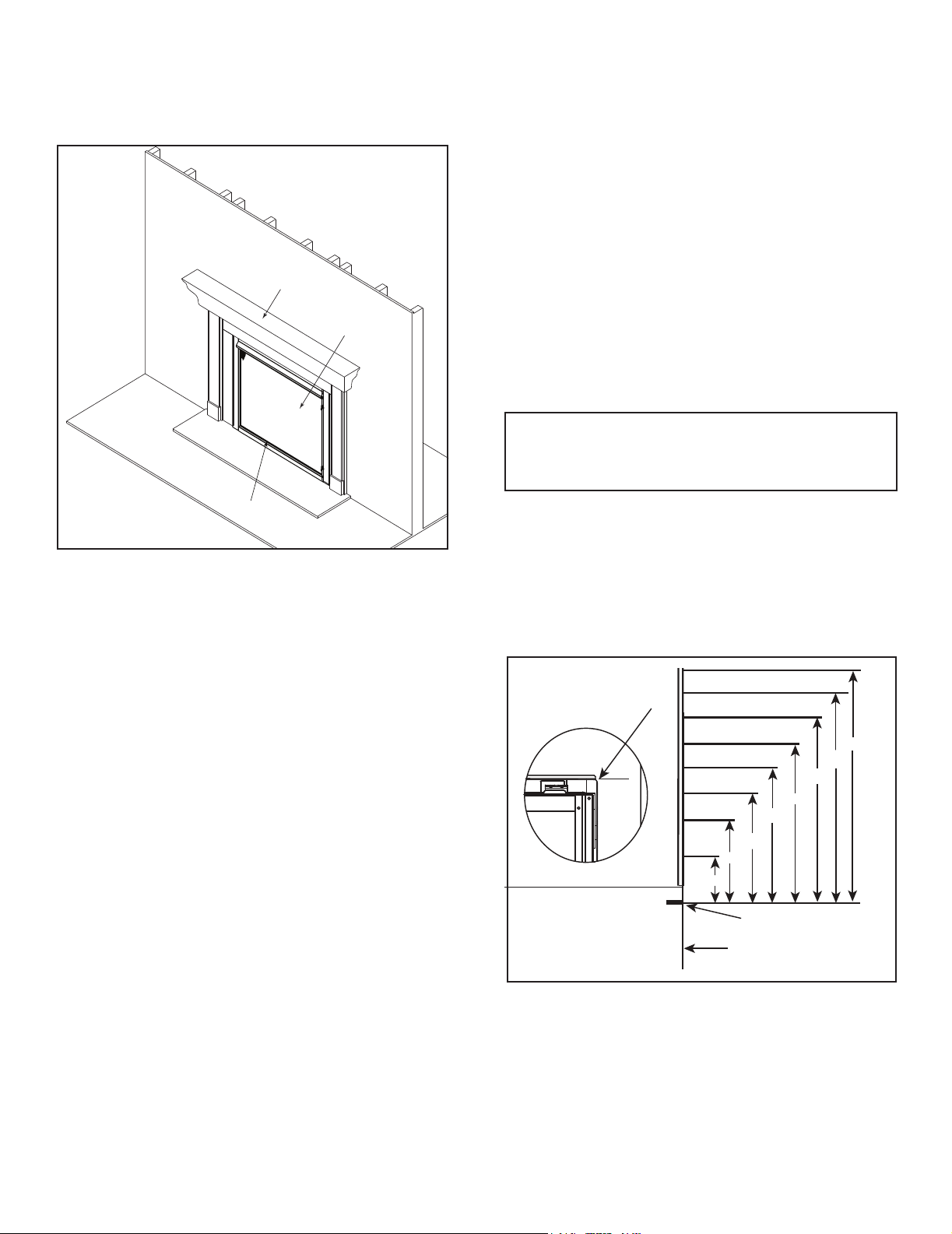

Figure 3.2 General Operating Parts
B. General Operating Parts
C. Fuel Specications
Figure 3.2 references the general operating parts of the
appliance and the section of this manual in which they are
discussed.
WARNING! Risk of Fire or Explosion! Appliance must
be set up for compatible gas type!
• This appliance is designed to operate on either natural
gas or propane. Make sure the appliance is compatible
with gas type selected for installation site.
• Conversions must be made by a qualified service
technician using Hearth & Home Technologies specied
and approved parts.
Figure 3.3 Maximum Wall Surface Temperatures Above Appliance
E. Good Faith Wall Surface/TV Guidelines
Figure 3.3 shows the approximate wall surface temperatures
above the center of the appliance at various heights above
the appliance opening.
NOTICE: Surface temperatures listed above are taken with
a temperature measuring probe as prescribed by the test
standard used for appliance certication. Temperatures on
walls or mantels taken with an infrared thermometer may
yield increased temperatures of up to 30 °F (17 °C) or
more depending on the thermometer settings and material
characteristics being measured.
D. Wall and Mantel Temperatures
ANSI/CSA Standards
The American National Standards Institute (ANSI) and
Canadian Standards Association (CSA) write the safety
and performance standards to which all gas replaces
are tested. The following are the allowable temperatures
around and on a gas replace per the ANSI/CSA
standards:
Combustible Mantel and Surfaces around a Fireplace
The allowable temperature rise above ambient is 117
°F for all exposed combustible surfaces around the
replace, including the mantel, when installed according
to the installation instructions. Non-combustible surfaces
and mantels do not have a maximum temperature limit;
however the installation instructions must still be followed
for any restrictions on placement of non-combustible
materials on or around the replace.
Example: The mantel above a replace in a room
that is 70 °F is allowed to reach but not exceed
187°F (70 °F+117 °F = 187 °F).

9
Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
Figure 3.4 Good Faith TV Guidelines
Good Faith Guidelines for TV Installa ons above a Typical Gas Fireplace
Item Minimum Dimensions
A 2.5 inches
B 2 inches minimum to 3 inches
maximum
C 18 inches
D Wall Brkt + TV Thickness + 2.5
inches
BB
A
Fireplace
TV
Mantel
A
C
Notes:
1. These are good faith recommended clearances only and not a guarantee of compliance with all TV
manufacturers’ maximum allowable opera ng temperatures.
2. Since every home has unique air ow characteris cs and maximum allowable opera ng temperatures
can vary from manufacturer to manufacturer and from model to model, actual TV temperatures should
be validated at the me of each installa on. TVs should not be used in situa ons where the actual TV
temperature exceeds the manufacturers’ maximum allowable opera ng temperatures iden ed in the
TV’s technical specica ons. Contact the TV’s manufacturer directly if you cannot locate this
informa on or have ques ons regarding the informa on.
3. Mantel height and depth must conform to mantle requirements specified in the replace installa on
manual.
4. “C” dimension taken from the top of the hood or fireplace opening.
5. Sugges ons on how to further reduce TV temperatures:
a. Increase “A” dimension.
b. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended
typically results in higher temperatures.
TV Wall
Bracket
D
Fireplace
C
TV on the wall TV recessed into the wall

10 Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
G. Outside Air Kit (Optional)
The outside air kit supplies some fresh combustion air
for your replace. It may help reduce the effects of nega-
tive air pressure.
• Refer to Figure 3.2 for location of control.
- Lift up on lever and pull forward to open outside air.
• Close the inlet to prevent cold drafts when the replace
is not being used.
CAUTION! Risk of Burns! The outside air control handle
is HOT when replace is in operation. Adjust BEFORE
lighting re.
F. Before Lighting Appliance
Before operating this replace for the rst time, it is rec-
ommended that a qualied service technician:
• Verify all shipping materials have been removed from
inside and/or underneath the rebox.
• Review proper placement of logs, ember material and/
or other decorative materials.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensure that the glass is sealed and in the proper position
and that the integral barrier is in place.
WARNING! Risk of Fire or Asphyxiation! DO NOT op-
erate replace with xed glass assembly removed.

11
Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20

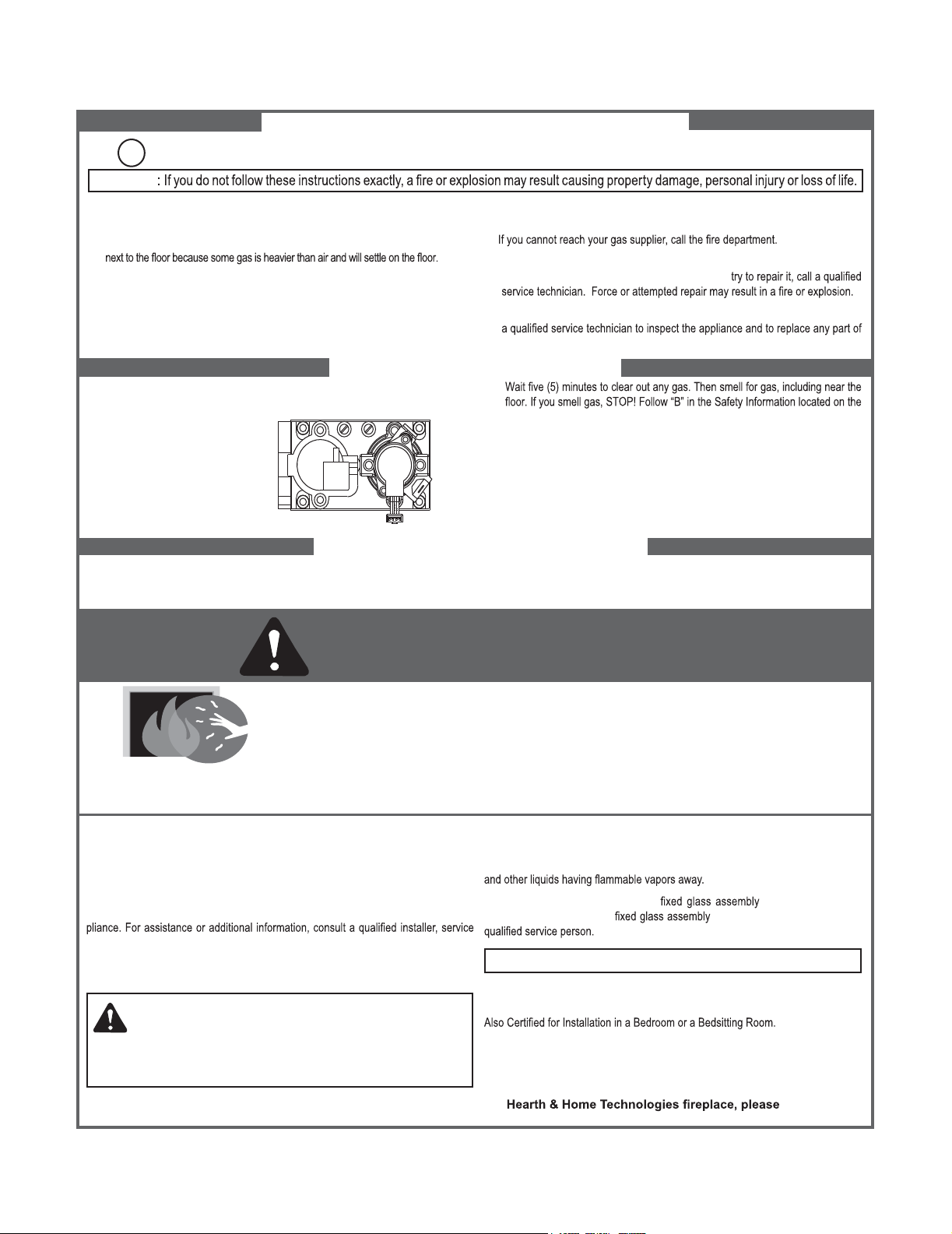

H. Lighting Instructions (IPI)
FOR YOUR SAFETY READ BEFORE LIGHTING
TO TURN OFF GAS TO APPLIANCE
1. This appliance is equipped with an ignition device which
automatically lights the burner. DO NOT try to light the burner by hand.
1. Equipped with wall switch: Turn ON/OFF switch to OFF.
Equipped with remote or wall control: Press OFF button.
Equipped with thermostat: Set temperature to lowest setting.
WARNING
WARNING:
NOT FOR USE WITH SOLID FUEL
GAS
VALVE
For additional information on operating your
refer to www.hearthnhome.com.
A. This appliance is equipped with an intermittent pilot ignition (IPI) device which
automatically lights the burner. DO NOT try to light the burner by hand.
B. BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell
WHAT TO DO IF YOU SMELL GAS
•DO NOT try to light any appliance.
•DO NOT touch any electric switch; do not use any phone in your building.
DO NOT CONNECT LINE VOLTAGE (110/120 VAC OR 220/240 VAC) TO THE CON-
TROL VALVE.
Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Refer to the owner’s information manual provided with this ap-
agency or the gas supplier.
This appliance needs fresh air for safe operation and must be installed so there are
provisions for adequate combustion and ventilation air.
Hot while in operation. DO NOT touch. Keep children, clothing, furniture, gasoline
DO NOT operate the appliance with removed, cracked or
broken. Replacement of the should be done by a licensed or
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas sup-
plier’s instructions.
•
C. Use only your hand to push in or turn the gas control knob. Never use tools. If
the knob will not push in or turn by hand, DO NOT
D. DO NOT use this appliance if any part has been under water. Immediately call
the control system and any gas control which has been under water.
For use with natural gas and propane. A conversion kit, as supplied by the manufac-
turer, shall be used to convert this appliance to the alternate fuel.
This appliance must be installed in accordance with local codes, if any; if none,
follow the National Fuel Gas Code, ANSIZ223.1/ NFPA 54, or the National Gas and
Propane Installation code, CSA B149.1.
LIGHTING INSTRUCTIONS (IPI)
2.
top of this label. If you do not smell gas, go to next step.
3. To light the burner:
Equipped with wall switch: Turn ON/OFF switch to ON.
Equipped with remote or wall control: Press ON or FLAME button.
Equipped with thermostat: Set temperature to desired setting.
4. If the appliance does not light after three tries, call your service technician or gas
supplier.
2. Service technician should turn off electric power to the control when performing
service.
DANGER
HOT GLASS WILL CAUSE BURNS.
DO NOT TOUCH GLASS UNTIL COOLED.
NEVER ALLOW CHILDREN TO TOUCH GLASS.
CAUTION:
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this
appliance and shall be installed for the protection of children and other at-risk individuals.
WARNING: This product and the fuels used to operate this
product (liquid propane or natural gas), and the products
of combustion of such fuels, can expose you to chemicals
including benzene, which is known to the State of California to cause
cancer and reproductive harm. For more information go to: www.
P65Warnings.ca.gov.
Keep burner and control compartment clean. See installation and operating instructions
accompanying appliance.

12 Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
I. Appliance Break-In
Follow the initial break-in procedure below to cure the
materials used to manufacture the replace and the
nishing materials around it.
• The fireplace should be run three to four hours
continuously on high.
• Turn the replace off and allow it to cool completely.
• Remove xed glass assembly. See Section 4.B.
• Clean xed glass assembly. See Section 4.B.
• Replace the xed glass assembly and run continuously
on high an additional 6-12 hours.
Note: Some IPI systems have a safety feature that
automatically shuts down the replace after 9 hours of
continuous operation without receiving a command from
the remote control. If this occurs, restart the appliance.
NOTICE! Open windows for air circulation during re-
place break-in.
• Some people may be sensitive to smoke and odors.
• Smoke detectors may activate.
Option 3:
The optional fan can be used in conjunction with awall
mounted switch. See Figure 8.3. To control fan speed a
BC10 (Blower Control Wall Switch) must be used:
• The power supply for the appliance must be brought into
a switch box.
• The power can then be supplied from the switch box to
the appliance using a minimum of 14-2 with ground wire.
• At the switch box connect the black (hot) wire and red
(switch leg) wire to the wall switch as shown.
• At the appliance connect the black (hot), white (neutral)
and green (ground) wires to the junction box as shown.
• Add a 1/4 inch insulated female connector to the red
(switch leg) wire, route it through the knockout in the face
of the junction box, and connect to the top fan switch
connector (1/4 inch male) as shown.
Optional Heat-Zone®-Gas Kit
The Heat-Zone®-Gas heat management option is avail-
able for use with the NBV-IFT appliances. The Heat-Zone
Kit draws heat from your replace to an adjacent room in
your home, up to 20 feet away.
Optional Heat-Out-Gas Kit
The Heat-Out-Gas heat management option is available
for use with the NBV-IFT appliances and must be used
in conjunction with the IFT-RC400 control. The Heat-
Out-Gas kit draws heat from your replace and directs it
outside, up to 25 feet away.
Optional Heat-Duct Kit
The Heat-Duct heat management option is available
for use with the NBV-IFT appliances. The Heat-Duct
redistributes heat from the replace via the furnace
ductwork.
An optional heat management system, which allows the
heat from the appliance to be redirected as desired, may
be installed with this appliance. It may be either a Heat-
Zone®-Gas, which diverts heat into an adjacent room,
and/or a HEAT-OUT-GAS which will divert heat outside
the home/building.
Refer to Section 6 of the appliance installation manual to
conrm which of the heat management systems may be
installed together. All heat management systems must be
installed by a qualied service technician at the time of
appliance installation.
Optional Heat Management Systems
J. Heat Management
Burn Rate
The NBV-IFT models have a variable burn rate which is
controlled by a remote control. Therefore the ame height
is adjustable with an optional RC400 remote control.
The ame height may be adjusted as desired by locating
the ame option on the remote control and adjusting up or
down to desired ame height.
K. Operation During A Power Outage
NBV-IFT appliances are not approved for use with battery
backup.
Optional Fan
A fan can be added to your appliance to push more
warmth into your space.
Option 1:
The optional fan can be used in conjunction with the
optional IFT-RC400 remote control. Fan speed is
controlled through the remote control only.
Option 2:
The optional fan can be used with the fan control module
that is included in the fan kit. Fan speed is controlled
through the control knob on the fan control module.
WARNING! Risk of Fire or Asphyxiation! Do
NOT operate this appliance with battery backup.
This appliance will not be protected by the high temp
limit switch if battery backup is installed.

13
Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
L. Detailed Component Operating
Instructions - IntelliFire Touch®
IFT-ECM Detailed Operating Instruction

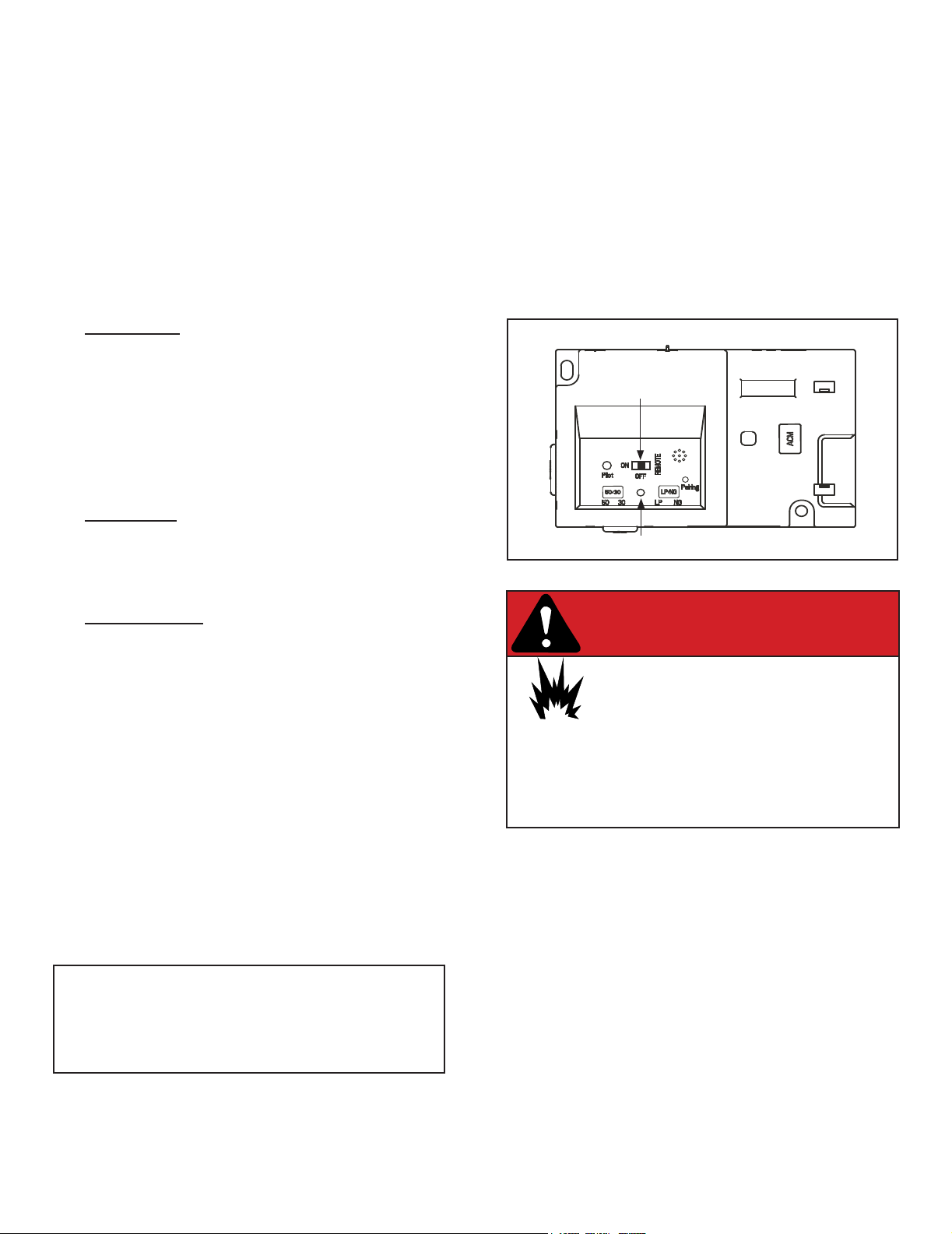

Figure 3.5 IFT-ECM
3 POSITION SWITCH
TOP VIEW
LED INDICATOR
DANGER
Risk of Explosion
DO NOT cycle the ON/OFF/REM selector
switch more than one time within a ve minute
period. Gas may accumulate in rebox. Call
a qualied service technician.
DANGER
Risk of Explosion
DO NOT cycle the ON/OFF/REM selector
switch more than one time within a ve minute
period. Gas may accumulate in rebox. Call
a qualied service technician.
4. An IFT-ECM reset is required if the module is in a
lock-out condition. When this occurs, the appliance
is shut down and the IFT-ECM status indicator LED
will be blinking a RED/GREEN error code along with a
one-time audible double- beep. If the IFT-ECM is in a
lock-out condition, refer to the troubleshooting chart to
interpret the error code and take corrective action as
required. To reset the IFT-ECM after a lock-out error:
CAUTION! Risk of burns! Appliance surfaces are hot
when operating and during cool down. Use care and
wear gloves when opening the front and accessing com-
ponents inside the appliance.
- Be aware the appliance may be HOT, use
care in accessing the IFT-ECM.
- Set the IFT-ECM 3-position selector switch to
OFF position.
1. The Electronic Control Module (IFT-ECM) has a
three-position ON/OFF/REMOTE selector switch
that must be set for proper operation. See Figure
3.5. When changing switch positions, it is important
to pause in each position for 1-2 seconds.
OFF Position:
The appliance will not respond to any commands
from a wired wall switch, IFT-RC150 or IFT-RC400
remote controls. The unit should be in the OFF
position during service, fuel conversion, and to
reset the IFT-ECM in the event the system goes
into a LOCK-OUT mode as the result of a system
error. When switched to the OFF position while the
appliance is operating, the system will shut down.
ON Position:
The appliance will ignite and run continuously at
the HI ame setting. No adjustment in ame height
is possible.
Remote Position:
The remote position allows operation of the
appliance from a wired wall switch, IFT-RC400 or
IFT-RC150 remote controls. The IFT-ECM switch
must be in this position to pair the IFT-ECM with the
IFT-ACM (if installed), and/or IFT-RC400 and IFT-
RC150 remote controls. See the IFT-RC400 or IFT-
RC150 installation manual for detailed instructions
on pairing the IFT-ECM with the remote controls.
After successfully pairing a IFT-RC400, all installed
accessories can be controlled by the IFT-RC400
(see IFT-RC400 user manual). The RC150 allows
the user to turn ON/OFF the ame in the appliance
and activate the Cold Climate mode if desired. The
IFT-ECM has a safety feature that will automatically
shut down the replace after 9 hours of continuous
operation without receiving a command from the
IFT-RC400 or IFT-RC150.
2. If multiple control options are installed, the IFT-ECM
will respond to the last command from the wired wall
switch, IFT-RC400 or IFT-RC150. The wired wall
switch is NOT available if a Power Vent is used.
The IFT-ECM has a safety feature that will
automatically shut down the replace after
9 hours of continuous operation in the ON
position, except when operated in active
thermostat mode.
3. The Pilot button on the IFT-ECM activates the Cold
Climate function of the replace. This function lights
the pilot ame ONLY to provide enough heat in the
rebox to reduce condensation in cool, high humidity
ambient conditions. To activate the Cold Climate
press and hold the Pilot button for one second and
release. The IFT-ECM will ash two green LED blinks,
beep twice and light and rectify the pilot ame when
pressed to activate. To turn off Cold Climate, press
and hold the Pilot button for one second and release.
The IFT-ECM will ash one green LED blink, beep once
and shut down the pilot ame. If remote controls are
paired with the IFT-ECM, this feature can also be
activated with the IFT-RC400 and/or IFT-RC150.
The IFT-RC400 and IFT-RC150 remotes are an option
for this model. The IntelliFire Wi-Fi module (IFT-WFM) is
also an option.

14 Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
- Wait ve (5) minutes to allow possible
accumulated gas to clear.
- Set the IFT-ECM 3-position selector switch to ON
or REMOTE position. Module will beep once and
ash a three GREEN LED code on successful
startup.
- If placed in ON position, the appliance will ignite
normally if the error condition was corrected.
- If placed in REMOTE position, use the paired IFT-
RC400, IFT-RC150 or wired wall switch to start
the appliance; appliance will ignite normally if the
error condition was corrected.
- If the IFT-ECM re-enters the lock-out condition
after these steps, call your dealer for service.
Appliance ON/OFF
A wall control is used to control the ON/OFF function
of the appliance. Follow instructions included with the
installed control.
Optional Fan Kit
If desired, a fan kit may be added. Contact your dealer
to order the correct fan kit. Heat management for the fan
is discussed in Section 3.J. Detailed instructions are in-
cluded with the fan kit.
Wi-Fi (Optional)
If desired, a Wi-Fi module (IFT-WFM) may be added to
allow the appliance to be run via an app. Contact your
dealer to order.

15
Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20

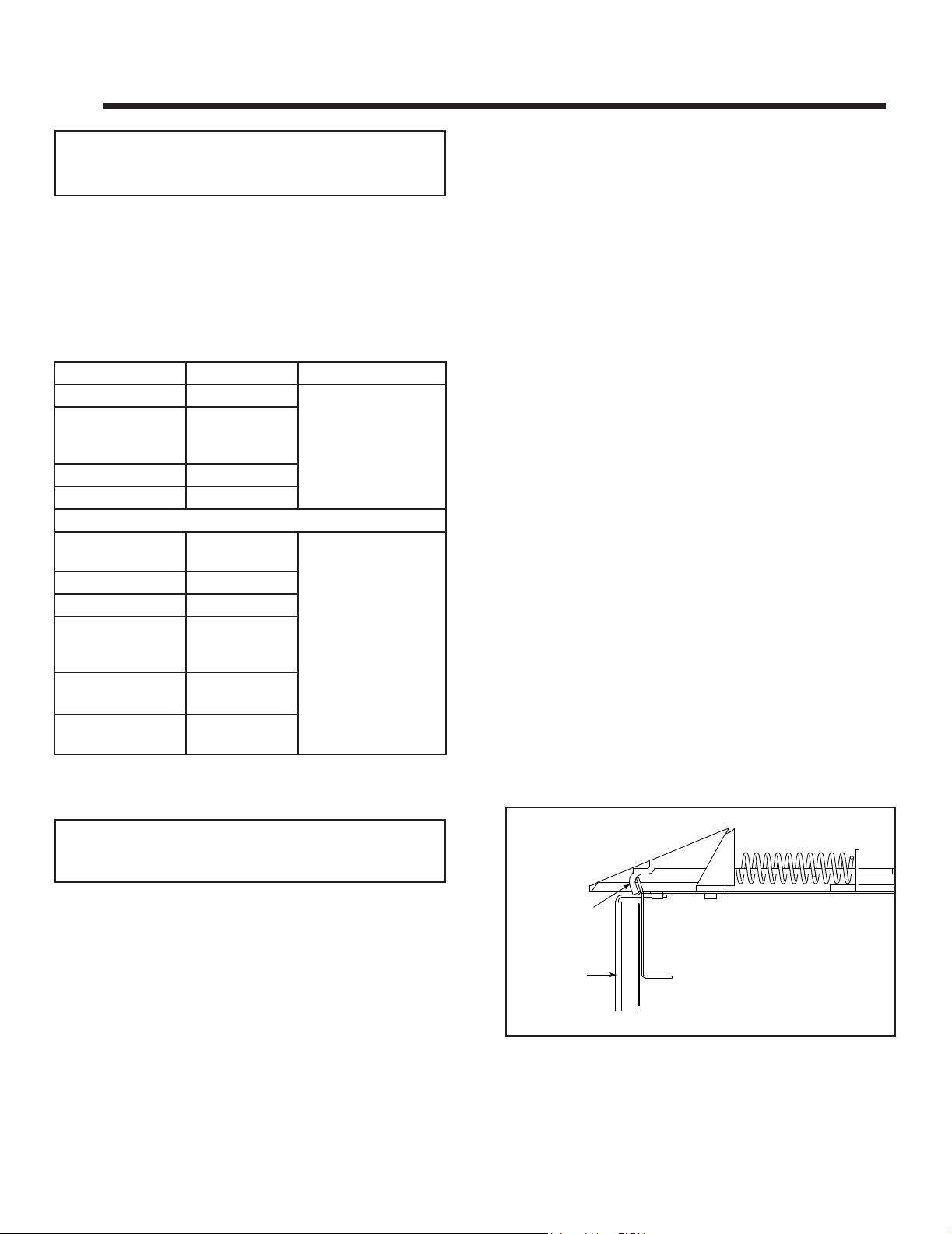

Latches
(both bottom
and top)
Glass
Assembly
Figure 4.1 Glass Assembly
Glass Cleaning
Frequency: Seasonally
By: Homeowner
Tools Needed: Protective gloves, gas replace glass
cleaner, drop cloth and a stable work surface.
CAUTION! Handle xed glass assembly with care.
Glass is breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• DO NOT clean glass while it is hot
•Prepare a work area large enough to accommodate xed
glass assembly and decorative barrier front by placing a
drop cloth on a at, stable surface.
Note: Fixed glass assembly and gasketing may have res-
idue that can stain carpeting or oor surfaces.
•Remove decorative barrier front (or decorative front) from
replace and set aside on work surface.
B. Maintenance Tasks - Homeowner
The following tasks may be performed annually by the
homeowner. If you are uncomfortable performing any of
the listed tasks, please call your dealer for a service ap-
pointment.
More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etc. It is imperative
that control compartments, burners and circulating air
passageways of the appliance be kept clean. Any safety
screen, guard, or barrier removed for servicing the appli-
ance must be replaced prior to operating the appliance.
CAUTION! Risk of Burns! The replace shall be turned
off and cooled before servicing.
When properly maintained, your replace will give you
many years of trouble-free service. Contact your dealer
to answer questions regarding proper operation, trouble-
shooting and service for your appliance. Visit www.heati-
laor.com to locate a dealer. We recommend annual ser-
vice by a qualied service technician.
IMPORTANT! Any safety screen, decorative barrier front
or guard removed for servicing must be replaced prior to
operating the replace.
Installation and repair should be done by a qualied service
technician only. The appliance should be inspected before
use and at least annually by a professional service person.
44 Maintenance and Service
Task Frequency To be completed by
Glass Cleaning Seasonally
Homeowner
Surrounds,
Decorative Barrier
Fronts
Annually
Remote Control Seasonally
Venting Seasonally
Gasket Seal and
Glass Inspection
Annually
Qualied Service
Technician
Log Inspection Annually
Firebox Inspection Annually
Control
Compartment &
rebox Top
Annually
Burner Ignition &
Operation
Annually
Electrical Service
and Repair As needed
A. Maintenance: Frequency and Tasks
WARNING! Risk of Asphyxiation! Handle xed glass
assembly with care. Inspect the gasket to ensure it is
undamaged and inspect the glass for cracks, chips or
scratches.
• DO NOT strike, slam or scratch glass.
• DO NOT operate replace with glass removed, cracked,
broken or scratched.
• Replace as a complete assembly.
• Pull the four (two upper and two lower) glass assembly
latches out of the groove on the glass frame. Refer to
Figure 4.1.
• Remove the glass assembly from the appliance.

16 Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
Decorative Barrier Fronts
Frequency: Annually
By: Homeowner
Tools needed: Protective gloves, stable work surface
• Assess condition of screen and replace as necessary.
• Inspect for scratches, dents or other damage and repair
as necessary.
•Check that air intake and discharge areas are not
blocked.
•Vacuum and dust surfaces.
Remote Control (Optional)
Frequency: Seasonally
By: Homeowner
Tools needed: Replacement batteries and remote con-
trol instructions.
• Locate remote control transmitter and receiver.
• Verify operation of remote. Refer to remote control
operation instructions for proper calibration and setup
procedure.
• Place batteries as needed in remote transmitters and
battery-powered receivers.
• Place remote control out of reach of children.
If not using your replace for an extended period of time
(summer months, vacations/trips, etc), to prevent unin-
tended operation:
• Remove batteries from remote controls.
• Unplug the 6 volt adapter plug.
• Clean glass with a non-abrasive, non-ammonia based,
commercially available gas replace glass cleaner.
- Light deposits: Use a soft cloth with soap and water
- Heavy deposits: Use commercial fireplace glass
cleaner (consult with your dealer)
• Carefully set xed glass assembly in place on replace.
Hold glass in place with one hand and secure all glass
latches with the other hand.
• Inspect and operate all glass latches to ensure they
move freely and no obstructions are present.
• Reinstall decorative barrier front.
Venting and Termination Cap
Frequency: Seasonally
By: Homeowner
Tools needed: Protective gloves and safety glasses.
• Inspect exposed venting and termination cap for block-
age or obstruction such as plants, bird nests, leaves,
snow, debris, etc.
• Verify termination cap clearance to subsequent construc-
tion (building additions, decks, fences, or sheds).
• Inspect for corrosion or separation.
• Verify caulking and sealing of vent components and
termination cap remains intact.
• Inspect draft shield to verify it is not damaged or missing.

17
Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
C. Maintenance Tasks - Qualied Service
Technician
The following tasks must be performed by a qualied ser-
vice technician.
Gasket Seal and Glass Assembly Inspection
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, drop cloth and a stable
work surface.
• Inspect gasket seal and its condition.
• Inspect xed glass assembly for scratches and nicks that
can lead to breakage when exposed to heat.
• Conrm there is no damage to glass or glass frame.
Replace as necessary.
• Verify that xed glass assembly is properly retained and
attachment components are intact and not damaged.
Replace as necessary.
Log Inspection
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves.
• Inspect for damaged or missing logs. Replace as neces-
sary. Refer to Installation manual for log placement instruc-
tions.
• Verify correct log placement and no ame impingement
causing sooting. Correct as necessary.
Firebox Inspection
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace replace if rebox has been perforated.
Control Compartment and Firebox Top
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, vacuum cleaner, dust
cloths
• Vacuum and wipe out dust, cobwebs, debris or pet hair.
Use caution when cleaning these areas. Screw tips that
have penetrated the sheet metal are sharp and should
be avoided.
• Remove all foreign objects.
• Verify unobstructed air circulation.
Figure 4.2 IPI Pilot Flame Pattern
Pilot and Burner Ignition and Operation
Frequency: Annually
By: Qualied Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk
broom, ashlight, voltmeter, indexed drill bit set, and a
manometer.
• Inspect orice for soot, dirt and corrosion. Verify orice
size is correct. See Service Parts List for proper orice
sizing.
• Verify air shutter setting is correct. See Installation
Manual for required air shutter setting. Verify air shutter
is clear of dust and debris.
• Verify burner is properly secured and aligned with pilot
or igniter.
• Clean off burner top, inspect for plugged ports, corrosion
or deterioration. Replace burner if necessary.
• Inspect IPI ame sensing rod for soot, corrosion and
deterioration. Polish with 320 grit Emery cloth and/or
3M™ Scotch-Brite Abrasive Hand Pad.
• Verify that there is not a short in ame sense circuit
by checking continuity between pilot hood and ame
sensing rod. Replace pilot as necessary.
• Verify manifold and inlet pressures. Adjust regulator as
required.
• Check all accessible gas-carrying tubes, connections,
pipes and other components for leaks.
• Inspect pilot ame pattern and strength. See Figure 4.2
for proper pilot ame pattern. Clean or replace orice
spud as necessary.
• Replace Glowing embers with new dime-size pieces.
DO NOT block ports or obstruct lighting paths. Refer
to appliance installation manual for proper ember
placement.
• Check for smooth lighting and ignition carryover to all
ports. Verify that there is no ignition delay. Inspect and
ensure the lighting of the main burner occurs within four
seconds of the main gas valve opening.
• Inspect for lifting or other ame problems.

18 Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
55 Frequently Asked Questions and Troubleshooting
A. Frequently Asked Questions
Contact your dealer for additional information regarding operation and troubleshooting. Visit www.heatilator.com to
locate a dealer.
ISSUE SOLUTIONS
Condensation on the glass
This is a result of gas combustion and temperature variations. Prior to appliance being turned
on, the inside of the glass has cooled below the dew point producing a byproduct of combus-
tion: water in the form of condensation. As the replace glass warms, the condensation will
disappear.
In the summer, the inside of your replace contains hot humid air from outdoors. When the air
from outdoors contacts glass cooled below the dew point by your air conditioning, moisture in
that air will condense.
Blue ames This is a result of normal operation and the ames will begin to yellow as the replace is
allowed to burn for 20 to 40 minutes.
Erratic ames Verify that the glass assembly is correctly installed and that all glass latches are engaged over
the tabs on the glass frame.
Odor from replace
When rst operated, this replace may release an odor for the rst several hours. This is caused
by the curing of the paint and the burning off of any oils remaining from manufacturing. Odor
may also be released from nishing materials and adhesives used around the replace. These
circumstances may require additional curing related to the installation environment.
Film on the glass
This is a normal result of the curing process of the paint and logs. Glass should be cleaned
within 3 to 4 hours of initial burning to remove deposits left by oils from the manufacturing pro-
cess. A non-abrasive cleaner such as gas replace glass cleaner may be necessary. Contact
your dealer.
Metallic noise
Noise is caused by metal expanding and contracting as it heats up and cools down, similar to
the sound produced by a furnace or heating duct. This noise does not affect the operation or
longevity of the replace.
Is it normal to see the pilot ame burn
continually?
In an intermittent pilot ignition system (IPI), the pilot ame should turn off when appliance is
turned off. Some optional control systems available with IPI models may allow pilot ame to
remain lit.
Power Outages
(battery backup)
NBV-IFT appliances are not approved for use with battery backup. Do NOT operate
this appliance with battery backup. This appliance will not be protected by the high
temp limit switch if battery backup is installed. Refer to Section 3 for more details.
Wall above appliance feels hot to
the touch.
No action necessary. This appliance ships with a non-combustible material attached. Speci-
cations of the attached non-combustible material are listed in the Installer’s Manual for this
appliance.

19
Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
B. Frequently Asked Questions - IntelliFire Touch Controls (Optional IFT-RC400)
Symptom Possible Cause Corrective Action
The appliance does not respond to
commands from the remote control
display does not light up when
screen is touched.
Batteries are depleted. Verify batteries are new.
Batteries are incorrectly
oriented.
Verify batteries are installed in correct orientation as shown on
batteries receptacle.
The display on remote lights up
when screen is touched but it does
not respond to commands.
Touchscreen has lost
calibration.
Touchscreen needs to be re-calibrated. Call dealer to have
screen re-calibrated.
Child Lock is ON.
Check child lock icon located at the top of the remote display. If
ON, it will show as a ‘locked’ symbol. To unlock, remove battery
compartment door, locate child lock switch and move to ‘unlock’
position. Verify child lock icon on screen is now displayed in ‘un-
lock’ position.
The remote displays the following
message on-screen:
No dealer info available
Dealer information not
programmed into remote.
Remote will still provide all available functions, and appliance is
fully available for use. Call dealer to have them program.
The remote displays the following
message on-screen:
Call “Dealer Name & Number” to
schedule maintenance.
300 hours of use. Appliance is
still fully functional.
The appliance has been burning for 300 hours and is due for a
regular maintenance. Call dealer to have them perform mainte-
nance.
The room temperature displayed
on the remote is either slow or
quick to respond while operating in
thermostat mode.
Remote is placed at a very
short distance or too far away
from the appliance.
Try to keep the remote close to the appliance but not directly in
front of it. The remote acts as the thermostat.
Remote is placed in the path of
an air draft or vent.
Move the remote away from the direct path of air ow. The re-
mote acts as the thermostat.
Flame Modulation
The control system is designed to automatically adjust the
ame intensity based on the difference between the desired
room temperature, and actual temperature. In thermostat
mode, the hearth appliance will start in HI ame, but as the
actual temperature approaches the desired set temperature on
the remote, the ame intensity will automatically decrease. Au-
tomatic ame modulation will result in more control of the tem-
perature, and will cause the appliance to cycle OFF/ON less.
The appliance turns OFF the ame
after extended periods of operation 9 hour safety shutdown timer
This is normal behavior. The appliance has a safety timer that
will automatically turn OFF the ame after nine hours of
uninterrupted operation.
The remote displays the following
message on-screen: Fan will turn
on within 3 minutes
Functioning as intended.
The appliance has a three minute delay timer before the fan is
turned ON. This allows the air surrounding the appliance to be
heated before being pushed into the room.
The remote displays the following
message on-screen:
“Replace remote batteries."
Low batteries in remote. Install new batteries in the remote.
The remote is displaying an
incorrect brand.
Remote was programmed
incorrectly.
Call dealer to have them program the remote with correct
branding. Remote is still fully functional and the appliance is
unaffected.
After turning ame ON using
remote, the ame does not turn
ON immediately and instead a two
minute timer is displayed.
Power vent is installed on the
appliance.
This is expected behavior and the two minute timer is called a
pre-purge timer. The ame will turn ON at the expiration of the
timer.
The remote displays the following
message on-screen:
“Remote Control Communication
Error.”
No power to appliance. Verify home circuit breaker is on and master reset is on (if
equipped).
The remote displays the following
message on -screen: Sorry your
appliance did not start. Try again
by pressing Flame On.
No power to appliance. No gas
to appliance. Accumulation
of air in gas line from extended
period of appliance inactivity.
Gas control system failure.
Verify that appliance has power and gas. Verify that the appli-
ance accepts ame ON commands with an audible beep, and
successfully turns ame on within 90 seconds. If this failure
persists, contact dealer for service.

20 Heatilator • NBV30-IFT, NBV33-IFT, NBV36-IFT, NBV42-IFT Owner’s Manual • 2624-981 Rev. C • 8/20
With proper installation, operation, and maintenance your gas appliance will provide years of trouble-free service. If you do
experience a problem, this troubleshooting guide will assist a qualied service technician in the diagnosis of a problem and
the corrective action to be taken. This troubleshooting guide can only be used by a qualied service technician. Contact
your dealer to arrange a service call by a qualied service technician.
C. Troubleshooting
IntelliFire Touch
Symptom Possible Cause Corrective Action
Pilot won’t light, module clicks but
no spark 90 sec, 3 Red/1 Green
Lock out.
Incorrect wiring. Verify ‘S’ (White) sense wire and ‘I’ (orange) ignitor wire are
connected to correct terminals on IFT-ECM.
Loose connections or electrical
shorts in wiring.
Verify no loose connections or electrical shorts in wiring from
module to pilot assembly. Verify wire insulation is not dam-
aged. Verify wires are not grounding out to chassis, pilot burn-
er, or any other metal object. Replace any damaged wires.
Ignitor gap is too large. Verify spark gap is approximately 0.095” (2.41 mm) to 0.135”
(3.43 mm).
Pilot won’t light, there is no noise
or spark.
No AC power, AC/DC adaptor
faulty, IFT-ECM slider switch
in OFF position.
Verify IFT-ECM slider switch is in ON or REM position. Verify
AC power available to junction box. Verify AC/DC adaptor is
plugged into junction box and ECM. Verify AC/DC adaptor out-
put voltage is between 5.7-6.3 Vdc.
Shorted or loose connection
in system wiring or wiring
harness.
Verify system wiring conguration. Remove and reinstall wir-
ing harness that plugs into module. Check continuity of wires
in valve wiring harness. Replace any damaged components.
Poor or no system ground. Verify black ground wire in valve harness is connected to metal
chassis of replace.
Pilot won’t light, there is no noise
or spark, 2 Red/1 Green Lockout. Pilot solenoid not detected.
Check if valve harness orange wire is connected to pilot so-
lenoid valve. Check pilot solenoid resistance, nominal is 40
ohms. If open or shorted, replace valve. Check valve harness
wire continuity, if open replace 6-pin harness.
Pilot won’t light, there is no noise
or spark, 2 Red/2 Green Lockout. Spark coil failure. Replace ECM.
ECM LED Error
Codes Description
3 Red: 1 Green IFT-RC400 error message: ‘Appliance Safely Disabled’, pilot sparks for 90 sec, no ame
rectication.
2 Red: 1 Green IFT-RC400 display: ‘Error Pilot Flame’, pilot valve solenoid not detected.
2 Red: 2 Green Sparking feedback signal error, spark coil failure.
5 Red: 1 Green IFT-RC400 display: ‘Error Power Vent’ (if installed).
Error Codes:
Troubleshooting:
See Troubleshooting matrix for more detail on Lock-out Error Codes, Possible Causes and Corrective Actions.
