Heatmaster HVF36-BB User manual

IM-147
.
CAREFULLY REVIEW THE INSTRUCTIONS SUPPLIED WITH THE
DECORATIVE TYPE UNVENTED ROOM HEATER FOR THE MINIMUM
FIREPLACE SIZE REQUIREMENTS.
DO NOT INSTALLAN APPLIANCE IN THIS FIREBOX UNLESS
THIS FIREBOX MEETS THE MINUMUM DIMENSIONS REQUIRED
FOR THE INSTALLATION.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE
VENT-FREE FIREBOX
MODEL: HVF36-BB & HVF42-BB
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
FOR USE ONLY WITH LISTED GAS-FIRED UNVENTED DECORA-
TIVE ROOM HEATER NOT TO EXCEED 40,000 BTU/HR.
DO NOT BUILD AWOOD FIRE.
WARNING: If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
10/2016

2
The design of this firebox has been tested and approved by the C.S.A. in accordance with ANSI Z21.91b-2007 UNVENTED
FIREBOX ENCLOSURES FOR GAS-FIRE UNVENTED DECORATIVE ROOM HEATERS. This firebox is UNIVERSALLY
LISTED for use with the compatibly sized decorative type unvented room heaters, which comply with standard Volume II
Z21.11.2 of the American National Standards Institute. This manual serves only as a basic guideline for installation of this
firebox and gas piping. The complete installation must be in accordance with local codes and ordinances or, in the absence
of local codes, with American National Standards Institute Fuel Gas Code Z223.1/NFPA 54.
This firebox may be installed at 0” clearance to combustibles at its bottom and top framing spacers. See installation
instructions for other clearances.
It is imperative that adequate clearances around air openings into and away from this firebox be maintained. To ensure
these clearances, do not place any object closer than 24 inches directly in front of the firebox. Do not block any openings in
the firebox.
See optional location in this manual for the many ways in which this unit could be located in the home. When the firebox is
installed directly on carpeting, tile, or other combustible material other than wood flooring, the firebox shall be installed on a
metal or wood panel extending the full width and depth of the enclosure.
IMPORTANT: Before beginning the installation, check with local building officials to assure compliance with local
regulations and codes, and to obtain any required permits.
A qualified installer or service agency must perform installation and service. All instructions should be read and understood
prior to installing the firebox. Protective wear such as safety glasses to protect eyes and work gloves should be worn during
the installation.
Heavy stone or brick facings and/or hearth extensions may require additional foundation support not located near a load-
bearing wall.
The unit may be installed at zero-clearance to the floor and top framing spacers. Warning: Do not notch framing or alter the
spacers. The back of the unit needs to have a 1” clearance from combustible material.
Check to see if the unit is square prior to securing. Secure the unit to framing using the built-in nailing flanges. The nailing
flanges have been designed to allow the application of ½” wallboard or plywood flush with the firebox face. Directly above
the unit, noncombustible wallboard should be used as specified in this instruction manual.
Do not fill the spaces around the firebox with insulation or other materials. The floor under the unit and the area above the
top framing spacers should be insulated. This will reduce cold air infiltration, reduce heat loss and increase the heating
efficiency of the product.
Provisions for adequate combustion and ventilation air must be provided for the decorative type unvented room heater to be
installed in this firebox. Refer to the instructions supplied with the decorative type unvented room heater.
SAFETY CODES AND STANDARDS
SELECTING A LOCATION FOR THE FIREBOX
INSTALLATION INFORMATION

3
ATTENTION INSTALLER:
1. Attach with fasteners the label that was supplied with the unvented fireplace insert to the inside of the solid-fuel burning
fireplace or listed unvented firebox enclosure into which the unvented fireplace insert is installed.
2. DO NOT cut any sheet metal parts of the solid-fuel burning fireplace or listed unvented firebox enclosure in which the
unvented fireplace insert is to be installed.
3. If the factory-built fireplace has no gas access hole(s) provided an access hole of 1.5 inch (37.5mm) diameter or less
may be drilled through the lower sides or bottom of the firebox in a proper workmanlike manner. This access hole
must be plugged with non-combustible insulation after the gas supply line has been installed.
4. The glass doors, screen rails, screen mesh and solid-fuel log grates can be removed from the fireplace before
installing the unvented fireplace insert.
5. If attached by fasteners the smoke shelves, shields and baffles may be removed.
6. The trim panels or surrounds shall not seal ventilation openings in the fireplace.
7. Make sure to leave adequate clearances for accessibility for purposes of servicing and proper operation.
8. Combustible flooring installation: When the vent free firebox is installed directly on carpeting, tile, or other combustible
material other than wood flooring, the vent free firebox shall be installed on a metal or wood panel extending the full
width and depth of the vent free firebox.
9. Solid fuels shall not be burned in a fireplace where an unvented room heater is installed.
FULL ROOM PROJECTION
ROOM DIVIDER
PARTIAL ROOM
PROJECTION
FLUSH
CORNER
OPTIONAL LOCATIONS FOR FIREBOX
Clearance to one perpendicular combustible side wall may be 8 inches minimum. The minimum distance between two per-
pendicular combustible side-walls for HVF36-BB 64 inches. The minimum distance between two perpendicular combus-
tible side-walls for HVF42-BB 70 inches. It is imperative that adequate clearances around air openings into and away from
this firebox be maintained. To ensure these clearances, do not place any object closer than 24 inches directly in front of
the firebox. Do not block any openings in the firebox.

4
CLEARANCES
COMBUSTIBLE SIDE WALL INSTALLATION COMBUSTIBLE SIDE WALL PLACEMENT
HVF36-BB FOR HVF36-BB & HVF42-BB
COMBUSTIBLE SIDE WALL INSTALLATION
HVF42-BB
GUIDELINE DIMENSIONS FOR CORNER APPLICATION
HVF36-BB
HVF42-BB

5
Fireplace Model #
Framing Dimensions HVF36BB HVF42BB
Framing dimension for Height 41 3/8” 41 3/8”
Framing dimension for width 38 1/4” 44 1/4”
Framing dimension for Depth 24 3/4” 24”
Fireplace Model #
Inner Dimensions HVF36BB HVF42BB
Height of rear wall 22” 22 1/2”
Width of front opening 29 1/2” 35 1/2”
Width of rear wall 25” 25”
Depth 18 1/2” 18 1/4”
HVF36-BB
HVF42-BB
FIREBOX & FRAMING DIMENSIONS

6
MANTELS, SURROUNDS & TRIM INSTALLATION
WITHOUT HOOD WITH HOOD
Note: The stated installation clearances provide the safest distance for combustible materials to ensure that walls, ceil-
ings, and mantle components will not be affected by heat discoloration, warping, or possible fire. Each appliance installa-
tion presents a different set of variables which can create problems beyond the control of the gas log manufacturer. It is
the responsibility of the installer to stay within the minimum clearances stated and set forth by the manufacturer within this
instruction manual.
The firebox is shipped with a 2 ¾” hood. Loosen screws and slide the hood into place and tighten screws to hold hood.
Heatmaster, LLC. has an optional 4” hood to replace the standard 2 ¾” hood. Contact your local dealer for details.
NOTE: The hood provided with this firebox must not be modified or replaced with another hood or canopy that is not sup-
plied or approved by HM/AGL, LLC.
The firebox may be finished in an infinite number of ways from rustic to contemporary using marble, stone, wood, brick,
tile or various other natural or man-made materials.
CAUTION: THE BLACK PAINTED FACE OF THE FIREBOX (EXCLUDING NAIL FLANGES) MUST NOT BE
COVERED WITH COMBUSTIBLE MATERIALS. SOME MAN-MADE BRICKS OR STONES MAY
CONTAIN COMBUSTIBLE MATERIAL.
All noncombustible materials, which overlap the black painted face, must be sealed to the firebox face with a high quality
heat-resistant caulk adhesive or sealant. The edges should also be sealed to act as a fire-stop.
This firebox is a universally listed Ventless Firebox Enclosure. For mantel clearances and noncombustible material re-
quirements when installing a decorative type unvented room heater, see below. The dimensions noted with “min” are the
minimum dimensions that are allowed. Failure to meet the clearance requirements will void your warranty and may result
in a fire hazard.
The firebox is shipped with a 2 ¾” hood. Loosen screws and slide the hood into place and tighten screws to hold hood.
Heatmaster, LLC. has an optional 4” hood to replace the standard 2 ¾” hood. Contact your local dealer for details.
NOTE: The hood provided with this firebox must not be modified or replaced with another hood or canopy that is not sup-
plied or approved by HM/AGL, LLC.
HVF36-BB & HVF42-BB
Mantel Clearance and Noncombustible Material

7
GAS PIPING AND GAS PRESSURE REQUIREMENTS
HVF36-BB & HVF42-BB
All gas piping must be installed to comply with local codes or, in the absence of local codes, with the latest edition of the
National Fuel Gas Code ANSI 223.1/NFPA 54.
Unions in gas lines shall be of the ground joint type. Compounds used on threaded joints of gas piping must be resistant
to the action of liquefied petroleum gas.
Gas piping must be of sufficient size to provide a minimum natural gas pressure at the appliance of 7” water column or
11” for LP gases. The maximum inlet pressure to the unit must not exceed 10” for natural gas and 13” for LP gases. Mani-
fold pressure for natural gas is 4”WC and 10”WC for LP gas. If this unit is to be supplied with LP gas (bottled propane) the
tank or bottle supplying the gas must have a regulator that reduces the gas pressure to between 11 and 13 inches water
column. The control will not operate with gas line pressure directly from the tank and may leak gas due to this excessive
pressure.
DANGER: OPERATION OF THIS UNIT ON LP GAS WITHOUT AN APPROVED REGULATOR AT THE SUPPLY CON-
TAINER WILL LEAD TO GAS LEAKS AT THE CONTROL WITH POSSIBLE FIRE OR EXPLOSION.
Include a manual shutoff valve and union in the line so the control or heater may be disconnected for servicing. Include a
drip leg and a plugged 1/8-inch N.P.T. tapping in the line also. The tapping must be accessible for test gauge connection
immediately upstream of the gas supply connection to the unit.
Use a soap-water solution or a liquid gas leak detector to coat each joint in the piping system and look for bubbles, which
indicate gas leaks. Repair all gas leaks.
CAUTION: THE LOG SET AND ITS INDIVIDUAL SHUTOFF VALVE MUST BE DISCONNECTED FROM THE GAS SUP-
PLY PIPING SYSTEM DURING PRESSURE TESTING OF THAT SYSTEM AT TEST PRESSURES IN EXCESS OF 1/2
PSIG. THE UNIT MUST BE ISOLATED FROM THE GAS SUPPLY PIPING SYSTEM BY CLOSING ITS INDIVIDUAL
MANUAL SHUTOFF VALVE DURING ANY PRESSURE TESTING OF THE GAS SUPPLY PIPING SYSTEM AT TEST
PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG. PRESSURES IN EXCESS OF 1/2 PSIG WILL CAUSE DAMAGE
TO THE CONTROL VALVE AND MAY CAUSE DAMAGE TO THE SHUTOFF VALVE.
DANGER: DO NOT USE CANDLES, MATCHES OR OTHER IGNITION SOURCES WHEN CHECKING FOR LEAKS.
FUEL GASES ARE VERY FLAMMABLE AND, IN CERTAIN CONCENTRATIONS, EXPLOSIVE. CHECKING FOR LEAKS
WITH AN OPEN FLAME MAY LEAD TO FIRE OR EXPLOSION.
Fireplace screens need to be closed before operation of this unvented decorative room heater.
This firebox has no chimney; therefore, DO NOT burn anything such as household refuse, paper, firewood, or manufac-
tured composition logs. Burning anything in this firebox other than properly plumbed LP or Natural gas connected to a
decorative type unvented room heater is strictly prohibited. Doing so will cause an immediate hazard and void any and all
warranties associated with this product.
IMPORTANT: SAFETY

8
KEY NO. PART DESCRIPTION PART NUMBER
FOR 36 UNIT
PART NUMBER
FOR 42 UNIT
QTY
1OUTER CAP HFB36-02-08 HVF42-02-08 1
2FRONT TOP PLATE HVFBB36-02-17 HVFBB42-02-17 1
3SCREEN 11-1409 11-1409 2
4SIDE BRICK PANEL H-FBSPBB H-FBSPBB 2
5FAN ACCESS PLATE HVFBB-02-14 HVFBB-02-14 1
6BACK BRICK PANEL H-FBBPBB H-FBBPBB 1
7SPRING 02-1047 02-1047 2
8FRONT SIDE LEFT HVFBB-02-07L HVFBB-02-07L 1
8 FRONT SIDE RIGHT HVFBB-02-07R HVFBB-02-07R 1
9FRONT BOTTOM PLATE HVFBB36-02-18 HVFBB42-02-18 1
10 FRONT BOTTOM HVFBB36-02-14 HVFBB42-02-18 1
11 OUTER CAP BRACE HVFBB-02-18 HVFBB-02-18 3
12 COVER PLATE HFB-02-13 HFB-02-13 1
13 THERMODISC 11-1395 11-1395 1
HOOD (NOT SHOWN) HVFBB36-02-25 HVFBB42-02-25 1
HOOD (NOT SHOWN) Optional 4” HVFBB36-02-27 HVFBB42-02-27 1
ORDERING PARTS
Replacement parts for your firebox can be obtained from your local dealer. Should you need additional information beyond
what your dealer can furnish contact; Heatmaster, LLC./American Gas Log, LLC. Angier, N.C. 27501 [phone].
WHEN ORDERING PARTS, SPECIFY:
1. Firebox model number.
2. Component model number (if known).
3. Part number and key number.
4. Part name and quantity.
THERMODISC IS LOCATED
INSIDE FIREBOX
HVF36-BB & HVF42-BB

9
INSIDE FIREBOX
OPTIONAL ACCESSORIES:

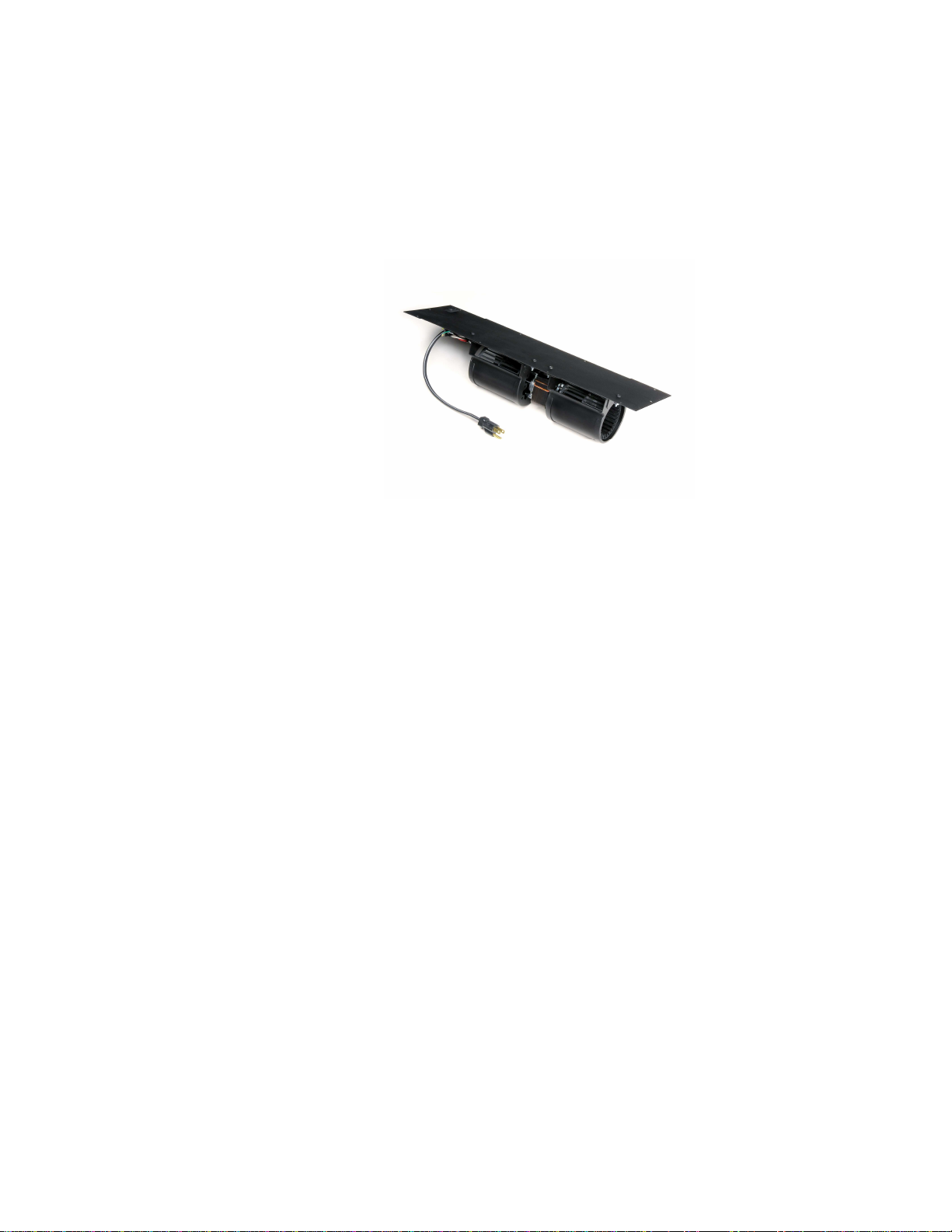

HEATMASTER, LLC/AMERICAN GAS LOG, LLC.. HFB-B BLOWER KIT IS AVAILABLE FOR USE WITH THIS FIREBOX. INSTALLATION IN-
STRUCTIONS ARE PROVIDED WITH EACH HFB-B BLOWER KIT. DO NOT USE ANY OTHER BLOWER KIT WITH THIS FIREBOX. THE LO-
CATION OF THE COVER PLATE (ITEM 5) ON THE FIREBOX’S HEARTH MUST BE REMOVED TO INSTALL THE BLOWER. SAVE THE
SCREWS THAT WAS USED TO SECURE THE COVER PLATE AND USE THEM TO INSTALL THE BLOWER. THE BLOWER SHOULD BE
INSTALLED DURING INSTALLATION OF THE FIREBOX. IT IS POSSIBLE FOR THE BLOWER TO BE INSTALLED AFTER THE FIREBOX
HAS BEEN INSTALLED. THE FIREBOX’S JUNCTION BOX MUST BE CONNECTED TO A 120 VAC, 10 AMP MINIMUM, 60 HZ ELECTRICAL
CIRCUIT AND ELECTRICALLY GROUNDED IN ACCORDANCE WITH LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE NA-
TIONAL ELECTRICAL CODE, ANSI/NFPA 70. THE JUNCTION BOX WIRING CONNECTIONS MUST BE DONE BEFORE THE FRAMED
WALLS ARE COVERED WITH FINISHING MATERIAL.
Model # HFB-BB
HEATMASTER, LLC/AMERICAN GAS LOG, LLC
LIMITED WARRANTY
All refractory cement logs manufactured by Heatmaster, LLC/American Gas Log, LLC. have a lifetime warranty against breakage due to heat to the
original owner in the original installation.
All other logs supplied from Heatmaster, LLC/American Gas Log, LLC. have a 2 year warranty against breakage due to heat to the original owner in the
original installation.
All metal parts, including burners and grate assemblies, are warranted for 5 years.
All other mechanical parts are warranted for 1 year.
LIMITATIONS
1. Heatmaster, LLC/American Gas Log, LLC. ’s obligations to the purchaser under this warranty are limited to the repair or replacement of
defective part.
2. Repairs or replacement will be performed by Heatmaster, LLC/American Gas Log, LLC. following delivery of the product by the purchaser to
Heatmaster, LLC/American Gas Log, LLC. ’s facility in Angier, North Carolina. The cost of mailing or other delivery to
Heatmaster, LLC/American Gas Log, LLC. shall be borne by the purchaser. The mailing address is: Heatmaster, LLC/American Gas Log, LLC.,
3625 Benson Rd., Angier, NC 27501.
3. Along with the product, the purchaser shall include a written explanation of the approximate date the product was purchased, the dealer or person
from whom the product was purchased, the date the defect was first noticed, a description of the nature of the defect, and what the purchaser did, if
anything, to repair or correct the defect.
4. To the extent allowed by law, any implied warranty of merchantability of fitness applicable to this product is limited to the duration of this
warranty. Heatmaster, LLC/American Gas Log, LLC. . shall not be liable for loss of use of this product, loss of time, inconvenience,
commercial loss or consequential damages. The remedy of repair or replacement of a defective part during the warranty period herein specified
shall be the purchasers exclusive remedy.
5. Heatmaster, LLC/American Gas Log, LLC. is not responsible for any loss or damages caused by purchaser’s failure to follow operating &
maintenance instructions provided in owners manual.
Dear Purchaser:
We are pleased that you have selected our product and take this opportunity to assure you that qualified service is available if required.
Who gets the warranty? The warranty is limited to the consumer who originally purchased the product.
What is covered? This limited warranty covers all imperfections in workmanship and material.
What is not covered? This limited warranty does not cover damage resulting from accident, misuse or abuse, lack of proper maintenance,
affixing of any attachments not provided with the products, or loss of parts. IN NO EVENT SHALL HEATMASTER, LLC.
BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM MISUSE
OR MODIFICATION OF THIS PRODUCT.
DEFECTIVE PARTS OR BROKEN LOGS FOR REPLACEMENT MUST BE RETURNED TO THE FACTORY PREPAID ALONG WITH PROOF
OF PURCHASE. FACTORY WILL REPAIR OR REPLACE AT FACTORY OPTION AND RETURN TO PURCHASER FREIGHT PREPAID.
