Heatmiser Slimline Series User manual

Model: Slimline-E V3

1Slimline Series
Model: Slimline-E V3

Table of Contents

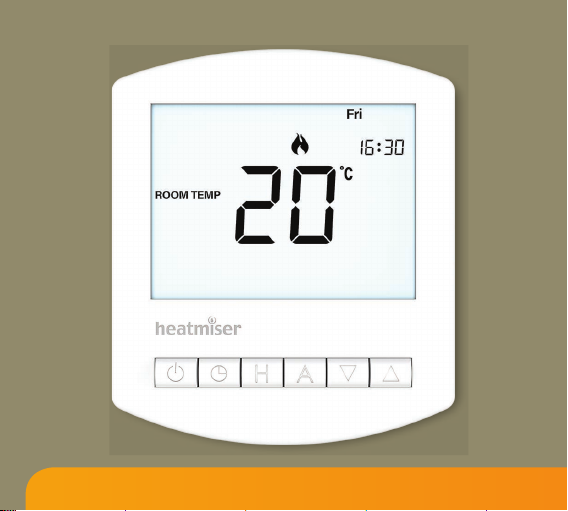

Product Image
Table of Contents
What is a Programmable
Room Thermostat?
Installation Procedure
Mode Select/Factory Reset
Mode 1 - Thermostat
LCD Display
Setting the Clock
Temperature Display
Comfort Levels
Locking the Thermostat
Temperature Control
Temperature Hold
Holiday
Frost Protection
Heating On/O
Option Features Explained
Adjusting the Optional Features
Optional Features - Table
Re-calibrating
the Thermostat
Error Codes
Mode 2 - Time Clock
LCD Display
Setting the Clock
Locking the Time Clock
Setting the Switching Times
Countdown Mode
Timer Override
Holiday
Optional Features Explained
Optional Features - Table
Adjusting the Optional Features
Wiring Diagrams
1
2
3-4
5-6
7
8
9-10
11
12
13-14
15
16
17
18
19
20
21-22
23
24
25
26
27
28-29
30
31
32
33
34
35
36
37
37
38
Model: Slimline-E V3 2

What is a Programmable Room Thermostat?
A programmable room thermostat is both a programmer and a room thermostat.
The programmer allows you to set “On” and “O” periods to suit your own lifestyle.
The room thermostat works by sensing the air temperature, switching on the heating
when the air temperature falls below the thermostat setting, and switching it o once this
set temperature has been reached.
So a programmable room thermostat lets you choose what times you want the heating
to be on, and what temperature it should reach while it is on. It will allow you to select
dierent temperatures in your home at dierent times of the day (and days of the week)
to meet your particular needs and preferences.
Setting a programmable room thermostat to a higher temperature will not make the
room heat up any faster. How quickly the room heats up depends on the design & size of
the heating system.
Similarly reducing the temperature setting does not aect how quickly the room cools
down. Setting a programmable room thermostat to a lower temperature will result in the
room being controlled at a lower temperature, and saves energy.
The way to set and use your programmable room thermostat is to nd the lowest
temperature settings that you are comfortable with at the dierent times you have
chosen, and then leave it alone to do its job.
3Slimline Series

The best way to do this is to set the room thermostat to a low temperature
– say 18°C , and then turn it up by 1°C each day until you are comfortable with the
temperature. You won’t have to adjust the thermostat further. Any adjustment above
this setting will waste energy and cost you more money.
If your heating system is a boiler with radiators, there will usually be only one
programmable room thermostat to control the whole house. But you can have
dierent temperatures in individual rooms by installing thermostatic radiator valves
(TRVs) on individual radiators.
If you don’t have TRVs, you should choose a temperature that is reasonable for the
whole house. If you do have TRVs, you can choose a slightly higher setting to make
sure that even the coldest room is comfortable, then prevent any overheating in other
rooms by adjusting the TRVs.
You are able to temporarily adjust the heating program by overriding or using the
temperature hold feature. These features are explained further on pages 16 and 17 of
this manual.
Programmable room thermostats need a free ow of air to sense the temperature,
so they must not be covered by curtains or blocked by furniture. Nearby electric
res, televisions, wall or table lamps may also prevent the thermostat from working
properly.
Model: Slimline-E V3 4

Installation Procedure
This Slimline Series thermostat is designed to be ush mounted and requires a back
box of 35mm (minimum depth) to be sunk into the wall prior to installation.

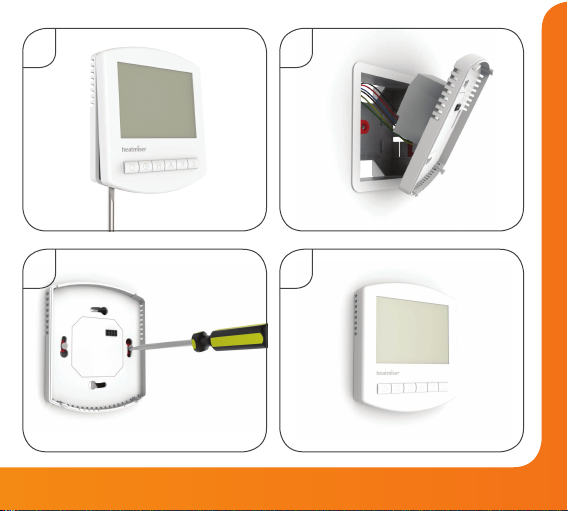

Step 1
Carefully separate the front half of the thermostat from the back plate by placing a
small at head terminal driver into the slots on the bottom face of the thermostat.
Step 2
Place the thermostat front somewhere safe.
Terminate the thermostat as shown in the diagrams on pages 39 of this booklet.
Step 3
Screw the thermostat back plate securely into the back box.
Step 4
Clip the front of the thermostat back onto the thermostat back plate.
Do
Mount the thermostat at eye level.
Read the instructions fully so you get the best from our product.
Don’t
Do not install near to a direct heat source as this will aect functionality.
Do not push hard on the LCD screen as this may cause irreparable damage.
5Slimline Series

1 2
3 4
Model: Slimline-E V3 6

Mode Select/Factory Reset
Slimline can either be used as a thermostat or a time clock. Thermostat mode
is the default setting.
To change between thermostat & time clock modes, follow these steps.
• Hold down the ‘Power’ button to turn o the display...............................................
• Press and hold the Power and Up keys together until the LCD powers up.
All of the icons will be displayed on screen momentarily.......................................
The device will factory reset then provide 2 selectable mode options.
• Tap the Up/Down keys to select the desired mode ..................................................
Mode 01 = Programmable Thermostat
Mode 02 = Time Clock
• Press A to conrm settings..................................................................................................
• Tap the‘Power’ button to turn the display on..............................................................
Mode Indication
7Slimline Series

Mode 1 - Thermostat
Model: Slimline-E V3 8

1 2 3 4 5 13
6 7 8 9 10 11
12
9Slimline Series

1. Room/Floor Temp - Indicates the current temperature sensor mode.
2. Day Indicator - Displays the current day.
3. Frost Icon - Displayed when the thermostat is in frost protection mode.
4. Flame Icon - Displayed when the thermostat is calling for heat, the ame icon
will ash when the optimum start function is in operation.
5. Floor Temp Limit Icon - Displayed when the oor sensor probe has reached the
temperature limit set on feature 07.
6. Set - Indicates when changes are being made to programs or temperature set
points.
7. Holiday Indicator - Displayed when the thermostat is in holiday mode.
8. Current Temp - Indicates the current sensor temperature.
9. Program Cycle Indicator - Displayed during programming only to show which
period is being altered.
10. Keypad Lock Indicator - Displayed when the keypad is locked.
11. Units of Temperature - Degrees Celsius or Fahrenheit.
12. Clock - Digital clock display in 24h format.
13. Temperature Hold - When a Temp Hold is active, HOLD FOR and the remaining
time period is displayed.
LCD Display
Model: Slimline-E V3 10

Setting the Clock (Programmable Mode)
To set the clock, follow these steps.
• With the thermostat turned ON, press the Clock key twice ................................
• Use the Up/Down keys to set the hours .............................................................
• Press H to conrm settings ...............................................................................................
• Use the Up/Down keys to set the minutes ........................................................
• Press H to conrm settings ..............................................................................................
• Use the Up/Down keys to set the day of the week .........................................
• Press A to conrm settings and return to main display .........................................
Note: When ‘Feature 11’ is set to ‘Manual
Mode’ the clock button does not respond.
Day
Minutes
Hours
11 Slimline Series

Room Temperature Floor Temperature
Temperature Display
This thermostat can be setup to use an air sensor, oor sensor or both.
The display will clearly show which sensor is being controlled by showing either:
Note: Built in air sensor only MUST NOT be used to control electric underoor heating.
Floor sensor only or built in air & oor sensor together must be used.
Whenthe thermostat is set to use both sensors, the room temperature will be displayed.
To view the oor temperature, press and hold the key until the Floor Temp is
displayed on screen.
Model: Slimline-E V3 12

Comfort Levels Explained
(Programmable Mode)
The thermostat oers the following program mode options;
5/2 Day Programming – 4 levels for the weekdays and 4 dierent levels for the weekend.
7 Day Programming – 4 levels, dierent for each day.
24 hour Programming - 4 levels for all days.
Consult the ‘Optional Features’ section to select the required mode.
• To program comfort levels, press Clock once ..............................................................
For 7 Day programming,
only Mon is displayed
in the day indicator eld.
For Weekday/Weekend programming,
Mon Tue Wed Thu Fri
are displayed on screen.
For 24 hour programming, all days are displayed.
13 Slimline Series

• Use the Up/Down keys to enter the required WAKE time ......................
• Press H to conrm settings .........................................................................................
• Use the Up/Down keys to enter the required WAKE temperature .......
• Press H to conrm settings .........................................................................................
• You will now see “LEAVE”displayed on screen.
• Repeat the programming steps for each period until complete.
• For unused periods enter --.-- and the thermostat will ignore the setting.
• Press A to conrm settings and return to main display ....................................
Note: In 7 Day programming mode you can repeat for each day independently.
In Weekday/Weekend programming mode you will see Sat Sun displayed on
screen and can repeat for the weekend. To change the programming mode
please refer to pages 23-24.
Model: Slimline-E V3 14

Locking the Thermostat
The thermostat has a keypad lock facility. To activate the lock follow these steps.
• Press and hold the A and Down keys together for 10 seconds .........
• You will see the lock symbol appear on screen .............................................
• To unlock, repeat the steps above until the lock symbol disappears.
Note: The keypad lock indicator is only displayed when the lock is active.
Keypad Lock Indicator
15 Slimline Series

Temperature Control
The Up/Down keys allow you to adjust the set temperature .......................
When you press either key, you will see the word SET and the desired
temperature will be displayed on screen.
Use the Up/Down keys to adjust the SET value .................................................
Press A to conrm settings and return to main display .............................................
Set Temperature
Set Icon
Note: In programmable mode, this new temperature is maintained only until the next
programmed comfort level.
In non-programmable mode, this temperature will be constantly maintained.
Model: Slimline-E V3 16

Temperature Hold
The temperature hold function allows you to manually override the current operating
program and set a dierent temperature for a desired period.
• Press H to commence temperature hold ..................................................................
• Use the Up/Down keys to enter the required Hold time.............................
• Press H to conrm settings .............................................................................................
• Use the Up/Down keys to enter the required Hold temperature.............
• Press A to conrm settings and return to main display .......................................
You will see the‘Hold For’ indication is displayed on screen.
The time will countdown the set duration and then revert to the normal program.
To cancel temperature hold, follow the same steps but reduce the Hold time to 00:00 hours.
Hold For Indicator
Hold Time Remaining
17 Slimline Series

Holiday Days Holiday
ON Indicator
Note: A holiday period does not start until 00:00 the next day. For example, if you set
a holiday period on Friday for 2 days, Saturday will be counted as the rst day and the
thermostat will revert back to the programmed schedule at 00:00 on Monday.
The holiday function reduces the set temperature in your home to the frost protection
temperature setting (see page 19).
The thermostat will maintain this temperature for the duration of the holiday and will
then automatically return to the program mode on your return.
• Press H three times (until you see the suitcase on screen) ................................
• Use the Up/Down keys to enter the number of days holiday ..................
• Press A to conrm settings and return to main display ......................................
The display will show a suitcase indicating the thermostat is in holiday mode.
Holiday
To cancel, follow the same steps but reduce the Holiday duration to 00 days.
Model: Slimline-E V3 18

Pressing the Power button once will place the thermostat in frost protect mode. In
this mode, the thermostat will display the frost icon and will only turn the heating
on should the room temperature drop below the set frost temperature. Should the
heating be turned on whilst in frost mode, the ame icon will be displayed. To cancel
the frost protect mode, press the Power button once again.
Frost Protection Mode Enabled
Frost set temperature range is
from 7 to 17ºC (12ºC factory default)
Note: If the display is turned o, the
frost symbol will appear to represent heat
demand in place of the ame symbol.
Frost Protection
19 Slimline Series
