What is a Programmable Room Thermostat?
A programmable room thermostat is both a programmer and a room thermostat.
A programmer allows you to set “On” and “Off” periods to suit your own lifestyle.
A room thermostat works by sensing the air temperature, switching on the heating when
the air temperature falls below the thermostat setting, and switching it off once this set
temperature has been reached.
So a programmable room thermostat lets you choose what times you want the heating
to be on, and what temperature it should reach while it is on. It will allow you to select
different temperatures in your home at different times of the day (and days of the week)
to meet your particular needs and preferences.
Setting a programmable room thermostat to a higher temperature will not make the
room heat up any faster. How quickly the room heats up depends on the design and size
of the heating system.
Similarly reducing the temperature setting does not affect how quickly the room cools
down. Setting a programmable room thermostat to a lower temperature will result in the
room being controlled at a lower temperature, and saves energy.

Section Header
4
Model: edge
The way to set and use your programmable room thermostat is to find the lowest
temperature settings that you are comfortable with at the different times you have
chosen, and then leave it alone to do its job.
The best way to do this is to set the room thermostat to a low temperature
– say 18°C , and then turn it up by 1°C each day until you are comfortable with the
temperature. You won’t have to adjust the thermostat further. Any adjustment above
this setting will waste energy and cost you more money.
You are able to temporarily adjust the heating program by overriding or using the
temperature hold feature. These features are explained further on pages 20 and 21
of this manual.
Programmable room thermostats need a free flow of air to sense the temperature,
so they must not be covered by curtains or blocked by furniture. Nearby electric
fires, televisions, wall or table lamps may also prevent the thermostat from working
properly.

5
Section Header
Installation Procedure
This thermostat is designed to be flush mounted and requires a back box of 35mm
(minimum depth) to be sunk into the wall prior to installation.
Step 1
Using a small screwdriver, slightly loosen the screw from the bottom face of the
thermostat. You can then carefully separate the front half from the back plate.
Step 2
Place the edge LCD front plate somewhere safe.
Terminate the edge as shown in the diagrams on page 31-34 of this booklet.
Step 3
Screw the edge back plate securely into the back box.
Step 4
Replace the front of the thermostat onto the back plate, by locating the pins in the
socket then insert the top edge first. Now push in the bottom edge, securing it in
place with the retaining screw.
Do
Mount the edge at eye level.
Read the instructions fully so you get the best from our product.
Don’t
Do not install near to a direct heat source as this will affect functionality.
Do not push hard on the LCD screen as this may cause irreparable damage.

Section Header
6
Model: edge
1 2
3 4

7
Section Header
Edge can either be used as a thermostat or a time clock. Thermostat mode
is the default setting.
To change between thermostat & time clock modes, follow these steps.
• Use the ‘Left/Right’ arrow keys to highlight then press and hold the
button for 3 seconds ..................................................................................................
At this point the screen will go blank showing only ‘SETUP’ and ‘CLOCK’.
• Tap either of the ‘Up’ or ‘Down’ arrow keys to highlight ‘SETUP’, then hold
the key for 10 seconds ................................................................................................
The edge will factory reset then provide 2 selectable mode options.
• Use the Left / Right keys to scroll between modes ...............................................
Mode 1 = Thermostat
Mode 2 = Time Clock
Note: the selected option will flash.
• Press the key to confirm selection ........................................................................
The edge will reset all parameters and restart in the selected mode.
Note: The Mode Select function will reset all parameters (Wireless Air Sensors
and Window/Door Contacts excluded) that were entered during the set-up
operations. These processes must be repeated after the restart has completed.
Mode Select

Section Header
8
Model: edge
Mode 1 - Thermostat

9
Section Header 5 61 2 3 4
7
8
9
10
11
12
15
14
16
17
18
13

Section Header
10
Model: edge
1. Day Indicator - Displays the day of the week.
2. Holiday – Displayed when the thermostat is in holiday mode.
3. Clock - Time displayed in 24 hour format.
4. Flame Symbol – Displayed when the thermostat is calling for heat and flashes when
optimum start is active.
5. Frost Protection – Displayed when frost protection is enabled or activated by
a Window/Door Switch.
6. Floor Limit Symbol – Displayed when the floor probe has reached the floor temperature limit
configured in the setup menu.
7. Advanced Until - Displayed when the edge is advanced to the next programmed comfort level.
8. Hold Left - Displayed when a temperature hold is active, the remaining time will be shown.
9. Sensor Warning - Flashes on screen when the edge has failed to receive a signal from a Wireless
Sensor or Window/Door Switch.
10. Floor/Room Temp & Set - Indicates the displayed sensor mode and when changes are being
made to the current set point.
11. Active Status - Indication for ‘Preheat’ and ‘Frost Protection’ modes.
12. Program Indicator - Displayed during programming to show which period is being altered.
13. Main Menu – Highlighted text indicates selected option.
14. Keypad Lock Indicator – Displayed when the keypad is locked.
15. Temperature – Displays the current sensor temperature.
16. Temperature Format - Degrees Celsius or Fahrenheit.
17. Window Icon - Displays when Window/Door Switch is triggered.
18. Time/Day/Month/Year - Displays when setting the Clock/Calender or a Holiday Period.
LCD Display

9
11
Section Header
Power On/Off
The heating is indicated ON when the flame icon is displayed.
When the Flame Icon is absent, there is no requirement for heating to achieve the
set temperature but the edge remains active.
To turn the edge off completely, scroll to the Power Icon and hold the
key for approximately 3 seconds until the display goes blank .............................
The display and heating output will be turned OFF.
To turn the edge back ON, press the key once ..........................................................................
Thermostat completely OFF Thermostat powered ON

Section Header
12
Model: edge
Setting the Time and Date
To set the clock, follow these steps.
• Use the ‘Left/Right’ arrow keys to highlight then press and hold the
button for 3 seconds .............................................................................................
At this point the screen will go blank showing only ‘SETUP’ and ‘CLOCK’.
• Tap the ‘Up’ followed by ‘Right’ keys to highlight ‘CLOCK’ .............................
• Press to confirm selection (‘Hour’ digits will now flash) ...........................
• Use the ‘Up/Down’ arrow keys followed by to set the ‘Hours’ ................
• Use the ‘Up/Down’ arrow keys followed by to set the ‘Minutes’ ............
Repeat the previous two steps to set the date (‘Day, Month & Year’).
Display will go blank once completed.
• Press the ‘Down’ arrow key followed by to return to the
main display ..................................................................................................................

13
Section Header
This edge can be configured for different sensor options such as built sensor, floor
sensor or both. The display will clearly indicate which sensor is being used by showing
either ‘ROOM TEMP’ or ‘FLOOR TEMP’ to the left the actual value.
When the edge is set to use both the air & the floor sensor, the room temperature
will be displayed by default.
To view the current floor temperature, press and hold the Left and Right arrow
keys for 5 seconds, the floor temperature will then be displayed ..............................

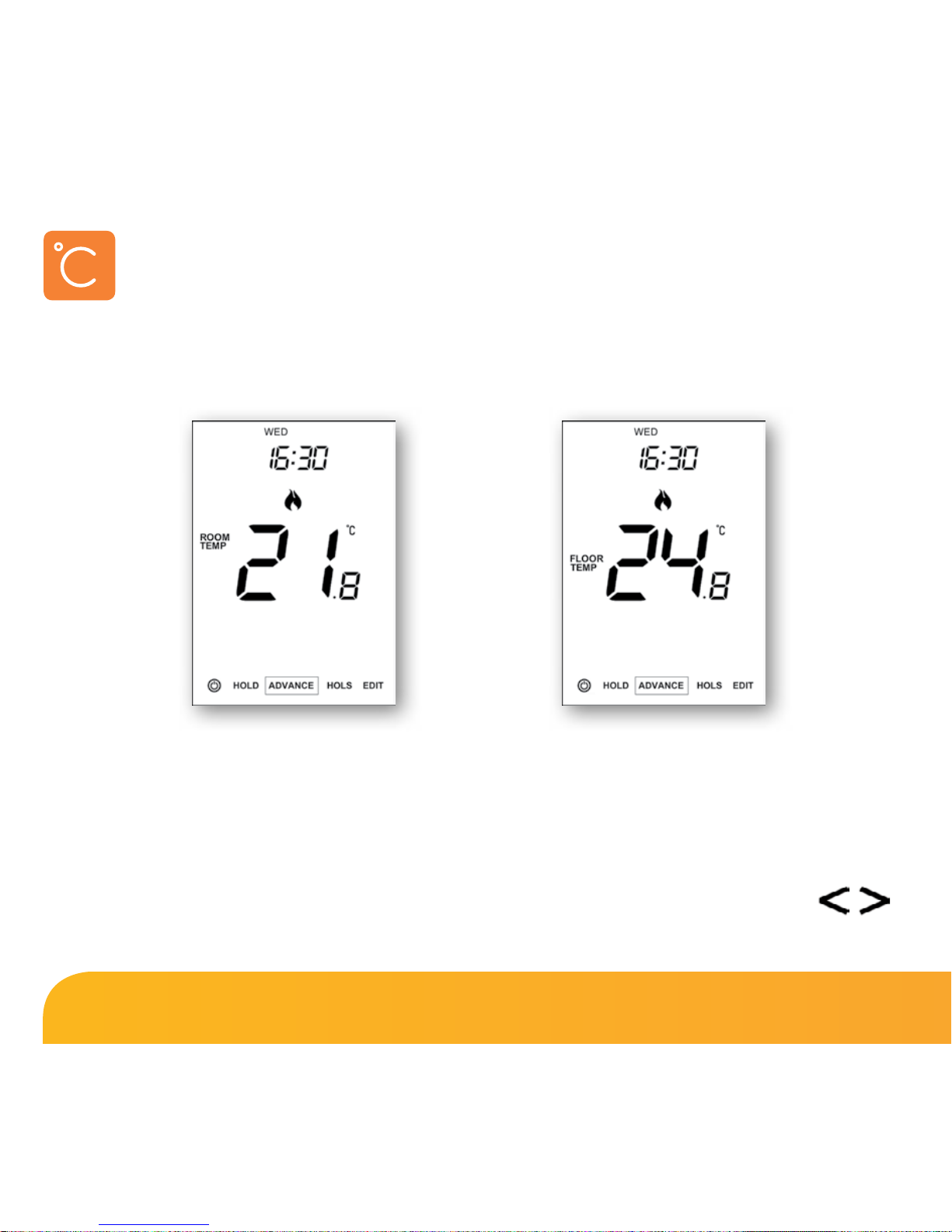

Temperature Display
Room Temperature Floor Temperature

Section Header
14
Model: edge
Pairing Accessories
You can pair a total of 16 accessories to a single edge thermostat.
Wireless Air Sensor
Once a remote sensor is added, the edge will automatically display an average
temperature between the ‘Wireless Air Sensor’ and the on-board sensor inside
the thermostat. Averaging will also be calculated between multiple Air Sensors.
Window/Door Wireless Contact Sensor
If any one of the ‘Window/Door’ contacts is broken, the edge
thermostat will be alerted and will activate ‘Frost Protection’ mode.
The display will now show the icon (right) to indicate a window or door has
been opened. Heating will not resume while this icon remains on screen.
Pairing the Air Sensor and Window/Door Contact.
• Use the ‘Left/Right’ arrow keys to highlight then press and hold
the button for 3 seconds to turn off the display .....................................
• Tap the ‘Up’ key to select ‘Setup’ then press ...............................................
• Press the ‘Down’key until you see the letter ‘P’displayed at the top of
the screen then press .........................................................................................
Wireless Air Sensor. Door/Window - Wireless Contact Sensor
(Not available in Time Clock mode).

15
Section Header
If the sensor has successfully paired, the LED will go out after a few seconds. The
thermostat display will then show ‘01:P’ to indicate that the first accessory has
joined. If countdown time elapses before all accessories have been paired,
restart the countdown to add further sensors following the previous steps.
The thermostat will now start a 99 second countdown. During this time multiple
sensors can be added.
Number of accessories
connected.
Pair/Reset
button
Pair/Reset
button
LED Indicator
Countdown time
• On the ‘Air Sensor & Window/Door Contact’, press and hold the pairing
button for 5 seconds. The LED will glow red to indicate pairing status
Window/Door Wireless Contact Sensor Wireless Air Sensor

Section Header
16
Model: edge
View Accessories
• Use the ‘Left/Right’ arrow keys to highlight . Press and hold
for 3 seconds to turn off the display........................................................................
• Tap the ‘Up’ key to select ‘Setup’ then press ............................................................
• Press the ‘Down’ key until you see the letter ‘A’ displayed at the top of
the screen, then press ....................................................................................................
• Use the ‘Left/Right’ arrow keys to scroll through the list of attached accessories.
A ‘Wireless Air Sensor’ will show the current temperature. The ‘Window/Door Contact’
will display current open or closed status by showing ‘OP’ = Open, or ‘CL’= Closed.
If the edge loses connection with an accessory, the display will show “--”.
A battery warning symbol will be appear when an accessory reports low power.
When this happens change the Lithium Cell CR2302 3V battery as soon as possible.
Example showing ‘Wireless Air Sensor’.
Accessory ID Number
Low Battery Warning
Current Status

17
Section Header
Removing Accessories
Pair/Reset
button
Pair/Reset
button
LED Indicator
There are two ways to remove an accessory from the edge thermostat.
On the Sensor/Switch
• Press and hold down the pairing/reset button for 15 seconds on the
‘Sensor/Switch’. LED indicator will flash 3 times to confirm reset.
At this point the ‘Sensor/Contact’ will notify the edge that it has left, and will automatically
be removed from the ‘Accessory Menu’.
On the edge thermostat
• Follow the steps on page 16 to enter the accessory menu.
• Press the ‘Left/Right’ arrow keys to view the accessory that will be deleted.
• Press and hold down the button for 10 seconds until the sensor
disappears from the menu ....................................................................................................
Note: You will also need to reset the sensor at this point.
Window/Door Wireless Contact Sensor Wireless Air Sensor

Section Header
18
Model: edge
Edit Comfort Levels
The edge offers three program mode options; Weekday/Weekend,
7 Day and 24 Hour programming. There is also the option to use the edge as
a manual thermostat.
The thermostat is supplied with comfort levels already factory programmed, but
these can be changed easily. The default times and temperature settings are;
07:00 - 21°C (Level 1) 09:00 - 16°C (Level 2) 16:00 - 21°C (Level 3) 22:00 - 16°C (Level 4)
Unused levels must be set to --:-- so that the edge will skip these and continue
on to the next programmed time.
For Weekday/Weekend programming, the four comfort levels are the same for Mon-Fri, but
can be different for Sat-Sun. For 7 Day programming each day of the week can have four
different comfort levels. In 24 Hour mode all days are programmed with the same comfort levels.
• To program the ‘Comfort Levels’, use the ‘Left/Right’ keys to scroll to ‘EDIT’ ......
• Press to confirm selection ......................................................................................................
• Use the‘Left/Right’keys to select day/period of week (the selection will flash) ......
• Press to confirm selection ......................................................................................................
‘Level 1’ will now flash and the current time and temperature setting will
be shown.
• Press to alter ‘Level 1’ settings................................................................................................

19
Section Header
• Use the ‘Up/Down’ keys to set the‘Hours’ .............................................................
• Press to confirm .................................................................................................................
• Use the ‘Up/Down’ keys to set the‘Minutes’ .........................................................
• Press to confirm .................................................................................................................
• Use the ‘Up/Down’ keys to set the temperature .................................................
• Press to confirm the settings ........................................................................................
• Press the ‘Right’ arrow key ..................................................................................................
‘Level 2’ will now flash and the current settings will be displayed.
• Press to alter ‘Level 2’ settings ......................................................................................
Repeat these steps to set all comfort levels.
For any unused periods set time to --:--
• Use the ‘Left/Right’ keys to scroll to ‘DONE’ and press .........................
You can you set up to a maximum of 6 levels by enabling these in the feature menu
(see page 28)
