HeatPumps4Pools Vektro RC32 User manual
Vektro Automatic Pool Robot Cleaner
User Manual
1
Table Of Contents
SAFETY WARNINGS & INSTRUCTIONS P.7
HOW THE ROBOT WORKS P.10
GETTING STARTED P.10
Charging The Battery P.10
Set-Up Before Use P.12
Adjustment of Trajectory P.12
Lockingpin P.12
Pool Preparation P.12
OPERATION P.12
EMPTYING THE DEBRIS COMPARTMENT P.15
MAINTENANCE & STORAGE P.16
BATTERY DISPOSAL P.17
How to remove the battery pack P.18
TROUBLESHOOTING P.19
Remark: Product/parts photos/drawings in this manual are for demonstration only.
Product/parts in photos/drawings may vary with the model purchased.
Accessories / parts shown in this manual & parts diagram are not necessarily
included with every model.
7
SAFETY WARNINGS & INSTRUCTIONS
Information contained in this Instruction Manual will help you operate the item safely,
protect yourself and others from hazards, and prevent damage to the device and other
property.
SAVE THESE INSTRUCTIONS
WARNING!
-This is not a TOY. Children should be kept out of reach from this robot
and its accessories.
-Never allow children to operate this product.
-This appliance is not intended for use by persons with reduced physical,
sensory, mental capabilities, or a lack of experience and knowledge,
unless they are given supervision or instructions concerning the safe
use of the appliance and understand the hazards involved by a person
responsible for their safety.
-Children must not play with this product.
-Cleaning and maintenance of the robot must not be carried out by
children.
-Make sure the robot is fully immersed in the pool before initiating
operation. The minimum water level required to operate the robot must
reach above the swivel head of the robot. Operating the robot when it is
not immersed correctly could damage the unit and void the warranty.
-Maximum operating depth in water is 3 meters (10 ft).
-Operating water temperature: 5˚C (41˚F) –35˚C (95˚F)
-Detachable supply unit (external adaptor).
-The robot should only be recharged with the external adaptor and
charging plug delivered with this product
-For the purposes of recharging the battery, only use the detachable
supply unit (external adaptor model number: DSS18-0842000-B /
DSS18-0842000-C / DSS18-0842000-D/ LX084200) that provided with
this robot to charge the battery.
-Connect the external adaptor to a power source through a residential
current device (RCD) / a ground fault circuit interrupter (GFCI). If in
doubt, consult a qualified electrician.
-Do not use this robot if any damage is detected.
-Replace damaged parts with ones that are certified by the distributor or
manufacturer.
-Turn off the robot, disconnect the external adaptor from the power
source, and unplug the external adaptor from the charging plug, before
detaching the robot from the charging plug.
-Disconnect the robot from the supply mains and make sure the robot is
OFF prior to carrying out regular maintenance – such as cleaning the
filter, swivel smoothing-ring, and the areas around the water sensors
and charging port.
-Do not attempt to replace the installed rechargeable Li-ion battery pack.
8
-DO NOT handle the robot, external adaptor, and charging plug while it is
charging with wet limbs and without shoes.
-You should not operate this robot when people and/or pets are present
in the water.
-DO NOT use this robot without an intact filter in place, otherwise your
warranty will be voided as a result.
-Suction entrapment hazard: This robot generates suction. Do not allow
hair, body, and any loose parts of your clothing to make contact with the
suction hole of the robot during its operation.
-Never insert body parts, clothing, and other objects into the openings
and moving parts of the robot.
-DO NOT use this robot to pick up any toxic substance, flammable, and
combustible liquids (i.e. gasoline) in the presence of explosive or
flammable fumes..
-Under no circumstances should you disassemble the swivel head to
replace its internal components by yourself. Doing so would void the
warranty, expose yourself to potential hazards, and possibly damage the
device and other properties.
-Never insert fingers or any object to touch the impeller.
-The built-in battery must be removed by a skilled technician before it is
scrapped.
-This robot contains a battery that are only to be removed by skilled
persons.
-The robot must be disconnected from the supply mains as the battery is
removed.
-For details regarding battery recycling/disposal, refer to the section
“BATTERY DISPOSAL” in this manual and contact your local authorities
for more information.
-The battery must be disposed safely in accordance with local ordinances
or regulations.
- External adaptor and charging plug :
Never use the external adaptor and charging plug for anything other
than charging the battery of the robot that is supplied in the same pack.
The external adaptor and charging plug should not be used outdoors,
nor should it be exposed to rain, humidity, and any liquid or heat.
The transformer ( or external adaptor) is to be located outside zone 1
Keep the external adaptor and charging plug out of reach of children.
Never use the external adaptor and charging plug if any damage is
detected.
DO NOT handle the external adaptor and charging plug with wet hands.
Keep the external adaptor disconnected from power when it is not in
use.
Never attempt to pry open the external adaptor.
If the supply cord of the external adaptor is damaged, the external
adaptor must be replaced by the manufacturer or its service agent to
prevent hazards of any kind.
9
Make sure the robot is completely dry before charging.
CAUTION!
-This robot is designed for underwater use only; it is not an all-purpose vacuum
cleaner. DO NOT attempt to use it to clean anything other than your pool.
-Use only the original accessories delivered with this product.
-DO NOT use this robot right after pool-shocking. It is recommended to first
leave the pool circulating for at least 24-48 hours.
-If you are planning on using the robot in a saltwater pool, make sure all salt
are dissolved before deploying the robot.
-DO NOT use this robot with another automatic cleaner/cleaner simultaneously
in the pool.
-Remove hard, sharp objects from the pool before deploying the robot to avoid
damages to the robot and its filter.
-To avoid damages to the external adaptor and charging plug, do not attempt
to carry the robot by the cord of external adaptor / charging plug or pull the
cord to disconnect it from the power source and charging plug.
-Charge the robot indoors in a clean, dry area with good ventilation and away
from sunlight.
-DO NOT leave the robot charged for over 10 hours.
-If the robot will not be used for an extended period, detach it from the charging
plug and use a damp cloth to clean and dry the robot and its accessories.
Make sure to charge the robot to about 30% to 50% of the battery capacity
before it is stored. Store it in a well-ventilated area away from sunlight, heat,
ignition sources, pool chemicals, and children. Recharge the robot every three
months.
-All actions concerning the disassembly of the swivel head (ie. battery disposal)
should only be carried out by an authorized technician.
Above warnings and cautions are not intended to incorporate all possible
instances for risks and / or severe injuries. Pool / spa owners should always
exercise extra caution and common sense when utilizing the product.
10
HOW THE ROBOT WORKS
The robot has a water-propelling nozzle at the bottom of the swivel head. Water is first
sucked in through the suction mouth at the bottom of the robot, which then goes through
the filter and is discharged via the propelling nozzle. Water jetting from the nozzle propels
the robot forward. Once the robot stops against an obstacle such as the pool wall, its side
flap sways and its swivel head turns 180o, allowing the robot to move in the opposite
direction. The robot moves in a generally straight pattern in one direction and in an arc
pattern in the other direction. The robot vacuums the pool bottom as it moves, collecting
debris in its compartment.
GETTING STARTED
Charging The Battery
IMPORTANT NOTE: Fully charge the robot (about 6 hrs) before using it for
the first time.
WARNING!
Use only the original external adaptor and charging plug provided.
Make sure the robot and the charging port are clean and dry before set-up
and charging. (TIPS : Pry open the protective cover and use a cotton bud
to dry the charging port and charging pins)
The charging pins are waterproof. However, remnants of water in the port
and around the pins could result in natural occurrence of stains (a
byproduct of chemical reaction between water and electric currents).
Otherwise, the stains can be removed by light scrubbing with a cotton bud
soaked with juice of lemon or vinegar.

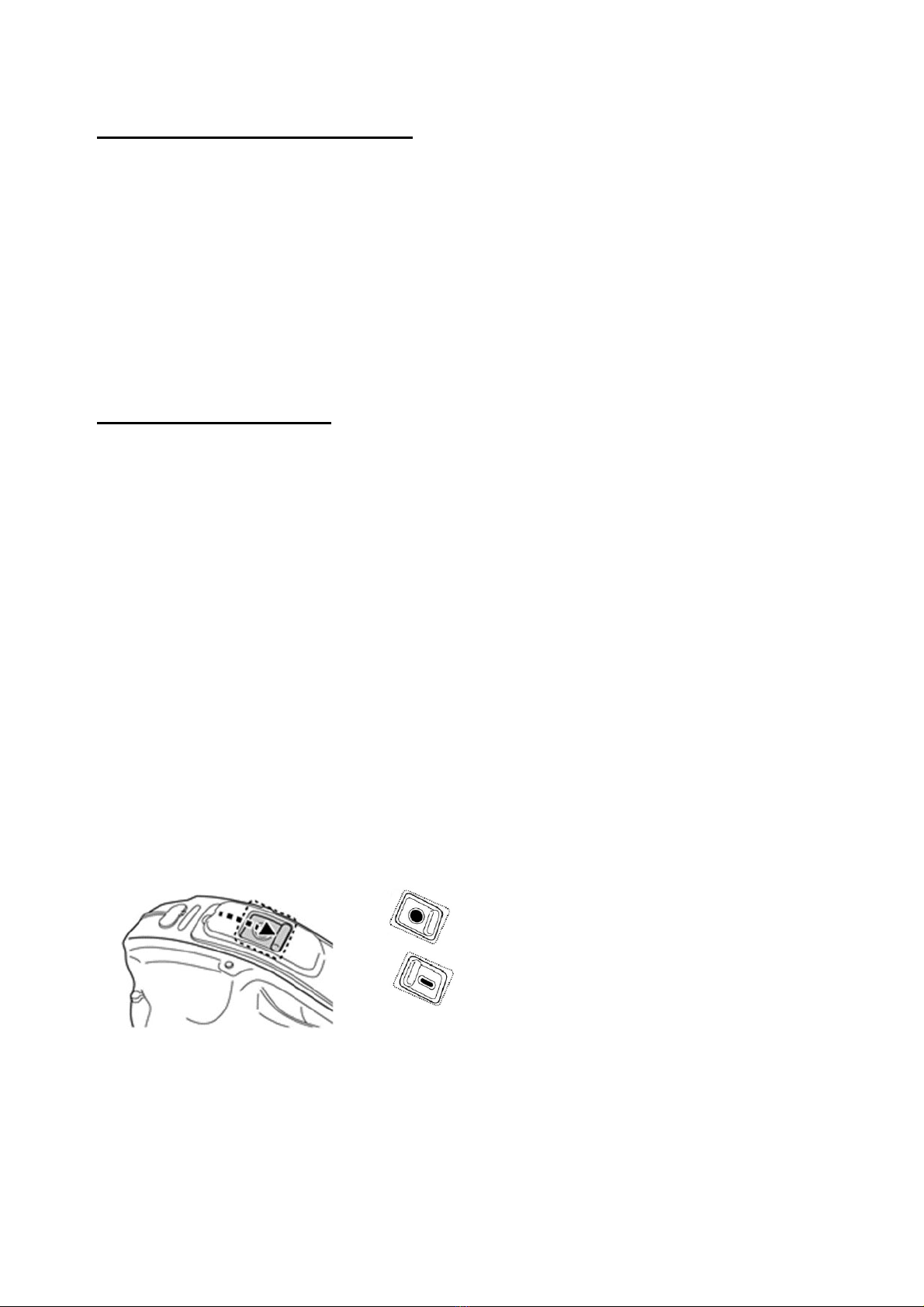

Make sure the robot is off by sliding the switch to the OFF position prior to
charging.

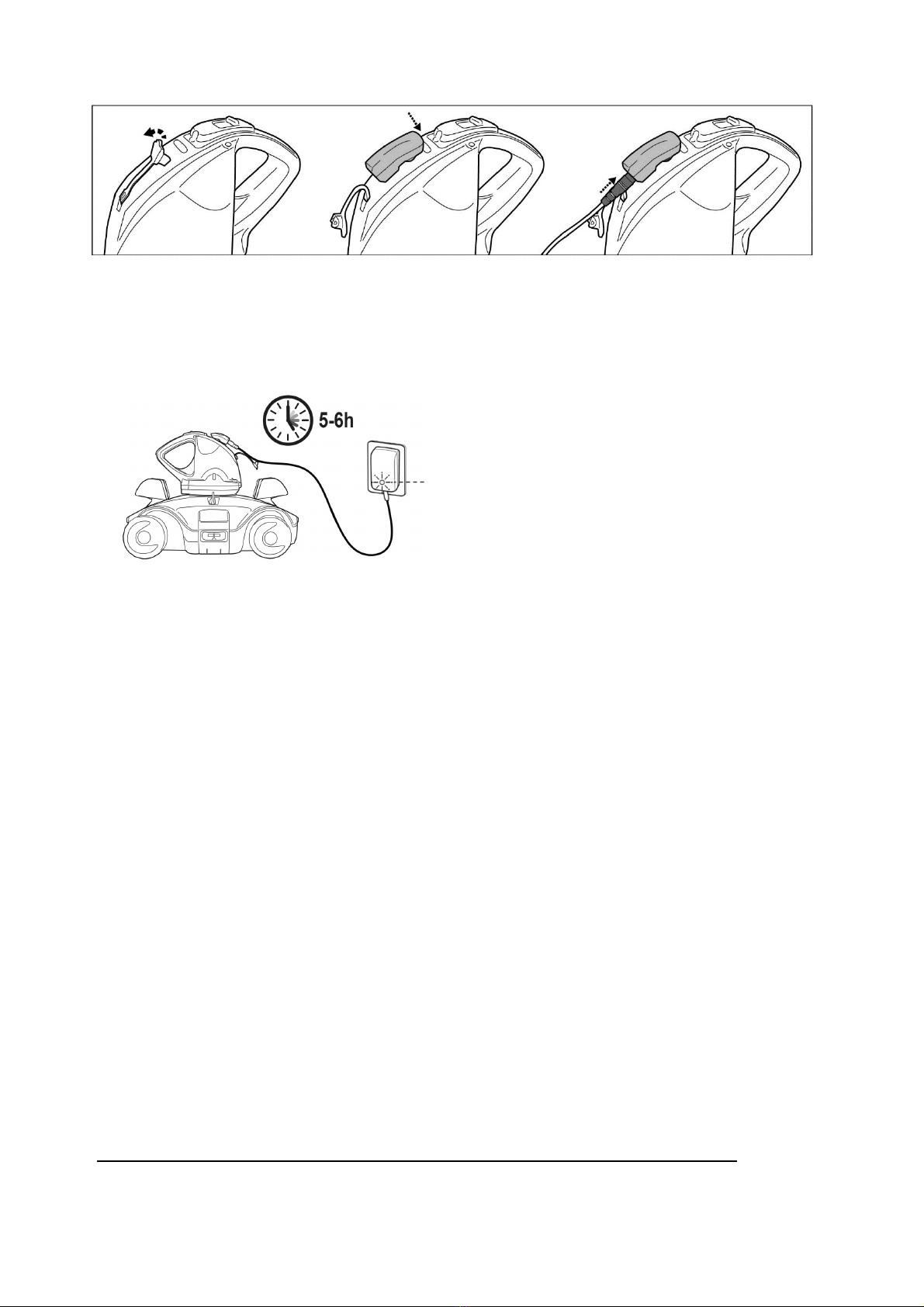

1. Place the unit on a flat surface. Slide the switch to the OFF position.
2. Pry open the protective cap. Align and attach the charging plug to the
charging port.
WARNING! Be sure not to invert the charging plug and ensure both the
charging plug and charging port are clean and dry before charging them.
TIPS: Use cotton bud to dry the charging port and pins. Plug the charging
cable of the external adaptor into the charging plug.
OFF
ON
11
3. Connect the external adaptor to the power source. The indicator light on
the external adaptor turns red once the charging begins. The indicator
light on the external adaptor will turn green when the robot is charged.
RED light - Charging
GREEN light - Charged
Immediately disconnect the external adaptor from the power source if
you detect any of the following:
-Offensive or unusual odor
-Excessive heat
-Deformation, cracks, leaks
-Smoke
4. When charging is complete, disconnect the external adaptor from the
power source and unplug the charging plug from the unit and external
adaptor.
Normally the robot can operate up to 90 minutes on a full charge.
Note: Clean the debris compartment regularly. Excessive debris inside the debris
compartment increases the burden to the motor operation and shortens the operating
duration as a result.
NOTE: Rechargeable lithium-ion battery is classified as a consumable item. It has a
limited life and will gradually lose its capacity to hold a charge. Therefore, the running
time of the robot will gradually reduce after repeated charging and discharging
throughout its product life.
Once the lifespan of the battery reaches its end, refer to section “BATTERY
DISPOSAL” for instructions regarding battery disposal and replacement of swivel
head.
NOTE: Let the robot rest for around 30 to 40 minutes before charging it again.
12
Set- up Before Use
Adjustment of Trajectory
Locking Pin

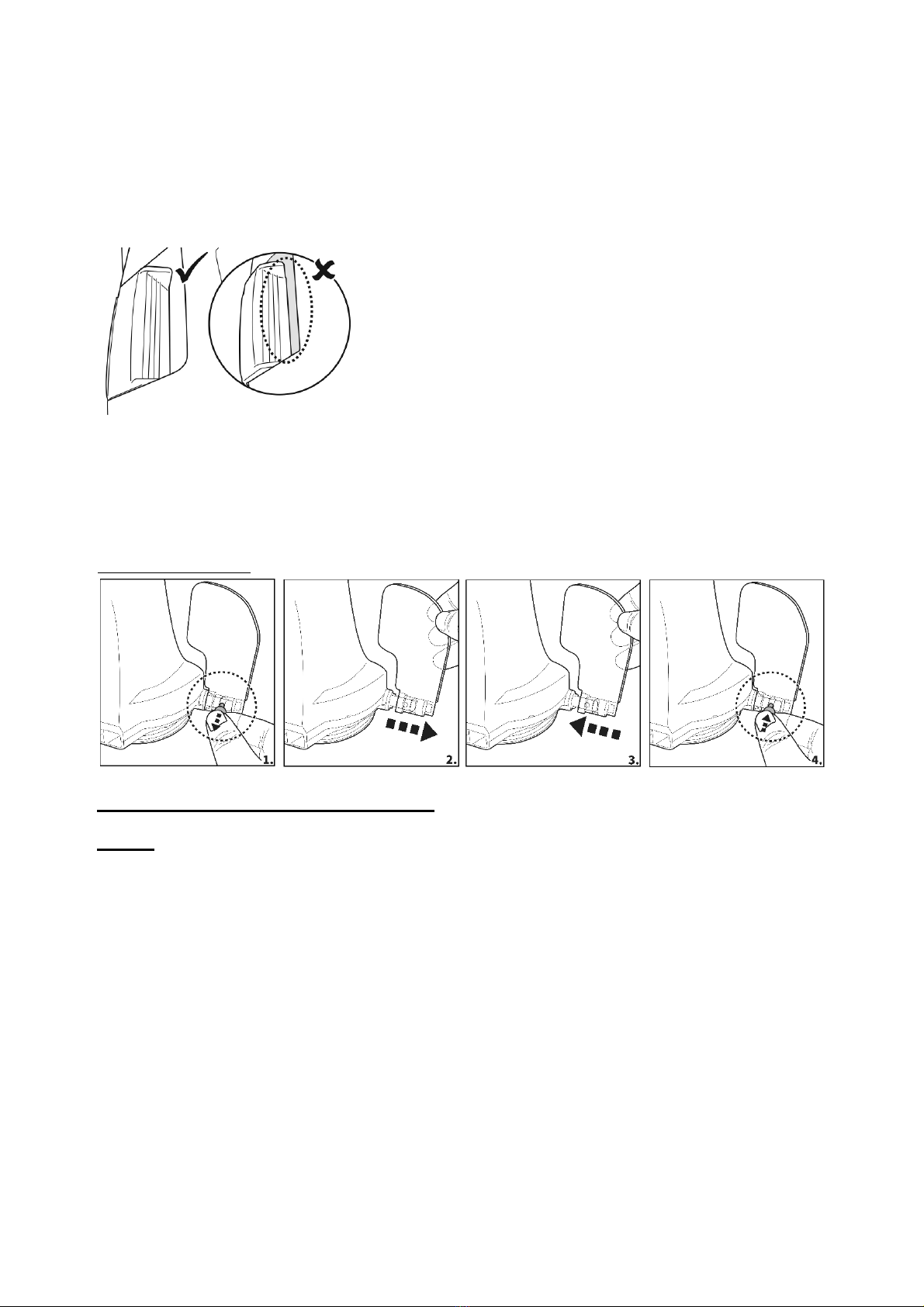

The trajectory of the robot is dependent on the position of the pin that fixes the axle to a
certain angle. There are two locking pins: the one on the right is fixed and should remain
untouched. Alter only the position of the pin on left.
Recommended settings:
For pools where the shortest length is 3
meters or below. (Factory setting)
For pools where the shortest length is 3
meters or above
Pool Preparation
- If there are stones, roots or metal corrosion in contact with the underside of the liner,
discard them prior to using the robot. If necessary, seek assistance from a qualified
professional.
- If the liner is brittle, damaged or wrinkled, contact a qualified professional to perform the
necessary repairs or perform a liner replacement prior to using the robot.
- Remove any pool ladder, surface skimmer, and other floating objects from the pool as
they may obstruct the movement of the robot’s float and, consequently, the movement of
the robot also.
- If you are using a saltwater pool, make sure all salt are dissolved before placing the
robot into the water.
IMPORTANT NOTE: Turn off the filtration system (as instructed in your filtration
manual) at least 15 minutes prior to deploying the robot.
OPERATION
WARNING!
-Make sure the robot is off.
-Ensure the charging plug is detached and the charging port is plugged with
the protective cap before the robot is deployed.
13
1. Bring the robot to the side of your pool. NOTE: Only deploy the robot from the pool side
(not the pool corner) and ensure it is facing outwards as you do so. Attach the hook of
the float to the handle of the swivel head. Press on the side clip to eject the stem from
the float.
Release the retrieval cord from the stem to a length equivalent to the distance between
the handle of the robot and the water level. NOTE: Excess length may kink the rope and
affect performance as a result.
Once the desired length has been achieved, maintain it by holding the rope onto the stem
and reattach it to the float by pressing on the side clip as shown.
14
2. With the robot switched off, submerge it in the pool and gently shake it a few times to
facilitate discharge of air. Excess air trapped in the body could result in erratic
behavior of the swivel head (i.e. spinning repeatedly in the pool for a few minutes).
Power indicator light
(Green)
3. Slide the power switch to “ON” (while the robot is still submerged) – the indicator light
will turn on and activate the motor automatically (water level covering the sensors at the
top of the swivel head). Let the robot sink to the pool floor and observe its first forward
and reversed movements across the pool bottom. If it runs along the pool wall instead of
perpendicularly, retrieve it and redeploy it while making sure its front/back is facing the
pool wall.
Power indicator light starts to blink when 10 minutes of usage remains.
Power indicator light:
No light - Power off / no power
Light - Power on
Blinking light - Battery power will be exhausted within 10 minutes.
NOTE:
-Refrain from making any physical contact with both water sensors.

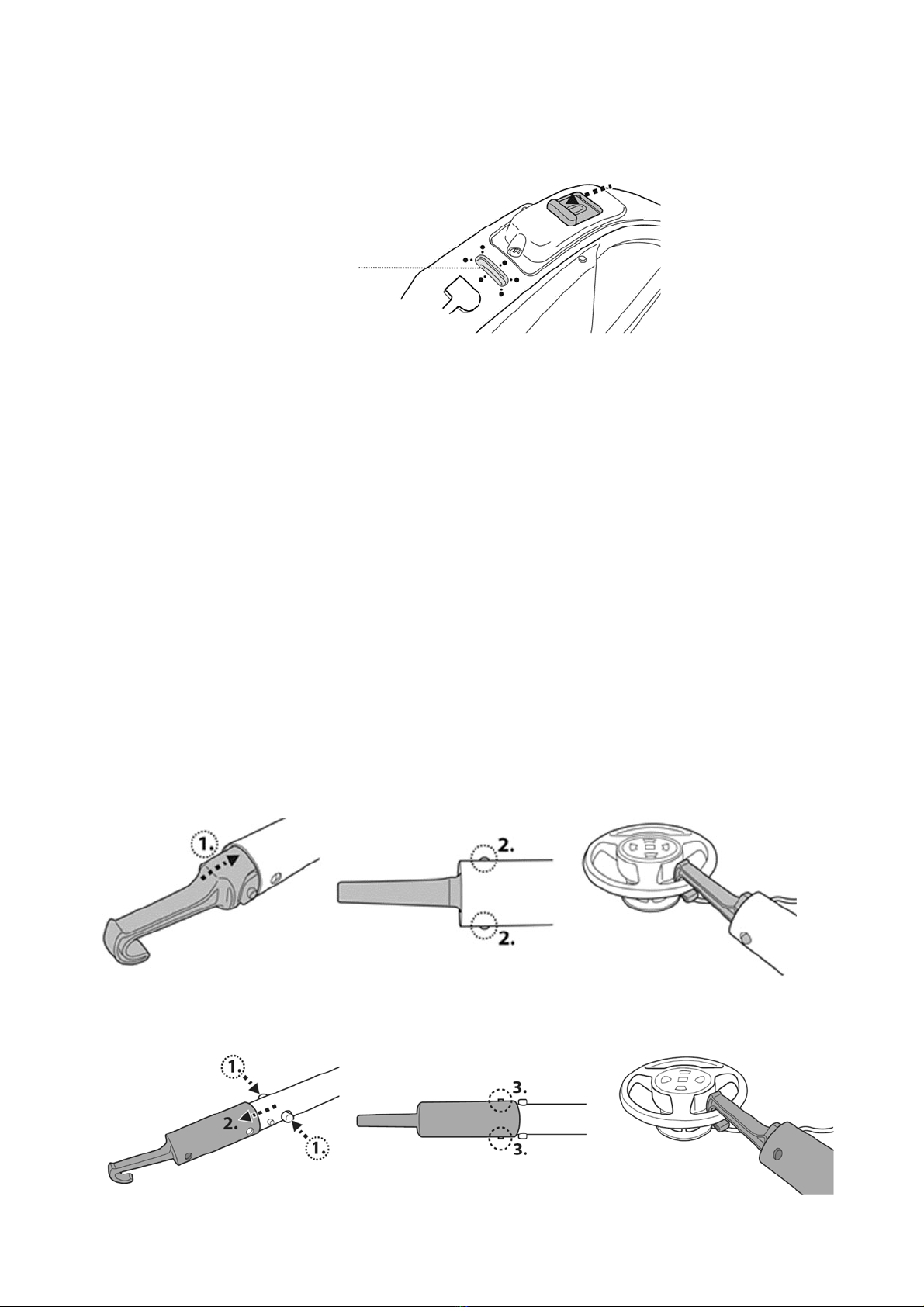

4. To retrieve the robot from the pool, attach the hook to a telescopic pole (not provided)
and use it to retrieve the float, if you are unable to retrieve with your hands.
(For EU & USA only)
(For Australia and New Zealand only)
15
As soon as the robot reaches the water surface, locate the grip that is underneath the
base and indicated with the hand symbol (see diagram below) to facilitate retrieval from
the pool. Make sure to always grip the robot from this end to prevent debris from falling
back into the pool during retrieval.
5. Slide the power switch OFF. Rinse the robot with fresh water after every use. DO
NOT use any detergent.
6. Dry the charging port and pins thoroughly (TIPS: Use cotton bud to dry them)
NOTE: To ensure the most efficient cleaning, when your pool is quite dirty, it is
recommended to empty the debris compartment after the first 30min of operation,
or whenever the robot’s movement has slowed down noticeably. Then return the robot
(with an emptied debris compartment) to the pool, and let it run through the remaining of
its cycle.
EMPTYING THE DEBRIS COMPARTMENT
WARNING! Using the robot without its filter cover in place will VOID your
warranty.
In order to maximize the cleaning efficiency, clean the debris compartment and the filter
cover before and after each use.
CAUTION! Before cleaning the debris compartment, make sure the robot is OFF.
1. Place the cleaner on a flat surface. Pull one side clip outwards to lift one side of the
cover and repeat the steps on the other side to lift the entire top cover to expose the
filter cover and filter plate.
16
2. Detach the filter cover and filter plate and remove the debris from the compartment. It
is recommended to clean the filter cover net and draining filter plate with splashing water.
If brushing is deemed necessary, use only a soft brush to clean it carefully and gently to
avoid damages.
3. After cleaning, make sure that both draining filter plate and filter cover are in place and
the body top cover is correctly installed and secured by the side clips.
CAUTION!
Replace a damaged filter cover immediately with a new one before the next operation.
-Replace a damaged filter plate immediately with a new one before the next operation
-Replace a damaged flap immediately with a new one before the next operation.
-
Flap replacement
MAINTENANCE & STORAGE
NOTE:
1. Be sure to clean and dry the areas around the charging port and water sensors after
every use to avoid the forming of stains (byproduct of a natural chemical reaction
between electric current and water). Otherwise, the stains can be removed by light
scrubbing with a cotton bud soaked with juice of lemon or vinegar.
2. Battery discharges on its own during storage. Make sure to charge the robot to about
30% to 50% of the battery capacity before it is stored.
3. You must recharge the battery at least once every three months when it is not in use.
Unplug the external adaptor from the socket and the charging plug from the external
adaptor and robot.
Detach accessories from the robot. If necessary, rinse the robot and accessories with
fresh water. DO NOT use detergent.
Be sure to drain the water from the robot before storage.
Use a damp cloth to clean and dry the robot and its accessories.
Store them in a well-ventilated area away from sunlight, heat, ignition sources, pool
chemicals and from children. Ambient temperature for storage should be 10˚C – 25˚C
(50˚F – 77˚F). NOTE: A higher storage temperature may reduce the battery life.
17
WARNING!
Under no circumstances should you disassemble the swivel head to
replace its internal components by yourself. Doing so would void the
warranty, expose yourself to potential hazards, and possibly damage the
device and other properties.
CAUTION!
Excessive heat can damage the battery and reduce the lifespan of your robot as a
result.
Consult your dealer regarding battery replacement if the following happens:
-Battery does not charge fully.
-Battery operation time is noticeably reduced. Observe and record the run times
of the first few operations (on a full charge). Use these run times as a reference
point for comparison with run times in the future.
The battery must be removed from the robot before it is scrapped.
The robot must be disconnected from the supply mains when the battery is being
removed.
The battery is to be disposed safely in accordance with local ordinances or regulations.
NOTE: Incorrect maintenance may reduce the battery life and affect its capacity as a
result.
BATTERY DISPOSAL (To be carried out by an authorized technician)
Your robot is equipped with a maintenance-free rechargeable lithium-ion battery pack,
which must be disposed of properly. Recycling is required; please contact your local
authority for more information.
WARNING! Never attempt to disassemble a battery pack
Remove all personal items such as rings, bracelets, necklaces and
watches when the battery pack is unwired from the robot.
A battery can produce a short circuit current high enough to weld a ring (or
similar item) to metal, causing a severe burn in the process.
Wear complete eye protection, gloves and protective clothing when the
battery pack is being removed.
Avoid touching the wires altogether and avoid contact between them and
any metal items, which could cause sparking and/or short circuit the
battery.
Never smoke or allow a spark or flame in the vicinity of the battery or the
robot.
Do not expose the battery to fire or intense heat as this may result in an
explosion.
CAUTION!
If a battery leak occurs, avoid any contact with the leaking fluids and place the damaged
battery in a plastic bag.
-If leaking fluids come in contact with skin and clothing, wash immediately with plenty
of soap and water.
18
-If leaking fluids come in contact with eyes, do not rub eyes, immediately flush eyes
with cool running water for at least 15 minutes and do not rub them. Seek medical
attention as soon as possible.
How to remove the battery pack for battery disposal only (To be done by
authorized technician)
Recommended tools (not included): Screwdriver.
1. Follow section “EMPTYING THE DEBRIS COMPARTMENT” to release
the top cover (preassembled with the swivel head). Place the cover upside
down and use the screwdriver to unfasten the screw on the bottom locking
plate. Turn the bottom locking plate anticlockwise to release the swivel head.
Remove the swivel smoothening-ring.
2. Use the screwdriver to unscrew the 4 screws located at the bottom of
the head to release the bottom plate first. Then unscrew all the screws at the
base as shown. Remove the impeller and pry open the base to expose head
inside.
3. Remove out the battery pack to expose the PCBA. To detach the battery
connection wire, press on the clip of the connector to pull it out. NOTE: Wrap
the connector immediately with insulating tape in order to avoid any short
circuit caused by the contact of both wire terminals.
19
TROUBLESHOOTING
Problem Possible Cause Solution
Robot does not start
working under water
Stained water sensors Use a cotton bud soaked with juice of lemon or vinegar to clean
and remove the stains.
Robot does not capture
the debris
Battery is running out Charge the robot again.
Impeller is jammed Power off the robot and inspect the hole under the swivel head to
see if the impeller is jammed by large debris. If necessary,
contact your dealer for further instructions.
WARNING! Make sure the robot is off before the unit is
serviced.
Suction mouth is clogged Remove clogged objects from the suction mouth.
Impeller is broken Contact your dealer for replacement.
Debris compartment is full Clean both debris compartment and filter cover.
Robot stopped moving
in the middle of pool but
swivel head is still
turning
Robot stopped by obstacle or large
creases in the pool liner.
Check to see that if there is anything obstructing the cleaner.
Remove the obstacle.
Robot is hindered by suction from
the main drain of pool floor
Turn off the filtration system as instructed in manual.
Swivel head rotates
repeatedly
Air trapped inside the robot Submerge the robot while it is still off in the pool and gently shake
it a few times to facilitate discharge of air before switching it on
(while robot is still submerged).
The swivel head may rotate repeatedly for a short while once the
robot sinks to the pool bottom. This phenomenon will stop once
the air trapped inside the robot is discharged and the robot will
begin to move regularly.
Robot does not cover
the entire pool
Debris compartment is full Clean the debris compartment
Operation time is shorter as expected Clean the filter compartment and recharge the robot for 6 hrs
Moving direction is interrupted by
water circulation generated by
filtration system
Turn off the filtration system (as instructed in filtration manual) at
least 15 minutes before robot operation.
Wheel is jammed Check and remove debris from the wheel.
Position of wheel axle is not set
properly.
Follow instruction to adjust wheel axle setting.
Algae renders the pool floor slippery
which results in the robot going in
circles.
Scrub the pool bottom and robot wheels to remove the algae
Robot moves along the
pool wall
Position of wheel axle is not set
properly
Follow instruction to adjust wheel axle setting.
Robot moves slowly or
does not move at all.
Debris compartment is full or filter
cover is clogged.
Clean the debris compartment. Flush the screen with water to
remove small particles. If brushing is deemed necessary, use a
soft brush to clean the screen gently. Note: make sure that the
filter cover is in place before next operation
Suction mouth is clogged Remove clogged objects from the suction mouth
Impeller is jammed Power off the robot and inspect the hole under the swivel head to
see if the impeller is jammed by large debris. If necessary,
contact your dealer for further instructions.
WARNING! Make sure the robot is off before the unit is
serviced.
Swivel head does not
turn or turn noticeably
slowly
Side flap does not come up. Check and remove any debris that hinders the movement of the
flap.
Swivel head bottom is jammed Detach the swivel head and smoothening-ring in accordance with
instructions of section “How to remove the battery pack” from the
manual, then:
- Remove trapped debris
- Inspect the smoothening-ring for potential damages and wear
and tear. Replace with a new one if necessary
- Verify the smooth-ring and bottom plate are installed correctly
(refer to below diagrams)
20
Debris escapes from
the robot
Suction mouth’s flap ( at cleaner
bottom) is damaged
Suction mouth’s flap works like a door to prevent the debris from
escaping from the debris compartment. Contact dealer for
replacement parts and instruction.
Debris clogged at suction mouth and
prevents the flap to close.
Remove clogged debris from the suction mouth.
Draining filter plate is broken or not in
place
Make sure the draining filter plate is in place and replace with a
new one if necessary before next use.
Debris leaks outside at
the filter cover Filter cover net is damaged Replace with a new filter cover from your dealer.
Float sinks Damaged float and water leakage Replace with a new float from your dealer.
Retrieval cord is kinked Retrieval cord length is too long Adjust the length according to instructions in the manual
Duration of cleaning
cycle is shorter than
advertised
Battery is not fully charged Charge the robot for at least 6 hrs. NOTE: if any stains are found
on the charging pins, remove them by using a cotton bud soaked
with lemon juice or vinegar
Robot cannot be
charged / recharged Battery is damaged Contact dealer for battery replacement.
WARNING! DO NOT replace the battery by yourself.
This could result in severe or fatal injuries and the warranty will be
voided as a result.
Charging plug is not completely
connected with external adaptor and
robot.
Make sure that the Charging plug is connected with external
adaptor and robot properly and completely. Refer to instruction
manual.
External adaptor is out of order Contact dealer for replacement.
WARNING! Using the wrong external adaptor will result
in damaging the robot / battery and voiding the warranty as a
result.
Environmental Programmes, WEEE European Directive
Please respect the European Union regulations and help to protect the environment.
Return non-working electrical equipment to a facility appointed by your municipality that properly recycles
electrical and electronic equipment. Do not dispose them in unsorted waste bins. For items containing
removable batteries, remove batteries before disposing of the product.
© 2021 Kokido Development Ltd. 21007022
All rights reserved. No part of this document may be reproduced or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of
Kokido Development Ltd. (V2)
If a soft copy of this instruction manual is required, please contact our customer service by email:
SAVE THESE INSTRUCTIONS
Manufacturer: Kokido Development Limited.Unit 1319, Sunbeam Centre, 27 Shing Yip Street, Kwun Tong, Kowloon, HK
Table of contents
