HEATSTRIP MHS-FBM User manual

User manual for HEATSTRIP™ radio receiver
User Manual 2.1 | Valid from 11.11.2011
Remote control systems for
8.0 Technical data
This installation and user
manual encompasses
information about the
following products:
MHS-FBM
MHS-FBHS
MHS-FBWS
MHS-ESM
Exclusively engineered and made in Germany
Operating voltage 230 V / 50 Hz
Wattages maximum 3200 W
Heat output 3 setting
Warming up time approx. 10 to 15 minutes,
depending on the weather
(temperature outside,
wind)
Measurements circa 170 x 90 x 65mm
Power cable EUR or IK plugs
Cable length 1.5m, 3 x 1.5mm sq
Compatability up to max. 28 transmitters
Transmission range approx. up to 100m free
Transmitter 868,3 MHz frequency
Performance maximum 10 mW
Transmission duration approx. 25ms
Security 32 Bit encryption with up
to 3 telegrams
Humidity maximum 85%
Temperature range from 0ºC to +40ºC
Storage temperature from -30ºC to +65ºC
Shutdown as a built-in factory setting,
the receiver automatically
shuts down after 12 hours
of continuous use
RoHS compliant
WEEE-Reg.-Nr. DE 45650441
MHS GmbH
Munich Home Systems
Kramergasse 32
D- 82054 Sauerlach b. München
Tel.: +49-(0)8104-64709-0
Fax: +49-(0)8104-64709-9
[email protected]
www.heatstrip.de
D
Table of contents
1.0 Use page 2
2.0 Safety Information page 2
3.0 Functionality description page 4
4.0 Assembly page 5
5.0 Programming page 7
6.0 Operation page 9
7.0 Connecting element MHS-ESM page 10
8.0 Technical Information back page
Delivery:
Radio receiver module 1 piece
Power connector (already installed on the machine) 2 pieces
Assembly and user manual 1 piece
and optionally
Hand held remote control 1 piece
or
Wall-mounted remote control 1 piece
1
The connecting element serves as a stylish cable connection for your Heatstrip, hiding
the power cable at the backside of the device - instead of it being visible at the front side.
Install the connecting element after point 4.0 in this user manual.
It is not possible to further program or set this element.
7.0 Connecting element 10
6.0 Operation
1.0 Use – 2.0 Safety information
9
2
Thank you for choosing HEATSTRIP™, the black light infrared electric heater. This
user manual will guide you through the connection and programming of the radio
receiver MHS-FBM. These instructions are an addition and valid only in combina-
tion with the general HEATSTRIP™ manual, chapter 4.7.
Our remote controls are powered by the EnOcean technology, which enables them
to run battery free. When pressing the button of the remote control, the system
harnesses the physical pressure of your thumb onto the remote control and
converts it into an electro-magnetic signal that is picked up by our MHS-FBM
receiver.
Electronic smog and radio signals
Many people are worried about the possible consequences for their health of the
electronic smog created by the countless electrical fields due to the many wireless
devices we are surrounded by. Manufacturers hence worry about possible claims
for damages based on such health related harm. Nevertheless, the need for
wireless devices keeps increasing quickly. Therefore, we had the standard
intensity of the electro-magnetic fields created by our radio receivers measured by
ECOLOG under in situ usage conditions (ECOLOG is the German Institute for
Socio-Ecological Research and Education).
What are the results?
1. The Enocean Radio system emits one hundred times less intensive
high-frequency fields than conventional light switches (the latter’s high-frequency
fields are produced through the characteristic sparkling switching process).
2. The intensity of the quick high-frequency emissions of the EnOcean radio switch
are up to 10,000 times fewer than the permanent high-frequency emissions of the
mobile phone network stations in residential homes.
3. Thanks to the lack of cables and switches, our radio system works without
interefering with low-frequency electro-magnetic emissions.
4. This radio system is used in schools, hospitals, and even in houses built
according to Feng Shui principles.
Standby operation: heating off
blue LED lit
ON press the ON button
heat output is set up on "power 3" (full power")
press the ON button again
Remote to “Power 0” (OFF)
Heat output press the OFF button
settings remote to “Power 2”
2 green LEDs turn on
press in OFF button again
remote to “Power 1”
1 green LED turns on
press in OFF button again
remote to “Power 0” (OFF)
All 3 green LEDs turn on
Standby operation, heating off – blue LED lit
Party mode The “Party Mode” has a preset heating duration of 4 hours
running on maximum heat supply, regardless of the Time-Code
set (see section “Setting of maximum heating duration” above).
To launch the Press and hold the ON button for more than 6 seconds. The heater
“Party Mode”: is set on maximum heat and will switch off automatically after 4
hours. The green and blue LEDs are lit.
General OFF Press and hold the OFF button for more than 6 seconds. The
heater turns off regardless of the current heating setting. The blue
LED displays the standby mode.
Test operation (to check the functionality of the receiver module without using the
without transmitter transmitter)
Press the lateral button on the receiver for more than 10 seconds
-> the heater turns on, 2 LEDs are lit, 80% power.
Press the programing buttons again for for more than 10 seconds,
the heater turns off.
If not, the device is automatically turned off after 2 hours. The blue
standby LED turns on.
Remote control programming
- Press briefly the lateral button on the MHS-FBM receiver (less than 1 sec).
Three green LEDs + one blue LED flash two times per second.
- On the remote control, press and release the button you wish to control the device with.
Then the LEDs blink for 2 seconds while the radio button is being synchronized with
the MHS-FBM receiver
To terminate the programming mode, wait for 30 seconds or press the programming button.
The chosen switch is saved.
Remote control resetting
- Press briefly and release the lateral programming button on the MHS-FBM receiver
(less than 1 sec). Three green LEDs + one blue LED flash two times per second.
- On the remote control, press and release button to reset.
The LEDs flash 10 times, then the button is reset.
- To terminate the reset mode, wait for 30 seconds or press the programming button.
Setting of maximum heating duration
- Press and hold the lateral button for more than 2 seconds.
- After 2 seconds the blue LED will briefly flash three times:
the blue LED flashes every second,
the green LEDs show the set time.
- Each short press & release of the lateral button on the receiver will increment
the heating duration according to the built-in Time-Code (see below).
- The heating duration can also be changed by pressing the button that has been
previously programmed.
- After 30 seconds following the last press & release, the programming will end and
the chosen Time-Code set is saved.
Time-Code
Can be set from minimum 30 minutes to maximum 12 hours.
7 settings to choose from: 0.5, 1, 2, 3, 4, 8, 12 hours.
8
2.0 Safety information
When planning where to locate your device, please check accessibility
to the different components as you may have to access them in the future.
Electronic components may also fail and have to be replaced.
Only to be installed by a professional.
Please check the cable cross -section between the heater and
the power supply is sufficient in terms of size and power.
The surrounding temperature should not exceed 40 degrees Celsius.
Exclusively for 230V / 50 Hz AC .
Keep the devise away from physical chocs and do not use force.
Protect from wetness and moisture.
Do not install in the proximity of open fire.
Do not install where surrounding temperatures
are constantly below 0 degrees Celsius.
3
5.0 Programming
The radio transmitter operates with a closed signal in the 866Mhz region. You can program a
maximum of 28 radio transmitters (i.e. remote controls) per single MHS-FBM receiver. The
32BIT encryption provides protection from any signal confusion from other devices such as
mobile phones or garage remote controls.
The blue LED signals that the remote control is ready to use.
The number of green LEDs lit indicates the chosen heat intensity.
You can select your requested heat settings by pressing the buttons on the remote control.
Hinweise zum Handfunksender/Funksender für Wandmontage
Light Scheme
LED Display
blue green
0,5 h
1 h
2 h
3 h
4 h
8 h
12 h
blinks on off
7
4
3.0 Functions description
The radio transmitter operates with a closed signal in the 866Mhz region. You can program a
maximum of 28 radio transmitters (i.e. remote controls) per single MHS-FBM receiver. The
32BIT encryption provides protection from any signal confusion from other devices such as
mobile phones or garage remote controls.
The blue LED signals that the remote control is ready to use.
The number of green LEDs lit indicates the chosen heat intensity.
You can select your requested heat settings by pressing the buttons on the remote control.
remote control MHS-FBHS remote control MHS-FBWS
1
2
6
3
5
4
Remove the lateral screw cap in order to reach the programming button. Once the
programming is complete, please put the screw cap back in place.
Caution: When synching the Heatstrip Heater with the MHS-FBM receiver, please make
sure to place the remote control in a perimeter less than 5 meters away from the
Heatstrip Receiver. When the programming mode is on, make sure to maintain the
power supply to the receiver as a potential power cut can damage the device.
Fix the sockets (1) on the bolts (2). Screw the bolts into the Heatstrip heater (5). Plug the
connector (3) to the heater and push the two elements together until you feel a click. Fix
the MHS-FBM receiver or the connecting element MHS-ESM (6) until it clicks with the
connector. Place the screws (4) in and turn tight to secure the fixing.
5
6
1
2
6
3
5

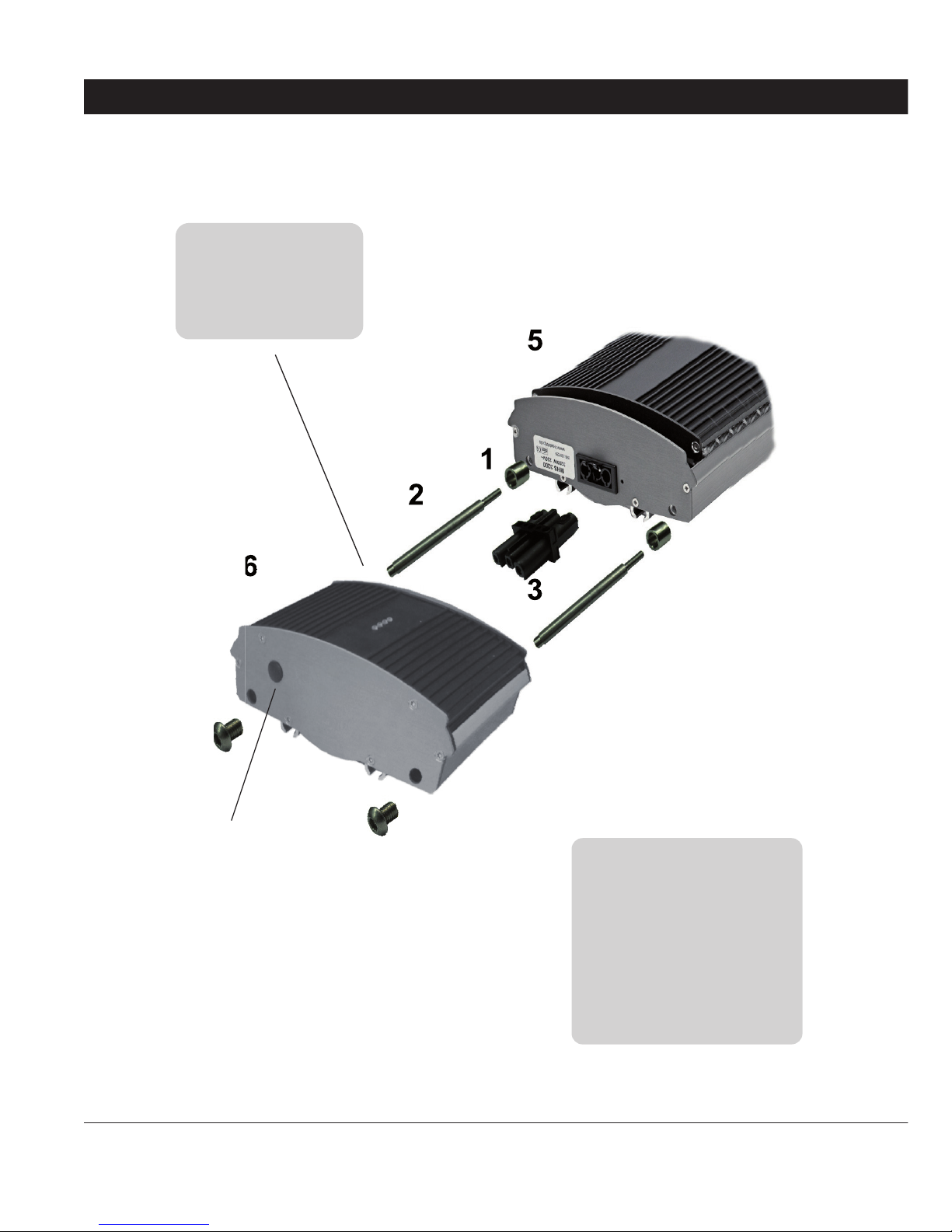

4.0 Assembly
Legend:
1x MHS Heatstrip (5)
1x MHS-FBM (6)
2x Sockets (1)
2x Bolts (2)
1x Power connector (3)
2x Screws (4)
Caution: antenna
is not removable.
Programming button
1
2
6
3
5
4
Remove the lateral screw cap in order to reach the programming button. Once the
programming is complete, please put the screw cap back in place.
Caution: When synching the Heatstrip Heater with the MHS-FBM receiver, please make
sure to place the remote control in a perimeter less than 5 meters away from the
Heatstrip Receiver. When the programming mode is on, make sure to maintain the
power supply to the receiver as a potential power cut can damage the device.
Fix the sockets (1) on the bolts (2). Screw the bolts into the Heatstrip heater (5). Plug the
connector (3) to the heater and push the two elements together until you feel a click. Fix
the MHS-FBM receiver or the connecting element MHS-ESM (6) until it clicks with the
connector. Place the screws (4) in and turn tight to secure the fixing.
5
6
4.0 Assembly
Legend:
1x MHS Heatstrip (5)
1x MHS-FBM (6)
2x Sockets (1)
2x Bolts (2)
1x Power connector (3)
2x Screws (4)
Caution: antenna
is not removable.
Programming button
5.0 Programming
The radio transmitter operates with a closed signal in the 866Mhz region. You can program a
maximum of 28 radio transmitters (i.e. remote controls) per single MHS-FBM receiver. The
32BIT encryption provides protection from any signal confusion from other devices such as
mobile phones or garage remote controls.
The blue LED signals that the remote control is ready to use.
The number of green LEDs lit indicates the chosen heat intensity.
You can select your requested heat settings by pressing the buttons on the remote control.
Hinweise zum Handfunksender/Funksender für Wandmontage
Light Scheme
LED Display
blue green
0,5 h
1 h
2 h
3 h
4 h
8 h
12 h
blinks on off
7
4
3.0 Functions description
remote control MHS-FBHS remote control MHS-FBWS
Remote control programming
- Press briefly the lateral button on the MHS-FBM receiver (less than 1 sec).
Three green LEDs + one blue LED flash two times per second.
- On the remote control, press and release the button you wish to control the device with.
Then the LEDs blink for 2 seconds while the radio button is being synchronized with
the MHS-FBM receiver
To terminate the programming mode, wait for 30 seconds or press the programming button.
The chosen switch is saved.
Remote control resetting
- Press briefly and release the lateral programming button on the MHS-FBM receiver
(less than 1 sec). Three green LEDs + one blue LED flash two times per second.
- On the remote control, press and release button to reset.
The LEDs flash 10 times, then the button is reset.
- To terminate the reset mode, wait for 30 seconds or press the programming button.
Setting of maximum heating duration
- Press and hold the lateral button for more than 2 seconds.
- After 2 seconds the blue LED will briefly flash three times:
the blue LED flashes every second,
the green LEDs show the set time.
- Each short press & release of the lateral button on the receiver will increment
the heating duration according to the built-in Time-Code (see below).
- The heating duration can also be changed by pressing the button that has been
previously programmed.
- After 30 seconds following the last press & release, the programming will end and
the chosen Time-Code set is saved.
Time-Code
Can be set from minimum 30 minutes to maximum 12 hours.
7 settings to choose from: 0.5, 1, 2, 3, 4, 8, 12 hours.
8
2.0 Safety information
When planning where to locate your device, please check accessibility
to the different components as you may have to access them in the future.
Electronic components may also fail and have to be replaced.
Only to be installed by a professional.
Please check the cable cross -section between the heater and
the power supply is sufficient in terms of size and power.
The surrounding temperature should not exceed 40 degrees Celsius.
Exclusively for 230V / 50 Hz AC .
Keep the devise away from physical chocs and do not use force.
Protect from wetness and moisture.
Do not install in the proximity of open fire.
Do not install where surrounding temperatures
are constantly below 0 degrees Celsius.
3
Remote control programming
- Press briefly the lateral button on the MHS-FBM receiver (less than 1 sec).
Three green LEDs + one blue LED flash two times per second.
- On the remote control, press and release the button you wish to control the device with.
Then the LEDs blink for 2 seconds while the radio button is being synchronized with
the MHS-FBM receiver
To terminate the programming mode, wait for 30 seconds or press the programming button.
The chosen switch is saved.
Remote control resetting
- Press briefly and release the lateral programming button on the MHS-FBM receiver
(less than 1 sec). Three green LEDs + one blue LED flash two times per second.
- On the remote control, press and release button to reset.
The LEDs flash 10 times, then the button is reset.
- To terminate the reset mode, wait for 30 seconds or press the programming button.
Setting of maximum heating duration
- Press and hold the lateral button for more than 2 seconds.
- After 2 seconds the blue LED will briefly flash three times:
the blue LED flashes every second,
the green LEDs show the set time.
- Each short press & release of the lateral button on the receiver will increment
the heating duration according to the built-in Time-Code (see below).
- The heating duration can also be changed by pressing the button that has been
previously programmed.
- After 30 seconds following the last press & release, the programming will end and
the chosen Time-Code set is saved.
6.0 Operation
1.0 Use – 2.0 Safety information
9
2
Thank you for choosing HEATSTRIP™, the black light infrared electric heater. This
user manual will guide you through the connection and programming of the radio
receiver MHS-FBM. These instructions are an addition and valid only in combina-
tion with the general HEATSTRIP™ manual, chapter 4.7.
Our remote controls are powered by the EnOcean technology, which enables them
to run battery free. When pressing the button of the remote control, the system
harnesses the physical pressure of your thumb onto the remote control and
converts it into an electro-magnetic signal that is picked up by our MHS-FBM
receiver.
Electronic smog and radio signals
Many people are worried about the possible consequences for their health of the
electronic smog created by the countless electrical fields due to the many wireless
devices we are surrounded by. Manufacturers hence worry about possible claims
for damages based on such health related harm. Nevertheless, the need for
wireless devices keeps increasing quickly. Therefore, we had the standard
intensity of the electro-magnetic fields created by our radio receivers measured by
ECOLOG under in situ usage conditions (ECOLOG is the German Institute for
Socio-Ecological Research and Education).
What are the results?
1. The Enocean Radio system emits one hundred times less intensive
high-frequency fields than conventional light switches (the latter’s high-frequency
fields are produced through the characteristic sparkling switching process).
2. The intensity of the quick high-frequency emissions of the EnOcean radio switch
are up to 10,000 times fewer than the permanent high-frequency emissions of the
mobile phone network stations in residential homes.
3. Thanks to the lack of cables and switches, our radio system works without
interefering with low-frequency electro-magnetic emissions.
4. This radio system is used in schools, hospitals, and even in houses built
according to Feng Shui principles.
Standby operation: heating off
blue LED lit
ON press the ON button
heat output is set up on "power 3" (full power")
press the ON button again
Remote to “Power 0” (OFF)
Heat output press the OFF button
settings remote to “Power 2”
2 green LEDs turn on
press in OFF button again
remote to “Power 1”
1 green LED turns on
press in OFF button again
remote to “Power 0” (OFF)
All 3 green LEDs turn on
Standby operation, heating off – blue LED lit
Party mode The “Party Mode” has a preset heating duration of 4 hours
running on maximum heat supply, regardless of the Time-Code
set (see section “Setting of maximum heating duration” above).
To launch the Press and hold the ON button for more than 6 seconds. The heater
“Party Mode”: is set on maximum heat and will switch off automatically after 4
hours. The green and blue LEDs are lit.
General OFF Press and hold the OFF button for more than 6 seconds. The
heater turns off regardless of the current heating setting. The blue
LED displays the standby mode.
Test operation (to check the functionality of the receiver module without using the
without transmitter transmitter)
Press the lateral button on the receiver for more than 10 seconds
-> the heater turns on, 2 LEDs are lit, 80% power.
Press the programing buttons again for for more than 10 seconds,
the heater turns off.
If not, the device is automatically turned off after 2 hours. The blue
standby LED turns on.
Table of contents
1.0 Use page 2
2.0 Safety Information page 2
3.0 Functionality description page 4
4.0 Assembly page 5
5.0 Programming page 7
6.0 Operation page 9
7.0 Connecting element MHS-ESM page 10
8.0 Technical Information back page
Delivery:
Radio receiver module 1 piece
Power connector (already installed on the machine) 2 pieces
Assembly and user manual 1 piece
and optionally
Hand held remote control 1 piece
or
Wall-mounted remote control 1 piece
1
The connecting element serves as a stylish cable connection for your Heatstrip, hiding
the power cable at the backside of the device - instead of it being visible at the front side.
Install the connecting element after point 4.0 in this user manual.
It is not possible to further program or set this element.
7.0 Connecting element 10
User manual for HEATSTRIP™ radio receiver
User Manual 2.1 | Valid from 11.11.2011
Remote control systems for
8.0 Technical data
This installation and user
manual encompasses
information about the
following products:
MHS-FBM
MHS-FBHS
MHS-FBWS
MHS-ESM
Exclusively engineered and made in Germany
Operating voltage 230 V / 50 Hz
Wattages maximum 3200 W
Heat output 3 setting
Warming up time approx. 10 to 15 minutes,
depending on the weather
(temperature outside,
wind)
Measurements circa 170 x 90 x 65mm
Power cable EUR or IK plugs
Cable length 1.5m, 3 x 1.5mm sq
Compatability up to max. 28 transmitters
Transmission range approx. up to 100m free
Transmitter 868,3 MHz frequency
Performance maximum 10 mW
Transmission duration approx. 25ms
Security 32 Bit encryption with up
to 3 telegrams
Humidity maximum 85%
Temperature range from 0ºC to +40ºC
Storage temperature from -30ºC to +65ºC
Shutdown as a built-in factory setting,
the receiver automatically
shuts down after 12 hours
of continuous use
RoHS compliant
WEEE-Reg.-Nr. DE 45650441
MHS GmbH
Munich Home Systems
Kramergasse 32
D- 82054 Sauerlach b. München
Tel.: +49-(0)8104-64709-0
Fax: +49-(0)8104-64709-9
[email protected]
www.heatstrip.de
D

This manual suits for next models

3

Popular Receiver manuals by other brands

Sony AC-LS5K Operating instructions manual

Sony

Sony AC-LS5K Operating instructions manual

Inovonics INO mini 679 Installation & user guide

Inovonics

Inovonics INO mini 679 Installation & user guide

JVC RX-DP20VBK Service manual

JVC

JVC RX-DP20VBK Service manual

JVC RXD702B - AV Receiver instructions

JVC

JVC RXD702B - AV Receiver instructions

LaserLiner SensoPilot Pro operating instructions

LaserLiner

LaserLiner SensoPilot Pro operating instructions

ARG ARG-OM-030 Manual and user guide

ARG

ARG ARG-OM-030 Manual and user guide

Yamaha RX-A3020 owner's manual

Yamaha

Yamaha RX-A3020 owner's manual

Denon DN-700AV user guide

Denon

Denon DN-700AV user guide

CYP CA-USBAT Operation manual

CYP

CYP CA-USBAT Operation manual

JR Sport RS600 instruction manual

JR Sport

JR Sport RS600 instruction manual

JVC Exad KD-ADV38 instructions

JVC

JVC Exad KD-ADV38 instructions

RCA DRD223RD user guide

RCA

RCA DRD223RD user guide

Televes zAshd user manual

Televes

Televes zAshd user manual

Delphi SkyFi2 SA10102 installation guide

Delphi

Delphi SkyFi2 SA10102 installation guide

Aiwa CSD-A120 Service manual

Aiwa

Aiwa CSD-A120 Service manual

Topfield TF 4400 PVRt user guide

Topfield

Topfield TF 4400 PVRt user guide

THOMSON VS 990 user manual

THOMSON

THOMSON VS 990 user manual

Wireless Solution S-1 Micro user manual

Wireless Solution

Wireless Solution S-1 Micro user manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
