HEBI Robotics Hexapod R Series User manual

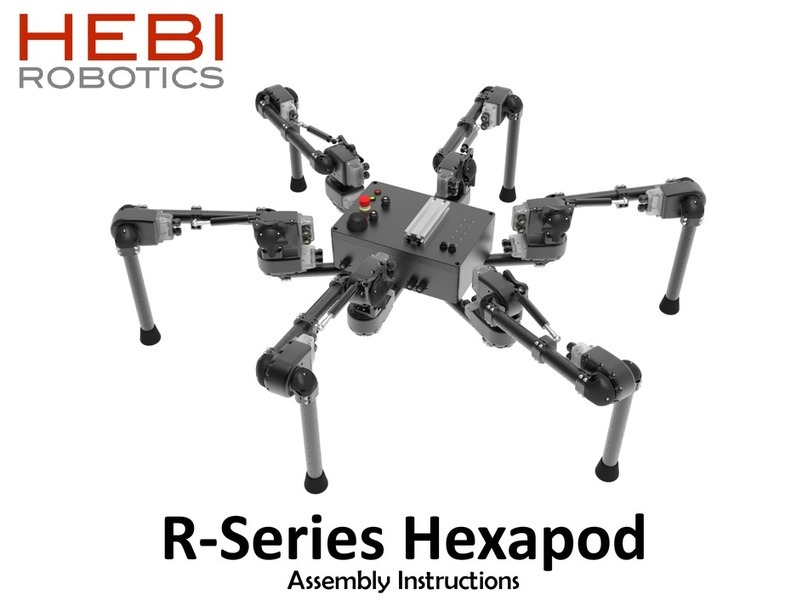

R-Series Hexapod
Assembly Instructions
All manuals and user guides at all-guides.com

General Warnings and Cautions
Danger (May cause serious injury or death)
•Keep water, flammables, solvents and other liquids clear from unsealed actuator.
•Keep fingers away from moving parts during operation.
•Cut power immediately if actuator emits strange odors or smoke.
•Keep actuator out of reach of children.
Warning (May cause injury or damage to actuator)
•Do not expose the actuator to permanent and strong magnetic fields.
•Do not force screws into the bottom of the actuator. R8 = 8mm Tap Depth
•Use provided hardware with accessories and hand tighten as needed.
•Attempts to disassemble actuator will void the warranty and may cause permanent damage.
*Sealing (R-Series Actuators are IP67 when properly used)*
•Please refer to all online documentation for proper sealing techniques of the actuator.
For more information please visit: docs.hebi.us
R-Series Hexapod Assembly Instructions 2
All manuals and user guides at all-guides.com

Bill of Materials - Mechanical
R-Series Hexapod Assembly Instructions 3
fasteners included, not shown
Default Configuration
1 x
A-2260-01
Sealed Wireless Chassis
Assembly
16 x
PP-2200-02
300mm Tube
2 x
PP-2200-200
200mm Tube
6 x
A-2188-02
6 x
A-2263-57-30
(Gas Spring –30lbs.)
6 x
PP-2335-01
12x
A-2219-01
6 x
A-2222-01
12 x
A-2218-01
1 x
A-2096-02
12 x
A-2090-02
12 x
A-2231-01
6 x
A-2232-01
12 x
R8-9
Straight Connector
6 x
R8-16
Right Angle Connector
All manuals and user guides at all-guides.com

Bill of Materials - Electrical
R-Series Hexapod Assembly Instructions 4
PP-2349-BLK
18AWG Power Wire, Black
PP-2349-RED
18AWG Power Wire, Red
PP-2358-BLU
22AWG M-Stop Cable, Blue
PP-2358-YEL
22AWG M-Stop Cable, Yellow
PP-2401-DUP
POF Duplex Cable
ll items are included in R-Series Connection Toolbox
All manuals and user guides at all-guides.com

Table of Contents
Assembly Image Pages
Chassis [6-8]
Left Legs
(includes wiring) [9-24]
Right Legs
(includes wiring) [25-38]
Final
(includes wiring) [39-43]
R-Series Hexapod Assembly Instructions 5
All manuals and user guides at all-guides.com

R-Series Hexapod Assembly Instructions 6
Chassis
All manuals and user guides at all-guides.com

1 x
R-Series Hexapod Assembly Instructions 7
1 x
A-2260-01
Sealed Wireless Chassis
Assembly
2 x
PP-2200-200
200mm Tube
4 x
PP-2200-02
300mm Tube
All manuals and user guides at all-guides.com

1 x
R-Series Hexapod Assembly Instructions 8
1 x
A-2096-02
All manuals and user guides at all-guides.com

Left Legs
R-Series Hexapod Assembly Instructions 9
All manuals and user guides at all-guides.com

3 x
R-Series Hexapod Assembly Instructions 10
1 x
A-2222-01
Flat face towards inside
All manuals and user guides at all-guides.com

3 x
R-Series Hexapod Assembly Instructions 11
1 x
A-2222-01
Align with actuator
output hub tick mark
(inside face parallel with tick mark)
1 x
R8-9
Straight Connector
All manuals and user guides at all-guides.com

R-Series Hexapod Assembly Instructions 12
3 x
Connectors of both modules
point the same way
1 x
R8-16
Right Angle Connector
All manuals and user guides at all-guides.com

R-Series Hexapod Assembly Instructions 13
3 x
1 x
PP-2200-02
[300mm]
1 x
A-2218-01
1 x
A-2219-01
All manuals and user guides at all-guides.com

R-Series Hexapod Assembly Instructions 14
3 x3 x
3 x
Align with actuator
output hub tick mark
(Tube aligns with tick mark)
All manuals and user guides at all-guides.com

R-Series Hexapod Assembly Instructions 15
3 x
1 x
A-2188-02
1 x
A-2263-57-30
(Gas Spring –30lbs.)
All manuals and user guides at all-guides.com

R-Series Hexapod Assembly Instructions 16
3 x3 x
3 x
All manuals and user guides at all-guides.com

R-Series Hexapod Assembly Instructions 17
3 x
1 x
PP-2335-01
1 x
PP-2200-02
[300mm]
1 x
A-2218-01
All manuals and user guides at all-guides.com

R-Series Hexapod Assembly Instructions 18
3 x
1 x
R8-9
Straight Connector
All manuals and user guides at all-guides.com

R-Series Hexapod Assembly Instructions 19
3 x3 x
3 x
Align with actuator
output hub tick mark
(Tube aligns with tick mark)
All manuals and user guides at all-guides.com

R-Series Hexapod Assembly Instructions 20
3 x
1 x
A-2219-01
All manuals and user guides at all-guides.com
