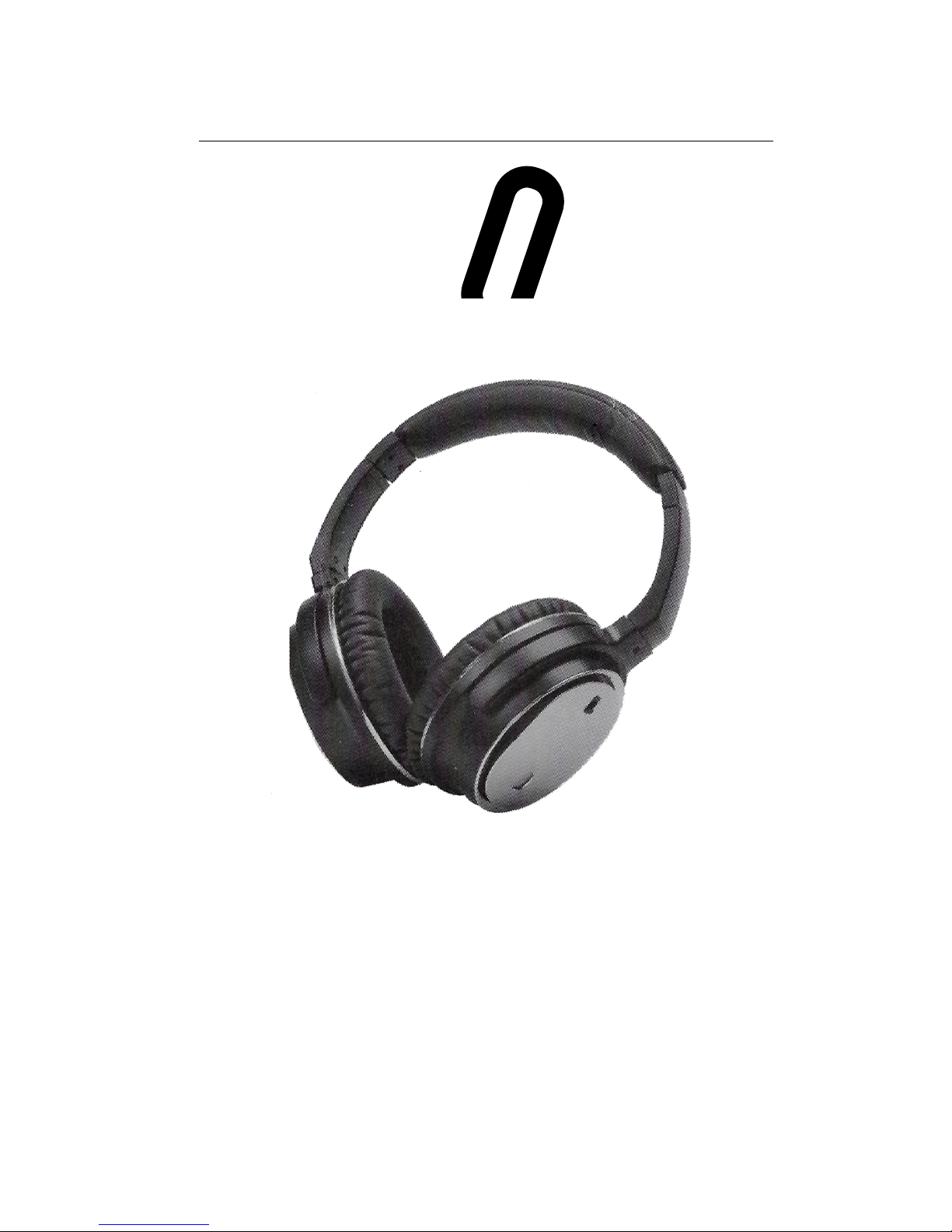

Heddys HEBNC80 User manual

HEBNC80
Bluetooth®
Noise Cancelling
Rechargeable
Heddys
Model
Owner’s Guide

2
Safety Information
• Always turn the volume control down on your sound source before
plugging in your headphones; then increase it to a comfortable level.
• Do not wear these headphones near traffic or in any other activity
where a failure to hear surrounding sounds could be dangerous.
• Maintenance and service operations are only to be carried out by
authorized dealers. Damage caused by manual modifications of the
product is not subject to warranty.
• If the product is used for purposes other than originally intended it
may suffer damage. Doing so will void its warranty.
• Long-term exposure to loud music may cause hearing damage.
It is best to avoid extreme volume when using these headphones,
especially for extended periods.
• Keep batteries out of reach of children.
• Avoid immersing or exposure to liquids otherwise failure may result.
• Do not drop your headphones as damage or failure may result.
Compliances
Declarations
All product specifications are subject to change without notice.

3
Contents
Introduction .................................................................................... 4
Package Contents ......................................................................... 4
Product Overview ........................................................................... 5
Controls ........................................................................................ 5
Using your new HEBNC80 Headphones:
Charging the Battery..................................................................... 6
Adjusting the Headband ............................................................... 6
Switching POWER ON/OFF ........................................................... 6
Connecting/Pairing to your Bluetooth® device ............................ 7
Music playback/control functions ................................................ 8
Telephone functions..................................................................... 8
Connecting via an Audio cable...................................................... 8
Active Noise-Cancelling mode ...................................................... 9
Cleaning and Maintenance/Battery Care...................................... 10
Troubleshooting............................................................................ 11
Technical Specifications ................................................................ 12
Warranty....................................................................................... 12

4
Introduction
Introduction
Thank you for choosing headphones. This product has
been manufactured to the highest standards to ensure comfort
and trouble-free performance for years to come.
Package Contents
Included with your new headphones are the following items:
Detachable 3.5mm Audio cable
6.3mm to 3.5mm Stereo adapter
In-flight 3.5mm stereo to 2 x 3.5mm jack adapter
USB to micro USB Charging cable
Mesh bag
Hard Shell protective case
Owner’s Manual

5
Product Overview
Controls
Headphone: Left side
1 –LED Bluetooth® and
Battery indicator.
2 –Multi-Function Button (MFB)
3 –Microphone
4 –Charging port via micro USB
Headphone: Right side
5 –LED Noise-Cancelling
indicator.
6 –Noise Cancelling ON/OFF
7 –3.5mm Audio cable socket

6
Using your new headphones
Charging the Battery (Refer to the diagrams shown on Page 5)
Using the USB Charging cable supplied with your headphones,
plug the micro USB connector into the Charging port (4).
Connect the remaining USB connector into a standard USB charger
or USB computer port.
The LED Bluetooth® and Battery indicator (1) will glow RED,
showing that the internal battery is charging.
When charging is complete this LED will switch off automatically.
Adjusting the Headband
To achieve maximum comfort and effective Noise-Cancellation
ensure the headband is adjusted to provide you with a firm but
comfortable fitting onto your head with both cups of your
headphones located over your ears.
Switching Power ON/OFF
1. Power ON
Press and hold the MFB button (2) for approx. 3 seconds.
The LED Bluetooth® and Battery indicator (1) will rapidly flash
alternately from RED to BLUE with an ascending-pitch sound.
2. Power OFF
Press and hold the MFB button (2) for approx. 5 seconds.
The LED Bluetooth® and Battery indicator (1) will become RED
with a descending pitch sound.

7
Using your new headphones
Connecting/Pairing your Bluetooth® device
Your HEBNC80 headphones will work with Bluetooth® enabled
mobile phones and applicably featured audio devices. Prior to
using and pairing your headphones for the first time, please check
to make sure that the Bluetooth® function on your mobile phone
or device is enabled.
In general it is recommended that you refer to the pairing
instructions provided with your mobile phone/device.
The following instructions are for typical Bluetooth® enabled
mobile phones/audio devices.
1. Press and hold the MFB button (2) for approx. 4 seconds until
the Bluetooth LED Bluetooth® and Battery indicator (1) rapidly
flashes alternately between BLUE and RED.
Your headphones are now in PAIRING MODE.
2. Enable searching of nearby Bluetooth® devices on your device.
When you see HEBNC80 listed as FOUND on your device you
can now select CONNECT to pair with them.
Note: If your device prompts you for a password, enter 0000.
3. When pairing is successful, the LED Bluetooth® and Battery
indicator (1) will emit a BLUE flash every 4 seconds.
If pairing is unsuccessful please turn off your headphones and
repeat these pairing steps. For more details, please refer to the
Owner’s Manual supplied with your audio device.
4. Your headphones will automatically re-connect to the last
paired device when switched ON.

8
Using your new headphones
Music Playback/Control functions via Bluetooth®
Play/Pause Music Press the MFB button (2) once to START
Music playback and once again to PAUSE
music playback.
Next Track Press the MFB button (2) twice, briefly to
select the NEXT track.
Telephone functions via Bluetooth®
Answer a call Press the MFB button (2) once to
ANSWER.
End a call Press the MFB button (2) once again to
END.
Ignore a call Press & hold the MFB button (2) for 3 sec.
Swap calls between While speaking, press the MFB button (2)
HEBNC80 Headphones for 3 seconds. When a “BEEP sound is
and a Smartphone. heard, release the MFB button.
Connecting via an Audio cable
A Detachable 3.5mm Audio cable is provided for use with
multimedia devices that do not have Bluetooth capabilities.
Connect via the 3.5mm Audio socket (7).
Plug the 6.3mm to 3.5mm Stereo Adapter onto the end of this
Audio cable to provide compatibility with Stereo Headphone
Output sockets found on many Audio devices.

9
Using your new headphones
Active Noise-Cancelling Mode
The Active Noise-Cancelling feature on your new headphones will
greatly reduce unwanted noise, in particular that which is
experienced while travelling in domestic aircraft. This will add to
your in-flight entertainment experience and may reduce fatigue.
1. How to turn Active Noise-Cancelling ON
Slide the Noise-Cancelling ON/OFF switch (6) in an upwards
direction. The BLUE LED Noise-Cancelling indicator (5) will be ON.
Note: After you turn ON the power, you might hear a slight hissing
noise. This is a normal function and will cease after a few seconds.
2. How to turn Active Noise-Cancelling OFF
Slide the Noise-Cancelling ON/OFF switch (6) in a downwards
direction. The BLUE LED Noise-Cancelling indicator (5) will be OFF.
Notes:
When the battery is running low, the LED Noise-Cancelling
indicator (5) will become dim.
• Once the battery is fully drained, the Active Noise-Cancelling
feature will turn OFF but the audio signal from the music
player will continue to transmit.
• When not in use, switch the Active Noise-Cancelling feature
OFF to extend battery life.
Your HEBNC80 headphones may be used as conventional
headphones via the Audio cable even if the batteries are fully
drained.

10
Cleaning and Maintenance
It is not necessary to regularly clean your headphones, however if
you believe they do need cleaning please use a soft, dry cloth.
Avoid using chemical cleaners of any description.
Battery Care
Always charge your headphones using only a standard USB port or
charger and not any high current/fast charger devices.
Failure to observe this may result in permanent damage or fire.
The Lithium-Polymer batteries inside your headphones are not
user replaceable. Do not attempt to do so.
Failure to observe these warnings will void your warranty.

11
Troubleshooting
If you are unable to connect your headphone and your mobile
phone, please try the following:
• Ensure your headphone is turned OFF and properly charged
before commencing the Bluetooth® Pairing procedure on Page 7.
• Ensure the headphone is properly paired with your mobile
phone or device.
• Ensure the headphone is within a 10 metre range of your paired
Bluetooth device and that there are no obstructions, such as
walls or other electronic devices in between.
• Ensure your mobile phone’s Bluetooth feature is activated.
Please refer to your mobile phone user guide for specific
instructions.
• To reset the default functions of the HEBNC80 headphone you
can simply plug-in to recharge then disconnect.
Notes:
1. You are able to use both Noise Cancelling & Bluetooth®
functions simultaneously.
2. There are no Volume and Previous-Track controls on
HEBNC80 headphones. Please use the controls on your
paired Bluetooth® device to control these features.

12
Technical Specifications
Bluetooth version: 4.1
Bluetooth chipset: CSR8645 w/apt-X
Noise Cancellation rate: 85%
Speakers: 40mm Neodymium
Audio impedance: 32 Ohms
Charging time: Approx. 3.0 hours
Charging: Via Micro USB to USB Adapter (included)
BT operating range: ≥10 m
Wired Audio Option: Via an Audio cable (included).
Battery time: 15 hours
(Bluetooth® only)
Battery time: 30 hours
(Noise-Cancelling only)
Battery time: 12 hours
(Bluetooth® & Noise Cancelling)
Battery Type: Rechargeable/Non-replaceable Lithium-Polymer
Dimensions: 21.0(L) × 16.0(W) ×8 (H) cm (unfolded)
21.0(L) × 16.0(W) ×5 (H) cm (folded)
Weight: 238.6 g
Limited Warranty
Your headphones come complete with a 12 month
limited warranty. Please keep your receipt as proof of purchase.
