Thank you for chosing this product!
Please read this instruction manual carefully before using it and kee it for later information
This manual is conceived for ofering you all of the necessary info regarding instalation, using
and maintenance of the machine. For a correctly and safely use of the machine, please, read
this manual before instalation and using.
I. INTRODUCTION
II. PACKAGE CONTENTS
➢Side by side
➢Instruction Manual
➢Warranty card

www.heinner.com
2
III. SAFETY WARNINGS
WARNING - Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING - Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING - Do not damage the refrigerant circuit.
WARNING - Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the manufacturer.
The appliance has to be unplugged after use and before carrying out user maintenance
on the appliance.
This appliance can be used by children aged from 8 years and above and persons with
reduce physical sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
Please recycle the refrigerator according to local regulators for it use flammable blowing
gas and refrigerant.
Please according to local regulations regarding disposal of the appliance for its
flammable refrigerant and blowing gas. Before you scrap the appliance, please take off
the doors to prevent children trapped.
This appliance is intended to be used in household and similar applications such as:
•staff kitchen areas in shops, offices and other working environments.
•farm houses and by clients in hotels, motels and other residential type
environments.
•bed and breakfast type environments.
•catering and similar non-retail applications.
WARNING - Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
WARNING - The refrigerant and insulation blowing gas are flammable. When disposing
of the appliance, do so only at an authorized waste disposal centre. Do not expose to
flame.
WARNING - When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING - Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.

www.heinner.com
3
WARNING - The illuminating lamps must not be replaced by the user! If the illuminating
lamps is damaged, contact the customer helpline for assistance. This warning is only for
refrigerators that contain illuminating lamps.
DANGER: Risk of child entrapment. Before you throw away your old refrigerator or
freezer:
•Take off the doors.
•Leave the shelves in place so that children may not easily climb inside.
The refrigerator must be disconnected from the source of electrical supply before
attempting the installation of accessory.
Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.
Therefore, when the refrigerator is scraped, it shall be kept away from any fire source
and be recovered by a special recovering company with corresponding qualification
other than be disposed by combustion, so as to prevent damage to the environment or
any other harm.
According to IEC standard
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
•Keep all packaging away from children as there is risk of suffocation.
•If you are discarding the appliance, pull the plug out of the socket, cut the
connection cable (as close to the appliance as you can) and remove the door to
prevent children playing from suffering an electric shock or from closing
themselves inside it.
•If this appliance, featuring a magnetic door seals, is to replace an older appliance
having a spring lock (latch) on the door or lid, be sure to make the spring lock
unusable before you discard the old appliance. This will prevent it from
becoming a death trap for a child.
•Children should be supervised to ensure that they do not play with the
appliance.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the
appliance, a natural gas with a high level of environmental compatibility, which is
nevertheless flammable. During transportation and installation of the appliance, ensure
that none of the components of the refrigerant circuit becomes damaged. The
refrigerant (R600a) is flammable.

www.heinner.com
4
Risk of fire/flammable materials
If the refrigerant circuit should be damaged:
•Avoid opening flames and sources of ignition.
•Thoroughly ventilate the room in which the appliance is situated.
WARNING - Refrigerators contain refrigerant and gases in the insulation. Refrigerant and
gases must be disposed of professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.
Electrical safety
•Do not pull the power cord when pulling the power plug of the refrigerator.
Please firmly grasp the plug and pull out it from the socket directly.
•To ensure safe use, do not damage the power cord or use the power cord when
it is damaged or worn.
•Please use a dedicated power socket and the power socket shall not be shared
with other electrical appliances. The power plug should be firmly contacted with
the socket or else fires might be caused.
•Please ensure that the grounding electrode of the power socket is equipped with
a reliable grounding line.
•Please turn off the valve of the leaking gas and then open the doors and
windows in case of leakage of gas and other flammable gases. Do not unplug the
refrigerator and other electrical appliances considering that spark may cause a
fire.
•Do not use electrical appliances on the top of the appliance, unless they are of
the type recommended by the manufacturer.
Warnings for using:
•Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage
the refrigerant circuit; maintenance of the appliance must be conducted by
aspecialist.
•Damaged power cord must be replaced by the authorized service, its
maintenance department or related professionals in order to avoid danger.
•The gaps between refrigerator doors and between doors and refrigerator
body are small, be noted not to put your hand in these areas to prevent from
squeezing the finger. Please be gentle when close the refrigerator door to
avoid falling articles.
•Do not pick foods or containers with wet hands in the freezing chamber when
the refrigerator is running, especially metal containers in order to avoid
frostbite.

www.heinner.com
5
•Do not allow any child to get into or climb the refrigerator; otherwise
suffocation or falling injury of the child may be caused.
•Do not place heavy objects on the top of the refrigerator considering that
objectives may fall when close or open the door, and accidental injuries might
be caused.
•Please pull out the plugin case of power failure or cleaning. Do not connect
the freezer to power supply within five minutes to prevent damages to the
compressor due to successive starts.
Warnings for placement
•Do not put flammable, explosive, volatile and highly corrosive items in the
refrigerator to prevent damages to the product or fire accidents.
•Do not place flammable items near the refrigerator to avoid fires.
•The refrigerator is intended for household use, such as storage of foods; it
shall not be used for other purposes, such as storage of blood, drugs or
biological products, etc.
•Do not store beer, beverage or other fluid contained in bottles or enclosed
containers in the freezing chamber of the refrigerator; otherwise the bottles
or enclosed containers may crack due to freezing to cause damages.
Warnings for energy
•Refrigerating appliances might not operate consistently (possibility of
defrosting of contents or temperature becoming too warm in the frozen food
compartment) when sited for an extended period of time below the cold end
of the range of temperatures for which the refrigerating appliance is designed.
•The fact that effervescent drinks should not be stored in food freezer
compartments or cabinets or in low-temperature compartments or cabinets,
and that some products such as water ices should not be consumed too cold.
•The need to not exceed the storage time(s) recommended by the food
manufacturers for any kind of food and particularly for commercially
quick-frozen food in food-freezer and frozen-food storage compartments or
cabinets.
•The precautions necessary to prevent an undue rise in the temperature of the
frozen food while defrosting the refrigerating appliance, such as wrapping the
frozen food in several layers of newspaper.
•The fact that a rise in temperature of the frozen food during manual
defrosting, maintenance or cleaning could shorten the storage life.
•The necessity that, for doors or lids fitted with locks and keys, the keys be
kept out of the reach of children and not in the vicinity of the refrigerating
appliance, in order to prevent children from being locked inside.

www.heinner.com
6
Warnings for disposal
•Refrigerant and cyclopentane foaming material used for the refrigerator are
flammable. Therefore, when the refrigerator is scraped, it shall be kept away from
any fire source and be recovered by a special recovering company with
corresponding qualification other than be disposed by combustion, so as to prevent
damage to the environment or any other harm.
•When the refrigerator is scraped, disassemble the doors, and remove gasket of door
and shelves; put the doors and shelves in a proper place, so as to prevent trapping
of any child.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO
CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

www.heinner.com
7
IV. INSTALATION
PLACEMENT
•Before use, remove all packing materials, including bottom cushions, foam pads and
tapes inside of the refrigerator; tear off the protective film on the doors and the
refrigerator body.
•Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or
watery places to prevent rust or reduction of insulating effect.
•Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy
to be splashed with water so as not to affect the electrical insulation properties of
the refrigerator.
•The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat,
and sturdy (rotate left or right to adjust the wheel for levelling if unstable).
•The top space of the refrigerator shall be greater than 30cm, and The refrigerator
should be placed against a wall with a free distance more than 10cm to facilitate heat
dissipation.
PRECAUTIONS BEFORE INSTALLATION:
•Before installation or adjusting of accessories, it shall be ensured that the refrigerator
is disconnected from power.
•Precautions shall be taken to prevent fall of the handle from causing any personal
injury.

www.heinner.com
8

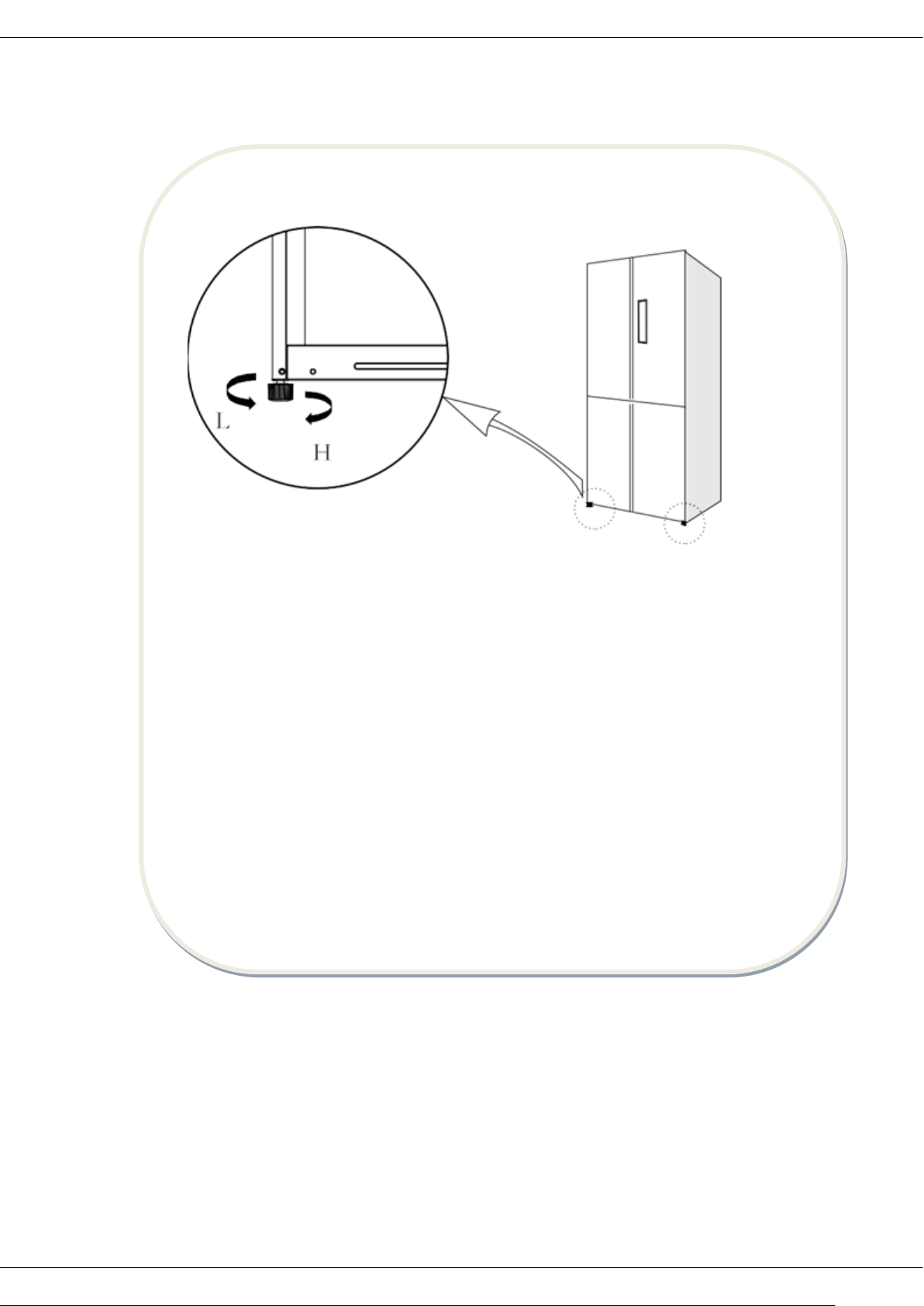

LEVELLING FEET
The picture above is only for reference. The actual configuration will depend on the physical
product or statement by the distributor.
Adjusting procedures:
a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.
CHANGING THE LIGHT
Any replacement or maintenance of the LED lamps is intended to be made by the
manufacturer, its service agent or similar qualified person.

www.heinner.com
9
STARTING
•Before initial start, keep the refrigerator still for two hours before connecting it to
power supply.
•Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3
hours, or for above 4 hours in summer when the ambient temperature is high.
•Spare enough space for convenient opening of the doors and drawers or statement
by the distributor.
ENERGY SAVING TIPS
•The appliance should be located in the coolest area of the room, away from heat
producing appliances or heating ducts, and out of the direct sunlight.
•Let hot foods cool to room temperature before placing in the appliance.
Overloading the appliance forces the compressor to run longer. Foods that freeze
too slowly may lose quality, or spoil.
•Be sure to wrap foods properly, and wipe containers dry before placing them in the
appliance. This cuts down on frost build-up inside the appliance.
•Appliance storage bin should not be lined with aluminum foil, wax paper, or paper
toweling. Liners interfere with cold air circulation, making the appliance less
efficient.
•Organize and label food to reduce door openings and extended searches. Remove as
many items as needed at one time, and close the door as soon as possible.
V. BEFORE USING

www.heinner.com
10
The picture above is only for reference. The actual configuration will depend on the physical
product or statement by the distributor.
VI. PRODUCT DESCRIPTION
LED lighting
Refrigerating chamber
Door tray
Glass shelf
Fruits and
vegetables box
Freezing chamber
Drawers

www.heinner.com
11
The picture above is only for reference. The actual configuration will depend on the physical
product or statement by the distributor
1. Display screen:
1 –refrigerating icon
2 –OFF icon
3 –temperature display area
4 –super refrigerating icon
5 –freezing icon
6 –lock/unlock icon
7 –vacation icon
8 –super freezing icon
2. Operation button:
A. REFRIGERATING button
B. FREEZING button
C. MODE button
D. LOCK/UNLOCK button
VII. USING INSTRUCTION

www.heinner.com
12
Refrigerator
•The refrigerator is suitable for storage of a variety of fruits, vegetables, beverages and
other food consumed in the short term.
•Cooking foods shall not be put in the refrigerating chamber until cooled to room
temperature.
•Foods are recommended to be sealed up before putting into the refrigerator. The
glass shelves can be adjusted up or down for a reasonable amount of storage space
and easy use.
Freezer
•The low temperature freezing chamber may keep food fresh for a long time and it is
mainly used to store frozen foods and making ice.
•The freezing chamber is suitable for storage of meat, fish, rice balls and other foods
not to be consumed in short term.
•Chunks of meat are preferably to be divided into small pieces for easy access. Please
be noted food shall be consumed within the shelf time.
•The temperature should be set to “super freezing”, when you want to freeze foods
quickly.
Note: Storage of too much food during operation after the initial connection to power
may adversely affect the freezing effect of the refrigerator. Foods stored shall not block
the air outlet; or otherwise the freezing effect will also be adversely affected.
OPERATING INSTRUCTIONS
1. DISPLAY
The first time the power was turn on for the refrigerator, the display screen will total
display for 3 seconds. Meanwhile the starting up bell rings and then the screen enters the
normal display of the operation.
The first time for using the refrigerator, the default temperature of refrigerating chamber
and freezing chamber is 5° C/-18 °C respectively.
When the error occurs, the display shows the error code (see below); during normal
operation, the display shows the set temperature of the refrigerating chamber or freezing
chamber.
Under normal circumstances, if there is no operation on display panel or door opening
action within 30s, then the display shows the lock state and then the display goes
out after the lock state continued for 30 sec.

www.heinner.com
13
2. LOCK / UNLOCK
In the unlocked state, continue to press the lock button for 3 seconds, enter
the lock state,
The logo lights up and buzzer sounds, it means the display panel is locked, at this
time, button operation cannot be implemented;
In the locked state, continue to press the lock button for 3 seconds, enter the
unlocked state, The logo go out and buzzer sounds, it means the display panel is
unlocked, at this time, button operation can be implemented;
3. TEMPERATURE SETTING OF REFRIGERATING CHAMBER
Press temperature adjusting button of the refrigerating chamber to change
the setting temperature of refrigerating chamber, and then each time a press of
temperature adjusting button of the refrigerating chamber, the temperature will be
reduced1 °C;The temperature setting range for refrigerating chamber is 2~8 °C. When the
temperature is 2 °C, press the button again, and the temperature of refrigerating
chamber will be set at 8 °C and it circulates accordingly.
4. TEMPERATURE SETTING OF FREEZING CHAMBER
Press temperature adjusting button of the freezing chamber to change the
setting temperature of freezing chamber and then each time a press of temperature
adjusting button of the freezing chamber, the temperature will be reduced1℃; The
temperature setting range for freezing chamber is-24℃~-16℃). When the temperature is
-24℃, press the button again, and the temperature of freezing chamber will be set at
-16℃, and it circulates again and again.
5. MODE SETTING
Press mode button to select different control mode. Control mode is cycled
according to the following regulation:
Super refrigerating - super freezing - super refrigerating and super freezing
- vacation –none –super refrigerating.
When super refrigerating mode is set, temperature of refrigerating chamber will
automatically set at 2°C. Exit super refrigerating mode, temperature of refrigerating chamber
will automatically return back to temperature set before super refrigerating mode.

www.heinner.com
14
When super freezing mode is set, temperature of freezing chamber will automatically set
at -24°C, exit super freezing mode, temperature of freezing chamber will automatically
return back to temperature set before super freezing mode. Time setting of super
freezing:
After setting the super freezing mode, long press the freezing temperature adjusting
button for 3 sec, the display shows “48”, which means that time of super
freezing has been set at 48 hours. And press freezing temperature adjusting button
, the display shows "6", which
means that time of super freezing has been set at 6 hours.when the time arrives, it will
exit the super refrigerating mode automatically.
After setting the super refrigeratingiif" mode, The super refrigerating time setting is 2.5
hours by acquiescence and the super refrigerating mode will exit automatically when the
time arrives.
When vacation mode VACATION is set, temperature of freezing chamber will be
automatically set at -18"C;the temperature of refrigerating chamber is turned off,and the
icon(OFF) shines.
6. STORAGE UPON POWER FAILURE
In case of power failure, the instant working state will be locked and maintained tiil
re-electrification.
7. OPENING WARNING AND ALARM CONTROL
When the refrigerator doors get open, the opening music will play. If the door is not
closed in two minutes, the buzzer will sound once every minute until the door is closed.
Press any one button to stop the buzzer alarm.
8. FAULT INDICATION
The following warnings appearing on the display indicate corresponding faults of the
refrigerator. Though the refrigerator may still have cold storage function with the
following faults, the user shall contact a maintenance specialist for maintenance, so as to
ensure optimized operation of the appliance.
Error code
Error description
E1
Temperature sensor failure of refrigerating chamber
E2
Temperature sensor failure of freezing chamber
E4
Failure of defrosting sensor in refrigerating chamber
E5
Failure of defrosting sensor in freezing chamber
E6
Communication error
E7
Failure of ambient temperature sensor
EH
Failure of humidity sensor

www.heinner.com
15
Order
Compartments TYPE
Target storage
temp. [ ℃ ]
Appropriate food
1
Fridge
+2≤+6
Eggs, cooked food, packaged food, fruits and
vegetables, dairy products, cakes, drinks and other
foods are not suitable for freezing.
2
(***)*-Freezer
≤-18
Seafood (fish, shrimp, shellfish), freshwater aquatic
products and meat products (recommended for 3
months, the longer the storage time, the worse the
taste and nutrition), suitable for frozen fresh food.
3
***-Freezer
≤-18
Seafood (fish, shrimp, shellfish), freshwater aquatic
products and meat products (recommended for 3
months, the longer the storage time, the worse the taste
and
nutrition), are not suitable for frozen fresh food.
4
**-Freezer
≤-12
Seafood (fish, shrimp, shellfish), freshwater aquatic
products and meat products (recommended for 2 months,
the longer the storage time, the worse the taste and
nutrition), are not suitable for frozen fresh food.
5
*-Freezer
≤-6
Seafood (fish, shrimp, shellfish), freshwater aquatic
products and meat products (recommended for 1 months,
the longer the storage time, the worse the taste and
nutrition), are not suitable for frozen fresh food.
To avoid contamination of food, please respect the following instructions:
•Opening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
•Clean regularly surfaces that can come in contact with food and accessible drainage
systems.
•Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
•Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or
making ice cream and making ice cubes.
•One-, two- and three-star compartments are not suitable for the freezing of fresh food.
Note: Children aged 3 years and older are allowed to enter and remove food from refrigerators
(this is only applicable to EU countries).
Note: please store different foods according to the compartments or target storage
temperature of your purchased products.
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.

www.heinner.com
16
6
0-star
-6≤0
Fresh pork, beef, fish, chicken, some packaged processed
foods, etc. (Recommended to eat within the same day,
preferably no more than 3 days). Partially encapsulated
processed foods (non-freezable foods)
7
Chill
-2≤+3
Fresh/frozen pork, beef, chicken, freshwater aquatic
products, etc. (7 days below 0 ℃and above 0 ℃is
recommended for consumption within that day, preferably
no more than 2 days). Seafood (less than 0 for 15 days, it is
not recommended to store above 0 ℃).
8
Fresh Food
0≤+4
Fresh pork, beef, fish, chicken, cooked food, etc.
(Recommended to eat within the same day, preferably no
more than 3 days).
9
Wine
+5≤+20
Red wine, white wine, sparkling wine, etc.

www.heinner.com
17
OVERALL CLEANING
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the
cooling effect and energy saving. The interior of the refrigerator should be cleaned
regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral
detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean
water and dry cloth. Open the door for natural drying before the power is turned on.
Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes,
organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or
alkaline items clean refrigerator considering that this may damage the fridge surface
and interior.
Do not rinse with water so as not to affect the electrical insulation properties.
Please unplug the refrigerator for defrost and cleaning.
CLEANING OF THE DOOR TRAY
Cleaning steps：
a. in order to conveniently take off tray, punch the bottom of right part of tray for
several times and again punch the bottom of left part of tray for several times, as shown
in the figure;
b. tray can be smoothly taken off after it has been loosened.
DEFROST
The refrigerator is made based on the air-cooling principle and thus has automatic
defrosting function. Frost formed due to change of season or temperature may also be
manually removed by disconnection of the appliance from power supply or by wiping
with a dry towel.
VIII. CLEANING AND MAINTENANCE

www.heinner.com
18
DEFROST
The refrigerator is made based on the air-cooling principle and thus has automatic
defrosting function. Frost formed due to change of season or temperature may also be
manually removed by disconnection of the appliance from power supply or by wiping
with a dry towel.
OUT OF OPERATION
Power failure: In case of power failure, even if it is in summer, foods inside the appliance
can be kept for several hours; during the power failure, the times of door opening shall
be reduced, and no more fresh food shall be put into the appliance.
Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors
are left open to prevent odor.
Moving: Before the refrigerator is moved, take all objects inside out, fix the glass
partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten
the levelling feet; close the doors and fix them with tape. During moving, the appliance
shall not be laid upside down or horizontally or be vibrated; the inclination during
movement shall be no more than 45°.
The appliance shall run continuously once it strated. Generally, the operation od the
appliance shall not be interrupted, otherwise the service life may be impaired.

www.heinner.com
19
The following simple issues can be handled by the user. Please call the after-sale service
department if the issues are not settled.
Failed operation
Check whether the appliance is connected to power or whether the plug is in well contact
Check whether the voltage is too low
Check whether there is a power failure or partial circuits have tripped
Odor
Odorous foods should closely wrapped
Check whether there is any rotten food
Whether the interior shall be cleaned
Long-term operation of
compressor
It is normal that refrigerator operates for longer time in
summer when the ambient temperature is higher
Do not put too much food in the freezer at one time
Do not put foods until they are cooled
Frequent opening of refrigerator door
Illuminating light does not shine
Check whether the refrigerator is connected to power supply and whether the
illuminating light is damaged
Have the light replaced by a specialist
Doors cannot be properly closed
The door is stuck by food packages
Too much food is placed
The refrigerator is tilted
Loud noises
Check whether the floor is level and whether the refrigerator is placed stably
Check whether accessories are placed at proper locations
Door seal fails to be tight
Remove foreign matters on the door seal
Heat the door seal and then cool it for restoration (or blow it with an electrical drier or
use a hot towel for heating)
Water pan overflows
There is too much food in the chamber or food stored contains too much water, resulting
in heavy defrosting
The doors are not closed properly, resulting in frosting due to entry of air and increased
water due to defrosting
Hot housing
Heat dissipation of the built-in condenser via the housing, which is normal
When housing becomes hot due to high ambient temperature, storage of too much food
or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat
dissipation
Surface condensation
Condensation on the exterior surface and door seals of the refrigerator is normal when
the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise
The compressor may produce buzzes during operation and the buzzes are loud
particularly upon start or stop. This is normal
Refrigerant flowing inside of the appliance may produce creak, which is normal
IX. TROUBLESHOOTING
