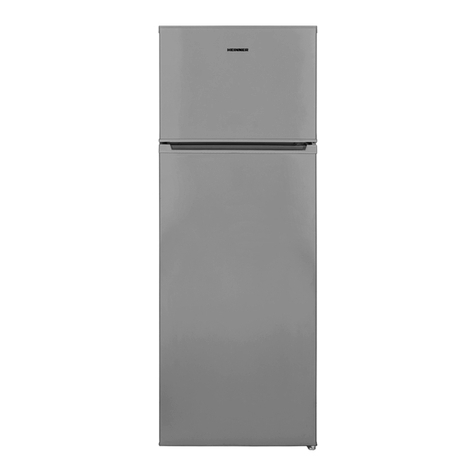

Heinner HF-205A+ User manual

REFRIGERATOR
Model: HF-205A+
www.heinner.ro
•Refrigerator
•Energy class: A+
•Net capacity: 205 L

www.heinner.com
1
Please read the instructions carefully and keep the manual for future information.
This manual is designed to give all necessary instructions concerning installation, use and
maintenance of the unit. In order to operate the unit correctly and safely, please read this
instruction manual carefully before installation and use.
I. INTRODUCTION
II. YOUR PACKAGE CONTAINS
➢Refrigerator
➢User manual
➢Certificate of warranty
Thank you for choosing this product!

www.heinner.com
2
III. SAFETY INFORMATION
For your safety and correct usage, before installing and first using the appliance, read this
user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to make sure that all people using the appliance are thoroughly
familiar with its operation and safety features. Save these instructions and be sure that
they remain with the appliance if it is moved or sold, so that anyone using it throughout
its life, will be properly informed on its usage and safety notices.
For the safety of life and property, keep the precautions of these user's instructions as the
manufacturer is not responsible for damages caused by omission.
Safety for children and others who are vulnerable people
•According to EN standard: This appliance can be used by children aged from 8
years and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•Children aged from 3 to 8 years are allowed to load and unload refrigerating
appliances.
•According to IEC standard: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
•Children should be supervised to ensure that they do not play with the appliance.
•Keep all packaging away from children as there is risk of suffocation.
•If you are discarding the appliance, pull the plug out of the socket, cut the
connection cable (as close to the appliance as you can) and remove the door to
prevent children playing from suffering an electric shock or from closing
themselves inside it.
•If this appliance, featuring a magnetic door seals, is to replace an older appliance
having a spring lock (latch) on the door or lid, be sure to make the spring lock
unusable before you discard the old appliance. This will prevent it from becoming
a death trap for a child.

www.heinner.com
3
General safety
WARNING! This appliance is intended to be used in household and similar applications such
as:
•staff kitchen areas in shops, offices and other working environments;
•farm houses and by clients in hotels, motels and other residential type
environments;
•bed and breakfast type environments;
•catering and similar non-retail applications;
WARNING! Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
WARNING! If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING! Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
WARNING! The refrigerant and insulation blowing gas are flammable. When disposing of
the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.
WARNING! Children aged from 3 to 8 years are aloud to load and unload refirgerating
appliances.
WARNING! When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING! Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.
WARNING! Food needs to be packed in bags before putting into the refrigerator, and liquids
need to be packed in bottles or capped containers to avoid the problem that the product
design structure is not easy to clean.
The symbol is a warning and indicates the refrigerant and insulation blowing gas are
flammable.
WARNING! Risk of fire
If the refrigerant circuit should be damaged:
•Avoid opening flames and sources of ignition.
•Thoroughly ventilate the room in which the appliance is situated.

www.heinner.com
4
Replacing the illuminating lamps
WARNING - The illuminating lamps must not be replaced by the user! If the illuminating
lamps is damaged, contact the customer helpline for assistance. This warning is only for
refrigerators that contain illuminating lamps.
Refrigerant
The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance,
a natural gas with a high level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the appliance, ensure that none of the
components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is
flammable.
WARNING! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and
gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure
that tubing of the refrigerant circuit is not damage prior to proper disposal.
If the refrigerant circuit should be damaged:
• Avoid opening flames and sources of ignition.
• Thoroughly ventilate the room in which the appliance is situated.
It is dangerous to alter the specifications or modify this product in any way.
Any damage to the cord may cause a shortcircuit, fire, and/or electric shock.
Electrical safety
1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A crushed or damaged
power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of
electric shock or fire.
6. You must not operate the appliance without the interior lighting lamp cover.
7. The fridge is only applied with power supply of single phase alternating current of
220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the
voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic
voltage regulator of more than 350W to the fridge. The fridge must employ a
special power socket instead of common one with other electric appliances. Its plug
must match the socket with ground wire.

www.heinner.com
5
IV. DAILY USE
•Do not store flammable gass or liquids in the appliance. There is a risk of an
explosion.
•Do not operate any electrical appliances in the appliance (e.g.electric ice cream
makers.mixers etc.).
•When unplugging always pull the plug from the mains socket.do not pull on the
cable.
•Do not place hot items near the plastic components of this appliance.
•Do not place food products directly against the air outlet on the rear wall.
•Store pre-packed frozen food in accordance with the frozen food manufacture's
instructions.
•The appliances manufactures storage recommendations should be strictly adhered
to. Refer to relrelevant instructions for storage.
•Do not place carbonated or fizzy drinks in the freeze compartment as it creates
pressure on the container.which may cause it to explode,resulting in damage to the
appliance.
•Frozen food can cause frost burns if consumed straight from the freezer
compartment.
•Do not place the appliance in direct sunlight.
•Keep buring candles lamps and other items with naked flames away from the
appliance so that do not set the appliance on fire.
•The appliance is intended for keeping food stuff and/or beverages in normal
household as explained in this instruction booklet. The appliance is heavy. Care
should be taken when moving it.
•Do not remove nor touch items from the freezer compartment if your hands are
damp/wet, as this could cause skin abrasions or frost/freezer burns.
•Never use the base drawers, doors etc. to stand on or as supports.
•Frozen food must not be refrozen once it has been thawed out.
•Do not consume ice popsicles or ice cubes straight from the freezer as this can cause
freezer burn to the mouth and lips.
•To avoid items falling and causing injury or damage to the appliance, do not overload
the door racks or put too much food in the crisper drawers.

www.heinner.com
6
V. CLEANING AND MAINTENANCE
VI. INSTALLATION
•For electrical connection carefully, follow the instructions given in this manual.
•Unpack the appliance and check if there are damages on it.
•Do not connect the appliance if it is damaged. Report possible damages immediately
to the place you bought it. In this case retain packing.
•It is advisable to wait at least four hours before connecting the appliance to allow the
oil to flow back in the compressor.
•Adequate air circulation should be around the appliance, lacking this leads to
overheating. To achieve sufficient ventilation, follow the instructions relevant to
installation.
•Wherever possible the back of the product should not be too close to a wall to avoid
touching or catching warm parts (compressor, condenser) to prevent the risk of a fire,
follow the instructions relevant to installation.
•The appliance must not be locate close to radiators or cookers.
•Make sure that the mains plug is accessible after the installation of the appliance.
•Before maintenance, switch off the appliance and disconnect the mains plug from the
mains socket.
•Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic
solvents or abrasive cleansers.
•Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

www.heinner.com
7
Service
•Any electrical work required to do the servicing of the appliance should be carried
out by qualified electrician or competent person.
•This product must be serviced by an authorized Service Center, and only genuine
spare parts must be used.
If the appliance is Frost Free.
If the appliance contains freezer compartment.
Energy Saving tips
•We recommend that you follow the tips below to save energy.
•Try to avoid keeping the door open for long periods.
•Ensure the appliance is away from any sources of heat (Direct sunlight, electric
oven or cooker etc).
•Don't set the temperature colder than necessary.
•Don't store warm food or evaporating liquid in the appliance.
•Place the appliance in a well ventilated, humidity free, room. Please refer to
Installing your new appliance chapter.
•If the diagram shows the correct combination for the drawers, crisper and shelves,
do not adjust the combination as this is designed to be the most energy efficient
configuration.
•Hints for fresh food refrigeration.
•Do not place hot food directly into the refrigerator or freezer, the internal
temperature will increase resulting in the compressor having to work harder and
will consume more energy.
•Cover or wrap food, particularly if it has a strong flavor.
•Place food carefully so that air can circulate freely around it.
VII. SERVICE AND ENERGY SAVING

www.heinner.com
8
VIII. PRODUCT DESCRIPTION
1. Freezer shelf
2. Controller box and LED light
3. Refrigerator shelf
4. Vegetable drawer cover
5. Vegetable drawer
6. Adjustable bottom feet
7. Freezer door
8. Upper door shelf
9. Lower door shelf
10. Refrigerator door
Freezer
Fridge

www.heinner.com
9
Fig. 4
IX. REVERSE DOOR
The side at which the door opens can be changed, from the right side (as supplied) to the left
side, if required.
Warning! When reversing the door, the appliance must not be connected to the mains.
Ensure that the plug is removed from the mains socket.
Tools you will need:
Note: If required you may lay the refrigerator on its back in order to gain access to the base,
you should rest it on soft foam packaging or similar material to avoid damaging the
backboard of the refrigerator. To reverse the door, the following steps are generally
recommended.
1. Stand the refrigerator upright. Open the upper door to take out all door racks (to
avoid damage) and then close the door.
Remove the door shelf
2. Use a putty knife or thin-blade screwdriver to prize the screw hole cover which is at
the top left corner of the refrigerator, and the upper hinge cover which is at the top
right corner of the refrigerator.
Not provided
Additional parts (in the plastic bag)
8 mm socket wrench
Thin-blade
screwdriver
Putty knife
Cross-shaped screwdriver
Monkey wrench
8 mm wrench
Left hinge cover
Press inwardly

www.heinner.com
10
3. Unscrew the special flange self-tapping screws which are used for fixing the right upper
hinge part by a 8mm socket driver or a spanner (please support the upper door with your
hand when doing it).
4. Remove the upper hinge axis, transfer it to reversed side and tighten securely, then put it
in a safe place.
5. Remove the upper door from the middle hinge by carefully lifting the door straight up.
NOTE: When removing the door, watch for washer(s) between the center hinge and the
bottom of the upper door that may stick to the door. Do not lose.
screw hole cover
upper hinge
cover
(right)
special flange
selftapping screws
right upper hinge part

www.heinner.com
11
6. Place the upper door on a smooth surface with its panel upwards. Loose screw 2 and part
1, then install them to the left side and tighten securely.
7. Unscrew the two special flange self- tapping screws which are used for fixing the middle
hinge part, then remove the middle hinge part that hold the lower door in place.
NOTE: When removing the door, watch for washer(s) between the lower hinge and the
bottom of the lower door that may stick to the door. Do not lose.
8. Place the lower door on a smooth surface with its panel upwards. Loose screw 2 and part
1, then Install them to the left side and tighten securely.
Stop block
Self-tapping screw
Stop block
Self-tapping screw

www.heinner.com
12
9. Change screw hole covers on middle cover plate from left to right (as shown in figure
below).
10. Lay the refrigerator on soft foam packaging or similar material. Remove both adjustable
bottom feet parts, and the lower hinge part by unscrewing the special flange self-tapping
screws.
11. Replace the lower hinge part to the left side and fixing it with the special flange
self-tapping screws. Replace the adjustable bottom feet parts to another side and fixing it.
12. Transfer the lower door to the property position, adjust the lower hinge part, make the
hinge axis into the lower hole of the lower door, then tight the bolts.
screw hole covers
screw hole covers
Lower hinge part (right)
Adjutablle bottom feet part
Self-tapping screws

www.heinner.com
13
13. Upturn the middle hinge part the direction 180 degree, transfer it and adjust its position,
make the middle hinge axis into the upper hole of the lower door, tight the bolts.
14. Transfer the upper door to the appropriate position. Secure the door's level, make the
middle hinge axis into the lower hole of the upper door.
15. Transfer the upper hinge part and make the upper hinge axis into the upper hole of the
upper door and adjust the position of the upper door (please support the upper door with
your hand when doing it), fixing the upper hinge part with the special flange self-tapping
screws.
16. Install the screw hole cover on the top right corner of the refrigerator. Install the upper
hinge cover (which is in the plastic bag) on the left corner. Put the other upper hinge cover
into the plastic bag.
middle hinge part
self-tapping screws
upper hinge part
upper hinge cover (left)
screw hole
cover

www.heinner.com
14
17. Open the upper door and install the door shelves, then close it.
WARNING! When changing the side at which the door opens, the appliance must not be connected
to the mains. Remove plug from the mains beforehand.

www.heinner.com
15
X. TEMPERATURE SETTING
Accesories 1)
Movable shelves/trays
•Various glass, plastic storage shelves or wire trays are included with your
appliance-different models have different combinations and different models have
different features.
•The walls of the refrigerator are equipped with a series of runners so that the shelves
can be positioned as desired.
Remove and install the door shelf
Warning! The door shelf must not be removed and installed by the user! If the door shelf is
damaged, contact the customer helpline for assistance. To replace the door shelf, the below
steps can be followed:
Remove the door shelf
Press the right side of the door shelf inwardly ,while holding the left side . When the notch of
the shelf has been detachesd from the refrigerator door , remove the rack obliquely upwardly.
Install the door shelf
Firstly tilt the left side of the door shelf and make sure the notch has been fastened to the
door .Then press the right side inwardly ,push it down to the right place.
press inwardly
press inwardly

www.heinner.com
16
Refrigerator compartment 2)
For storing food that does not need to be frozen and different sections suitable for different
kinds of load.
Freezer food compartment 2)
For freezing fresh food and storing frozen and deep frozen food for long periods of time.
Thawing food 2)
•In the refrigerator compartment.
•At room temperature.
•In a microwave oven.
•In a conventional or convection oven.
•Food once thawed should not be refrozen.
1) If the applaince contains related accesories and functions
2) If the appliance contains a freezer compartment
Vegetable drawer
For storing food and vegetables.
Starting up and temperature regulation
•Insert the plug of the connection lead into the plug socket with protective earth
contact. When the refrigerator compartment door is opened, the internal lighting
is switched on. After the fridge has been placed in position, wait for 5 minutes
before electricity is supplied. Don't store anything until the temperature inside the
fridge becomes low enough.
•The temperature selector knob is located on the right of the refrigerator
compartment.
Setting 0 means: OFF
Clockwise rotate the knob to turn on the appliance.
Setting 1 means: Highest temperature, warmest setting.
Setting 7 (end-stop) means: Lowest temperature, coldest setting.
Important! Normally we advise you select setting of 2 or 3 or 4, if you want the
temperature higher or colder, please turn the knob to warmer or colder setting accordingly.
When you turn the knob to colder which can lead to the more energy efficiency-otherwise,
it would result in more energy-consuming.
Important! High ambient temperatures (e.g. on hot summer days) and a cold setting
(position 6 to 7) may cause the compressor to run continuously or even non-stop.
Reason: when the ambient temperature is high , the compressor must run continuously to
maintain the low temperature in the appliance.

www.heinner.com
17
Changing the LED light
WARNING! If the LED light is damaged. Do not change it by the user.
Changing the LED light carry out by inexperienced persons may cause injury or serious
malfunctioning. It must be replaced by a qualified persons in order to avoid a hazard.
Contact your local Authorized Service for help.
•Before changing the LED light, switch off the appliance and unplug it, or pull the
fuse or the circuit breaker.
•LED light data: 220-240V, MAX 2W.
•Unplug the mains plug.
•To change the LED light, undo the screw.
•Changing the defective LED light.
•Put the refrigerator back into operation.
Screw
LED light

www.heinner.com
18
XI. STORING THE FOOD
Hints for refrigeration
•Meat (all types): Wrap in polythene food: wrap and place on the glass shelf above
the vegetable drawer. Always follow food storage times and use by dates suggested
by manufacturers.
•Cooked food, cold dishes, etc.: They should be covered and may be placed on any
shelf.
•Fruit and vegetables: They should be stored in the special drawer provided.
•Butter and cheese: Should be wrapped in airtight foil or plastic film wrap.
•Milk bottles: Should have a lid and be stored in the door racks.
Hints for freezing
•When first starting-up or after a period out of use, let the appliance run at least 2
hours on the higher settings before putting food in the compartment.
•Prepare food in small portions to enable it to be rapidly and completely frozen and
to make it possible to subsequently thaw only the quantity required.
•Wrap up the food In aluminum foil or polyethylene food wraps which are airtight.
•Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid
temperature rise of the latter.
•Iced products, if consumed immediately after removal from the freezer
compartment, will probably cause frost burns to the skin.
Hints for the storage of frozen food
•Ensure that frozen food has been stored correctly by the food retailer.
•Once defrosted, food will deteriorate rapidly and should not be re-frozen. Do not
exceed the storage period indicated by the food manufacturer.
Switching off your appliance
•If the appliance needs to be switched off for an extended period, the following steps
should be taken prevent mould on the appliance.
•Remove all food.
•Remove the power plug from the mains socket.
•Clean and dry the interior thoroughly.
•Ensure that all the doors are wedged open slightly to allow air to circulate.
To avoid contamination of food, please respect the following instructions:
•Opening the door for long periods can cause a significant increase of the
temperature in the compartments of the appliance.
•Clean regularly surfaces that can come in contact with food and accessible drainage
systems.
•Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
•Two-star frozen-food compartments are suitable for storing pre-frozen food, storing
or making ice cream and making ice cubes.

www.heinner.com
19
Order
Compartments TYPE
Target storage
temp. [°C]
Appropriate food
1
Fridge
+2≤+6
Eggs, cooked food, packaged food, fruits and vegetables,
dairy products, cakes, drinks and other foods are not suitable
for freezing.
2
(***)*-Freezer
≤-18
Seafood (fish, shrimp, shellfish), freshwater aquatic
products and meat products (recommended for 3 months,
the longer the storage time, the worse the taste and
nutrition), suitable for frozen fresh food.
3
***-Freezer
≤-18
Seafood (fish, shrimp, shellfish), freshwater aquatic products
and meat products (recommended for 3 months, the longer
the storage time, the worse the taste and
nutrition), are not suitable for frozen fresh food.
4
**-Freezer
≤-12
Seafood (fish, shrimp, shellfish), freshwater aquatic products and
meat products (recommended for 2 months, the longer the
storage time, the worse the taste and nutrition), are not suitable
for frozen fresh food.
5
*-Freezer
≤-6
Seafood (fish, shrimp, shellfish), freshwater aquatic products and
meat products (recommended for 1 months, the longer the
storage time, the worse the taste and nutrition), are not suitable
for frozen fresh food.
6
0-star
-6≤0
Fresh pork, beef, fish, chicken, some packaged processed foods,
etc. (Recommended to eat within the same day, preferably no
more than 3 days). Partially encapsulated processed foods
(non-freezable foods)
7
Chill
-2≤+3
Fresh/frozen pork, beef, chicken, freshwater aquatic products,
etc.(7 days below 0 ℃and above 0 ℃is recommended for
consumption within that day, preferably no more than 2 days).
Seafood (less than 0 for 15 days, it is not recommended to store
above 0 ℃).
8
Fresh Food
0≤+4
Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended
to eat within the same day, preferably no more than 3 days).
9
Wine
+5≤+20
Red wine, white wine, sparkling wine, etc.
•One-, two- and three-star compartments are not suitable for the freezing of fresh food.
Note: Please store different foods according to the compartments or target storage temperature of
your purchased products.
•If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within the appliance.
