Heinner VCRP002 User manual

www.heinner.com VCRP002
Instructions - GB
Instrucțiuni de utilizare - RO
Anleitung - D
Eredeti használati utasítás - HU
Ръководство за употреба - BG
Instrukcja obsługi - PL

2
ROTARY HAMMER

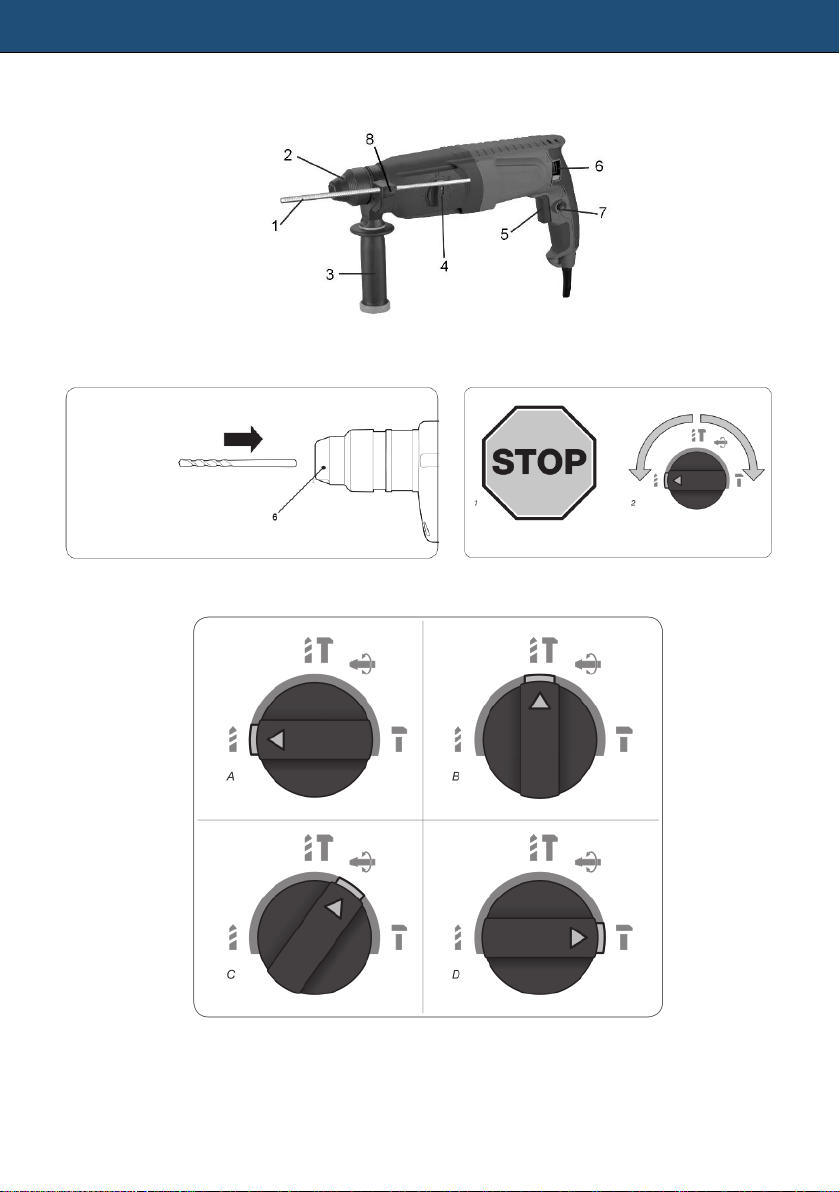

Fig. A
Fig. B
Fig. C
Fig. D

3
ROTARY HAMMER
Thank you for choosing Heinner!
GENERAL POWER TOOL SAFETY WARNINGS
WARNING!
•Read all safety warning and all instructions. Failure to follow the warnings and instructions may result in
electric shock, fire and /or serious injury.
•Save all warning and instructions for future reference.
•The term “power tool” in the warning refers to your mains-operated (corded) power tools or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystander away while operating a power tool. Distractions can cause you to lose
control.
2) Electrical safety
a) Power tool plug must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded)power tools . Unmodified plugs and marching outlets will reduce risk
of electric shock.
b) Avoid body contact with earthed or grounded surfaces. Such as pipes, radiators, refrigerators. There
is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
e) When operating a power tool outdoors, use of cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tools while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on
the switch or energizing power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do notwear loose clothing or jewelry. Keep your hair, clothing and gloves away from
moving parts. Loose clothes jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities. Ensure these
are connected and properly used. Use of dust collection can reduce dust related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and /or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.

4
ROTARY HAMMER
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tool are dangerous in the hands
of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts. Breakage of parts and any
other condition that may affect the power tool repaired before use. Many accidents are cause by
poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into
account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
b) Only use original accessories.
SAFETY WARNINGS
WARNING!
• Read the enclosed safety warnings, the additional safety warnings and the
instructions. Failure to follow the safety warnings and the instructions may
result in electric shock, fire and /or serious injury.
• Save the safety warnings and the instructions for future reference.

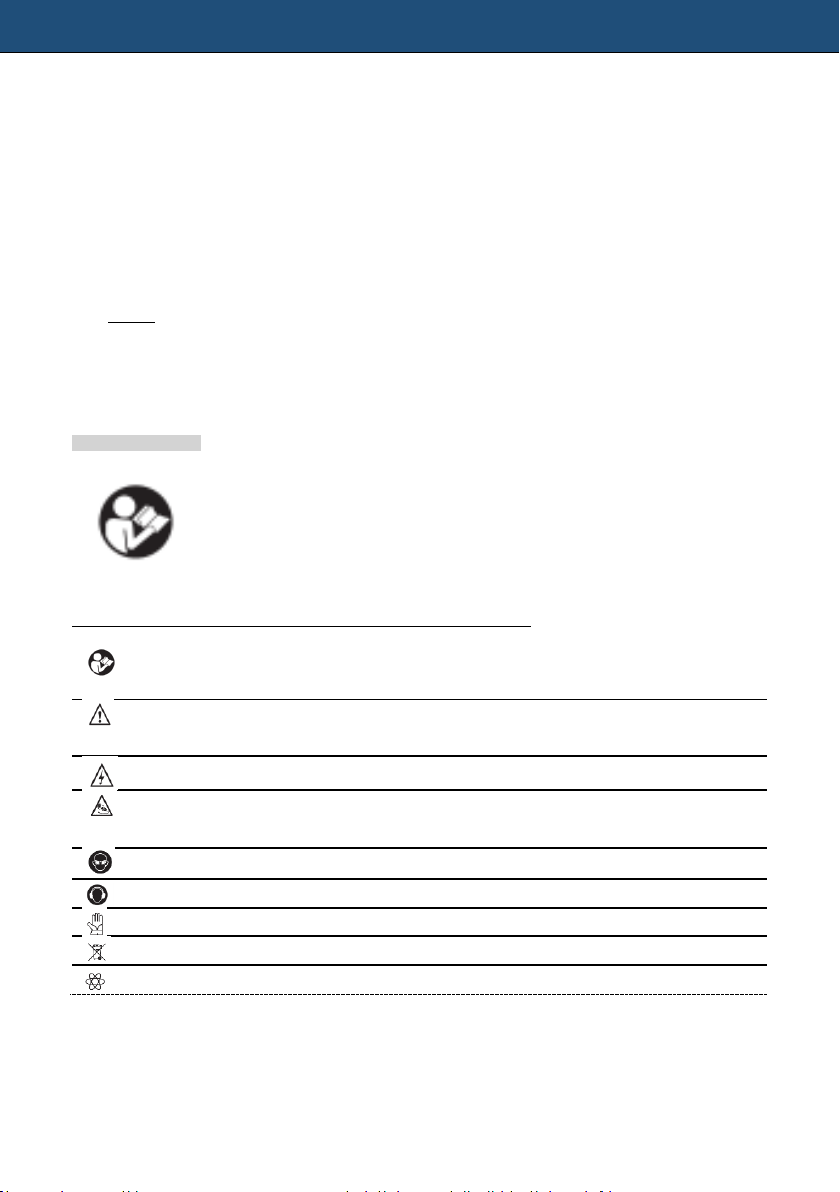

The following symbols are used in the user manual or on the product:
Read the user manual.
Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance
of the instructions in this manual.
Risk of electric shock.
Immediately remove the mains plug from the mains if the mains cable becomes damaged
and during cleaning and maintenance.
Always wear eye protection!
Wear hearing protection.
Wear safety gloves.
Do not dispose of the product in unsuitable containers.
Variable electronic speed.

5
ROTARY HAMMER
ADDITIONAL SAFETY WARNINGS FOR ROTARY HAMMERS
a) Wear ear protectors. Exposure to noise can cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
c) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live” and could give the operator an electric shock.
ELECTRIC SAFETY
When using electric machines always observe the safety regulations applicable in your country to reduce
the risk of fire, electric shock and personal injury. Read the following safety instructions and also the
enclosed safety instructions.
Always check that the voltage of the power supply corresponds to the voltage on the rating
plate label.
Class II machine-Double insulation. You don’t need any earthed plug .
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
Replacement of power cords or plugs
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Use of extension leads
Only ever use approved extension leads that are suitable for power rating of the machine. The minimum
core thickness is 1,5 mm. Whenever using a reel extension lead, always fully unroll the lead.
Immediately switch off the machine when:
•Excessive sparking of the carbon brushes.
•Interruption of the mains plug, mains lead or mains lead damage.
•Defect switch.
•Smoke or stench of scorched isolation
MACHINE INFORMATION
Intended use
This rotary hammer is intended for drilling holes in masonry such as brick, concrete and similar material.
Furthermore, the machine can be used as a demolition hammer in combination with the SDS cold chisels
provided. The machine is on no account intended for other purposes
Vibration level
The vibration emission level stated in this instruction manual has been measured in accordance with a
standardized test given in EN60745. It may be used to compare one tool with another and as a preliminary
assessment of exposure to vibration when using the tool for the applications mentioned.
•Using the tool for different applications, or with different or poorly maintained accessories, may
significantly increase the exposure level.
•The times when the tool is switched off or when it is running but not actually doing the job, may
significantly reduce the exposure level.
•Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your
hands warm and organizing your work patterns.

6
ROTARY HAMMER
TECHNICAL DATA
Model
VCRP002
Rated voltage
230V~50HZ
Rated power input
1050 W
No load speed
0-980/min
Impact rate
0-5300/min
Impact energy
3.4 J
13 mm
Max drilling capacity in
Steel
30 mm
Masonry
30 mm
Wood
Protection class
Machine weight
3.6 kg
DESCRIPTION
The numbers in the text refer to the diagrams on page 2.
FIG. A
1. Drilling depth stop
2. Locking sleeve
3. Auxiliary handle
4. Mode selector knob
5. On/Off switch
6. Reversing switch
7. On/Off switch locking button
8. Depth stop button
OPERATING
Hammer drilling require very little operator pressure. Excessive pressure on the
tool can lead to unnecessary overheating of the motor and burning of the driven
tool. It also may happen the drill bit deforms and cannot be removed from the
machine again.
Side handle
FIG. A
The side handle (3) can be rotated 360° around the drill head, enabling safe and comfortable operation for
both left and right-handed users.
•Loosen the handgrip by turning it anticlockwise
•Rotate the handgrip to the desired position
•Retighten the handgrip in the new position by turning it clockwise.

7
ROTARY HAMMER
Exchanging and removing drill bits
Fig. A-B
Before exchanging bits, remove the power plug from the wall socket.
Inspect bits regularly during use, Blunt bits should be re-sharpened or replaced.
Lightly oil the bit shaft before inserting it into the chuck.
•SDS drills can be inserted by pushing the drill into the chuck until a click can be heard. If needed rotate
the SDS drill a little to ensure the keyway in the bit fits the chuck well.
DO NOT slide the locking sleeve (2) to the rear when inserting bits.
•To remove the SDS drill, slide the locking sleeve (2) to the rear and remove the SDS drill while keeping
the sleeve (2) in the position.
Setting depth stop
Fig. A
•The depth stop ruler can be added to the side handle by pushing the dept stop button (8).
•Keep pushing the depth stop button (8) and insert the depth stop ruler (1) through the hole on the side
handle ring.
•Slide the ruler to the desired depth.
•Loosen the depth stop button (8).
The On/Off switch
Fig. A
•Switch the machine on by pressing the On/Off switch (5). When releasing the On/Off switch (5) the
machine will turn off.
•The rotation speed can be continuously adjusted by pressing the On/Off switch (5) deeper or less deep.
Lock-on button
Fig. A
•Lock the On/Off switch (5) by pressing the On/Off switch (5) and then pressing the lock-on button (7).
•Release the switch-lock by shortly pressing the On/Off switch (5) again.
Switching the direction of rotation
Fig. A
•Direction of rotation counter-clockwise: shift L/R switch (6) to
•Direction of rotation clockwise: shift L/R switch (6) to
This function is only available when the machine is set to “drill mode “ (as shown in fig D function A&B).
Function selection switch
In order to avoid damage to the machine, adjusting the function selection switch (4) shall
only be done when machine is not running (Fig .C).
Fig. D
The correct position of the function selection switch (4) for each function is shown in the pictures in fig. D.
Always make sure the function switch clicks in the desired position
A) Drilling (without hammer function): for drilling in several materials.
B) Hammer drilling (with hammer function): for drilling in masonry such as brick, concrete and similar
material.

8
ROTARY HAMMER
C) Chisel angle adjustment: for changing the angle of the chisel. When set under right switch back to
position D. before using the tool.
D) Chipping (chisel function): for chipping and small demolition jobs.
User tips
•Always use the machine with the side handle firmly anchored in place-you will not only work with more
comfort, you will also work with more precision.
Caution: drills and chisels can get very hot.
Drilling and hammer drilling (function A and B):
•For large holes, for instance in very hard concrete, start using a smaller bit for pilot drilling first, then drill
to nominal size.
•Hold the machine firmly with 2 hands. Be aware the drill can jam and because of that machine might
suddenly turn (especially when drilling deep holes).
•Do not apply a lot of pressure on the machine. Let the machine to the work.
Chipping in concrete and brick (function C and D):
•It’s also possible to use the machine for chipping.
•Only change the function when the motor has come to standstill.
•Do not apply a lot of pressure on the machine, let the machine do the work.
MAINTENANCE
Before cleaning and maintenance, always switch off the machine and remove the mains
plug from the mains.
Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the
ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with
soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia etc. Chemicals such as these will
damage the synthetic components.
Defects
The machine should be regularly inspected for the following possible defects and repaired if necessary:
•Damage to power cord.
•Broken on/off trigger assembly.
•Short circuiting.
•Damaged moving parts.
WARRANTY
The warranty conditions can be found on the separately enclosed warranty card.
ENVIRONMENT
Faulty and/or discarded electrical or electronic apparatus have to be collected at the
appropriate recycling locations.
ONLY FOR EC COUNTRIES
Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for
Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are
no longer usable must be collected separately and disposed of in an environmentally friendly way.
The product and the user manual are subject to change.
Specifications can be changed without further notice.

9
ROTARY HAMMER
RECYCLING
Electrical and electronic equipment waste (DEEE) might contain dangerous materials which can have a
negative impact on the environment and human health if not collected separately.
This item is in conformity with the European Directive EU DEEE (2012/19/EU) and is marked with an
electronic and electrical waste logo graphically represented in the image below.
This icon shows that DEEE should not be collected with household waste but separately.
We recommend you to consider the following:
- Materials and components used when manufacturing this item are high quality materials
which can be reused and recycled;
- Do not throw away the item with household waste at the end of life;
-Take the item to a collecting point where it will be collected for free;
-Please contact the local authorities for details on the collecting centers.
Conformity with the RoHS Directive: the item you purchased is in conformity with the EU Directive RoHS
(2011/65/UE). It does not contain materials listed as harmful or prohibited in the Directive.
Thank you for helping us protect the environment and our health!
Manufactured for
Network One Distribution
Marcel Iancu St., no. 3-5, Bucharest, 020757
2018
