HEIRLOOM CARLTON User manual

CARLTON NZAust v1.3 Nov 2019 Page 1of 3
CARLTON LADDER TOWEL WARMER
The Advanced Art of Towel Warming
Operation
Your CARLTON Towel Warmer uses only minimal electrical power - about the same as an average light bulb. It will take
approximately 20-30 minutes to reach maximum operating temperature. CARLTON Towel warmers are designed for
continuous operation. NOTE: The temperature of your towel warmer will vary with the ambient temperature of your room. A
towel warmer is designed to warm and assist the drying of towels and will normally operate at a temperature that is too hot for
the warmer to be grasped. For complete temperature control a suitable Wall Mounted dimmer switch (with “off” position) is
recommended.
Locating Instructions
Detailed installation instructions are provided on the reverse side. The CARLTON Ladder Towel Warmer should be fixed
through the wall cladding directly to studs or other suitable anchor material. The towel warmer should be located in
compliance with the AS/NZS 60335 Standard and should not in any circumstances be located in the direct path of a water
source (tap or shower etc). CARLTON towel warmers have an IP45 rating offering you the greatest flexibility to safely locate
the towel warmer in bathrooms or shower rooms in Zone 1-3. All other electrical fittings must also be compliant with the zone
within which the warmer is being installed.
Electrical Installation: NOTE : This towel warmer is made in right hand wiring only.
Please ensure your towel warmer is installed by a registered electrician and ensure the electrical supply, plug & switch
location, and product location will comply with your local regulations.
New Zealand electrical wiring requirements stipulate that this appliance must be wired by a registered electrician in
accordance with current electrical wiring regulations. This appliance must be fitted with an air gap phase isolation switch
which isolates the phase & neutral in accordance with local wiring regulations. This product must be used in conjunction
with a hard wired switch. For complete temperature control a Wall Mounted dimmer switch (with “off” position) is
recommended.
Concealed Wiring Kit
A concealed wiring adapter kit is included with this product. If you have access to the wall cavity the kit allows you to conceal
the electrical flex for a more streamlined and visually appealing installation.
Care and Cleaning
The polished stainless steel finish of your Towel Warmer is hard wearing and easily maintained. Clean regularly with a soft
cloth and non-abrasive cleaning agent.
Warranty
This product is warranted against defects due to faulty workmanship or materials for 5 years from date of purchase. In the
event of a defect in the product, turn it off at the wall, and contact the retailer from which it was purchased and provide details
from your sales receipt and the products serial number from the label on the towel warmer. The retailer will contact Heirloom
who will assess the matter and if accepted as a valid warranty claim the product will be repaired or replaced at Heirloom’s
option –free of charge. Costs of disconnection, reconnection, and freight are the responsibility of the owner, as is any
damage arising in transit to and from servicing by Heirloom. This warranty does not cover:
a. Any damage to the product caused by misuse, neglect, accident, or in violation of the manufacturer’s instructions, or
b. Any damage, loss or injury arising as a consequence of the use of the product.
Australia: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to
a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are
also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Heirloom International Limited, P O Box 204 235, Auckland 2161, New Zealand.
Ph [phone] [email protected].nz
Contact Us
We welcome your feedback on our products. You can view our full range of towel warmers on our website and send us your
comments about this product using the Contact Us page on our website www.heirloom.co.nz

CARLTON NZAust v1.3 Nov 2019 Page 2of 3
INSTALLATION OF CARLTON LADDER TOWEL WARMER
SPECIFICATIONS
Mounting Centre
(Approx Width)
Rating at 230-240
Volts AC
Voltage
IP
Rating
Model WCA1000 (6 Rungs)
572mm
100 Watts
230-240VAC
IP45
This Package Contains:
1 Ladder Towel Warmer 3 x Hex Cap screws for mounting legs to frame (not flexed Leg)
1 x Mounting leg with grub screw (on flex) 4 x Screws to fix Wall Mounts
3 x Mounting legs 1 x Small Allen key for grub screws
4 x Wall Mounts with grub screws 1 x large Allen key for Hex Cap screws
(one with cut out for concealed wiring) 1 x Handle for Allen keys
CAUTION: Prior to installation please ensure the product is to your satisfaction. Once installed Heirloom cannot be responsible for defects
in the product finish. This product is not intended for use by young children or infirmed persons without supervision. Young children should
be supervised to ensure they do not play with the product. To minimize a hazard for young children, this appliance should be installed so
that the bottom rail is 600mm above the floor. If the supply cord is damaged it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a hazard.
Installation:
NOTE: This towel warmer is made in right hand wiring only
This towel warmer must be installed by a registered electrician and in accordance with local and national electrical codes. We recommend
that the towel warmer be installed vertically on a flat and uniform wall, and where possible into studs or other suitable anchor material. If
fixing to hollow cavity walls, Toggle Anchors (not those supplied) or similar devices must be used.
Position the towel warmer so that the plug and mains power receptacle are easily accessible, with the cable entry to the towel warmer
NEAREST THE FLOOR. Avoid the supply cable coming into contact with the heated parts of the towel warmer.
DO NOT PLUG THE UNIT INTO THE POWER SUPPLY OR SWITCH THE TOWEL WARMER ON BEFORE INSTALLATION IS
COMPLETE.
The following instructions are for mounting the towel warmer with exposed flex
1 Attach the 3 mounting legs to the towel warmer with the Hex Cap Screws (Making sure the grub screw in the leg will face the
floor)
2 Mount the “Flex Leg” on to the Towel warmer with its grub screw (ensuring that the leg is facing in the correct direction).
3 Place a Wall Mount over the end of the two top legs but do not secure them in place
4 Hold the towel warmer in position and mark around one of the Wall Mounts on one of the top legs. Remove the towel warmer .
5 Screw the Wall Mount into the position marked
6 With a Wall Mount placed over the end of the other top leg place the top leg into the Wall Mount. Make sure that the towel
warmer is level, and mark the location of the remaining Wall Mount on the other top leg. Remove the towel warmer.
7 Screw the Wall Mount into the position marked
8 Place the towel warmer onto the two top Wall Mounts and mark the location of the two bottom legs.
9 Remove the towel warmer and fix the remaining Wall Mounts to the wall
10 Place the towel warmer in position and secure it to the Wall Mounts with the grub screws.

CARLTON NZAust v1.3 Nov 2019 Page 3of 3
CARLTON Towel Warmer Concealed Wiring Option Instructions:
Preparation for concealed wiring must commence before the wall cladding is in place.
1. Ensure that the flush box that the towel warmer will be wired to is within this distance of the electrical flex from the towel warmer,
to which it must connect. Allow for loss of flex length due to connections.

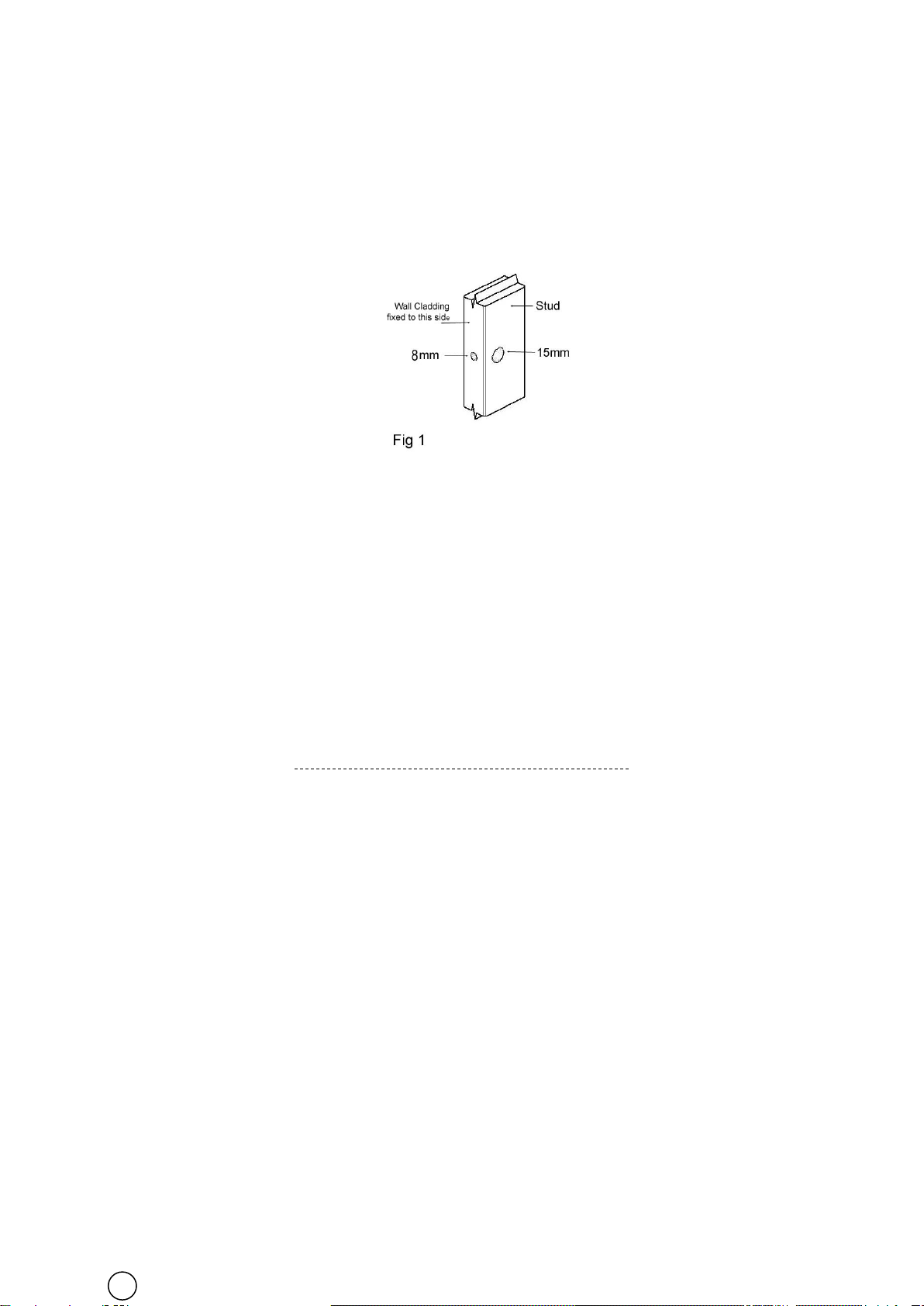

2. Drill a 8mm hole into the face of the stud where the towel warmer foot with the flex is to be positioned. Drill the hole
approximately 25mm deep.
3. Identify the side of the stud facing the flush box that the towel warmer will be wired to. On that side of the stud, drill a 15mm
diameter hole, 25mm deep hole at right angles to this first hole so that the hole will break into the base of the first hole. Refer to
Fig1.
4. Place a pull through line from the flush box and out of the 8mm hole that can be picked up later once the wall cladding is in place
5. Once the wall cladding is positioned, remove some of the cladding to expose the 8mm hole. Take care to make sure that the
area where cladding is removed will be covered by the Wall Mount. Locate the pull through.
6. Find the Wall Mount with the extra cut out in its centre for concealed wiring and thread it on to the pull line. Screw the Wall Mount
to the stud (care is needed as the screw hole for the Wall Mount will be relatively close to the 8mm hole and it is therefore
unlikely that the Wall Mount can be screwed into tiles and must be screwed directly to the stud.)
7. Mark a point for the other bottom leg, horizontally from the centre of the attached Wall Mount at the horizontal measurement for
your model (but check the actual measurements to your warmer as manufacturing tolerances apply) for the other bottom fixing
barrel. It is important that the line between these two points is level.

8. With a Wall Mount placed over the end of the other bottom leg place the flex leg into the Wall Mount. Make sure that the towel
warmer is level, and check your marked location for the second bottom leg and remark if needed. Remove the towel warmer.
9. Screw the Wall Mount into the position marked
10. Place the towel warmer onto the two bottom Wall Mounts and mark the location of the two top legs.
11. Remove the towel warmer and fix the remaining Wall Mounts to the wall studs
12. Carefully feed the electrical flex back into the leg from which it exits so that the flex can now exit the towel warmer through the
centre of the leg, directly into the wall. Care must be taken not to damage the flex or electrical connections.
13. Attach the pull through to the flex and pull the flex through the stud holes to the flush box.
14. Place the towel warmer in position and secure it to the Wall Mounts with the grub screws.
At centre measurement for your model
