HELLER HWM6TL User manual

Model:HWM6TL
TOP LOAD WASHING MACHINE

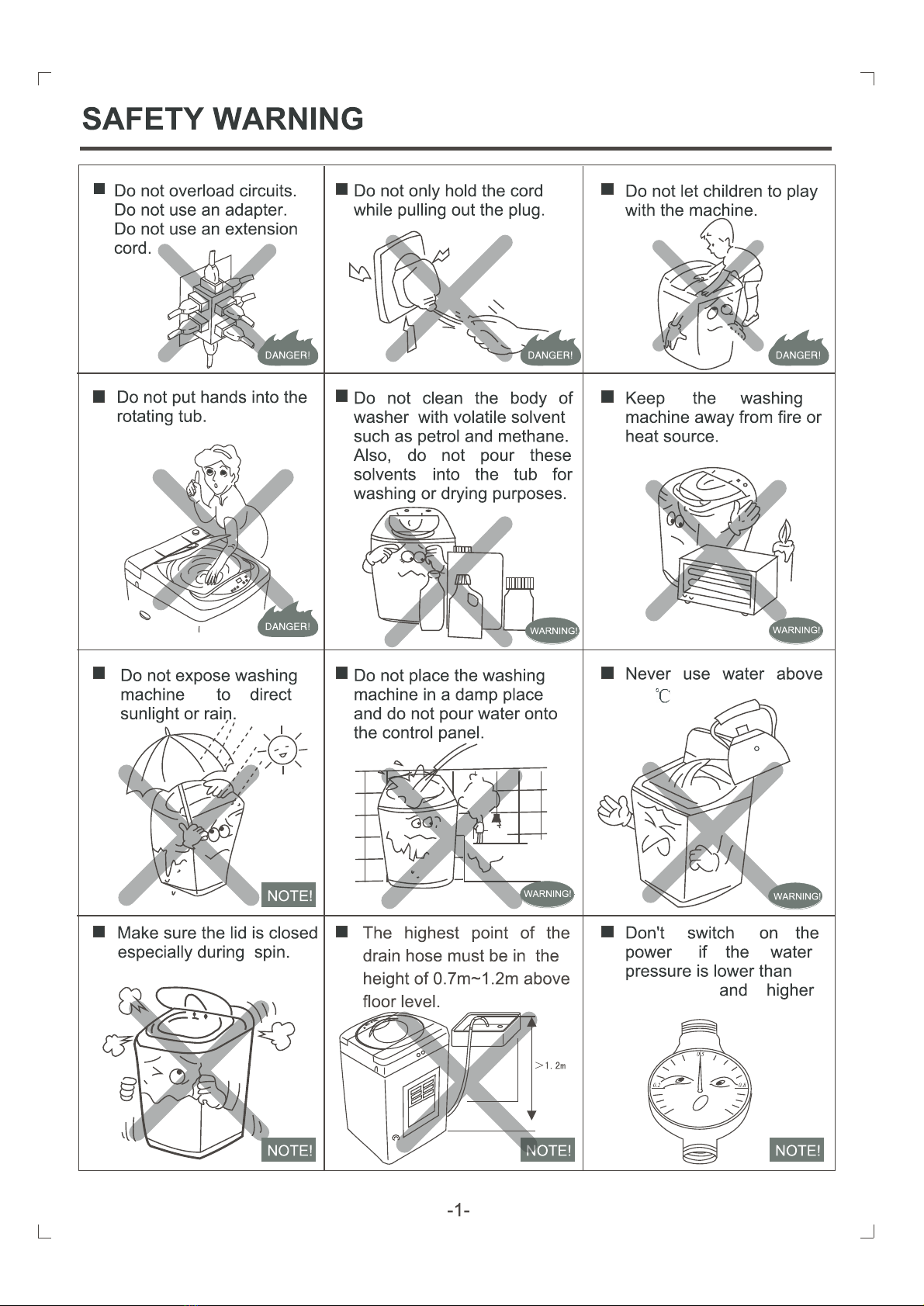

0.03Mpa
than 0.85MPa.
65
65 C

SPECIFICATIONS
50Hz
220-240V~Rated frequency
Rated voltage
340WRated input power 31 KG
Net weight
6.0KG
Rated wash capacity
0.03MPa-0.85MPaWater pressure
540mmX540mmX920mmDimension
920 mm
540 mm
540 mm
Rated spin capacity 6.0KG
1.Water supply selector/Air dry:Press this button to select water temperature or the time of air dry
2.Water level button:Press this button to select water level.
3.Process button:Press this buttons to select the process you need.
4.Delay start Preset button Hold the water level of key, then press water supply can be set up into the
reservation statustime of delay start.
5.Program button Press this buttons to select the program you need.
6.Start/Pause button Press this button to start/pause the washing machine.
7.Power button Press this button to turn on/off the washing machine. Do not turn on the washing machine
again until 3 minutes later after it is turned off. The washing machine will turn off at once automatically
when the program finish, and it will turn off automatically if you do not press the start button to start the
machine within 10 minutes after press the power button.

Install the washing machine
Install the washing machine on a firm and level surface,use the level adjustment knob to regulate
the adjustable foot until the washing machine is stable.

Do not operate the washer when the water pressure is lower than 0.03MPa or higher
than 0.85MPa to avoid damage of the inlet system.

Note: water supply faucets should be readily accessible
to permit turning them off when washer is not being used.

Always close the tap when unit is not in use.
The socket should have assembled the 5A fuse.
Use three pins socket,where the earth is connected.
Note:
The earth wire of the washing machine is set in the plug, don't try to
modify it.
The socket should have reliable earth wire. If no earth wire in
socket, please call the technician to assemble.
Never try to connect the earth wire of the washing machine
together with that of gas pipe or water pipe, telephone cord or
lightening rod.
Do not use the damaged cord because it could cause electrical leakage
In case cord is damaged, call the local Service Company to change it.
If the machine is used frequently ,it is unnecessary to take off inlet
hose to avoid damage to the nut at the elbow.

THE LID TO CLOSE as the soft
close operation will be damaged.

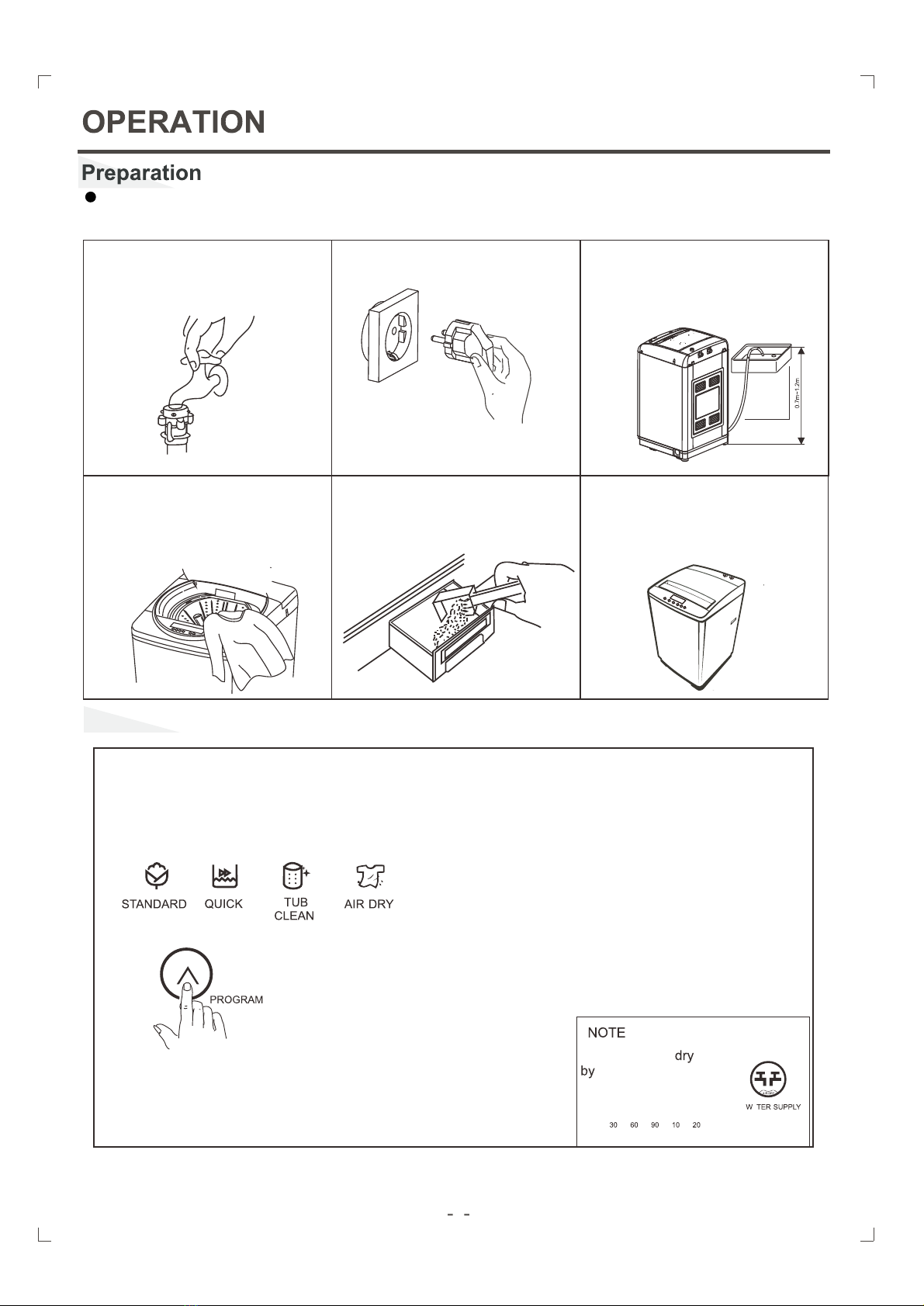

OPERATION
3.Plug in the power cord.
6.
Add suitable detergent
according to the wash load
volume into the detergent
box.
7.Close the lid or the machine
4.I
hose into the hook shelf, and
hang the drain hose over a
drain outlet.
nsert the end of the drain
1.
2.
Connect the water inlet
hose to the water faucet.
Turn on the water faucet.
5.Put suitable wash load
into the inner tub.
UP DRAIN
Step one: Choose program.
Keys can be freely selected by the program “QUICK”, “STANDARD”, “TUB CLEAN”,“AIR DRY”,
several automatic procedures.
:
The time of air can be selected
pressing this button
after choosing program.
A
Timing: -- -- -- --
min
( )
will not operate. DO NOT FORCE
Before adding clothes to the wash-always empty garment pockets of coins & other materials,
as this may void the warranty.
8

1.Draw out the detergent box.
2.Add the suitable quantity detergent into the
detergent dispenser.
3.Add the suitable quantity softener into the
softener dispenser before wash.
4.Push detergent box into completely.
Detergent dosage
Water level (g)
80 ~ 1007 ~ 8
70 ~ 805 ~ 6
50 ~ 703 ~ 4
45 ~ 501 ~ 2
Note:
*Dilute concentrated detergent with triplicate water.
*If detergent needed, do not open the wash lid when spin, or else the softener will be premature
used and the effect will be worse.
SOFTENER FOR LAUNDRY
Note:
*Inject softener into the softener dispenser before
washing, At the last time for rinse, the softener
will be infused into the rinsing automatically.
*Dilute concentrated softener with triplicate water.
*If softener needed, do not open the wash lid
when spinning, or else the softener will be
prematurely used and the effect will be awful.
Softener dosageWater
level ConcentratedNormal
5141-2
7203-4
10255-6
1330
7-8

PROCESS
SOAK
WASH
RINSE
SPIN
WATER LEVEL
STEP TWO: CHOOSE FUNCTION.
Press “Process” to choose any combination of dehydration”.
STEP THREE: CHOOSE THE WATER LEVEL.
Press the WATER LEVEL button to choose appropriate water level according to
wash quantity and then the corresponding indicator blink.
STEP FOUR: CHOOSE WATER SUPPLY
Press the water supply button, you can choose to inlet cold water, warm water or hot water.
Note:
Hot water only: Hot water can result in better cleaning effects. But it is not
suitable for all articles. It is best for washing whites and colorfast articles,
heavily soiled articles and diapers.
Warm water only: Warm water can reduce the chance of fading. It suits for
washing light and moderate soils clothes, dark color clothes, silks, woolens,
nylon, and acrylic.
Cold water only: Cold water is less effective in cleaning compared with hot
or warm water, but it does minimize wrinkling and fading. Use it for washing
extra sensitive clothes and for the rinse.
NOTE:
The washing machine will provide a cold rinse in all TEMPERATURE setting.
IMPORTANT:
There is not heating element in the washing machine. A single hose system does not allow
the washing machine to automatically )regulate incoming water temperatures to(choose
match those listed on the control panel such WARM or HOT.
WATER SUPPLY
COLD HOT
Step Two:Choose function.

Step Five: Start the washing machine
Preset function can finish the program after a delay of some time.
Step Six: Start the washing machine
Press “START/PAUSE” button, the washing machine will buzz and run automatically.
Close the lid, or the washing machine will not operate.
Note:
If you want to change the program when the washing machine is running, you must
press the “START/PAUSE” to hold at first.
The water level can be changed when the washing machine is running. If you change the
water level to the higher one , the washing machine will stop running and fill water to
match the level you choose and then begin running again automatically.
PROGRAM
*Microcomputer controlled board assembly saved up 8kinds of washing programs,
please refer to the following washing program form.
WASHING PROGRAM FORM
SPIN
(MIN)
RINSE
(MIN)
WASH
(MIN)
SOAK
Select the time according to the quantity and quality of the wash laundry itself.
6151215STANDARD
469QUICK
Note: 1.The total operating time may vary according to water volume, tolerance is permitted.
2.In case the unbalance of laundry trigger the safety switch into action when spinning,
the machine will automatically refill water to adjust the balance.
05
PRESET
FUNCTION
PROGRAM
FUZZY
(MIN)
After choosing the program above-mentioned, press the “ PRESET” button
(before press the “START/PAUSE” button ) ylsuounitnoc the digital indicator
indicates the desired time to finish wash. Example: If the preset time is
5hours, press the button until the digital indicator displays 5.

regularly after every wash
-12-
MAINTENANCE
Clean the filter in the inlet valve regularly in order to prevent it from clogging
1.Unplug the power cord first.2.Take off the inlet hose and clean the filter with a brush.
Body Maintenance
Note:
Clean the surface of the washing machine with a soft
cloth regularly.
After spinning each time, please clean the inner tub to
avoid deposit.
Clean the filter in the inlet valve
Clean the lint filter
1.Please pull out the lint filter
according to the direction of
arrow.
2.Firstly,open the lint filter,and
then close it after cleaning and
rinsing thoroughly.
3.Reinstall the lint filter
according to the direction
of arrow.

If the draining time passes 10
min, the washing machine will
buzz and indicate "E1".
Unable to drain
Spin malfunction
If the machine does not spin
after draining, it will buzz and
indicate "E3". Is the lid closed
completely?
Please call the technician to check
whether the safety switch is damaged or
not.
Unable to Spin
The machine will attempt to
spin three times, if
unsuccessful it will buzz and
indicate "E2".
Is the load uneven?
Is the machine
installed on an
uneven surface?
Please call the
technician to check
whether the safety
switch is damaged
or not.
Failed to fill with
water
When water filling passes 20
min. It will buzz and indicate
"E0".
Is the tap turned off?
Is there no water
supply? Is the water
flow too slow?
Is the filter in the
tap connector or
inlet valve
blocked?
Please call the
technician to check
whether the safety
switch is damaged
or not.
The machine gives
alarm for about 10
seconds when the
start / pause
button be pressed.
Call technician to check whether the connection of water
level sensor loosened or the sensor damaged.
Problem Checklist
Is the drain iced or blocked?
Is drain hose placed properly from 0.7m
to 1.2m above floor level?
0.7m~1.2m
TROUBLE SHOOTING
-13-
NOTE: If you open the lid while the machine is running, all operations will be stopped within 7 seconds.
To resume operation, close the lid gently.
Please turn off the washing machine first if it buzzes, and analyze issue. Do not try to fix the washing
machine as it will void the warranty. Always call the service personnel to notify the issue.
Note: Please cut power supply off if there is strange noise, burning smell or smog and inform the service
personnel to check.

b-blue bl-black br-brown g-gray gr-green r-red y-yellow p-purple pi-pink
C-capacitor L-inductance IV-inlet valve Ms-drain water motor assembly
w-white
Microprocessor
b
yprbgbw
bl bl bl bl wbl
pi
r
p
C
L
y/gr
b
g
pi wr
ww
pwg
s
water level sensor
Ms
hot lV
lV
tractor
fuse
dil hctiws
h
it
switch
P
pump
The appliance is not intended for use by young children or infirm persons
oung children should be supervised to ensure that they do not play with the
appliance.
The power supply cord must be unplugged after use.
If the supply cord is damaged, it must be replaced by the manufacturer,
fi
This appliances is not intended for use by persons(including children)with
reduced physical sensory or mental capabilities, or lack of experience and
knowledge , unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
The instruction for appliances connected to the water mains by detachable
hose-sets supplied with the appliance are to be used and that old hose-sets
should not be reused.
The washing machines has ventilation openings in the base,these openings
must not obstructed by a carpet.
The maximum mass of dry cloth which may be used in the appliance is 8 kg.
The program “Normal”,
water level is “8” is the one recommended for a normally soiled cotton load at
the rated load capacity
“Soak” process is off ,water supply is “Warm/Cold”,
