HENNESSY INDUSTRIES coats AMMCO RC-45 A coats AMMCO RC-45 E User manual

READ these instructions before placing unit in
service. KEEP these and other materials delivered
with the unit in a binder near the machine for ease
of reference by supervisors and operators.
Parts Identification
RC-45 A/E, RC-55 A/E
Rim Clamp®Tire Changers
For servicing single piece automotive and most light
truck tire/wheel assemblies.
Model RC-45 Model RC-55

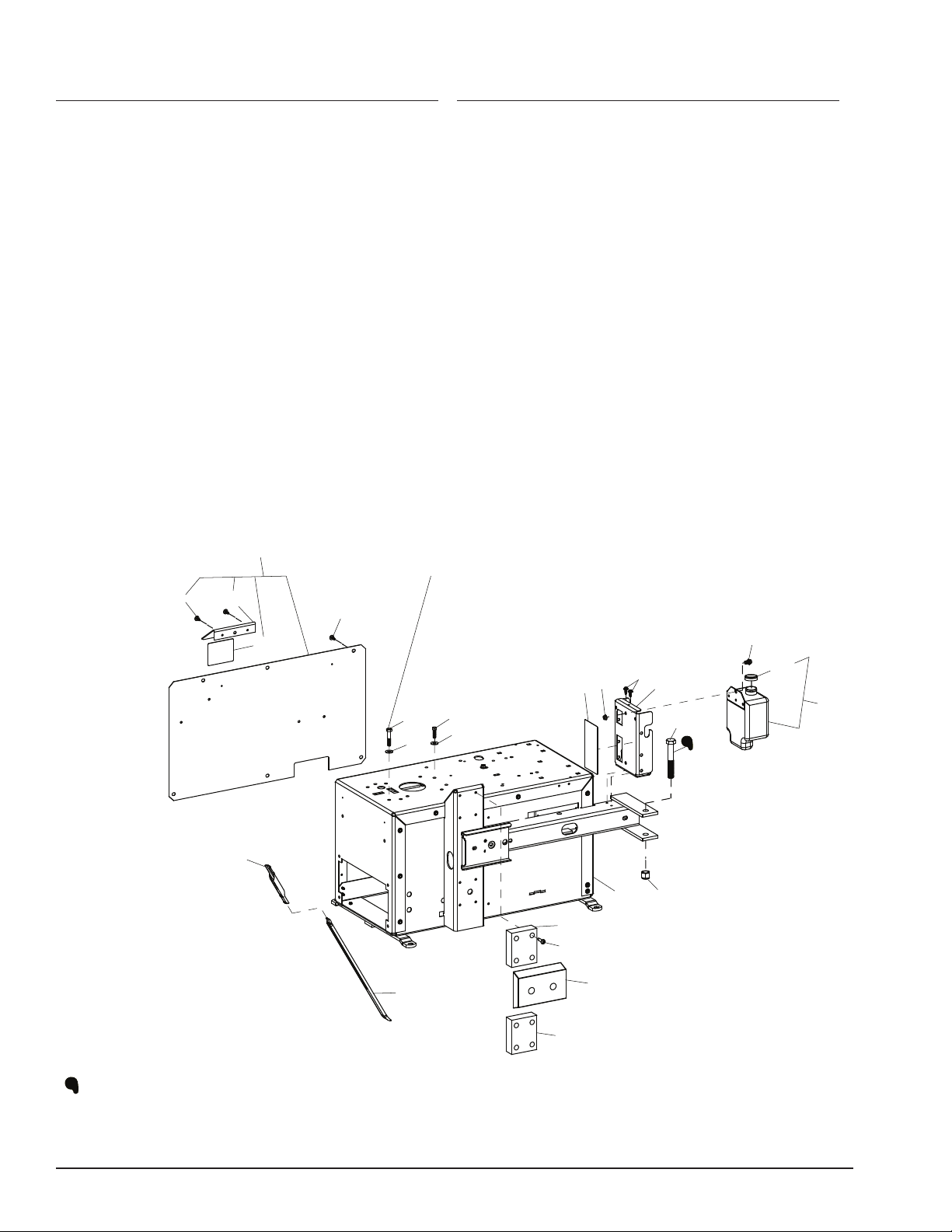

Chassis System
Item Part No. Description
3 8106301 1/4" Hex Hd Self Tap Screw, Gr.5
5 8182811 Inflation Pedal Cover
6 85609786 Inflation Pedal Decal
7 85607585 Metal Side Panel
8 8182040 M10-1.5 x 55MM Hex Hd.Cap Scr,
Gr.8.8
9 8301032 3/8 Flat Washer, Zinc Plate
10 8107715 3/8-16 x 1-1/4 Hex Hd. Cap Scr, Gr.5
12 85611044C2 Lubricator Bracket
13 8183778 Lubrication Notice Decal
14 85608582 3/4 x 3-1/2 SHSHS Screw
Item Part No. Description
16 8182016 3/4-10/E23 Nylon Hex Nut
17 8182041 Chassis
18 8181851 B.L. Pad, Front
19 8182088 5/16-18 x 1-1/4 TPHST Screw, Gr.5
20 8181855 B.L. Center Pad
**21 8181354 Bead Lifting Tool
**22 85000783 Lift Tool Bootie Kit, Pkg of 10
23 924724 312-18 Hex Flange Nut
24 856104041 Tank Reservoir w/Cap
25 8561040601 Tank Reservoir Cap
26 8183452 5/16-18x5/8 HWHCS Screw
27 85609766 Water Separator Assy (Air Motor
Machines Only)
**Accessory Item
APPLY GREASE TO THESE LOCATIONS
5
6
3
7
8
99
10
312
14
16
17
18
19
18
20
**21
13 23
26
24
25
**22
3
Torque to
20/25 ft. lb. max.

BL Arm Assembly (Foot Operated)
BL Arm Assembly (Hand Operated)
12
3
4
16 17
18
19
4
8
7
6
9
10
15
14
**5
13

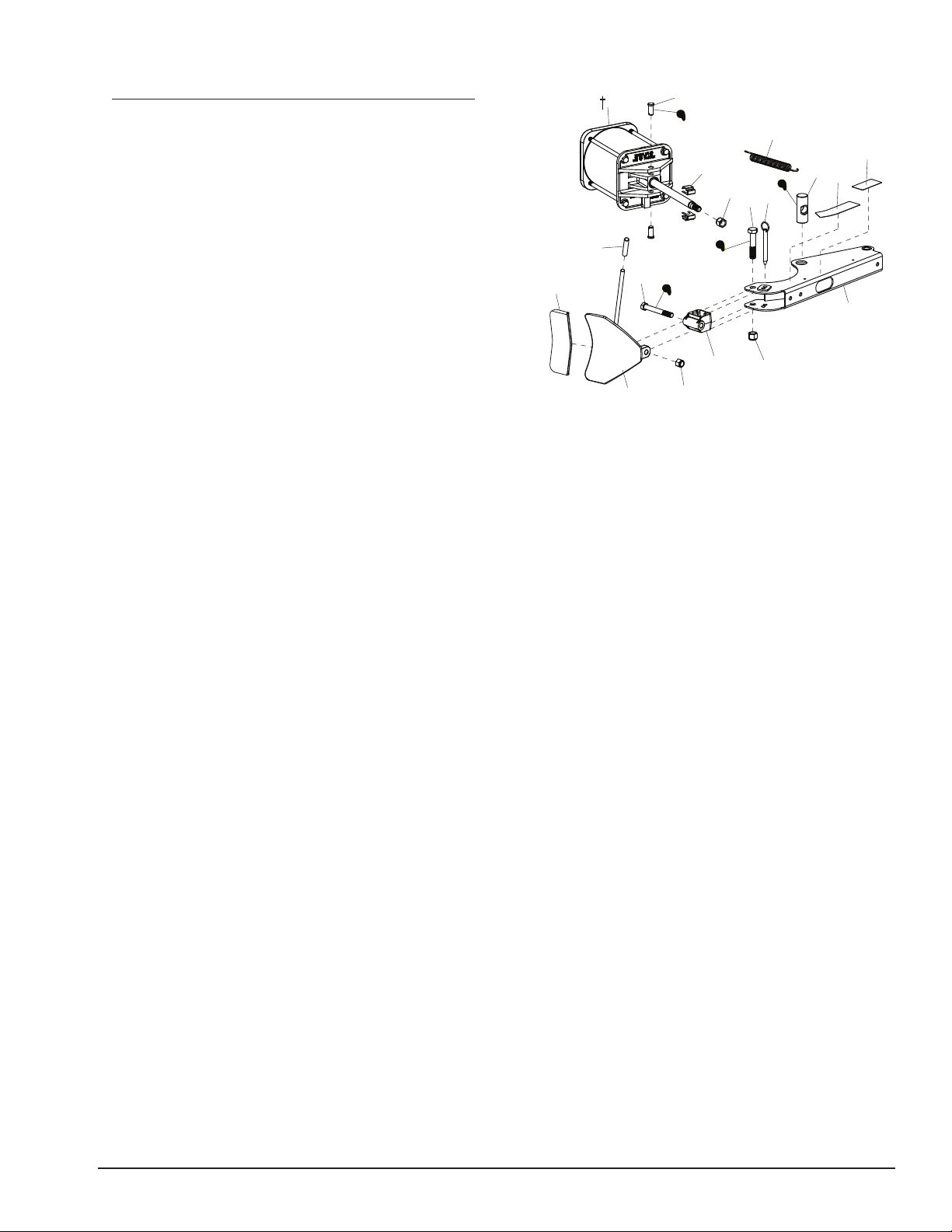

BL Arm Assembly
Item Part No. Description
†1 8183312 B.L. Cylinder, 3/8” Fitting (Foot
Operated)
2 8181949 5/8 x 1-3/8 Clevis Pin
3 8181912 Clevis Clip
4 8182016 3/4"-10 Nylon Insert Lock Nut, Gr.5
**5 8183606 Shoe Bootie Kit, Pkg of 2
6 8183529 B.L. Shoe, w/handle (Foot Oper-
ated)
7 8182043 5/8-11 Nylon Insert Lock Nut Gr.5
8 8181951 B.L. Shoe Pivot Bracket
9 7000230 1/2” Rubber Hand Grip (Foot
Operated)
10 8182011 5/8-11 x 5" Hex Hd Cap Scr, Gr.5
13 8182009 3/4-10 x 3 3/4" HHCS
14 8120326 ø1/2" Hitch Pin
15 8180230 B.L. Spring
16 8182550 Pivot Pin, B.L. Cylinder Rod
(Foot Operated)
17 8181970 Bead Loosener Caution Decal
18 8182768 Bead Loosener Caution Decal
8182768FR Bead
Loosener Caution Decal, French
19 8182002 B.L. Arm
†Cylinder Assemblies (see page 17)
**Accessory Item

Pressure Limiter Assembly18
48
47
46
50
51
55 54 53 52
44
45 43
49
49
49
Torque To 200 ft./lb.
42
28
41
38
39
37
30
17
27
26
34
35
36
22
21
21
23
15
14
25
13
12
67
11
10
33
32
31
65
66
29
24
20
19
16
8
7
6
4
5
2
3
1
9

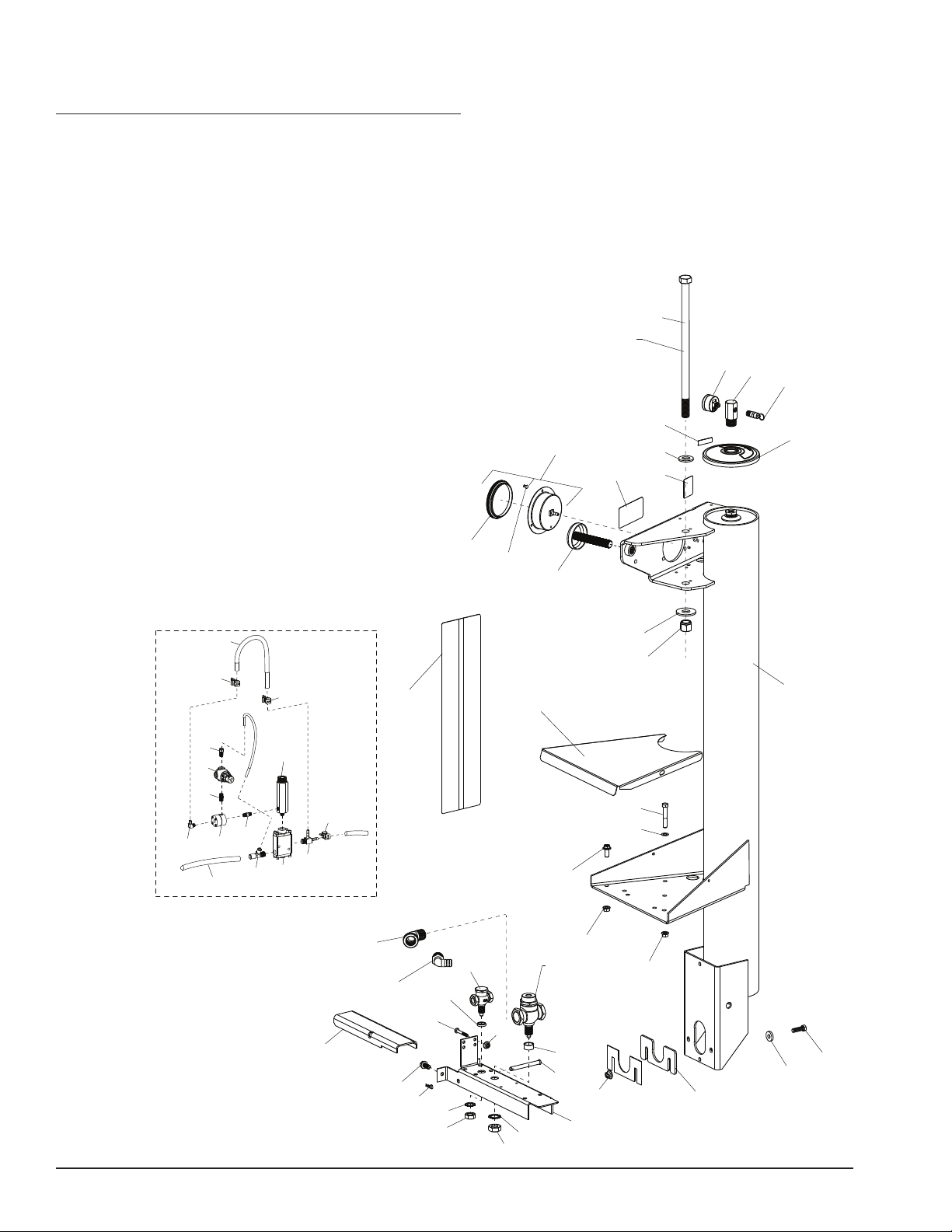

Inflation Bracket and
Tower Assembly
Item Part No. Description
1 8181933 Pedal Inflation
2 8102459 3/8" Self Tap Screw Gr.5
3 8107407 Hitch Pin Retainer
4 8104613 5/8" Ext. Tooth Lock Washer
5 8104611 5/8" N.F. Jam Nut Gr.5
6 8104610 3/4" N.F. Jam Nut Gr.5
7 8104612 3/4" Ext. Tooth Lock Washer
8 8181932 Inflation Brkt.
9 8180103 3/8 x 3-1/4 Clevis Pin
10 8104674 Bushing (3/4" Valve)
11 8106298 3/4" Valve Ported 1/4"-18 NPT
12 8143169 1/4-20 Whiz Lock Nut, Gr.5
13 8104600 1/4" Valve Comp.
14 8104673 Bushing (1/4" Valve)
15 8120408 1/4-20 x 1-3/4 H.H. Cap Scr., Gr.5
16 8120424 3/8"-16 Wash Hd. Lock Nut Gr.5
17 8182076 Shim Kit
18 85000816 Pressure Limiter
19 8000240 Washer 1" OD x 13/32 ID x 3/16"
20 8107715 3/8-16 x 1-1/4 Hex Hd. Cap Scr, Gr.8.8
21 8106303 3/8" Whiz Lock Nut, Gr.5
22 8106302 3/8" Whiz Lock Screw, Gr.5
23 8101018 0.392 x 0.687 x 0.0478 Washer
24 8181137 3/8-16 x 2-1/4 Hex Hd.Cap Scr, Gr.5
25 8182373 Warning Decal
8182373FR Warning Decal, French

58
59
56
61
**60
Item Part No. Description
26 8182016 3/4"-10 Nylon Insert Lock Nut, Gr.5
27 8100994 3/4 Flat Washer
28 8182593 Adjusting Knob Assy
29 8107517 Gauge Lens, Screw On
30 8107983 Plastic Fastener
31 85610709 Flanged Air Gauge w/Fasteners
32 8109888 Inflation Warning Decal
33 8183597 Release Valve Decal
34 8182457 3/4" SAE Washer
35 8182059 Line Pressure Gauge Decal
36 8181172 3/4-10 x 7-1/2” Hex Hd. Cap Scr,
Gr.5 (RC-45)
8183635 3/4-10 x 14-1/2" Hex Hd. Cap Scr,
Gr.5 (RC-55)
37 8108968 Air Gauge
38 8182599 Safety Valve
39 8109784 Manifold/Gauge (RC-45)
8183434 Manifold/Gauge (RC-55)
40 8000378 1/4" Brass St. Fitting (RC-55)
41 8182458 Plastic Cap (Tower)
42 8184831 Tower/Air Receiver
43 8109471 1/8" Brass Hex Nipple
44 8109468 Pressure Repeater
45 8110497 Male Elbow 1/8 NPT x 1/4 Hose
46 8109472 1/8" Inline Filter
47 8111083 Regulator
48 8182035 1/8 NPT x 1/4 Tube Male St. Fit.
49 85606362 13mm Spring Hose Clamp
50 8103649 ø1/4 x 12" Hose
51 8110496 Volumn Chamber
52 8110325 1/4" NPT Male Run Tee
53 8109466 Piloted Valve
54 8111255 1/4 NPT x 3/8 x 1/4 Spl Tee
55 8184459 3/8 x 25" Black Rubber Hose
56 8182221 6" Hose Clamp

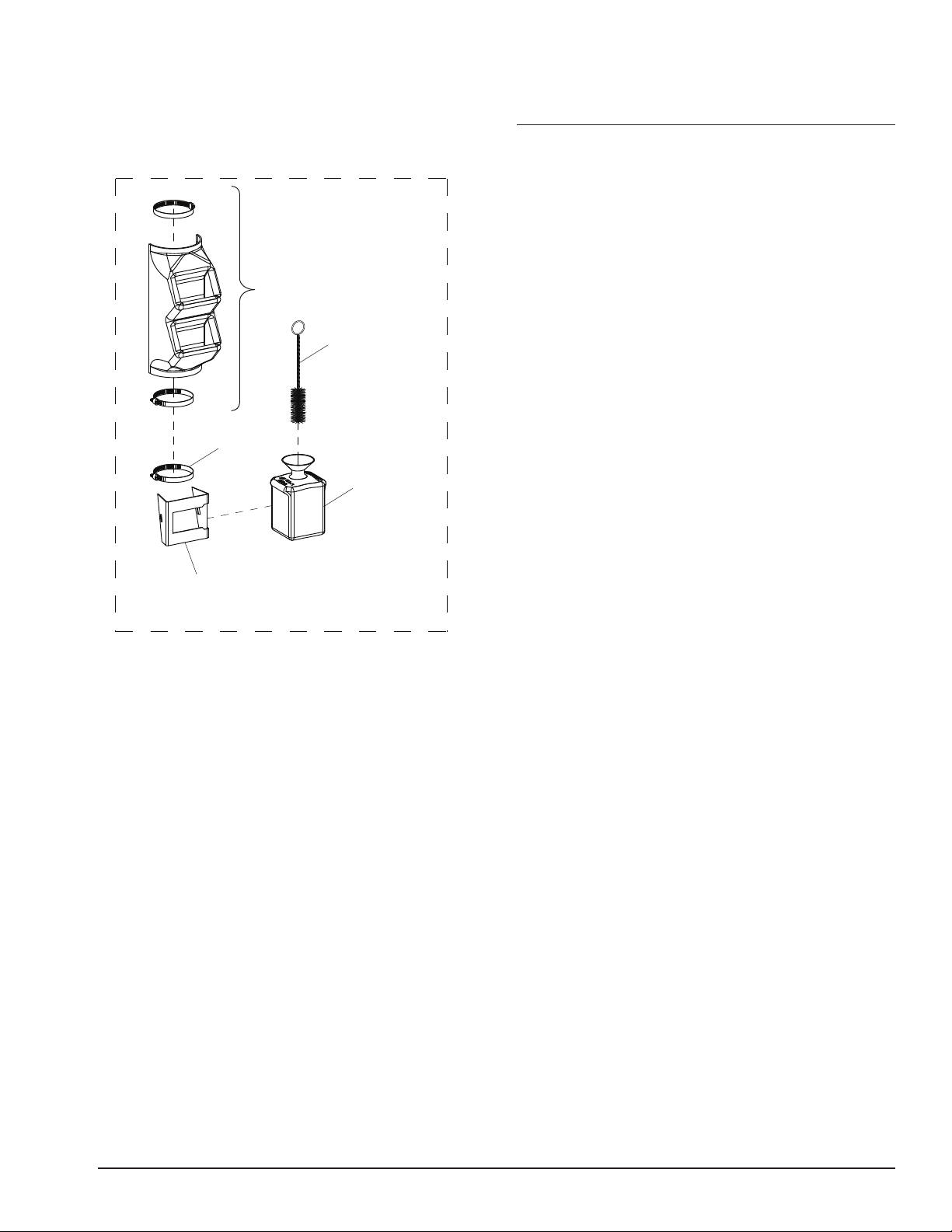

58 8000491 Lube Applicator
59 8106259 Lube Bottle (Red)
60 8181554 Accessory Tray Kit
61 8182809 Lube Bottle Brkt-Red
67 8182805 Tower Support Cover
**Accessory Item

Swing Arm Assembly
Item Part No. Description
1 8183151 5/16-18 x 0.75 SBHCS, Gr.8
2 8181771 Vertical Slide Knob
3 8182028 Vertical Slide Spring
4 8182339 Swing Arm Shim Kit
5 8181038 Swing Arm Pivot Pin
6 818483002 Swing Arm, for R.H. Cam Lock
7 8100979 Handle Grip, Black Flex 3/4 I.D.
8 8183673 Lock Handle/Lift Cam W/C, R.H.
9 8181095 1-5/8 Snap Ring
10 8182371 1-5/8 Dia. Wave Washer
11 8181113 1/2"-13 Jam Nut, Gr. 5
12 85606343 Lock Plate
13 8181035 Lock Plate Lift Pin
14 8182767 Vertical Slide Shaft
15 8182031 Rubber Bumper
16 85606344 1/2 x 5/8 Shoulder Screw
17 8182813 3/8-16 x 3/4" Ctr Bore Cap Scr, Gr.8
18 8182027 7 ga. x .406 ID x 1.28 OD Washer
19 8106302 3/8" Whiz Lock Screw, Gr.5
20 8140667 1/4-20 x 1/4 Soc.Hd.Set Scr, Gr.8
21 8182786 5MM x 25MM Dowel Pin
22 8182787 0.562 Diameter x 0.515 LG. Roller
23 8182788 Duckhead®Mount/Demount Tool Kit
(Metal)
24 85610655 3/8-16 Lock Nut
Item Part No. Description
25 8183061 Duckhead Mount/Demount Tool Kit
(Nylon)
26 85607803 Roller Mount
27 85606462 Bead Roller (Duckhead) Pkg.
28 8184432 Duckhead Mount/Demount Tool Kit
(Grey)
29 8183055 3/8-16 x 0.750 SBHCS Screw
36 85608961 Hybrid Duckhead Tail
37 85608959 Hybrid Duckhead Mount/Demount
Tool Lever Type
38 8184600 Manual Bead Depressor
39 85608958 0.25 x 1.50 Dowel Pin
**Accessory Item

APPLY GREASE TO THESE LOCATIONS

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
28
29
30
31
33
34
36
37
38
39
3
17
17
17
6
17
19
8
17
7
7
22
4
7
11
37
5
32
18
35
23
1
Foot Pedal Assemblies
Electric Model Foot Pedal Assembly
Item Part No. Description
1 8103737 Release Valve
2 8104945 1/4 x 1 HWHSTC, Gr.5
3 8106301 1/4” Hex Hd Self Tap Screw, Gr.5
4 8107635 5/16” Flat Washer
5 8107419 Hair Pin Cotter
6 8120469 Hair Pin Cotter
7 8181369 1/4-20 Lock Nut, Nyl. Ins. Gr.5
8 8181675 Standard Pedal
9 8181699 Lever Assembly - Switch
10 8181707 Torsion Spring
11 8181708 Pedal Extension Spring
12 8181728 Switch Actuator Lever
13 8181872 Torsion Spring Sleeve
14 8181911 Pedal Spacer
15 8181918 Valve Brkt. Spacer Bar
16 8181923 Stop Washer
17 8181948 1/2” Nylinder Bearing
18 8181959 Cover-Switch
19 8181977 3/16” x 1-1/2” Clevis Pin
21 8181982 3mm x 0.5 x 12mm Lg HHCS
Screw
Item Part No. Description
22 8181984 1/4-20 x 1” Hx.Hd.Cp.Scr., Gr.5
23 8181989 10-24 x 3/8 SHCS, Gr.8
24 8182327 Pedal Spacer
25 8182332 Guard-Foot Pedal
26 8182363 Spacer - Sw Pedal Lever-Red
*27 8182588 Valve Assembly
*28 85600262 Valve Assembly
29 8182670 Spring Stop Bracket
30 8182682 10-24 Nylon Insert Lock Nut Gr.5
31 8182743 10-24 x 3/8 SHCSS Gr.8
32 8182958 Reversing Switch Kit
33 8183031 Switch/Valve Bracket
34 8183398 Pedal Shaft
35 8184675 Oil Injector Assembly
36 8301072 #6 Internal Tooth Lk Washer
37 8301121 Washer
38 85010038 Cam Link Follower
39 8181695 Cam Link Block

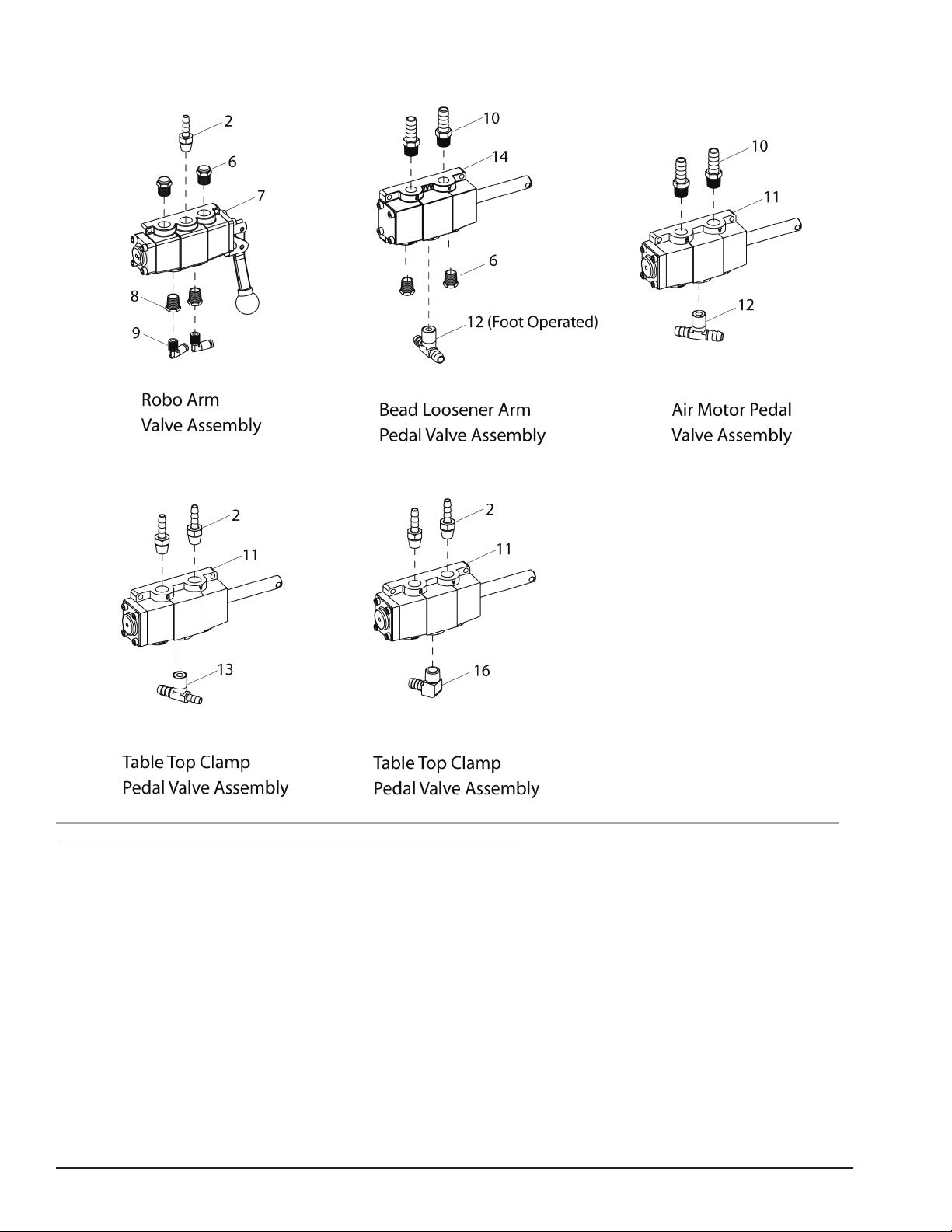

*Valve Assemblies (available only as individual
components, see page 16)
**Accessory Item

Air Model Foot Pedal Assembly
Item Part No. Description
1 8103737 Release Valve
2 8106301 1/4” Hex Hd Self Tap Screw, Gr.5
3 8106455 Clevis Pin
4 8107635 5/16” Flat Washer
5 8107419 Hair Pin Cotter
6 8120469 Hair Pin Cotter
7 8181369 1/4-20 Nylok Nut
8 8181675 Standard Pedal
9 8181708 Pedal Extension Spring
10 8181872 Torsion Spring Sleeve
11 8181911 Pedal Spacer
12 8181918 Bar-Valve Brkt. Spacer
13 8181948 1/2" Nylinder Bearing
14 8181977 3/16” x 1-1/2” Clevis Pin
15 8181981 5/16” Wave Washer
16 8181984 1/4-20 x 1” Hx.Hd.Cp.Scr., Gr.5
17 8181989 10-24 x 3/8 SHCS, Gr.8
Item Part No. Description
*36 8182066 Valve Assembly
19 8182327 Pedal Spacer
20 8182332 Foot Pedal Guard
*21 8182588 Valve Assembly
*22 8182589 Valve Assembly
23 8183031 Switch/Valve Bracket
24 8183398 Pedal Shaft
25 8184675 Oil Injector Assembly
26 8301121 Washer
27 85010038 Cam Link Follower
28 85607347 Pedal Spacer
29 85609600 Self Centering Pedal
30 8181695 Cam Mounting Block
*Valve Assemblies (available only as individual
components, see page 16)
**Accessory Item
12
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
19
20
23
24
26
27
28
29
30
26
5
13
13
13
13
13
8
8
6
14
9
12
14
6
7
2
22
21
18
1
25
17

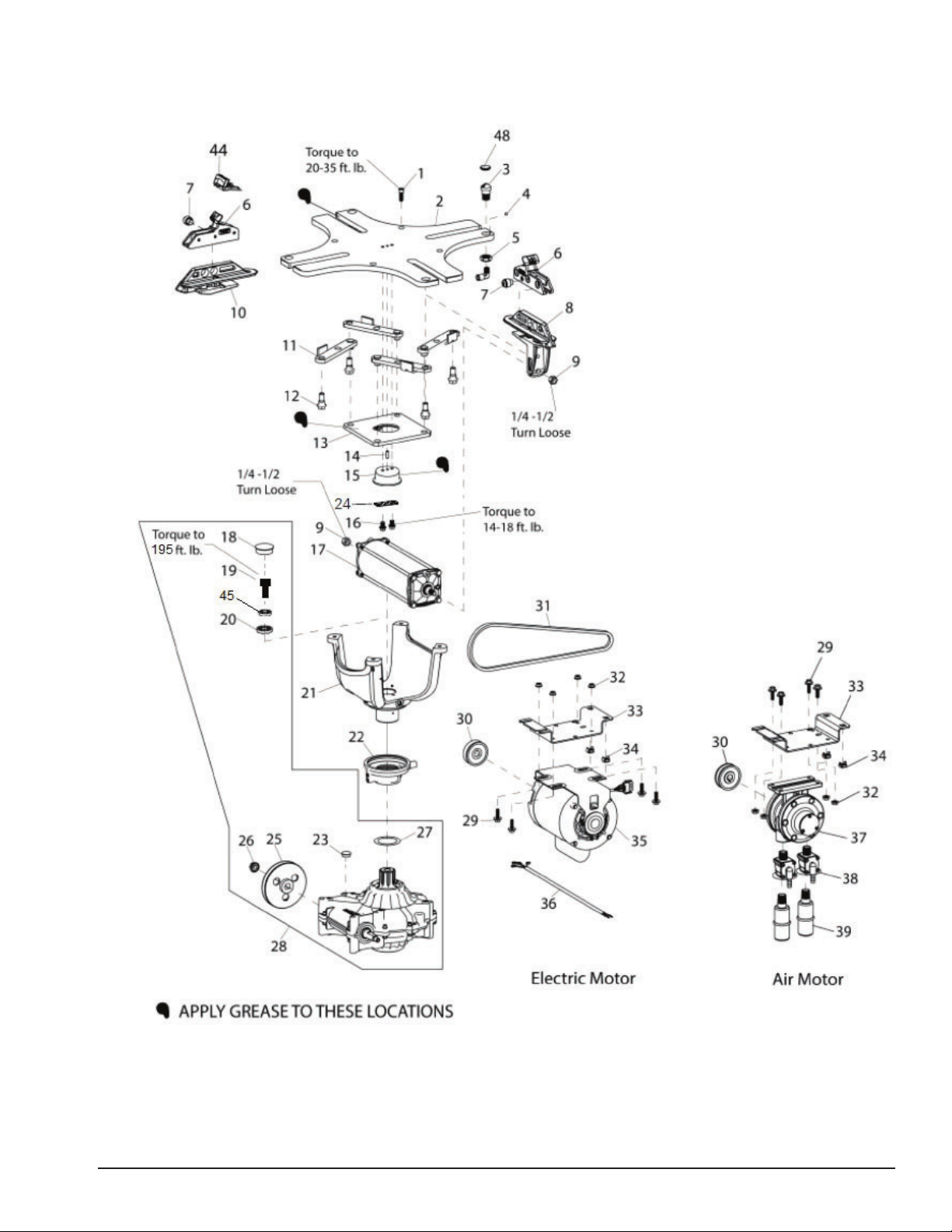

Table Top and Shaft Housing
Assembly
Item Part No. Description
1 8181929 3/8-16 x 1”, Gr.8 Skt. Hd. Cap Scr.
2 8181704 Table Top Plate
6 8182247 Adjustable Rim Clamp
7 8182250 Adj. Clamp Plunger/Spring Assy.
8 8184924 Carrier/Cover - Cylinder End
9 8101039 1/2" Lock Nut, Gr.5
10 8184925 Carrier/Cover - Clamp Adj.
11 85610388 Pivot Link W/C
12 8182279 Adj. Clamp Link Bolt
13 8181731 Table Top Pivot Plate
14 8183476 ø1/4" x 3/4" Roll Pin
15 8181733 Pivot Block
16 85610716 Screw-HHCS, 5/16-18 x 5/8, GR.5
†17 8182613 Table Top Cylinder Assembly
18 8182627 1-5/8” Dia. Cap Plug
19 85611050 Screw-SHCS,M16x40,GR12.9
20 8182979 ø16mm Molded Washer
21 8181990 Spider Assembly
22 8182619 Rotary Coupling Assembly
23 85610108 Cap Plug
24 85610717 Retainer Bracket
25 85607708 Transmission Pulley (4-hole)
Item Part No. Description
26 8140567 1/2-13, Hex. Whiz-lock Nut
27 8183156 ø2” X ø2 3/4” x .010 Washer
28 85608497 Transmission Kit
29 940084 5/16-18 x 1 1/4 Ser. Wash.Hd.Scr.
30 8184674 Motor Pulley
31 85608496 Motor V-Belt, 4L390
32 8182178 5/16-18, Hex. Whiz Lock Nut
33 85609921 Motor Bracket
34 8143044 Tinnerman Sq. Captive Nut 3/8-16
35 8184691 Motor, Electric 115V, 60 Hz, 1 Phase
8182621 Motor, Electric 220/240V, 50 Hz,
1 Phase
85000591 Motor, Electric 220V, 60 Hz,
1 Phase
36 8184562 Motor Cable Assy, 4-wire w/plug,
115V, 60 Hz & 220V, 50 Hz
85000632 Motor Cable Assy, 220V, 60 Hz
37 8181190 Air Motor, Gast. 6AM
38 85606398 Exhaust Valve
39 8181206 1/2" NPT Muffler
**44 8183604 Bootie Kit, Rim Clamp, Pkg of 10
45 85611049 Washer, 5/8 M16 LCKNG PR
†Cylinder Assemblies (see page 17)
**Accessory Item

Item Part No. Description
1 85607622 Plastic Hold Down Foot
2 905563 Roll Pin, 1/4" Dia x 1-1/2"
3 8301017 Dia. Steel Ball, 1/2"
4 7000230 Rubber Hand Grip, 1/2"
5 8183637 2" Ext. Retaining Ring
6 8182001 Screw, 10-24 x 3/4 Lg. SHCS
7 *8185757 Robo-Arm LR Valve Assembly
8 85607946 Cyl Assem 2" Dia x 8-inch Stroke
9 8181996 1/4 NPT x 1/8 Tube St. Fitting
10 8106301 1/4-20 x 3/4" HWHST Screw
11 8182044 Neoprene Cushion Clamp
12 8183649 1/4-20 x 5/16" Soc Hd Set Screw
13 8184226 1/4-28 Grease Fitting
14 8182016 3/4-10 Hex Nylock Lock Nut
15 8100994 Flat Washer, 3/4"
16 85607618 Front Arm Weldment
17 85607619 Rear Arm Weldment
18 8181038 Swing Arm Pivot Pin
19 8183703 3/4-10 x 10-1/2” Hex HD Cap Srw
21 8182457 Flat Washer, 3/4 SAE
25 8183635 Screw, 3/4-10 x 14, HHCS, Gr.5
32 8181997 90º Elbow
33 8181038 Pin-Pvt,Arm,Swng
34 † Hose, Rubber, 1/4, 58" Black
35 † Plastic Tube, 1/8 x 6"
36 † Plastic Tube, 1/8 x 16"
37 8183636 Spacer-.781ID X 2.750 OD X 1.5
38 Wire Tie
39 8184059 Manifold Assembly
† Hose Reels
LENGTH PART NO. DESCRIPTION
50-ft. 85000375 1/4” ID x 1/2” OD Black Rubber Hose
50-ft. 85000376 1/8” OD x 0.25 Plastic Tube
*Valve Assemblies (available only as individual
components, see page 16)
**Accessory Item

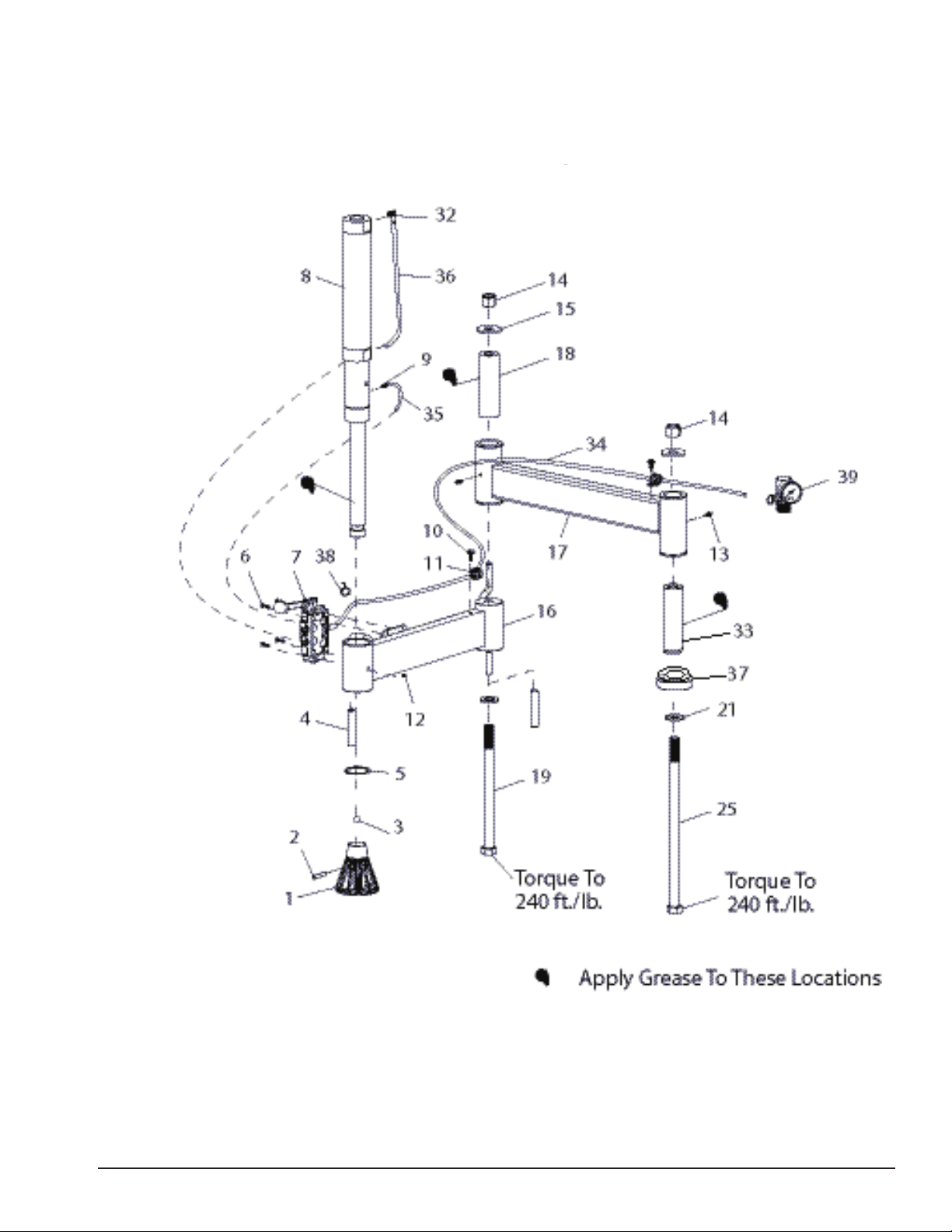

Robo-Arm® LR Assembly

Valve Assemblies
Item Part No. Description
2 8000378 1/4” Brass St. Fitting
6 85607855 Muffler
7 8185585 3 Position Valve
8 8109481 1/4 NPT x 1/8 NPT RDCR Fitting
9 8181997 90º Elbow 1/8 NPT x 1/8” Fitting
10 8101898 St. 1/4” NPT 3/8” Hose Fitting
11 8184369 4-Way w/Pull Pin Valve
12 8184467 1/4” NPT x 3/8 BRB x 3/8B Tee Fitting
13 8184469 1/4” NPT x 3/8 BRB x 1/4B Tee Fitting
14 8181986 4-Way w/Pull Pin Valve
16 8184256 1/4 NPT, 1/4 HSE ELL Fitting

Item Part No. Description
Torque to
60-65 ft.lb.
Torque to
20 ft.lb.
1
23
6
8
7
9
5
BL Arm Cylinder Assembly
4
11
Torque to
40 ft.lb.
Torque to
5-6 ft.lb.
5
6
7
8
9
12
3
4
Table Top Cylinder Assembly
2 8000378 1/4" Brass St. Fitting
6 8105615 Small Muffler
7 8185585 3 Position Valve
8 8109481 1/4 NPT x 1/8 NPT RDCR Fitting
9 8181997 90º Elbow 1/8 NPT x 1/8" Fitting
10 8101898 St. 1/4" NPT 3/8" Hose Fitting
11 8184369 4-Way w/Pull Pin Valve
12 8184467 1/4” NPT x 3/8 BRB x 3/8B Tee
Fitting
Item Part No. Description
12 8184467 1/4” NPT x 3/8 BRB x 3/8B Tee
Fitting
14 8181986 4-Way w/Pull Pin Valve
15 906960 1/4 NPT Muffler
16 8184256 1/4 NPT, 1/4 HSE ELL Fitting
*Not Shown

TABLE TOP
CLAMPS AIR MOTOR VALVE
3/4 AIR FLATE VALVE
1/4 INFLATION VALVE
PRESSURE
LIMITER
CLIP
ON-CHUCK
BLEED
VALVE
TIRE INFLATION
GAUGE
BL ARM VALVE
INFLATION
VALVES
AIR TANK
FOOT PEDAL
POP OFF
VALVE
BLEED
HOLE ROTARY
COUPLING
TOWER
BRACKET
TABLE TOP
INFLATION
OIL
RESERVOIR
ø
3/4-15
ø 1/4-16
ø 3/4-31
ø
3/8-17
ø1/4-65.5 ø1/4-6
ø1/4-65.5
ø 1/4-49
ø 3/8-25
ø 3/8-25
AIR IN
ø
3/8-24
ø 3/8-10
WATER
SEPARATOR
ø
3/8-24
ø 3/8-24
ø 1/8-110

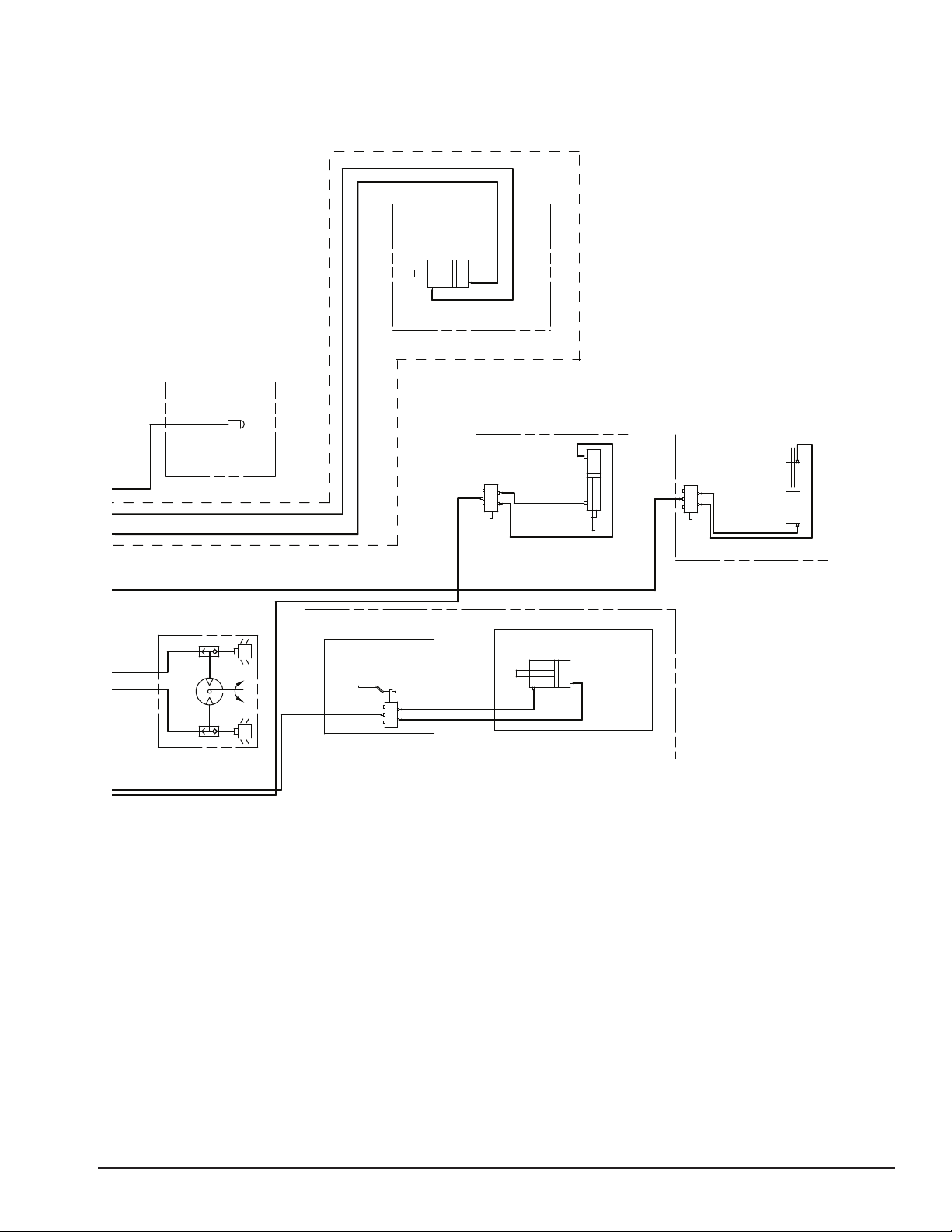

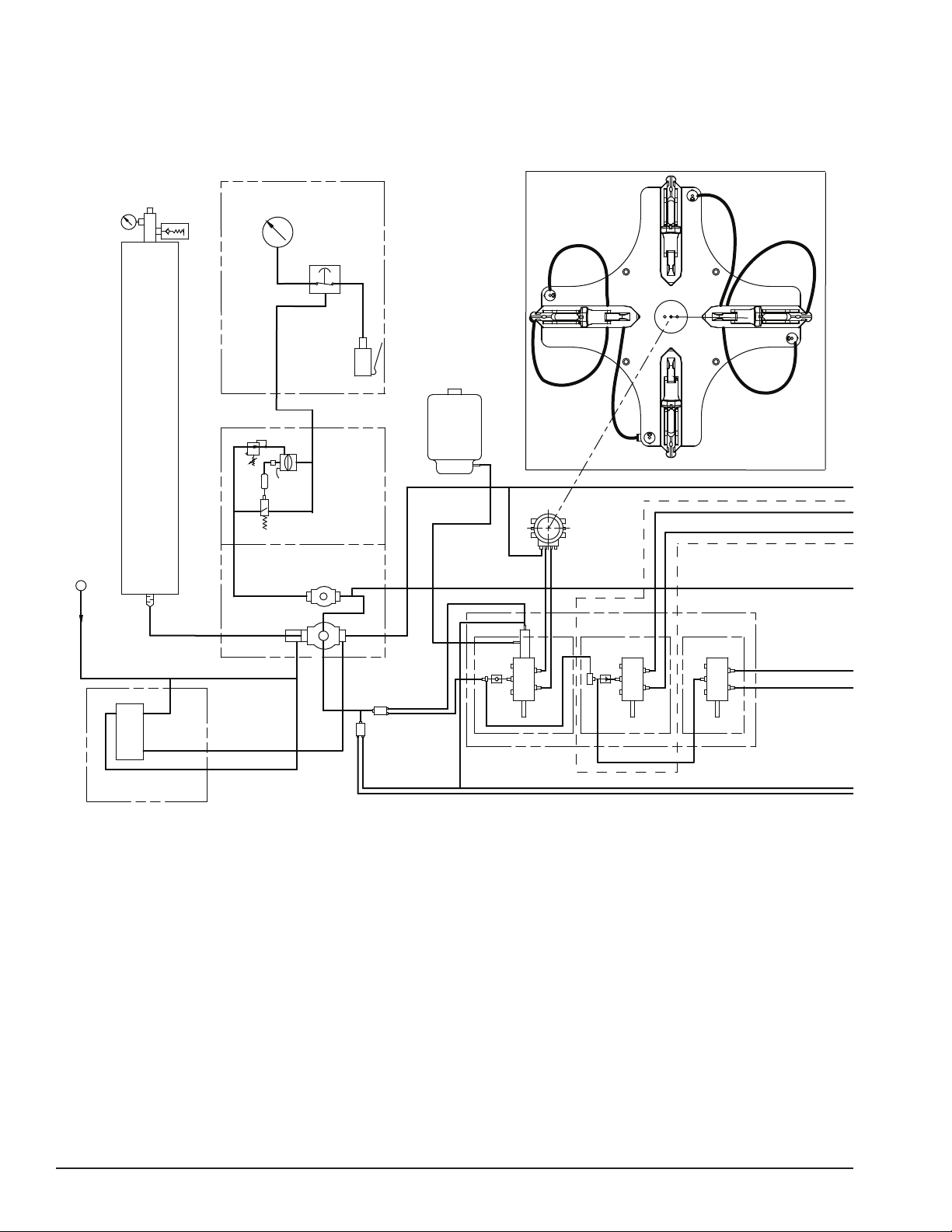

Pneumatic Diagram

AIR MOTOR DRIVE
BEAD LOOSENER
ROBO ARM
HANDLE
BEAD LOOSENER
FOOT OPERATED
ø
3/8-25
ø 3/8-25
ø 1/8-6
ø 1/8-24
B/L
HAND OPERATED
B/L
BEAD LOOSENER
Note: All possible tire changer options are displayed. Your tire changer will
include the options specied by the model number.
ø 3/4-48
SINGLE POINT
INFLATION
ROBO ROLLER ARM
ø
1/8-80
ø 1/8-56

Rim Clamp®Tire Changer
All-Air Unit Compressed Air Requirements
COATS®Rim Clamp®tire changers that are powered entirely by air (no electric motor) require a single com-
pressed air power source. Refer to the table below for exact specifications.
Tire Changer Model Compressor Size Capable of
All 5 HP 14-15 SCFM at 150 PSI
Oil Injector Maintenance
The oil injector (on units so equipped) typically require annual service. The oil level in the oil reservoir tank should
be checked regularly.
1. Add oil to the oil reservoir tank if the fluid level in the tank is at the “add” mark. Remove cap from the oil
reservoir tank and add Chevron Regal®R & O 32 oil to the “full” mark. Replace the cap and clean up any spilled oil.
Important: If the hose between the reservoir and injector is ever empty of oil, an air lock will form. After filling
the reservoir tank, the line must be bled of air at the injector connection as follows:
a. Remove the side panel and locate the oil injector.
b. Loosen the bleeder screw until oil drips from the screw (or press bleeder button, if so equipped).
c. Retighten bleeder screw (if required).
d. Cycle the clamp valve a few times checking for oil and air leaks.
e. Test the machine for full function before returning the machine to operation.
Air Gauge Check and Recalibration
1. Inflate a standard 15" passenger car tire/wheel assembly to 32 PSI. Use a high quality stick-type pressure
gauge to verify the pressure. Attach the tire changer’s inflation hose to the valve stem and check the pressure
reading on the air gauge. If it does not read 32 PSI, recalibrate the gauge.
2. Remove the screw-on lens. Loosen the 2 screws on the face of the gauge. Loosen them just enough so that
the gauge face moves. Do not remove the screws.
3. Rotate the gauge face until the 32 PSI mark is aligned with the gauge needle. Tighten the 2 screws and
replace the lens.
Danger, Warning, Caution, and Instructional Decals
Always make the cleaning of these important decals a part of your regular maintenance routine. If they are dam-
aged or illegible, replace them immediately. Your safety, and the safety of others is involved!
Regal® is a trademark of Chevron Products Company

GENERAL REPAIR Complete Your Shop With
Coats®Equipment
Reliable. Dependable.
Durable.
RC-45 RIM CLAMP®
TIRE CHANGER
RC-45 RIM CLAMP®TIRE CHANGER
External clamping from 6” up to 24.”
Quickly seals beads while tabletop inflation
provides a faster workflow.
The Manual Swing Arm is easily adjusted so that
the Coats Duckhead®Mount/Demount Tool is
properly fitted to the tire rim.
Best-In-Class Clamping Capacity
Built-in Bead Sealing Jets
Manual Swing Arm
