Heritage HTG157 User manual

CONNECTING THE POWER
CAUTION:
AS A PRECAUTION, DISCONNECT THE POWER WIRE FROM THE BATTERY WHILE MAKING THE
POWER AND GROUND CONNECTIONS TO THE AMPLIFIER.
4/8 GAUGE(Thicker if planning for additional Amplifiers) wire is recommended for
both the power and ground wires 12 Gauge, for the remote turn-on wire 16 Gauge.
Both types are available at most Mobile Audio Dealers or Installation Shop.
(1) Ground :To Vehicle Chassis
To avoid unwanted ignition noise caused by ground loop, it is essential that the
Amplifier be grounded to a clean, bare, metal surface of the vehicle's Chassis
NOTE :
GROUND WIRE SHOULD NOT BE EXTENDED MORE THAN 3 FT. (1 METER).
(2) +12 Volt(Fused) Constant Power: To Battery (+)
Due to the power requirements of the Amplifier, this connection should be made
directly to the positive (+) terminal of battery. For safety measures, install an in-line
Fuse Holder (not included) as close to the battery positive (+) terminal as
possible with an ampere rating; not to exceed total value of fuses in Amp.
(3) Remote Turn-On Input:To remote turn-on output of Car Stereo
This Amplifier is turned "ON" remotely when the vehicle's stereo is turned "ON".
NOTE :
IF YOUR RADIO DOES NOT HAVE A +12 VOLT OUTPUT LEAD WHEN THE RADIO IS TURNED ON, THE "REMOTE"
TERMINAL ON THE AMPLIFIER CAN BE CONNECTED TO VEHICLE'S ACCESSORY CIRCUIT THAT IS LIVE WHEN THE KEY
IS "ON".

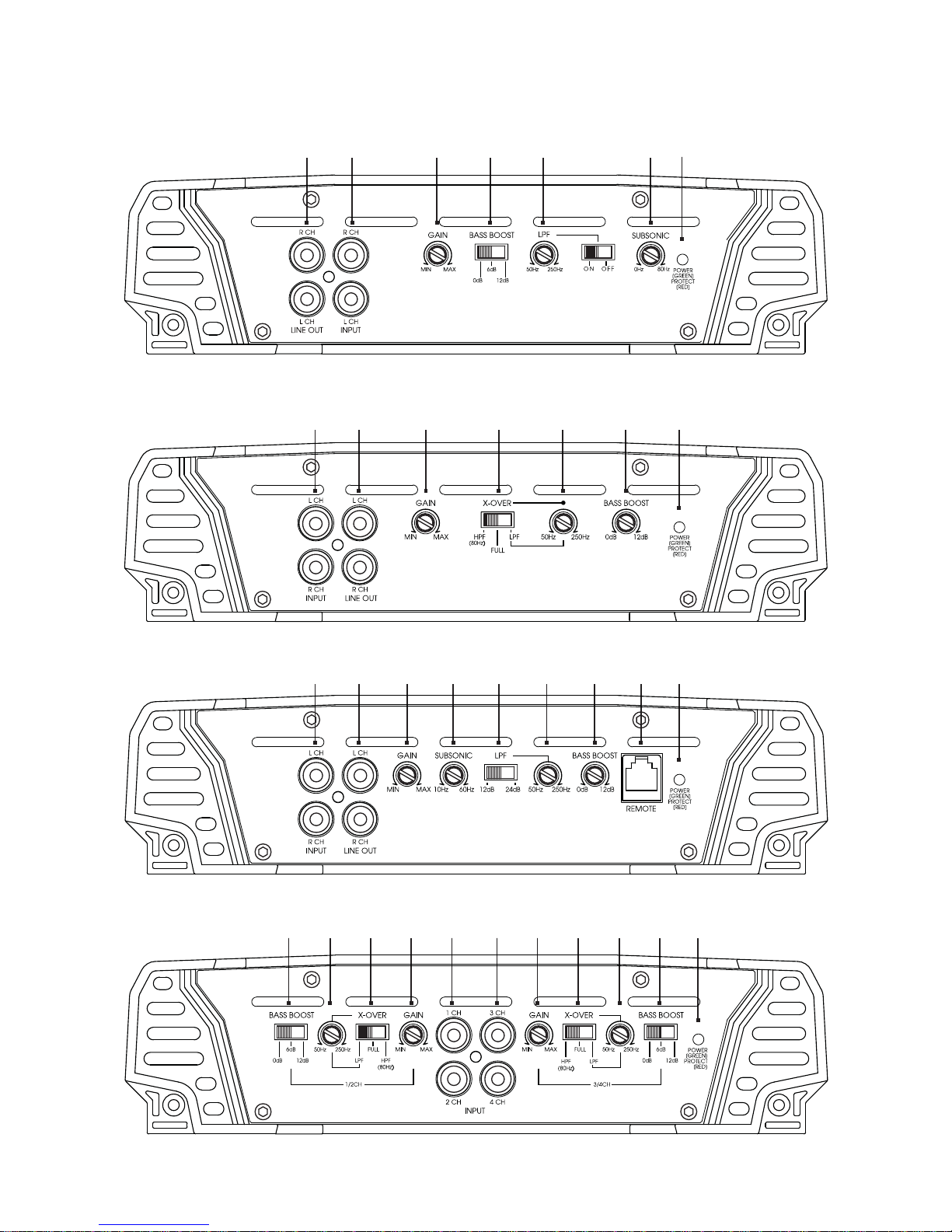

PANEL LAYOUT
HTG237 / HTG257 FRONT VIEW
HTG2100D FRONT VIEW
HTG447 FRONT VIEW
1 9 2 3 5 5 6 7 8
1 9 2 4 4 6 8
1 12 24 44 46 6 8
HTG157 FRONT VIEW
19 2 6 843

PANEL LAYOUT
HTG237 / HTG257 REAR VIEW
HTG2100D REAR VIEW
HTG447 REAR VIEW
10 11 12 13 14
10 11 12 13
10 11 12 13 14
14
HTG157 REAR VIEW
10 11 12 13 14

CONTROL FUNCTIONS
1. RCA input jacks
These RCA input jacks are for use with source units that have RCA or Line level
outputs. A source unit with a minimum level of 200mV is required for proper operation.
The use of high quality twisted pair cables is recommended to decrease the possibility
of radiated noise entering the system.
2. GAIN Control
The level control will match the amplifiers sensitivity to the source units signal voltage.
The Operating range is 200mV minimum to 6V maximum.
CAUTION: Do not run the amplifier in high volume for long time, otherwise the loudspeakers will be damaged.
3. SUBSONIC
HTG157:The frequency can be adjusted between 0Hz and 80Hz.
HTG2100D:The frequency can be adjusted between 10Hz and 60Hz.
4. X-OVER
* Full pass x-over switch
When the switch is in the“Full” position, the full range is bypassed.
* Low pass x-over switch
When the switch is in the“LPF” position, frequencies lower than the low pass frequency
setting are passed.
HTG157/HTG237/HTG257/HTG447 :The frequency can be adjusted between 50Hz and 250Hz.
* High pass x-over switch
When the switch is in the“HPF” position, frequencies higher than the high pass
frequency setting are passed.
HTG237/HTG257/HTG447 :The frequency is 80Hz.
5. Low pass x-over frequency control
This control is used to select the desired low pass x-over frequency.
The frequency can be adjusted between 50Hz and 250Hz.
6. Bass BOOST
HTG237/HTG257/HTG2100D : The boost can be adjusted between 0dB to12dB.
HTG157/HTG447 :The boost can be selected among 0dB, 6dB and 12dB.
7. REMOTE
Controls the subwoofer amplifier gain, from a remote location for ease of adjustment
during listening.
Warning: Do not connect a level control knob from other manufacturers to the Remote Sub Level
Control of any amplifier. Even though the connectors fit properly, the control knob and connector
pin positions may be different and the amplifier will be damaged.

CONTROL FUNCTIONS
8. LED
Will illuminate GREEN to indicate the amplifier is on and operating normally, and will
be illuminated RED if the amplifier shuts down due to short circuit, DC offset, or
overheating detected by on board protection circuitry
9. Auxiliary outputs
The Auxiliary outputs offer HERTIAGE amplifiers easy, unlimited system expansion.
Route RCA’s from the line out of the first amplifier to the line input of a second
amplifier when using a single source output.
10. GND
Connect this terminal directly to the sheet metal chassis of the vehicle, using the
shortest wire necessary to make this connection. Always use wire of the same gauge
or larger than the (+)12 volt power wire.The chassis connection point should be
scraped free of paint and dirt. Use only quality crimped and/or soldered connectors
at both ends of this wire.
Warning : Do not connect this terminal directly to the vehicle battery ground terminal or any other factory
ground points.
11. Remote Turn On
This terminal turns on the amplifier when (+)12 volt is applied to it. Connect it to the
remote turn on lead of the head unit or signal source.
12 . (+)12 Volt Power
Connect this terminal through a FUSE or CIRCUIT BREAKER to the positive terminal of
the vehicle battery or the positive terminal of an isolated audio system battery.
Warning: Always protect this power wire by installing a fuse or circuit breaker of the appropriate
size within 12 inches of the battery terminal connection.
13. FUSE
These fuses protect the amplifier against internal electrical damage and are meant to
protect the amplifier only. All other power connections should be fused at the source.
14. SPEAKERS
Connect subwoofers to these terminals.

2-4

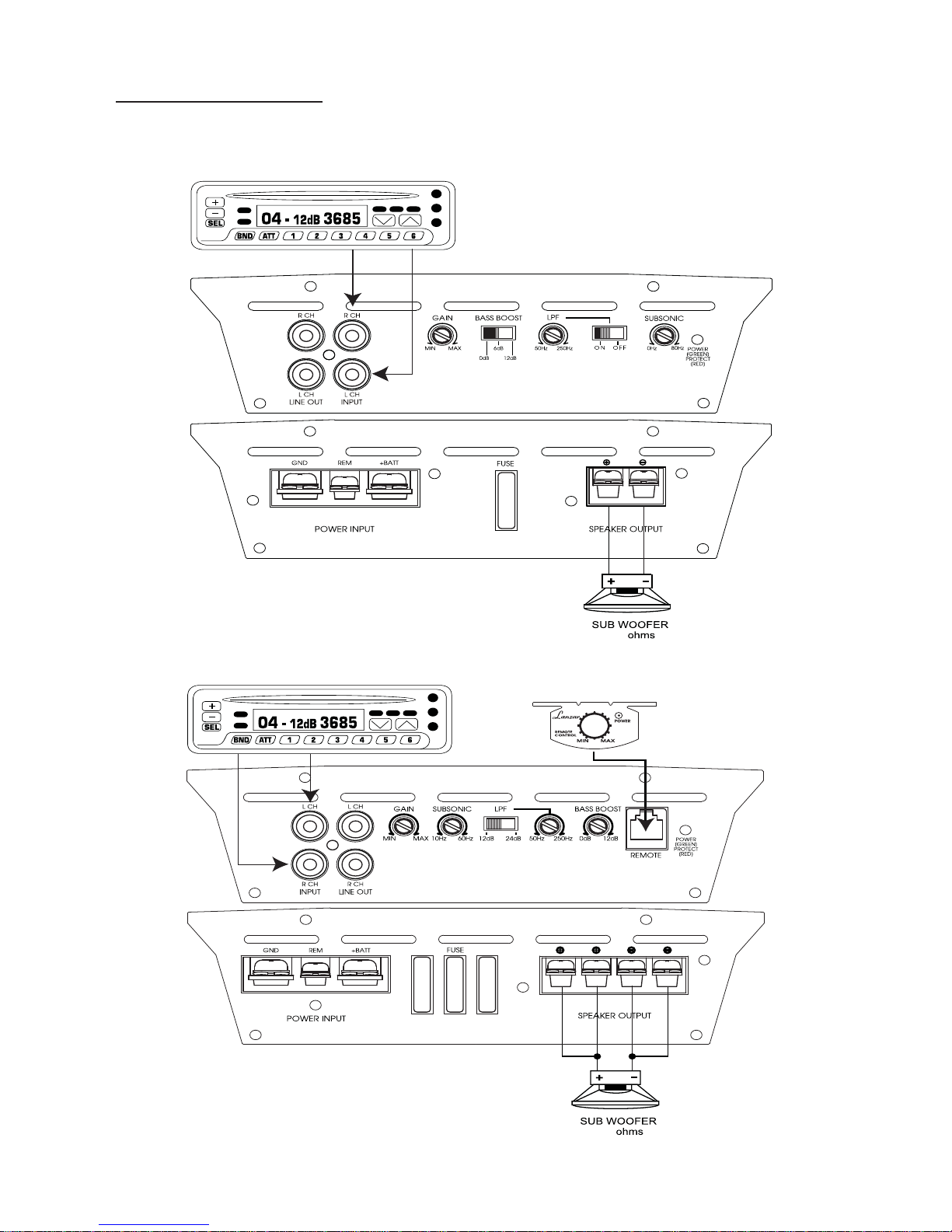

System Diagrams
MONO Channel System Design #1
HTG2100D
HTG157
2-4

System Diagrams
2Channel System Design #1
HTG237 / HTG257

System Diagrams
2Channel System Design #2
HTG237 / HTG257

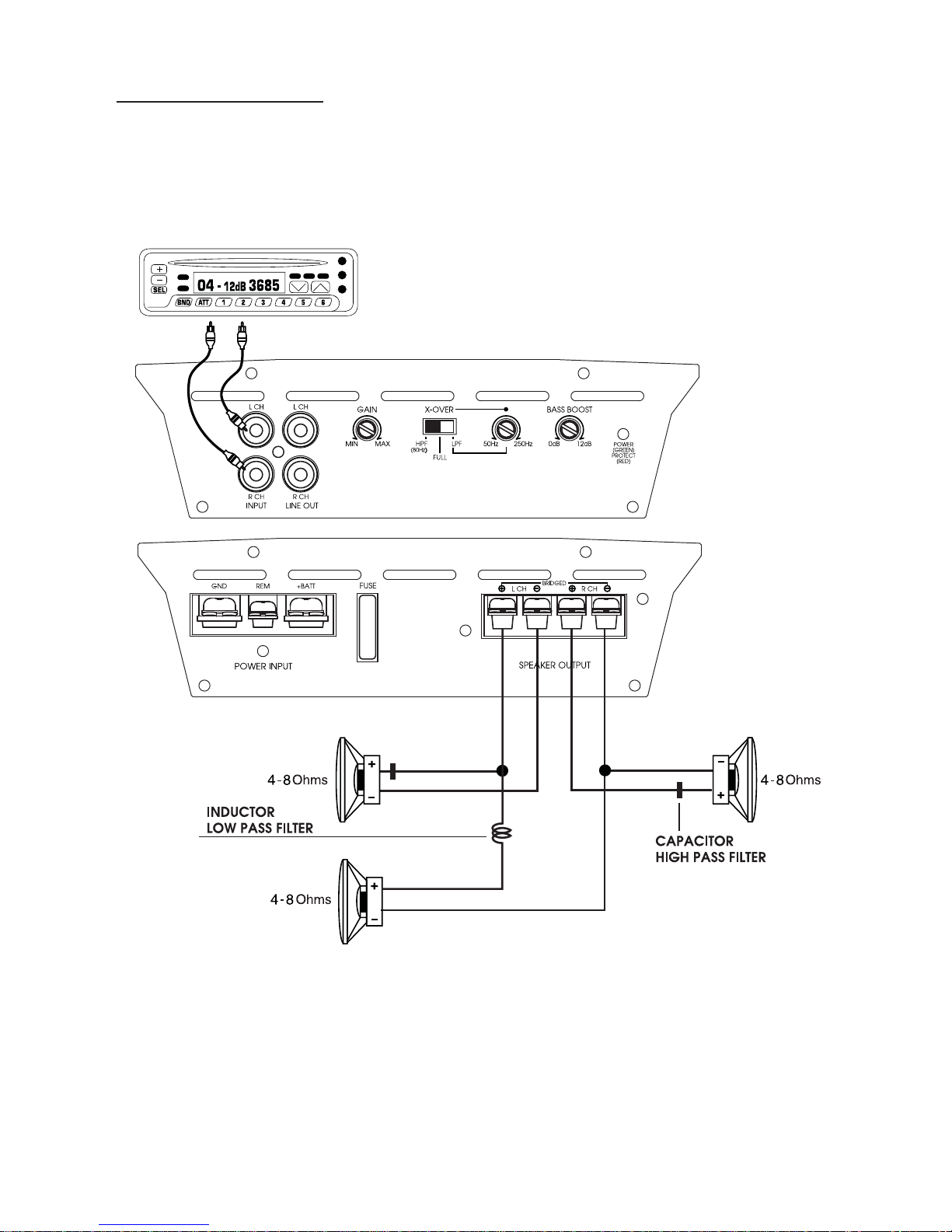

System Diagrams
2Channel System Design #3
HTG237 / HTG257

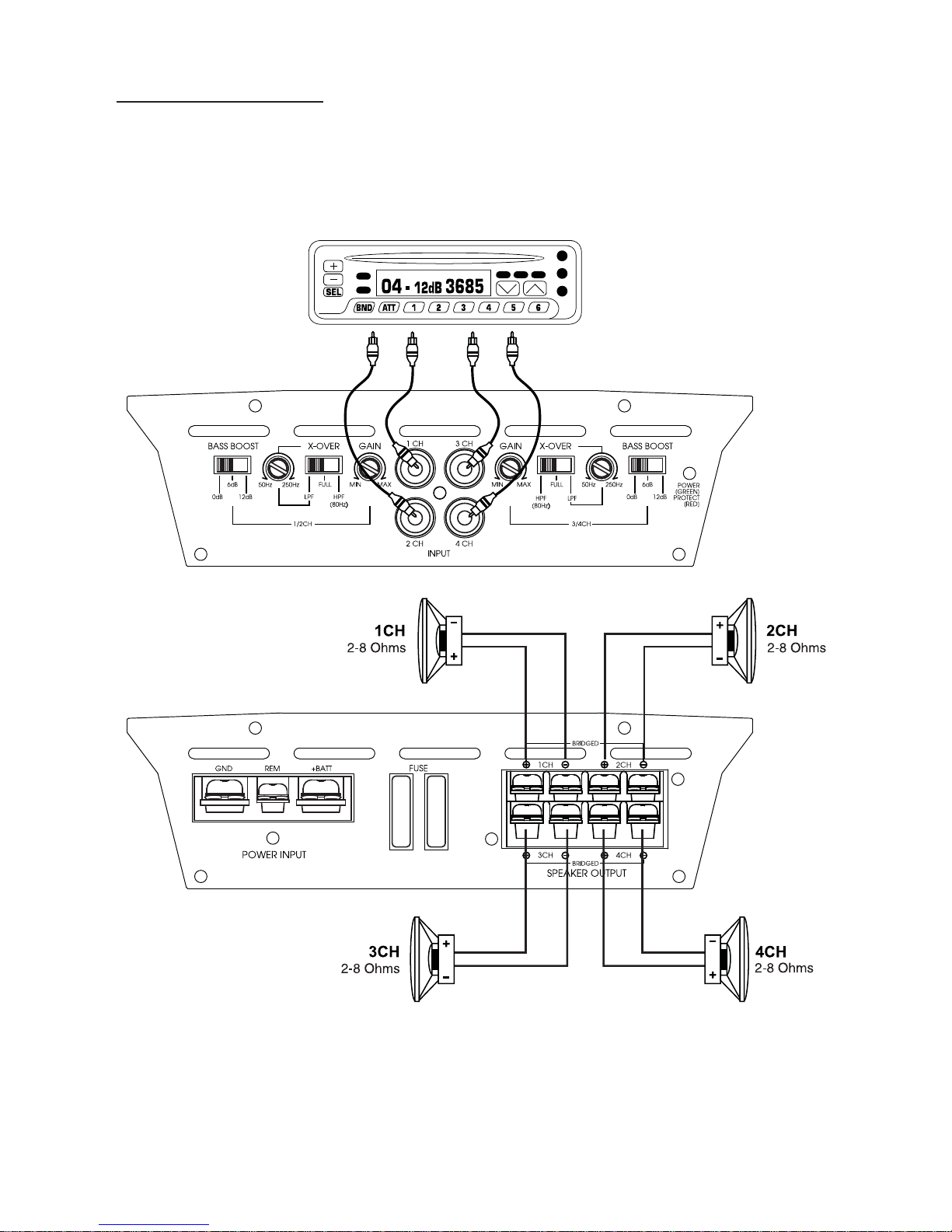

System Diagrams
4Channel System Design #1
HTG447

System Diagrams
4Channel System Design #2
HTG447

System Diagrams
4Channel System Design #3
HTG447
1CH
4-8 Ohms
WOOFER
4-8ohms
WOOFER
4-8ohms
2CH
4-8 Ohms
3CH
4-8 Ohms 4CH
4-8 Ohms

TROUBLE SHOOTING GUIDE
SYMPTOMS CHECK POINTS CURE
NO SOUND Is the power
LED illuminated?
Check fuses in amplifier.
Be sure Turn-on lead is connected
AMP NOT
SWITCHING
ON
No power to power wire Repair power wire or connections
No power to remote
wire with receiver on
Check connections to radio
Fuse broken Check fuse
NO SOUND
IN ONE
CHANNEL
Check speaker leads Inspect for short circuit or an
open connection.
Check audio input
leads
Reverse Left and Right
RCA inputs to determine if it is
occurring before the amp.
Check Tuner/Deck volume level.
Clean contacts on fuse holders.
AMP
TURNING
OFF
MEDIUM/
HIGH
VOLUME
Check speaker load
impedance
Be sure proper speakers are used
to ensure impedance
recommendations are observed.
(If you use an Ohmmeter to
check speaker resistance,
please remember that DC
resistance and AC impedance
may not be the same.)

WARNINGS
Investigate the layout of your automobile thoroughly before drilling or cutting any
holes.Take care when to work near the gas tanks,lines, or hydraulic lines, and electrical
wiring.Don't use power amplifier unmounted.Attach this system securely to the auto-
mobile to prevent damage, particularly in the event of an accident. Don't mount this
system so that the wire connections are unprotected or are subject to pinching or dam-
age from nearby objects.The +12V DC power wire must be fused at the battery positive
terminal connection.Before making or breaking power connections
at this system power terminals, disconnect the +12V wire at the battery end.
Confirm your radio/cassette player and/or other equip is turned off while connecting the
input jacks and speaker terminals. If you need to replace the power fuse,replace it only
with a fuse identical to that supplied with the system.Using a fuse of different type or
rating may result in damage to this system which isn't covered by the warranty.

System Diagrams
4Channel System Design #1
HTG447

System Diagrams
4Channel System Design #2
HTG447

System Diagrams
4Channel System Design #3
HTG447
1CH
4-8 Ohms
WOOFER
4-8ohms
WOOFER
4-8ohms
2CH
4-8 Ohms
3CH
4-8 Ohms 4CH
4-8 Ohms

TROUBLE SHOOTING GUIDE
SYMPTOMS CHECK POINTS CURE
NO SOUND Is the power
LED illuminated?
Check fuses in amplifier.
Be sure Turn-on lead is connected
AMP NOT
SWITCHING
ON
No power to power wire Repair power wire or connections
No power to remote
wire with receiver on
Check connections to radio
Fuse broken Check fuse
NO SOUND
IN ONE
CHANNEL
Check speaker leads Inspect for short circuit or an
open connection.
Check audio input
leads
Reverse Left and Right
RCA inputs to determine if it is
occurring before the amp.
Check Tuner/Deck volume level.
Clean contacts on fuse holders.
AMP
TURNING
OFF
MEDIUM/
HIGH
VOLUME
Check speaker load
impedance
Be sure proper speakers are used
to ensure impedance
recommendations are observed.
(If you use an Ohmmeter to
check speaker resistance,
please remember that DC
resistance and AC impedance
may not be the same.)

SPECIFICATIONS
HTG237 HTG257 HTG447 HTG2100D
MAXIMUM POWER OUTPUT 1000 000W 2000W 2400W
POWER OUTPUT RMS @4Oh CH X 125 CH X 500W 4CH X 250W 1CH X 350W
POWER OUTPUT RMS @2Oh CH X 225 CH X 650W 4CH X 350W 1CH X 800W
POWER OUTPUT RMS @1Oh ON ON CH X 1200W
BRIDGED POWER MAX @4Oh CH X 1000 CH X 2000W ONE
TH 0D.001.0 01.0 01.01
FREQUENCY RESPONSE -3.0dB 45KH 5KHz 50Hz
HP 8F0H8z0H 8z0H NzONE
LP 5F0-250H
0-250H 50-250Hz(12dB, 24dB)
BASS BOOST(50Hz 0)-12d
-12dB 0, 6, 12dB (selectable) 0-12dB
ADJUSTABLE SENSITIVITY RANG .2-6 .2-6 .2-6 .2-6V
INPUT IMPEDANCE(LOW LEVEL) 20K 20 2K0K20K
FUSE 25AX 0A X 0A x 3
DIMENSION(D x W x H inch .84 X 8.81 X 2.24 12.99 X 8.81 X 2.24 14.96 X 8.81 X 2.24 14.96 X 8.81 X 2.24
HTG157
2000W
1CH X 1000W
1CH X 1500W
ON
ON
0.01
50-250H
0, 6, 12dB (selectable)
0A X
12.99 X 8.81 X 2.24
45KH
80Hz
.2-6
20K
