HERKULES G200 User manual

Part# 1002655-11
3/3/2020
This manual contains important information concerning the
installation and operation of the gun washers listed above.
Read manual thoroughly and keep for future reference
INSTRUCTIONS
Made in USA
Toll Free: 800-444-4351
Phone: [phone]
Fax:
248 960-7109
OWNERS MANUAL
Website: www.herkules.us
E-mail:
[email protected]
Herkules Equipment Corporation
2760 Ridgeway Court
Walled Lake, MI 48390-1662 USA
Page 1 of 22
Call: 1-800-444-4351

Warranty ……………………………………………………………………………………………………………….................... 3
Model Information ……………………………………………………………………………………………………………. 4
Warnings ……………………………………………………………………………………………………………………… 5-6
Assembly Instructions ……………………………………………………………………………………………………….. 7-9
Installation ………………………………………………………………………………………………………………….. 10
Operation ……………………………………………………………………………………………………………………. 10-11
Preventive Maintenance ………………………………………………………………………………………………………. 12
Troubleshooting ……………………………………………………………………………………………………………… 13
Drawings with Part Lists …………………………………………………………………………………………………… 14-21
G200 Schematic ………………………………………………………………………………………………………................... 22
Herkules Equipment Corporation
A U.S.-based manufacturer, Herkules Equipment Corporation offers a diverse line of products that support multiple
industries by improving efficiency, productivity, ergonomics, comfort, and safety in the work environment. The
company consists of the three product lines: Herkules, Enkon and BossLifts.
Since 1985, Herkules has designed, engineered and manufactured quality products at our Walled Lake,
Michigan facility. Our company supports our products after delivery, with U.S. based customer service, and
replacement parts, enabling our customers to proceed with confidence.
To learn more about Herkules, visit http://herkules.us. Contact us at [email protected] with any
questions or concerns.
Thank you for purchasing a Herkules product!
Table of Contents
Page 2 of 22
Call: 1-800-444-4351

Warranty
At Herkules we take great pride in the construction of our American-made products, and we stand behind their reliability.
Our limited liability warranty coverage for Paint Gun Washers warranties the unit for a period of 12 months. Washer pumps
have a separate warranty; the Herkules 338 pump is protected for a period of 2 years from the date of purchase. All other
pumps, including rinse pumps, are warrantied for 12 months.
This warranty does not apply to equipment damaged from accident, abuse, overload, misuse, negligence, improper
installation, abrasive or corrosive materials, or shipping damage.
In the event of product failure, the defective item must be returned, freight prepaid, to the Herkules manufacturing plant for
repair or replacement. If repairs are required, Herkules will not be liable for these repairs to take place in the field regardless
of the application. Proof of purchase and date of purchase must be confirmed. An RGA* (Returned Goods Authorization) and
written approval from Herkules must be obtained before any goods can be shipped to Herkules. We reserve the right to
Determine whether failure is due to defective material, normal wear, and / or other causes.
There are no warranties which extend beyond the description on the face hereof. Herkules
disclaims any warranty of merchantability or fitness for a particular purpose in connection with
the Buyer's purchase of any Product under this agreement. Damages are limited to the sales
price of the Herkules system. The terms and conditions herein represent the entire agreement
between Herkules and the Buyer. Any prior / future representations do not apply.
*To obtain a RGA, contact Herkules at 1-800-444-4351 and have the item model, serial numbers, and invoice number if applicable.
Upon receipt of your equipment, please write your purchase information below. Please retain this manual for your records.
Serial Number Model Number
Purchase Date Distributor (if applicable)
IMPORTANT NOTICE: if you have a problem with your Herkules product,
DO NOT RETURN TO PLACE OF PURCHASE
Contact Herkules: by phone [phone]; by email, [e-mail]; or on the web at herkules.us/contact-us.
Page 3 of 22
Call: 1-800-444-4351

Model Information
Part # Description
001-702 Hex Bolt 1/4-20 x 1/2 2 EA.
002-161 Flat Washer #10 2 EA.
008-244 Acorn Nut 1/4-20 2 EA.
001-705 Flat Washer 1/4 2 EA.
6 Ball Valve 1 EA.
83 Hex Bolt 1/4-20 x 1 2 EA.
84 Hex Nut 1/4-20 2 EA.
85 Lock Washer 1/4 4 EA.
Clevis Pin 1/4 dia. 1 EA.
Cotter Pin 1 EA.
Actuator 1 EA.
C9A Nipple 1/8 NPT X 4-1/2 2 EA.
53B Stem Support Female 2 EA.
M5 Tube 5/32 Blue 30 IN.
M5-BLACK Tube 5/32 Black 9 IN.
M5-NEUTRAL
Tube 5/32 Clear 13 IN.
005-131 Screw 10-24 x 1/2 2 EA.
005-137 Nylock Nut 10-24 2 EA.
Bracket Lid Mount 1 EA.
338 Pump 1 EA.
*Customer should review and verify all parts are present before starting assembly

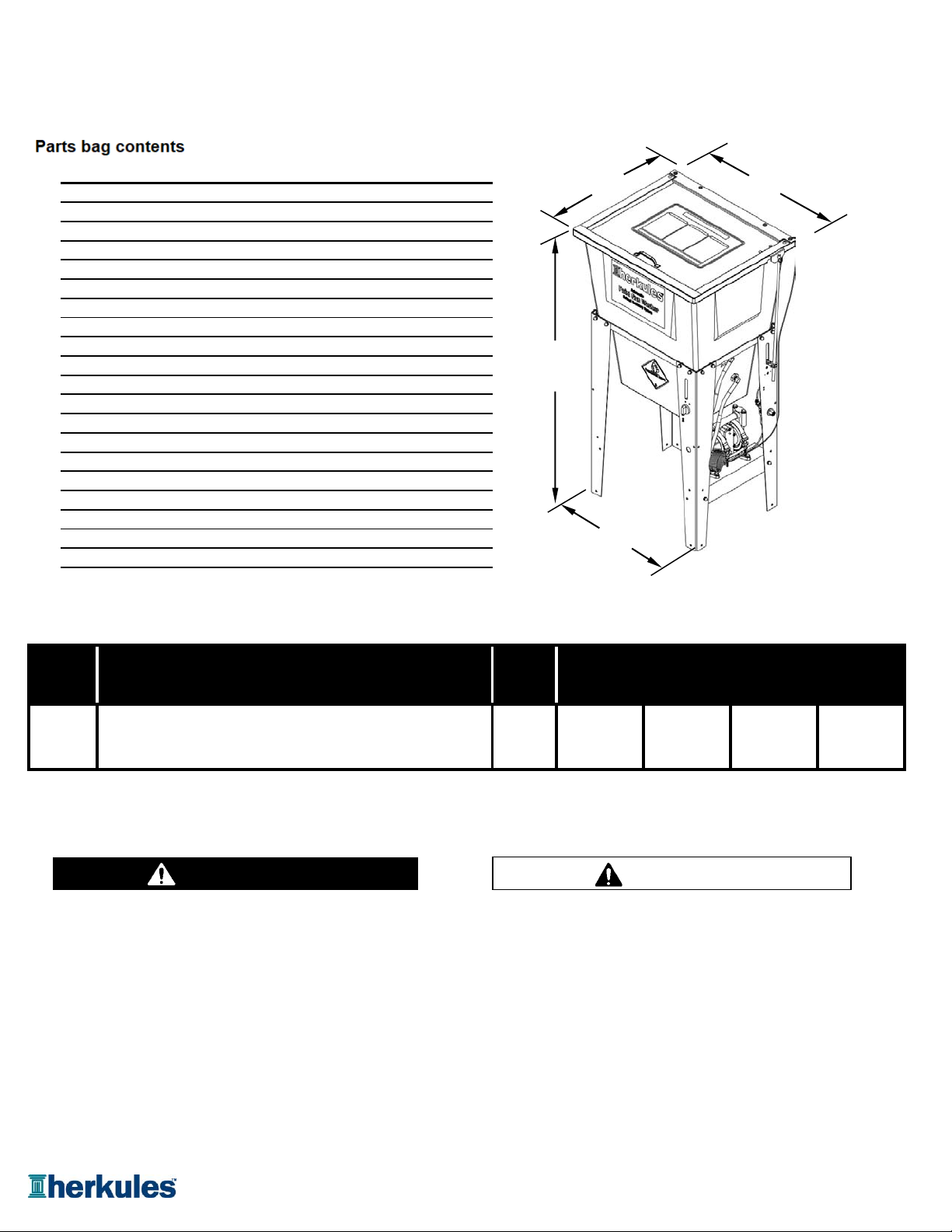

NOTE: Dimensions listed below are overall measurements.
Dimensions in./(mm)
A B C D
Two gun, two cup paint gun washer equipped with
46 20.625 24.5 21.25
diaphragm pump, filter-regulator and timer.
(1168) (524) (622) (540)
Cleans exclusively either solvent or water based paints.
(31)
G200
Model
Weight
Warning Symbol
Caution Symbol
Quantity
1000652
1000252
11957
12024
lbs/(kg)
Description
68
CAUTION
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
A
B
C
D
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
Page 4 of 22
Call: 1-800-444-4351

EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture, malfunction, or start unexpectedly
and result in serious injury.
•This equipment is for professional use only.
•Read all instruction manuals, tags, and labels before operating the equipment.
•Use the equipment only for its intended use.
•Do not alter or modify this equipment.
•Do not exceed the maximum working pressure of the lowest rated system component.
•Do not operate the gun washer at a pressure above the maximum working pressure rating of the
gun(s) being cleaned.
•Route the hoses away from traffic areas, sharp edges, moving parts, and hot surfaces.
•Do not use the hoses to pull the equipment.
•Do not move pressurized equipment.
•Use fluids or solvents that are compatible with the equipment wet parts. Read the fluid and
solvent manufacturer's warnings.
•Comply with all applicable local, state and national fire, electrical and other safety regulation.
PRESSURIZED EQUIPMENT HAZARD
Spray from hose leaks, ruptured components, or from operating the gun washer with an open lid
can splash fluid in the eyes or on the skin and cause serious injury.
•A safety device has been installed to shut off the pump when the gun washer lid is opened.
Do not tamper with, or alter, this device.
•Open the gun washer lid slowly.
•Do not prop the gun washer lid open with an object or by any other means.
•Do not stop or deflect fluid leaks with your hand, body, glove, or rag.
•Tighten all fluid connections before operating the equipment.
•Replace worn, damaged, or loose parts immediately.
WARNING
Page 5 of 22
Call: 1-800-444-4351

FIRE AND EXPLOSION HAZARD
Improper grounding, poor air ventilation, open flames, or sparks can cause a hazardous condition
and result in fire or explosion and serious injury.
•Ground the equipment. See Installation section (page 10) for grounding procedure.
•Provide fresh air ventilation to avoid the build up of flammable fumes from the cleaning solution.
•Extinguish all open flames or pilot lights in the gun washer area.
•Disconnect all electrical equipment in the gun washer area.
•Keep the gun washer area free of debris, including cleaning solutions, rags, and gasoline.
•Do not turn on any light switch in the gun washer area while operating or if fumes are present.
•Do not smoke in the gun washer area.
•Do not operate a gasoline engine in the gun washer area.
•Follow the gun manufacturer's solvent and other cleaning recommendations.
•
Use solvent with the highest possible flash point.
•
If there is any static sparking while using the equipment, stop operation immediately. Identify and
correct the problem.
•Drain the cleaning solution into a proper storage container when gun washer(s) is not in use.
TOXIC FLUID HAZARD
Hazardous fluids or toxic fumes can cause serious injury or death if splashed in eyes or on the
skin, swallowed, or inhaled.
•Know the specific hazards of the fluid you are using. Read the fluid manufacturer's warnings.
•Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local, state
and national guidelines.
•Wear the appropriate protective clothing, gloves, eyewear and respirator.
•Pipe and dispose of the exhaust air safely. If diaphragm fails, the fluid may be exhausted along with
the air.
WARNING
Page 6 of 22
Call: 1-800-444-4351

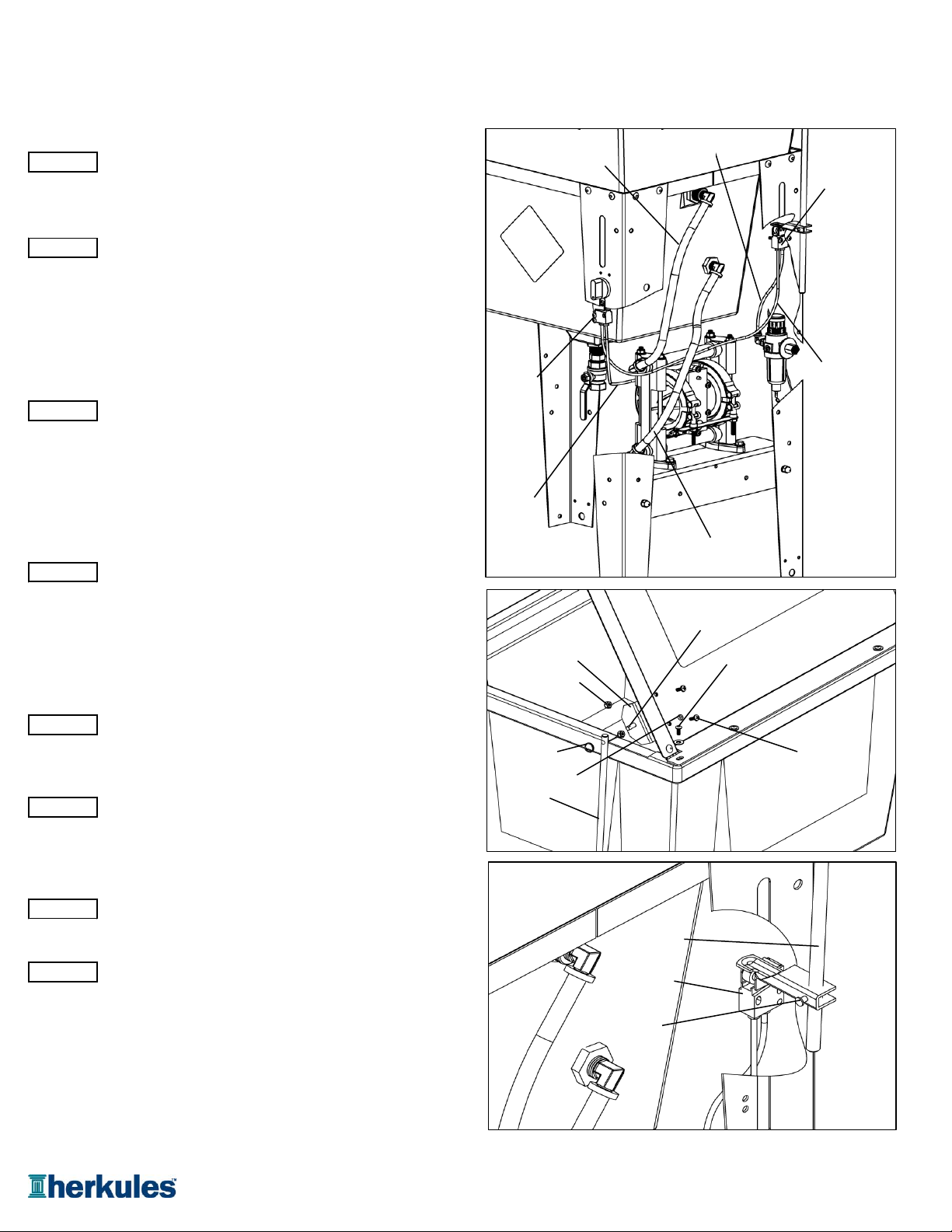

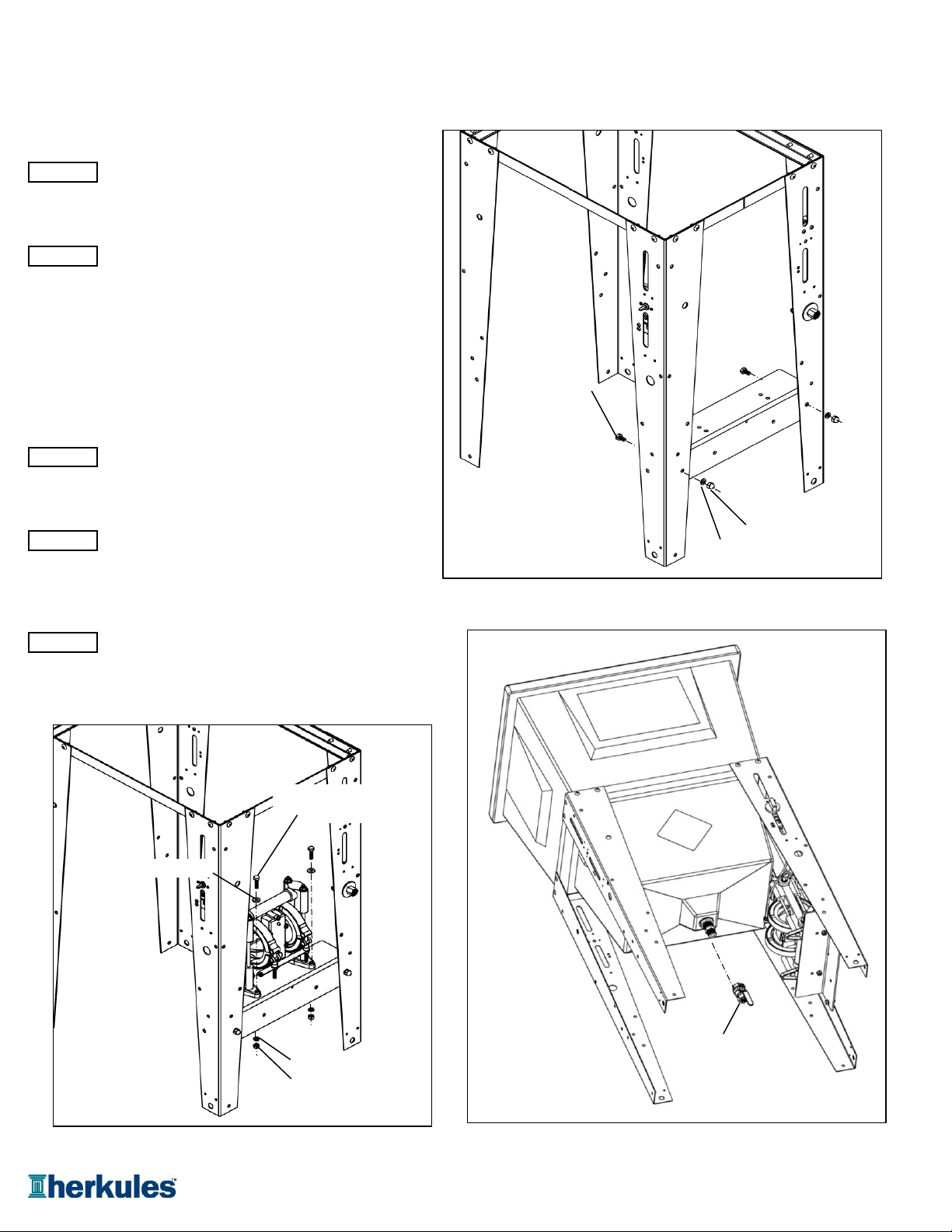

Stand and tub connections [Figures 1-4]
Remove stand from box.
Loosen all (16) nuts that attach the legs to the upper
frame of the Gun Washer stand.
Position the pump mount bracket between the timer
leg assembly and the filter/regulator leg assembly.
(These legs have oblong openings on one side)
Attach the pump mount bracket to the stand using (2)
1/4-20 x 3/4" hex bolts, (2)
1/4" lock washers and (2) 1/4" acorn nuts per leg.
Hand tighten, then place stand on floor. Verify
all (4) legs are sitting flush with the floor, and tighten.
Attach the pump to the stand using the (2) 1/4-20 x 1"
hex bolts, (2) 1/4" flat washers, (2) 1/4" lock washers
and (2) 1/4" hex nuts per leg [see fig.2].
Attach the ball valve to the reducing nipple on the
bottom of the tub. Teflon tape is recommended for
a water-tight seal. Hand tighten [see fig.3].
Ensure bulkhead DOES NOT TURN when tightening.
Connect the 16" long fluid outlet tube between the fluid
outlet port of the pump and the upper bulkhead on the tub.
DO NOT HEAT HOSE [see fig.4].
STEP 5
Assembly Instructions
STEP 1
STEP 3
STEP 4
STEP 2
fig.1
Hex bolt
1/4-20 x 1/2"
1/4" Acorn nut
1/4" Lock
Hex bolt
1/4-20 x 1"
1/4" Hex nut
Flat washer 1/4"
fig.2
1/4" Lock washer
Ball valve
fig.3
Page 7 of 22
Call: 1-800-444-4351

Connecting fluid and air hoses
Connect the 17" long fluid inlet tube between the fluid
inlet port of the pump and the lower bulkhead on the tub.
DO NOT HEAT HOSE [see fig.4].
Connect the black 5/32" air hose between the regulator
and the air-in port of the limit valve (located on the rear leg
of the gun washer). Press tubing in through the collar until
seated. Pull firmly on hose to test for a tight connection.
[see fig.4].
Note: Air-in port of limit valve is the port opposite the roller.
Connect the blue 5/32" air hose between the air-in port of
limit valve (located on the front leg) and the air-out port of the
limit valve (located on the rear leg of the gun washer).
Press tubing in through the collar until seated. Pull firmly on
hose to test for a tight connection.
NOTE: If these hoses are not correctly connected,
the paint gun washer will not start [see fig. 4].
Connect the clear 5/32" air hose between the pump and
the air out port of the limit valve (located on the front leg
of the gun washer). Press tubing in through the collar until
seated. Pull firmly on hose to test for a tight connection.
[see fig.4].

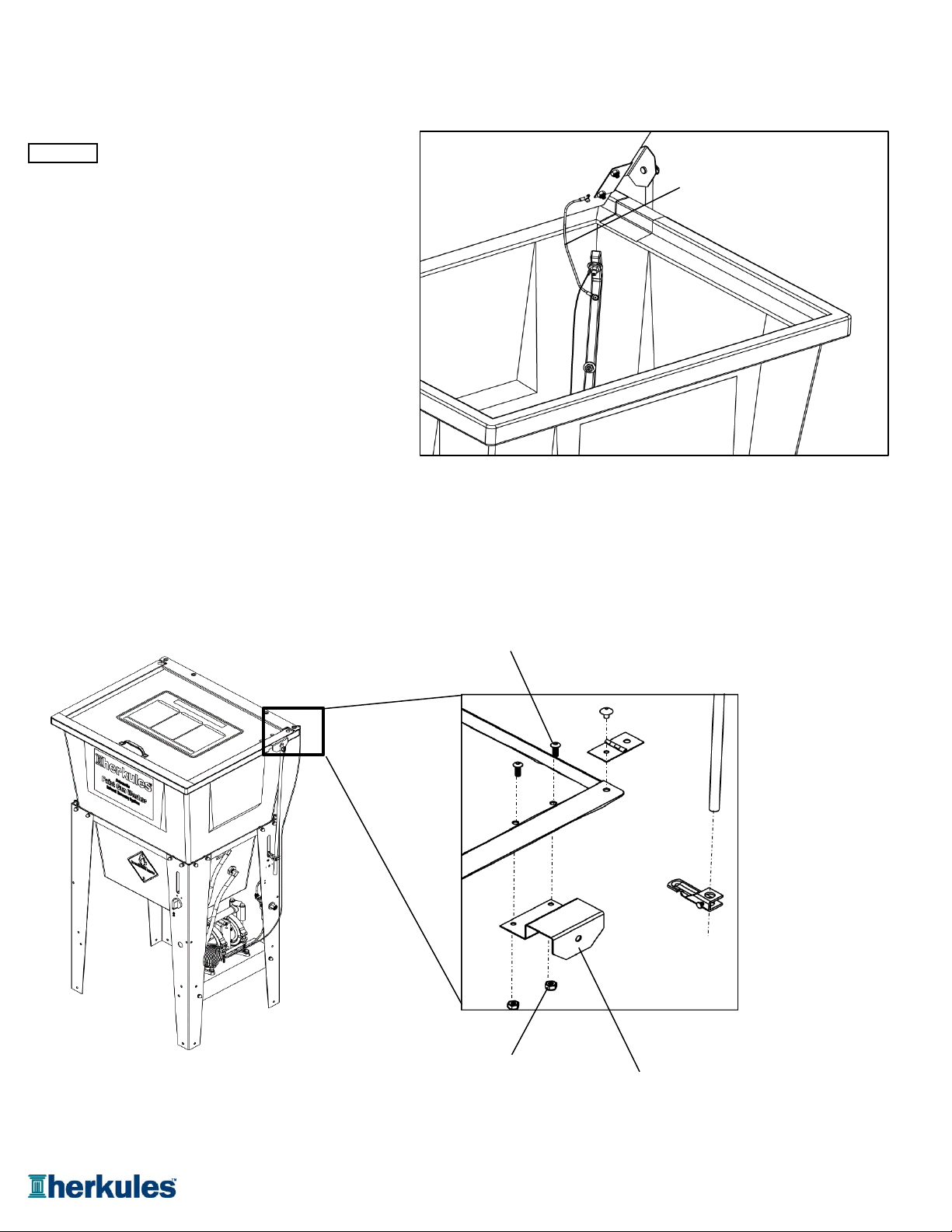

Connecting lid, lid rod, and actuator linkage
Mount the lid bracket underneath the lid; mount bracket
to lid as shown [see fig. 5].
Mount the lid actuator rod to the bracket. Slide the actuator
over the lid rod opposite the drilled end, and hand tighten
approximately 4" from end of rod. Then insert the actuator
into the large slot in the right rear leg [see fig. 6].
Attach the lid rod to the lid bracket using the 1/4" clevis pin
and circular cotter pin supplied [see fig. 5].
To adjust the actuator, close the lid and loosen the set
screw on the actuator. Slide the actuator down until it
completely closes the limit valve and retighten the set
screw [see fig. 6].
STEP 6
STEP 12
STEP 8
STEP 9
Assembly Instructions
STEP 11
STEP 10
STEP 13
STEP 7
Limit valve
Clear air
hose
16" Fluid
outlet tube
fig.4
Black air
hose
Blue air
hose
Limit
valve
17" Fluid
inlet tube
fig.5
Lid screw
Ground rivet
Lid rod
Cotter pin
Lid bracket
Clevis pin
Bracket
screw
Bracket nut
Lid rod
Actuator
Set screw
fig.6
Page 8 of 22
Call: 1-800-444-4351

Grounding the lid
Verify the ground wire is attached to lid rivet and the
other end is attached to the tub [see fig. 7].
Lid Bracket to the Lid Assembly
1) Remove the lid, lid actuator bracket, and hardware from bag.
2) Lid bracket mounts underneath the lid (see Fig. 7)
3) Mount bracket to the lid as shown, then Actuator Rod
can be mounted to the Lid Actuator Bracket (see Page 14
G200 Lid Layout in manual).
Assembly Instructions
STEP 14
P/N 005-131 Screw 10-24 x 1/2 SS
Fig. 8
P/N 005-137 Nut Nylock 10-24 Zinc
P/N 12024 Lid Actuator Bracket
Fig. 8
Ground wire
fig.7
Page 9 of 22
Call: 1-800-444-4351

Installing the Gun Washer
1) Place gun washer on a level surface in a properly
ventilated paint mixing room or paint booth.
Grounding the Gun Washer
1) Connect the ground wire on the gun washer’s pump to a
true earth ground.
2) Ground all equipment used or located in the gun washer
area.
Connecting the Air Line
1) Install a 1/4 in. npt male coupler, that is compatible with
the quick disconnect of your air supply line, into the air
supply port of the filter/regulator located on the right rear
leg [see fig. 9].
2) Connect air line with at least 75 psi to the coupler.
Filter/regulator is preset. Do not adjust.
Operation
Filling the Gun Washer with Fluid Placing Equipment in the Gun Washer
1) Close ball valve located on the bottom of the tank. To clean guns not mentioned here, use the long or short
stem supports as needed [see Fig. 10]. For questions or
2) Unit is designed to clean EITHER solvent or waterborne adapter kits, contact your paint gun washer distributor.
EXCLUSIVELY. Pour five gallons (18.9 liters) of high quality
cleaning solution into the tub. Siphon Feed Guns
Place the gun siphon tube on the short stem support.
Preparing the Equipment to be washed Gravity Feed Guns (HVLP)
Place long stem support over one of the short stem
1) Remove paint cup, or paint line, and the air line from the supports. Place paint inlet of gun on long stem support.
paint gun. Place the air cap assembly over the air inlet of the gun to
keep out cleaning solution.
2) Drain excess paint from cup and gun. Pressure Feed Guns
3) Remove all gauges and regulators. Place long stem support over one of the shorter stem
supports. Place paint inlet of gun on long stem support.
4) Screw on Air Cap Assembly to end of gun [see fig. 10]. Pots and Cups
5) Lock the gun trigger in the open position by placing the Place pots and/or cups on divider platform over front
trigger lock around the gun handle and trigger [see fig. 10]. spray nozzles.
Installation
Air supply
port
fig.9
Page 10 of 22
Call: 1-800-444-4351

Operation
CAUTION
All pressure gauges must be removed before placing the
equipment in the gun washer to avoid damaging the
gauges.
Operating the Gun Washer
1) Make sure all wire trigger locks and other accessories 5) If the lid is opened prior to the end of the timing cycle,
are inside the gun washer tub. the safety air cutoff switch will stop the gun washer. The
gun washer will start again when the lid is closed if time
2) If washing only one set of equipment, place empty cans over remains on the timer.
the unused nozzles and/or stem supports to prevent
spray from hitting the underside of the gun washer lid. Note: Open the lid slowly to minimize vapor escape.
3) Close the gun washer lid. 6) Remove the equipment from the gun washer and wipe
off any remaining cleaning solution.
4) Turn the timer knob clockwise 90 degrees to start the gun
washer. The gun washer will run for 90 seconds. Turning
the timer knob less than 90 degrees will reduce the timing
cycle. Paint equipment will clean in 60 to 90 seconds.
fig. 10
Gravity Feed
Gun (HVLP)
Trigger Lock
Long Stem Support
Short Stem Support
Siphon Feed Gun
Paint Cup
Pressure Feed Gun
Air Cap
Assembly
Page 11 of 22
Call: 1-800-444-4351

Preventive Maintenance
To keep your machine working efficiently, please follow these directions.
1) ALWAYS drain excess paint from cup or pot before placing
in gun washer.
2) Drain paint sludge from gun washer tank weekly. Do this
after a weekend so that it has settled. Open ball valve
and drain until clear solution flows. Add cleaning solution
to fill 1" above intake filter.
3) Replace Filter/Regulator yearly. (#11345)
4) Change cleaning solution completely when objects being
cleaned become tacky to the touch.
5) Clean inside of tub and intake filter before filling with
cleaning solution.
Do not change the setting of the filter/regulator. This could
damage the filter/regulator or pump.
CAUTION
Filter /
Regulator
(#11345)
fig.11
Page 12 of 22
Call: 1-800-444-4351

Troubleshooting
Gun washer will not turn on. 1Make sure the air line is properly connected with at least 75 psi.
Air pressure is regulated at 75 psi.
2Make sure lid is fully closed. Make sure the lid rod actuator is making
full contact with the limit valve on the right rear leg.
3 Check all air connections to ensure that there are no leaks.
4 Make sure timer cam is engaging the limit valve on the right front leg.
5 Make sure timer is on and functioning correctly.
Gun washer turns on but 1 Make sure intake filter is not clogged (Clean or replace).
pumps slowly or not at all.
2 Make sure the air line is properly connected with at least 75 psi.
Air pressure is regulated at 75 psi.
3 Check all air connections to ensure that there are no leaks.
4 Make sure there is 5 gallons of clean solution in the gun washer.
The cleaning solution should be an inch above the intake filter.
5Make sure lid is fully closed. Make sure the lid rod actuator is making
full contact with the limit valve on the right rear leg.
6 Make sure manifold nozzles and stem supports are not clogged.
Gun washer will not shut off 1 Make sure timer cam is moving. If its not, slightly loosen the nuts
holding the limit valve on the right front leg of the stand. Reposition
valve and tighten nuts.
2Make sure limit valves located on the right front leg or right rear leg
of the stand are not stuck in closed position.
3Make sure air hoses are connected correctly.
(Refer to assembly steps 8-9 for detailed information.)
Possible Solution
Problem
Page 13 of 22
Call: 1-800-444-4351

Part # Description
115171 G200 Maintenance Kit 1 EA.
Kit Includes:
153A Stem Support Male 4 EA. See pg. 18
253B Stem Support Female 4 EA. See pg. 18
31007592 Timer Mechanical w/o Knob 1 EA. See pg. 20
4 M230-002 Knob for Mechanical Timer 1 EA. See pg. 20
511345 Regulator Assy T17M w/Nut 75psi 1 EA.
612491 Filter Assy w/SS Clamp 1 EA. See pg. 16
7 M5-BLACK Tube 5/32 Black 36 IN. See pg. 16
8M5 Tube 5/32 Blue 36 IN. See pg. 16
91001441 Muffler 3/8 NPTZ 1 EA. See pg. 20
10 C9A Nipple 1/8 NPT x 4-1/2 Brass 2 EA. See pg. 18
11 54P1 Nozzle Fulljet 65Deg 1/8 NPTM Kynar 12 EA. See pg. 18
12 1001372 Sticker 1-800 Black Small 1 EA.
13 M1C
Valve Limit Bottom Ports
1EA. See pg. 20
14 1005368 Box Plastic Organizer 1 EA.
15 22BA Wire Trigger Lock Assy 2 EA. See pg. 18
16 1002651
E-Ring 1/2 Shaft SS Clip
2EA. See pg. 18
17 12509 Air Cap Assembly w/SS Clip 2 EA. See pg. 18
Note:Herkules Paint Gun Washers are designed to be easily maintained and repaired. As a minimum sales
order is required when purchasing parts, Herkules recommends purchasing a 15171 Maintenance Kit
to keep spare parts on hand for quick replacement when needed.
G200 Replacement Parts
Quantity
fig.12
Page 14 of 22
Call: 1-800-444-4351

G200 Parts Layout
5
16
8
7
22
19
21
20
1
6
3
2
15
4
14
11
13
11
12
18
11
12
10
23
17
9
24
Page 15 of 22
Call: 1-800-444-4351

Part # Description
16 Ball Valve 1 EA.
21007865 Pump Mounting Bracket 1 EA.
313844 Stand Assembly 1 EA. See pg. 16
419196 Lid Assembly 1 EA. See pg. 14
512490 Manifold Assembly 1 EA. See pg. 15
612517 Pump Assembly 1 EA. See pg. 16
71000651 Flammable Caution Sticker 1 EA.
81001706 Front Decal 1 EA.
912321 Lid Stop 1 EA.
10 002-120A-72 Ground Wire 2 EA.
11 1002644 Bulkhead with Nut - Brass 3 EA.
12 1006470 Hose Barb 3/8 x 3/8 NPT 90° - Brass 2 EA.
13 1002654 Hose Barb 3/8 x 3/8 NPT - Brass 1 EA.
14 12491 Filter for Pump Inlet 1 EA. See pg. 14
15 13242 Tub 1 EA.
16 25D Divider 1 EA.
17 62 Reducing Nipple - Brass 1 EA.
18 64PE Hose Inlet 17 IN.
19 64PE Hose Outlet 16 IN.
20 85B Washer 1-1/2 x 1 - Nylon 2 EA.
21 M5 Tube 5/32 Plastic - Blue 30 IN. See pg. 14
22 M5-BLACK Tube 5/32 Plastic - Black 9 IN. See pg. 14
23 M5-NEUTRAL Tube 5/32 Plastic - Neutral 13 IN.
24 11345 Filter / Regulator 1 EA.
Note: For parts shown but not identified
refer to assembly layouts on pages 13-17
G200 Parts Layout
Quantity
Page 16 of 22
Call: 1-800-444-4351

Part # Description Quantity
1002-161 Washer Flat #10 USS - Zinc 8 EA.
21000252 Actuator Clip Ring 1 EA.
31000652 Actuator Pin 1 EA.
41001708 Lid Sticker 1 EA.
51002546 Screw 10-24 x 1/2 4 EA.
61002572 Actuator Rod 1 EA.
719196 Lid Assembly 1 EA.
811957 Actuator Bracket Notched 1 EA.
912321 Lid Stop 1 EA.
10 005-131 Screw 10-24 x 1/2 - Stainless 2 EA.
11 005-137 Nylock Nut 10-24 2 EA.
Note: Parts are shown for reference purposes only
and are not necessarily part of a Herkules assembly.

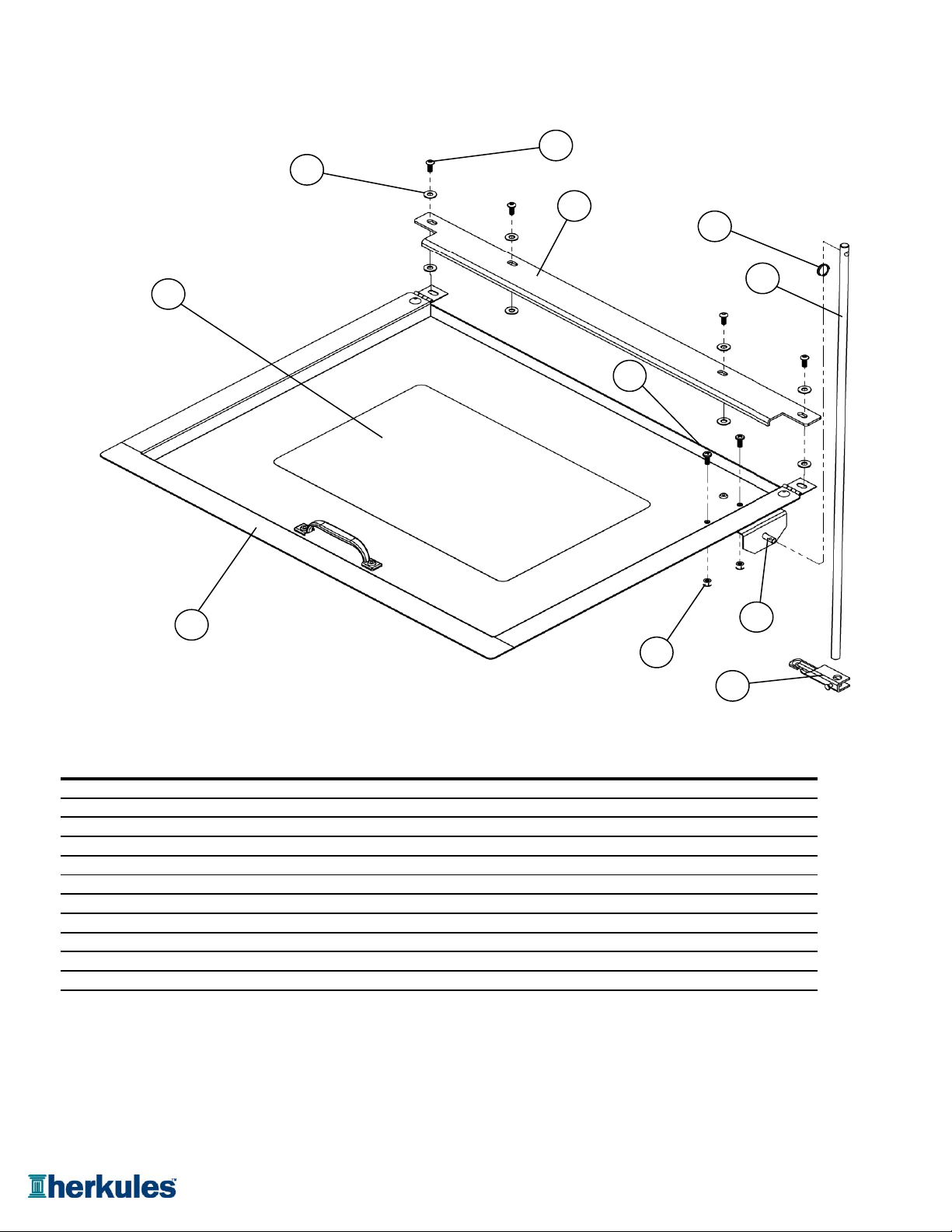

G200 Lid Layout
6
10
1
5
9
2
3
8
11
7
4
Page 17 of 22
Call: 1-800-444-4351

Part # Description
157 Hose Barb 3/8 x 1/4 NPT - Brass 1 EA.
259 Hex Plug 1/8 NPT - Brass 2 EA.
312509
Air Cap Assembly - Brass and Stainless
2EA. See pg. 14
41002321 Manifold Half - Stainless 2 EA.
51002651 E-ring - Stainless 2 EA. See pg. 14
6002-121A-6 Manifold Ground Wire 1 EA.
7002-136S Manifold Bolt - Stainless 2 EA.
8002-137 Manifold Block 1 EA.
9002-192 Ground Wire Rivet 2 EA.
10 22BA Trigger Lock Assembly 2 EA. See pg. 14
11 53A Stem Support Male 2 EA. See pg. 14
12 53B Stem Support Female 2 EA. See pg. 14
13 54P1 Full jet Nozzle - White 12 EA. See pg. 14
14 64PE Manifold Hose 6.5 IN.
15 C9A Nipple 4-1/2" - Brass 2 EA. See pg. 14
Note: Parts are shown for reference purposes only
and are not necessarily part of a Herkules assembly.
Quantity
G200 Manifold Layout
12
4
13
1
14
11
3
10
8
6
9
15
5
7
2
Page 18 of 22
Call: 1-800-444-4351

G200 Pump and Legs Layout
10
11
15
23
14
1
16
15
17
21
20
10
9
11
13
2
12
4
18
3
19
22
5
6
7
8
24
Page 19 of 22
Call: 1-800-444-4351

Part # Description
167
Adaptor 1/4 NPT - Brass
1EA.
212517 Pump Assembly 1 EA.
31001441 Muffler 1 EA See pg. 14
413844 Stand Assembly 2 EA.
583
Bolt Hex Full 1/4-20 x 1 GD5 Z
2EA.
6001-705 Washer Flat 1/4 USS 2 EA
785 Washer Lock 1/4 Z 2 EA.
884 Nut Hex 1/4-20 Z 2 EA.
9002-161 Washer Flat #10 USS - Zinc 1 EA.
10 002-171 Screw 8-32 x 1 - Black 4 EA.
11 002-172 Nut Nylock 8-32 - Zinc 4 EA.
12 005-131 Screw 10-24 x 1/2 - Stainless 1 EA.
13 005-132 Nut Hex 10-24 - Stainless 1 EA.
14 85I Washer Flat 1/2 USS Z 2 EA.
15 M1C Limit Valve - Gold 2 EA. See pg. 14
16 1007592 Timer 1 EA. See pg. 14
17 M230-002 Knob for Timer 1 EA. See pg. 14
18 M230-003 Cam For Timer 1 EA.
19 M230-004 Spacer 1/4" Thick - Nylon 2 EA.
20 M230-005 Spacer 1/8" Thick - Nylon 2 EA.
21 M230-006 Timer Screw #4 x 5/8 2 EA.
22 11345 Filter / Regulator 1 EA.
23 24E Washer Lock Int Tooth #10 Z 1 EA.
Note: Parts are shown for reference purposes only
and are not necessarily part of a Herkules assembly.
Quantity
G200 Pump and Legs Layout
Page 20 of 22
Call: 1-800-444-4351
