HERKULES G507 User manual

Part# 1009519-3
3/1/2021
This manual contains important information concerning the
installation and operation of the gun washers listed above.
Read manual thoroughly and keep for future reference.
INSTRUCTIONS
Made in USA
OWNERS MANUAL
Toll Free: 800-444-4351
Phone: [phone]
Fax: [phone]
Website: www.herkules.us
E-mail: [e-mail] Herkules Equipment Corporation 2760 Ridgeway Court
Walled Lake, MI 48390-1662 USA
Page 1 of 12

Warranty ……………………………………………………………………………………………………………….................... 3
Model Information ……………………………………………………………………………………………………………. 4
Warnings ……………………………………………………………………………………………………………………… 5-6
Installation ………………………………………………………………………………………………………………….. 7
Operation ……………………………………………………………………………………………………………………. 7 - 8
Troubleshooting ……………………………………………………………………………………………………………… 8
Preventive Maintenance ………………………………………………………………………………………………………. 9
Parts Layout ………………………………………………………………………………………………………....................... 10 - 11

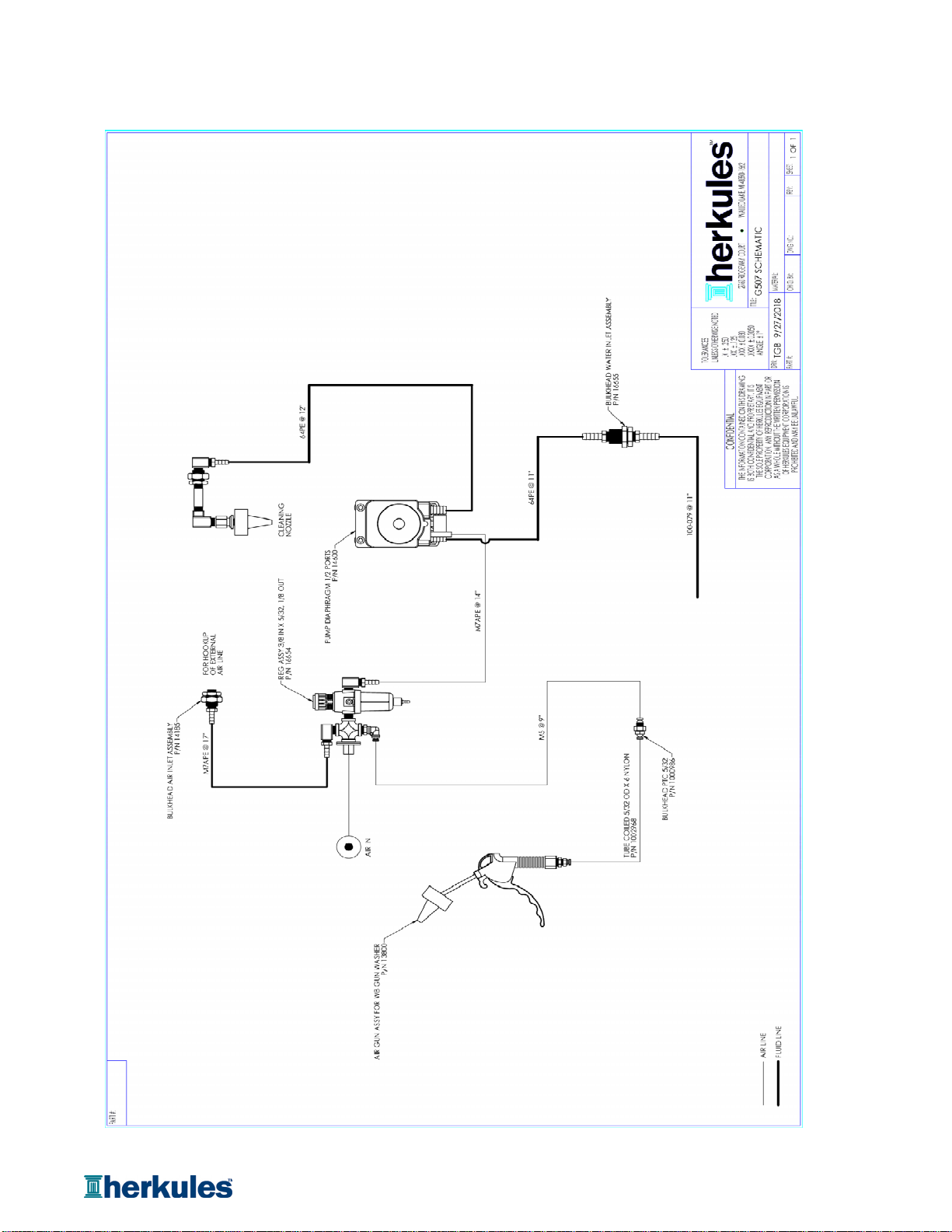

G507 Schematic ………………………………………………………………………………………………………................... 12
Herkules Equipment Corporation
A U.S.-based manufacturer, Herkules Equipment Corporation offers a diverse line of products that support multiple
industries by improving efficiency, productivity, ergonomics, comfort, and safety in the work environment. The
company consists of the three product lines: Herkules, Enkon and BossLifts.
Since 1985, Herkules has designed, engineered and manufactured quality products at our Walled Lake,
Michigan facility. Our company supports our products after delivery, with U.S. based customer service, and
replacement parts, enabling our customers to proceed with confidence.
To learn more about Herkules, visit http://herkules.us. Contact us at [e-mail] with any
questions or concerns.
Thank you for purchasing a Herkules product!
Table of Contents
Page 2 of 12

Warranty
At Herkules we take great pride in the construction of our American-made products, and we stand behind their reliability.
Our limited liability warranty coverage for Paint Gun Washers warranties the unit for a period of 12 months. Washer pumps
have a separate warranty; the Herkules 338 pump is protected for a period of 2 years from the date of purchase. All other
pumps, including rinse pumps, are warrantied for 12 months.
This warranty does not apply to equipment damaged from accident, abuse, overload, misuse, negligence, improper
installation, abrasive or corrosive materials, or shipping damage.
In the event of product failure, the defective item must be returned, freight prepaid, to the Herkules manufacturing plant for
repair or replacement. If repairs are required, Herkules will not be liable for these repairs to take place in the field regardless
of the application. Proof of purchase and date of purchase must be confirmed. An RGA* (Returned Goods Authorization) and
written approval from Herkules must be obtained before any goods can be shipped to Herkules. We reserve the right to
Determine whether failure is due to defective material, normal wear, and / or other causes.
There are no warranties which extend beyond the description on the face hereof. Herkules
disclaims any warranty of merchantability or fitness for a particular purpose in connection with
the Buyer's purchase of any Product under this agreement. Damages are limited to the sales
price of the Herkules system. The terms and conditions herein represent the entire agreement
between Herkules and the Buyer. Any prior / future representations do not apply.
*To obtain a RGA, contact Herkules at 1-800-444-4351 and have the item model, serial numbers, and invoice number if applicable.
Upon receipt of your equipment, please write your purchase information below. Please retain this manual for your records.
Serial Number Model Number
Purchase Date Distributor (if applicable)
IMPORTANT NOTICE: if you have a problem with your Herkules product,
DO NOT RETURN TO PLACE OF PURCHASE
Contact Herkules: by phone [phone]; by email, [e-mail]; or on the web at herkules.us/contact-us.
Page 3 of 12

Model Information
Dimensions in./(mm)
A
B
C
D
Manual cleaning waterborne/solvent Gun Washer includes 14.5 12.45 16.40 26.25
pressure cleaning nozzle, cleaning brush and air gun. (368) (316) (417) (667)
Warning Symbol Caution Symbol
NOTE: Dimensions listed are overall measurements.
Model Description Weight
lbs/(kg)
G507 31.0
(14)
CAUTION
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions. This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
BC
D
A
Page 4 of 12

EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to rupture, malfunction, or start unexpectedly
and result in serious injury.
• This equipment is for professional use only.
• Read all instruction manuals, tags, and labels before operating the equipment.
• Use the equipment only for its intended use.
• Do not alter or modify this equipment.
• Do not exceed the maximum working pressure of the lowest rated system component.
• Do not operate the gun washer at a pressure above the maximum working pressure rating of the
gun(s) being cleaned.
• Route the hoses away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not use the hoses to pull or otherwise move the equipment.
• Do not move pressurized equipment.
• Comply with all applicable local, state and national fire, electrical and other safety regulations.
PRESSURIZED EQUIPMENT HAZARD
Spray from hose leaks or ruptured components can splash fluid in the eyes or on the skin and cause
serious injury.
• Do not stop or deflect fluid leaks with your hand, body, glove, or rag.
• Tighten all fluid connections before operating the equipment.
• Replace worn, damaged, or loose parts immediately.
WARNING
Page 5 of 12

FIRE AND EXPLOSION HAZARD
Improper grounding, poor air ventilation, open flames, or sparks can cause a hazardous condition
and result in fire or explosion and serious injury.
•
Ground the equipment. See Installation for grounding procedure.
• Provide fresh air ventilation to avoid the build up of fumes.
• Extinguish all open flames or pilot lights in the gun washer area.
• Disconnect all electrical equipment in the gun washer area.
• Keep the gun washer area free of debris, including cleaning solutions, rags, and gasoline.
• Do not turn on any light switch in the gun washer area while operating, or if fumes are present.
• Do not smoke in the gun washer area.
• Do not operate a gasoline engine in the gun washer area.
•
If there is any static sparking while using the equipment, stop operation immediately. Identify and
correct the problem.
TOXIC FLUID HAZARD
Hazardous fluids or toxic fumes can cause serious injury or death if splashed in eyes or on the
skin, swallowed, or inhaled.
• Know the specific hazards of the fluid you are using. Read the fluid manufacturer's warnings.
• Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local, state
and national guidelines.
• Wear the appropriate protective clothing, gloves, eyewear and respirator.
• Pipe and dispose of the exhaust air safely. If diaphragm fails, the fluid may be exhausted along with
the air.
WARNING
Page 6 of 12

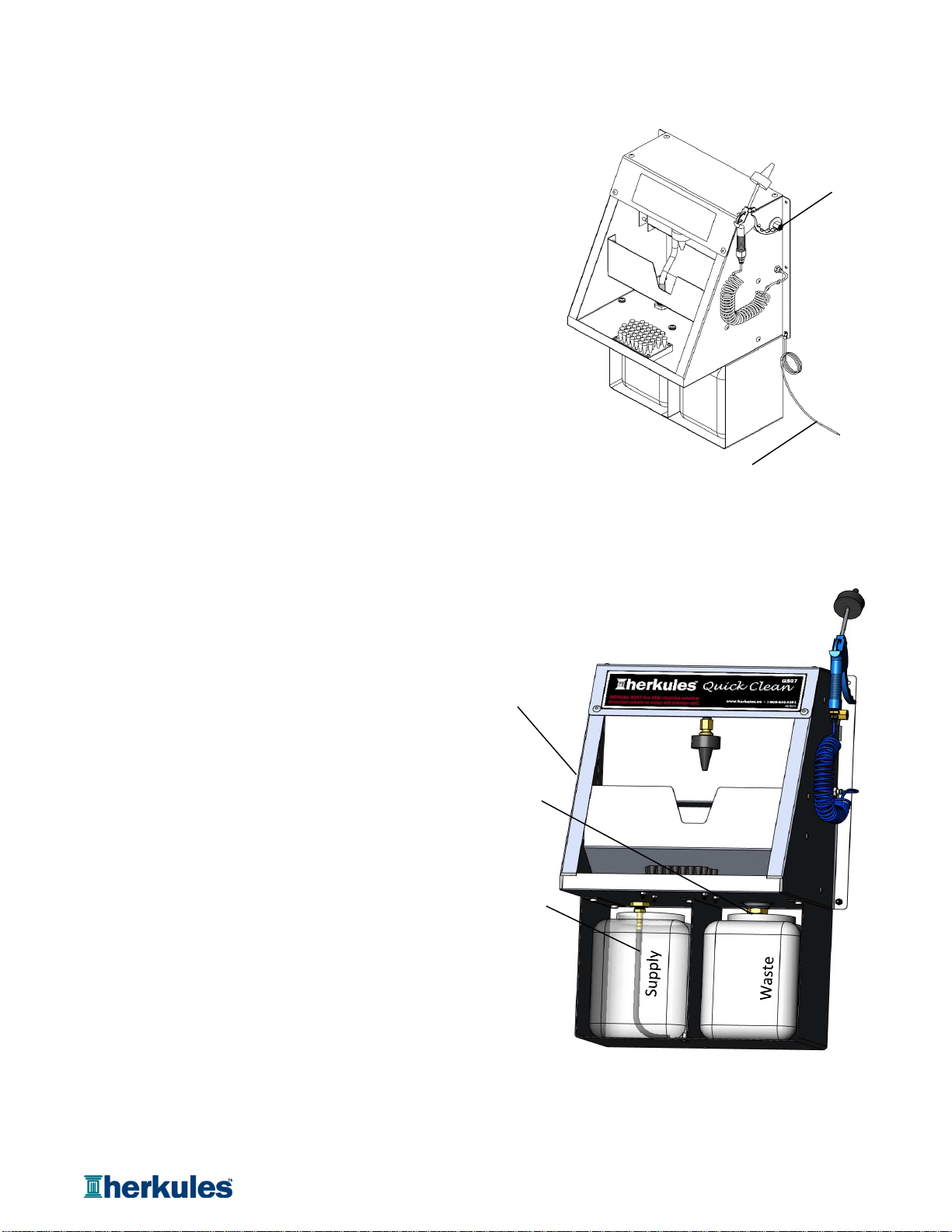

Installing the Gun Washer
1) Mount the Gun Washer to a wall (hardware not included),
in a Spray Booth, or another convenient location in the shop.
Grounding the Gun Washer
1) Using the ground wire supplied with the unit, ground the unit to a
true earth ground.
Connecting the air line
1) Install a 1/4 in. npt male coupler, that is compatible with
the quick disconnect of your air supply line, into the air
supply port on the side on the unit.
2) Connect air line to air source with at least 75 psi to the coupler.
Connecting an external air line to the Gun Washer (Optional)
1) The G507 is equipped with an external air output port on the
left side of the unit. When installing the unit in a paint booth,
an air line can be run directly from this port to the paint gun.
Note: When installing the unit outside the paint booth, a small
air line can be attached to the side port to attach to the
paint gun during cleaning.
Adding water or solvent to the Gun Washer
1) Fill the supply container with water/solution/solvent and insert the
pick up line.
2) Place an empty 1-gallon can under the drain spout.
The G507 can use both water and solvent interchangeably to clean
guns using differing types of paint.
WARNING: Caution is advised when switching between the two
types of cleaning solutions. To prevent damage to the paint gun
(or the next paint job), please flush the cleaning nozzle with two
bursts of the new cleaning fluid---whether it is water or solvent, before
using on the paint gun. This rinse will eliminate any residual fluid,
preventing the accidental spraying of the wrong type of cleaning
into the paint gun. For example, when switching from solvent to
water, run two bursts of water through the nozzle. When switching
from water to solvent, run two bursts of solvent through the nozzle.
Installation
Operation
Air supply
port
Pick up line
Ground wire
Drain spout
External
air output
port
Page 7 of 12

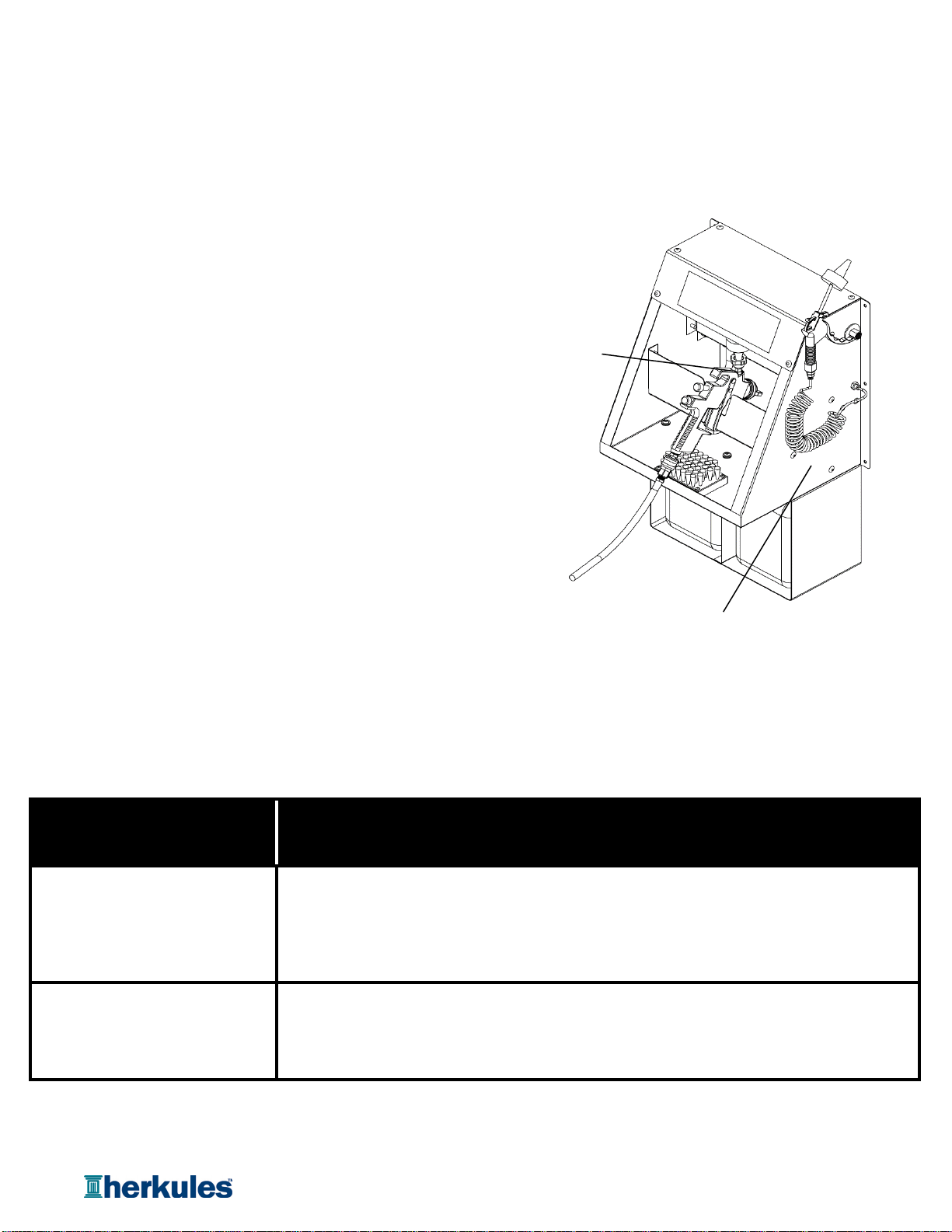

Preparing the equipment to be washed
1) Remove paint cup from the paint gun. Allow the air line to remain
attached to the paint gun, or connect the air line added to the side
of the unit.
2) Drain any unused paint into a separate container.
3) Remove all gauges and regulators from painting equipment.
Cleaning equipment
1) Place the paint channel of the paint gun under the cleaning nozzle.
Squeeze the trigger of the paint gun while pressing the paint gun
up against the nozzle to activate the pump. Allow the pump to run
for 10-15 seconds.
Note: Position the spray gun so that the flow of water/solvent exiting
the paint gun is contained within the Gun Washer cabinet.
2) Clean the air cap of the paint gun by rubbing it on the panel
mounted brush.
3) Dry the paint gun using the air blow gun on the side of the unit.
4) Dispose of all paint waste according to local, state
and federal regulations.
Troubleshooting
Pump turns on but wash water 1Make sure wash bucket is not empty.
does not flow. 2Make sure the pick up tube is completely submerged in water.
3 Check all fluid connections to ensure that there are no leaks.
Pump does not turn on. 1 Make sure the air line is properly connected with at least 75 psi.
Air pressure is regulated at 75 psi.
2 Check all air connections to ensure that there are no leaks.
Possible SolutionProblem
Operation
Cleaning
Nozzle
Air Blow Gun
Page 8 of 12

To keep your machine working efficiently, please follow these directions.
1) ALWAYS drain excess paint from cup or pot before placing
in gun washer.
2) Replace Filter/Regulator yearly. (#16654)
3) Change water completely when objects being cleaned
become tacky to the touch.
4) Clean inside of tub and intake filter before filling with
cleaning solution.
Do not change the setting of the filter/regulator. This
could damage the filter/regulator or pump.
Preventive Maintenance
CAUTION

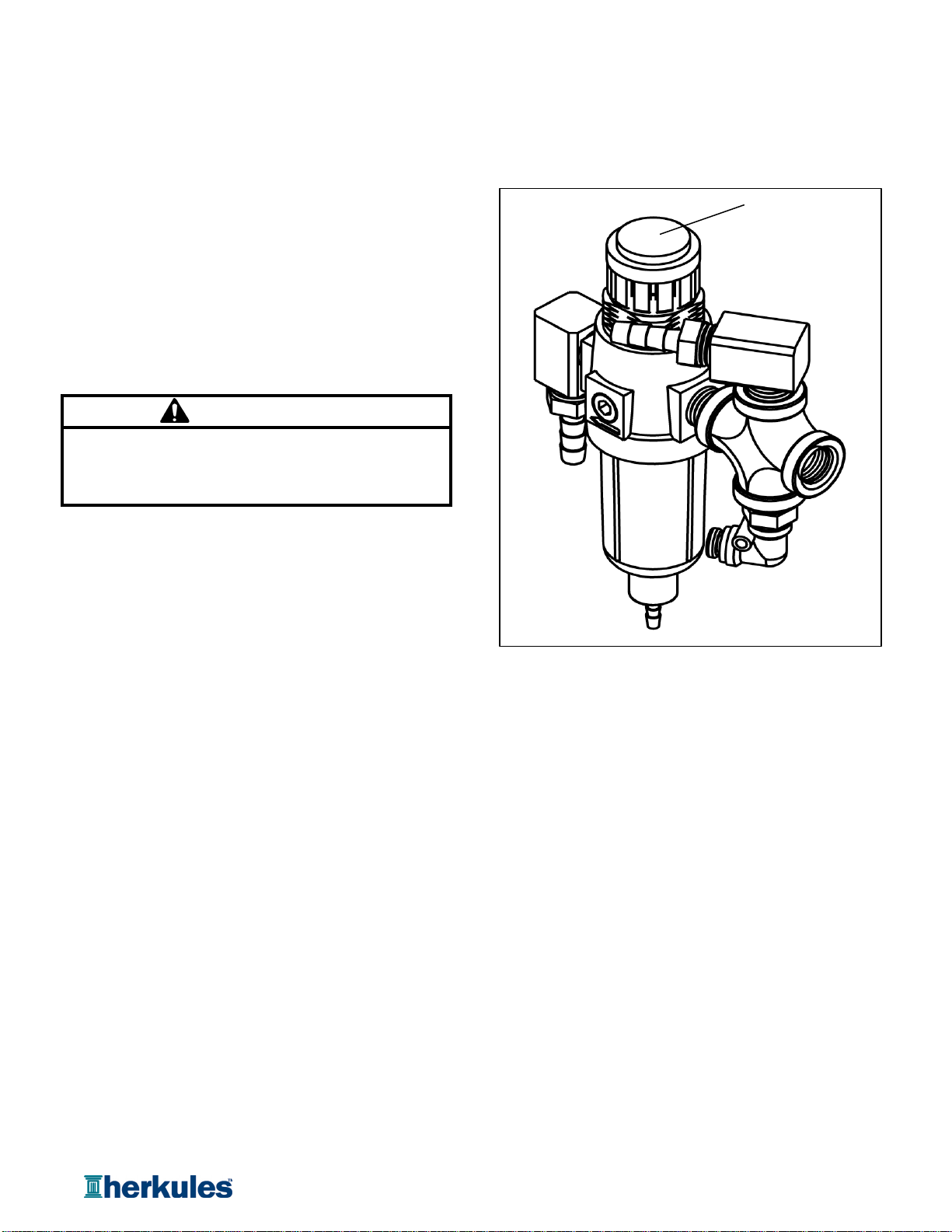

Filter / Regulator
(#16654)
Page 9 of 12

G507 Parts Layout
3
28
2
18
6
30
21
29
15
7
9
26
17
5
14
31
10
11
20
27
8
23
1
22
19
12 25
32
4
13
16
24
19
33
34
35
36
37
Page 10 of 12

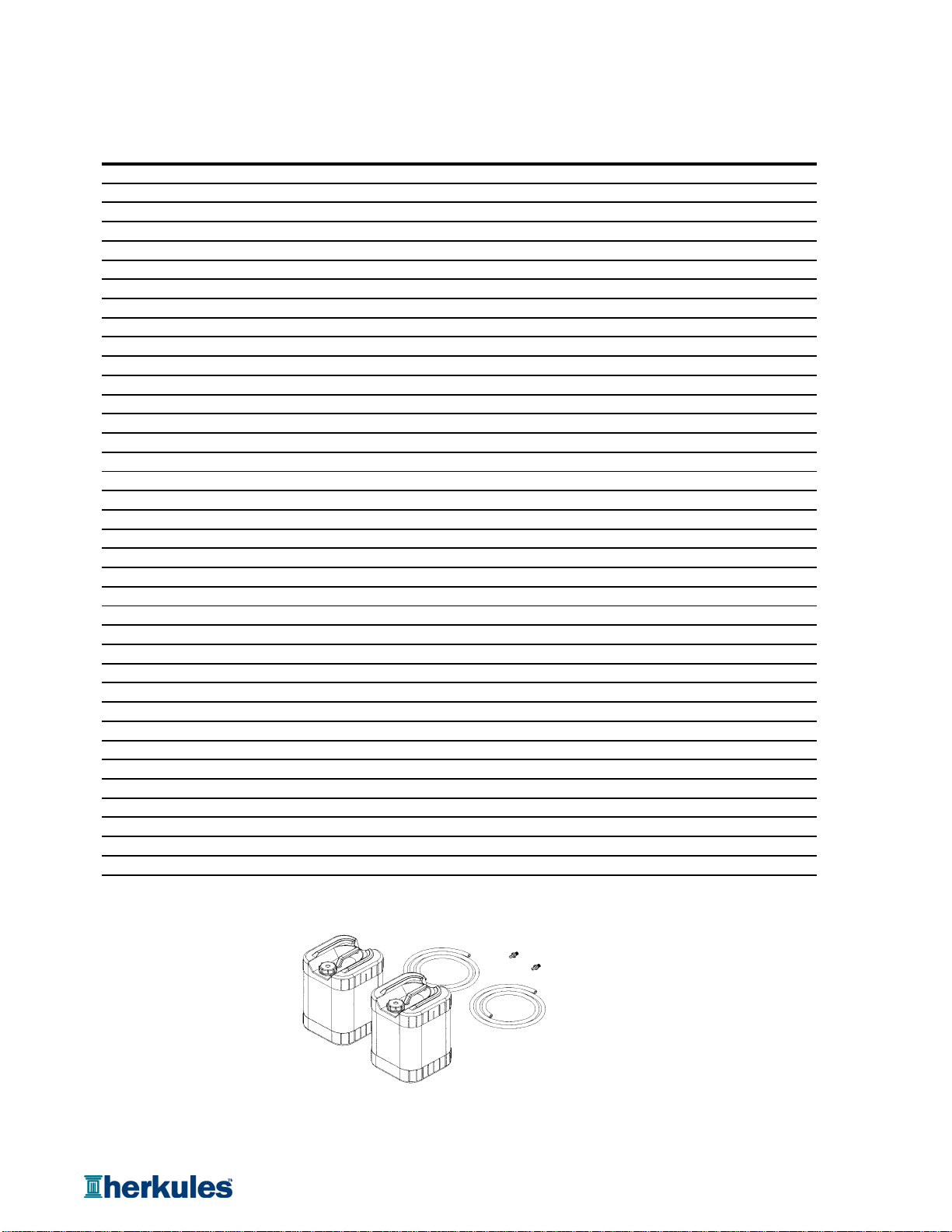

Part #
Description
1
1009517 Cabinet Assembly 1 EA
2
16654 Regulator Assembly 1 EA
3
85I Washer Flat 1/2 USS Zinc 2 EA
4
67 Adapter 1/4 NPT Brass 1 EA
5
M5 Tube 5/32 Nylon Blue 9 IN
6
1000986 Bulkhead PTC 5/32 1 EA
7
1002968 Tube Coiled 5/32 x 6 Nylon 1 EA
8
13800 Air Gun Assembly 1 EA
9
M7APE 3/8 PE Tube 17 IN
10
14185 Bulkhead Air Inlet Assembly 1 EA
11
M7APE 3/8 PE Tube 14 IN
12
14600 Pump 1 EA
13
1005265 BHSC 8-32 x 3/4 SS 4 EA
14
002-172S Nylock Nut 8-32 SS 4 EA
15
64PE 1/2 PE Tube 12 IN
16
64PE 1/2 PE Tube 12 IN
17
57 Hose Barb 3/8 x 1/4 NPT Brass 1 EA
18
002-131 Elbow Street 1/4 NPT Brass 1 EA
19
1002643 Bulkhead 3/4-16 UNS x 1/4 NPT Brass 1 EA
20
M26A Nipple 1/4 NPT x 1-1/2 Brass 1 EA
21
C4B Elbow 1/4 NPT Brass 1 EA
22
15216 Valve Push 1/4 NPT x 5/16-24 Brass 1 EA
23
1004790 Threaded Insert 5/16-24 x 1/2-13 SS 1 EA
24
1004269 Rubber Nozzle w/ Guard 1 EA
25
1003554 Rubber Grommet 1 EA
26
16655 Bulkhead Water Inlet Assembly 1 EA
27
100-079 Tube Flexible Spiral 11 IN
28
1003559 Brush Panel Mount Nylon 1 EA
29
008-247S BHSC 8-32 x 1-1/4 SS 4 EA
30
002-172S Nylock Nut 8-32 SS 4 EA
31
1003504 Plastic Container 2 EA
32
002-120A-72 Grounding Wire 1 EA
33
005-131 Screw 10-24 x 1/2 SS 1 EA
34
85B Washer Flat 1-1/2 Nylon 1 EA
35
002-150 Washer #8 4 EA
36
005-137 Nylock Nut 10-24 Zinc 1 EA
37
1009270 Sticker G507 Clean Solvent Warning 1 EA
*5 gallon container (#13939) replacement kit avialable; visit www.herkules.us/parts for more information.
Includes (2) 5-Gallon containers, hose & hose fittings
Quantity
G507 Parts Layout
Page 11 of 12

G507 Schematic
Page 12 of 12
