Herman Miller Canvas Office Landscape FW140.08 Series Installation instructions

Z
1
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Zand Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Part no. 1b6pd2 rev B.
YCanvas Office Landscape®Beam Internal DirectConnect Power
Entry Installation and Disassembly for Recycling Instructions
Safety Glass
Tools Required:
Parts Included:
Power Entry Harness
A
FW140.08XX - 8 Wire Harness
FW140.10XX - 10 Wire Harness
WARNING
Disconnect power before installation. Failure to do so can
cause electrical shock and personal injury.
!
WARNING
All electrical connections to building electrical sources must
be made by a qualied electrician according to national,
state and local electrical codes.
!
WARNING
Electrically interconnected units must be mechanically
interconnected.
!

Z
2
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Zand Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Part no. 1b6pd2 rev B.

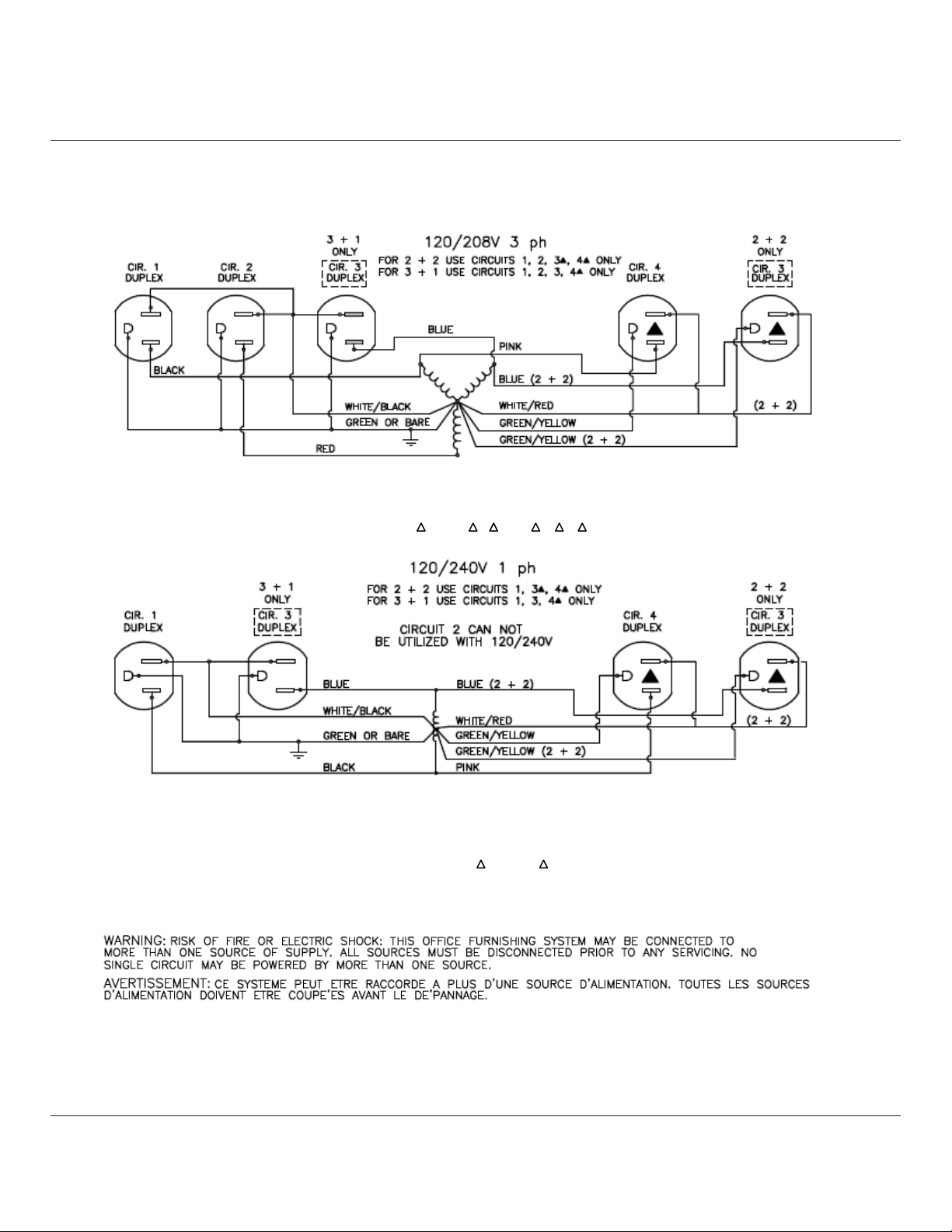

FW140.08XX – 8 WIRE HARNESS WIRING DIAGRAMS 4-2-2
4 HOTS, 2 NEUTRALS, 2 GROUNDS
NOTE: CIRCUITS 1,2,3,4 CORRESPOND TO CIRCUITS (DUPLEX RECEPTACLES) A, B, C, D
ALLOWABLE CIRCUIT COMBINATIONS: 1,2,3,4 ; 1,2,3 ,4 ; 1, 2 ,3 ,4
NOTE: CIRCUITS 1, 3, 4 CORRESPOND TO CIRCUITS (DUPLEX RECEPTACLES) A, C, D
ALLOWABLE CIRCUIT COMBINATIONS: CIRCUITS 1, 3, 4 ; 1, 4, 3 ; OR 1, 3, 4

Z
3
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Zand Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Part no. 1b6pd2 rev B.
FW140.10XX – 10 WIRE HARNESS WIRING DIAGRAMS 4-4-2
4 HOTS, 4 NEUTRALS, 2 GROUNDS
ALLOWABLE CIRCUIT COMBINATIONS: 1,2,3,4 ; 1,2,3 ,4 ; 1, 2 ,3 ,4 ; 1,2,3,4,1 ,2 ,3 ,4
ALLOWABLE CIRCUIT COMBINATIONS: CIRCUITS 1,2, 3, 4 ; 1, 2, 3,4 ; OR 1, 2, 3 ,4

Z
4
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Zand Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Part no. 1b6pd2 rev B.
A
1. Place Harness Body into Bracket to one side of Bracket Hooks at left side of
Connector Block.
2. Slide Connector in Receptacle into Power Harness. Press further until
Mounting Lug fully engages into Bracket Hook and Spring Tab seats onto
Harness Body.
3. Route Harness down and through Mid-Run Support or Power Entry Shroud.
If Harness is wired to building then feed harness connector up into Mid- Run
Support or Power Entry Shroud rst.
1. Spread open Spring Tabs.
2. Slide Harness Body away from Power Harness until Mounting Lugs clear
Bracket hooks. Harness can now be pulled away from assembly.
Installation:
Removal:
Power Harness
Connector
Block
Receptacle Bracket
Bracket Hook Spring Tab
Connector
Mid-Run Support
Power Entry Shroud
Mounting Lug

Z
5
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Zand Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Part no. 1b6pd2 rev B.
Disassembly and Recycling:
Materials Identication and Segregation:
Where possible, plastic components are marked with ASTM recycling codes. Use
these codes to identify material type for recycling. Non marked components should
be treated as mixed plastic. Ferrous metals can be identied using a small magnet
for recycling. Non-ferrous metals should be separated and recycled separately.
To disassemble product, reverse the above installation steps:
