Hershey's Serve Better SPPH User manual

HERSHEY’S®
Classic Syrup
Dispenser
COMPLETE UNIT 87952
MODEL: SPPH
PUMP ONLY 88548
MODEL: BP-1
...for purchasing this dispenser.
The reliable, reusable pump lasts for years
while the environmentally friendly pouch system
minimizes landfill impact.
CONSISTENT PORTIONS—SERVE BETTER
Thank You
Used with Hershey’s
64 oz pouches
with 16mm fitments.

Page 2

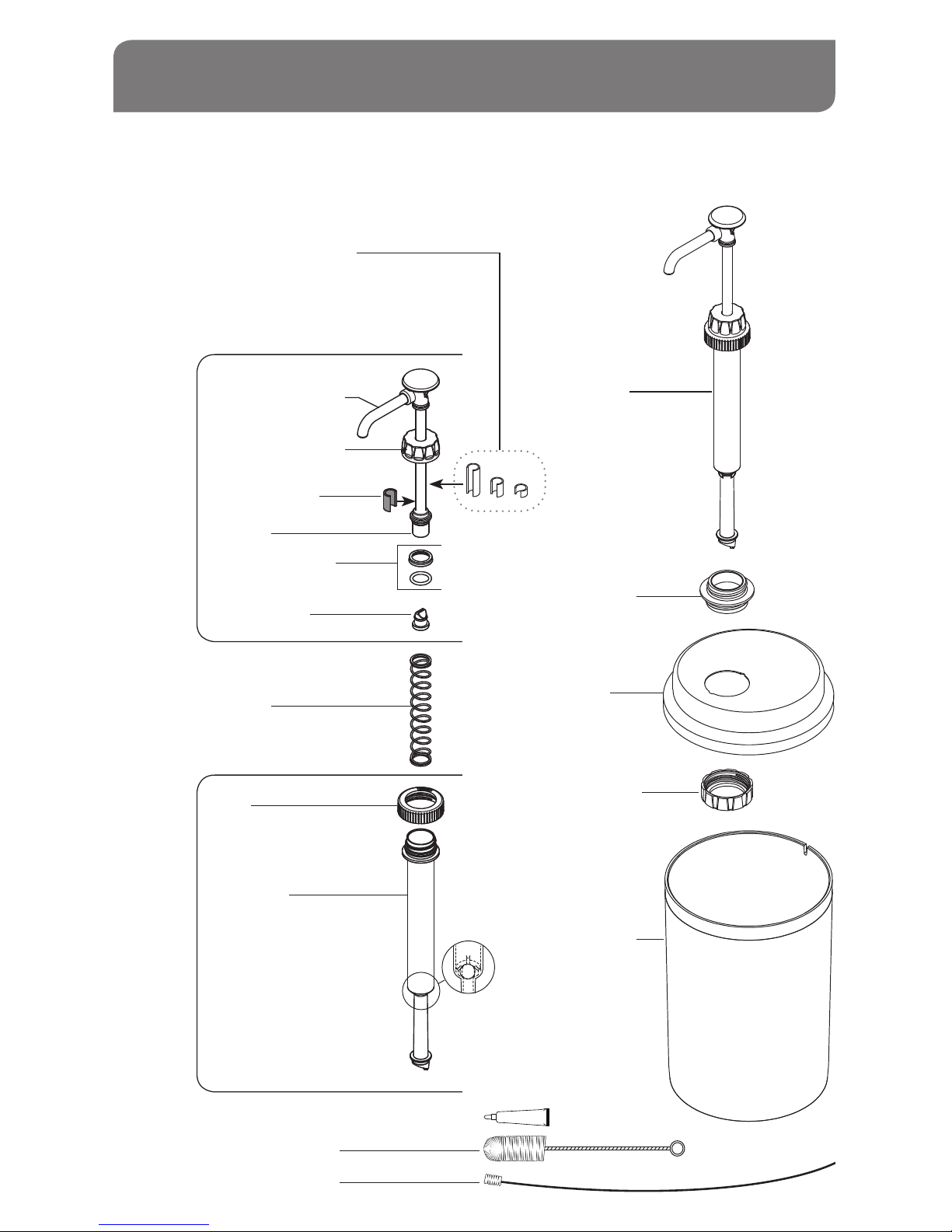

87952 DISPENSER PARTS
HEAD
ASSEMBLY
88545
CYLINDER
ASSEMBLY
88549
SEAL ASSEMBLY
(Seal & O-Ring) 83003
LOCKING COLLAR
PISTON
DISCHARGE TUBE
STOP COLLAR
88409
PINCH VALVE
88202
FOOD EQUIPMENT LUBRICANT 40179
11"BRUSH 82049
21"BRUSH 82526
SPRING
88166
CYLINDER
88553
CAP
88016
STAINLESS STEEL BALL
1/2"DIAMETER
06022
(Ball snaps inside cylinder and
can always remain installed,
even during cleaning.)
PUMP
88548
LID
87955
THREADED
INSERT
87956
LOWER
COLLAR
87957
VESSEL
WITH
DECAL
87958
UNIT MODEL: SPPH
COMPLETE UNIT 87952
PUMP MODEL: BP-1
PUMP 88548
PUMP DELIVERS 1 OZ PORTIONS
To reduce portion, add optional
GAGING COLLAR(S)
onto side of head assembly
88313 Small collar: 1/8 oz reduction
88204 Medium collar: 1/4 oz reduction
88205 Large collar: 1/2 oz reduction

Page 3

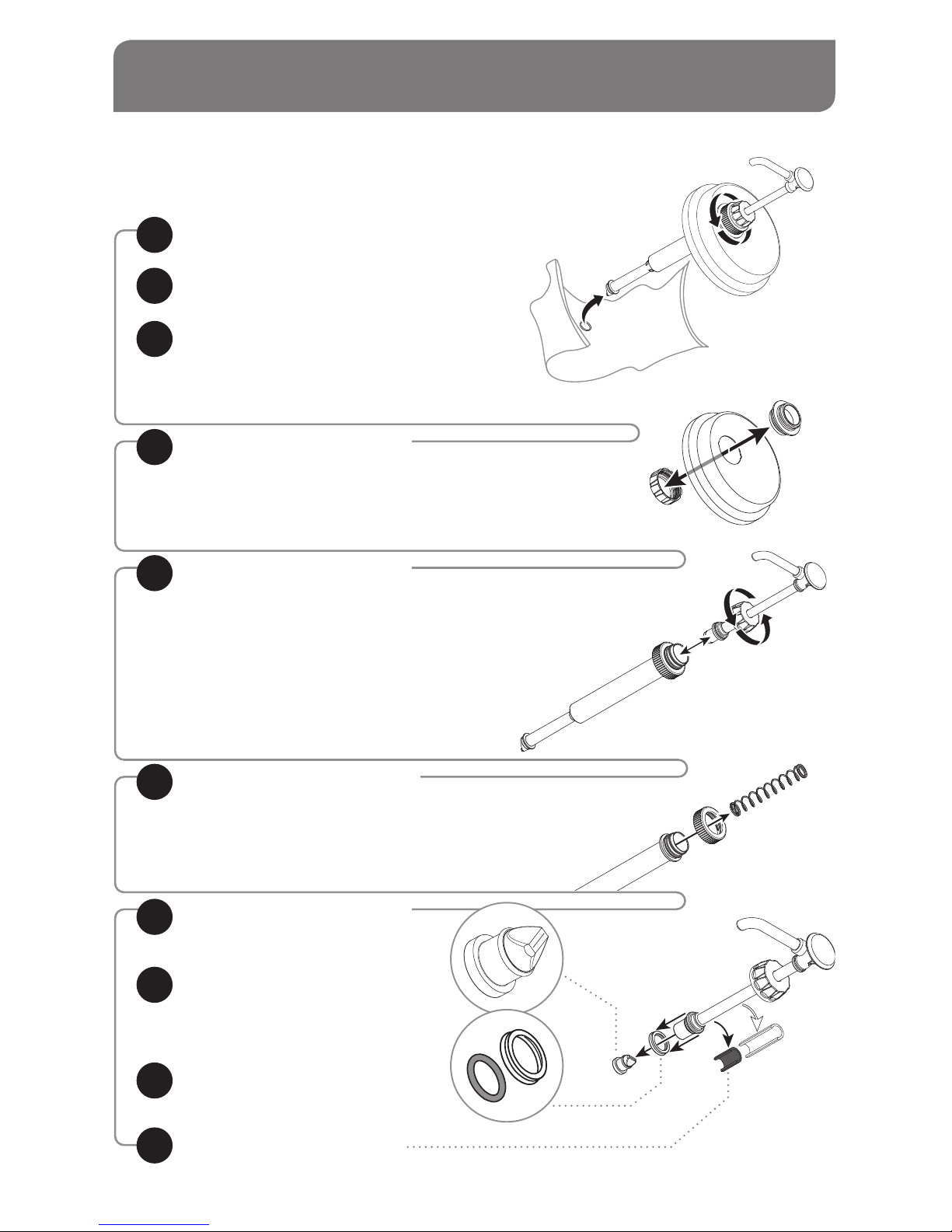

DISASSEMBLY
REMOVE SEAL
from head assembly by pressing it
down and off with thumb.
Do not use a sharp tool.
8
REMOVE SPRING & CAP
FROM CYLINDER
6
REMOVE PINCH VALVE
from head assembly.
7
REMOVE LID, PUMP & POUCH
from vessel.
1
During disassembly, collect small parts
in a container to prevent loss.
DISASSEMBLE AND WASH ALL PARTS
PROPERLY BEFORE USE. See page 4.
REMOVE O-RING
FROM SEAL
9
DETACH POUCH
from bottom of pump.
2
SEPARATE LID FROM PUMP
Unscrew cap from threaded insert in lid
to remove pump.
3
SEPARATE LID PARTS
Unscrew lower collar from
threaded insert to release parts.
4
SEPARATE CYLINDER
ASSEMBLY & HEAD
Loosen locking collar to release.
5
REMOVE STOP COLLAR
& ANY GAGING COLLAR(S)
if necessary for cleaning.
10

Page 4
CLEANING
RINSE
fully with clear water.
3
SANITIZE
all parts according to local sanitization
requirements. All parts in contact with food
must be sanitized.
4
AIR DRY
all parts fully.
5
Use dishwashing
soap, hot water
and nylon brush
YES!
DISASSEMBLE & CLEAN
all washable parts with soap and hot water
(See DISASSEMBLY on page 3.)
2
FLUSH & RINSE
all pump surfaces with hot water.
Place lower end of pump into container
of hot water and operate pump until all
remaining product is expelled and only hot
water is discharged.
1
Pump & Lid are dishwasher safe.
Do not immerse in water.
Vessel IS NOT dishwasher safe.
Plastic Vessel may be wiped clean
with dishwashing soap & hot water.
USE SUPPLIED BRUSH
to thoroughly clean inside discharge
tube and any confined areas.
SAFETY
According to food and safety regulations, most
foods must be stored and/or served at certain
temperatures or they could become hazardous.
Check with local food and safety regulators for
specific guidelines.
Be aware of the product you are serving and the
temperature the product is required to maintain.
Server Products, Inc. cannot be responsible for the
serving of potentially hazardous product.
IMPORTANT
Clean, rinse, sanitize, and dry parts daily or regularly
to comply with local sanitization requirements.
NSF International lists this pump as:
“Not acceptable for dispensing potentially
hazardous foods.”
PUMP CLEANING
VESSEL CLEANING

Page 5
• Fully rinsing and drying all parts can help
prevent corrosion. Elements and minerals in
tap water can accumulate on stainless steel
parts and create corrosion.
• Do not use abrasive, caustic or ammonia
based cleansers.
• Do not use products containing acids,
alkalines, chlorine, or salt. These agents can
corrode stainless steel.
• Do not use metal scrapers or cleaning pads
that could scratch surfaces.
• A mildly abrasive nylon or brass brush may
be used to remove any stubborn deposits.
This durable pump includes
stainless steel components.
If you notice corrosion beginning on any
stainless steel surface, you may need to change
the cleansing agent, sanitizing agent, or the
cleaning procedures you are using.
CARE OF STAINLESS STEEL
CLEAN-IN-PLACE PROCEDURE FOR PUMPS
CLEAN
• Pump out all (if any) remaining food
product from inside pump body.
• Wash and rinse off outside of pump body.
• Flush out and rinse inside of pump.
• Place lower end of pump into container
full of water and operate pump until all (if
any) remaining product is expelled
and only warm water flows from discharge
tube.
• Mix 1 tsp (5 mL) of dishwashing detergent
with 1 quart (.95 L) of hot tap water
(approximately 110°F/43°C).
• Place lower end of pump into cleaning
mixture. Pump until all cleaning mixture is
expelled.
1
RINSE
• Place lower end of pump into 2 cups
(.5 L) of hot tap water (approximately
110°F/43°C) and pump until all tap
water is expelled.
2
RINSE
• Place lower end of pump into 1 cup
(.24 L) of hot tap water (approximately
110°F/43°C) and pump until all tap
water is expelled.
4
SANITIZE
• Mix one 1 oz (30 mL) packet of KAY-5
Sanitizer/Cleaner (EPA REG No. 5389-
15) with 2.5 gallons (9.5 L) of tap water
(approximately room temperature).
• Place lower end of pump into this
sanitizing mixture and repeatedly operate
pump until 1 quart (.95 L) sanitizing
mixture is pumped through pump.
3

Page 6

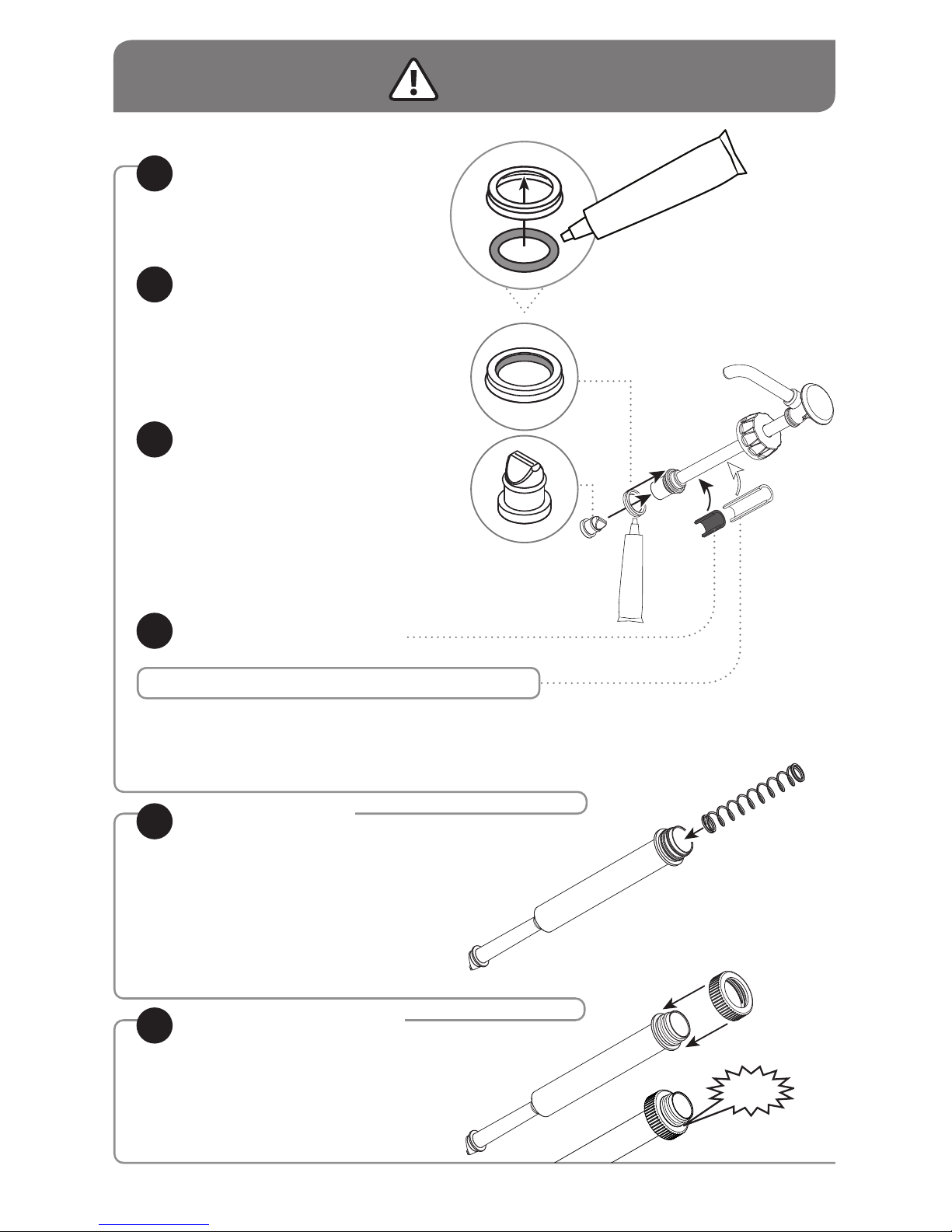

ASSEMBLY PRACTICE SAFETY. WASH ALL PARTS
PROPERLY BEFORE USE. See page 4.
INSTALL O-RING
into seal.
Apply food equipment lubricant
on O-ring
1
INSTALL SEAL
onto head assembly piston.
Apply small amount of food equipment
lubricant inside seal.
TIP: Flared end of seal should face
away from piston head.
2
INSTALL PINCH VALVE
TIP: Squeeze the pinch valve open
before installation to ensure it isn’t
stuck shut.
Install pinch valve into bottom of piston.
Press pinch valve securely to seal end.
3
INSERT SPRING
INTO CYLINDER
5
SNAP CAP ONTO
CYLINDER
Press firmly to secure cap down
over all threading on cylinder.
6
SNAP!
INSTALL STOP COLLAR
onto side of head assembly piston.
4
OPTIONAL: ADD GAGING COLLAR(S)
to reduce portion size.
Small collar: 1/8 oz reduction
Medium collar: 1/4 oz reduction
Large collar: 1/2 oz reduction

Page 7
INSTALL HEAD ASSEMBLY
INTO CYLINDER
Apply a small amount of food equipment
lubricant to the outside of seal.
Slide locking collar down onto cylinder
threading.
Tighten firmly to secure head assembly
to cylinder.
7
PRIME PUMP
Press pump several times until any air
bubbles are eliminated and only product
is dispensed.
12
SECURE PUMP INTO LID
Tighten cap very firmly
onto top of threaded insert.
9
PREPARE LID
Fit threaded insert into lid hole.
Screw lower collar onto
threads that descend
below lid hole.
8
INSERT PUMP, LID &
POUCH COMBINATION
INTO VESSEL
11
ATTACH PUMP TO POUCH
• Place pouch on countertop with
pouch fitment circle facing upward.
• Position pump connector directly
over center of pouch fitment.
• Press pump connector down to pierce
through film in pouch fitment.
• Pump connector is fully engaged when
top surface of pouch fitment touches
pump connector rim.
10

Page 8 Manual 01960-RevA 101217
NEED HELP?
Please be prepared with your Series Number and
Description located on the bottom of the unit.
Please refer to page 2 for individual Part Numbers.
262.628.5600 | 800.558.8722
[email protected]
Server Products Inc.
3601 Pleasant Hill Road
Richfield, WI 53076 USA
SERVER PRODUCTS
LIMITED WARRANTY
GENERAL SERVICE,
REPAIR OR RETURNS
Server Products equipment is backed by a
two-year limited warranty against defects in
materials and workmanship.
For complete warranty information go to:
www.Server-Products.com
Before sending any item to Server Products
for service, repair, or return, contact Server
Products customer service to request a Return
Authorization Number. Merchandise must be
sent to Server Products with this number. Service
is extremely prompt. Typically, units are repaired
and ship out within 48 hours of receipt.
Merchandise being returned for credit must be in
new and unused condition and not more than 90
days old and will be subject to a 20% restocking
charge.
TROUBLESHOOTING
INCONSISTENT PORTIONS?
PRODUCT OOZES OUT
FROM LOCKING COLLAR?
• Ensure product container is not empty
and has enough product to pump.
• Clean pump.
• Check the seal.
TIP: Seal has a slight taper.
Install with flat side towards
top, flared side down.
• Ensure pinch valve is
installed correctly.
TIP: Squeeze the pinch valve
open before installation to
ensure it isn’t stuck shut.
• Ensure that the spring is functional.
Replace broken spring if necessary.
• Ensure that the stainless steel ball
is snapped in place below tabs.
