Hestom NDAP-01 User manual

NDAP-01
User Manual

Contents
1. Important safety information ……………………………………01
2. Product Structure……………………………………………………02
3. Before first use ………………………………………………………03
4. Using the appliance…………………………………………………05
5. Cleaning ………………………………………………………………08
6. 12 Troubleshooting………………………………………………………

1. Important safety information
Read this user manual carefully before you use the appliance and save it for future
reference.
●Do not let water or any other liquid or flammable detergent enter the appliance to avoid electric shock
and/or a fire hazard.
●Do not clean the appliance with water or any other liquid or a (flammable) detergent to avoid electric
shock and/or a fire hazard.
●Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage
before you connect the appliance.
●If the mains cord is damaged, you must have it replaced by distributor, or a service center authorized by
distributor or similarly qualified persons in order to avoid a hazard.
●Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
●This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
●Children should be supervised to ensure that they do not play with the appliance.
●Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of the air inlet.
●This appliance is not a substitute for proper ventilation, regular vacuum cleaning or use of an extractor
hood or fan while cooking.
●If the wall socket used to power the appliance has poor connections, the plug of the appliance becomes
hot. Make sure you plug the appliance into a properly connected wall socket.
●Always place and use the appliance on a dry, stable, level and horizontal surface.
●Leave at least 40cm free space behind and on both sides of the appliance and leave at least 40cm free
space above the appliance.
●Do not place anything on top of the appliance and do not sit on the appliance.
●Do not place the appliance directly below an air conditioner to prevent condensation from dripping onto
the appliance.
●Make sure all filters are properly installed before you switch on the appliance.
●Only use the original filters specially intended for this appliance. Do not use any other filters.
●Avoid knocking against the appliance (the air inlet and outlet in particular) with hard objects.
●Always lift or move the appliance by the handle at the back of the appliance.
●Do not insert your fingers or objects into the air outlet.
●Do not use this appliance when you have used indoor smoke-type insect repellents or in places with oily
residues, burning incense or chemical fumes.
●Do not use the appliance near gas appliances, heating devices or fireplaces.
●Always unplug the appliance after use and before you clean it.
●Do not use the appliance in a room with major temperature changes, as this may cause condensation
inside the appliance.
●The appliance is only intended for household use under normal operating conditions.
●Do not use the appliance in wet surroundings or in surroundings with high ambient temperatures, such
as the bathroom, toilet or kitchen.
●The appliance does not remove carbon monoxide (CO) or radon (Rn). It cannot be used as a safety
device in case of accidents with combustion processes and hazardous chemicals.
●To prevent is interference , should be kept at least 2 meters distance between the product and the use
of radio waves electrical.
01
Danger
Warning
Caution

2. Product Structure
02
Welcome using our company air purifier,before using,please read this
manual carefully to operatate the product correctly.
1. Touch Panel
2. Digital Display
3. Air Quality Indicator
4. Air Outlet
5. Dust Sensor
6. Composite filter
7. Filter's Cover
Description for the function of display panel
A1: PM2.5 Icon
A2: PM2.5 data
3
A3: PM2.5 unit icon(ug/m )

3. Before first use
03
Placing the filters
The appliance comes with all filters fitted inside, but you have to remove the
packaging of the filters before you can use the appliance. Remove all filters,
unpack them and place them back into the appliance as described below.
Tip: Place the appliance against a wall for more stability when you remove or
insert filters.
Note: Make sure you insert the filters in the correct position.
1. Place your fingers on the sign of back
cover at both sides, press down and open the
back cover. Then lift the hooks at the bottom
of the cover out of the bottom of the appliance.
Then lift the hooks at the bottom of the cover
out of the bottom of the appliance.
2. Pull out the filter inside the purifier..
3. Remove all packaging material from the filter.

04
4.Put the filter back in the purifier.
5. To reattach the , insert the bottom
hooks into the bottom of the appliance first . Then
push the back cover against the body of the
appliance.
back cover

4. Using the appliance
05
4.2 Plug into the power supply
4.1 Control panel function description
The LED on the control panel will be on for 1 second, and you will hear a click,
then the indicator will go out again and go to standby.
In the standby state, touch the “ ” button to enter the
working state.
In the working state, touch the “ ” button to enter the
standby state.
6
7
8
On/Off
Auto Mode
Fan Speed
Sleep Mode
Timer
Ion
Key Lock
Filter Replacement Indicator
4.3 Turn on the air purifier
Timer

06
4.4 Fan speed adjustment
4.5 Timing function mode
4.6 Auto Mode
Reminder:In standby mode, the dust sensor is off.
To turn off the machine, unplug the product from the power cord in standby mode.
Note:When the machine is turned on, the default mode is working, the fan speed is in
the automatic mode, the negative ion mode is on, and the air quality indicator lights up.
In the working state, touch the fan “ ” button to enter the
manual fan speed setting, and the fan speed is selected in
the low, medium and high cycle, and the corresponding
indicator lights up.
In the working state, touch the “ ” button to enter the
timedshutdown setting state, and the time is canceled at
1h/2h/4h. In this way, the corresponding indicator lights up.
Under working mode, when the “ ” button is pressed, the
automatic mode is activated, and the purifier senses the air
quality through the dust sensor, thereby adjusting the fan
speed of the purifier.
Reminder:When the machine is running regularly, if you switch to the sleep mode, the “ ”
function is not affected, and the timing indicator is half bright.
Reminder:The built-in dust sensor detects air quality and indicates the corresponding color
based on the detected air quality. When the air quality is good, the color of the air quality indicator
shows blue. When the air quality is normal, the color of the air quality indicator is green. When the
air quality is poor, the color of the air quality indicatorwill be red.
The air quality color grade and value displayed by this machine are obtained from civilian use
instruments and are for reference only!

Press and hold the “ ” button for 3 seconds in the
working state to activate the lock mode. At this time,
pressing the other buttons will not respond. The “ ”
indicator flashes 2 times to remind the user to unlock; long
press the “ ” button for 3 seconds, the touch panel can
be unlocked and the “ ” indicator is off.
The filter life is defined as 2160 hours. When the filters have
been running for 2160hours, the replacement filter indicator
light starts to flash, reminding the user that the filter needs
to be replaced and that the filter life need to be reset.
In the working state, when the replacement filter indicator
light flashes, long press the “ ” button for 3 seconds, the
flashing indicator light is off, and the button is accompanied
by the buzzer “Bee”, the filter life is reset successfully.
4.9 Keylock mode
Under the working state, touch the “ ” key, the indicator
light is on, the negative ion function is on, the machine
releases a large number of negative ions, fresh air. Press
the button again, the negative ion function will be turned off
and the indicator light will be off.
4.8 Anion mode
5.0 Filter replacement Mode
07
In the working state, touch the “ ” button to enter the timed shutdown setting state. In this
way, the corresponding “ ” indicator is half bright.
In sleep mode, the “ ” can be operated independently, can be turned on or off, and the
corresponding indicator light is half-bright or off. In sleep mode, press the “ ”, “ ” or “ ”
button to exit the sleep mode and return to the normal working mode.
In sleep mode, touch the “ ” button and the machine is turned off.
In the working state, touch the “ ” button, and the sleep
indicator lights up, the machine enters the sleep mode; the
“ ” and the “ ” indicator light are half-bright, the
negative ion function is turned off, the other indicator lights
are all off.
4.7 Sleep mode

5.1 Clean air purifier
08
5. Cleaning
Clean the inside and outside of the purifier body regularly to prevent dust from accumulating.
1)Wipe the dust off the purifier body with a soft, dry cloth.
2)Clean the air inlet and outlet with a soft, dry cloth.
5.2 Clean air quality sensor
Clean the air quality sensor every 2 months to ensure that the purifier operates at peak
performance. If the purifier is used in a dusty environment, clean it frequently.
1) Use a soft brush to clean the air inlet and outlet of the
air quality sensor.
2) Remove the protective cover of the air quality sensor.
3) Remove the filter cotton from the protective cover and
rinse it off under pure water, then dry it.
4) Put the clean filter cotton back into the protective cover.
5) Reinstall the protective cover of the air quality sensor.

5.3 Filter replacement
5.4 Steps
Reminder
When the product's “ ” indicator lights up and
flashes, the user is suggested to replace the filter.
When the replacement filter indicator lights up, the
customer is suggested to replace the filter.
Reminder:Remove the plastic packaging of each filter before placing it in the machine.
Make sure the label on the side of the filter is facing up.
Note:When the filter replacement indicator is lit and the buzzer sounds awkward, the user is
reminded that the new filter needs to be replaced, but the purifier can still work normally.
Please turn off the power and cut off the power plug before replacing the filter.
1) The machine reminds customer to replace the filter.
2) Turn off the air purifier, then unplug the power plug.
09

10
4) Remove the purifier insider filter.
5) Remove all packaging materials from the new filter.
6) Load a new filter.
3) Press the “ ” button on the filter cover with
both hands, spread the filter cover, and pull the filter
cover up slightly.

11
7) Reinstall the filter cover, align and insert the fixed
groove, and then press the & button on the filter cover
to apply pressure to secure the filter cover.
8) After replacing the new filter, plug in the power
plug and press the “ ” button for 3 seconds to
reset the filter life. When the indicator is off means
filter reset is complete.

12

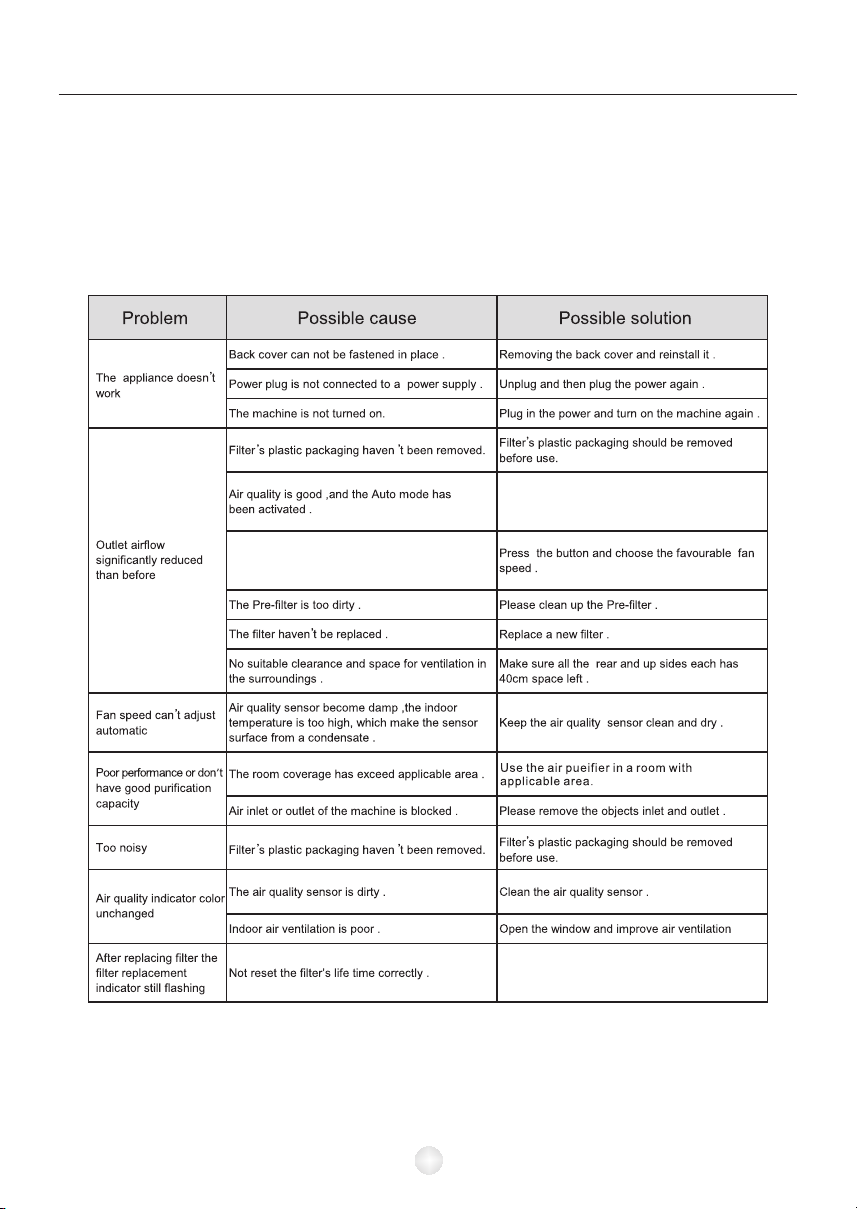

This chapter summaries the most common problems you could encounter with the
appliance. If you are unable to solve the problem with the information below, please
contact our service center or distributor.
6. Troubleshooting
Sleep mode automatically start , the LED indicator
turns off .Meanwhile the fan speed and the noise
is also reduced .
Check the manual "filter replacement".
.
At the Auto mode ,the machine will automatically
adjust the fan speed in the order to achieve
energy saving .
