HPE StoreEasy 1X60 Storage Getting
Started Guide
Part Number: P05626-001a
Edition: 2
Abstract
This document contains setup, installation, and configuration information for the HPE
StoreEasy 1x60 Storage systems.

© Copyright 2018 Hewlett Packard Enterprise Development LP
Notices
The information contained herein is subject to change without notice. The only warranties for Hewlett
Packard Enterprise products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an additional warranty.
Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained
herein.
Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession,
use, or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer
Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government
under vendor's standard commercial license.
Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard
Enterprise has no control over and is not responsible for information outside the Hewlett Packard
Enterprise website.
Acknowledgments
Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.

Contents
Overview.................................................................................................. 4
Setup and install..................................................................................... 5
Cabling the storage system.......................................................................................................... 5
Cabling guidelines.........................................................................................................................5
Single domain cabling diagrams with D6000 Disk Enclosures .................................................... 7
Single domain cabling diagrams with D2000 Disk Enclosures..................................................... 9
Dual domain cabling diagrams with D6000 Disk Enclosures .....................................................14
Dual domain cabling diagrams with D2000/D3000 Disk Enclosures ......................................... 15
Specifications and requirements.........................................................20
Websites................................................................................................ 22
Support and other resources...............................................................23
Accessing Hewlett Packard Enterprise Support......................................................................... 23
Accessing updates......................................................................................................................23
Customer self repair....................................................................................................................24
Remote support.......................................................................................................................... 24
Warranty information...................................................................................................................24
Regulatory information................................................................................................................25
Documentation feedback............................................................................................................ 25
Contents 3

Overview
The HPE StoreEasy 1X60 Storage system provides multi-protocol file sharing and application storage for
a range of business environments. Built on HPE ProLiant server and Microsoft Windows Storage Server,
the StoreEasy 1X60 Storage system easily integrates into new and existing environments and efficiently
maximizes resources through file and data management without increasing costs. The StoreEasy 1X60
Storage system provides the following advantages:
• Each system ships from the factory with pre-integrated hardware and pre-loaded software to
significantly reduce the time and complexity of installation.
• Hewlett Packard Enterprise and Microsoft management integration, including Microsoft Server
Manager and System Center and Systems Insight Manager and Integrated Lights Out (iLO).
The StoreEasy 1X60 Storage systems are based on the ProLiant server. The table identifies the ProLiant
model for each StoreEasy 1X60 Storage product:
Table 1: HPE StoreEasy product models
Product SKU Product model Hardware platform
Q2R92A HPE StoreEasy 1460 8TB SATA
Storage
HPE ProLiant DL360 Gen10
server
Q2R93A HPE StoreEasy 1460 16TB SATA
Storage
HPE ProLiant DL360 Gen10
server
Q2R94A HPE StoreEasy 1460 32TB SATA
Storage
HPE ProLiant DL360 Gen10
server
Q2R96A HPE StoreEasy 1560 8TB SATA
Storage
HPE ProLiant ML110 Gen10
Q2R97A HPE StoreEasy 1560 16TB SATA
Storage
HPE ProLiant ML110 Gen10
NOTE: The StoreEasy 1X60 Getting Started Guide provides information on all models within the
StoreEasy 1X60 Storage product family. The product name is listed generically where the same
information is applicable to different models.
4 Overview

Setup and install
Specific details about installing the StoreEasy platform are in the Getting Started Guide for the applicable
server.
Product SKU Product model Hardware platform
Q2R92A HPE StoreEasy 1460 8TB SATA
Storage
HPE ProLiant DL360 Gen10
server
Q2R93A HPE StoreEasy 1460 16TB SATA
Storage
HPE ProLiant DL360 Gen10
server
Q2R94A HPE StoreEasy 1460 32TB SATA
Storage
HPE ProLiant DL360 Gen10
server
Q2R96A HPE StoreEasy 1560 8TB SATA
Storage
HPE ProLiant ML110 Gen10
server
Q2R97A HPE StoreEasy 1560 16TB SATA
Storage
HPE ProLiant ML110 Gen10
server
Cabling the storage system
The StoreEasy systems support both single domain and dual domain cabling using D2000, D3000, and
D6000 disk enclosures, depending on the SmartArray RAID controller that is installed in the system. In a
single domain, external disk enclosures are connected, using a single data path, to the Smart Array
controller in the StoreEasy system. In a dual domain, external disk enclosures are connected, using two
data paths, to a single Smart Array RAID controller in the StoreEasy system. For more detailed
information about single and dual domains, see the technology brief entitled, “Redundancy in enterprise
storage networks using dual-domain SAS configurations” located at: http://h20565.www2.hp.com/
portal/site/hpsc/public/kb/docDisplay/?docId=c01451157
Table 2: Controller, disk enclosure, and single/dual domain support
Controller model Supported in
StoreEasy
systems
Disk enclosure
supported
Single domain
support
Dual domain
support
P222 1460, 1560 D2000 Y N
P421 1460 D2000, D6000 Y Y
P822 1460, 1660, 1860 D2000, D6000 Y Y
NOTE: Optional P441 and P841 Smart Array controllers are used for connecting to external D2000,
D3000, or D6000 disk enclosures.
Cabling guidelines
This section provides information on the types of cables to be used with D3000 and D2000/D6000 disk
enclosures supported by the P441 controller and the cabling guidelines.
Setup and install 5

The following are the types of cables that you can use with the D3000 disk enclosures:
• External 0.5m (1ft) Mini SAS HD 4x to Mini SAS HD 4x Cable
• External 1.0m (3ft) Mini SAS HD 4x to Mini SAS HD 4x Cable
• External 2.0m (6ft) Mini SAS HD 4x to Mini SAS HD 4x Cable
• External 4.0m (13ft) Mini SAS HD 4x to Mini SAS HD 4x Cable
The following are the types of cables that you can use with the D2000/D6000 disk enclosures:
• 0.5m External Mini SAS High Density to Mini SAS Cable
• 1.0m External Mini SAS High Density to Mini SAS Cable
• 2.0m External Mini SAS High Density to Mini SAS Cable
• 4.0m External Mini SAS High Density to Mini SAS Cable
• 6.0m External Mini SAS High Density to Mini SAS Cable
When connecting disk enclosures to the StoreEasy system, consider the following guidelines:
• In a single domain configuration, the secondary I/O modules on the D6000 are not used, so they might
or might not be installed. The cabling diagrams in this section show the secondary I/O modules are not
installed.
• For single domain configurations, the maximum number of disk enclosures supported by the P441 or
P841 controller are 1 D6000, 8 D2000s, or 8 D3000s (up to 200 drives total).
• For dual domain configurations, the maximum number of disk enclosures supported by the P441
controller are 8 D2000 or 8 D3000s (up to 200 drives total).
• For dual domain configurations, the maximum number of disk enclosures supported by the P841
controller are 1 D6000, 8 D2000s, or 8 D3000s (up to 200 drives total).
NOTE:
◦ The maximums listed are based on the number of drives per controller. Any StoreEasy system
could have additional or alternate controllers installed, which would affect the overall number of
supported disk enclosures. The maximum number of enclosures that can be connected to a
controller is eight.
◦ The P441 or P841 controllers support:
– Up to 200 physical drives.
– D2000 and D3000 disk enclosures; up to eight daisy chained in either single or dual domain
configuration.
– D6000 disk enclosure. Only one D6000 enclosure can be connected. Daisy chaining is not
supported.
• In the cabling diagrams for the D2000/D3000 disk enclosure, the D2600 disk enclosure is used. Be
aware that the cabling configuration is exactly the same for all D2000/D3000 disk enclosures.
• The D6000 disk enclosure does not support the use of SAS daisy chains; the D2000/D3000 disk
enclosures supports SAS daisy chains. In a SAS daisy chain, the D2000/D3000 disk enclosures are
6Setup and install

connected to each other — I/O module A from each disk enclosure is connected together and I/O
module B of each disk enclosure is connected together.
• Only supported, documented cabling configurations are shown. Only cabling configurations shown in
this document or in related D2000/D3000 or D6000 documentation are supported configurations.
CAUTION:
When cabling a dual domain configuration, ensure that you do not connect multiple controllers in the
StoreEasy system to the same disk enclosure; this is an unsupported configuration and might result
in data loss. If the StoreEasy system is configured incorrectly, and you attempt to use Pool
Manager, Pool Manager will detect the configuration and display an error message. The controllers
can be connected to different disk enclosures.
Single domain cabling diagrams with D6000 Disk
Enclosures
The following diagrams show different StoreEasy systems in a single domain configuration with D6000
disk enclosures.
NOTE: The following diagram illustrates the cabling for StoreEasy 1X60 using the P822 controller.
Single domain cabling diagrams with D6000 Disk Enclosures 7

Figure 1: StoreEasy 1x60 with the P822 controller
1. D6000 disk enclosure 1
2. D6000 disk enclosure 2
3. Connection between the P822 controller and SAS port 1 on the primary I/O module (Drawer 2) of
D6000 disk enclosure 1
4. P822 controller
5. Connection between the P822 controller and SAS port 1 on the primary I/O module (Drawer 2) of
D6000 disk enclosure 2
6. Connection between the P822 controller and SAS port 1 on the primary I/O module (Drawer 1) of
D6000 disk enclosure 2
7. Connection between the P822 controller and SAS port 1 on the primary I/O module (Drawer 1) of
D6000 disk enclosure 1
8Setup and install

Single domain cabling diagrams with D2000 Disk
Enclosures
The following diagrams show different StoreEasy systems in single domain configurations with the D2000
Disk Enclosure. With these cabling diagrams, SAS daisy chains are used to connect the disk enclosures
together.

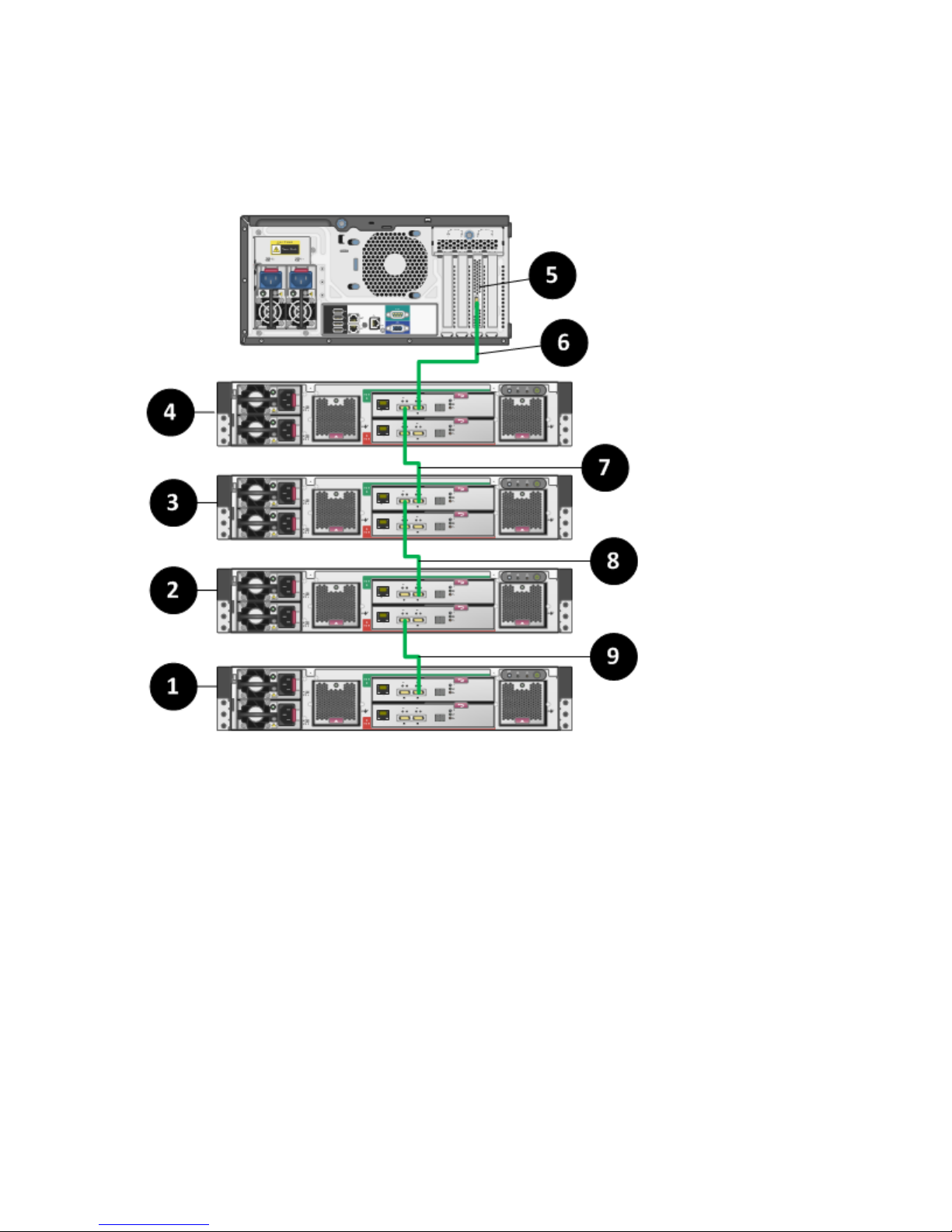

Figure 2: StoreEasy 1x60 with the P222 controller
1. D2600 disk enclosure 1
2. D2600 disk enclosure 2
3. D2600 disk enclosure 3
4. D2600 disk enclosure 4
5. P222 controller
6. Connection from P222 controller to port 2 of I/O module A on disk enclosure 4
7. Connection from port 1 of I/O module A on disk enclosure 4 to port 2 of I/O module A on disk
enclosure 3
Table Continued
Single domain cabling diagrams with D2000 Disk Enclosures 9

8. Connection from port 1 of I/O module A on disk enclosure 3 to port 2 of I/O module A on disk
enclosure 2
9. Connection from port 1 of I/O module A on disk enclosure 2 to port 2 of I/O module A on disk
enclosure 1
10 Setup and install

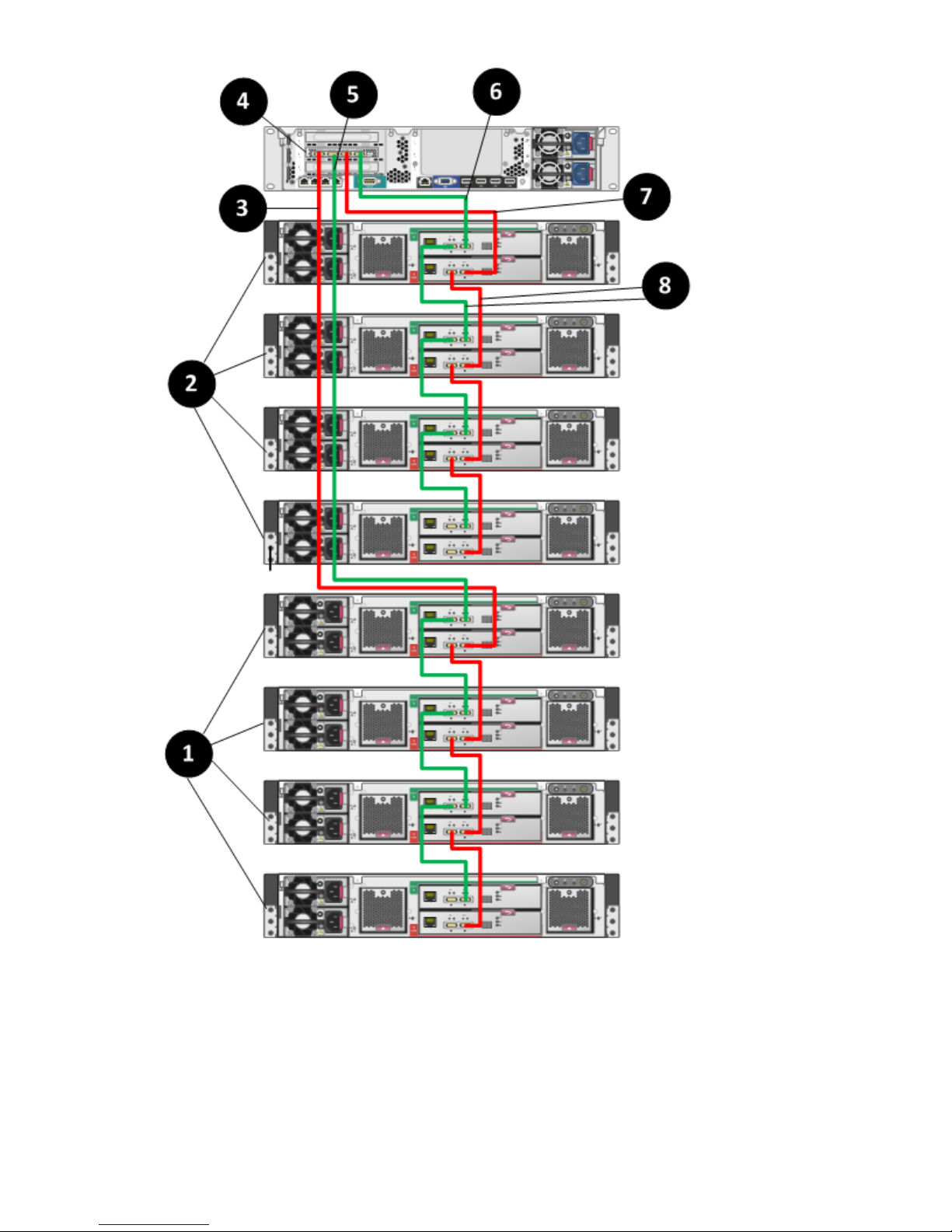

Figure 3: StoreEasy 1x60 with the P822 controller
1. Group 1 of 4 D2600 disk enclosures
2. Group 2 of 4 D2600 disk enclosures
Table Continued
Setup and install 11

3. Connection from P822 controller to port 2 of I/O module A on the top disk enclosure in Group 1
4. P822 controller
5. Connection from P822 controller to port 2 of I/O module A on the top disk enclosure in Group 2
6. Connections between the disk enclosures in Group 2
7. Connections between the disk enclosures in Group 1
An alternate way of connecting the D2000 disk enclosures to the P822 controller is to have 4 groups of 2
disk enclosures each. This cabling option provides better fault tolerance because the worst case scenario
(besides a controller failure) is losing access to two disk enclosures if one disk enclosure goes down. In
the following diagram, the worst case scenario is losing access to all four disk enclosures in a group if
one disk enclosure goes down.
12 Setup and install

Figure 4: Alternate single domain configuration for better fault tolerance
1. Group 1 of 2 D2600 disk enclosures
2. Group 2 of 2 D2600 disk enclosures
Table Continued
Setup and install 13

3. Group 3 of 2 D2600 disk enclosures
4. Group 4 of 2 D2600 disk enclosures
5. Connection from P822 controller to port 2 of I/O module A on the top disk enclosure in Group 1
6. P822 controller
7. Connection from P822 controller to port 2 of I/O module A on the top disk enclosure in Group 4
8. Connection from P822 controller to port 2 of I/O module A on the top disk enclosure in Group 3
9. Connection from P822 controller to port 2 of I/O module A on the top disk enclosure in Group 2
Dual domain cabling diagrams with D6000 Disk
Enclosures
The following diagram shows StoreEasy 1460 system in dual domain configurations with D6000 Disk
Enclosures. In this configuration, the worst case scenario (besides a controller failure) is losing ½ of the
D6000 if there is an I/O module failure.
14 Dual domain cabling diagrams with D6000 Disk Enclosures

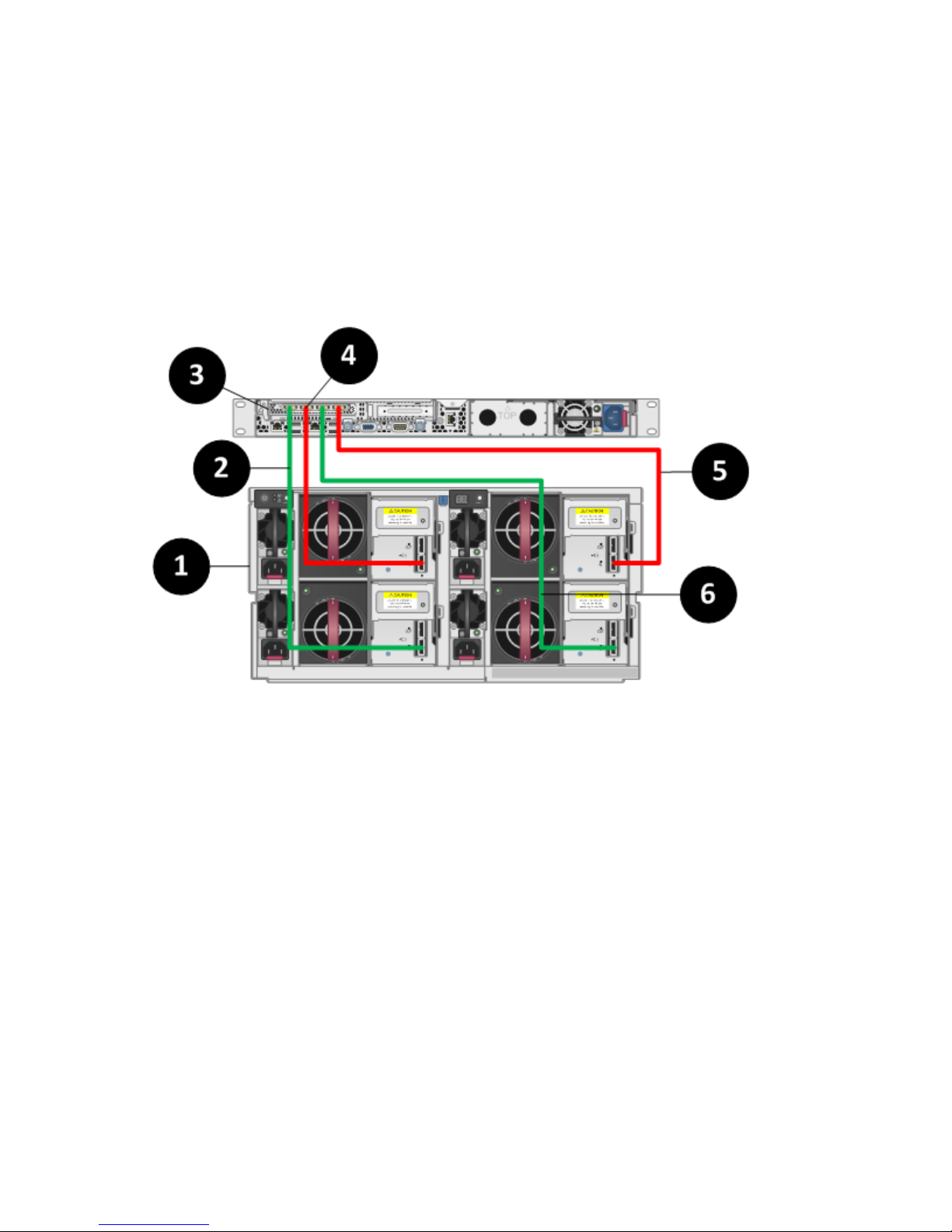

1. D6000 disk enclosure
2. Connection between the P822 and SAS port 1 on the secondary I/O module (Drawer 2)
3. P822 controller
4. Connection between the P822 and SAS port 1 on the primary I/O module (Drawer 2)
5. Connection between the P822 and SAS port 1 on the primary I/O module (Drawer 1)
6. Connection between the P822 and SAS port 1 on the secondary I/O module (Drawer 1)
Figure 5: StoreEasy 1460 with the P822 controller in a dual domain
Dual domain cabling diagrams with D2000/D3000 Disk
Enclosures
In dual domain configurations with the D2000/D3000 Disk Enclosures, you have the option of cabling for
best fault tolerance or best performance. The disk enclosures are put into two groups of four disk
enclosures each. There is always one path to the disk enclosure from the controller (from either the top
disk enclosure in the group or the bottom disk enclosure in the group). The green path carries the data if
the red path is broken. Besides a controller failure, the worst case scenario is losing access to one I/O
module if an I/O module fails. The following diagram illustrates the SAS daisy chain between disk
enclosures.
Dual domain cabling diagrams with D2000/D3000 Disk Enclosures 15

Figure 6: StoreEasy 1660 with the P822 controller in a dual domain configuration (best fault
tolerance)
1. Group 1 of 4 D2600 disk enclosures
2. Group 2 of 4 D2600 disk enclosures
Table Continued
16 Setup and install

3. Connection from the P822 controller to port 1 of I/O module B on the bottom D2600 in Group 1
4. P822 controller
5. Connection from the P822 controller to port 1 of I/O module B on the bottom D2600 in Group 2
6. Connection from the P822 controller to port 2 of I/O module A on the top D2600 in Group 2
7. SAS daisy chain – port 1 of I/O module B on the top D2600 connects to port 2 of I/O module B on the
bottom D2600 and port 1 of I/O module A on the top D2600 connects to port 2 of I/O module A on the
bottom D2600
8. Connection from the P822 controller to port 2 of I/O module A on the top D2600 in Group 1
The following diagram illustrates the best performance. The difference between this cabling and fault
tolerance cabling is that the beginning and ending connections from the controller to a disk enclosure are
always to the first disk enclosure in the group. Essentially, the request from the controller to a disk
enclosure moves faster because it does not have to travel through a series of disk enclosures. However,
this cabling does not provide fault tolerance. If an I/O module in the first disk enclosure fails, you will lose
access to all disk enclosures in the group.
Setup and install 17

Figure 7: StoreEasy 1860 with the P822 controller in a dual domain configuration (best
performance)
18 Setup and install

1. Group 1 of 4 D2600 disk enclosures
2. Group 2 of 4 D2600 disk enclosures
3. Connection from the P822 controller to port 2 of I/O module B on the top D2600 in Group 1
4. P822 controller
5. Connection from the P822 controller to port 2 of I/O module A on the top D2600 in Group 1
6. Connection from the P822 controller to port 2 of I/O module A on the top D2600 in Group 2
7. Connection from the P822 controller to port 2 of I/O module B on the top D2600 in Group 2
8. SAS daisy chain – port 1 of I/O module B on the top D2600 connects to port 2 of I/O module B on the
bottom D2600 and port 1 of I/O module A on the top D2600 connects to port 2 of I/O module A on the
bottom D2600
Setup and install 19

Specifications and requirements
Table 3: StoreEasy 1460 Storage
Dimension (H x W x D) 8 SFF - 1.69 x 17.11 x 23.92 inches (4.29 x 43.46 x 60.76 cm)
4 LFF - 1.7 x 17.1 x 23.9 inches (4.29 x 43.46 x 60.76 cm)
Weight (approximate) Maximum (all hard drives, power
supplies, and processors
installed)
33.04 Ib (15kg)
Minimum (one hard drive, power
supply, and processor installed)
22.03 lb (10kg)
Input Requirements (per power
supply) Rated Line Voltage 100 to 240 VAC
Rated Input Current For 550W Power Supply:
6.7 A (at 100 VAC),
3.3 A (at 100 VAC)
Rated Input Frequency 47 to 63 Hz
Rated Input Power For 550W Power Supply:
< 670W (at 100 VAC),
< 660W (at 200 VAC)
BTU Rating Maximum For 550W Power Supply:
2201 BTU/hr (at 100 VAC),
2153 BTU/hr (at 200 VAC)
Power Supply Output (per
power supply)
Rated Steady-State Power For 550W Power Supply:
550W (at 100 VAC),
550W (at 200 VAC)
Maximum Peak Power For 550W Power Supply:
550W (at 100 VAC),
550W (at 200 VAC)
Table 4: StoreEasy 1560 Storage
Dimension (H x W x D) 17.32(H) x 7.68(W) x 18.92(D) in (44 x 19.5 x 48.05 cm)
Weight (approximate) Maximum 55 lb (24.9g)
Minimum 27.56 lb (12.5kg)
Table Continued
20 Specifications and requirements
