HexaCrafter QXS-850 User manual
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
QXS-1A
QXS SERIES
AIRFRAME
ASSEMBLY
MANUAL- PAGE 1

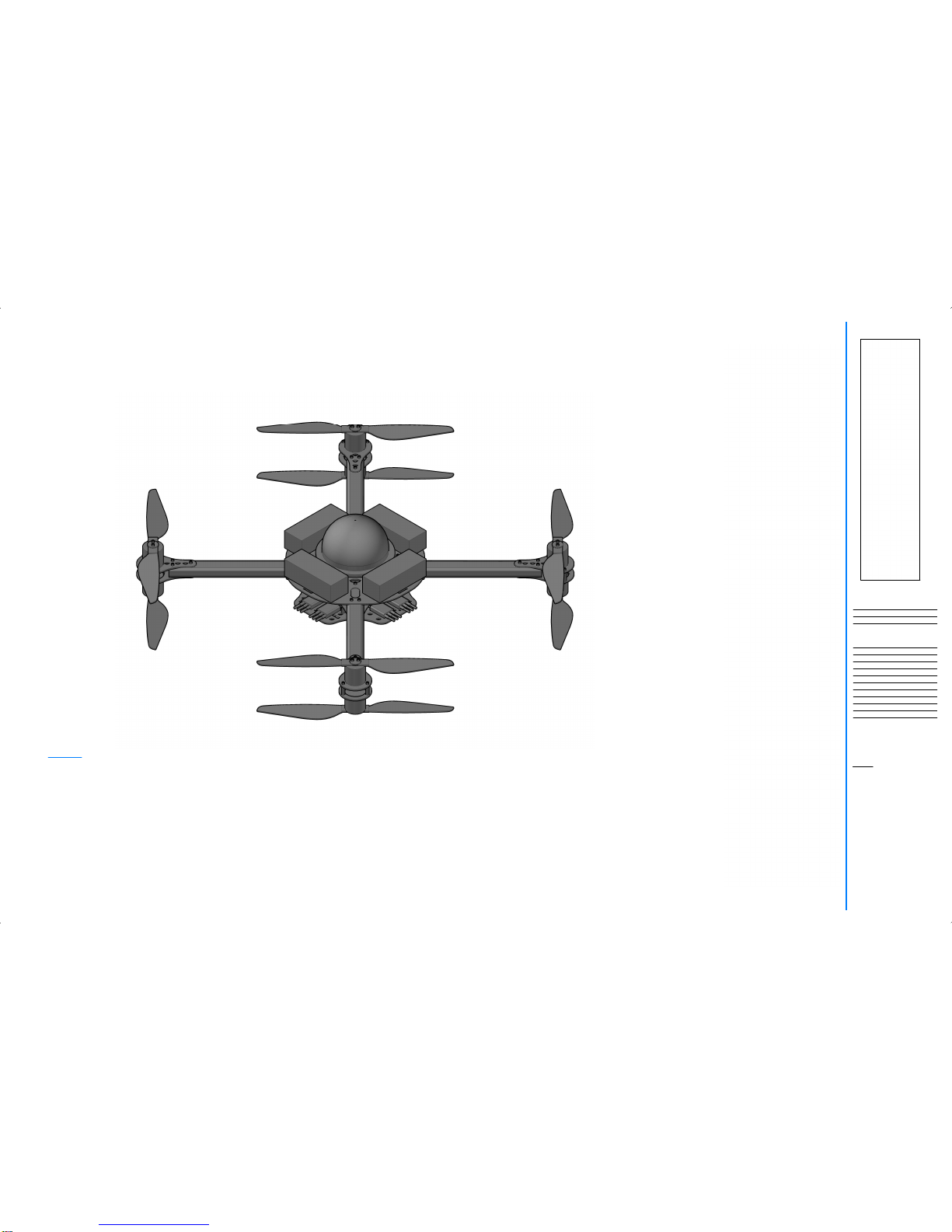

QXS SERIES QUADCOPTER / COAXIAL
OCTOCOPTER QXS-850
PARTS LIST
FEATURES:
1. KIT IS COMPLETE TO BE ASSEMBLED AS A 4 MOTOR QUAD OR 8 MOTOR COAXIAL.
2. MOTOR MOUNTS FOR 3520 SIZE MOTORS
3. KIT PROVIDED WITH HEXACRAFTER HIGH AMP BUS BAR SYSTEM. OPTION PRE-SOLDERED BUSS
BARS AVAILABLE THROUGH HEXACRAFTER PRE-ASSEMBLY SERVICES.
4. BUILT IN PROVISIONS FOR FOUR (4) TOP PLATE MOUNTED BATTERIES. 6s - 4500 MAH TO MEET THE
AIRLINE TRAVEL REQUIREMENTS OF 100 WATT HOUR CELLS. VELCRO TIE DOWNS INCLUDED IN KIT.
5. ESC MOUNTING PLATE ALLOWS NEAT & ORGANIZED MOUNTING OF UP TO 8 ESC.
6. 850MM CL OF MOTORS.
7. UP TO 18" PROPELLERS. 390MM CLEAR DIAMETER FROM CENTER OF AIRCRAFT TO BLADE TIPS FOR
3-AXIS GIMBAL CLEARANCE.
8. KIT PROVIDED WITH STANDARD HEXACRAFTER ELECTRONICS MOUNTING PLATES. OPTIONAL SEIP &
LEIP ELECTRONICS SHOCK & VIBRATION ISOLATION SYSTEMS ARE DIRECT BOLT UP ACCESSORIES.
9 KIT IS PRE-DRILLED TO ACCEPT HEXACRAFTER 10MM, 12MM AND 15MM LOAD RAILS. LOAD RAILAS
AVAILABLE AS ADD-ON ACCESSORIES. AT 60MM & 80MM SPACING. ADAPTER BARS AVIABLE FOR
155MM DJI SPACING.
10. KIT WILL ACCEPT ALL HEXACRAFTER STANDARD AND RETRACTABLE LANDING GEAR KITS.
11. EASILY FOLDABLE FOR PACKING & TRANSPORT.
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
AIRFRAME TRANSPORT - PART 1
AIRFRAME TRANSPORT - PART 2 QXS-1B
QXS SERIES
AIRFRAME
ASSEMBLY
MANUAL- PAGE 1B
TRANSPORTING THE QXS-850
THE HEXACRAFTER QXS-850 IS DESIGNED TO BE QUICKLY CONFIGURED TO BE PACKED IN A CARRYING CASE.
WITH THE REMOVAL OF (8) 3MM X 35MM ARM LOCKING SCREWS ON THE ARMS, THE ARMS CAN ROTATE FOR
PACKING OR TRANSPORT. THE LANDING GEAR, LOAD RAILS & ANY RAIL MOUNTED EQUIPMENT CAN BE REMOVED
WITH AN ADDITIONAL (8) SCREWS. USERS CAN PROVIDE A PELICAN HARDCASE FOR PACKING THE FRAME
ASSEMBLY FOR TRANSPORTATION & CHECKED LUGGAGE AIRLINE TRAVEL. LANDING GEAR, LOAD RAILS AND
OTHER ACCESSORIES WOULD PACK NEATLY IN A SEPARATE PELICAN CASE OF THE REQUIRED SIZE FOR THE
USER CONFIGURATION.
RECOMMENDED PELICAN CASES:
QXS-850 : PELICAN 1740
AIRFRAME TRANSPORT - PART 3
KNN3 3M KNURLED NUTS FOR FAST & EASY
REMOVAL OF (8) OUTER NUTS.
SHCS-3X35 HEX CAP SCREW
NOTE: 3MM LOCK WASHERS & FLAT WASHERS
ARE INCLUDED IN KIT & SHOULD BE USED.
NOT SHOWN IN THIS DIAGRAM.
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
DETAIL: ARM & MOTOR MOUNT
STEP 1 - MOTOR MOUNT
CFA330 CARBON FIBER ARM
3MX20FFAL HEX STANDOFF
THESE 3 STANDOFFS GO
INSIDE ARM TUBE
SHCS-3X8 HEX CAP SCREW
MM2-A MOTOR MOUNT
MM2-A MOTOR MOUNT
SHCS-3X8 HEX CAP SCREW
SHCS-3X10 HEX CAP SCREW
SHCS-3X10 HEX CAP SCREW
3MX23FFAL HEX STANDOFF
4MX20RNAL ROUND STANDOFF
THESE 3 STANDOFFS GO
INSIDE ARM TUBE FOR
FOLDING ARMS
ARM BUILDING NOTE:
FOR TRANSPORTABLE FOLDING ARMS: BUILD ALL 4
ARMS WITH ROUND INSERTS FOR FOLDING ARMS-
CENTER ROUND STANDOFF IN ARM HOLES
SHCS-3X6 HEX CAP SCREW - INCLUDED
WITH AIRFRAME KIT
DETAIL: MOTOR MOUNTING
STEP 1A - MOTOR MOUNTING
THREADLOCK COMPOUND RECOMMENDED
IMPORTANT NOTE!!!!!:
VERIFY SCREW LENGTH WITH MOTOR USED.
AVL3510 & AVL3520 MOTORS USE 6MM LONG
SCREWS ONLY. LONGER SCREWS WILL
SHORT CIRCUIT AGAINST THE MOTOR
WINDINGS!
QXS-2
QXS SERIES
AIRFRAME
ASSEMBLY
MANUAL- PAGE 2
MOTOR ALIGNMENT / SHIMMING
IMPORTANT NOTE!!!!!:
MOTOR MOUNTING SHOULD BE POSTPONED
IN AIRCRAFT BUILD UNTIL ENTIRE FRAME IS
ASSEMBLED IF USER INTENDS TO "TUNE" THE
FRAME FOR MOTOR ALIGNMENT. MOTOR
SHIMS ARE INCLUDED IN EACH KIT IN 0.1 & 0.2
MM THICKNESSES. PLEASE VISIT THE
HEXACRAFTER WEBSITE FOR INSTRUCTION
VIDEO ON MOTOR ALIGNMENT WITH SHIMS.
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
QXS-3
QXS SERIES
AIRFRAME
ASSEMBLY
MANUAL- PAGE 3
DETAIL: BOTTOM CENTER HUB
STEP 2 - BOTTOM CENTER PLATE DETAIL: TOP CENTER HUB
STEP 3 - TOP CENTER PLATE WITH OPTIONAL ELECTRONICS ISOLATION
3MX34FFAL HEX STANDOFF
QXSBP HXS SERIES BOTTOM CENTER PLATE
TSS-3X25 THREADED STEEL STUD
THREADLOCK COMPOUND RECOMMENDED
AT
3MX23FFAL HEX STANDOFF - LEAVE 17MM OF
THREADS EXPOSED- WAIT 20 MINUTES TO
ALLOW THREADLOCK TO SET BEFORE
ASSEMBLING THROUGH FRAME AND INTO THE
3MX34FFAL HEX STANDOFF
3MX23FFAL HEX STANDOFF
SHCS-3X10 HEX CAP SCREW
THREADLOCK COMPOUND RECOMMENDED
SHCS-3X8 HEX CAP SCREW
THREADLOCK COMPOUND RECOMMENDED
QXSTP HXS SERIES TOP CENTER PLATE
3MX25FFAL HEX STANDOFF
3MX8FFAL HEX STANDOFF
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
DETAIL: HIGH AMPERAGE POWER PLATE ASSEMBLY
STEP 5 - HIGH POWER DISTRIBUTION/ POWER PLATE
NPHS-3X8 NYLON PAN HEAD SCREW
3MX20FFNY HEX STANDOFF - NYLON
PDB-2 POWER DISTRIBUTION BUS BAR
AFTER EQUIPMENT IS MOUNTED TO POWER
PLATE, USE NYLON TIES TO ATTACH ESC &
SOLDER ESC WIRES TO POWER DISTRIBUTION
BOARD
RGPB RUBBER GROMMET
POSTITVE (+) POWER DISTRIBUTION BUS BAR
NEGATIVE (-) POWER DISTRIBUTION BUS BAR
NPHS-3X8 NYLON PAN HEAD SCREW OR
3X8 SBCS STEEL BUTTON HEAD HEX SCREWS
SOLDERING TO THE BUS BAR:
SOLDERING WIRES TO THE COPPER BUS BAR
CANNOT BE ACHIEVED WITH A STANDARD
SOLDIERING IRON. THE USE OF A HIGH
TEMPERATURE BUTANE TORCH IS
RECOMMENDED. THE BUS BAR SHOULD BE
COMPLETELY REMOVED FROM THE NYLON
STANDOFFS & CARBON FIBER POWER PANEL
WHEN SOLDERING AS TO NOT DAMAGE THESE
PARTS. SEE OUR VIDEO ON THE HEXACRAFTER
WEBSITE.
NPHS-3X15 NYLON PAN HEAD SCREW
BBCR PLASTIC BUS BAR COVER - RED
BBCB PLASTIC BUS BAR COVER - BLACK
ESC (BY OTHERS)- FRONT & BACK LOCATIONS
USED FOR QUADCOPTER. COAXIAL
OCTOCOPTER USES SIDE LOCATIONS FOR
ADDITIONAL FOUR (4) ESC.
QXS-4
QXS SERIES
AIRFRAME
ASSEMBLY
MANUAL- PAGE 4
DETAIL: TOP CENTER HUB
STEP 4 - TOP CENTER PLATE - REIP
QXSTP HXS SERIES TOP CENTER PLATE
SHCS-3X8 STEEL HEX
CAP SCREW
RBID RUBBER ISOLATION
BALL DAMPNER
IMUP-1 IMU PLATE- TYPE 1
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
HEXACRAFTER ONLINE ASSEMBLY VIDEOS & PHOTOS:
PLEASE VISIT OUR WEBSITE: www.hexacrafter.com FOR DETAILED ASSEMBLY VIDEOS & PHOTOS.
CONTACT HEXACRAFTER FOR ASSISTANCE OR WITH BUILD QUESTIONS.
DETAIL: POWER PLATE ASSEMBLY
STEP 6B- 15MM LOAD RAILS
QXSEPP OCTOCOPTER
ELECTRICAL POWER PLATE
SHCS-3X8 OR 3X10 HEX CAP SCREW
SHCS-3X30 HEX CAP SCREW
LRMB-12 LOAD RAIL MOUNTING BRACKET
RGF12 RUBBER GROMMET
12MM OR ASSEMBLED 15MM
CARBON FIBER LOAD RAILS
USE THESE HOLES FOR
60MM LOAD RAIL SPACING
USE THESE HOLES FOR
80MM LOAD RAIL SPACING
KLR15 LOAD RAIL ADD-ON ACCESSORY
(SHOWN)
KLR-10 & KLR12 LOAD RAIL ADD ON
ACCESORIES ALSO AVAILABLE- REFER TO
ADD-ON ACCESSORIES ASSEMBLY MANUAL
3MX15FFAL OR 3MX20FFAL HEX
STANDOFF BASED ON USER
CLEARANCE REQUIREMENTS
THREADLOCK COMPOUND RECOMMENDED
QLRRP - QUADCOPTER LOAD RAIL
REINFORCEMENT PLATE PLATE- ADD-ON
OPTIONAL ACCESSORY- USE WHEN HEAVY
LOADS WILL BE APPLIED TO LOAD RAILS-
CONTACT HEXACRAFTER FOR INFORMATION
QXS-5A
QXS SERIES
AIRFRAME
ASSEMBLY
MANUAL- PAGE 5A
DETAIL: POWER PLATE ASSEMBLY
STEP 6C- OPTIONAL LANDING GEAR STRUTS
QLRRP - QUADCOPTER LOAD RAIL
REINFORCEMENT PLATE PLATE- ADD-ON
OPTIONAL ACCESSORY- USE WHEN HEAVY
LOADS WILL BE APPLIED TO LOAD RAILS-
CONTACT HEXACRAFTER FOR INFORMATION
3MX23FFAL HEX STANDOFF
SHCS-3X8 HEX CAP SCREW
RLGSP RETRACTABLE
LANDING GEAR STRUT PLATE
DETAIL: 15MM LOAD RAIL TUBES
STEP 6A- 15MM LOAD RAIL TUBE ASSEMBLY
CLR-12 12MM TUBE SECTION
CLR-15 15MM TUBE SECTION
CLR-12 12MM TUBE SECTION
APPLY EPOXY TO INSIDE OF
TUBE FROM EACH END.
GLUE INTERIOR TUBES TO MEET AT
MIDPOINT OF 15MM TUBE
INSERT 12MM TUBES INTO WET EPOXY ON THE INTERIOR
OF THE 15MM TUBE. ROTATE AND SLOWY WORK INWARD
AND OUTWARD WHILE INSERTING TO ENSURE EVEN
COVERAGE OF EOPXY TO BOTH TUBES
INSERT 12MM TUBES INTO WET EPOXY ON THE INTERIOR
OF THE 15MM TUBE. ROTATE AND SLOWY WORK INWARD
AND OUTWARD WHILE INSERTING TO ENSURE EVEN
COVERAGE OF EOPXY TO BOTH TUBES
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
HEXACRAFTER ONLINE ASSEMBLY VIDEOS & PHOTOS:
PLEASE VISIT OUR WEBSITE: www.hexacrafter.com FOR DETAILED ASSEMBLY VIDEOS & PHOTOS.
CONTACT HEXACRAFTER FOR ASSISTANCE OR WITH BUILD QUESTIONS.
DETAIL: POWER PLATE ASSEMBLY
STEP 6E- 15MM LOAD RAILS- WITH STRUT MOUNTED RETRACTS
QXSEPP QUADCOPTER
ELECTRICAL POWER PLATE
SHCS-3X8 OR 3X10 HEX CAP SCREW
SHCS-3X30 HEX CAP SCREW
LRMB-12 LOAD RAIL MOUNTING BRACKET
RGF12 RUBBER GROMMET
12MM OR ASSEMBLED 15MM
CARBON FIBER LOAD RAILS
USE THESE HOLES FOR
60MM LOAD RAIL SPACING
USE THESE HOLES FOR
80MM LOAD RAIL SPACING
THREADLOCK COMPOUND RECOMMENDED
DETAIL: POWER PLATE ASSEMBLY
STEP 6D- OPTIONAL LANDING GEAR STRUTS SHCS-3X10 HEX CAP SCREW
ASSEMBLED STRUT
PLATE FROM STEP 5C
RLGST RETRACTABLE
LANDING GEAR STRUT
TUBE
QXSEPP QUADCOPTER
ELECTRICAL POWER PLATE
SHCS-3X10 HEX CAP
SCREW- (3) EA PER STRUT
3MX20FFAL HEX STANDOFF
THESE 3 STANDOFFS GO
INSIDE EACH STRUT TUBE
SHCS-3X10 HEX CAP SCREW
SHCS-3X18 HEX CAP
SCREW- (6) EA INTO
STANDOFFS
QXS-5B
QXS SERIES
AIRFRAME
ASSEMBLY
MANUAL- PAGE 5B
KLR15 LOAD RAIL ADD-ON ACCESSORY
(SHOWN)
KLR-10 & KLR12 LOAD RAIL ADD ON
ACCESORIES ALSO AVAILABLE- REFER TO
ADD-ON ACCESSORIES ASSEMBLY MANUAL
QLRRP - QUADCOPTER LOAD RAIL
REINFORCEMENT PLATE PLATE- ADD-ON
OPTIONAL ACCESSORY- USE WHEN HEAVY
LOADS WILL BE APPLIED TO LOAD RAILS-
CONTACT HEXACRAFTER FOR INFORMATION
3MX15FFAL OR 3MX20FFAL HEX
STANDOFF BASED ON USER
CLEARANCE REQUIREMENTS
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com

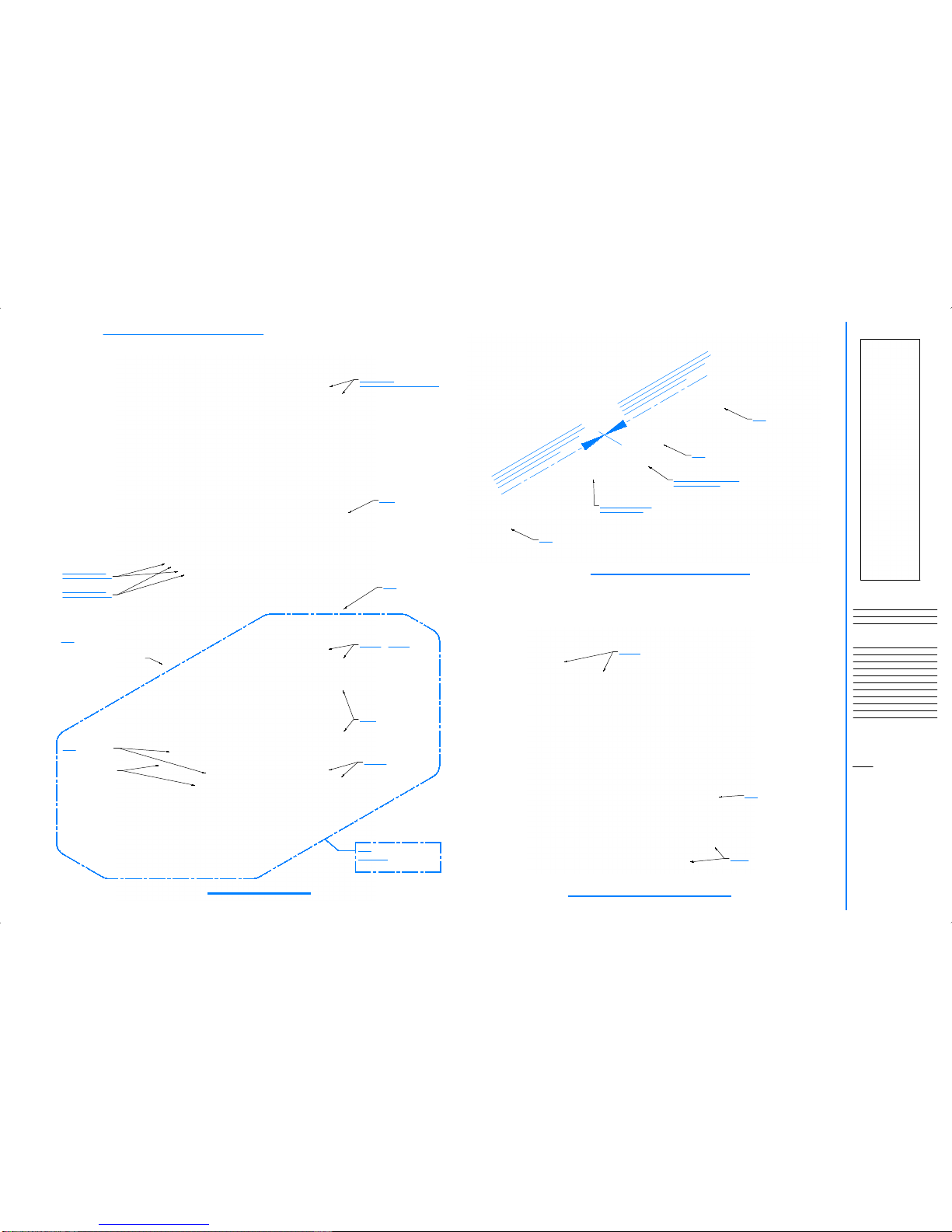

DETAIL: MAINFRAME ASSEMBLY
STEP 7 - MAINFRAME/ ARM ASSEMBLY QXS-6
QXS SERIES
AIRFRAME
ASSEMBLY
MANUAL- PAGE 6
ARM ASSEMBLIES WITH ROUND INTERNAL
INSERTS FOR ROTATING ARMS PARTIALLY
ASSEMBLED IN STEP 1
BOTTOM CENTER PLATE
ASSEMBLY FROM STEP 2.
TOP CENTER PLATE
ASSEMBLY FROM STEP 4.
SHCS-3X35 HEX CAP SCREW- (3) AT EACH
ARM LOCATION (ROTATING ARMS)
SHCS-3X8 HEX CAP SCREW AT
FRAME STANDOFF LOCATIONS
SLHN-3 STEEL LOCKING HEX NUT-
3MM- INNER (4) LOCATIONS
KNN3 3M KNURLED NUTS FOR FAST & EASY
REMOVAL OF (8) OUTER NUTS.
SHCS-3X35 HEX CAP SCREW
NOTE: 3MM LOCK WASHERS & FLAT WASHERS
ARE INCLUDED IN KIT & SHOULD BE USED.
NOT SHOWN IN THIS DIAGRAM.
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com

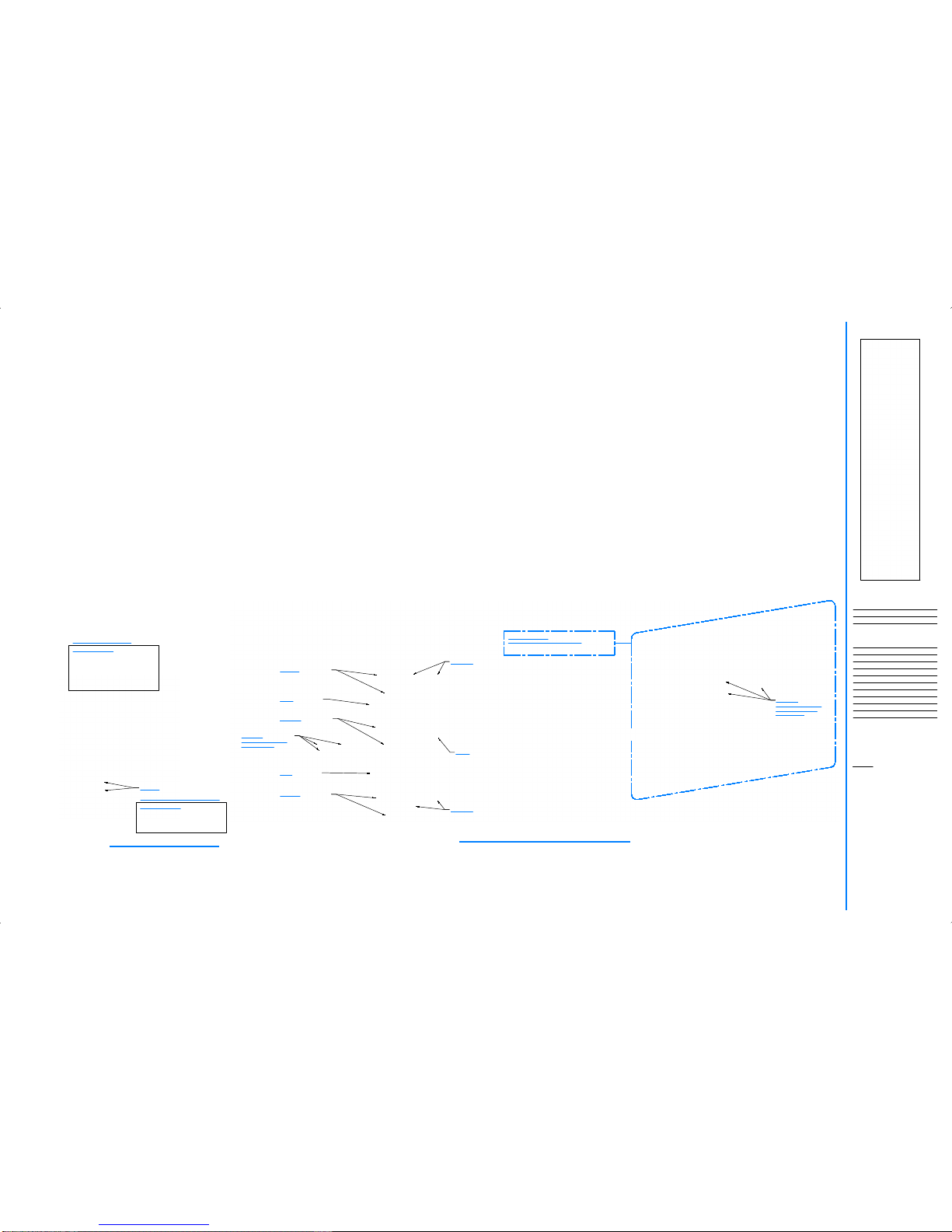

DETAIL: POWER PANEL TO FRAME
STEP 8
SHCS-3X10 HEX CAP SCREW
ASSEMBLED ELECTRICAL POWER PLATE
FROM STEPS 5 OR 6
PARTIALLY ASSEMBLED
AIRFRAME FROM STEP 7
QXS-7
QXS SERIES
AIRFRAME
ASSEMBLY
MANUAL- PAGE 7
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
QXS-8
AIRFRAME ASSEMBLY
MANUAL -
REIP ROUND ELECT.
ISOLATION SYSTEM

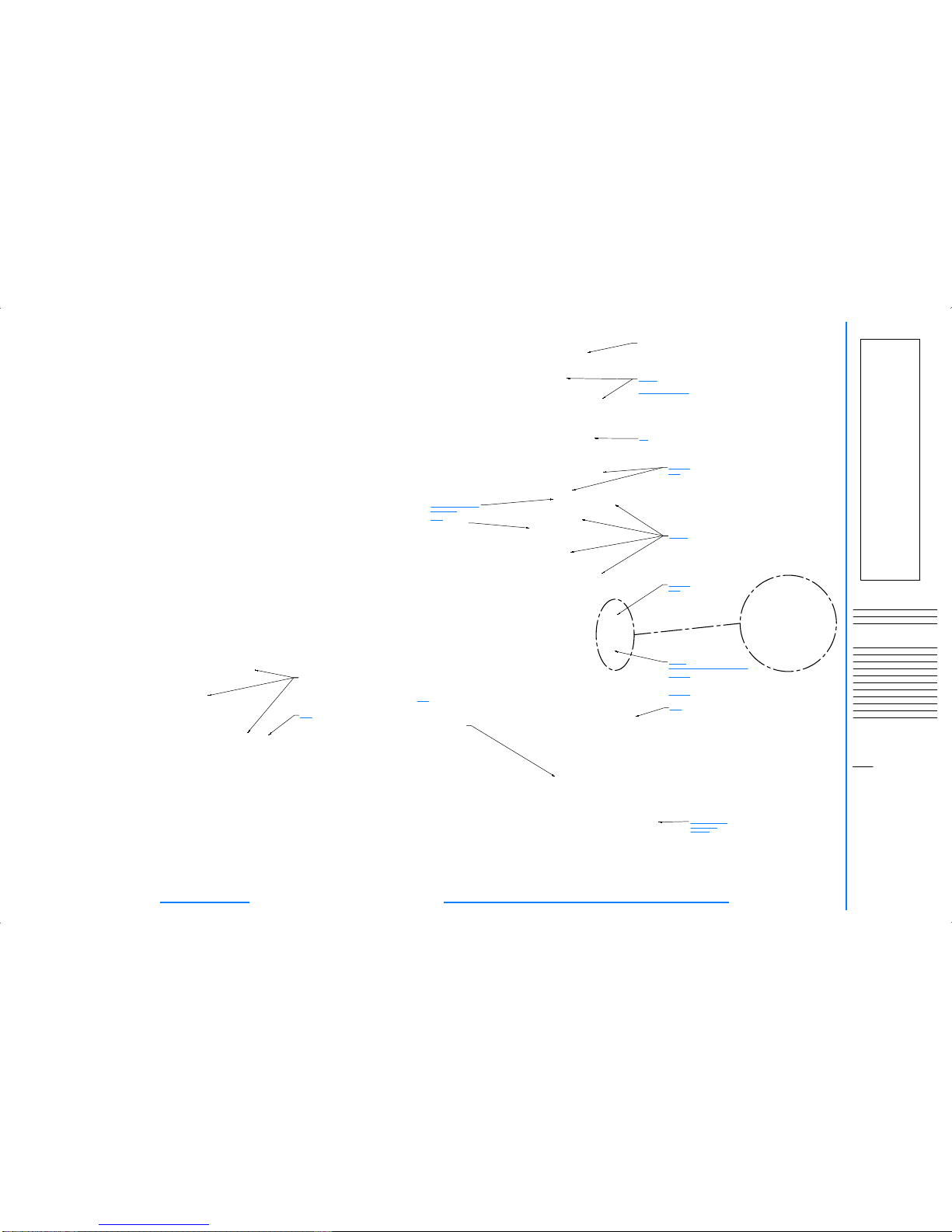

DETAIL: REIP SYSTEM
STEP 10 - REIP ROUND ELECTRONICS VIBRATION ISOLATION - DJI PRODUCTS
AREA FOR FLIGHT CONTROLLER
AHCS-3X6 ALUMINUM HEX
CAP SCREW
MAGNETIC INTERFERENCE:
ONLY NON-MAGNETIC
FASTENERS (ALUMINUM OR
NYLON) SHOULD BE USED
AROUND THE GPS / COMPASS
UNIT. STEEL FASTENERS MAY
CAUSE MAGNETIC
INTERFERENCE WITH THIS
TYPE OF ELECTRONIC
EQUIPMENT.
GPS/ COMPASS PUCK -
FASTEM TO GMP-1 WITH
DOUBLE SIDED TAPE-
PROVIDED BY OTHERS
GMP GPS MOUNTING PLATE
REIP-1 ROUND
ELECTRONICS
ISOLATION PLATE 1
TOP CENTER PLATE
ASSEMBLY OF
AIRCRAFT
IMU / NAZA/ A3
NOTE: CHECK THAT IMU/
FC WITH BUILT IN IMU IS
CENTERED IN HOLE OF
IMUP AFTER ASSEMBLED-
MINIMUM 1/8" AIR GAP
BETWEEN IMU AND REIP
PLATES IS RECOMMENDED
AHCS-3X8 STEEL HEX CAP
SCREW
3MX30FFAL HEX STANDOFF
IMPORTANT NOTE!!:
THE RUBBER ISOLATION CYLINDERS ARE VERY
SOFT AND DELICATE. THIS IS BY DESIGN TO
PROVIDE DESIGNED SHOCK/ VIBRATION
PROTECTION. USE EXTREME CARE WHEN
TIGHTENING AND LOOSENING THE NUTS AS THEY
ARE EASILY DAMAGED. DO NOT OVERTIGHTEN.
THE USE OF THREADLOCK IS NOT RECOMMENDED.
THE CAREFUL USE OF FORCEPS AT THE END OF
THE RUBBER CYLINDERS WHEN TIGHTENING AND
LOOSENING IS RECOMMENDED. A SMALL LINE OR
DROP OF THREADLOCK CAN BE APPLIED AFTER
THE NUT IS TIGHTENED IF CONCERNED ABOUT THE
NUT LOOSENING. USE AN EXACTO KNIFE TO
"BREAK" THE LINE OR DROP OF THREADLOCK
PRIOR TO LOOSENING THE NUT.
IMPORTANT NOTE!!:
THE RUBBER ISOLATION CYLINDER THREADS ARE
US AND STANDOFFS ARE METRIC. DO NOT
ATTEMPT TO SCREW ISOLATION DAMPNER INTO A
STANDOFF. USE PROVIDE 4-40 US THREAD NUTS.
TSS-3X16 THREADED STEEL STUD
THREADLOCK COMPOUND RECOMMENDED
AT
3MX23FFAL HEX STANDOFF - LEAVE 10MM OF
THREADS EXPOSED- WAIT 20 MINUTES TO
ALLOW THREADLOCK TO SET BEFORE
ASSEMBLING THROUGH PLATE AND INTO THE
3MX15FFAL HEX STANDOFF
REIP-2 ROUND ELECTRONICS
ISOLATION PLATE 2
3MX25FFAL HEX STANDOFF FOR DJI PRODUCTS
DETAIL: REIP SYSTEM
STEP 9 - REIP ROUND ELECTRONICS VIBRATION ISOLATION
NOTE:
DIFFERENT LENGTH STANDOFFS
MAY BE USED TO PROVIDE NEEDED
CLEARANCE FOR ADDITIONAL
PLATE MOUNTED ELECTRONICS.
VERIFY DOME CLEARANCE WHEN
USING DIFFERENT STANDOFFS.
NOTE:
DIFFERENT LENGTH STANDOFFS
MAY BE USED TO PROVIDE NEEDED
CLEARANCE FOR ADDITIONAL
PLATE MOUNTED ELECTRONICS.
VERIFY DOME CLEARANCE WHEN
USING DIFFERENT STANDOFFS.
IMU TO MOUNT HERE
NOTE: CHECK THAT IMU IS
CENTERED IN HOLE OF
LEIP AFTER ASSEMBLED-
MINIMUM 1/8" AIR GAP
BETWEEN IMU AND LEIP
PLATE IS RECOMMENDED
IMUP-2 IMU PLATE - TYPE 2
IMUP-2 IMU PLATE - TYPE 2
DJI IMU OR FLIGHT CONTROLLER
WITH BUILT IN IMU
OR
PIXHAWK TO MOUNT HERE
NOTE: HOLES ARE
PROVIDED IN PLATE FOR
BOLT-UP OF PIXHAWK 2.1.
EARLIER PIXHAW MOUNT
WITH DOUBLE SIDED TAPE
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
QXS-9
AIRFRAME ASSEMBLY
MANUAL -
REIP ROUND ELECT.
ISOLATION SYSTEM

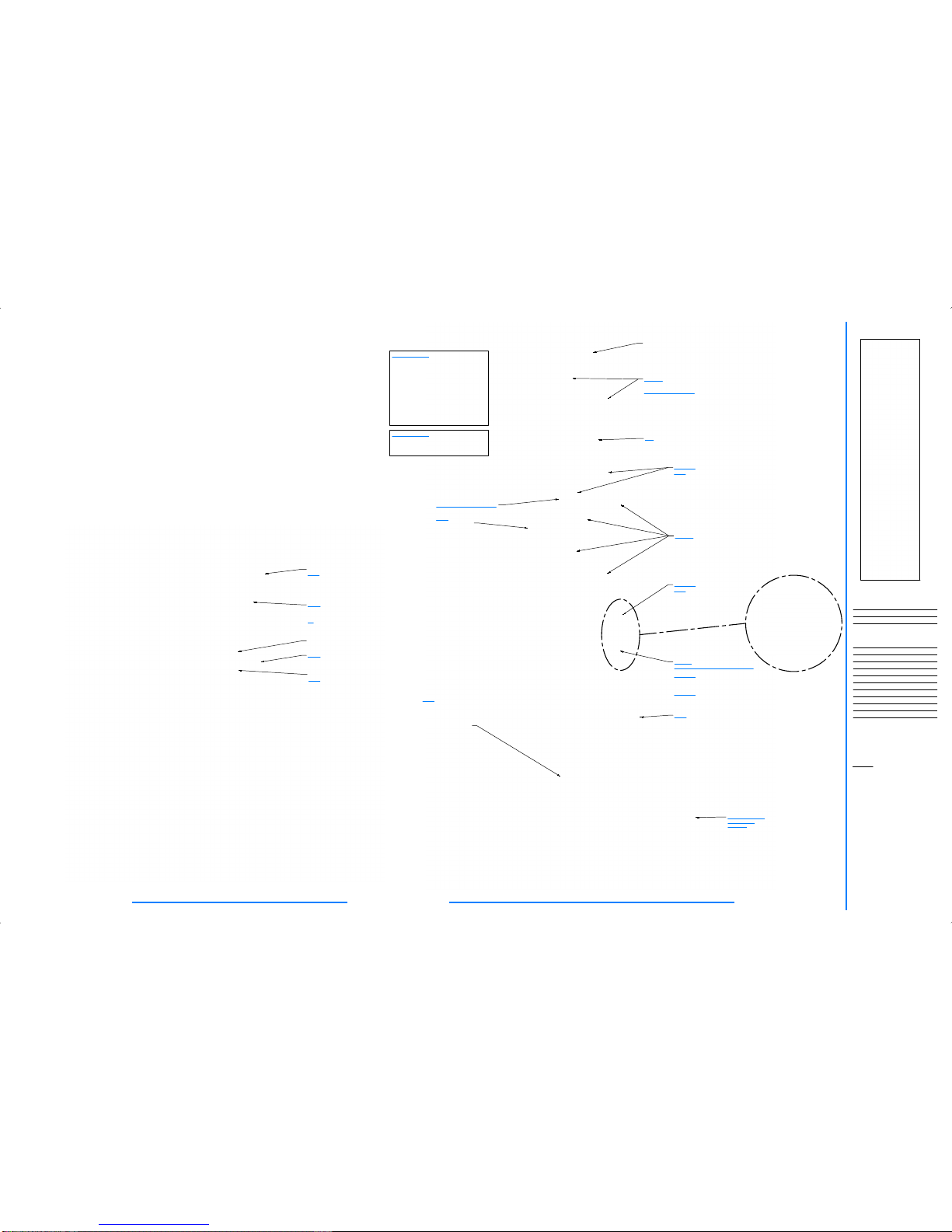

DETAIL: REIP SYSTEM
STEP 10B - REIP ROUND ELECTRONICS VIBRATION ISOLATION - PIXHAWK
AREA FOR RX AND OTHER
ELECTRONICS
AHCS-3X6 ALUMINUM HEX
CAP SCREW
MAGNETIC INTERFERENCE:
ONLY NON-MAGNETIC
FASTENERS (ALUMINUM OR
NYLON) SHOULD BE USED
AROUND THE GPS / COMPASS
UNIT. STEEL FASTENERS MAY
CAUSE MAGNETIC
INTERFERENCE WITH THIS
TYPE OF ELECTRONIC
EQUIPMENT.
GPS/ COMPASS PUCK -
FASTEM TO GMP-1 WITH
DOUBLE SIDED TAPE-
PROVIDED BY OTHERS
GMP GPS MOUNTING PLATE
TOP CENTER PLATE
ASSEMBLY OF
AIRCRAFT
IMU / NAZA/ A3
NOTE: CHECK THAT IMU/
FC WITH BUILT IN IMU IS
CENTERED IN HOLE OF
IMUP AFTER ASSEMBLED-
MINIMUM 1/8" AIR GAP
BETWEEN IMU AND REIP
PLATES IS RECOMMENDED
AHCS-3X8 STEEL HEX CAP
SCREW
3MX25FFAL HEX STANDOFF
TSS-3X16 THREADED STEEL STUD
THREADLOCK COMPOUND RECOMMENDED
AT
3MX23FFAL HEX STANDOFF - LEAVE 10MM OF
THREADS EXPOSED- WAIT 20 MINUTES TO
ALLOW THREADLOCK TO SET BEFORE
ASSEMBLING THROUGH PLATE AND INTO THE
3MX15FFAL HEX STANDOFF
REIP-2 ROUND ELECTRONICS
ISOLATION PLATE 2
3MX30FFAL HEX STANDOFF FOR PIXHAWK
NOTE:
DIFFERENT LENGTH STANDOFFS
MAY BE USED TO PROVIDE NEEDED
CLEARANCE FOR ADDITIONAL
PLATE MOUNTED ELECTRONICS.
VERIFY DOME CLEARANCE WHEN
USING DIFFERENT STANDOFFS.
NOTE:
DIFFERENT LENGTH STANDOFFS
MAY BE USED TO PROVIDE NEEDED
CLEARANCE FOR ADDITIONAL
PLATE MOUNTED ELECTRONICS.
VERIFY DOME CLEARANCE WHEN
USING DIFFERENT STANDOFFS.
FOR PIXHAWK CONTROLLERS-
USE DREMEL CUT-OFF WHEEL TO
CUT THE TABS BETWEEN SHAPE
CUT OUT & REMOVE CARBON
FIBER INFILL PIECES.
REIP-1 ROUND
ELECTRONICS
ISOLATION PLATE 1
REIP-1- ROUND
ELECTRONICS PLATE 1 -
CENTER CUT-OUT PER
PREVIOUS STEP 9A
DETAIL: ELECTRONICS TREE
STEP 10A - PIXHAWK
SHEET TITLE :
SHEET NO. :
NOTICE:
HexaCrafter ltd. reserves proprietary
rights to this drawing and data shown
thereon. Said drawings and/or data
are CONFIDENTIAL and are not to
be reproduced for any purpose
without the written consent of
HexaCrafter ltd.
ISSUE / DATE:
DRAWN BY:
01-17-2017
ARR
HexaCrafter ltd.
2750 Northampton Road
Cuyahoga Falls, Ohio 44223
(330) 929-0989
www.hexacrafter.com
QXS-10
AIRFRAME ASSEMBLY
MANUAL -
REIP ROUND ELECT.
ISOLATION SYSTEM
SHCS-3X10 STEEL HEX CAP
SCREW
DETAIL: ELECTRONICS TREE
STEP 11 - ELECTRONICS CANOPY
ROUND POLYCARBONATE
DOME CANOPY
