Protoss-PE11
RS485 to Ethernet
User Manual
V 1.1
Overview of Characteristic
Cortex-M3 MCU with 2MB Flash and 128KB SRAM
Use FreeRTOS Operation System
Support TCP/UDP/MQTT/HTTP/WebSocket Protocol
Support Modbus TCP to RTU, Modbus Master Function
Support RS485 To 10/100M Ethernet Conversion, Serial Speed Up to 460800 bps
Support 10/100M Ethernet Auto-Negotiation

Protoss-PE11 User Manual
http://www.iotworkshop.com - 2 -
Support Webpage Easy Configuration or PC IOTService Tool
Support Security Protocol Such As AES/DES3
Support Heartbeat and Resister Packet Function
Support Webpage OTA Wireless Upgrade
Support Industrial Temperature: -40 to +85˚ C
Multiple Type of Different Power Input：
◼Protoss-PE11-H：100～240VAC@50～60Hz
◼Protoss-PE11-M：9～48VDC@1A
Size: 97.60 x 64.95 x 27.50 mm (L x W x H) ，C45 rail installation

Protoss-PE11 User Manual
http://www.iotworkshop.com - 3 -
TABLE OF CONTENTS TABLE OF CONTENTS
TABLE OF CONTENTS TABLE OF CONTENTS...........................................................................3
LIST OF FIGURES............................................................................................................................4
LIST OF TABLES .............................................................................................................................5
HISTORY...........................................................................................................................................5
1. PRODUCT OVERVIEW........................................................................................................6
1.1. General Description.........................................................................................................6
1.2. Device Paremeters...........................................................................................................6
1.3. Key Application................................................................................................................7
2. HARDWARE INTRODUCTION...........................................................................................8
2.1. Protoss-PE11 Pins Definition .........................................................................................9
2.2. RS485 Interface..............................................................................................................10
2.3. RJ45 Interface ................................................................................................................10
2.4. Mechanical Size .............................................................................................................11
2.5. Product Installation .......................................................................................................13
2.6. Order Information ..........................................................................................................13
3. FUNCTION DESCRIPTION...............................................................................................14
APPENDIX A: CONTACT INFORMATION ...............................................................................15

Protoss-PE11 User Manual
http://www.iotworkshop.com - 4 -
LIST OF FIGURES
Figure 1. Protoss-PE11 Appearance ..............................................................................................................8
Figure 2. Protoss-PE11 Interface....................................................................................................................9
Figure 3. RJ45 Pin Defination.......................................................................................................................10
Figure 4. Protoss-PE11 Mechanical Dimension............................................................................................12
Figure 5. Product Installation........................................................................................................................13
Figure 6. Protoss-PE11 Product Order Information ......................................................................................13

Protoss-PE11 User Manual
http://www.hi-flying.com - 5 -
LIST OF TABLES
Table1. Protoss-PE11 Technical Specifications..................................................................................................6
Table2. Protoss-PE11-H Interface Definition.......................................................................................................9
Table3. Protoss-PE11-M Interface Definition ....................................................................................................10
Table4. RJ45 Interface......................................................................................................................................11
HISTORY
Ed. V1.0 02-10-2020 First Version
Ed. V1.1 03-18-2020 Update RS485 interface

Protoss-PE11 User Manual
http://www.hi-flying.com - 6 -
1.PRODUCT OVERVIEW
1.1. General Description
The Protoss-PE11 provides a RS485 interface to TCP/IP data transfer product. The Protoss-PE11
integrate TCP/IP controller, memory, 10/100M Ethernet transceiver, RS485 and integrates a fully
developed TCP/IP network stack and FreeRTOS OS. Protoss-PE11 also includes an embedded web
server used to configure device.
The Protoss-PE11 using highly integrated hardware and software platform, it has been optimized for
all kinds of applications in the industrial control, smart grid, personal medical application and remote
control that have lower data rates, and transmit or receive data on an infrequent basis.
1.2. Device Paremeters
Table1. Protoss-PE11 Technical Specifications
Item
Parameters
System Information
Processor/Frequency
Cortex-M3/96MHz
Flash/SDRAM
2MB/128KB
Operating System
FreeRTOS
Ethernet Port
Port Number
1
Interface Standard
10/100 Base-T Auto-Negotiation
Transformer
Integrated
Network Protocol
IP，TCP，UDP，DHCP，DNS，HTTP Server/Client，ARP,
AutoIP, ICMP，Telnet, NTP, Modbus TCP
Security Protocol
AES 128Bit
DES3
Serial Port
Port Number
1 RS485
Data Bits
5,6,7,8
Stop Bit
1,2
Check Bit
None, Even, Odd
Baud Rate
TTL: 600 bps~460800 bps
Flow Control
No Flow Control
Software Xon/ Xoff flow control
Software
Web Pages
Http Web Configuration
Customization of HTTP Web Pages
Configuration
Web
CLI
XML import

Protoss-PE11 User Manual
http://www.hi-flying.com - 7 -
Telnet
IOTService PC Software
UART Fast Config
Firmware Upgrade
Webpage, IOTService Tools
Basic Parameter
Size
97.60mm x 64.95mm x 27.50mm
Operating Temp.
-40 ~ 85°C
Storage Temp.
-45 ~ 105°C, 5 ~ 95% RH（no condensation）
Input Voltage
Protoss-PE11-H：100～240VAC@50～60Hz
Protoss-PE11-M：9～48VDC@1A
Working Current
~100mA
Power
<400mW
1.3. Key Application
The Protoss-PE11 device connects serial device to Ethernet networks using the TCP/IP protocol:
⚫Remote equipment monitoring
⚫Asset tracking and telemetry
⚫Security Application
⚫Industrial sensors and controls
⚫Medical devices
⚫ATM machines
⚫Data collection devices
⚫Universal Power Supply (UPS) management units
⚫Telecommunications equipment
⚫Data display devices
⚫Handheld instruments
⚫Modems
⚫Time/attendance clocks and terminals

Protoss-PE11 User Manual
http://www.hi-flying.com - 8 -
2.HARDWARE INTRODUCTION
The Protoss-PE11 unit is a complete solution for serial port device connecting to network. This
powerful device supports a 10/100BASE-T Ethernet connection, a reliable and proven operating
system stored in flash memory, an embedded web server, a full TCP/IP protocol stack, and standards-
based (AES) encryption.
Through Ethernet cable connect router with Protoss-PE11 serial server for data transfer, which makes
the data transformation very simple.

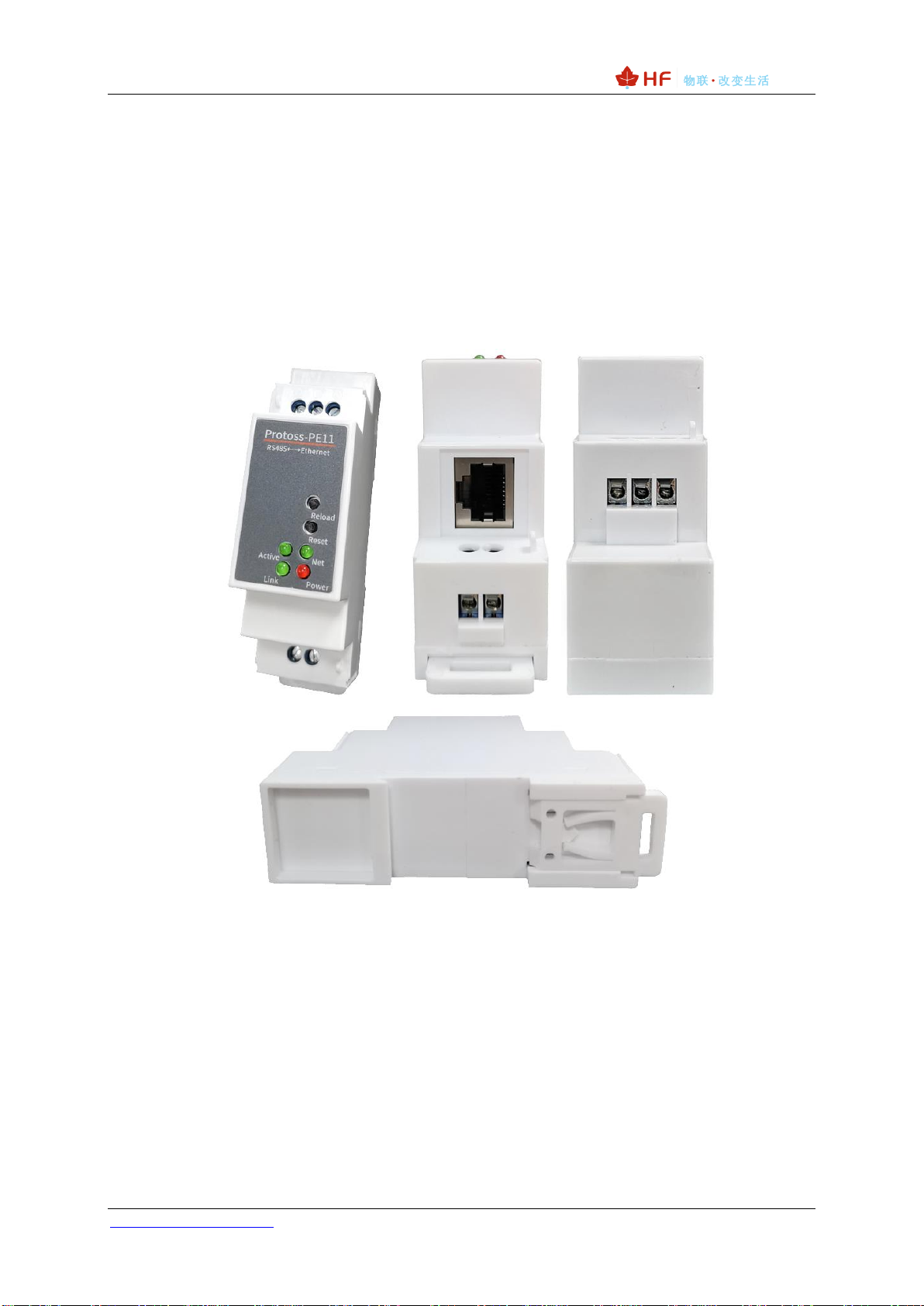

Figure 1. Protoss-PE11 Appearance

Protoss-PE11 User Manual
http://www.hi-flying.com - 9 -
2.1. Protoss-PE11 Pins Definition
Figure 2. Protoss-PE11 Interface
Table2. Protoss-PE11-H Interface Definition
Pin
Description
Net Name
Signal Type
Comment
1
AC Power Input
L
Power
100～240VAC Input
2
AC Power Input
N
Power
5
RS485_B-
IO
RS485 B-
6
Signal GND
GND
Power
Used for RS485 GND, usually leave it
unconnected
7
RS485_A+
IO
RS485 A+
RJ45
Ethernet
RJ45
I/O
Reload
Restore to factory
setting button
Reload
I
Press down for more than 3 seconds and
loose to restore factory setting.
Reset
Reset button
Reset
I
Hardware reset button
Net
Network status
LED
Net
O
On: Ethernet connection is OK
Off: No Ethernet connection
Active
UART Data
Transfer
Active
O
Off: No data transfer
0.3s Off -> 0.9s On: UART TX Output
0.3s Off -> 0.3s On: UART RX Receive
On: UART bidirection.
Power
Power LED
Power
O
On: Power input OK
Off: Power input NG.
Link
Server
connection LED
Link
O
On: netp Socket connection OK.
Off: no netp Socket connection.

Protoss-PE11 User Manual
http://www.hi-flying.com - 10 -
Table3. Protoss-PE11-M Interface Definition
Pin
Description
Net Name
Signal Type
Comment
1
DC Power Input
VCC+
Power
9～48VDC@1A Input
2
DC Power Input
GND-
Power
5
RS485_B-
IO
RS485 B-
6
Signal GND
GND
Power
Used for RS485 GND, usually leave it
unconnected
7
RS485_A+
IO
RS485 A+
RJ45
Ethernet
RJ45
I/O
Reload
Restore to factory
setting button
Reload
I
Press down for more than 3 seconds and
loose to restore factory setting.
Reset
Reset button
Reset
I
Hardware reset button
Net
Network status
LED
Net
O
On: Ethernet connection is OK
Off: No Ethernet connection
Active
UART Data
Transfer
Active
O
Off: No data transfer
0.3s Off -> 0.9s On: UART TX Output
0.3s Off -> 0.3s On: UART RX Receive
On: UART bidirection.
Power
Power LED
Power
O
On: Power input OK
Off: Power input NG.
Link
Server
connection LED
Link
O
On: netp Socket connection OK.
Off: no netp Socket connection.
<Notes>
I —Input; O —Output; I/O: Digital I/O; Power—Power Supply
2.2. RS485 Interface
RS485 use two wire links, A(DATA+), B(DATA-). Connect A(+) to A(+), B(-) to B(-) for communication.
Suggest to connect GND together when interference is very severe.
The RS485 interface support maximum 32 RS485 device. The cable maximum length is 1200 meters.
Need to add 120Ohm terminal resistor for over 300 meters.
2.3. RJ45 Interface
Ethernet port is 10M/100M adaptive, support AUTO MDI/MDIX which means it support direct
connecting to PC with Ethernet cable.
Figure 3. RJ45 Pin Defination

Protoss-PE11 User Manual
http://www.hi-flying.com - 11 -
Table4. RJ45 Interface
Pin Number
Name
Description
1
TX+
Transfer Data+
2
TX-
Transfer Data-
3
RX+
Receive Data+
4
PHY-VCC
Transformer Tap Voltage
5
PHY-VCC
Transformer Tap Voltage
6
RX-
Receive Data-
7
N.C.
None Connect
8
N.C.
None Connect
2.4. Mechanical Size

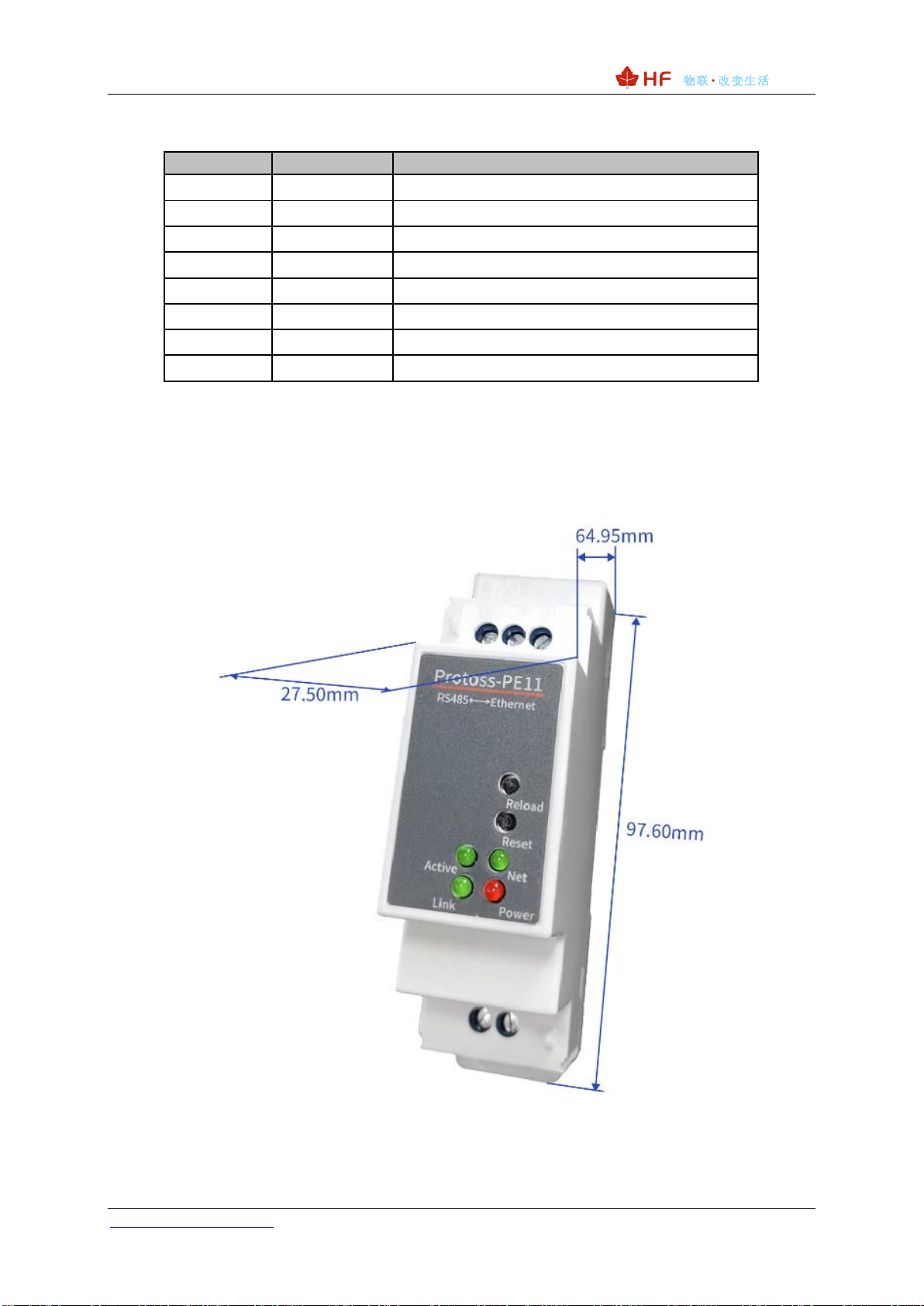

The dimensions of Protoss-PE11 are defined as following picture (mm):

Protoss-PE11 User Manual
http://www.hi-flying.com - 12 -
Figure 4. Protoss-PE11 Mechanical Dimension

Protoss-PE11 User Manual
http://www.hi-flying.com - 13 -
2.5. Product Installation
Figure 5. Product Installation
2.6. Order Information
Base on customer detailed requirement, Protoss-PE11 provide different configuration version, Details
as below:
Figure 6. Protoss-PE11 Product Order Information

Protoss-PE11 User Manual
http://www.hi-flying.com - 14 -
3.FUNCTION DESCRIPTION
Refer to “IOT_Device_Series_Software_Funtion” document for more detailed function.

Protoss-PE11 User Manual
http://www.hi-flying.com - 15 -
APPENDIX A: CONTACT INFORMATION
------------------------------------------------------------------------------------------------------------
Address: Room 1002,Building 1,No.3000,Longdong Avenue,Pudong New
Area,Shanghai,China,201203
Web: www.iotworkshop.com or www.hi-flying.com
Contact:
Sales: [e-mail]
Support: [e-mail]
Service: [e-mail]
Business: [e-mail]
---------------------------------------------------------------------------- -------------------------------
For more information about IOTworkshop modules, applications, and solutions, please visit our web
site www.iotworkshop.com
<END OF DOCUMENT>
