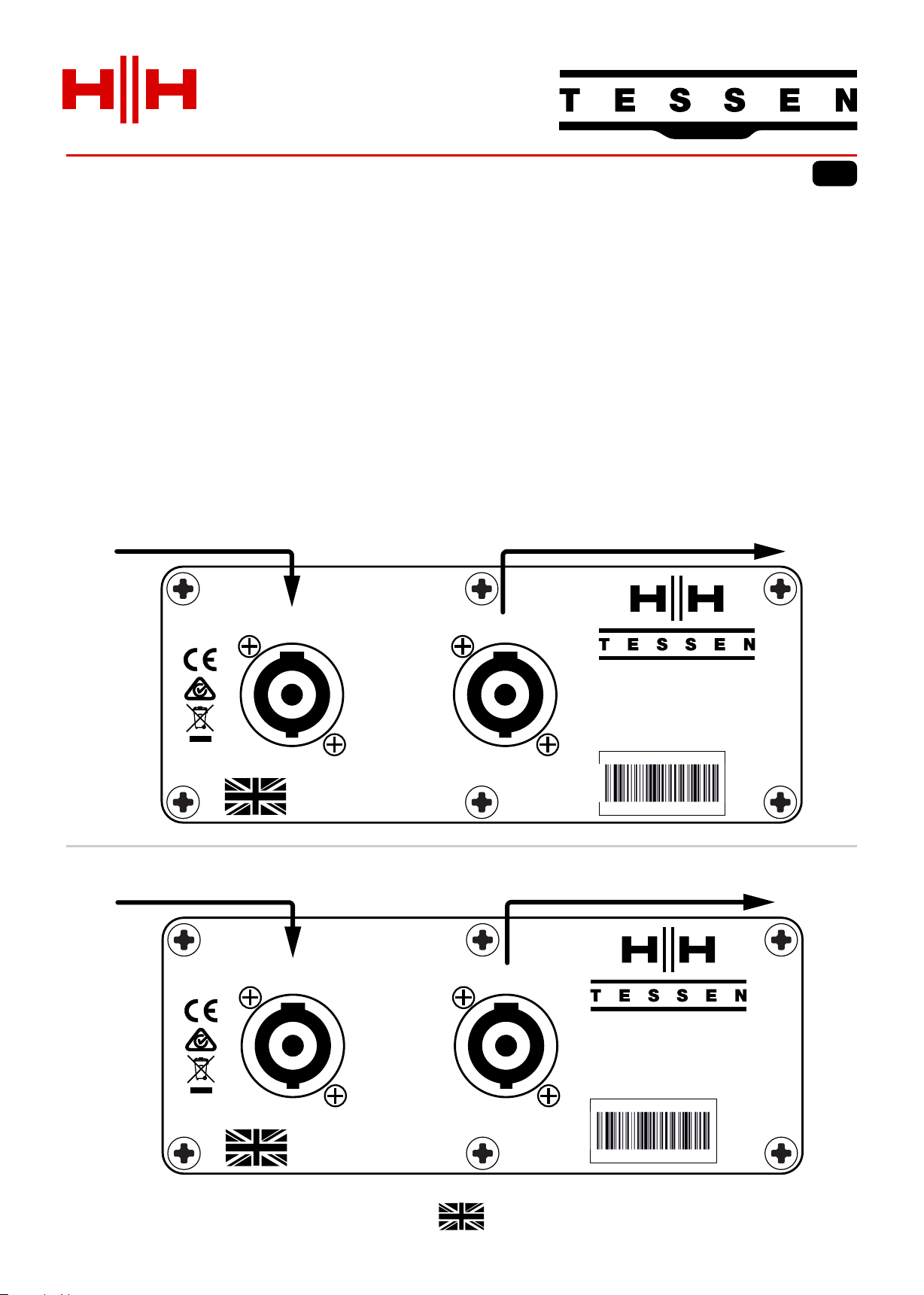

REAR PANEL - I/O
INTRODUCTION
TNA-2051
TNA-1200S
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM
SENSITIVITY : 95dB (1W/1M)
MODEL : TNA-1200S
IMPEDANCE : 8Ω
POWER AES : 300W
POWER PEAK : 1200W
FREQ RANGE : 35-2KHz
SN:ABC1234567890
MODEL: TNA-1200S
From amplifier To additional cabinet
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM
FREQ RANGE : 65-20KHz
MODEL : TNA-2051
IMPEDANCE : 16Ω
POWER AES : 200W
SENSITIVITY : 94dB (1W/1M)
POWER PEAK : 800W
SN:ABC1234567890
MODEL: TNA-2051
From amplifier To additional cabinet
2
The TNA range comprises of TNA-2051; Dual HH designed 5” two-way passive line array speaker with custom designed
Celestion compression driver and wave guide, and the TNA-1200S; 12” high performance passive subwoofer.
TNA-1200S providing flexible transport of a stacked system.
With live sound applications increasing in demand, users require more from their audio system. The TNA mini line array
provides high output within a compact system. Suitable as either a permanently installed sound system or for portable use,
the TNA mini line array delivers crystal clear dynamics.
TNA mini line array – the perfect mobile or installed audio solution.
Along with the TNA speaker enclosures are premium constructed accessories. The TNA-BRK1 solid steel flying bracket
provides secure suspension of the TNA system when installed. The TNA-DF1 wheeled dolly frame attaches to the


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY

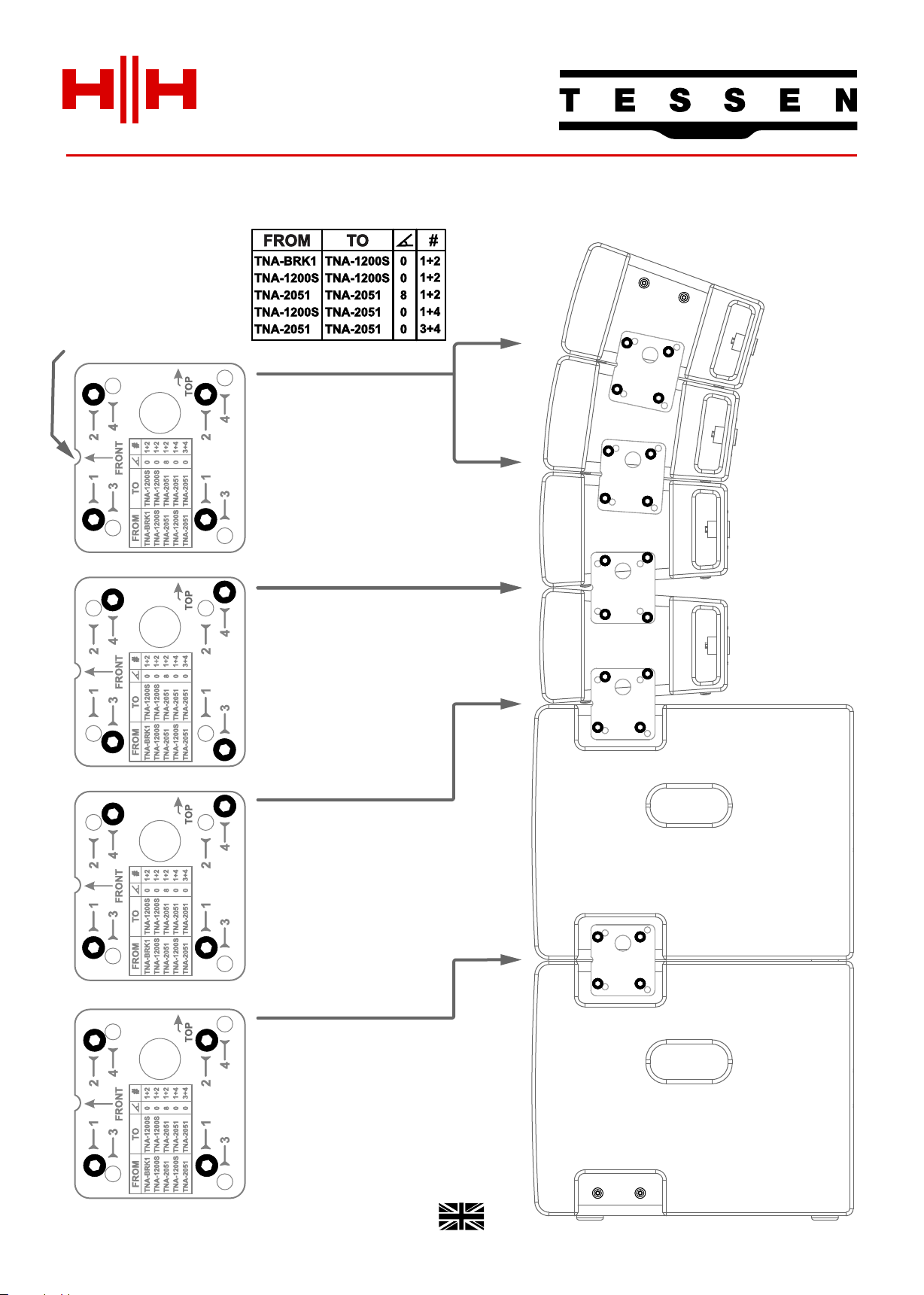

The TNA side bracket is used to provide the mechanical fixing/support between TNA-1200S sub cabinet and TNA-2051 satellite
cabinets. Depending on the combination of holes used, a vertical or angled arrangement can be achieved.
Option 1
Option 2
Option 3
Option 1
The fit options are printed on
the side bracket.
In all instances, the location
notch should point towards
the front face of the cabinet.
3


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
4
KIT CONTENTS
FLYING BRACKET TO TNA-1200S
The TNA-BRK1 flying bracket for use with the TNA-1200S and TNA-2051. With its
solid steel construction, the TNA-BRK1 securely supports up to two TNA-1200S
and eight TNA-2051 enclosures simultaneously.
The TNA-BRK1 is attached to the TNA-1200S using two Side Brackets and one Rear Bracket.
As with the TNA-1200S, spring washers
must be used with all screws!
Spring washers must be used with each screw!
Be extremely careful to not cross thread the side screws when filling the brackets!
TNA-BRK1 - FLYING BRACKET
FLYING BRACKET TO TNA-2051
LOCKNUT
SPRING WASHER
SPRING WASHER
REAR BRACKET
LOCKNUT
SPRING WASHER
SIDE BRACKET
1 x Lift Bracket assembly
3 x D-shackle
2 x Side plate
1 x Rear plate
7 x M8x25mm connector bolt
6 x M8 lock nuts
7 x Spring washers
LOCKNUT
SPRING WASHER
SIDE BRACKET
SPRING WASHER
SPRING WASHER
A TNA-2051 requires the use of Side Brackets only.


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
5
SAFETY
In the interest of continued development, HH reserves the right to amend product specification without prior notification.
W
D
H
cabinets.
Depending on local regulations, additional pull back supports may be required.
For added safety, it is strongly recommended that the audio connections, mechanical fixings and mounting
brackets are checked periodically.
It is the installers responsibility to ensure the point of fixing is structurally adequate to support the weight of the
Under no circumstances attempt to rig, suspend or otherwise mount this system unless you are fully qualified
and certified to do so by relevant local, state and national authorities. All relevant safety regulations must be
followed. If you are not properly qualified or do not know of pertinent regulations, consult qualified personnel for
advice and assistance.
The flying of cabinets should be performed only by properly qualified persons, in compliance with all local laws
and using approved hardware.
The rigging or suspended mounting of these speakers can expose members of the public to serious health risks
or even death.
TWO TNA-1200S
UPTO EIGHT TNA-2051*

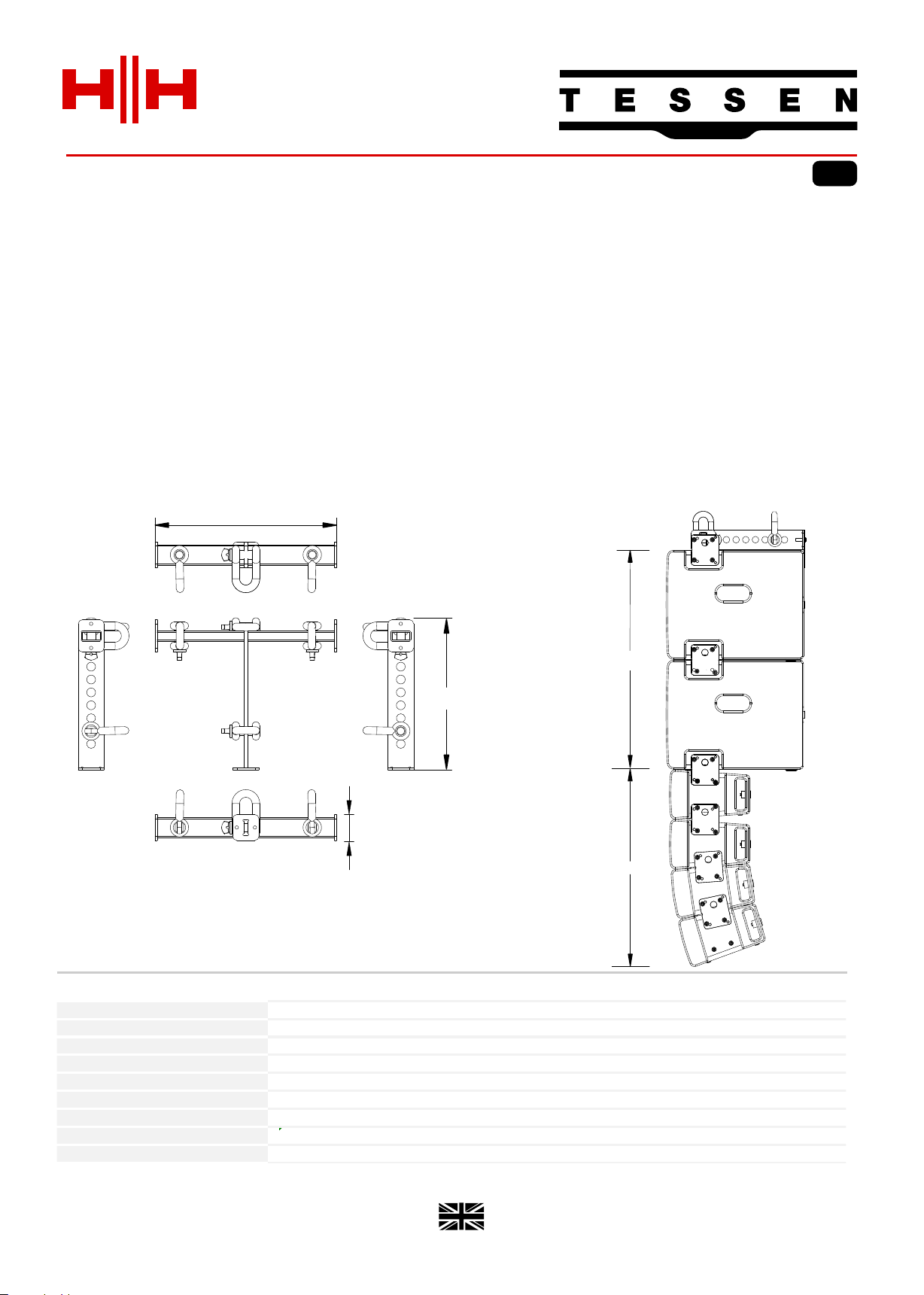

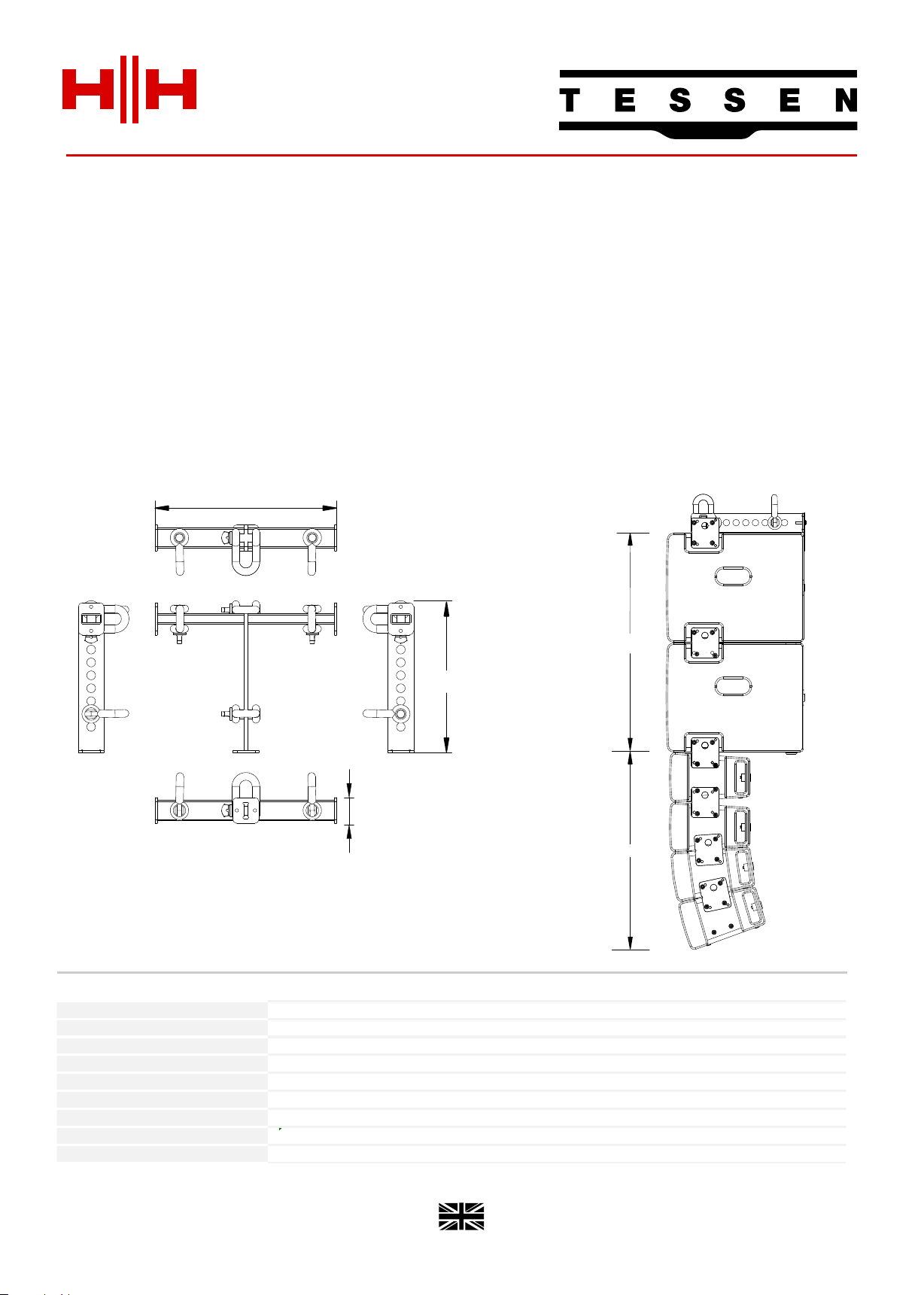

SPECIFICATION
TNA-BRK1 MAXIMUM SUPPORT LIMIT
*extra pull-back support required for more than 4 TNA-2051
Model
TNA-BRK1
Suspension Type
The bracket allows you to fit upto three D-shackles (included)
Mounting Type
Five M8 mounting points hold the bracket securely to the cabinet
Max Load Weight
120Kg, 264lbs
Max Unit Load
8x TNA-2051 & 2x TNA-1200S OR 4x TNA-1200S
Unit dimensions (HWD)
64 x 451 x 340mm, 2.5" x 17.8" x 13.4"
Unit weight
5.6Kg, 12.3 lbs
Carton dimensions (HWD)
145 x 505 x 430mm, 5.7" x 19.9" x 16.9" , 0.031 M3
Packed weight
6.7Kg, 14.8 lbs


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
With its lightweight rugged design the TNA-DF1 allows for cabinets to be easily repositioned and configured to suit the
requirement at hand.
PLEASE NOTE: A maximum of four TNA-2051 and two TNA-1200 should be used on the Dolly Board.
TNA-DF1 - DOLLY BOARD
The TNA-1200S is secured to the
TNA-DF1 (using two side and one rear
bracket) with six M8 x 20 hex bolts.
Ensure the breaks are engaged on the
rear wheels once the array has been
suitably positioned.
6


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
7
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM SN:ABC1234567890
MODEL: TNA-2051
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM SN:ABC1234567890
MODEL: TNA-2051
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM SN:ABC1234567890
MODEL: TNA-1200S
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM SN:ABC1234567890
MODEL: TNA-1200S
CHANNEL 4CHANNEL 2
CHANNEL 1 CHANNEL 3

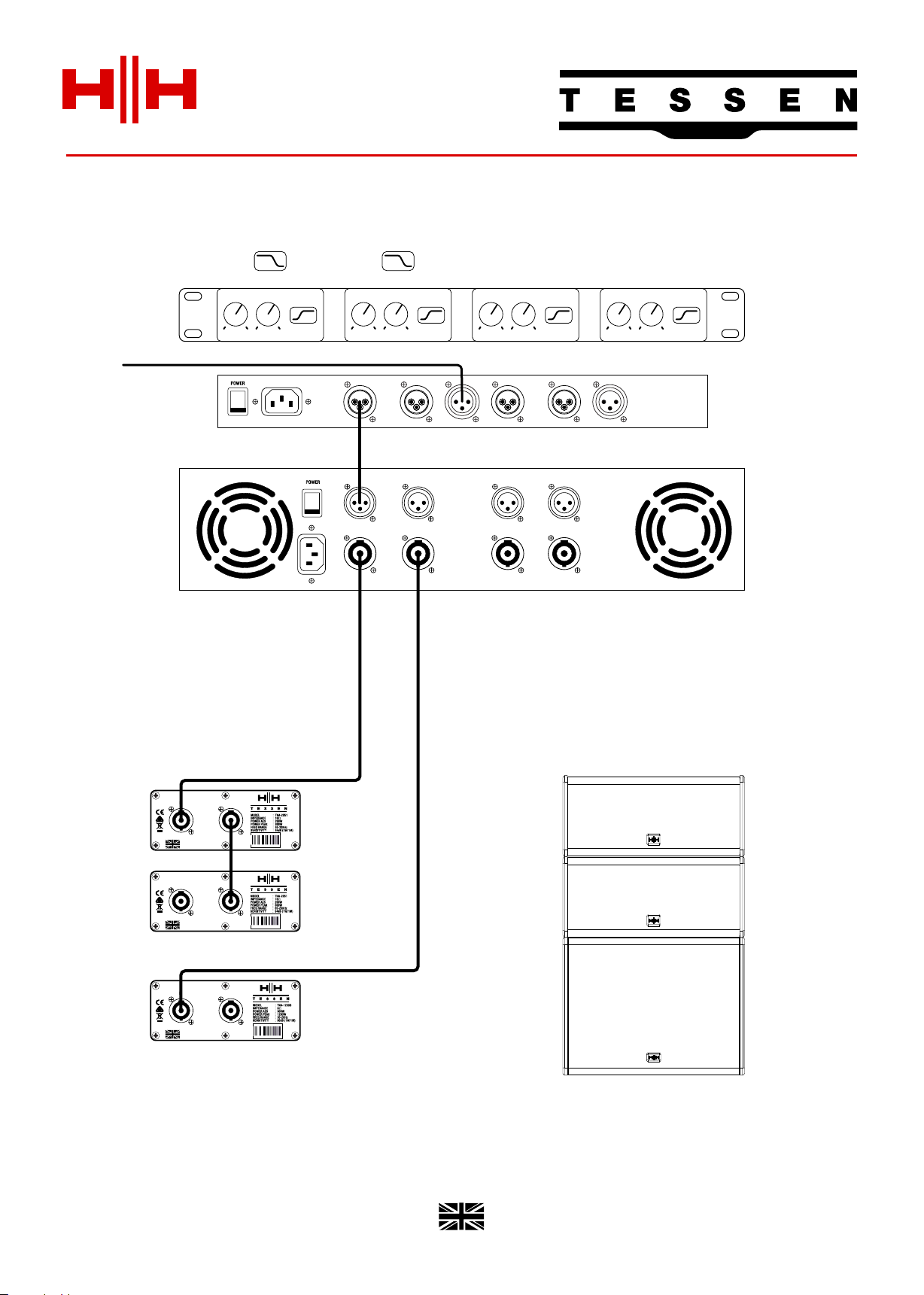

4 CHANNEL SETUP
120-150Hz
12dB/Octave
120-150Hz
12dB/Octave 120-150Hz 12dB/Octave
120-150Hz
12dB/Octave
CHANNEL 1
FREQUENCY
LEVEL
CHANNEL 2
FREQUENCY
LEVEL
CHANNEL 3
INPUT 2
CHANNEL 3
INPUT 1
CHANNEL 1
FROM MIXER
FROM MIXER
CHANNEL 2
FREQUENCY
LEVEL
CHANNEL 4
FREQUENCY
LEVEL
CHANNEL 4


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM SN:ABC1234567890
MODEL: TNA-2051
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM SN:ABC1234567890
MODEL: TNA-2051
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM SN:ABC1234567890
MODEL: TNA-1200S
CHANNEL 4
CHANNEL 1 CHANNEL 3CHANNEL 2
120-150Hz
12dB/Octave
120-150Hz
12dB/Octave
CHANNEL 1
FREQUENCY
LEVEL
CHANNEL 2
FREQUENCY
LEVEL
CHANNEL 3
INPUT 2
CHANNEL 3
INPUT 1
CHANNEL 1
FROM MIXER
CHANNEL 2
FREQUENCY
LEVEL
CHANNEL 4
FREQUENCY
LEVEL
CHANNEL 4
2 CHANNEL SETUP
8


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY

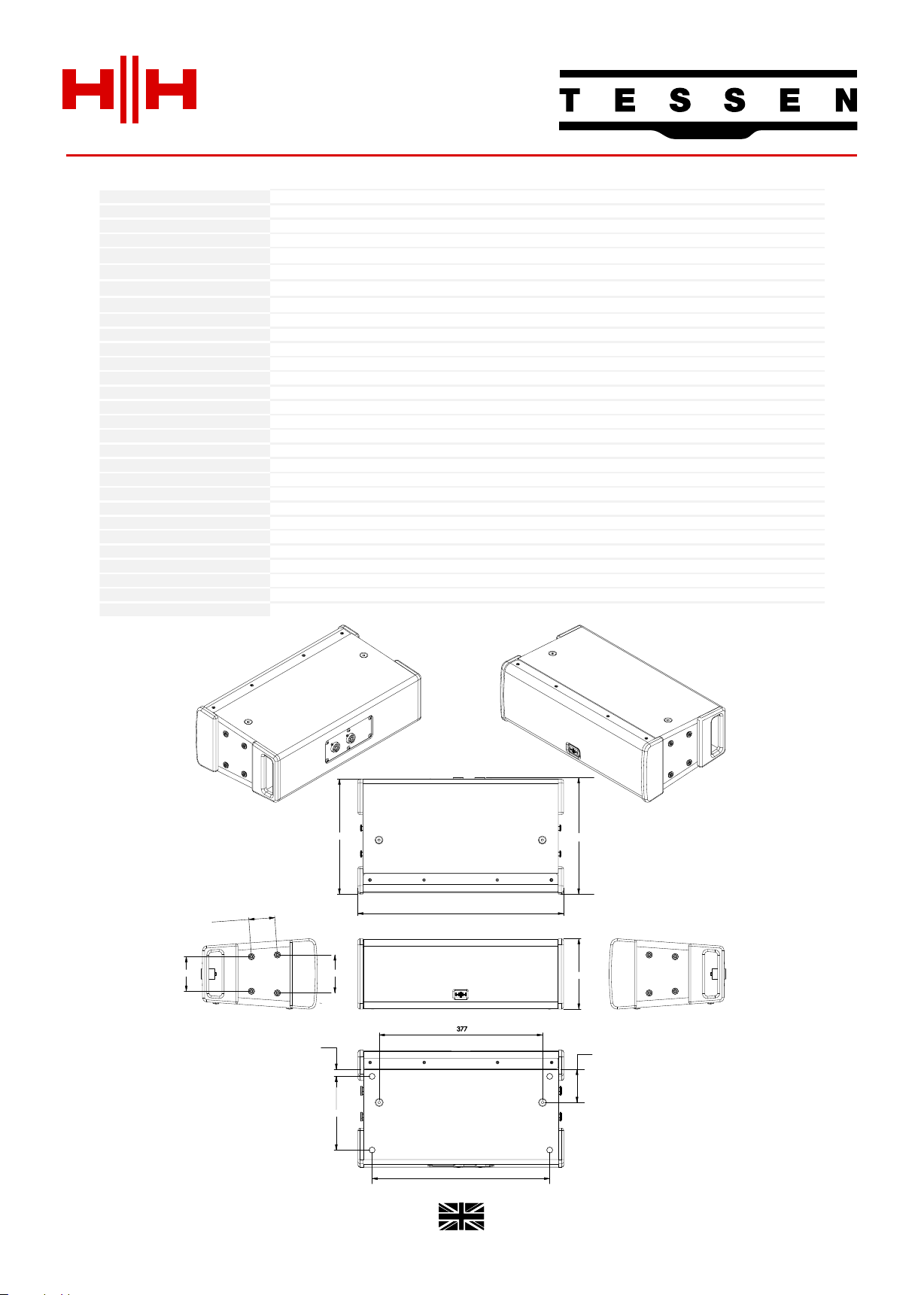

TNA-1200S - SPECIFICATION
9
475
366
OVER
FEET
360
120
60 269
454
457.3
OVER
SOCKETS
Ø 42
52
STACKING
REBATES
377
400
332
40
71
60 32
(Dimensions in mm)
1 AES standard Pink Noise 12dB crest factor 2 hours
2 Measured in Full space (4π) conditions
3 Calculated maximum SPL based on rated power handling
Model
TNA-1200S
System Type
12" Passive Subwoofer, Bass Reflex
Frequency Response
35Hz - 2KHz (-10dB)
40Hz - 500Hz (-3dB)
System Power Rating1300W AES, 1200W Peak
SPL 1W/1m295 dB SPL
Max SPL 1m3126 dB SPL
Nominal System Impedance
8 ohms
Input Connector
NL4 ±1 Twist Lock Connector
Link Connector
NL4 ±1 Twist Lock Connector
Speaker
LF Driver
1x12'' High sensitivity HH designed driver
Recommended LPF Frequency 180Hz
Enclosure
Cabinet
15mm Plywood
Finish
Painted Black (White finish optional, subject to MOQ)
Mounting Bracket
TNA-BRK1
Mounting Points
M8 fixings for inluded metal side brackets, and optional TNA-BRK1 flying bracket assembly
Grille
1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
Unit dimensions (HWD)
365 x 460 x 470mm, 14.4" x 18.1" x 18.5"
Unit weight
18.8Kg, 41.4 lbs
Carton dimensions (HWD)
535 x 430 x 530mm, 21.1" x 16.9" x 20.9" , 0.122 M3
Packed weight
22.5Kg, 49.6 lbs
In the interest of continued development, HH reserves the right to amend product specification without prior notification.


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY

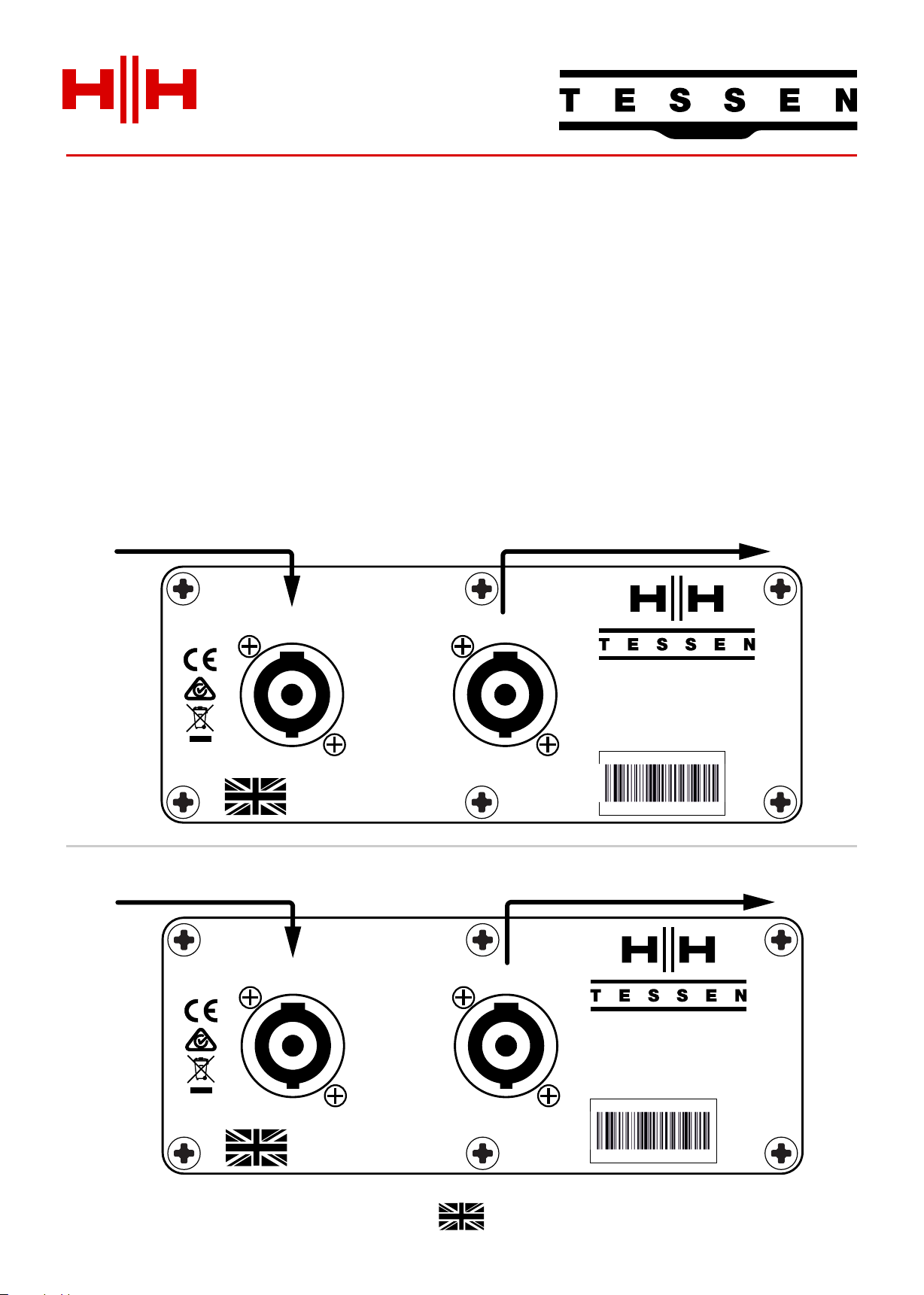

REAR PANEL - I/O
EINLEITUNG
TNA-2051
TNA-1200S
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM
MODEL : TNA-1200S
IMPEDANCE : 8Ω
POWER AES : 300W
FREQ RANGE : 35-2KHz
POWER PEAK : 1200W
SENSITIVITY : 95dB (1W/1M)
SN:ABC1234567890
MODEL: TNA-1200S
Vom Verstärker Zusätzliche Boxen
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM
MODEL : TNA-2051
IMPEDANCE : 16Ω
POWER AES : 200W
FREQ RANGE : 65-20KHz
SENSITIVITY : 94dB (1W/1M)
POWER PEAK : 800W
SN:ABC1234567890
MODEL: TNA-2051
Vom Verstärker Zusätzliche Boxen
Da Live-Sound-Anwendungen immer mehr nachgefragt werden, erwarten Anwender mehr von ihrem
Audiosystem. Das TNA Mini Line Array bietet eine hohe Leistung in einem kompakten System. Das TNA Mini
Line Array eignet sich entweder als fest installiertes Soundsystem oder für den tragbaren Einsatz und liefert eine
kristallklare Dynamik.
Das TNA-Sortiment umfasst TNA-2051; Dual 5" Zwei-Wege-Passiv-Line-Array-Lautsprecher mit
maßgeschneidertem Celestion-Komprimierungstreiber und Wellenführung und dem TNA-1200S; 12"
Hochleistungs-Passivsubwoofer.
TNA Mini-Line-Array – die perfekte mobile oder installierte Audio-Lösung.
Die TNA-BRK1-Stahlhalterung sorgt bei der Installation für eine sichere Aufhängung des TNA-Systems. Der
TNA-DF1 Rad-Dolly-Rahmen wird an der TNA-1200S befestigt und bietet flexiblen Transport eines gestapelten
Systems.
11
DE


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
TNA-2051 - SPECIFICATION
(Dimensions in mm)
162.5
60
79.6 88
170
410
16.4
76.5
475
265.2 268.5
10
In the interest of continued development,
HH reserves the right to amend product
specification without prior notification.
Model TNA-2051
System type 2-way line array loudspeaker
Frequency Response 65Hz - 20KHz (-10dB)
100Hz - 18KHz (-3dB)
System Power Rating1200W AES, 800W Peak
SPL 1W/1m294 dB SPL
Max SPL 1m3123 dB SPL
System Max SPL 1m4132 dB SPL
Nominal System Impedance 16 ohms
Input Connector NL4 ±1 Twist Lock Connector
Link Connector NL4 ±1 Twist Lock Connector
Speaker
HF Driver 1 x 1.33'' Celestion Compression Driver, mounted to Celestion Designed waveguide and horn
LF Driver 2 x 5'' HH designed driver
Internal Crossover Frequency 2000Hz
Nominal dispersion 120° x 60° (120° x 30° single point)
Rigging/Splay Angle Settings Dual Angle, 0° and 8°
Recommended HPF Frequency 100Hz
Enclosure
Cabinet 15mm Plywood
Finish Painted Black (White finish optional, subject to MOQ)
Mounting Bracket TNA-BRK1 for suspended mounting
Mounting Points M8 side mounting for included brackets
Grille 1.5mm Thickness, Hexagonal mesh
Unit dimensions (HWD) 158 x 460 x 265mm, 6.2" x 18.1" x 10.4"
Unit weight 8.4Kg, 18.5 lbs (each)
Carton dimensions (HWD) 410 x 330 x 530mm, 16.1" x 13" x 20.9"
Packed weight 18.4Kg, 40.6 lbs (2pcs per carton)
1 AES standard Pink Noise 12dB crest factor 2 hours
2 Measured in Full space (4π) conditions
3 Calculated maximum SPL based on rated power handling
4 System Max SPL based on 4x TNA-2051


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY

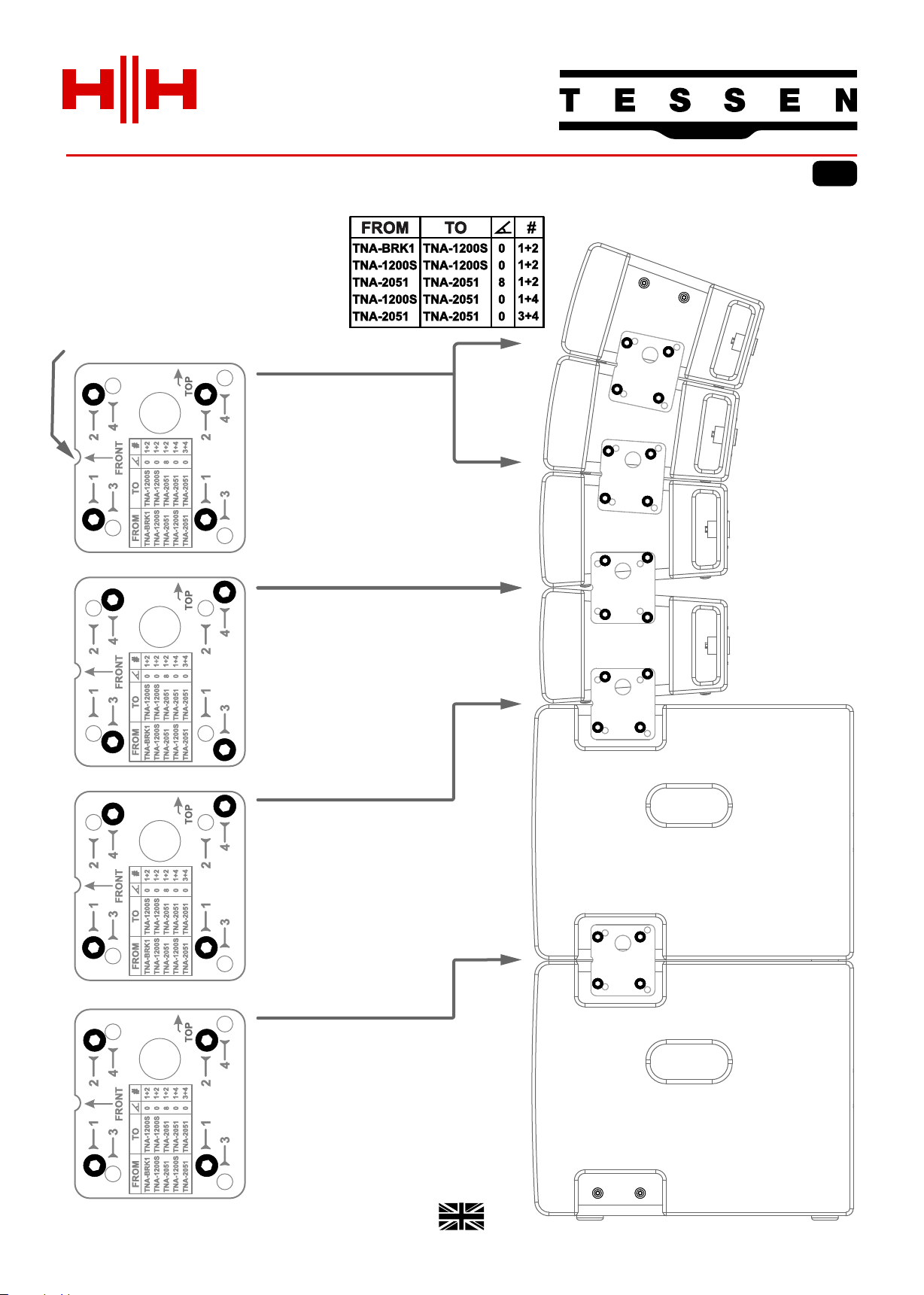

Die TNA-Seitenhalterung dient zur mechanischen Befestigung/Unterstützung zwischen TNA-1200S-Boxen und
TNA-2051-Satelliten. Je nach Kombination der verwendeten Bohrungen kann eine vertikale oder
abgewinkelte Anordnung erreicht werden.
Option 1
Option 2
Option 3
Option 1
In allen Fällen sollte die
Positionskerbe auf die Vorderseite
der Box zeigen.
Die Passungsoptionen werden auf
der Seitenhalterung gedruckt.
12
DE


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
KIT CONTENTS
FLYING BRACKET ZU TNA-1200S
Die TNA-BRK1 Halterung für den Einsatz mit dem TNA-1200S und TNA-
2051. Mit seiner massiven Stahlkonstruktion unterstützt der TNA-BRK1
sicher bis zu zwei TNA-1200S- und vier TNA-2051-Gehäuse gleichzeitig.
Der TNA-BRK1 wird mit zwei Seitenhalterungen und
einer hinteren Halterung am TNA-1200S befestigt.
Wie beim TNA-1200S müssen
Federscheiben mit allen Schrauben
verwendet werden!
Federscheiben müssen mit jeder Schraube verwendet werden!
Achten Sie beim Befestigen der Halterungen sehr darauf, die Seitenschrauben nicht zu kreuzen!
TNA-BRK1 - FLYING BRACKET
FLYING BRACKET ZU TNA-2051
LOCKNUT
SPRING WASHER
SPRING WASHER
REAR BRACKET
LOCKNUT
SPRING WASHER
SIDE BRACKET
1 x Lift Bracket assembly
3 x D-shackle
2 x Side plate
1 x Rear plate
7 x M8x25mm connector bolt
6 x M8 lock nuts
7 x Spring washers
LOCKNUT
SPRING WASHER
SIDE BRACKET
SPRING WASHER
Ein TNA-2051 erfordert nur die Verwendung von Side Brackets.
SPRING WASHER
13
DE


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
SICHERHEIT
In the interest of continued development, HH reserves the right to amend product specification without prior notification.
W
D
H
Das Aufhängen von Boxen sollte nur von entsprechend qualifizierten Personen durchgeführt werden, in
Übereinstimmung mit allen lokalen Gesetzen und mit genehmigter Hardware.
Es liegt in der Verantwortung der Installateure, sicherzustellen, dass der Punkt der Fixierung strukturell ausreichend
ist, um das Gewicht der Boxen zu unterstützen.
Die Manipulation oder aufgehängte Montage dieser Lautsprecher kann die Öffentlichkeit ernsthaften
Gesundheitsrisiken oder sogar dem Tod aussetzen.
Unter keinen Umständen versuchen Sie, dieses System zu manipulieren, auszusetzen oder anderweitig zu montieren,
es sei denn, Sie sind voll qualifiziert und zertifiziert, dies von den zuständigen lokalen, staatlichen und nationalen
Behörden zu tun. Alle einschlägigen Sicherheitsvorschriften müssen eingehalten werden. Wenn Sie nicht ausreichend
qualifiziert sind oder keine einschlägigen Vorschriften kennen, wenden Sie sich an qualifiziertes Personal, um Rat und
Unterstützung zu erhalten.
Für zusätzliche Sicherheit wird dringend empfohlen, die Audioanschlüsse, mechanischebefestigungen und
Halterungenregelmäßig zu überprüfen.
Je nach lokalen Vorschriften können zusätzliche Rückziehstützen erforderlich sein.
TWO TNA-1200S
UPTO EIGHT TNA-2051*
SPECIFICATION
TNA-BRK1 MAXIMUM SUPPORT LIMIT
Model
TNA-BRK1
Suspension Type
The bracket allows you to fit upto three D-shackles (included)
Mounting Type
Five M8 mounting points hold the bracket securely to the cabinet
Max Load Weight
120Kg, 264lbs
Max Unit Load
8x TNA-2051 & 2x TNA-1200S OR 4x TNA-1200S
Unit dimensions (HWD)
64 x 451 x 340mm, 2.5" x 17.8" x 13.4"
Unit weight
5.6Kg, 12.3 lbs
Carton dimensions (HWD)
145 x 505 x 430mm, 5.7" x 19.9" x 16.9" , 0.031 M3
Packed weight
6.7Kg, 14.8 lbs
14
DE


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
Mit seinem leichten robusten Design ermöglicht der TNA-DF1 eine einfache Neupositionierung und Konfiguration von
Gehäusen, die den Anforderungen entsprechen.
BITTE BEACHTEN SIE: Auf dem Dolly Board sollten maximal vier TNA-2051 und zwei TNA-1200 verwendet werden.
TNA-DF1 - DOLLY BOARD
Der TNA-1200S ist mit sechs
Sechskantschrauben M8 x 20 am
TNA-DF1 (mit zwei Seiten- und
einer hinteren Halterung) befestigt.
Stellen Sie sicher, dass die Bremse auf den
Hinterrädern eingelegt sind, sobald das
Array entsprechend positioniert wurde.
15
DE


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
PANNEAU ARRIÈRE - E / S
TNA-2051
TNA-1200S
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM
IMPEDANCE : 8Ω
POWER AES : 300W
POWER PEAK : 1200W
SENSITIVITY : 95dB (1W/1M)
FREQ RANGE : 35-2KHz
MODEL : TNA-1200S
SN:ABC1234567890
MODEL: TNA-1200S
De l'amplificateur Vers une enceinte supplémentaire
De l'amplificateur Vers une enceinte supplémentaire
WIRING
± 1 INPUT
± 2 N/A
INPUT LINK
DESIGNED AND ENGINEERED
IN THE UK BY
WWW.HHELECTRONICS.COM
POWER PEAK : 800W
SENSITIVITY : 94dB (1W/1M)
MODEL : TNA-2051
IMPEDANCE : 16Ω
POWER AES : 200W
FREQ RANGE : 65-20KHz
SN:ABC1234567890
MODEL: TNA-2051
TNA-1200S assurant le transport flexible d'un système complet.
INTRODUCTION
Outre les enceintes TNA, des accessoires de qualité supérieure sont proposés. Le support de fixation en acier
massif TNA-BRK1 assure une suspension sûre du système TNA lorsqu'il est installé. Le cadre du chariot à roues
TNA-DF1 se fixe au
TNA mini line array - la solution audio mobile ou fixe parfaite.
La gamme TNA comprend la TNA-2051; Enceinte line array passive bidirectionnelle équipée de deux HP 5'' et
d'un moteur à compression spécialement réalisé par Celestion, et le TNA-1200S; d'un HP sub passif haute
performance de 12 ”.
Avec la demande croissante d'applications de son en direct, les utilisateurs demandent plus de leur système
audio. Le mini line array TNA fournit un rendement élevé dans un système compact. Adapté soit comme
système de sonorisation en installation fixe , soit pour une utilisation portable, le mini line array TNA offre une
dynamique cristalline.
FR
16


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
Le support latéral TNA est utilisé pour assurer la fixation / le support mécanique entre le sub TNA-1200S et
les satellites TNA-2051. Selon la combinaison de trous utilisée, une disposition verticale ou angulaire peut être
obtenue.
Option 1
Option 2
Option 3
Option 1
Les options d'ajustement sont
imprimées sur le support latéral.
Dans tous les cas, l'encoche
d'emplacement doit pointer vers la
face avant de l'enceinte.
17
FR


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
KIT CONTENTS
SUPPORT DE FIXATION POUR TNA-1200S
TNA-2051. Grâce à sa construction en acier solide, le TNA-BRK1 supporte
en toute sécurité jusqu'à deux sub TNA-1200S et quatre TNA-2051
simultanément.
Le support de fixation TNA-BRK1 à utiliser avec le TNA-1200S et le
Le TNA-BRK1 est fixé au TNA-1200S à l'aide de deux supports latéraux et
d'un support arrière.
Comme pour le TNA-1200S, les rondelles
doivent être utilisées avec toutes les vis!
Des rondelles doivent être utilisées avec chaque vis!
Faites très attention de ne pas croiser les vis latérales lors du montage des supports!
TNA-BRK1 - FLYING BRACKET
LOCKNUT
SPRING WASHER
SPRING WASHER
REAR BRACKET
LOCKNUT
SPRING WASHER
SIDE BRACKET
1 x Lift Bracket assembly
3 x D-shackle
2 x Side plate
1 x Rear plate
7 x M8x25mm connector bolt
6 x M8 lock nuts
7 x Spring washers
LOCKNUT
SPRING WASHER
SIDE BRACKET
SPRING WASHER
SUPPORT DE FIXATION POUR TNA-2051
Un TNA-2051 nécessite l'utilisation de supports latéraux uniquement.
SPRING WASHER
18
FR


Designed and Engineered in the UK by HH Electronics LTD.
© 2021 HH Electronics Ltd
LINE ARRAY
ARRAY
SÉCURITÉ
In the interest of continued development, HH reserves the right to amend product specification without prior notification.
W
D
H
Il est de la responsabilité de l'installateur de s'assurer que le point de fixation est structurellement adéquat pour
supporter le poids des enceintes.
La fixation des enceintes ne doit être effectué que par des personnes correctement qualifiées, conformément à toutes
les lois locales et en utilisant du matériel approuvé.
Le gréement ou le montage suspendu de ces enceintes peut exposer les membres du public à des accidents graves
voir mortels.
N'essayez en aucun cas de gréer, suspendre ou monter ce système de quelque manière que ce soit, sauf si vous êtes
pleinement qualifié et certifié pour le faire par les autorités locales, étatiques et nationales compétentes. Toutes les
règles de sécurité pertinentes doivent être respectées. Si vous n'êtes pas correctement qualifié ou si vous ne
connaissez pas les réglementations pertinentes, consultez un personnel qualifié pour obtenir des conseils et une
assistance.
Pour plus de sécurité, il est fortement recommandé de vérifier périodiquement les connexions audio, les fixations
mécaniques et les supports de montage.
Selon les réglementations locales, des supports de traction supplémentaires peuvent être nécessaires.
TWO TNA-1200S
UPTO EIGHT TNA-2051*
SPECIFICATION
LIMITE DE SOUTIEN MAXIMALE TNA-BRK1
Model
TNA-BRK1
Suspension Type
The bracket allows you to fit upto three D-shackles (included)
Mounting Type
Five M8 mounting points hold the bracket securely to the cabinet
Max Load Weight
120Kg, 264lbs
Max Unit Load
8x TNA-2051 & 2x TNA-1200S OR 4x TNA-1200S
Unit dimensions (HWD)
64 x 451 x 340mm, 2.5" x 17.8" x 13.4"
Unit weight
5.6Kg, 12.3 lbs
Carton dimensions (HWD)
145 x 505 x 430mm, 5.7" x 19.9" x 16.9" , 0.031 M3
Packed weight
6.7Kg, 14.8 lbs
19
FR
