HH Vector VRE-15AG2 User manual

USER MANUAL
VRE-12AG2
VRE-15AG2
ACTIVE SPEAKER SYSTEMS
VRE-8AG2

WWW.HHELECTRONICS.COM
INTRODUCTION
This manual contains important information regarding correct and safe
operation of your active system. Please read it thoroughly in order to get
the best performance and reliability from your new HH product.
Housing a flexible on-board mixer which includes a Bluetooth equipped ®
media player, each model in the Vector range gives you a compact yet flexible
solution to your audio sound reinforcement requirements. These lightweight,
portable, full range moulded enclosures, can be either floor standing,
mounted on a pole or tripod stand (via the 35mm pole socket), or lay on
their side to be used as a wedge monitor.
The HH Vector range of active enclosures are designed for high performance
in a wide variety of demanding audio applications; and as such, ideally suited
for uses in classrooms, business seminars and presentations, worship meets,
parties, bars, BBQ's and musical performances.
2
VRE-15AG2
VRE-12AG2
VRE-8AG2

WWW.HHELECTRONICS.COM
VOLTAGE SELECT
110-120V~ 220-240V~
MAXIMUM POWER CONSUMPTION
115 WATTS
24
5
6
1
3
78 9
2. MASTER VOLUME: Controls the overall
level of your VRE-8AG2 system.
1. MEDIA PLAYER: A versatile onboard
player accepting SD card, USB thumb drive
and connection via Bluetooth. In addition to
this, a second cabinet can be connected via
Bluetooth using the TWS (True Wireless
Stereo) feature. See page for more 5
information.
4. CH2: A mono Input channel with Level
control and 6.3mm jack input. For Line Level
devices, this input is suitable for a keyboard or
drum machine for example.
5. AUX IN: A stereo Input for the connection
of a Line Level device via the 3.5mm jack input.
Please use a stereo cable when connecting to
this Input. The Aux level is adjustable via the by
channel 2 Level control.
3. CH1: A mono Input channel with Level
control and XLR Mic Input. Suitable for balanced
or unbalanced low level/low impedance device
eg. -mic (200-600ohms) or electro-acoustic
guitar.
7. VOLTAGE SELECT SWITCH: Although every effort has been made to select the correct
voltage for the region of use, please check before powering up for the first time. Damage could
occur if the voltage is incorrectly set. See page for more information.6
6. MIX OUT: A BALANCED signal feed
which can be used to connect a second Vector
cab (daisy chained - see page 8), active wedge
monitor, house PA or recording console for
example.
Pay special attention to additional safety information on rear panel.
8. MAINS SWITCH: Turns the system on and off. Ensure the level controls are at minimum when switching
on and off.
9. MAINS INLET SOCKET AND FUSE: IEC input for connection of an appropriate mains lead. Only
replace fuse with the type indicated. See page 6 for more information.
VRE-8AG2
3

WWW.HHELECTRONICS.COM
15. VOLTAGE SELECT SWITCH: Although every effort has been made to select the correct
voltage for the region of use, please check before powering up for the first time. Damage
could occur is the voltage it incorrectly set. See page for more information.6
14. INFORMATION: Area relating to the amplifier: Serial Number, operational information,
power rating, etc.
13. HEAT SINK: Cooling fins for the amplifier. Do not obstruct.
17. MAINS INLET SOCKET AND FUSE: IEC input for connection of an appropriate mains lead.
Only replace the fuse with the type indicated for your mains voltage. for more See page 6
information. Pay special attention to additional safety information on rear panel.
16. MAINS SWITCH: Turns the system on and off. Ensure the Level/Volume controls are at
minimum when switching on and off.
MIC: a balanced input for low level, low
impedance devices eg. -mic (200-600 Ohms) or
electro-acoustic guitar.
6. CH3 LEVEL: Use this control to adjust the
level of the onboard USB/SD player or an
external (line level) signal feed connected to the
AUX IN.
8. MIX OUT: A BALANCED signal feed that can be
used to connect to a second VRE cabinet (daisy
chained - see page 8), active wedge monitor, house PA or recording console for example.
1/2. CH1 and CH2: Mono Input channels.
7. AUX IN: This gives you the option to connect an
additional line level device. Control the Level
with CH3 Level control. Please use a stereo
cable.
9. POWER LED: This will illuminate when the unit is powered up. There is also a second power LED
on the front of the cab.
10. CLIP LED: Illuminates just before the amplifier begins to clip. Adjust the level controls and signal
level from your source so this illuminates only briefly on peaks in the music.
4. LINE INPUT: An unbalanced input - for higher
output line level devices eg. - keyboard,
processor, drum machine.
3. LEVEL: Use the Level control to set the channel
volume.
LINE (via XLR Input): A balanced input for
higher output line level devices eg. -
keyboard/drum machine.
11. MASTER VOLUME: Controls the overall level of your VRE cabinet.
5/5a. MIC/LINE INPUT: Use the push button
(5a) to switch the XLR Skt between:
12. Active BASS and TREBLE: These controls allow you to boost or cut the low/high frequency
response of the amplifier.
26
CH 2 CH 3 MASTER
11
12
99
10
13
8
5a
4
5
14
VOLTAGE SELECT
110-120V~ 220-240V~
15 16 17
CH 1
1
3
7
4
VRE-12AG2
VRE-15AG2

WWW.HHELECTRONICS.COM
5
MEDIA PLAYER
(ALL MODELS)
6 7 8
123
5
4
00:02
abc
Always switch off and disconnect the power cord when not in use.
1. SD CARD SLOT: Insert your standard SD card here.
a. Play or Pause indicator.
b. What device is being used: USB or SD Card.
(Automatically detected on insertion, or if removed and
reinserted uses smart technology to resume play from
the previous point).
2. DISPLAY SCREEN: Display track information.
c. Time into track.
Use the onboard player for playing MP3 encoded audio
tracks from SD card/USB or Bluetooth® device.
d. “bt” is displayed when connecting to a Bluetooth Device.
3. MEMORY STICK SLOT: Connect your USB thumb
drive here. If removed and reinserted, the system uses
smart technology to resume play from the previous point.
7. PREVIOUS: Press to skip to the preceding track. A prolonged press will reduce the volume of the MP3
player.
ONE - Plays one track repeatedly (cycle to the required track to play using NEXT button (8).
8. NEXT: Press to skip to the next track. A prolonged press will increase the volume of the MP3 player.
CONNECT TO BLUETOOTH DEVICE:
FOD - Plays all track in the current active folder.
6. LOOP: Use this to enable/disable the looped playback modes. When using this button with an SD card or
USB thumb drive, there are 3 options:
5. PLAY/PAUSE: Use this control to play or pause your MP3 music/backing track.
ALL - Plays all the tracks on the root of the device in date order, then the sub folders
4. MODE: Select the input source - SD card USB,
Bluetooth/TWS with two cabinets. See page for more information.6
NOTE. The USB socket is for the playback of recorded
tracks only, not for charging a USB device.
a. Toggle through the system modes and select Bluetooth (using MODE switch (4)).
b. On your Bluetooth capable device, make sure Bluetooth is enabled. Scan down the list of available devices -
search for: HH Vector and select.
d. Switching between a USB device and a Bluetooth device is possible, but the Bluetooth device will need to be
re-selected by pressing the MODE button once.
c. Your Vector enclosure is now connected to your Bluetooth device and controlled using the PLAY/PAUSE,
PREVIOUS and NEXT BUTTONS.
BT

WWW.HHELECTRONICS.COM
TWS
SETTING UP THE CONNECTION
Using the Mode switch, select Bluetooth mode on secondary cabinet, then
hold the MODE switch for a further 5 - 10 seconds, then release. BT will
appear on the display of both cabinets (flashing on and off) and indicates the
TWS connection is in progress.
3. Once the connection has been established, the image (to the left) will
appear on the display of both Primary and Secondary cabinet.
1. Connect the first VRE cabinet to a Bluetooth capable device as
shown on the previous page.
True Wireless Stereo is a feature that allows for the connection of two VRE cabinets to a Bluetooth
capable device. The result is a true stereo system via Bluetooth with the first VRE providing the left
and the second providing the right portion of the stereo imag
Bluetooth source PRIMARY VRE cabinet SECONDARY VRE cabinet
-BT-
BT
6
Switch off and disconnect the power cord before proceeding.
FUSE REPLACEMENT VOLTAGE SELECTION
110-120V setting
220-240V setting
1.) Slide out the fuse holder tray.
2.) Only replace fuse with the same
type and power rating as specified
on the rear panel.
VOLTAGE SELECT
VOLTAGE SELECT
110-120V~
110-120V~
220-240V~
220-240V~
Using a suitable tool, slide the voltage
selector switch to the required
operating voltage.

WWW.HHELECTRONICS.COM
EXAMPLE SETUP
Music from the Media player or Bluetooth device.
7
CH 2 CH 3 MASTERCH 1
To an additional VRE-8AG2 system.
Connection via Bluetooth or the AUX Input.
VRE-12AG2
VRE-15AG2
VRE-8AG2

WWW.HHELECTRONICS.COM
VRE1
VRE2
VRE1
VRE2
8
CH 2 CH 3 MASTERCH 1
CH 2 CH 3 MASTERCH 1
Utilising the MIX OUT to connect an additional VRE
system.
Slowly increase CH2 LEVEL control to achieve the
correct level balance between the two cabinets.
The signal from the MIX OUT is at line level, so
should be connected to the INSTRUMENT input of
the following system.
Set the MASTER VOLUME to the same level as that
on the VRE-8AG2 primary.
with the MASTER VOLUME control, adjust to achieve
the desired listening level.
Initially set CH2 LEVEL control to zero, and in
conjunction
VRE2:
Any number of VRE can be connected in this way.
VRE1:
Set the MASTER VOLUME to the same level as
that on the VRE-8AG2 primary.
Slowly increase CH2 LEVEL control to achieve
the correct level balance between the two
cabinets.
Initially set CH2 LEVEL control to zero, and in
conjunction
with the MASTER VOLUME control, adjust to
achieve the desired listening level.
VRE2:
VRE1:
DAISY CHAINING
VRE-12AG2 and VRE-15AG2
VRE-8AG2
To an additional
VRE-8AG2 system.
To an additional
VRE system.

WWW.HHELECTRONICS.COM
9
(Stand not included)
35mm pole socket
HINTS AND TIPS
UNPACKING
BASIC SETUP
If a pole mount is used, make sure that the thumb screw on the cabinet is tight.
SWITCHING OFF
Inspect the product during unpacking, if any damage is found, notify the dealer you
purchased it from immediately. Be sure to save the carton and all packaging materials.
Should you ever need to return the unit back to the dealer use only the original factory
packing. Pack all cables neatly, use cable ties to tidy excess cable length in 'figure-8' not
loops.
HH VRE cabs can be mounted on the floor, or a suitable pole or tripod. Don't
over-extend poles/tripods; ensure at least 4 x the pole diameter is still inside the
outer pole. Make sure the legs have a good splay on tripods, but do not obstruct
doorways or other access-ways.
After using the amplifier, please adjust the gain controls to their lowest settings,
then the amplifier can be turned off safely. Turn the power switch to the OFF
position and remove the power cord from the electrical source.
ŸStart with EQ settings flat and gains low.
ŸAvoid very high onstage levels from backline amps.
ŸKeep lights away from speakers; heat can cause fires/speaker damage.
ŸLook after your cables. Do not stand equipment on, or run cases over them,
do not tie knots in them and always use them for the correct application (a
signal lead is NOT a speaker lead). Coil and secure with cable ties before
storing.
NOTE:
ŸUse input gain to set maximum signal level without distortion.
ŸKeep power and signal cables apart.
ŸEnsure your equipment is properly loaded and cannot move around during
transit.
ŸBe aware of total power usage. Overloading a mains socket is potentially dangerous,
and likely to cause a power out during use.
ŸDon't run cables across access-ways; if you have to, run them above doors or use
approved cable covers.
ŸMaster volumes should be at zero for switch on and off.
ŸSet up mic levels first, and adjust other equipment to match.
Do not connect or disconnect from the input signal source when the amplifier is
turned ON, damage could occur to the amplifier and the speaker.
QUICK TIPS
ŸUse the minimum cut or boost in EQ. If all bands are boosted or cut, flatten
EQ, re-adjust gain and start again.
ŸUse electronic safety devices such as circuit breakers.
ŸAvoid damp environments and extremes of temperature for storage and use of
all audio equipment.

WWW.HHELECTRONICS.COM
BLOCK DIAGRAM
10
1/O CONNECTOR WIRING
GND
3.5MM STEREO JACK
GND
6.35MM UNBALANCED JACK
+(HOT) LEFT
RIGHT
1 GROUND
2 HOT
3 COLD
12
3
1
2
3
1
2
3
12
3
MALE
(FRONT VIEW) (REAR VIEW) (FRONT VIEW) (REAR VIEW)
MALE FEMALE FEMALE
1/O CONNECTOR WIRING
GND
3.5MM STEREO JACK
GND
6.35MM UNBALANCED JACK
+(HOT) LEFT
RIGHT
1 GROUND
2 HOT
3 COLD
12
3
1
2
3
MALE
(FRONT VIEW) (REAR VIEW)
MALE
VRE-12AG2 and VRE-15AG2
VRE-8AG2
MIX OUT
CH1
CH2
CH3
CH1
CH2
CH3
BASS
LINE INPUT
LINE
MIC
LINE
MIC
MIC/LINE
INPUT
MIC INPUT
LINE INPUT
MIC/LINE
INPUT
TREBLE
CLIP INDICATOR

WWW.HHELECTRONICS.COM
SPECIFICATIONS
VRE-8AG2
VRE-12AG2
11
In the interest of continued development, HH Electronics reserves the right to amend product specification without prior notification.
In the interest of continued development, HH Electronics reserves the right to amend product specification without prior notification.
Power Rating : 300W
Amplifier Type : Class A/B
Power Supply : Linear Toroidal PSU - Switchable Voltage
Features
Inputs :
1x balanced XLR 1x 6.3mm single ended jack inputs, 1x 3.5mm stereo jack in, Media player with BT
4.1, USB and SD card
Outputs : Balanced 6.3mm Jack mix out.
Controls : CH1,2 Gain controls, Master Volume
Speaker
HF Driver : 1" Compression Driver
LF Driver : 8" Woofer
Coverage : 90°H X 40°V
Enclosure
Cabinet : Robust polypropylene cabinet with two handles and monitor angle
Finish : Black
Grille : Powdercoated steel with acoustic foam backing
Other : 35mm Distance Pole Socket
Unit dimensions (HWD) : 37.5 x 25.5 x 20 CM
14.8" x 10" x 7.9"
Unit weight : 5Kg, 11 lbs
Carton dimensions (HWD) : 45.5 x 30 x 25.5 CM
17.9" x 11.8" x 10" , 0.035 M3
Packed weight : 6.5Kg, 14.3 lbs
Power Rating : 800W
Amplifier Type : Class A/B
Power Supply : Linear Toroidal PSU - Switchable Voltage
Features
Inputs :
2x balanced XLR with mic/line switch, 2x 6.3mm single ended jack inputs, 1x 3.5mm stereo jack in,
Media player with BT 4.1, USB and SD card
Outputs : Balanced XLR mix out.
Controls : CH1,2,3 Gain Controls, Master 2 Band EQ, Master Volume
Speaker
HF Driver : 1" Compression Driver
LF Driver : 12" Woofer
Coverage : 90°H X 40°V
Enclosure
Cabinet : Robust polypropylene cabinet with three handles and monitor angle
Finish : Black
Grille : Powdercoated steel
Other : 35mm Distance Pole Socket
Unit dimensions (HWD) : 59.5 x 39 x 31 CM
23.4" x 15.4" x 12.2"
Unit weight : 10.3Kg, 22.7 lbs
Carton dimensions (HWD) : 66 x 43.5 x 36 CM
26" x 17.1" x 14.2" , 0.103 M3
Packed weight : 12.7Kg, 28 lbs

WWW.HHELECTRONICS.COM
SPECIFICATIONS
12
In the interest of continued development, HH Electronics reserves the right to amend product specification without prior notification.
VRE-15AG2
Power Rating : 800W
Amplifier Type : Class A/B
Power Supply : Linear Toroidal PSU - Switchable Voltage
Features
Inputs :
2x balanced XLR with mic/line switch, 2x 6.3mm single ended jack inputs, 1x 3.5mm stereo jack in,
Media player with BT 4.1, USB and SD card
Outputs : Balanced XLR mix out.
Controls : CH1,2,3 Gain Controls, Master 2 Band EQ, Master Volume
Speaker
HF Driver : 1" Compression Driver
LF Driver : 15" Woofer
Coverage : 90°H X 40°V
Enclosure
Cabinet : Robust polypropylene cabinet with three handles and monitor angle
Finish : Black
Grille : Powdercoated steel
Other : 35mm Distance Pole Socket
Unit dimensions (HWD) : 69.5 x 45 x 35 CM
27.4" x 17.7" x 13.8"
Unit weight : 13.5Kg, 29.8 lbs
Carton dimensions (HWD) : 76.5 x 50 x 41 CM
30.1" x 19.7" x 16.1" , 0.157 M3
Packed weight : 16.9Kg, 37.3 lbs

WWW.HHELECTRONICS.COM

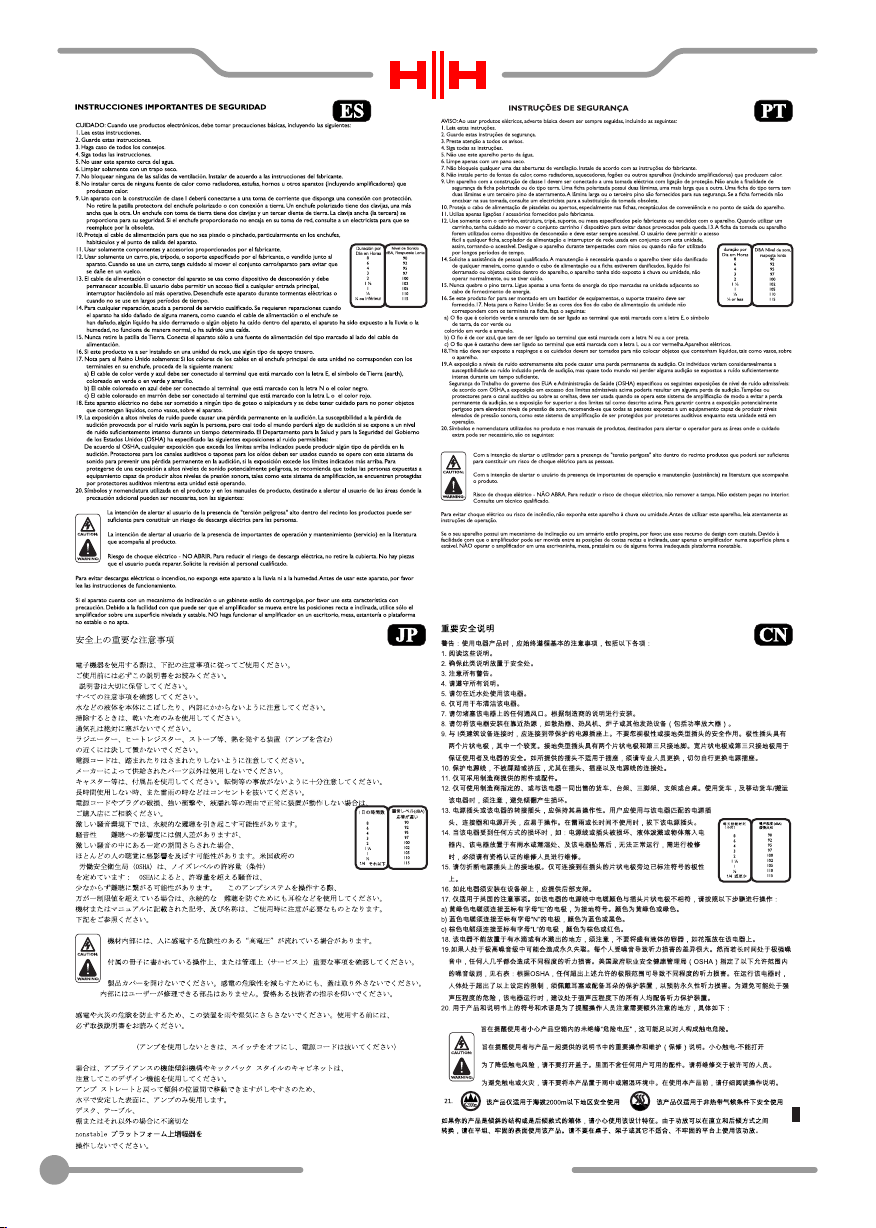

13

WWW.HHELECTRONICS.COM
14

15 REVISION 1.00
Model number:
Serial number:
Place of purchase:
Date of purchase:
hhelectronics
www.hhelectronics.com
hhelectronics
hhelectronics
