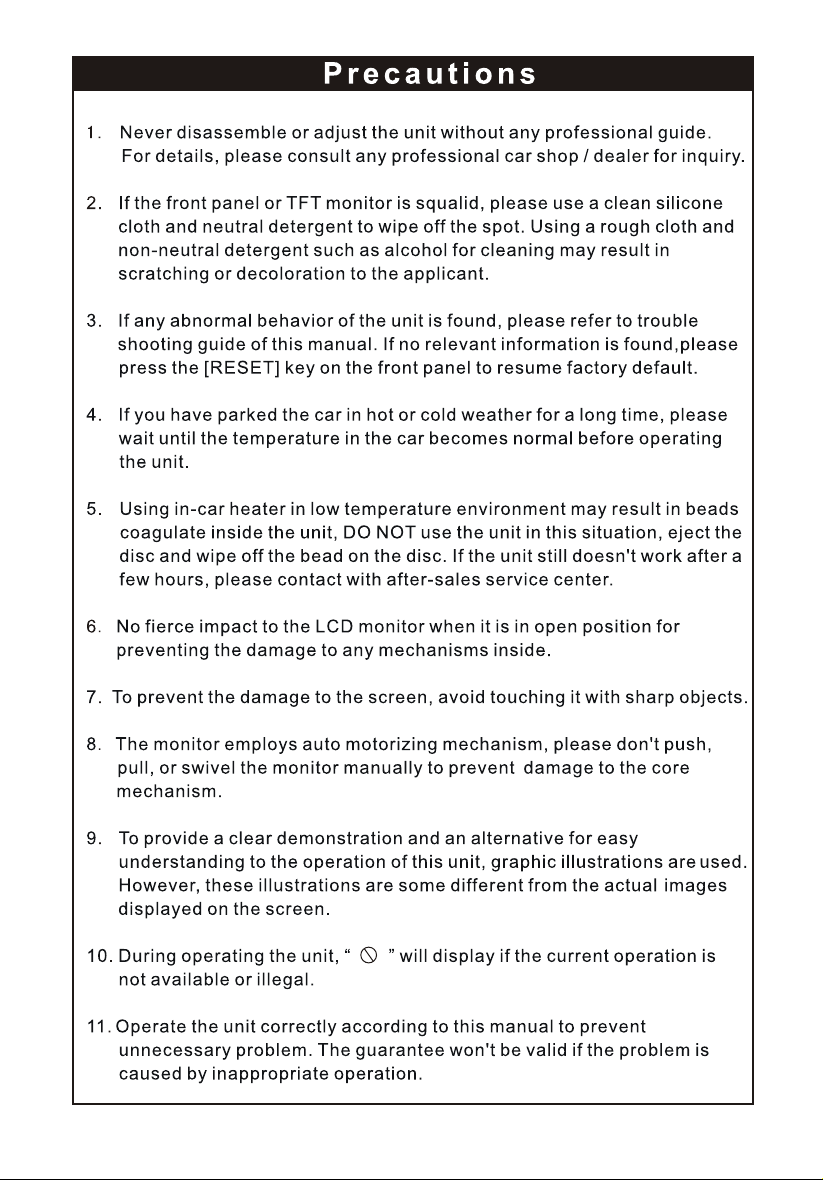

Hi tv Hd4000 User manual

Look for calling record

Back view

GPS

SWC 21

Calibration

.......18

Play music.................18

iPod..................... 19

Other modes

AUX...................... 20

................. 20

......................20

......................

Wall paper.................

SETUP

Setup steps................23

Time......................23

GPS ......................24

Radio.....................24

Video..................... 24

................ 25

Volume................... 25

EQ....................... 26

Troubleshooting..........27

Device Connection........29

Specifications............32

Appendix.................35

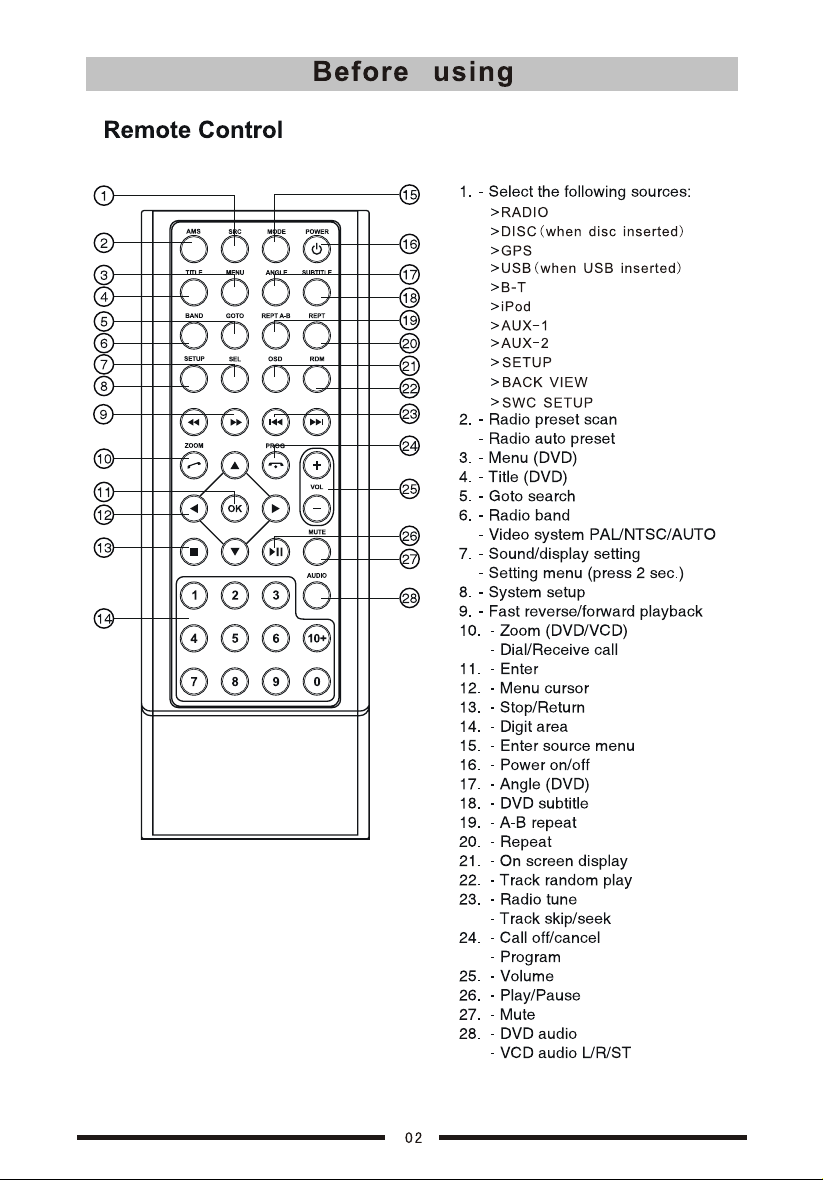

Notice:

The buttons in this picture is for reference only,and may be different from that in real unit.

Reference to real unit is suggested.

Select Radio mode

Enter Main Menu and choose RADIO mode.

Select band

Press [BAND]in the remote control, [FM/AM] in the front panel or in the user

interface, to choose a band among FM1, FM2, FM3, AM1 and Am2.

Auto tuning

Long-press icon in the front panel, searching for a station along the

increasing frequencies.

Notice: When a station is received, searching stops and the station is played.

Manual tuning

During manual tuning，repeat-press the [ ] on the user interface and the

frequency to tune in a higher station. repeat-press the [ ] on the user

interface and the frequency to tune in a lower station.

Auto save

Short-press the icon and auto scan among station when a station

is received and the played for 5 seconds

Long-press the[ ]icon,only stations with sufficient signal strength will be

detected and stored in the memory.When you want to listen to the station,

don't need to search again,and only need to press the number button.

Notice:

After auto saving,the previous saved stations will be overwritten.

The unit has 5 bands,such as FM1、FM2、FM3、AM1、AM2,and each band can store

6 stations;hence the unit can store 30 stations in all.

Manual save

When one expected radio station has been detected,long-press the anyone

icon P1-P6 on the user inferface and store the corresponding location.

Notice:When the manual saving, will cover with the lasted station.

Local seeking

Press the[ ]icon and choose the[LOCAL]/[DISTANCE].

When the local radio station searching is [ DISTANCE],only stations with

sufficient signal strength will be detected.

[ ]

[ ]/[ ]

[ ] P1-P6 ,

87.50

P2 P3

90.10 98.10

87.50

106.10

107.90

Radio 00:12AM

Radio mode

enter the EQ setup

Recall the stations

When you want to the store station,select the P1-P6 on the list and fleetly

listen t o the station.

selection

Press the icon and .

preset

87.50

P2 P3

90.10 98.10

87.50

106.10

107.90

Radio 00:12AM

DVD mode

Insert a disc

Upon inserting a disc, the unit will switch to [DISC] mode automatically.

Notes:

① Please confirm whether there is a disc in the unit before you insert another one.

② Some recorded discs, such as CD-R, CD-RW, DVD-R, DVD+R,

DVD-RW, DVD+RW cannot be played back because of different

recording status. Otherwise, the discs without being closed could

not be played back.

③ About the cautions of disc using, please refer to the appendix.

④Don't pledge to compatible the all disc.

Eject the disc

Press the key on the front panel or remote control to eject the disc. When

the disc is ejected,the unit switches to the previous source,if connected.

Otherwise,the unit switches to [Radio] mode automatically.

Touch screen controls

：

The touch key areas for DVD playback are outlined below

Return the last menu

B Play the vedio and display playback information

Display onscreen control menu

N/PPAL/NTSC

AUTO/OFF

TITLE

DVD TI TLE

PAL/NTSC

AUTO/OFF

D V D播放源

Onscreen control icons

MP3/WMA CD VCD DVD

last

content

Icon

Disc

type

Numeric

keypad

Numeric

keypad

Numeric

keypad

Numeric

keypad

Numeric

keypad

EQ Setup EQ Setup EQ Setup EQ Setup EQ Setup

Fast forward

(long press)

Fast rewind

(long press)

Fast forward

(long press)

Fast forward

(long press)

Fast forward

(long press)

Fast rewind

(long press)

Fast rewind

(long press)

Fast rewind

(long press)

Previous Previous last


content


Play/Pause Play/Pause Play/Pause Play/Pause Play/Pause

Stop Stop Stop Stop Stop

Repeat Repeat Repeat Repeat Repeat

RET

A-B

SUBTITLE

Segment

repeat

Segment

repeat

Subtitle

Language

DVD mode

Picture(picture

in disc can't

be read)

Notice:

“return the last menu”icon is always on the fixed position，

but may turn different flash and icon at different source.

DVD mode

Continued

PBC

Audio file

OSD display playback

information

MENU PLAY

MP3/WMA CD VCD DVD

Icon

Disc

type Picture(picture

in disc can't

be read)

ZOOM ZOOM ZOOMZOOM

ANGLE ANGLE

PROGRAMME PROGRAMME

AUDIO Channel

switching

Channel

switching

Picture file Picture file

Vedio file

Random

DISC Style REPEAT MODE

DVD

VCD(PBC OFF)

MP3/WMA

MPEG


CHAPTER TITLE REP ALL OFF

CHAPTER REP ALL OFF

REP ALL OFF

OFF

REP ALL

REP DIR

REP 1

Play

Insert the disc into the disc slot with label side facing up and play starts

automatically.

Pause

When play the audio/vedio file,press the to stop and the top left corner

of screen shows[stop ] , press the icon again and continue to play.

Stop

Long press the icon to fast rewind;

Long press the icon to fast forward.

Notice:When play the VCD disc,open the [PBC] function and the [ repeat] function

is abate.

When a DVD, VCD or CD disc is played back, you can play back the contents between

the time points from A to B repeatedly:

For audio files, press the icon to stop, and the screen will display [PRE ]

on the upper left corner. Press to resume from the pausing point.

Press the icon again to stop entirely, and the screen will display [STOP ]

on the upper left corner. Press to playback from the top file.

For video files, press the icon to stop, and the screen will display a [PRE ]

on the upper left corner. Press to resume from the pausing point.

Press the icon again to stop entirely, and the screen will display a [STOP ]

on the upper left corner. Press to playback from the top file.

Fast rewind Fast forward

Play the next or previous file

Press to select the precious file, and press to select the next file.

Repeat playback

Press the to switch the repeat modes as below:

Repeat A-B

DVD mode

REPEAT A- REPEAT B- A-B CANCEL

REP 1

You can play audio tracks/files in random order.

During play CD ,touch repeatedly to turn random play on or off.

is highlighted: start random play

turns gray: cancel random play

Notice:when the [random] turn off,the unit resume natural play from the current sequence.

DVD menu/title

In full screen playing of DVD disc,touch anywhere except for the upper left corner

to display menu on the screen,touch the icon and enter the DVD control

menu interface,touch the icon and enter the TITLE control menu interface.

icon

Press the [SUBTITLE] key on the remote control repeatedly or open the onscreen control

icons menu and then touch the icon repeatedly to choose a subtitle language.

Random playback

This function is only available for the DVD discs having “MENU / TITLE”.

Select audio channel

For DVD containing multi-language audio files, press the on the remote

control repeatedly or open the onscreen control icons menu and then touch the

[AUDIO] icon repeatedly to change dialogue language.

Select subtitle language

PBC function

This function is available for the VCD discs with PBC function (Ver 2.0 or higher).

Press the [MENU] key on the remote control to activate this function.

Press again to cancel.

Notes:

① When PBC is on, playback goes back to the track list and starts from the first track.

② When PBC is on, fast motion playback, slow motion playback or skip search is available but

repeat playback and searching for a particular chapter or track is prohibited.

③ If you do the operation of random playback, scan playback or searching playback when PBC

is on, PBC will be off automatically.

1 ENGLISH 5.1CH

2 ENGLISH 2CH

3 FRENCH 5.1CH

DVD mode

TITLE

AUDIO

SUBTITLE

Select a particular file

During the

playing DVD disc,touch anywhere except for the upper left corner to

display menu on the screen.

For DVD touch the icon to display information

and shown as below

For VCD touch the icon to display information

and shown as below

For CD touch the icon to display information

and shown as below

please input title:

_/ 1

1 2 3 4

9 0

DVD mode

_/ 1

1 2 3 4

9 0

please input track:

_/ 1

1 2 3 4

9 0

please input track:

input area

choose area of the track and number

exit the setup interface

display the informaion of searching:title、track、time

delete the input track and number

affirm the input track and number

delete the input track and number step by step

input area

choose area of the track and number

exit the setup interface

display the informaion of searching:title、track、time

delete the input track and number

affirm the input track and number

delete the input track and number step by step

input area

choose area of the track and number

exit the setup interface

delete the input track and number

affirm the input track and number

delete the input track and number step by step

Playback information

、For DVD:

Disc type.

DVD Title information. “ / ” indicates that this DVD has titles and the title playing back now

is the fi title.

DVD Chapter information. “2/13” indicates that current title has 13 chapters and the chapter

playing back now is the second chapter

4 Elapsed time of the current title

2、For CD:

( )Disc type

CD Title information. “3/ ” indicates that this DVD has titles and the title playing back

now is the third title.

3display

4The s tup of repeat playing

5Elapsed time of the current title

3、For VCD:

Disc type

VCD Title information. “3/ ” indicates that this DVD has titles and the title playing back

now is the third title.

3display

4The s tup of repeat playing

5Elapsed time of the current title

Device type

USB title information. “3/ ” indicates that this DVD has titles and the title playing back

now is the third title.

The s tup of repeat playing

4 Elapsed time of the current title

Touch the top center area of TFT LCD when playing back DVD and VCD discs and the

playback information will be displayed on the top area of the TFT.

(1)

(2)1 11 11

rst

(3)

( ) .

(2) 19 19

( )PBC

( ) e

( ) .

(1) .

(2)19 19

( )PBC .

( ) e

( ) .

、For USB:

(1)

(2)19 19

(3) e

( ) .

DVD mode

12 3

TRK 3/19 A00:01:34

PBC

1 2

DVD

TT 1/11 00:01:34

CH 2/13

CARD

TRK 3/19 A00:01:34

12 3 4

VCD

TRK 3/19 A00:01:34

PBC

3 4 5

Open [ ] .

Notice:

1. If there are audio files supported in the USB stick, the system will enterthe audio files

menu automatically.

If there are no audio files, but there are video files supported in the USB stick, the

system will enter the video files menu automatically.

If there are no audio or video files, but there are picture files supported in the USB

stick, the system will enter the picture files menu automatically.

If there no above audio/video/picture files supported in the USB stick, the screen will

display: There are no audio/video/picture files supported.

2. Not all kinds of USB devices are compatible with the unit.

Onscreen control icons

Audio/video/picture files mode are the same as disc mode.

Pause

For audio files, press the icon to pause, and the screen will display a [pause ]

icon on the upper left corner. Press again to resume.

For video files full screen playing back, press anywhere of the screen, the screen

will display a control menu, press to pause, and the screen will display a

[pause ] icon on the upper left corner. Press again to resume.

Stop

Audio/video/picture files mode is the same as mode.

Fast forward/Fast reverse

Except in the full screen mode, long press to fast forward, and long press

to fast reverse.

Play the next or previous file

Audio/video/picture files mode is the same as disc mode.

Repeat playback

Audio/video/picture files mode is the same as disc mode.

the source menu and then select USB mode

DISC

Random playback

Zoom in /out

During picture playing back, press [ ZOOM ] to zoom the picture.

USB mode

Playback information display

In the video full screen mode, press the [KEY] icon under the screen, the display

control menu will appear. Press the [ DISP ] icon to select the playing back

information display on the upper of screen.

Rotate picture

Press anywhere on the screen except the upper left corner, the display control

menu will appear. Press the [ ANGEL] icon to select you desired angle to view.

Search for a particular file

In the full screen mode, press anywhere on the screen except the upper left

corner, the display control menu will appear. Press the to select you desired

file. Shown as below:

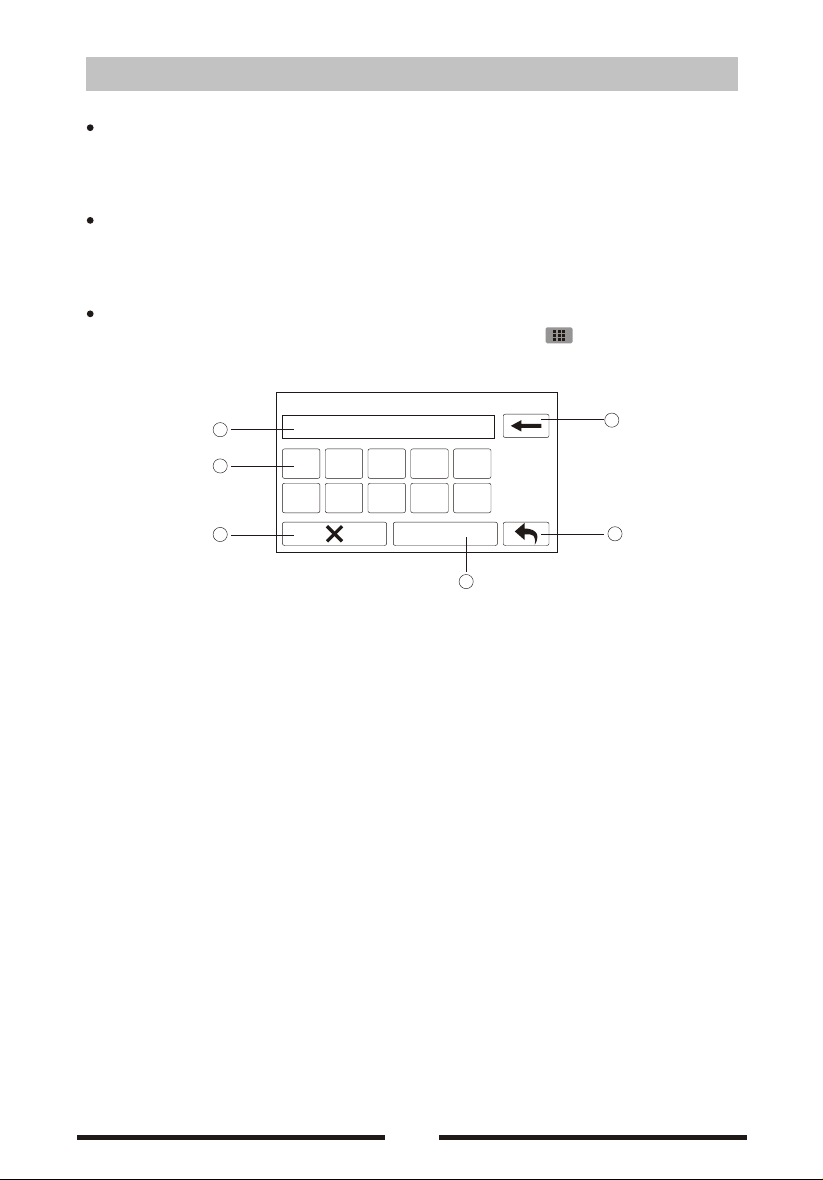

1. Input area

2. Digi area

3. Cancel number input

4. Confirm number input

5. Exit

6. Cancel number one by one

please input track：

_/1

1 2 3 4

USB mode

Hi TV HD4000 User manual

Popular Car Video System manuals by other brands
