Hiddenbed Double Decker User manual

www.hiddenbed.com
Hiddenbed
TM

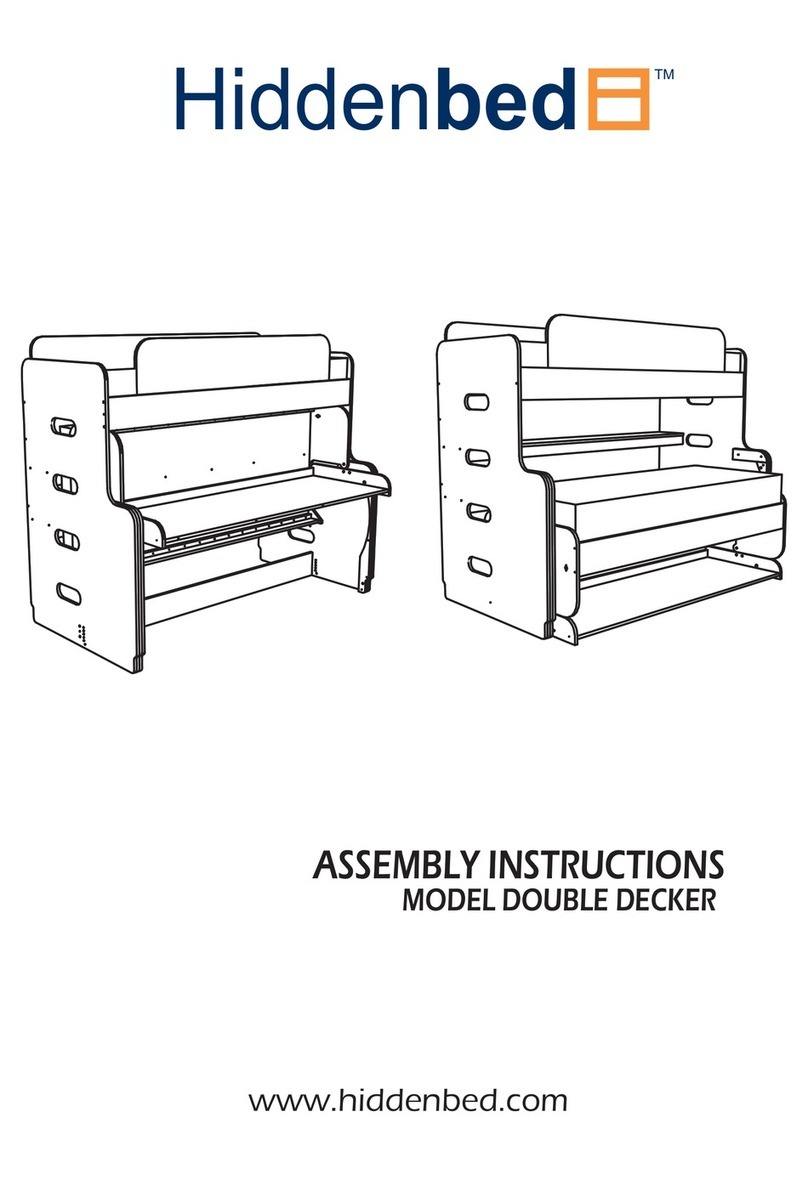

ASSEMBLY INSTRUCTIONS
MODEL DOUBLE DECKER

Hiddenbed
TM
CONGRATULATIONS!
YOU ARE A PROUD OWNER OF
HIDDENBED
The ultimate furniture that Doubles your Space
Please read carefully the Assembly Instructions.
Should you have any questions
please contact our authorized dealer:
For further information please check
www.hiddenbed.com

Hiddenbed
TM
Follow these simple steps
to assemble your Hiddenbed
Put them together
Put the mattress in its place.
Assemble the 3 main parts
1 2
3
LOOK, YOUR HIDDENBED IS READY!

COMPONENTS
COMPONENTS
1+1
1
1
1
2
1
1a+1b
2a+2b
COMPONENTS
1+1
1
Hiddenbed
TM
Front Bunk Bed Side
Bunk Bed Slats Cleat
Guardrail Front
1+1
1
8
1
Body Back
Shelf
Shelf Stretcher
9
18
19
20
21
Part N° Name Qty.
MAIN PARTS &CARPENTRY LIST
BODY PARTS
BED PARTS
DESK PARTS
30
3
3
1
2
57
6
10
11
14
9
8
10
11 12
13
14
15
16
17
18
19
20
21

Make sure that:
Side panels bears on the floor at the same level. A carpet can be placed
beneath both said adjacent bearing sides, but not place carpet or any
shim beneath on side desk or body side alone.
Stand at the middle of the furniture to make the transformation.
Use a mattress of ............. of a maximum height of 10 inches.
Total weight added on the moving parts, best around 40 lb.
Avoid excessive or too asymmetric loads on desk.
While lowering, please verify that bed bottom does not touch things left
on the desk. Things left on the desk cannot exceed 18 inches height. Next
to the rear of the desk there is less height available.
As with a door or a rocking chair, take good care not to trap fingers
between closing parts.
If power or signal cables are to be installed, consult a qualified person.
If the bed does not stay down by it, add more weight on the desk.
if the situation continues have the position point of action changed to a
lower strength position.
Remember a force equivalent to lift a CRT monitor is needed to transform
the bed into desk.
Ask your retailer for more details.
TO OBTAIN A SAFE A RELIABLE PERFORMANCE
(!)Like a sliding door or a car door or a bike, you have to
do certain things to enjoy Hiddenbed Safely and
reliably. Pay attention to theses recommendations!
WARNINGS
Hiddenbed
TM

A1 A2 A3 A4 A5 A6
A7 A8 A9 A10 A11
MECH ARM
PLATE
2 Pcs
GAS SPRING
2 Pcs
LOWER
SUPPORT
2 Pcs
LOWER
SUPPORT
PIN
2 Pcs
COTTER
PIN
2 Pcs
BEARER
2 Pcs
LINK PIVOT
2 Sets
TRUNNION
BUSHING &
SCREW
2 Sets
LOCK
2 Pcs
BRAND PLATE
or STICKER
1 Pcs
MECHANISM KIT BOX A
HARDWARE KIT
Confirmat, H2, 7x70
Confirmat, H12, 7x50
Screw, Ph head,H10, 4.5x45
Screw, Ph head, H14, 4.5x35
Screw, Ph head, H20, 4.5x30
Screw, Ph head, H9, 4.5x20
Screw, Ph head, H13, 3.5x40
Screw, Ph head, H4, 3.5x16
Flat Head Allen & bushing, H6, 6x60
Dowell, 10x30
Bolt & nut, H3,1/4 x 1 1/4
Wood plug, WP
PIN BALL
2 Pcs
EXTRA TOOLS (not supplied)
T1 T2 T3
M4 L - KEY
1 Pc
M5 L - KEY
1 Pc M10 L - KEY
1 Pc
Extra tools needed:
Phillips Head Screwdriver to put
screw (H10, H14, H20, H9, H13, H4)
and bend cotter pins.
Antiwear lubricant.
Hiddenbed
TM

A1
H3
H3
BODY ASSEMBLY
3
Attach plate (A1) to body side (1).
Make sure the hook on the arms is
facing upwards.
H3
4
Attach lower support (A3) to body (1)
but do not over tighten.
A2
1
A3
4
3
Hiddenbed
TM
Attach the Gas Spring end to pin ball (A11).
1
2
Attach the Gas Spring (A2) to lower suport (A3)
using Lower Support Pin(A4), insert cotter pin
(A5) and bend ends.
Cotter pin
Arm pin outer
position for more
load on table
Arm pin inner
position for less
load on table
RIGHT SIDE SHOWN
Do the same with left side symmetrically

8
6
7
Hiddenbed
TM
H10
Attach bunk bed slat
cleat (6) to bunk bed
side (4 ) using screw H10.
Attach body sides (1) to bottom stretcher (3), bunk bed side
(4)and body back (5) fixed using dowels and screws H2.
Attach shelf stretcher (11) to shelf (10)
using screws H14.
4
6
11
10
H14
5
Attach concealer (2) to
body side (1) using screws
H10.
5
1

10
Hiddenbed
TM
11
Attach bed slats (14)
to bunk bed slats
cleats (6) using
screws H10.
Attach front
guardrail (7) to front
bunk bed side (4) .
7
Attach shelf to body
back and screws H10,
also attach shelf to
body side using screws
H2.
9
4
8
9
14
6

DESK ASSEMBLY
1
2
Attach Hiddenbed brand plate
(A10) to desk back (18) with nails.
Attach desk back (18) to desk
top (17) with Screws H2.
Label in place enables
mechanism warranty.
H2
17
18
3
Screw wood
plugs (21) to
inner side of
desk sides
(16).
21
H14
Hiddenbed
TM
Attach one of the desk sides(16) to the desk top(17) using
dowels and screws H2. Then insert wood plug into the
desk stiffener.
19
18
H2
4

5
Attach the other desk side to the desk top using dowels and
screws H2 and inserting the wood plug into the desk
stiffener.
16
17
16
H2
Hiddenbed
TM
6
Attach tube cover(20) to desk top(17) using screws H13.
18
17
19
H13
20
7
Attach the tribearer(A6) to the desk sides(16) using screw
H6, H2 and H9.
16
H2
H2
H6
H9

BED ASSEMBLY
1
Insert the locks (A9) in due perforations in the bed head (10)
and put Screws with screwdriver.
2
Attach front rail (12) and rear rail (13) to bed heads (10) with
dowels and screws (H2).
Be careful, put cleats inside. Perforations for slats should be
pointing bed up. (Down in sketch position!!)
10
10
12
10
Slats and salt cover must be attached to the bed after the bed
was attached to the body side.
H2
Hiddenbed
TM

FINAL ASSEMBLY
1
Assemble two links pivot sets attaching three link bushings to
one triangle plate (outer cones to bushing) using link screws.
2
3
Put bed heads bearing on desk sides carefully, aligning holes
(see detail in sketch STEP 2) provided for link bushings. In
both sides in turn, place from outside the link pivot set into
link holes as shown. Slightly displacing or rising the bed as
required to push the link in place.
Fix the remaining triangle plates (A7) with link screws to link
pivot. Tighten screws, re-check tightening all screws.
2
3
SLIGHTLY HEAVY - BE CAREFUL
Hiddenbed
TM

4
Slide body carefully in order to align plates with bed head
holes. Then standing at rear side of the body, introduce
trunnion bushing (A8) with the screw. Screw in a few turns,
and let loose.
Hiddenbed
TM
5
H10
Place the bed cover over the slat cleat. Pull all screws
(H10) through the bed slats (14) and through bed cover
(11) to screw in slat cleat.
H10
14
11

6
Lift the bed slowly, taking care of keeping the desk in
horizontal position. Once in upper position, lock the bed by
pushing in the Lock at both sides.
8a 8b 8c
PUSH IN
TO LOCK
CAUTION!
1- EXTRA STRENGTH REQUIRED
We recommend to sit on the floor
and pull strongly
2- TAKE CARE OF YOUR FINGERS
Do not put fingers in the hook.
Hold the arm as shown.
7
Hiddenbed
TM
ASSEMBLY HAS FINISHED
For Normal Use:
Check that the floor is clear to lower the bed.
Unlock to change from desk to bed position.
Stand at the middle of the furniture to pull from the bed beam and push
down the desk to make the transformation.
The mechanism is already calibrated to work with the mattress on and a
weight similar to 35/40 lbs. on the desk.
If the bed doesn't stay down by itself, add more weight on the desk.

www.hiddenbed.com
