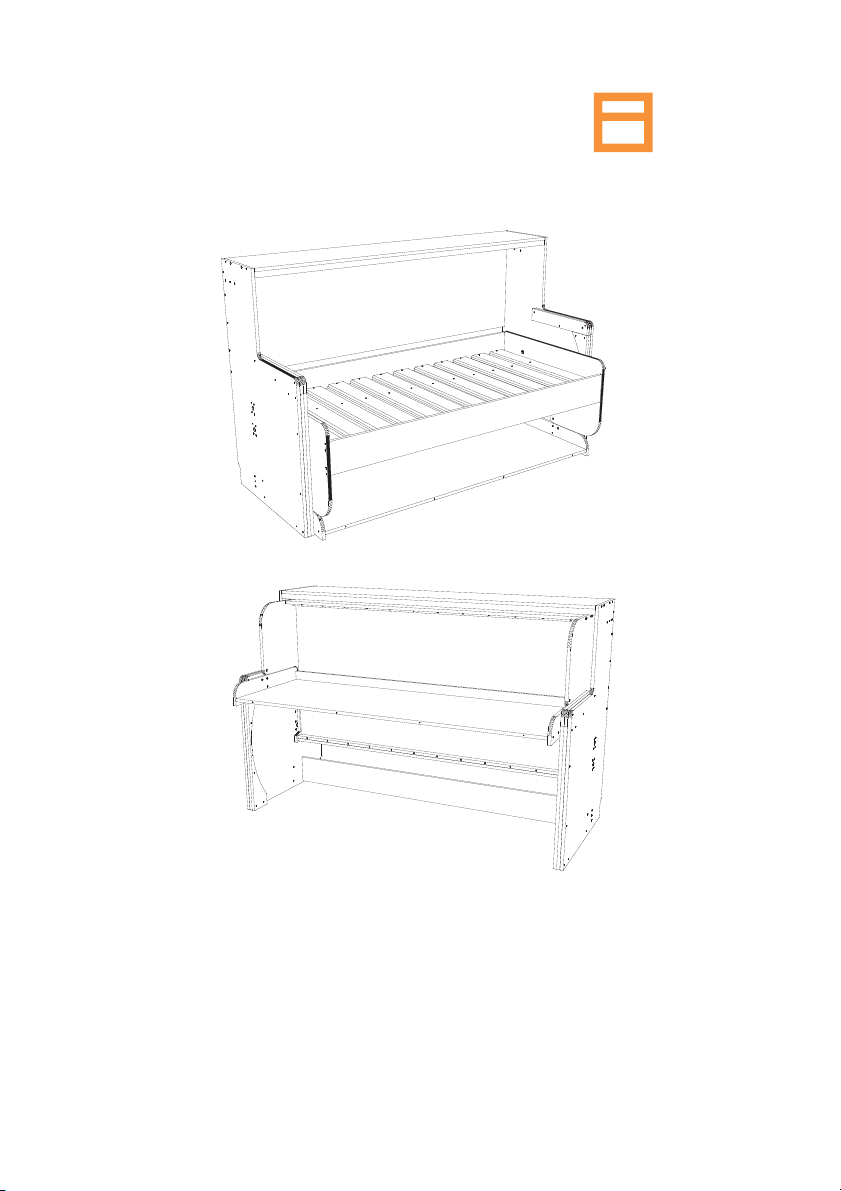

Hiddenbed SPLENDID User manual

Hiddenbed
TM
ASSEMBLY INSTRUCTIONS
MODEL SPLENDID
www.hiddenbed.com

CONGRATULATIONS!
YOU ARE A PROUD OWNER OF
HIDDENBED
The ultimate furniture that Doubles your Space
Please read carefully the Assembly Instructions.
Should you have any questions
please contact our authorized dealer:
For further information please check
www.hiddenbed.com
Hiddenbed
TM

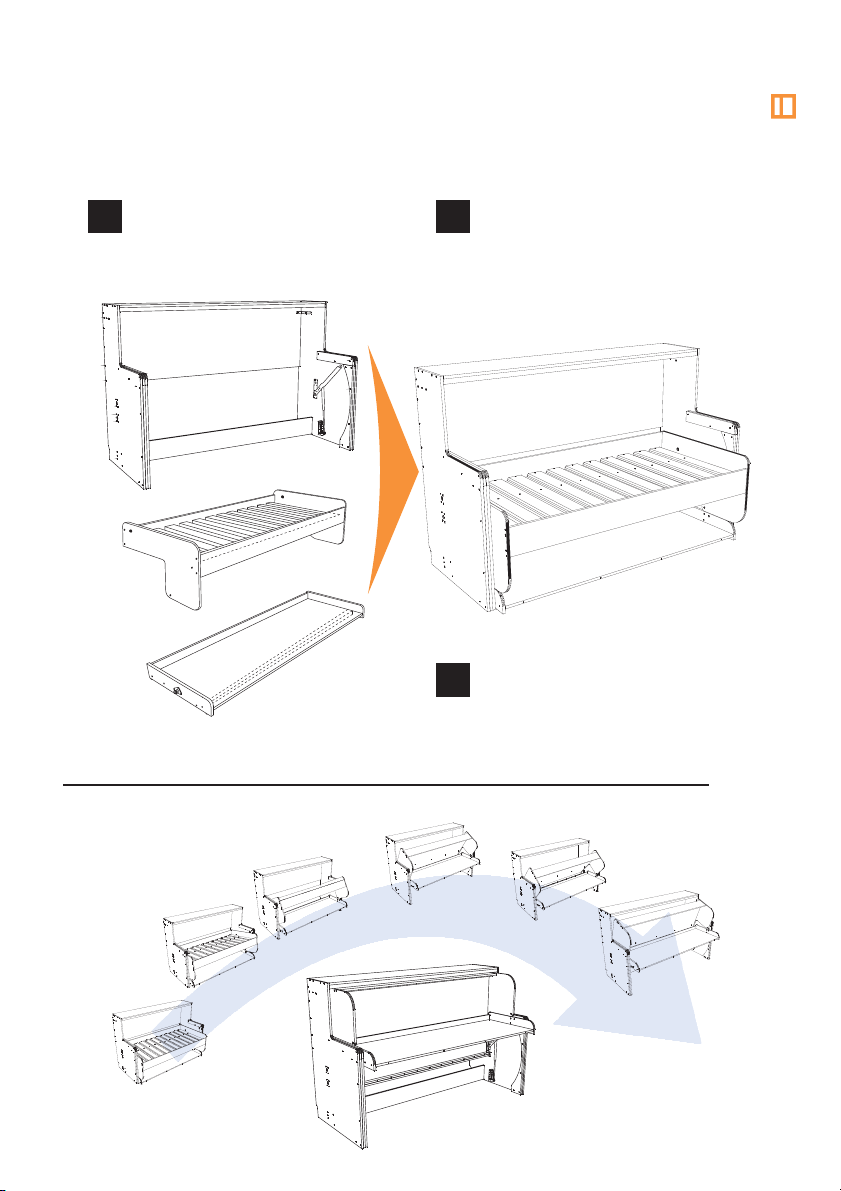

Follow these simple steps
to assemble your Hiddenbed
Put them together
Put the mattress in its place.
Assemble the 3 main parts
1 2
3
LOOK, YOUR HIDDENBED IS READY!
Hiddenbed
TM

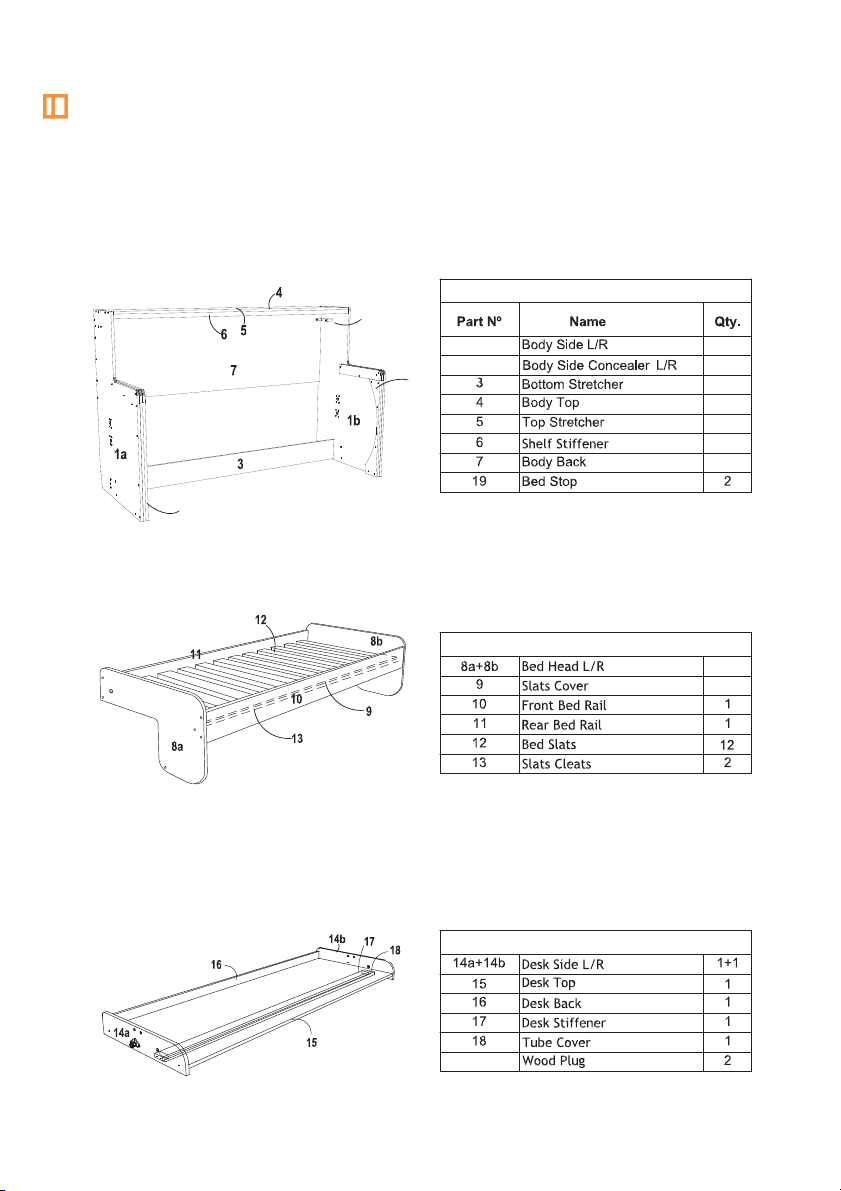

BODY PARTS
BED PARTS
DESK PARTS
MAIN PARTS &CARPENTRY LIST
COMPONENTS
COMPONENTS
1+1
1
1
1
1
1
1a+1b
2a+2b
COMPONENTS
1+1
1
Hiddenbed
TM
2b
19
2a
1+1

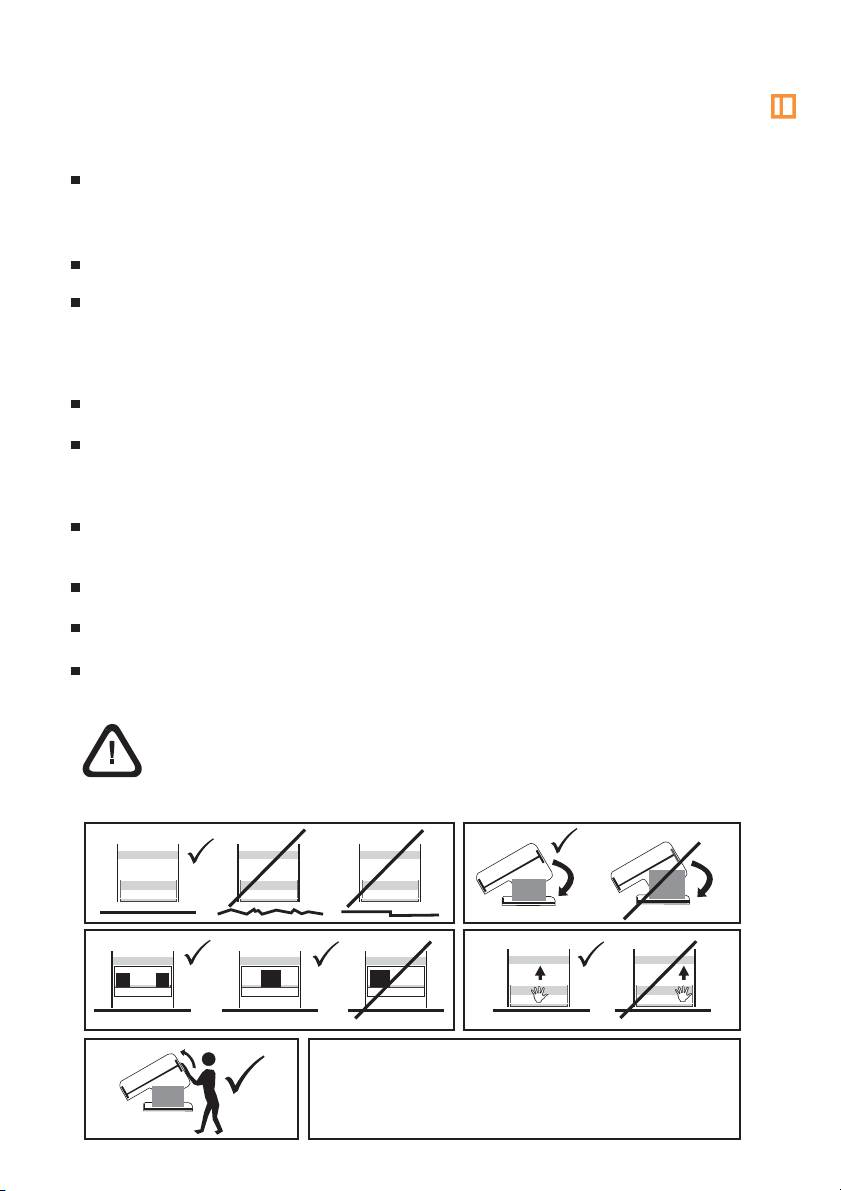

Make sure that:
Side panels bears on the floor at the same level. A carpet can be placed
beneath both said adjacent bearing sides, but do not place carpet or any
shim beneath on side desk or body side alone.
Stand at the middle of the furniture to make the transformation.
Use a mattress of 20 Kg of a maximum height of 10 inches.
Avoid excessive or too asymmetric loads on desk.
While lowering, please verify that bed bottom does not touch things left
on the desk. Things left on the desk cannot exceed 18 inches height. Next
to the rear of the desk there is less height available.
As with a door or a rocking chair, take good care not to trap fingers
between closing parts.
If power or signal cables are to be installed, consult a qualified person.
If the bed does not stay down by itself, lock the locking device.
Ask your retailer for more details.
Total weight
added on the desk, best around 25 Kg and the gas spring in the pin arm
position B. Using this balance settings you will not have to make more
than 100N to transform a Hiddenbed furniture.
TO OBTAIN A SAFE AND RELIABLE PERFORMANCE
(!)Like a sliding door or a car door or a bike, you have to
do certain things to enjoy Hiddenbed Safely and
reliably. Pay attention to theses recommendations!
WARNINGS
Hiddenbed
TM
Use the lock placed at the desk side
to safe use in bed and desk position.

A1 A2 A3 A4 A5 A6 A7
A8 A9 A10 A11
MECH ARM
PLATE
2 Pcs
GAS SPRING
2 Pcs
1100N/1300N
LOWER
SUPPORT
2 Pcs
LOWER
SUPPORT
PIN
2 Pcs
COTTER
PIN
2 Pcs
BEARER
2 Pcs
LINK PIVOT
2 Sets
TRUNNION
BUSHING &
SCREW
2 Sets
LOCK
2 Pcs
SAFETY BRACKET
HAFELE 271.98.100
2 Pcs
WASHERS
2 Pcs
LOCK BUSHING
4 Pcs
MECHANISM KIT
HARDWARE KIT
EXTRA TOOLS (not supplied)
Confirmat, H2, 7x70
Confirmat, H12, 7x50
Screw, Ph head,H10, 4.5x45
Screw, Ph head, H14, 4.5x35
Screw, Ph head, H20, 4.5x30
Screw, Ph head, H9, 4.5x20
Screw, Ph head, H13, 3.5x40
Screw, Ph head, H4, 3.5x16
Flat Head Allen & T nut, H6, 6x20
Dowell, 10x30
Bolt & nut, H3,1/4 x 1 1/4
T1 T2 T3
M4 L - KEY
1 Pc
M5 L - KEY
1 Pc M10 L - KEY
1 Pc
Extra tools needed:
Phillips Head Screwdriver to put
screw (H10, H14, H20, H9, H13, H4)
and bend cotter pins.
Hiddenbed
TM
Bolt & nut, H30,1/4 x 1 3/4
Screw & plastic anchor, H17
Antiwear lubricant.
ADITIONAL SAFETY DEVICE

A1
H3
H3

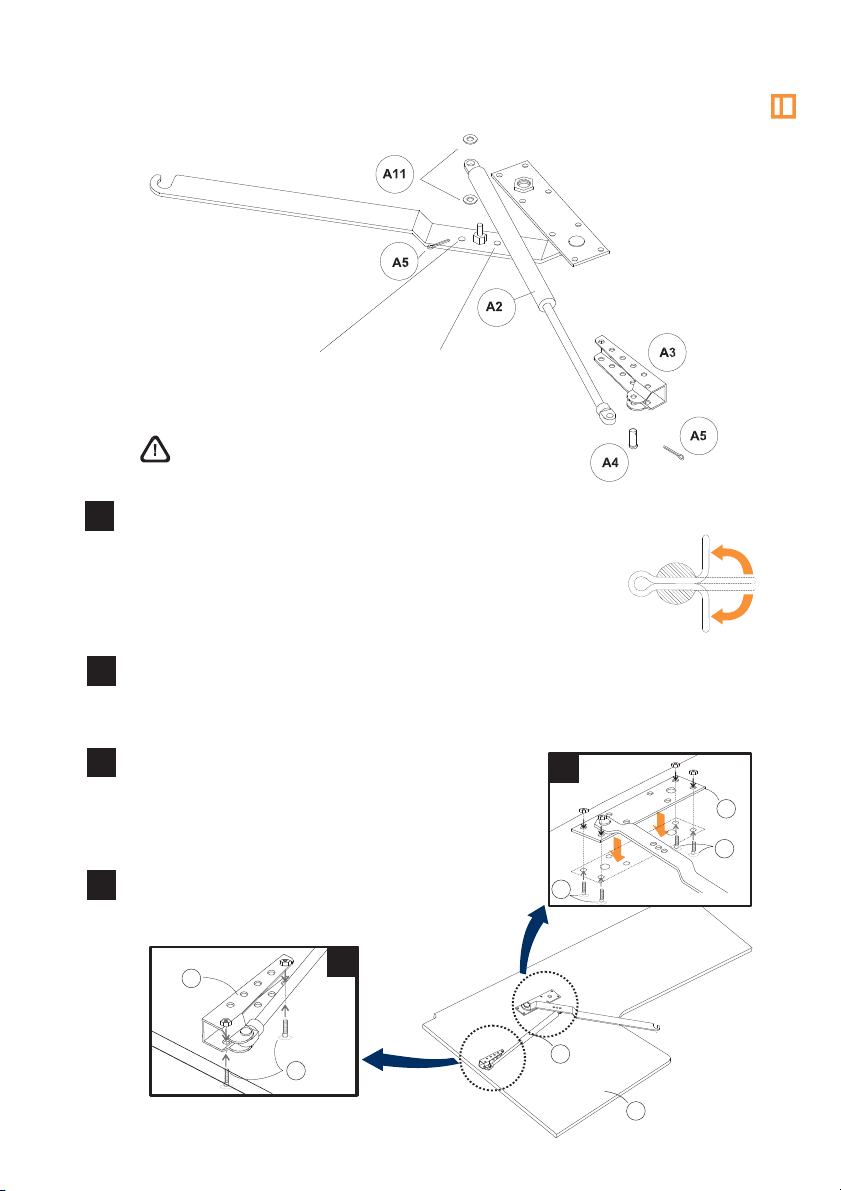

Attach the gas spring end to pin (A4), putting
the same number of washers (A11) at the both
sides of gas blade to reduce lateral play, insert
cotter pin (A5) and bend ends.
BODY ASSEMBLY
1
2
Attach the gas spring (A2) to lower suport (A3) using lower
support Pin(A4), insert cotter pin (A5) and bend ends.
Cotter pin
3
Attach plate (A1) to body side (1).
Make sure the hook on the arms is
facing upwards.
H3
4
Attach lower support (A3) to body (1)
but do not overtighten.
A2
1
Arm pin outer
position for more
load on table
Arm pin inner
position for less
load on table
RIGHT SIDE SHOWN
Do the same with left side symmetrically
A3
4
3
Hiddenbed
TM
A
B
C

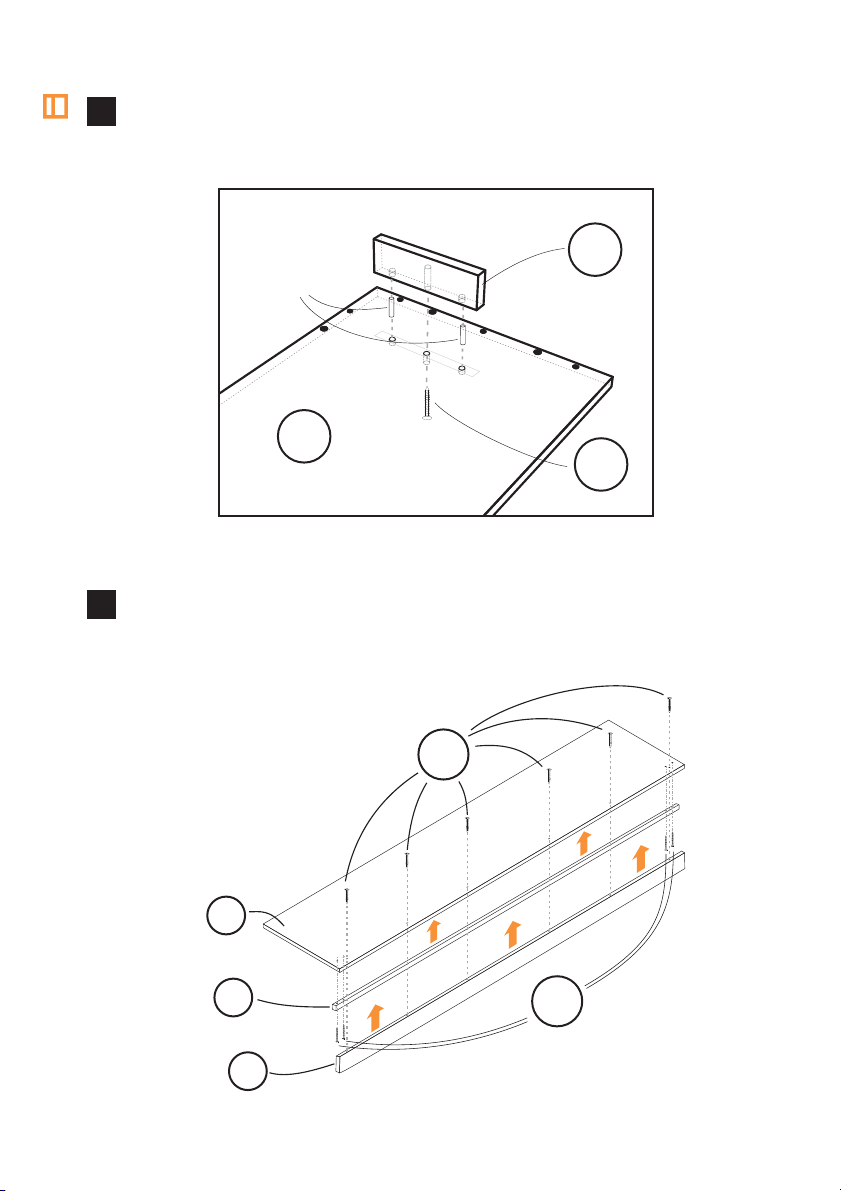

Attach top stretchers (5) to top pannel (4) using dowels and
screws H20. Attach structural tube (6) to top pannel
(4) using screws H13.
H13
H20
4
5
6
5
Attach bed stop(19) to body side(1) using dowels and
screw H12
6
H12
1
19
dowels
Hiddenbed
TM

Attach body sides (1) to bottom strectcher (2) and top
stretchers (3) fixed using dowels and screws H2.
7
DOWELS H2
H2
T1
3
4
2
8a
8a
8b
8b
8c
8c
Hiddenbed
TM
1
1

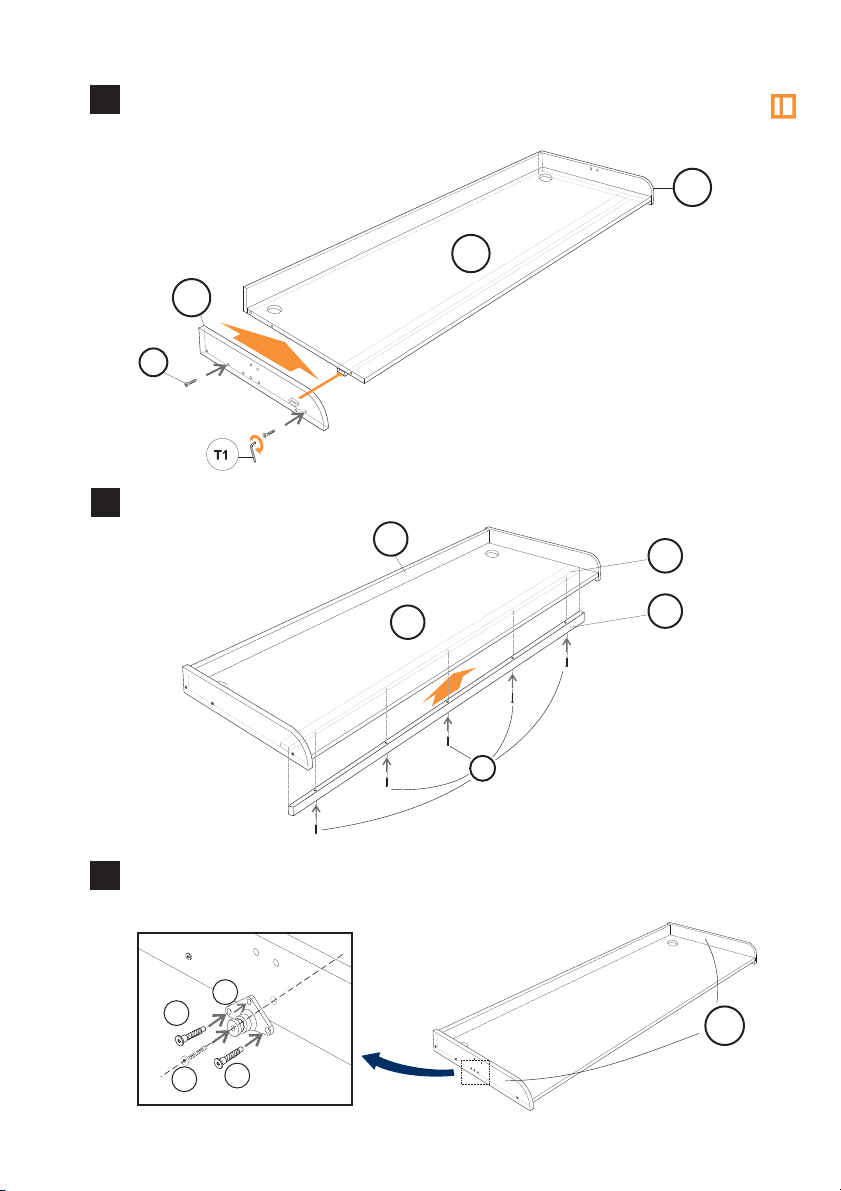

DESK ASSEMBLY
1

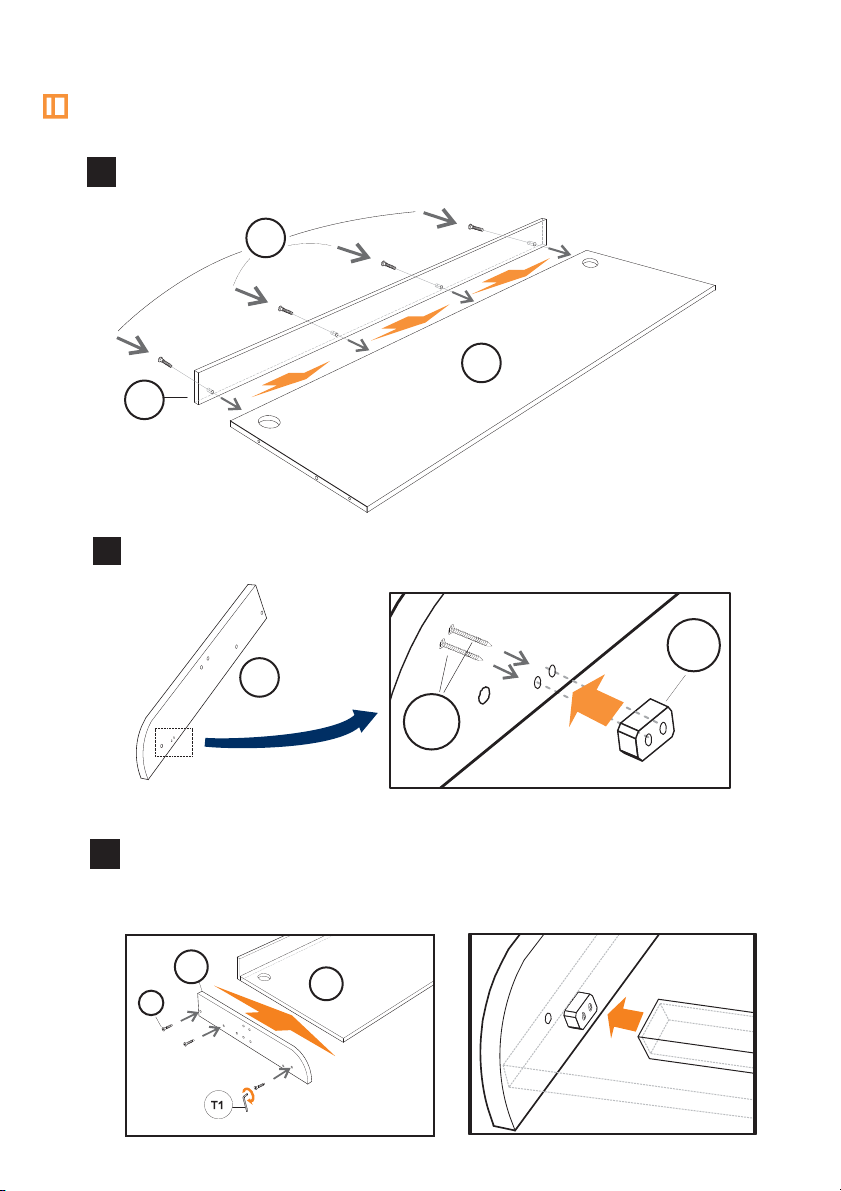

Attach desk back (9) to desk top (7) with screws H2
H2
7
9
2
Screw wood plugs (WP) to inner side of desk sides(8).
WP
H30
Hiddenbed
TM
8
3
Attach one of the desk sides(8) to the desk top(7) using
dowels and screws H2. Then insert wood plug(WP) into the
desk stiffener.
7
8
H2

4
Attach the other desk side to the desk top using dowels and
screws H2 and inserting the wood plug into the desk
stiffener.
8
7
8
H2
Hiddenbed
TM
5
Attach tube cover(18) to desk top(7) using screws H13.
9
7
17
H13
18
6
Attach the tribearer(A6) to the desk sides(8) using screw H6.
8
H6
H6
H6
H6

Hiddenbed
TM
BED ASSEMBLY
1
Attach front rail (10) and rear rail (11) to bed heads (8) with
dowels and screws (H2).
Be careful, put cleats inside. Perforations for slats should be
pointing bed up. (Down in sketch position!!)
8
10
8
Slats and slats cover must be attached to the bed after the bed
was attached to the body side.
H2
FINAL ASSEMBLY
1

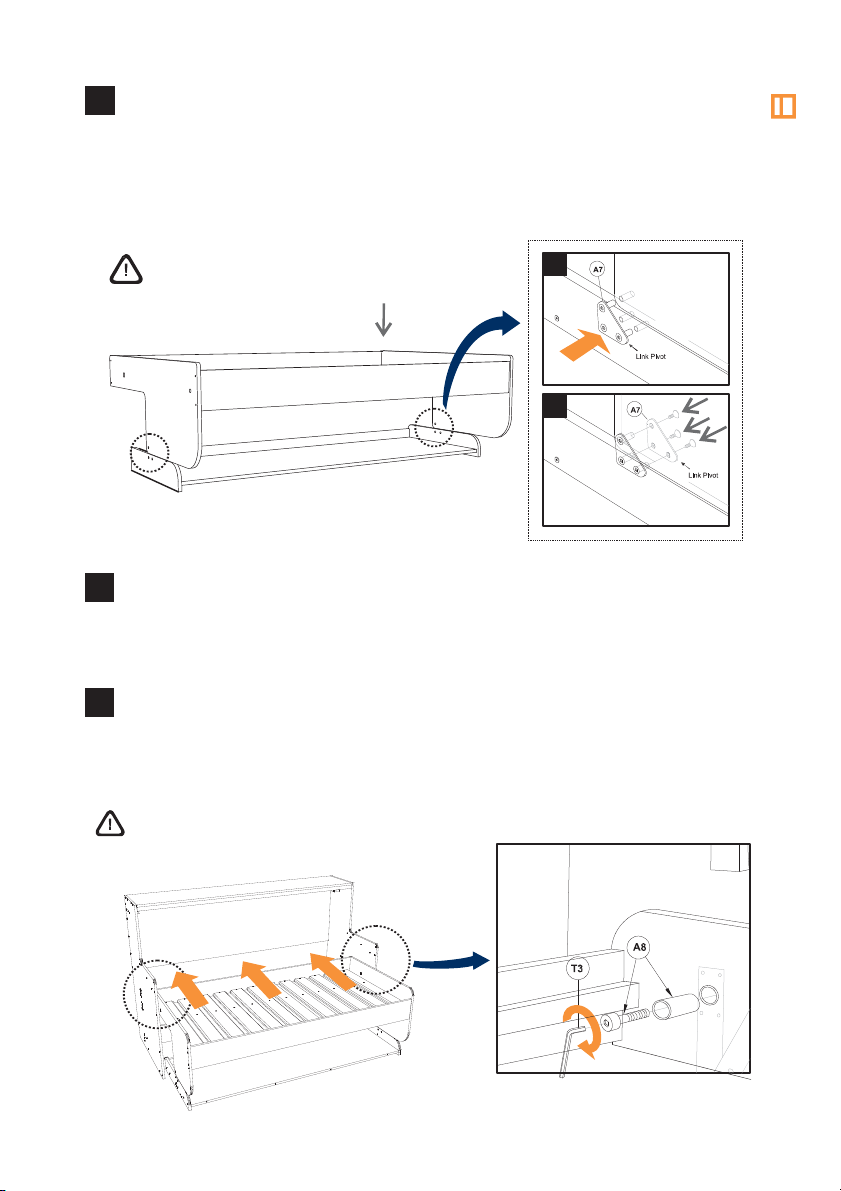

Assemble two links pivot sets attaching three link bushings to
one triangle plate (outer cones to bushing) using Link
Screws.
All the rotating metal parts (pin arm, support pin,
triangle link rollers, trunnion) must be greased.

2
3
Put bed heads bearing on desk sides carefully, aligning holes
(see detail in sketch STEP 2) provided for link bushings. In
both sides in turn, place place from outside the link pivot set
into link holes as shown. Slighty displacing or rising the bed
as required to push the link in place.
Fix the remaining triangle plates (A7) with link screws to link
pivot. Tighten screws, re-check tightening all screws.
2
3
SLIGHTLY HEAVY - BE CAREFUL
Hiddenbed
TM
4
Slide body carefully in order to align plates with bed head
holes. Then standing at rear side of body, introduce trunnion
bushing (A8) with screw. Screw in a few turns, and let loose.
Repeat at the other side. Tighten screws (A8) strongly.
Avoid scratching bed head (11) and
desk side (8) with mech arm (A1).

H10
5

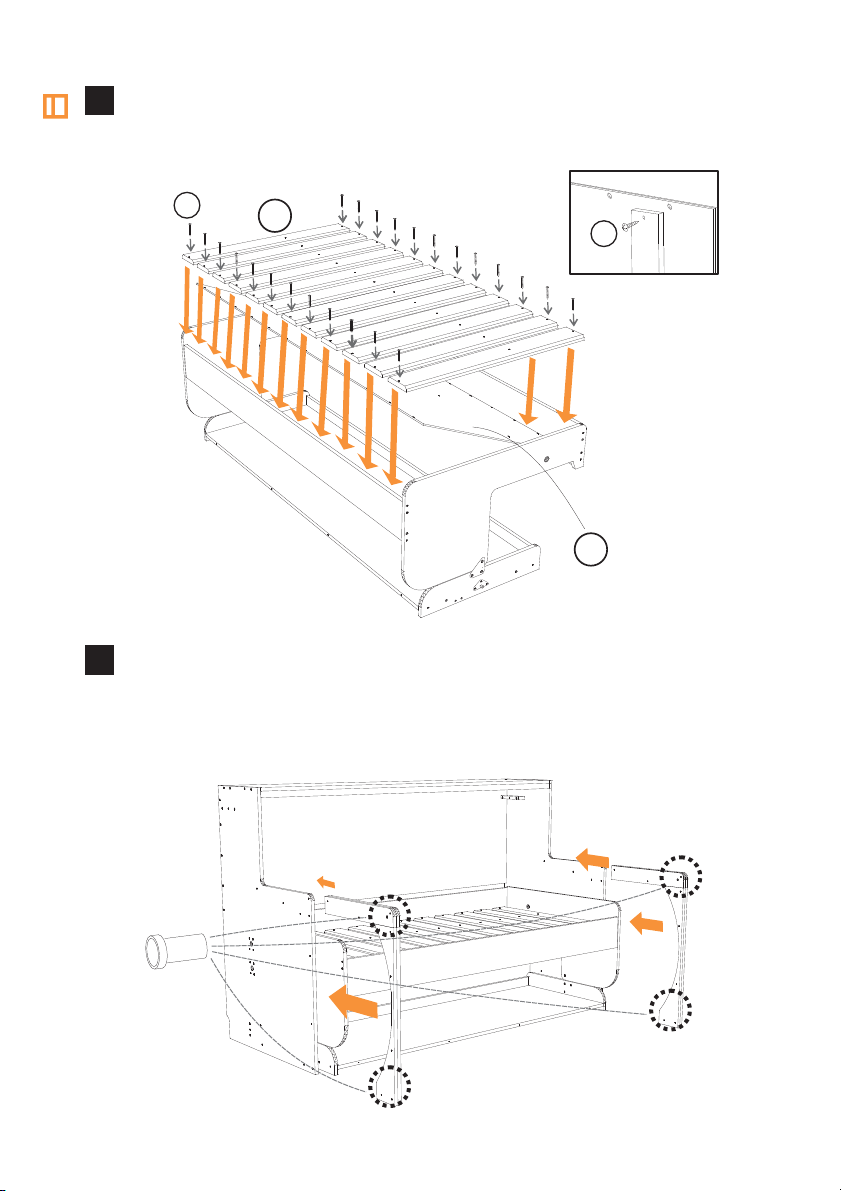

Place the bed cover over the slat cleat. Pull all screws
(H10) through the bed slats (12) and through bed cover
(9) to screw in slat cleat.
H10
12
Hiddenbed
TM
6
Attach the concealers to the body side. The bottom part
should be attached after the mechanism arm is placed in the
tribearer to ease the positioning of the arm. Place the plastic
bushing (A10) in the concealer perforations for the locks.
9

7

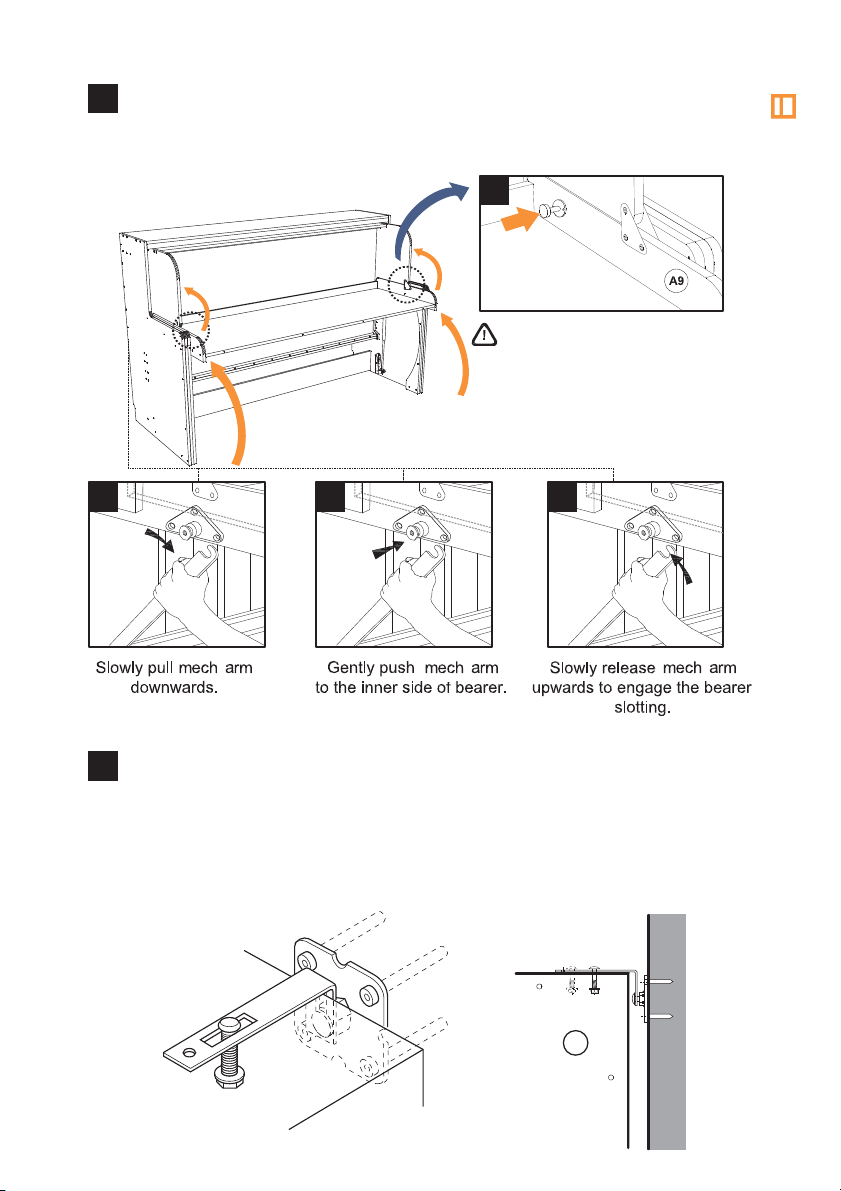

Lift the bed slowly, talking care of keeping the desk in
horizontal position. Once in upper position, lock the desk
by pushing in the Lock at both sides.
9a 9b
PUSH IN
TO LOCK
CAUTION!
1- EXTRA STRENGTH REQUIRED
We recommend to sit on the floor
and pull strongly
2- TAKE CARE OF YOUR FINGERS
Do not put fingers in the hook.
Hold the arm as shown.
8
9c
Hiddenbed
TM
8
Use the brackets to fix the body top to the wall. The wall
endurance should be checked also the proper anchor and
screw lenght. First attach the bracket to the body top using
the proper screw then attach the bracket to wall using
screws and plastic anchors.
WALL
1

ASSEMBLY HAS FINISHED
For proper use:
Check that the floor is clear to lower the bed.
Unlock to change from desk to bed position and lock again.
Stand at the middle of the furniture to pull from bed beam and push down
the desk to make the transformation.
The mechanism is already calibrated to work with the mattress on and a
weight similar to 25 Kg on the desk.
Do not forget to place mattress for adequate functioning.
PROPER USE
To open the bed and move the desk down, first unlock the desk then grab
the front bed rail with a hand and push down the desk with the other.To
close the bed, unlock the locking device and pull up the front bed rail.
Always stand at the middle of the furniture to make the transformation and
grab the parts from its center.
It is important to lock the locking device after the transformation and
before the use of the desk or the bed.
Hiddenbed System is based on a desk/bed balance. Unbalanced system
may result on having to apply extra force when transforming from bed
to desk and vice versa. Pin Arm position on arm (A,B,C) helps to balance
unbalanced system (less than 20Kg and more than 20Kg on desk, less
than 10 kg and more than 20kg on bed).
Side panels bears on the floor at the same level. A carpet can be placed
beneath both said adjacent bearing sides, but do not place carpet or
any shim beneath on side desk or body side alone.
Avoid excessive or too asymmetric loads on desk.
While lowering, please verify that bed bottom does not touch things
left on the desk. Things left on the desk cannot exceed 18 inches height.
Next to the rear of the desk there is less height available.
As with a door or a rocking chair, take good care not to trap fingers
between closing parts.
If power or signal cables are to be installed, consult a qualified person.
If the bed does not stay down by itself, lock the locking device.
Ask your retailer for more details.
Hiddenbed
TM

WALL
1
Use the lock placed at the desk side to
safe use in bed and desk position.
PUSH IN
TO LOCK
PUSH IN
TO LOCK
DESK POSITION BED POSITION
SAFETY PRECAUTIONS
Attach the Hiddenbed´s body to the wall using
the brackets and proper wall anchors.
HIDDENBED INTERNATIONAL
MODEL SPLENDID. HBSP68
DIN EN 1129;1995
MANUFACTURER`S DATA:
NAME:
ADDRESS
A QUALIFIED PERSON SHOULD FIX THE HIDDENBED TO THE
WALL. THE FLOOR (LEVELING AND RESISTANCE) , THE WALL
(LEVELING AND RESISTANCE) AND THE FIXING (SCREWS AND
ANCHORS ACCORDING TO THE WALL MATERIAL) MUST BE
VERIFIED IN ORDER TO GET A SECURE FIXATION.
NO PROPER FIXATION CAN CAUSE
UNDESIRED MOVEMENT
