ACME Dotline360 TB-1230 QW User manual

TB-1230 QW
User Manual
Please read the instrucon carefully before use

CONTENTS
1. Safety Instructions ............................................................................................. 2
2. Technical Specifications .....................................................................................3
3. How To Set The Unit...........................................................................................4
3.1 Control panel.......................................................................................................................... 4
3.2 Main Functions.......................................................................................................................6
3.3 HomePosition Adjustment................................................................................................... 13
4.DMX Controller ................................................................................................. 14
4.1 DMX 512 Configurations ...................................................................................................... 15
5. How to Control the Unit...................................................................................18
5.1 DMX 512 Connections ................................................................................... 18
6. Troubleshooting ............................................................................................... 19
7. Fixture Cleaning ............................................................................................... 19
1B

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they
also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the unit.
It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces.
Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire hazard.
Use safety cable when installing this unit. DO NOT handle the unit by taking its head only, but always by
taking its base.
Maximum ambient temperature is Ta: 40 degrees C. DO NOT operate it where the temperature is
higher than this.
Unit surface temperature may reach up to 70 degrees C. DO NOT touch the housing with bare-hands
during its operation. Turn off the power and allow about 15 minutes for the unit to cool down before
replacing or serving.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair the
unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
DO NOT touch any cables during operation as high voltage may cause electric shock.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.
2B

Warning:
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
The housing and lenses must be replaced if they are visibly damaged.
Installation:
The fixture should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly
fixed to avoid vibration and slipping while operating and make sure that the structure to which you are
attaching the unit is secure and is able to support a weight of 10 times of the fixtures weight. Always use
a safety cable that can hold 12 times of the weight of the fixture when installing. The equipment must be
installed by professionals and it must be installed in a place where is out of the reach of people and no
one can pass by or under it.
2. Technical Specifications
2 DMX Channel Modes: 57 / 14 Channels
Power Supply: AC 100~240V, 50/60Hz
Power Consumption: 450W
Power Supply: 12 ×30W RGBW LED
Power Cable Daisy Chain: 4 Fixtures Max.(120V, 60Hz); 7 Fixtures Max. (230V, 50Hz)
Beam Angle: 3.5°-38°
Weight: 17.5Kgs
Dimension: 1000 × 113 × 278mm
Fixture Rotation Angle Range:0°-215°
3B

3. How To Set The Unit
3.1 Control panel
LCOK UNLCOK
10
11
11
10
4B

1. Button:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
2. Function Display:
Show the various menus and the selected functions;
3.Battery Display:
To show battery status.
4.DMX IN:
Water proof 5-pin XLR connectors for DMX 512 operation;
5. DMX OUT:
Water proof connectors for DMX 512 operation, 5-pin XLR cable to output DMX signal;
6. POWER IN:
To connect to the mains supply;
7. POWER OUT:
connect to the next unit;
8. ETHERNET:
Transfers fixture’s information to a main controller.
9.FUSE(T10A):
Protect the unit from damage of the overcurrent
10.PUSH BUTTON 1 (Head Push Button):
Before the fixture is powered on , please push the button to “UNLOCK” of the head;
11.PUSH BOTTON 2:
When the fixture is online , please push the button to “LOCK”;
5B

3.2 Main Functions
To select any functions, press the MENU button until the required one is shown on the display. Select the
function by the ENTER button and the display will blink. Use the DOWN/UP button to change the mode.
Once the required mode has been selected, press the ENTER button to setup or it will automatically
return to the main functions without any change after idling one minute. Back to the functions without
any change press the MENU button.
The main functions are shown below:
6B

7B

DMX Setting
To select DMX Settings press the ENTER button to confirm, use the UP/DOWN button to select ArtNet
Setup, DMXAddress, Channel Mode or RDM Device ID.
ArtNet Setup
To select ArtNet Setup, press the ENTER button to confirm. Use the UP/DOWN button to select
Ethernet IP Setup or ArtNet Port Setup channels mode, press the ENTER button to store. When
choose Ethernet IP Setup, use the UP/DOWN button to select IP Address or Subnet Mask.When
choose Art-Net Port Setup, use the UP/DOWN button to select Net, Subnet or Universe. Press the
MENU button back to the last menu or let the unit idle one minute to exit menu mode.
DMX Address
To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust
the address from 001 to 512, press the ENTER button to store. Press the MENU button back to the
last menu or let the unit idle one minute to exit menu mode.
Channel Mode
To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select
57 CH or 14 CH channels mode, press the ENTER button to store. Press the MENU button back to
the last menu or let the unit idle one minute to exit menu mode.
RDM Device ID
To select RDM Device ID, press the ENTER button to show RDM Device ID on the display, and press
the ENTER button again, it will show the RDM Device ID. To go back to the functions without any
changes press the MENU button.
8B

DMX Last State
To select DMX Last State , press the ENTER button to show DMX Last State on the display. Use the
DOWN/UP buttons to select Black Out, Hold or Manu, Once the mode has been selected, press the ENTER
button to setup. To go back to the functions without any changes press the MENU button again. Press
and hold the MENU button for about one second or wait for 7 seconds to exit the menu mode.
Fixture Setting
To select Fixture Setting, press the ENTER button to show Fixture Setting on the display. Use the
DOWN/UP buttons to select Light Mode, Dimmer Curve, Dimmer Speed, Invert Tilt, Tilt Feedback, Bl.O.
Tilt Moving or Fan Mode. Once the mode has been selected, press the ENTER button to setup. To go
back to the functions without any changes press the MENU button again. Press and hold the MENU
button for about one second or wait for 7 seconds to exit the current mode.
Light Mode
To select Light Mode, press the ENTER button to confirm. Use the UP/DOWN button to select Color
Calibration or Max, press the ENTER button to store. When choose Color Calibration, use the
UP/DOWN button to select Disable or Enable.When choose Max, press the ENTER button to enter
White Balance ，use the UP/DOWN button to select Red, Green or Blue. Press the MENU button back
to the last menu or let the unit idle one minute to exit menu mode.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display. Use
theDOWN/UP button to select the Optically Linear or Square Law or Inverse Square Law or S-Curve.
Once the mode has been selected, press the ENTER button to setup, to go back to the functions
without any change press the MENU button again. Press and hold the MENU button about one
second or wait for one minute to exit the menu mode.
9B

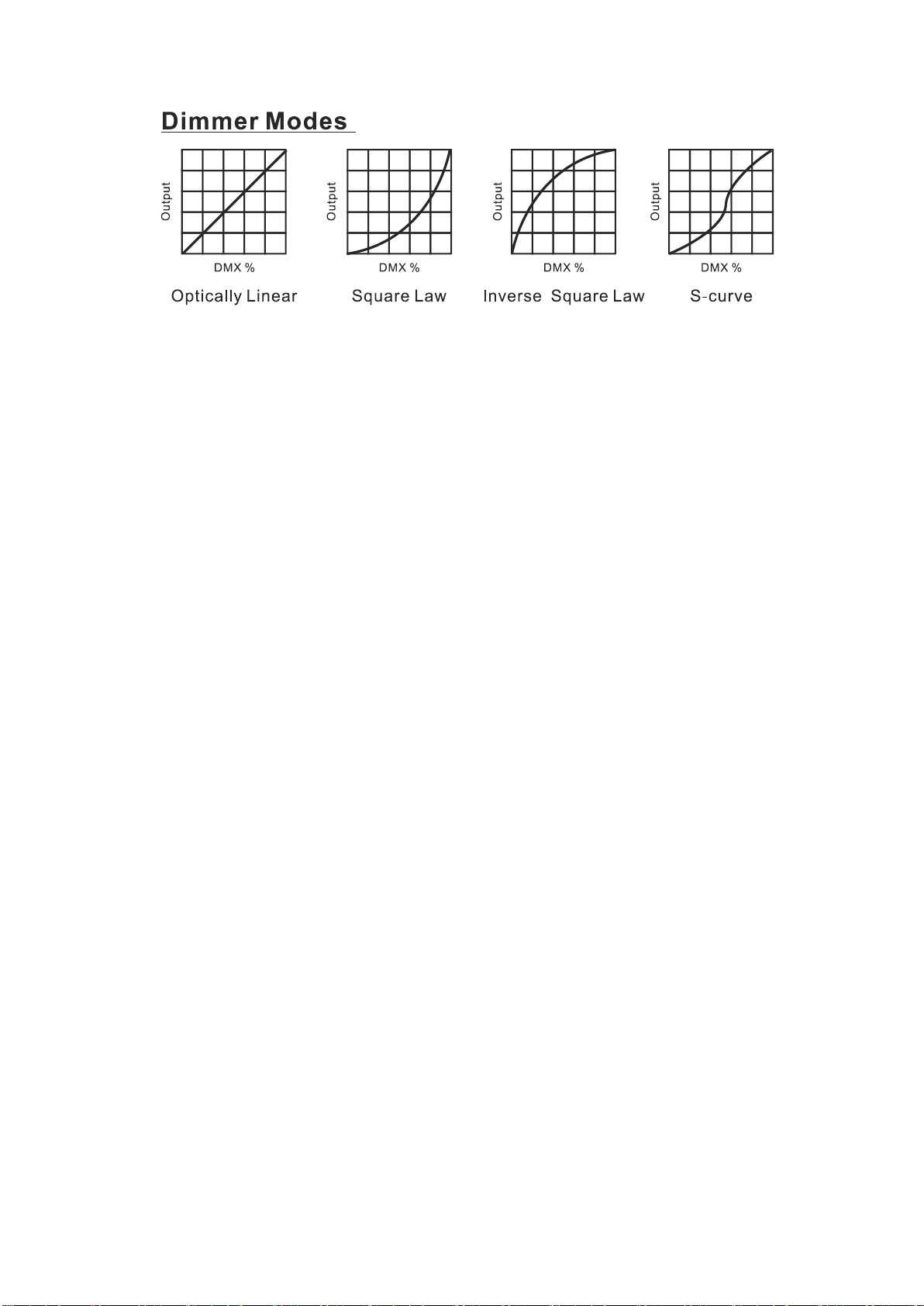

Optically Linear:
The increase in light intensity appears to be linear as DMX value is increased.
Square Law:
Light intensity control is finer at low levels and coarser at high levels.
Inverse Square Law:
Light intensity control is coarser at low levels and finger at high levels.
S-cure:
Light intensity control is finger at low levels and high levels and coarser at medium levels.
Dimmer Speed
To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select
Smooth or Fast, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
Invert Tilt
To select Invert Tilt, press the ENTER button to confirm. Use the UP/DOWN button to select Disable
or Enable, press the ENTER button to store. Press the MENU button back to the last menu or let the
unit idle one minute to exit menu mode.
Tilt Feedback
To select Tilt Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select
Disable or Enable, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
10B

Bl.O. Tilt Moving
To select Bl.O. Tilt Moving, press the ENTER button to confirm. Use the UP/DOWN button to select
Disable or Enable, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
Fan Mode
To select Fan Mode, press the ENTER button to confirm. Use the UP/DOWN button to select Auto or
Silent, press the ENTER button to store. Press the MENU button back to the last menu or let the unit
idle one minute to exit menu mode.
Auto Test
To select AUTO TEST, press the ENTER button to show AUTO TEST on the display and the unit will run a
self-test . To go back to the functions without any changes press the MENU button again. Press and hold
the MENU button for about one second or wait for 7 seconds to exit the current mode.
Manual Mode
To select Manual Mode, press the ENTER button to show Manual Mode on the display. Use the
DOWN/UP button to select Tilt, Dimmer, Strobe,Red,Green, Blue,White or Zoom on the display. Once
the mode has been selected, press the ENTER button to confirm. Use the DOWN/UP buttons to specify a
value for the chosen effect from 0to 255. To go back to the functions without any changes press the
MENU button again. Press and hold the MENU button for about one second or wait for 7 seconds to exit
the menu mode.
Display Settings
To select Display Settings ,press the ENTER button to confirm, use the UP/DOWN button to select
Inverse, Language, Temperature Unit or Display Warning.
Inverse
To select Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No or Yes,
press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle
one minute to exit menu mode.
11B

Language
To select Language, press the ENTER button to confirm. Use the UP/DOWN button to select
English or Chinese, press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
Temperature Unit
To select Temperature Unit, press the ENTER button to confirm. Use the UP/DOWN button to
select °C or °F, press the ENTER button to store. Press the MENU button back to the last menu or
let the unit idle one minute to exit menu mode.
Display Warning
To select Display Warning, press the ENTER button to confirm. Use the UP/DOWN button to select
Disable or Enable, press the ENTER button to store. Press the MENU button back to the last menu
or let the unit idle one minute to exit menu mode.
Fixture information
To select Fixture information ,press the ENTER button to confirm, use the UP/DOWN button to select
Led Temperature, Fixture Usage Time, Led Light Time or Firmware Version.
Led Temperature
To select Led Temperature, press the ENTER button to confirm. fixture temperature will show on
the display, press the MENU button to exit.
Fixture Usage Time
Select Fixture Usage Time r, press the ENTERbutton to confirm, fixture use time will show on the
display, press the MENU button to exit.
Led Light Time
Select Led Light Time, press the ENTERbutton to confirm, led light use time will show on the
display, press the MENU button to exit.
Firmware Version
Select Firmware Version, press the ENTER button to confirm, firmware version will show on the
display, press the MENU button back to exit.
Reset Functions
Enter menu mode, select Reset Function, press the ENTER button to confirm, use the UP/DOWN button
12B

to select All, Tilt or Zoom.
All — Reset All
Select All, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit will
run built-in program to reset all motors to their home positions) or No, press ENTER button to
store. Press the MENU button to exit.
Tilt —Reset Tilt
Select Tilt, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset tilt to their home positions) or No(normal), press the ENTER
button to store. Press the MENU button back to the last menu or let the unit idle one minute to
exit menu mode.
Zoom —Reset Zoom
Select Zoom,press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit
will run built-in program to reset Zoom to their home positions) or No, press the ENTER button to
store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu
mode.
Factory Setting
To select Factory Setting , press the ENTER button to show Factory Setting on the display. Press the
ENTER button and the unit will Reset to Factory Defaults. To go back to the functions press the MENU
button again.
3.3 HomePosition Adjustment
Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset
mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN button
to choose the submenu, press the ENTER button to store and automatically return to the last menu.
Press MENU button to exit.
13B

Tilt Offset—Tilt home position adjustment
Enter offset mode, Select Tilt, press the ENTER button to confirm, the present position will blink on the
display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.
Press the MENU button to exit.
Zoom1 Offset—Zoom1 home position adjustment
Enter offset mode, Select Zoom1, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
Zoom2 Offset—Zoom2 home position adjustment
Enter offset mode, Select Zoom2, press the ENTER button to confirm, the present position will blink on
the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to
store. Press the MENU button to exit.
4.DMX Controller
Use universal DMX controller to control the units, you have to set DMX address from 1 to 512 channels so
that the units can receive DMX signal.
Press the MENU button, then select the DMX Settings button and the Channel Mode will blink on the
display. Use the DOWN/UP button to change the DMX512 address. Once the address has been selected,
press and keep ENTER button pressed up to when the display stops blinking or storing automatically one
minute later. To go back to the functions without any change press the MENU button again.
If you use please refer to the following diagram to address your DMX512 channel for the first 4 units.
14B

Channel Mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
57 Channel 1 58 105 162
14 Channel 1 15 29 43
4.1 DMX 512 Configurations
57 Channels Mode:
CHANNEL VALUE FUNCTION
1
000-255
Tilt DMX
2 000-255 Tilt DMX Fine
3
000-007
008-247
248-255
Tilt Speed
auto speed
slow-fast
auto speed
4
000-255
Zoom1 DMX
5
000-255
Zoom2 DMX
6
000-255
Dimmer
7 000-255 Dimmer Fine
8
000-031
032-063
064-095
096-127
128-159
160-191
192-223
224-255
Strobe
Shutter closed
shutter open
Strobe effect fast to slow
shutter open
Pulse-effect in sequences
shutter open
Random strobe effect slow to fast
shutter open
9
000-255
LED1 RED
0% ~ 100%
10
000-255
LED1 GREEN
0% ~ 100%
11
000-255
LED1 BLUE
0% ~ 100%
12
000-255
LED1 WHITE
0% ~ 100%
13
000-255
LED2 RED
0% ~ 100%
15B

14
000-255
LED2 GREEN
0% ~ 100%
15
000-255
LED2 BLUE
0% ~ 100%
16
000-255
LED2 WHITE
0% ~ 100%
… … …
53
000-255
LED12 RED
0% ~ 100%
54
000-255
LED12 GREEN
0% ~ 100%
55
000-255
LED12 BLUE
0% ~ 100%
56
000-255
LED12 WHITE
0% ~ 100%
57
000-060
061-080
081-100
101-120
121-140
141-160
161-180
181-200
201-255
Special Function
No function
Black out when Tilt moving
Disable Black out when Tilt moving
Reset All Motor
Reset Tilt Motor
Reset Zoom Motor
Dimmer Speed: Smooth
Dimmer Speed: Fast
No Function
14 Channels Mode:
CHANNEL VALUE FUNCTION
1
000-255
Tilt DMX
2
000-255
Tilt DMX Fine
3
000-255
Zoom DMX
4 000-255 Dimmer
5 000-255 Dimmer Fine
6
000-031
032-063
064-095
096-127
128-159
Strobe
Shutter closed
shutter open
Strobe effect fast to slow
shutter open
Pulse-effect in sequences
16B

160-191
192-223
224-255
shutter open
Random strobe effect slow to fast
shutter open
7
000-008
009-038
039-068
069-098
099-128
129-158
159-187
188-255
Macro
No function
macro1
macro2
macro3
macro4
macro5
macro6
macro7
8
000-255
Foreground Color
9 000-255 Background Color
10 000-255 RED
11
000-255
GREEN
12
000-255
BLUE
13
000-255
WHITE
15
000-060
061-080
081-100
101-120
121-140
141-160
161-180
181-200
201-255
Special Function
No function
Black out when Tilt moving
Disable Black out when Tilt moving
Reset All Motor
Reset Tilt Motor
Reset Zoom Motor
Dimmer Speed: Smooth
Dimmer Speed: Fast
No Function
17B

5. How to Control the Unit
5.1 DMX 512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.
1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the
input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or
damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down
the system
2. The DMX output and input connectors are pass-through to maintain the DMX circuit when one of the
units’ power is disconnected.
3. At last fixture, the DMX cable has to be terminated with a terminator to reduce signal errors. Solder a
120Ω, 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last fixture.
4. Each lighting fixture needs to have an address set to receive the data sent by the controller. The
address number is between 0-511 (usually 0 & 1 are equal to 1).
5. 5 pin XLR connectors are more popular than 5 pins XLR.
5pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)
18B

6. Troubleshooting
Following are a few common problems that may occur during operation. Here are some suggestions for
easy troubleshooting:
Problem Possible Cause Action
The unit does not work,
no light.
Incorrect power cable
connection.
Check the connection of
power.
Incorrect mains voltage.
Measure the mains
voltage
on the main connector.
The unit does not
respond properly to the
DMX control.
Incorrect DMX cable
connection.
Check DMX connectors
and cables to see if link
properly. Repair or
replace damaged wires.
Incorrect address
assignment to the units.
Check the addresses of
the units and the protocol
settings.
Unfinished data
connection.
Insert a terminal plug in
the output jack of the last
unit of the connection.
It has been set up an
operating mode different
from the DMX mode
used.
Check the operating
mode set up.
Try to use another DMX
controller.
7. Fixture Cleaning
The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends on
the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause
greater accumulation of dirt on the unit’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 30 days.
19B
