EK Nitec ShowPro Pharos User manual
Compact LED profile with zoom
TABLE OF CONTENTS
SAFETY / GENERAL INSTRUCTIONS
INTRODUCTION
Features
Specications
OVERVIEW
Rear view
Top view
DIMENSIONS
CONTROL MENU OVERVIEW
Control Panel
Function Menu
DMX FUNCTION CHART
3-channel mode
1-channel mode
OPERATION

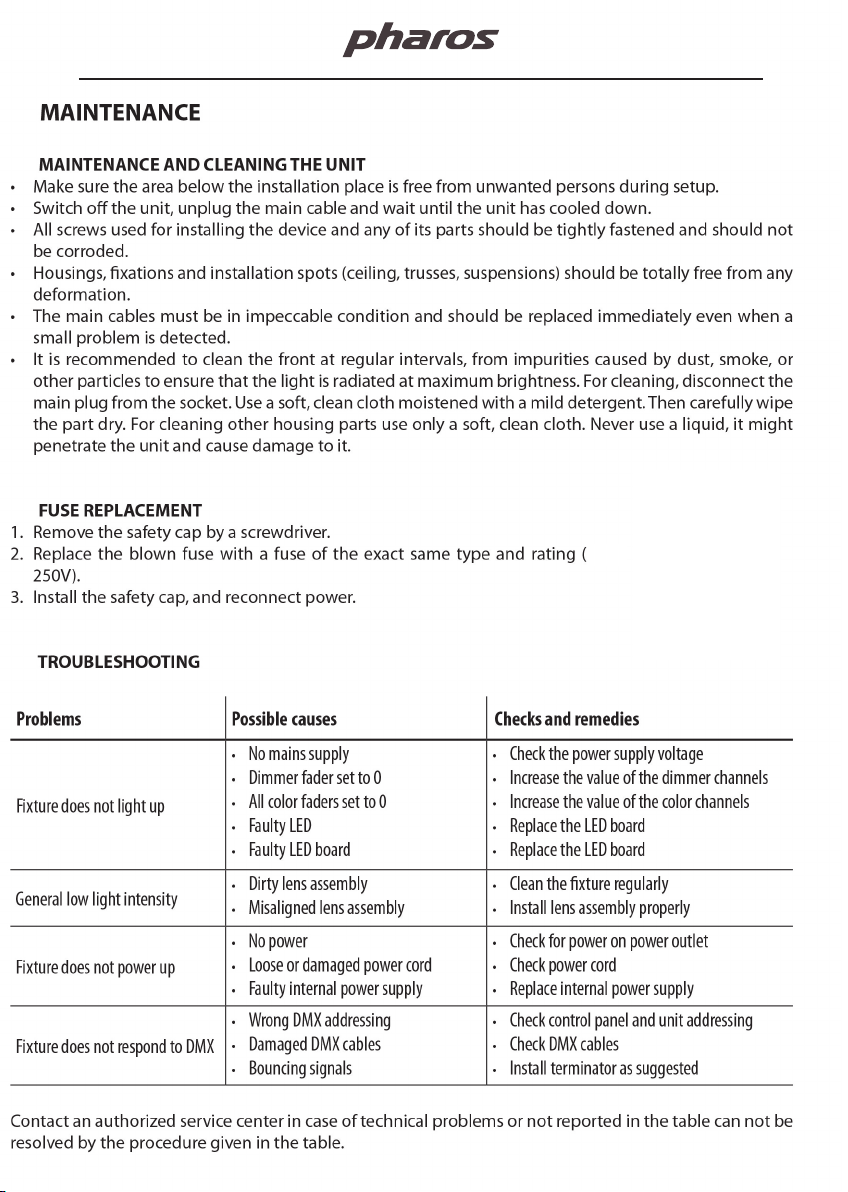

MAINTENANCE
- PHAROS
- Gel Frame
- Framing Shutters
- Gobo Holders
- Power Cord
- User Manual
- Warranty Card
PACKING CONTENT
211
3
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make
risk an electric shock.
•
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
- in places subject to vibrations or bumps;
- in places with a temperature of over 40 °C.
an inspection or contact the manufacturer directly.
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Always additionally secure the projector with the safety rope. When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.
10
T2A-
INTRODUCTION
PHAROS is a compact LED prole with zoom.
FEATURES
- Output comparable to 575W conventional proles
- 25° - 50° zoom for convenient versatility across many applications
- Crisp gobo image projection, even at close range
- Extremely at eld projection
- Gel frame brackets and retaining clip included
- Flicker-free output for worry-free video
- Quiet operation suitable for studio use
- Rugged die-cast body and low-maintenance design
- Power In and Out connections for linking mutliple units
- Flawless dimming with consistent color temperature throughout the dimming curve
- Four selectable dimming curves
- DMX and Manual control options
SPECIFICATIONS
Light Source:
Color Temp:
Zoom Range:
Output at 14°:
Output at 30°:
Strobe:
Dimming:
Gobo:
Control modes:
DMX Channels:
Menu:
Mains:
Power:
Fuse:
Power connections:
Power linking:
Data connections:
Housing:
Finish:
IP rating:
Cooling:
Dimensions:
Weight:
1 x 100W white LED
3000K
14° - 30°
3046 lux @ 3 meters
1186 lux @ 3 meters
0 - 30 Hz
0-100% dimming, 4 selectable dimming curves
M size (66mm outer/ 48mm inner)
DMX, Manual
1 / 3
4 digit LED display with touch buttons
100 - 240 VAC, 50/60 Hz
105W
T2A 250V
IEC power In/Out
up to 24 units @ 120V ; up to 42 units at 230V
3-pin XLR In/Out for DMX
Aluminum
Matte black
IP20
Auto-sensing noiseless fan
529 x 183 x 430 mm
5.8 KG
4
OPERATION
FRAMING SHUTTERS
Use the (4) framing shutters to shape the projected beam
ZOOM and FOCUS KNOBS
Use the Zoom knob to adjust beam angle
Use the Focus knob to adjust sharpness of projected patterns or beam edges
CUSTOM GOBOS
The gobo holder accepts M size (66mm outer/ 48mm inner) custom gobos
GELS
Color gels may be inserted in the gel frame, which ts into the gel frame holder
DMX MODES
Press MENU button until 1-CH or 3-CH is displayed
Press ENTER to select 1-channel or 3-channel DMX mode
Press UP or DOWN to select DMX starting address
Press ENTER
MANUAL DIMMING AND STROBE
Press MENU button until U-- is displayed
Press ENTER
Press UP or DOWN to select dimmer (d000-255) or strobe (S000-255)
Press ENTER and use UP or DOWN to select values
SELECTING DIMMER CURVES
Press MENU button until dIM is displayed
Press ENTER
Press UP or DOWN to select dimmer curve (OFF, dIM1, dIM2, dIM3)
Press ENTER
FAN
Press MENU button until FAN is displayed
Press ENTER
Press UP or DOWN to select AUTO or ON
Press ENTER
9
OVERVIEW
Power Out
Display
Safety
Cable
anchor
DMX
In/Out
Menu
Buttons
Rear View
Bracket
Tightening Knob
5
Top View
Fuse Holder
and Power In
Framing
Shutter (x4)
Zoom Knob
Focus Knob
Gel Frame
Holder
Gobo Holder
Thumbscrew
Mounting
Bracket
Gel Frame
DMX FUNCTION CHART
Channel Function Value Percent/Setting
8
3-CHANNEL MODE
1
1-CHANNEL MODE
1
Dimmer
000 - 255
0–100%
Strobe
000 - 010
No function
010 - 255
Strobe speed (slow to fast)
7 Dimmer Speed
000 - 051
Dimmer Speed set from display
052 - 101
Dimmer speed mode o
102 - 152
Dimmer speed mode 1 fast
153 - 203
Dimmer speed mode 2 medium
204 - 255
Dimmer speed mode 3 slow
Dimmer
000 - 255
0–100%
2

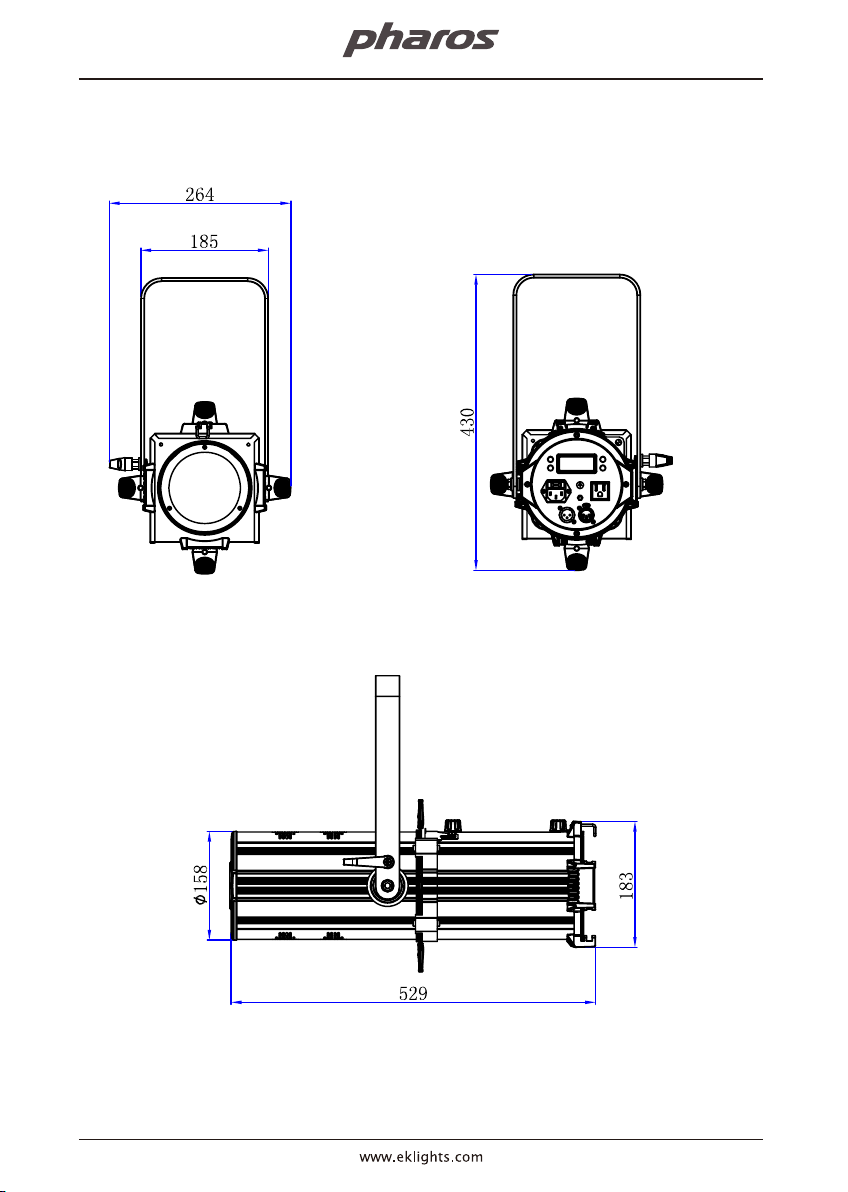

DIMENSIONS
6
BUTTON FUNCTION
Menu Selects operating mode or exits submenus
Up Scrolls up through option lists or selects higher value
Down Scrolls down through option lists or selects lower value
Enter
Activates displayed menu option or selected value
MODE OPTIONS / VALUES DESCRIPTION
CONTROL MENU OVERVIEW
CONTROL PANEL
FUNCTION MENU
7
1-CH d001–512 1-channel DMX mode
3-CH d001–512 3-channel DMX mode
P2 Auto Program 2
P3 Auto Program 3
d000-255 Manual dimmer setting
S000-255 Manual strobe setting
OFF
dIM1
dIM2
dIM3
AUTO
ON
FAN Set fan to Auto mode or always On
dIM Dimmer curve setting (O, Fast, Medium, Slow)
U--
DIMENSIONS
6
BUTTON FUNCTION
Menu Selects operating mode or exits submenus
Up Scrolls up through option lists or selects higher value
Down Scrolls down through option lists or selects lower value
Enter
Activates displayed menu option or selected value
MODE OPTIONS / VALUES DESCRIPTION
CONTROL MENU OVERVIEW
CONTROL PANEL
FUNCTION MENU
7
1-CH d001–512 1-channel DMX mode
3-CH d001–512 3-channel DMX mode
P2 Auto Program 2
P3 Auto Program 3
d000-255 Manual dimmer setting
S000-255 Manual strobe setting
OFF
dIM1
dIM2
dIM3
AUTO
ON
FAN Set fan to Auto mode or always On
dIM Dimmer curve setting (O, Fast, Medium, Slow)
U--
OVERVIEW
Power Out
Display
Safety
Cable
anchor
DMX
In/Out
Menu
Buttons
Rear View
Bracket
Tightening Knob
5
Top View
Fuse Holder
and Power In
Framing
Shutter (x4)
Zoom Knob
Focus Knob
Gel Frame
Holder
Gobo Holder
Thumbscrew
Mounting
Bracket
Gel Frame
DMX FUNCTION CHART
Channel Function Value Percent/Setting
8
3-CHANNEL MODE
1
1-CHANNEL MODE
1
Dimmer
000 - 255
0–100%
Strobe
000 - 010
No function
010 - 255
Strobe speed (slow to fast)
7 Dimmer Speed
000 - 051
Dimmer Speed set from display
052 - 101
Dimmer speed mode o
102 - 152
Dimmer speed mode 1 fast
153 - 203
Dimmer speed mode 2 medium
204 - 255
Dimmer speed mode 3 slow
Dimmer
000 - 255
0–100%
2
INTRODUCTION
PHAROS is a compact LED prole with zoom.
FEATURES
- Output comparable to 575W conventional proles
- 25° - 50° zoom for convenient versatility across many applications
- Crisp gobo image projection, even at close range
- Extremely at eld projection
- Gel frame brackets and retaining clip included
- Flicker-free output for worry-free video
- Quiet operation suitable for studio use
- Rugged die-cast body and low-maintenance design
- Power In and Out connections for linking mutliple units
- Flawless dimming with consistent color temperature throughout the dimming curve
- Four selectable dimming curves
- DMX and Manual control options
SPECIFICATIONS
Light Source: 1 x 100W white LED
Color Temp: 3000K
Zoom Range: 25° - 50°
Output at 14°: 3046 lux @ 3 meters
Output at 30°: 1186 lux @ 3 meters
Strobe: 0 - 30 Hz
Dimming: 0-100% dimming, 4 selectable dimming curves
Gobo: M size (66mm outer/ 48mm inner)
Control modes: DMX, Manual
DMX Channels: 1 / 3
Menu: 4 digit LED display with touch buttons
Mains: 100 - 240 VAC, 50/60 Hz
Power: 105W
Fuse: T2A 250V
Power connections: IEC power In/Out
Power linking: up to 24 units @ 120V ; up to 42 units at 230V
Data connections: 3-pin XLR In/Out for DMX
Housing: Aluminum
Finish: Matte black
IP rating: IP20
Cooling: Auto-sensing noiseless fan
Dimensions: 529 x 183 x 430 mm
Weight: 5.8 KG
4
OPERATION
FRAMING SHUTTERS
Use the (4) framing shutters to shape the projected beam
ZOOM and FOCUS KNOBS
Use the Zoom knob to adjust beam angle
Use the Focus knob to adjust sharpness of projected patterns or beam edges
CUSTOM GOBOS
The gobo holder accepts M size (66mm outer/ 48mm inner) custom gobos
GELS
Color gels may be inserted in the gel frame, which ts into the gel frame holder
DMX MODES
Press MENU button until 1-CH or 3-CH is displayed
Press ENTER to select 1-channel or 3-channel DMX mode
Press UP or DOWN to select DMX starting address
Press ENTER
MANUAL DIMMING AND STROBE
Press MENU button until U-- is displayed
Press ENTER
Press UP or DOWN to select dimmer (d000-255) or strobe (S000-255)
Press ENTER and use UP or DOWN to select values
SELECTING DIMMER CURVES
Press MENU button until dIM is displayed
Press ENTER
Press UP or DOWN to select dimmer curve (OFF, dIM1, dIM2, dIM3)
Press ENTER
FAN
Press MENU button until FAN is displayed
Press ENTER
Press UP or DOWN to select AUTO or ON
Press ENTER
9
3
SAFETY
General instruction
• The products referred to in this manual conform to the European Community Directives and are there-
fore marked with .
• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make
risk an electric shock.
•
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.
installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.
• This unit is not for home use, only professional applications.
- in places subject to vibrations or bumps;
- in places with a temperature of over 40 °C.
an inspection or contact the manufacturer directly.
plant for a disposal which is not harmful to the environment.
Warnings and installation precautions
damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.
• Always additionally secure the projector with the safety rope. When carrying out any work, always com-
ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country
• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent
• The lamp (LED) shall be changed if it has become damaged or thermally deformed.
trigger epileptic seizures in photosensitive persons or persons with epilepsy.
• Do not touch the product’s housing when operating because it may be very hot.
WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.
10
T2A-
TABLE OF CONTENTS
SAFETY / GENERAL INSTRUCTIONS
INTRODUCTION
Features
Specications
OVERVIEW
Rear view
Top view
DIMENSIONS
CONTROL MENU OVERVIEW
Control Panel
Function Menu
DMX FUNCTION CHART
3-channel mode
1-channel mode
OPERATION
MAINTENANCE
- PHAROS
- Gel Frame
- Framing Shutters
- Gobo Holders
- Power Cord
- User Manual
- Warranty Card
PACKING CONTENT
211
Compact LED profile with zoom
Table of contents
Other EK Dj Equipment manuals
