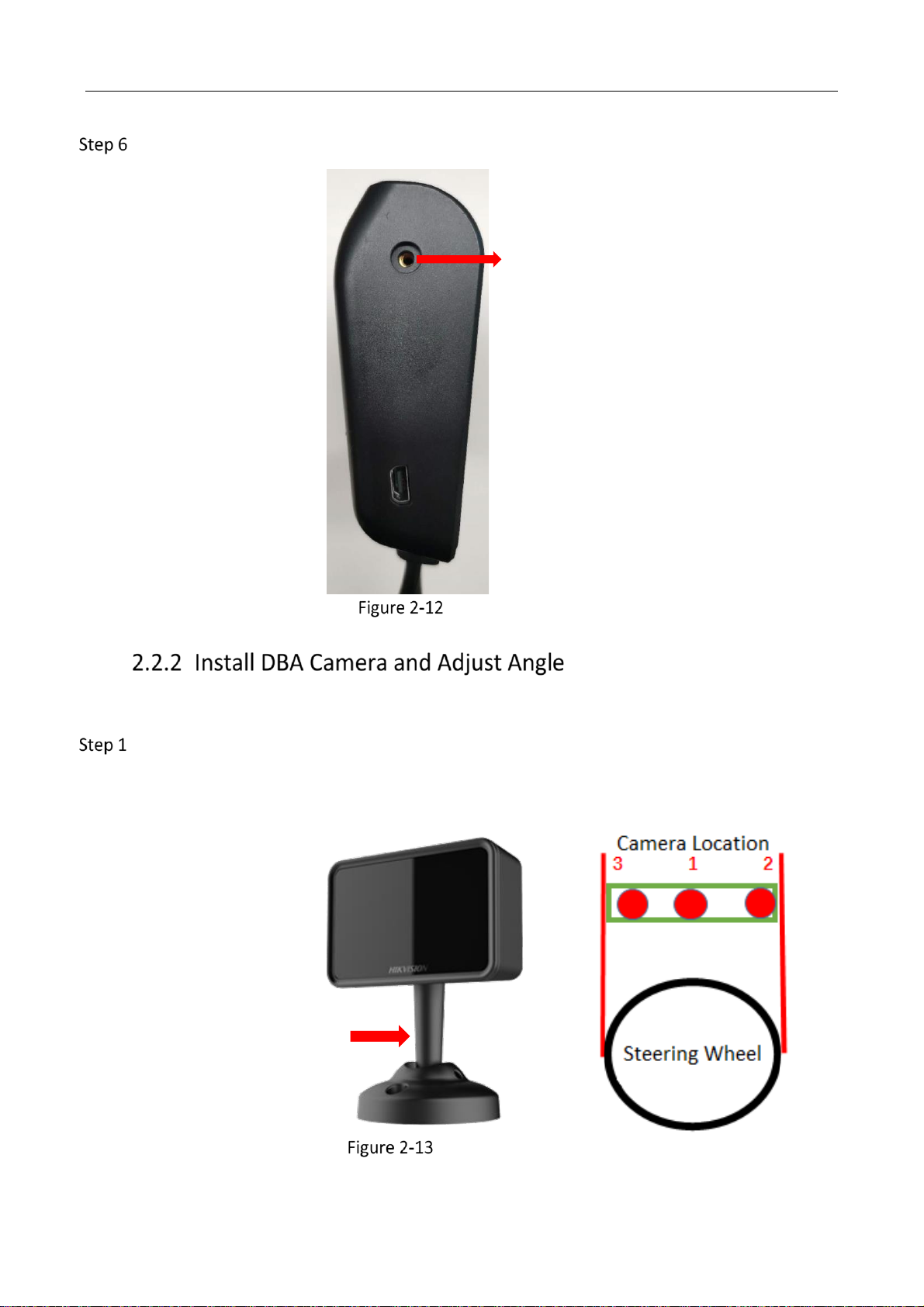

2.2.2 Install DBA Camera and Adjust Angle ........................................................................ 12
2.2.3 Install Front Row Camera and Adjust Angle ............................................................... 14
2.2.4 Install Rear Row Camera and Adjust Angle ................................................................ 15
2.2.5 Install Backup Camera and Adjust Angle.................................................................... 16
Cautions ............................................................................................................................ 18
Chapter 3 Function Settings.......................................................................................................... 19
ADAS Settings .................................................................................................................... 19
DBA Settings ...................................................................................................................... 20
Basic Parameters ............................................................................................................... 21
Network Parameters.......................................................................................................... 22
Image Parameters.............................................................................................................. 23
Storage Parameters ........................................................................................................... 23
Device Parameters............................................................................................................. 24
Chapter 4 Platform Settings.......................................................................................................... 25
Enable Ehome Platform on Device ..................................................................................... 25
Device Settings via 5200 Platform ...................................................................................... 25
4.2.1 Add Device to Platform ............................................................................................. 25
4.2.2 Edit G4 Information on Platform ............................................................................... 26
4.2.3 Delete G4 Device from Platform................................................................................ 27
4.2.4 Live View of G4 Device.............................................................................................. 28
4.2.5 Playback.................................................................................................................... 29
4.2.6 GPS ........................................................................................................................... 30
4.2.7 Pattern Playback ....................................................................................................... 31
4.2.8 Set Alarm of G4 Device on Platform .......................................................................... 32
4.2.9 View Real-Time Alarm in Alarm Center ..................................................................... 34

G4 Mobile Recorder• Installation Guide and Platform Settings
iv
4.2.10 Search History Alarm Record on Client .................................................................... 35
4.2.11 Upgrade G4 Device Remotely.................................................................................. 36
4.2.12 Set the G4 Device Remotely .................................................................................... 37
4.2.13 Set Two-Way Audio for G4 Device ........................................................................... 38
4.2.14 Set TTS (Text to Speech) for G4 Device .................................................................... 38
Chapter 5 Upgrade and FAQs........................................................................................................ 40
What should I do when the mobile phone cannot connect to the device hotspot? ............ 40
Upgrade the G4 Device by TF Card..................................................................................... 40
Restore the G4 Firmware ................................................................................................... 40
Upgrade the G4 Device in Batch by TF Card ....................................................................... 41

G4 Mobile Recorder• Installation Guide and Platform Settings
1
Chapter 1 Preparation
Construction Preparation
Technicians should have a good command of the following aspects:
The functions and application of the G4 device.
The components and working principle of the whole system.
Internal architecture of motor vehicle and electrical wiring.
Experience of common in-vehicle devices installation and construction.
Before the installation, get familiar with the aspects closely related to the construction site, such as
installation location, the vehicle model, the selection of the installation location of the G4 device
and the camera, cable length, tools, to make sure the installation and debugging go well.
Confirming the vehicle electrical information is one crucial step for the installation process and can
help avoid potential responsibilities related to the potential vehicle damage. Check all of the
following items before the next installation steps:
Whether the vehicle can start up normally.
Whether the power system is well and whether other electrical malfunctions exist.
Whether the appearance damage exists on the vehicle.
Tools
Prepare the following tools before installation.
Purchase or prepare the following tools before installation.

G4 Mobile Recorder• Installation Guide and Platform Settings
2
Tools
No.
Tool
Function
Requirements
Picture Illustration
1
Wire Stripper
Strips off the electrical
insulation from wires.
/
2
Electroprobe
Detects the electrical wires.
General type
3
Straight/Cross
Screwdriver
Opens the center console.
Length: approx.
20 cm
4
Digital
Multimeter
Detects the power cathode
and anode, pulse, AAC,
voltage, and short circuit.
General type
5
Scissors
Cuts off the corrugated
pipe, etc.
General type
6
Insulation Tape
Wraps up wires.
General type
7
Tie Wrap
Fixes wires.
Length: 7 cm for
each
8
3M Tape
Applies to the DBA camera
base.
General type
9
4G SIM Card
Used for platform
communication. SIM card is
required for device models
with 4G function.
MicroSIM Card.
Purchase the SIM
card before
installation.

G4 Mobile Recorder• Installation Guide and Platform Settings
3
Device Preparation
Device Information
Program Preparation
Before the installation, get the corresponding device program based on the plan that needs to be
carried out. Get the plan and its corresponding program from the following link:
ftp://hikftp.hikvision.com:400/产品资料/03.子品牌/03.汽车电子/01 行业类产品/01 行车记录
仪产品/01 G4 智能记录仪/.
Requirements for Installtion
Install and debug the intelligent terminal by strictly following the instructions below to improve the
device stability and ensure the terminal delivery. Consider the following aspects when selecting
the installation location and methods.
Anti-vibration: Select the location where the vehicle vibration is relatively weak (such as the
rear or lateral rear space of the driver’s seat) and is away from the vehicle engine. If you select
No.
Device
Model
Picture Illustration
1
G4 Mobile Recorder
AE-DI5042-G4(AI/Lite)(GPS + 4G)
2
TF Card (Supports dual
TF cards)
AE-DF5TF128G-T1
3
Front Row Camera
(Optional)
AE-VC143T-ITS(2.1 mm) (0.3 m)
4
Rear Row Camera
(Optional)
AE-VC143T-ITS(2.1 mm) (2 m)
5
Backup Camera
(Optional)
AE-VC143T-ITS(2.1 mm) (0.3 m) and pin
extension cable 5.5 m, black
6
DBA (Driver Behavior
Analysis Camera)
(Optional)
AE-VC154T-IT(6 mm) (Pin Plug)
7
Wired Alarm Button
(Optional, supports dual
alarm buttons)
AE-IFC00/Wired Alarm Button

G4 Mobile Recorder• Installation Guide and Platform Settings
4
the center console as the installation site, make sure the terminal is firmly installed to avoid
device moving during driving.
Heat dissipation: Make sure the device is away from the heat source of the vehicle and is
installed on the location with good ventilation.
Waterproof method: Waterproof the terminal and other devices and install the bracket and
protection box when necessary.
Moisture-proof method: Install the terminal on a moisture-proof and well-ventilated location.
Dustproof method: Install the terminal on the location where the dust is relatively less.
Electricity: Keep the terminal away from magnetic interference.
Cable routing: Make sure the cable routing is hidden. Wrap the cables with corrugated pipes to
make sure the cable routing is neat.

G4 Mobile Recorder• Installation Guide and Platform Settings
5
Chapter 2 Installation
Connect Cables to Device
Identify Cables
Identify the function of each cable before connection.
Main Bundle Definition
1
2
3
4
5
6
Cable Definition
No.
Color
Definition
1
Yellow
ACC Signal Cable
2
Black
Ground
3
Red
Power Cord
4
Black
Alarm Buttons
5
6
Black
Connects to Device Power Interface

G4 Mobile Recorder• Installation Guide and Platform Settings
6
Connect to Power
Steps:
Find the vehicle signal cables: power anode, power cathode (ground), and ignition signal
(ACC ON).
Use the electro probe to test whether the cable is powered after turning off the vehicle. If
the current is detected, this cable is connected to constant power and then you can test the
voltage.
Identify the ACC signal cable: Test the cable with the electro probe when the vehicle is
turned off and under ACC gear respectively. If no current is detected when the vehicle is
turned off, but the current is detected under the ACC gear, this cable is an ACC cable. Then
you can test the voltage. Make sure the vehicle power cord and ACC power cord voltage is
normal when the vehicle is turned off or ignited. You can take it as the power supply point
for the device.
The following figures are only for illustration. The actual vehicle model prevails.
Connect to Power
Connect G4 Device to Power
Steps:
Pull the power cord out gently from the fuse box and lead the cable up along the A pillar.
Route the cable closely along the windshield and connect it to the G4 device.
Hide the cable on the vehicle roof.
Route the DBA camera cables with the same method.

G4 Mobile Recorder• Installation Guide and Platform Settings
7
Route Cable
There are five cables extended from the G4 device. Identify the cable function from the following
table.
Function of G4 Device Cables
Label
Interface
Function
/
8-Pin Plug
Connects to power.
TVI1 (DBA)
4-Pin Plug
Connects to the DBA camera.
TVI2
4-Pin Plug
Connects to the front row camera.
TVI3
4-Pin Plug
Connects to the back row camera.
TVI4
4-Pin Plug
Connects to the backup camera.
Device Cables

G4 Mobile Recorder• Installation Guide and Platform Settings
8
Connect the cameras to their corresponding interfaces. Otherwise, it may cause channel switch
mess in the app live view.
There is a notch on the power cord and TVI camera interface. Align the notch and the bulge to
avoid pin damage when connecting the cable to the interface.
Install Device
Before you start
Scan the QR code to download the app for G4.
QR Code
Steps:
Connect the G4 device to the app.

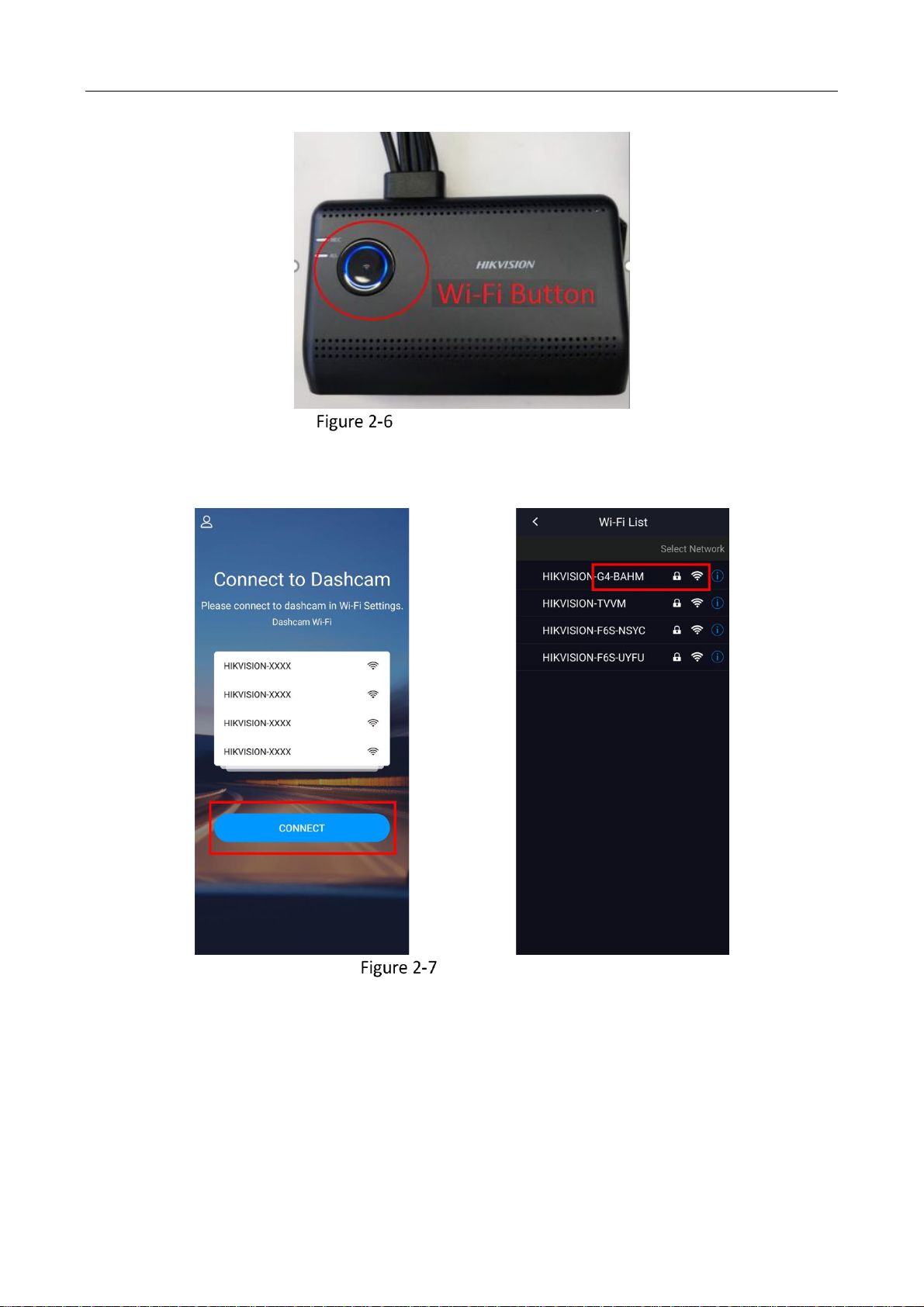

1) Power the device up. Press the Wi-Fi button on the device to enable the Wi-Fi function
and you will receive the audio prompt that the hotspot is enabled.

G4 Mobile Recorder• Installation Guide and Platform Settings
9
Press Wi-Fi Button on Device
2) Run the app and connect to the Wi-Fi whose SSID is HIKVISION-G4-XXXX. The default
password is Hik12345. The app jumps to the main interface after Wi-Fi is connected.
Connect to Wi-Fi

G4 Mobile Recorder• Installation Guide and Platform Settings
10
Management
Center
Channel Switch
Live View
Manual Capture or
Recording
View Pictures and
Recordings in the
Memory Card
Parameter
Settings
Main Interface
Select a device installation location. Normally, the G4 terminal is installed on the center of
the front windshield.
Select Installation Location

G4 Mobile Recorder• Installation Guide and Platform Settings
11
The lens is adjustable.
Install Device
Before the installation, clean the interior interface of the windshield and peel off the protective film
of the 3M tape.
Connect the device to the app and switch to Channel 1 to check the live view of the device
on the app.
Adjust the angle of the camera of the G4 device and make sure the bottom of the live view
touches the vehicle head and the front image of the vehicle is covered. Make sure the image
is horizontally viewed. The angle cannot be adjusted after the tape is stuck.
Press the 3M tape for 30 seconds and make sure no bubble is in the tape.
Installation Illustration

G4 Mobile Recorder• Installation Guide and Platform Settings
12
Tighten the screws on both sides of the device.
Screw Hole
Fix Camera Lens
Steps:
Install the DBA camera on the console in front of the steering wheel.
Location 1 is recommended. You can also install the camera on Location 2 or 3 according to
the actual vehicle. The red line illustrates the recommended installation range.
Rotate the bracket to adjust
the surveillance angle.
Install DBA Camera

G4 Mobile Recorder• Installation Guide and Platform Settings
13
Adjust the DBA camera angle.
1) Loosen the screws on the base and then loosen the two screws on the upper side of the
base with hex screwdriver.
2) Rotate the camera to adjust the surveillance angle. Adjustment range: pan: 0°to 5°, tilt:
0°to 50°, rotate: 0°to 360°.
3) Fix the base with screws.

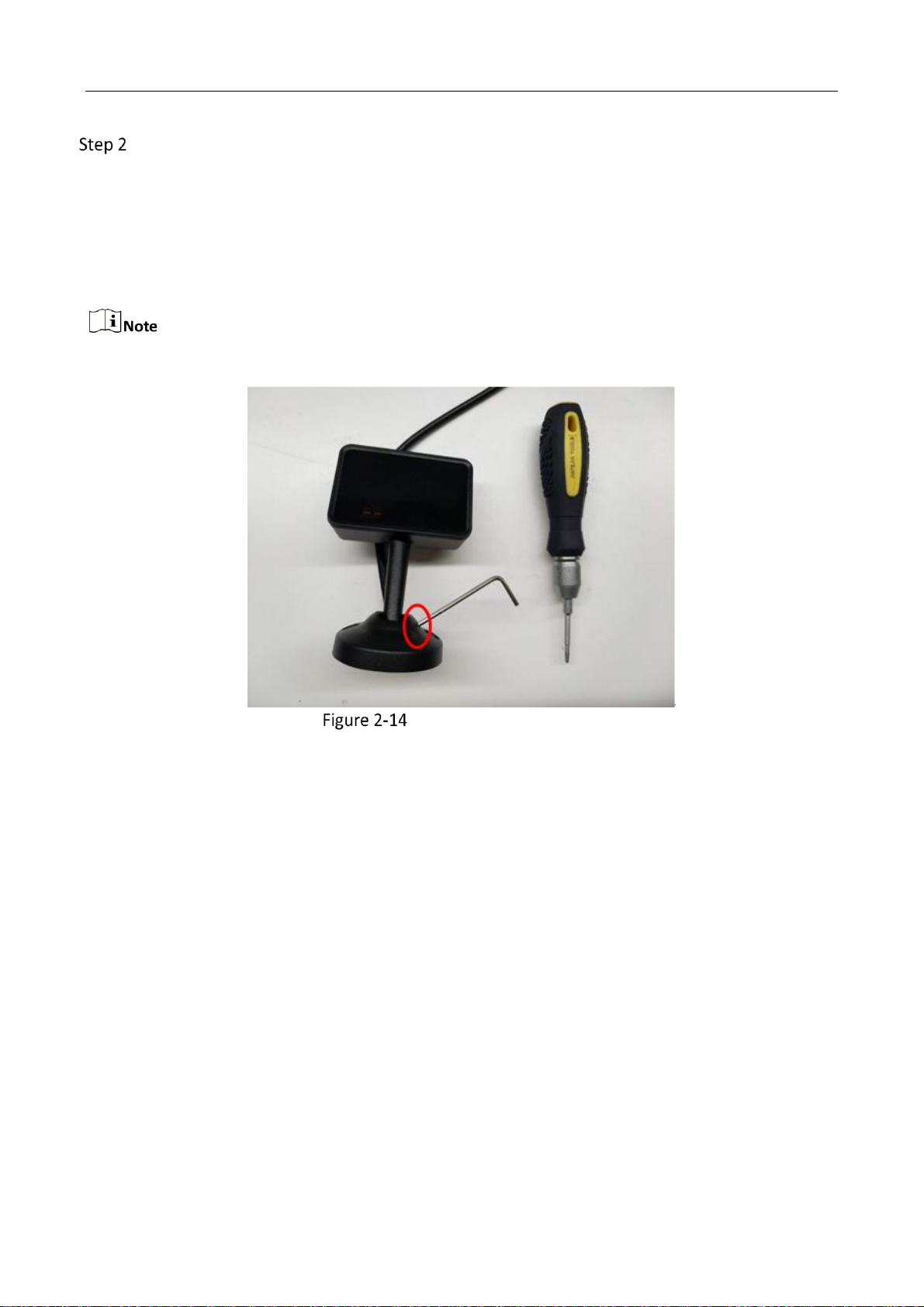

DBA camera angle adjustment requires the dedicated hex tool or hex screwdriver.
Dedicated Tool Illustration
4) Run the app and check the live view image. Make sure the head and shoulder of the
driver are in the red frame.

G4 Mobile Recorder• Installation Guide and Platform Settings
14
Adjust Camera
5) Fix the camera on the installation location with 3M tape and tighten the base with the
extra screws to avoid camera moving.
Steps:
Install the front row camera on the windshield facing the front passenger seat.
When you select the location, pay attention to the sun visor in case that the visor blocks the
camera when the visor is opened.
Before installation, feed the cable through the baffle to fix the lens. The same method should
be applied to the rear row and backup cameras.

G4 Mobile Recorder• Installation Guide and Platform Settings
15
Install Baffle
Run the app, switch to Channel 3, and rotate the lens to adjust surveillance angle to make
sure the live view image can completely cover the front passenger seat.
Peel off the protective film on the baffle and hold it for 30 seconds to fix the adjusted angle.
Clean the front windshield, paste the electrostatic film, and avoid bubbles.
Supports two-axis
adjustment.
Range: 225°
Install Front Row Camera
Peel off the release paper of 3M tape and install the camera onto the center of the
electrostatic film.
Front Row Camera Surveillance Image
