HIK VISION MV-CA003-30GC User manual

User Manual of Area Scan GigE Camera
1
User Manual
UD.6L0201D2172A01
Machine Vision
Area Scan GigE Camera

User Manual of Area Scan GigE Camera
2
User Manual
COPYRIGHT ©2015 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of
Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be
“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,
changed, translated, or distributed, partially or wholly, by any means, without the prior written
permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,
guarantees or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Machine Vision GigE Camera.
The Manual includes instructions for using and managing the product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information contained
in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please
find the latest version in the company website (http://www.hikrobotics.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in
various jurisdictions. Other trademarks and logos mentioned below are the properties of their
respective owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS
IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,
SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS
DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY
SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING,
AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE
USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY

User Manual of Area Scan GigE Camera
3
OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT
SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY
RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER
DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION,
OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT
LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE
THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE
LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE
LAW, THE LATER PREVAILS.
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with
"CE" and comply therefore with the applicable harmonized European standards
listed under the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

User Manual of Area Scan GigE Camera
4
2012/19/EU (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points. For
more information see: www.recyclethis.info.
Safety Instruction
These instructions are intended to ensure that the user can use the product correctly to avoid danger
or property loss.
The precaution measure is divided into ‘Warnings’ and ‘Cautions’:
Warnings: Serious injury or death may be caused if any of these warnings are neglected.
Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.
Warnings Follow these safeguards to
prevent serious injury or death.
Cautions Follow these precautions to
prevent potential injury or material
damage.
Warnings:
Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard.
And source with 12 VDC (depending on models) according to the IEC60950-1 and Limited
Power Source standard.
To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture.
This installation should be made by a qualified service person and should conform to all the
local codes.
Please install blackouts equipment into the power supply circuit for convenient supply
interruption.
Please make sure that the ceiling can support more than 50(N) Newton gravities if the camera is
fixed to the ceiling.
If the product does not work properly, please contact your dealer or the nearest service center.
Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)

User Manual of Area Scan GigE Camera
5
Cautions:
Make sure the power supply voltage is correct before using the camera.
Do not drop the camera or subject it to physical shock.
Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit
of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put
on the lens cap to protect the sensor from dirt.
Do not aim the camera lens at the strong light such as sun or incandescent lamp. The strong
light can cause fatal damage to the camera.
The sensor may be burned out by a laser beam, so when any laser equipment is being used,
make sure that the surface of the sensor not be exposed to the laser beam.
Do not place the camera in extremely hot, cold temperatures (the operating temperature should
be between -0°C to 50°C), dusty or damp environment, and do not expose it to high
electromagnetic radiation.
To avoid heat accumulation, ensure there is good ventilation to the device.
Keep the camera away from water and any liquids.
While shipping, pack the camera in its original, or equivalent, packing materials. Or packing
the same texture.
Improper use or replacement of the battery may result in hazard of explosion. Please use the
manufacturer recommended battery type.

User Manual of Area Scan GigE Camera
6
Table of Contents
Chapter 1 Overview ..........................................................................................................................9
1.1 Introduction.................................................................................................................................... 9
1.2 Main Features................................................................................................................................. 9
1.3 Specifications................................................................................................................................ 10
1.3.1 MV-CA003-30GM/GC Specification .......................................................................................................10
1.3.2 MV-CA003-30GM/GC Response Curve .................................................................................................. 11
1.3.3 MV-CA013-20GM/GC Specification ....................................................................................................... 11
1.3.4 MV-CA013-20GM Response Curve.........................................................................................................13
1.3.5 MV-CA013-30GM/GC Specification .......................................................................................................13
1.3.6 MV-CA013-30GM/GC Response Curve ..................................................................................................14
1.3.7 MV-CA030-10GM/GC Specification .......................................................................................................15
1.3.8 MV-CA030-10GM/GC Response Curve ..................................................................................................16
1.3.9 MV-CA050-20GM Specification..............................................................................................................16
1.3.10 MV-CA050-20GM Response Curve.........................................................................................................17
1.3.11 MV-CA060-10GC Specification...............................................................................................................18
1.3.12 MV-CA060-10GC Response Curve..........................................................................................................19
1.3.13 MV-CA060-11GM Specification..............................................................................................................19
1.3.14 MV-CA060-11GM Response Curve.........................................................................................................20
1.3.15 MV-CA003-50GM/GC Specification .......................................................................................................21
1.3.16 MV-CA003-50GM/GC Response Curve ..................................................................................................22
1.3.17 MV-CA023-10GM/GC Specification .......................................................................................................22
1.3.18 MV-CA023-10GM/GC Response Curve ..................................................................................................23
1.3.19 MV-CA050-10GM/GC Specification .......................................................................................................24
1.3.20 MV-CA050-10GM/GC Response Curve ..................................................................................................25
1.3.21 MV-CE100-30GM/GC Specification........................................................................................................25
1.3.22 MV-CE100-30GM/GC Response Curve...................................................................................................26
1.3.23 MV-CA003-20GM/GC Specification .......................................................................................................27
1.3.24 MV-CA003-20GM/GC Response Curve ..................................................................................................28
1.3.25 MV-CA013-20GN Specification ..............................................................................................................28
1.3.26 MV-CA013-20GN Response Curve .........................................................................................................29
1.3.27 MV-CA050-20GN Specification ..............................................................................................................30
1.3.28 MV-CA050-20GN Response Curve .........................................................................................................31
1.4 Camera Physical Interfaces......................................................................................................... 31
1.4.1 Camera Dimension ...................................................................................................................................31
1.4.2 Rear Panel Introduction ............................................................................................................................33

User Manual of Area Scan GigE Camera
7
1.4.3 Power and I/O Interface Introduction .......................................................................................................34
1.4.4 Installation Accessories.............................................................................................................................35
Chapter 2 Camera Installation and Configuration.......................................................................36
2.1 Installing the Camera .................................................................................................................. 36
2.2 Network Configuration................................................................................................................ 36
2.2.1 Local Network Configuration...................................................................................................................37
2.2.2 Camera IP Configuration ..........................................................................................................................38
2.3 Camera Configuration................................................................................................................. 40
2.3.1 Setting via Attribute Tree..........................................................................................................................40
2.3.2 Setting via Menu Bar ................................................................................................................................43
Chapter 3 Functions.......................................................................................................................45
3.1 Device Control.............................................................................................................................. 45
3.1.1 Name Modification...................................................................................................................................45
3.2 Image Format and Frame Rate .................................................................................................. 46
3.2.1 Camera Data Format.................................................................................................................................46
3.2.2 Frame Rate................................................................................................................................................49
3.2.3 ROI Setting ...............................................................................................................................................49
3.3 Global Shutter and Rolling Shutter............................................................................................ 51
3.3.1 Global Shutter...........................................................................................................................................51
3.3.2 Rolling Shutter..........................................................................................................................................51
3.4 Image Acquisition and Transmission.......................................................................................... 53
3.4.1 Internal Trigger Mode...............................................................................................................................53
3.4.2 External Trigger Signal and Working Mode .............................................................................................54
3.5 Strobe Output............................................................................................................................... 56
3.6 Acquisition Mode under External Trigger................................................................................. 59
3.7 Overlap Exposure and Non-overlap Exposure.......................................................................... 61
3.7.1 Non-overlap Exposure ..............................................................................................................................61
3.7.2 Overlap Exposure .....................................................................................................................................62
3.8 Counter Control ........................................................................................................................... 63
3.9 Imaging Parameter Setting ......................................................................................................... 65
3.9.1 Exposure Time..........................................................................................................................................65
3.9.2 Gain Control .............................................................................................................................................65

User Manual of Area Scan GigE Camera
8
3.9.3 White balance ...........................................................................................................................................66
3.9.4 Region Setting of Auto Functions.............................................................................................................67
3.9.5 Look Up Table (LUT)...............................................................................................................................68
3.9.6 Gamma Correction....................................................................................................................................69
3.9.7 Brightness, Hue and Saturation.................................................................................................................70
3.9.8 Image Reverse...........................................................................................................................................70
3.9.9 HDR Cycling Mode..................................................................................................................................71
3.9.10 Test pattern................................................................................................................................................72
3.10 I/O Electric Feature ..................................................................................................................... 74
3.10.1 Line0 Opto-isolated Input Circuit.............................................................................................................74
3.10.2 Line1 Opto-isolated Output Circuit ..........................................................................................................75
3.10.3 Line2 Configurable Bi-direction I/O Circuit.............................................................................................77
3.11 Transport Layer Control............................................................................................................. 79
3.11.1 DHCP and Persistent IP ............................................................................................................................79
3.11.2 Efficient Bandwidth and Setting ...............................................................................................................80
3.12 User Parameter and Preference Setting..................................................................................... 81
3.12.1 Parameters Saving and Loading................................................................................................................81
3.12.2 Embedded Information .............................................................................................................................82
3.13 Firmware Updating...................................................................................................................... 85
Chapter 4 Troubleshooting.............................................................................................................86
4.1 Indicator Status Definition.......................................................................................................... 86
4.2 Indicator Status Description........................................................................................................ 86
4.3 FAQ ............................................................................................................................................... 87
Chapter 5 Support...........................................................................................................................88
Appendix............................................................................................................................................89

User Manual of Area Scan GigE Camera
9
Chapter 1Overview
1.1 Introduction
The Machine Vision Camera is an image capturing device capable of real-time transmission of
uncompressed image through a gigabit Ethernet interface. Remote image capturing and camera
control, for example, the operating mode and the image parameters adjustment, are supported by
client software.
1.2 Main Features
The gigabit Ethernet interface provides the bandwidth of 1 Gbps and reaches the maximum
transmission distance of 100 meters.
128 MB onboard memory stores images for burst transmission and retransmission.
Supports AEC (automatic exposure control), LUT, Gamma Correction, etc..
Use hardware external trigger or software trigger to synchronize several cameras or cameras
with external devices.
Supports image capturing with different exposure modes.
The color camera adopts the color interpolation algorithm to reproduce colors faithfully. It
also supports automatic white balance (AWB).
Compatible with GigE Vision Protocol (V1.2) and third-party software.
Note: The functions in this manual are for reference only and may differ from the devices.

User Manual of Area Scan GigE Camera
10
1.3 Specifications
1.3.1 MV-CA003-30GM/GC Specification
Table 1-1 MV-CA003-30GM/GC Specification
Model
Parameters
MV-CA003-30GM
MV-CA003-30GC
0.3 MP 1/3" CMOS Machine Vision GigE Camera
Camera
Sensor Type
MT9V034
Sensor Size
1/3”
Resolution
752×480
Pixel Size
6 μm
Frame Rate
60fps
Dynamic Range
>52dB
SNR
>37dB
Gain
0-22dB
Exposure Time
32μs-1sec
Shutter Mode
Global shutter, supporting Auto, Manual, One-Push, etc. exposture modes.
Data Interface
Gigabit Ethernet
Digital I/O
Opto-isolated input x 1
Opto-isolated output x 1
Bi-directional non-isolated I/O x 1
Image Buffer
128MB
Data Format
Mono 8/10/10p/12/12p
Mono 8/10/12
Bayer BG 8/10/10p/12/12p
YUV 422 8, YUV 422 8 UYVY
RGB8
General
Power Supply and
Consumption
<2.5W@12VDC or PoE, voltage 5 to 15V
Temprature
Working Temprature 0°C to 50°C, Storage Temprature -30°C to 70°C
Dimension
29mm×29mm×42mm
Weight
≈68g

User Manual of Area Scan GigE Camera
11
Lens Mount
C-Mount
Control Client
MVS or third-party client software which supports GigE Vision protocol
OS
Windows XP/7/8 32/64bits
Compatibility
GigE Vision
Certifications
CE, FCC, and RoHS
1.3.2 MV-CA003-30GM/GC Response Curve
MV-CA003-30GM Quantum Efficiency MV-CA003-30GC Quantum Efficiency
Figure 1-1 MV-CA003-30GM/GC Response Curve
Note: The response curve data is provided by the chip manufacturer.
1.3.3 MV-CA013-20GM/GC Specification
Table 1-2 Specification of MV-CA013-20GM
Model
Parameters
MV-CA013-20GM
MV-CA013-20GC
1.3 MP 1/2" CMOS Machine Vision GigE Camera
Camera
Sensor Type
PYTHON 1300
Sensor Size
1/2”
Resolution
1280×1024
Pixel Size
4.8μm
Frame Rate
90fps
Dynamic Range
>60dB

User Manual of Area Scan GigE Camera
12
SNR
>40dB
Gain
0-15dB
Exposure Time
10μs-10sec
Shutter Mode
Global shutter, supporting Auto, Manual, One-Push, etc. exposture modes.
Data Interface
Gigabit Ethernet
Digital I/O
Opto-isolated input x 1
Opto-isolated output x 1
Bi-directional non-isolated I/O x 1
Image Buffer
128MB
Data Format
Mono 8/10/10p/12/12p
Mono 8/10/12
Bayer BG 8/10/10p/12/12p
YUV 422 8, YUV 422 8 UYVY
RGB8
General
Power Supply and
Consumption
<2.6W@12VDC or PoE, voltage 5 to 15V
Temprature
Working Temprature 0°C to 50°C, Storage Temprature -30°C to 70°C
Dimension
29mm×29mm×42mm
Weight
≈90g
Lens Mount
C-Mount
Control Client
MVS or the third-party client software which supports GigE Vision protocol
OS
Windows XP/7/8 32/64bits
Compatibility
GigE Vision V1.2
Certifications
CE, FCC, and RoHS

User Manual of Area Scan GigE Camera
13
1.3.4 MV-CA013-20GM/GC Response Curve
MV-CA013-20GM Quantum Efficiency MV-CA013-20GC Quantum Efficiency
Figure 1-2 MV-CA013-20GM/GC Response Curve
Note: The response curve data is provided by the chip manufacturer.
1.3.5 MV-CA013-30GM/GC Specification
Model
Parameter
MV-CA013-30GM
MV-CA013-30GC
1.3MP 1/3" CMOS Machine Vision GigE Camera
Camera
Sensor Type
AR0134
Sensor Size
1/3”
Resolution
1280×960
Pixel Size
3.75μm
Frame Rate
53fps
Dynamic Range
>60dB
SNR
>37dB
Gain
0-15dB
Exposure Time
19μs-1sec
Shutter Mode
Global shutter, supporting Auto, Manual, One-Push, etc. exposture modes.
Data Interface
Gigabit Ethernet
Digital I/O
Opto-isolated input x 1
Opto-isolated output x 1
Bi-directional non-isolated I/O x 1

User Manual of Area Scan GigE Camera
14
Image Buffer
128MB
Data Format
Mono 8/10/10p/12/12p
Mono8/10/12
Bayer GR 8/10/10p/12/12p
YUV422 8 YUV 422 8 UYVY
RGB8
General
Power Supply and
Consumption
<2.5W@12VDC or PoE, voltage 5 to 15V
Temprature
Working Temprature 0°C to 50°C, Storage Temprature -30°C to 70°C
Dimension
29mm×29mm×42mm
Weight
≈68g
Lens Mount
C-Mount
Control Client
MVS or the third-party client software which supports GigE Vision protocol
OS
Windows XP/7/8 32/64bits
Compatibility
GigE Vision
Certifications
CE, FCC, RoHS

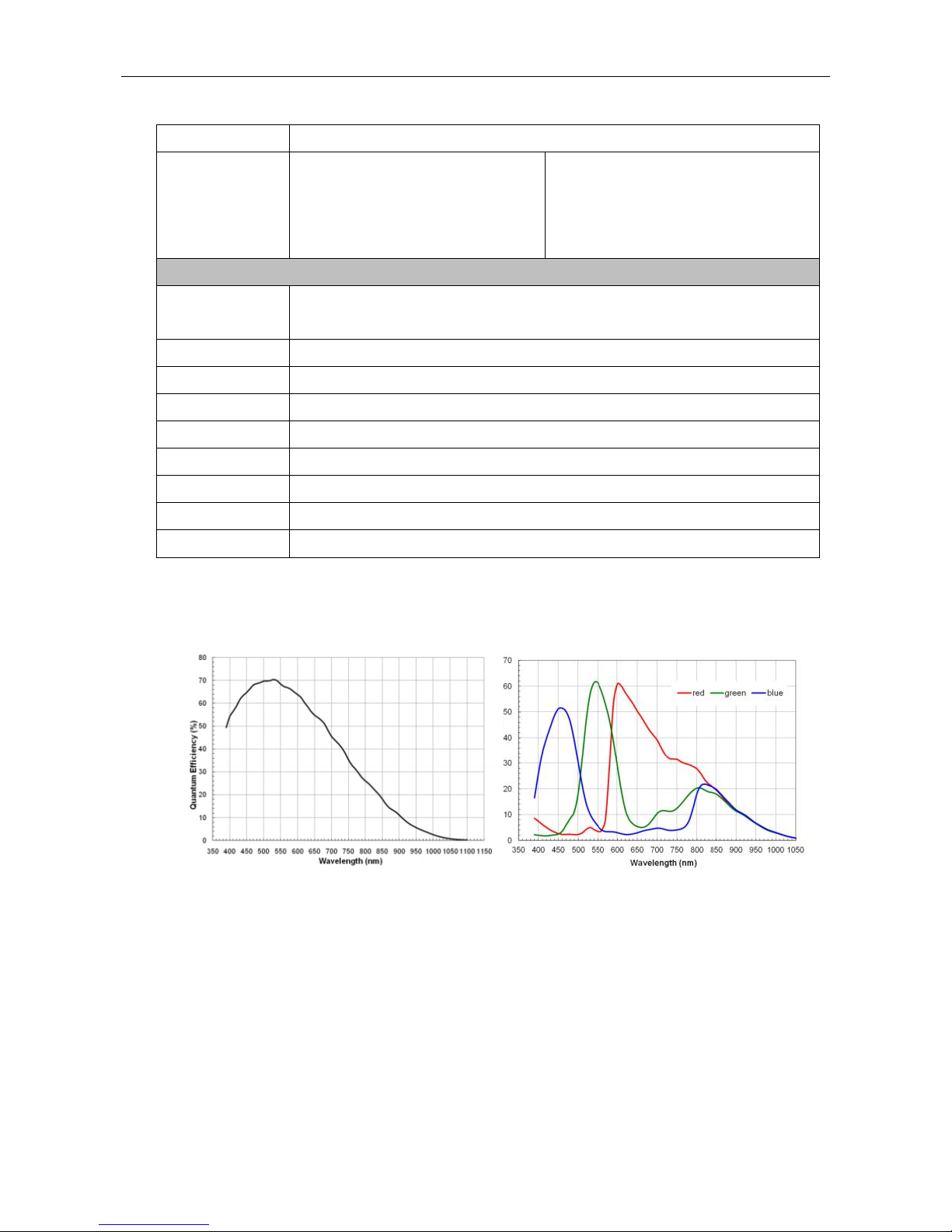

1.3.6 MV-CA013-30GM/GC Response Curve
MV-CA013-30GM Quantum Efficiency MV-CA013-30GC Quantum Efficiency
Figure 1-3 MV-CA013-30GM/GC Response Curve
Note: The response curve data is provided by the chip manufacturer.

User Manual of Area Scan GigE Camera
15
1.3.7 MV-CA030-10GM/GC Specification
Table 1-3 Specification of MV-CA030-10GM/GC
Model
Parameters
MV-CA030-10GM
MV-CA013-30GC
3 MP 1/1.8" CCD Machine Vision GigE Camera
Camera
Sensor Type
ICX687
Sensor Size
1/1.8”
Resolution
1920×1440
Pixel Size
3.69 μm
Frame Rate
25fps
Dynamic Range
>61dB
SNR
>40dB
Gain
0-20dB
Exposure Time
26μs-10sec
Shutter Mode
Global shutter, supporting Auto, Manual, One-Push, etc. exposture modes.
Data Interface
Gigabit Ethernet
Digital I/O
Opto-isolated input x 1
Opto-isolated output x 1
Image Buffer
128MB
Data Format
Mono 8/10/10p/12/12p
Mono8/10/12
Bayer GB 8/10/10p/12/12p
YUV422 8, YUV422 8 UYVY
RGB8
General
Power Supply and
Consumption
<4W@12VDC or PoE
Temprature
Working Temprature 0°C to 50°C, Storage Temprature -30°C to 70°C
Dimension
44mm×29mm×60mm
Weight
≈86g
Lens Mount
C-Mount
Control Client
MVS or the third-party client software which supports GigE Vision protocol
OS
Windows XP/7/8 32/64bits
Compatibility
GigE Vision

User Manual of Area Scan GigE Camera
16
Certifications
CE, FCC, and RoHS

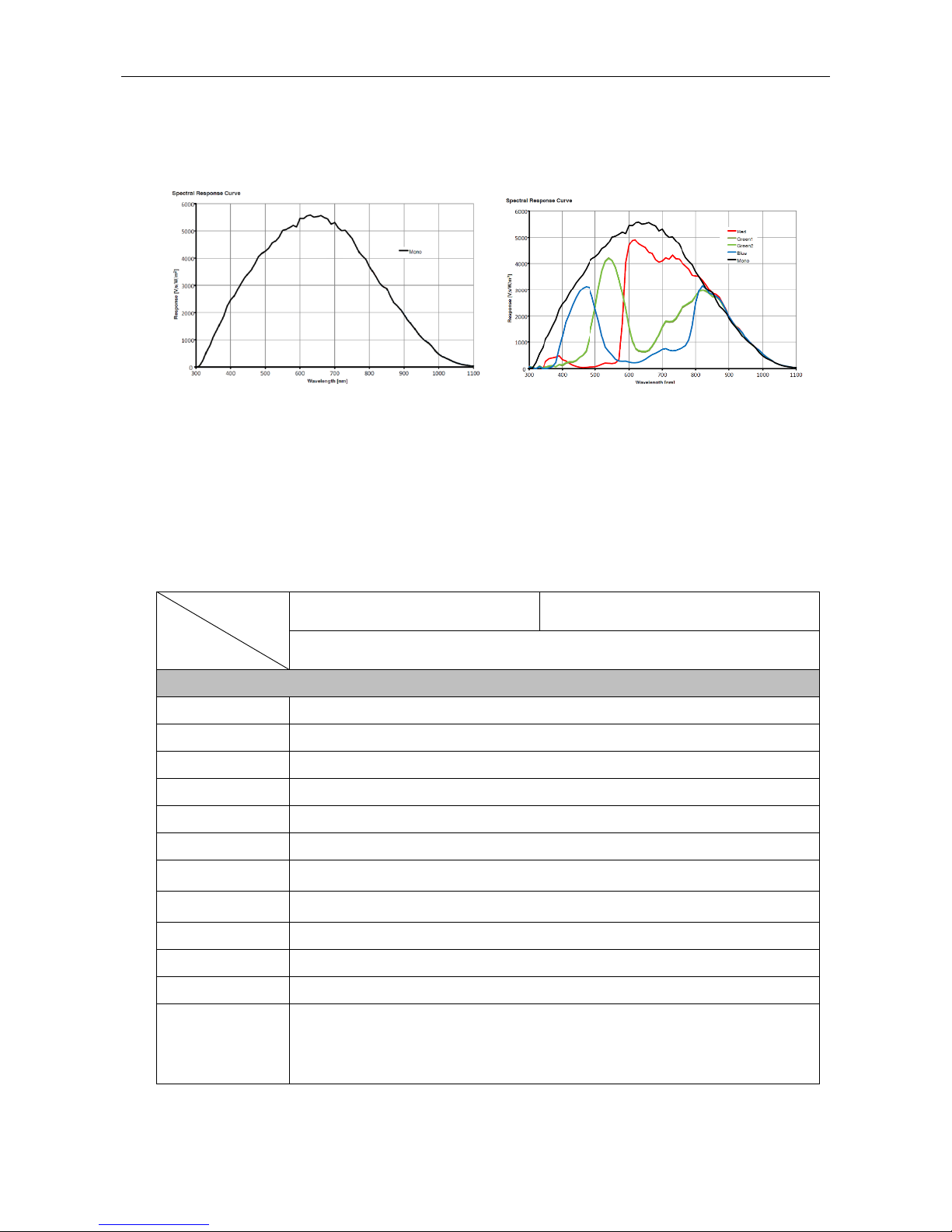

1.3.8 MV-CA030-10GM/GC Response Curve
MV-CA030-10GM Spectral Response MV-CA030-10GC Spectral Response
Figure 1-4 MV-CA030-10GM/GC Response Curve
Note: The response curve data is provided by the chip manufacturer.
1.3.9 MV-CA050-20GM/GC Specification
Table 1-4 Specification of MV-CA050-20GM/GC
Model
Parameters
MV-CA050-20GM
MV-CA050-20GC
5MP 1" CMOS Machine Vision GigE Camera
Camera
Sensor Type
PYTHON 5000
Sensor Size
1”
Resolution
2592×2048
Pixel Size
4.8μm
Frame Rate
22fps
Dynamic Range
>60dB
SNR
>40dB

User Manual of Area Scan GigE Camera
17
Gain
0-15dB
0-10dB
Exposure Time
10μs-10sec
Shutter Mode
Global shutter, supporting Auto, Manual, One-Push, etc. exposture modes.
Data Interface
Gigabit Ethernet
Digital I/O
Opto-isolated input x 1
Opto-isolated output x 1
Bi-directional non-isolated I/O x 1
Image Buffer
128MB
Data Format
Mono 8/10/10p/12/12p
Mono8/10/12
Bayer BG 8/10/10p/12/12p
YUV422 8, YUV422 8 UYVY
RGB8
General
Power Supply and
Consumption
<3.3W@12VDC or PoE, voltage 5 to 15V
Temprature
Working Temprature 0°C to 50°C, Storage Temprature -30°C to 70°C
Dimension
29mm×29mm×42mm
Weight
≈68g
Lens Mount
C-Mount
Control Client
MVS or the third-party client software which supports GigE Vision protocol
OS
Windows XP/7/8 32/64bits
Compatibility
GigE Vision
Certifications
CE, FCC, and RoHS
1.3.10MV-CA050-20GM/GC Response Curve
MV-CA050-20GM Quantum Efficiency MV-CA050-20GC Quantum Efficiency
Figure 1-5 MV-CA050-20GM/GC Response Curve

User Manual of Area Scan GigE Camera
18
Note: The response curve data is provided by the chip manufacturer.
1.3.11MV-CA060-10GC Specification
Table 1-5 Specification of MV-CA060-10GC
Model
Parameters
MV-CA060-10GC
6MP 1/1.8" CMOS Machine Vision GigE Camera
Camera
Sensor Type
IMX178
Sensor Size
1/1.8”
Resolution
3072×2048
Pixel Size
4.8 μm
Frame Rate
17fps
Dynamic Range
>65dB
SNR
>40dB
Gain
0-20dB
Exposure Time
27μs-2.5sec
Shutter Mode
Rolling shutter, supporting Auto, Manual, One-Push, etc. exposture modes.
Data Interface
Gigabit Ethernet
Digital I/O
Opto-isolated input x 1
Opto-isolated output x 1
Bi-directional non-isolated I/O x 1
Image Buffer
128MB
Data Format
Mono8/10/12
Bayer RG 8/10/10p/12/12p
YUV422 8，YUV 422 8 UYVY
RGB8
General
Power Supply and
Consumption
<3.5W@12VDC or PoE, voltage 5 to 15V
Temprature
Working Temprature 0°C to 50°C, Storage Temprature -30°C to 70°C
Dimension
29mm×29mm×42mm
Weight
≈68g

User Manual of Area Scan GigE Camera
19
Lens Mount
C-Mount
Control Client
MVS or the third-party client software which supports GigE Vision protocol
OS
Windows XP/7/8 32/64bits
Compatibility
GigE Vision
Certifications
CE，FCC，RoHS
1.3.12MV-CA060-10GC Response Curve
Figure 1-6 MV-CA060-10GC Response Curve
Note: The response curve data is provided by the chip manufacturer.
1.3.13MV-CA060-11GM Specification
Table 1-6 MV-CA060-11GM Specification
Model
Parameters
MV-CA060-11GM
6 MP 1/3" CMOS Machine Vision GigE Camera
Camera
Sensor Type
IMX178
Sensor Size
1/1.8”
Resolution
3072×2048
Pixel Size
2.4μm
Frame Rate
17fps
Dynamic Range
>65dB
SNR
>40dB

User Manual of Area Scan GigE Camera
20
Gain
0-20dB
Exposure Time
27μs-2.5sec
Shutter Mode
rolling shutter，supporting Auto, Manual, One-Push, etc. exposture modes.
Data Interface
Gigabit Ethernet
Digital I/O
Opto-isolated input x 1
Opto-isolated output x 1
Bi-directional non-isolated I/O x 1
Image Buffer
128MB
Data Format
Mono 8/10/10p/12/12p
General
Power Supply and
Consumption
<3.5W@12VDC or PoE, voltage 5 to 15V
Temprature
Working Temprature 0°C to 50°C, Storage Temprature -30°C to 70°C
Dimension
29mm×29mm×42mm
Weight
≈68g
Lens Mount
C-Mount
Control Client
MVS or the third-party client software which supports GigE Vision protocol
OS
Windows XP/7/8 32/64bits
Compatibility
GigE Vision
Certifications
CE，FCC，RoHS
1.3.14MV-CA060-11GM Response Curve
Figure 1-7 MV-CA060-11GM Response Curve
Note: The response curve data is provided by the chip manufacturer.
