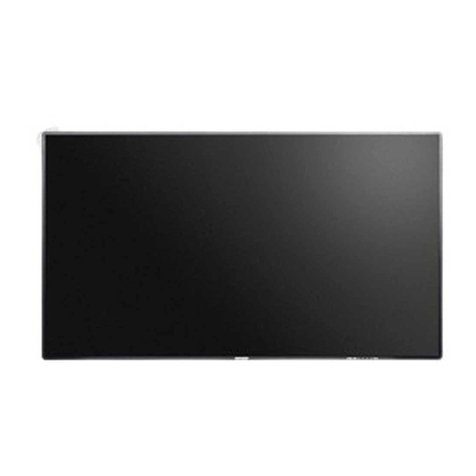

HIK VISION DS-D6055UN-B User manual

Digital Signage
Quick Start Guide

Digital Signage Quick Start Guide
i
TABLE OF CONTENTS
Chapter 1 Product Introduction ..................................................................................................1
Chapter 2 Typical Application .....................................................................................................2
Chapter 3 Activation...................................................................................................................4
3.1 Activation for Scene One..........................................................................................................4
3.1.1 Activate on the Client......................................................................................................4
3.1.2 Activate on the Terminal .................................................................................................5
3.1.3 Reset Password on the Client..........................................................................................6
3.2 Activation for Scene Two..........................................................................................................6
3.2.1 Activate on the Client......................................................................................................6
3.2.2 Activate on the Terminal .................................................................................................7
Chapter 4 Registration................................................................................................................8
4.1 Register Terminals for Scene One ............................................................................................8
4.1.1 Register on the Client......................................................................................................8
4.1.2 Register on the Terminal .................................................................................................9
4.2 Register Terminals for Scene Two ..........................................................................................10
4.2.1 Register on the Client....................................................................................................10
4.2.2 Register on the Terminal ...............................................................................................12
Chapter 5 Terminal Software ....................................................................................................13
Chapter 6 Remote Control Operations ......................................................................................15
6.1 Remote Control One...............................................................................................................15
6.1.1 Functions of Remote Control Keys ................................................................................15
6.1.2 Operation of Remote Control........................................................................................16
6.2 Remote Control Two ..............................................................................................................16
6.2.1 Functions of Remote Control Keys ................................................................................17
6.2.2 Remote Control Mode...................................................................................................17
6.2.3 Bind a Remote Control to a Terminal ............................................................................17
6.2.4 Unbind a Remote Control from a Terminal ...................................................................18

Digital Signage Quick Start Guide
ii
Quick Start Guide
COPYRIGHT © 2019 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of
Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be
“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,
changed, translated, or distributed, partially or wholly, by any means, without the prior written
permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,
guarantees or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Information Release System.
The Manual includes instructions for using and managing the product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in various
jurisdictions. Other trademarks and logos mentioned below are the properties of their respective
owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,
AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS,
EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS,
BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE
USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY
AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL
OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER
ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL
PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS
THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS
USED WITH ILLEGITIMATE PURPOSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.

Digital Signage Quick Start Guide
iii
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at
his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment should be installed and operated with a minimum distance 20 cm between the
radiator and your body.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and
comply therefore with the applicable harmonized European standards listed under the
EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of
as unsorted municipal waste in the European Union. For proper recycling, return this
product to your local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed
of as unsorted municipal waste in the European Union. See the product documentation
for specific battery information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Digital Signage Quick Start Guide
iv
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.

Digital Signage Quick Start Guide
1
Chapter 1 Product Introduction
Digital signage (hereinafter referred to as the terminal) displays are used to broadcast information,
release news, and advertise products, etc, working together with other related products, such as
information release servers and information release system, or the digital signage lite. Digital
signage displays are divided into two types according to the appearance: wall-mounted displays
and standing displays, which are widely applied to industries such as entertainment, finance, and
transportation. The adapted display connected to the is equivalent to the digital signage. The
following instructions are subject to the digital signage.

Digital Signage Quick Start Guide
2
Chapter 2 Typical Application
This chapter describes two typical application scenes for your reference. The two scenes are
different and require different configuration of your terminals. Please strictly follow the operation
instructions described in the following sections.
Refer to the following table for the detailed description of the scene 1.
Table 2-1 Scene 1 Description
Feature
Description
Elements
Server: Information Release Server (DS-D60S-B)
Client: Information Release System Client
Terminal: Digital Signage
Terminals Supported
≥ 30
Key Function
Multiple users are allowed for the server.
Access the server through the client.
Manage terminals through the server.
Upload materials to the server.
Edit programs.
Create and schedules to terminals.
Figure 2-2 Scene 1

Digital Signage Quick Start Guide
3
Refer to the following table for the detailed description of the scene2.
Table 2-2 Scene 2 Description
Feature
Description
Elements
Client: Digital Signage Lite
Terminal: Digital Signage
Terminals Supported
≤30
Key Function
Only one user is allowed for the client.
Manage terminals on the client.
Edit programs on the client.
Create and schedules to terminals.
Client
DS-D60C-B
Wall-mounted Digital
Signage
Standing Digital
Signage DS-D50 Series
Monitor
DS-D20 Series
LCD Video Wall
DS-D40 Series
LED Video Wall
Figure 2-3 Scene 2

Digital Signage Quick Start Guide
4
Chapter 3 Activation
This chapter describes activation methods in two scenes. The way of activation in two scenes is
different. Please select activation methods according to the scenes.
3.1 Activation for Scene One
3.1.1 Activate on the Client
Before you start:
Your computer used for running the client is on the same network segment with the terminal.
Step 1 Run client software.
Figure 3-1 Login
Step 2 Click Online Device.

Digital Signage Quick Start Guide
5
Figure 3-2 Online Device
Step 3 Select terminal to activate and click Security Status.
Figure 3-3 Network Information
Step 4 Enter Password, enter the same password in Confirm Password text-field, and click Apply.
Figure 3-4 Terminal Activation
3.1.2 Activate on the Terminal
Step 1 Power on the terminal.

Digital Signage Quick Start Guide
6
Step 2 Click ACTIVATE on activation interface.
Step 3 Enter password and confirm password.
Step 4 Click ACTIVATE.
3.1.3 Reset Password on the Client
You are highly recommended to reset password with the help of our technical support.
Step 1 Click Export to export the restoration file and send the file to our technical support.
Figure 3-5 Reset Password
Step 2 Technical support will send you back a file. Click Import and select the file.
Step 3 Enter Password, enter the same password in Confirm Password text-field, and click OK.
3.2 Activation for Scene Two
3.2.1 Activate on the Client
Before you start:
Your computer used for running the client is on the same network segment with the terminal.
Your terminal needed to be activated is on.
Step 1 Go to Terminal Management.
Step 2 Click on the lower-right corner.
Step 3 Select the terminals to activate.
Step 4 Click Activate.

Digital Signage Quick Start Guide
7
Figure 3-6 Activate Terminal
Step 5 Set the terminal password and confirm password.
Step 6 Click OK.
3.2.2 Activate on the Terminal
The way of activation on the terminal is the same in two scenes. To activate on the terminal, refer
to 3.1.2 Activate on the Terminal.

Digital Signage Quick Start Guide
8
Chapter 4 Registration
This chapter describes registration methods in two scenes. The way of registration in two scenes is
different. Please select registration methods according to the scenes.
4.1 Register Terminals for Scene One
4.1.1 Register on the Client
Purpose:
To register terminals to the information release server (hereinafter referred to as the server).
Before you start:
You have activated your terminals.
Your computer used for running the client is on the same network segment with the server.
Step 1 Run the client software.
Step 2 Click Online Device.
Figure 4-1 Online Device
Step 3 Select an activated terminal and click .

Digital Signage Quick Start Guide
9
Figure 4-2 CMS Register
Step 4 Enter server information, including Server IP Address, Server Port, server User Name, and
Server Password.
The server port is 7660 by default. You can change the server port as needed.
Step 5 Enter a custom Terminal Name.
Step 6 Enter the Terminal Password.
Step 7 Click OK.
Step 8 Optionally, click and enter Terminal Password to check registration status.
4.1.2 Register on the Terminal
You can register your terminals on themselves.
If your terminal is touchscreen, you can operate the terminal with your figure and skip Step 1.
Step 1 Attach a mouse.
Step 2 Click on the side of the screen.
Step 3 Enter screen-saving password.
Step 4 Click Confirm.
Step 5 Click on the sidebar.

Digital Signage Quick Start Guide
10
Step 6 Set server parameters.
Table 4-1 Server Parameters
Parameter
Description
Example
Device name
User defined
Device 1
IP address
Server IP
10.11.5.224
Port
Server Port
8000
Username
Server username
admin
Password
Server password
Qaz1234
Step 7 Click Save.
4.2 Register Terminals for Scene Two
4.2.1 Register on the Client
Register Terminals in the Same Network Segment
Before you start:
The terminal and the client are in the same network segment.
Step 1 Go to Terminal Management.
Step 2 Click on the lower-right corner.
Step 3 Select the terminals to register.
Step 4 Click CMS Registration.
Figure 3-2 CMS Registration

Digital Signage Quick Start Guide
11
Step 5 Set IP type, IP address, and server port.
Step 6 Enter terminal password.
Step 7 Click OK.
Step 8 Optionally, click Acquire Registration Status to view terminal registration status.
Register Terminals by IP Address
Step 1 Go to Terminal Management.
Step 2 Click Add Terminal.
Figure 4-3 Add Terminal
Step 3 Select Adding Mode as Add by IP.
Step 4 Enter Terminal IP Address and Port.
Step 5 Enter Terminal Name and Terminal Password.
Step 6 Click OK.
Register Terminals by Serial No.
Before you start
1. Enter information release software in your terminal.
2. Click on the sidebar to obtain terminal serial No.
Step 1 Click Terminal Management.
Step 2 Click Add Terminal.

Digital Signage Quick Start Guide
12
Step 3 Select Adding Mode.
Figure 4-4 Add Terminal by Serial No.
Step 4 Enter Terminal Name, Terminal Serial No. and Description. Description is optional.
Step 5 Click OK.
Step 6 Register the computer where information release client to terminal.
1) Enter information release software in terminal.
2) Click on the sidebar.
3) Enter the information of the computer and information release client on the server
configuration interface.
4) Click Save.
4.2.2 Register on the Terminal
The way of activation on the terminal is the same in two scenes. To activate on the terminal, refer
to 4.1.2 Register on the Terminal.

Digital Signage Quick Start Guide
13
Chapter 5 Terminal Software
Please start the information release software on your terminals manually if the software does not
start automatically. Click on the side of the screen to expand the sidebar.
Table 5-1 Description of Terminal Software Sidebar
Icon
Description
Icon
Description
Back to Desktop
Back to Previous Menu
Open System Setting
Open Server Settings
Lock the Screen
View the Terminal Information
See the following figure for the functions of system settings.
Figure 5-2 System Settings

Digital Signage Quick Start Guide
14
Table 5-2 Functions of System Settings
Function
Description
Timed Startup/Shutdown
If the terminal has the scheduled
startup/shutdown. Click Enable/Disable to
enable/disable the scheduled startup/shutdown.
Timed Volume
If the terminal has the scheduled volume. Click
Enable/Disable to enable/disable the scheduled
volume.
Terminal Debugging
Enable/Disable terminal debugging.
Terminal Information
Show/Hide terminal information
Recovery Inactivated
Click Yes and the terminal will restore to the
inactivated status.

Digital Signage Quick Start Guide
15
Chapter 6 Remote Control Operations
6.1 Remote Control One
6.1.1 Functions of Remote Control Keys
Table 6-1 Remote Functions
Appearance
Key
Description
1
Power on/off
2
Number
3
Freeze the screen
4
Desktop
5
Directional button
OK System settings
6
Volume
7
Signal source
8
Terminal information
9
Back
10
Change the signal source
11
Brightness
12
Server information
13
Delete
14
Reserved
15
Mute
16
Screen capture
For DS-D6055UN-B (55-inch 4K Information Release Screen), When Information release
software is running, press F1 to show information such as device No.
This manual suits for next models
2
Table of contents
Other HIK VISION Digital Signage manuals
