Hiland HSS-NG User manual

MODEL #HSS-NG
NATURAL GAS PATIO HEATER
OWNER’S MANUAL
1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-775-1330, 7 a.m. - 4 p.m., PST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
ANS Z83.26-2014 • CSA 2.37-2014 Gas-Fired Outdoor Infrared Patio Heaters
DANGER
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call you gas supplier or fire department.
DANGER
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.
WARNING: For Outdoor Use Only
Precaution!
The Powder Coating paint process has become the most
common widely used application in the outdoor furniture
category. Unfortunately powder coating is extremely
sensitive to Humidity and Moisture. A simple process to
protect your furniture, especially flat surfaces is to apply a
simple coat of good quality car wax prior to using. If this
process is done every few months it will protect your
furniture for years to come.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operation and maintenance
instructions thoroughly before installing or servicing this
equipment.
WH16/01

PACKAGE CONTENTS
2
NOITPIRCSEDTRA YTITNAUQP
A
Reflector Panel 3
LL Reflector Stud
3
B
Reflector Plate
1
1
C
Heater Burner Screen
Upper Post
D
Middle Post
Lower Post
E
Base
1
1
1
1
F
3
G
H
Ground Fixer
B
LL
C
D
E
F
G
H
A

HARDWARE CONTENTS (shown actual size)
3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
DANGER
Failure to comply with the precautions and instructions
provided with this heater can result in death, serious
bodily injury and property loss or damage from
hazards of fire, explosion, burn, asphyxiation, and/or
carbon monoxide poisoning. Only persons who can
understand and follow the instructions should use or
service this heater.
DANGER CARBON MONOXIDE HAZARD
This appliance produces
carbon monoxide which has
no odour. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent, car or home.
AA
II
DD EE
HH
CC
KK LL MM
FF
BB GG
Reflector
Stud
Qty. 3
Large Flat
Washer
Qty. 9
Small Flat
Washer
Qty. 9
Small Screw
Qty. 9
Cap Nut
Qty. 9
Small Screw
Qty. 4
Small Bolt
Qty. 6
Small Flat
Washer
Qty. 6
Wrench
Qty. 1
JJ
Wing Nut
Qty. 3
Medium Bolt
Qty. 4
(not actual size)
Nut
Qty. 6
Large Flange
Nut
Qty. 4

4
SAFETY INFORMATION
DANGER
• CARBON MONOXIDE HAZARD
• This heater is a combustion appliance. All
combustion appliances produce carbon monoxide
(CO) during the combustion process. This product is
designed to produce extremely minute, non-hazardous
amounts of CO if used and maintained in accordance
with all warnings and instructions. Do not block air
flow into or out of the heater.
• Carbon Monoxide (CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can't see it and you can't
smell it. It's an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
• For outdoor use only.
• Never use inside house, or other unventilated or
enclosed areas.
• This heater consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid endangering
your life.
WARNING
DANGER
• EXPLOSION - FIRE HAZARD
• Keep solid combustibles, such as building materials,
paper or cardboard, a safe distance away from the
heater as recommended by the instructions.
• Provide adequate clearances around air openings
into the combustion chamber.
• Never use the heater in spaces that do or may
contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
• During operation, this product can be a source of
ignition. Keep heater area clear and free from
combustible materials, gasoline, paint thinner, cleaning
solvents and other flammable vapors and liquids. Do
not use heater in areas with high dust content.
Minimum heater clearances from combustible
materials: three (3) feet from the sides and two (2) feet
from the top.
We cannot foresee every use that may be made of
our heaters.
Check with your local fire safety authority if you have
questions about heater use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANS Z223.1. In Canada, installation must conform to
local codes. If no local codes exist, follow the current
National standards of CANADA CAN/CGA-B 149.2.
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
DANGER
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
• Propane vapors are heavier than air and can
accumulate in low places. If you smell gas, leave the
area immediately.
• Never install or remove propane cylinder while heater
is lighted, near flame, pilot lights, other ignition sources
or while heater is hot to touch.
• This heater is red hot during use and can ignite
flammables too close to the burner. Keep flammables
at least 3 feet from sides and 2 feet from top. Keep
gasoline and other flammable liquids and vapors well
away from heater.
• Store the propane cylinder outdoors in a well ventilated
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If
heater is to be stored indoors, disconnect the propane
cylinder for outdoor storage.
DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates an imminently hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates an imminently hazardous situation
which,if not avoided, may result in minor or moderate
personal injury,or property damage.

5
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included): Leak detection solution
WARNING
California Proposition 65
Combustion by-products produced when using
this product contain chemicals known to the state
of California to cause cancer, birth defects, and
other reproductive harm.
WARNING
BURN HAZARD
• Never leave heater unattended when hot or in use.
• Keep out of reach of children.
WARNING
• This product is fueled by propane gas. Propane gas
is invisible, odorless, and flammable. An odorant is
normally added to help detect leaks and can be
described as a “rotten egg” smell. The odorant can
fade over time so leaking gas is not always detectable
by smell alone.
• Propane gas is heavier than air and leaking propane
will sink to the lowest level possible. It can ignite by
ignition sources including matches, lighters, sparks or
open flames of any kind many feet away from the
original leak. Use only propane gas set up for vapor
withdrawal.
• Store or use propane gas in compliance with local
ordinances and codes or with ANS/NFPA 58. Turn off
propane when not in use.
WARNING
• Alert children and adults to the hazards of high surface
temperatures. Stay away from these surfaces to avoid
burning skin or igniting clothing.
• Carefully supervise young children when in the vicinity
of the heater.
• Do not hang clothing or any other flammable materials
from the heater, or place on or near the heater.
• Replace any guard or protective device removed for
servicing the appliance prior to placing back in service.
• Installation and repair should be done by a qualified
service person. The heater should be inspected
before use and annually by a qualified service person.
More frequent cleaning may be required as necessary.
It is imperative that the control compartment, burners,
and circulating air passageway of the appliance be
kept clean.
SAFETY INFORMATION
CAUTION
SERVICE SAFETY
• Keep all connections and fittings clean. Make sure
propane cylinder valve outlet is clean.
• During set up, check all connections and fittings for
• Inspect hose before use. Replace if there is evidence
of abrasion or wear.
leaks using soapy water. Never use a flame.
• Use as a heating appliance only. Never alter in any
way or use with any device.
• Check entire hose at least annually.
WARNING
Certain materials or items, when stored under the
heater, will be subjected to radiant heat and could be
seriously damaged.

6
ASSEMBLY INSTRUCTIONS
1
2

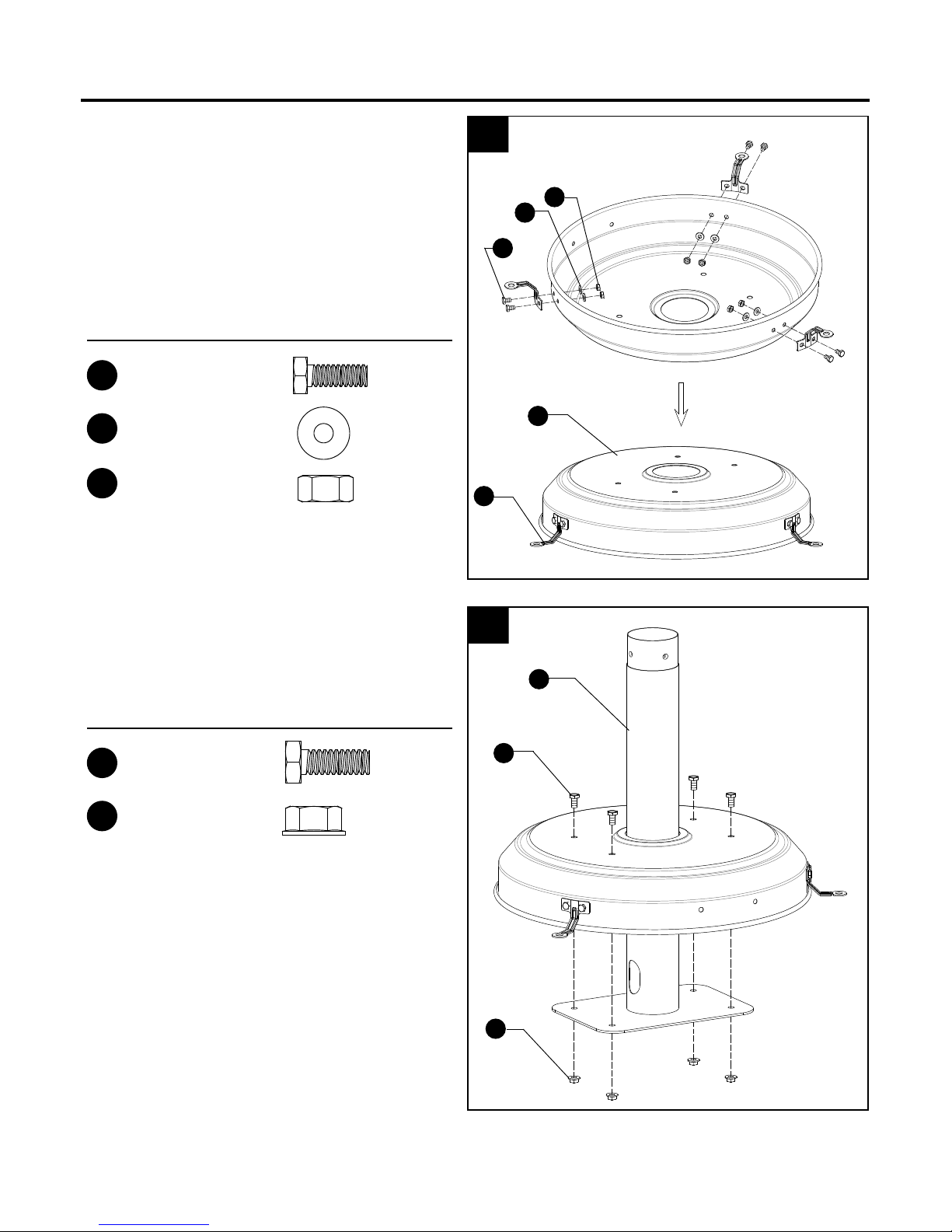

1.To protect heater from strong wind, anchor
the base securely to the ground with screws.
Reverse the base, fix the ground fixer to the
base with bolts and washers like picture shows.
Firm the ground fixer with nuts.
Fix another two ground fixer with bolts and
nuts,and reverse the base.
2.Put lower post through the hole on the top
of base, attach lowerpost to base using four
large bolts. Fully tighten all of the screws.
G
F
CC
BB
AA
DD
EE
H
Hardware Used
AA
BB
x 6
Small Flat
Washer
Nut
x 6
CC
Small Bolts
x 6
Hardware Used
DD
EE
x 4
Large Flange
Nut x 4
Medium Bolt

7
ASSEMBLY INSTRUCTIONS
Hardware Used
3
4

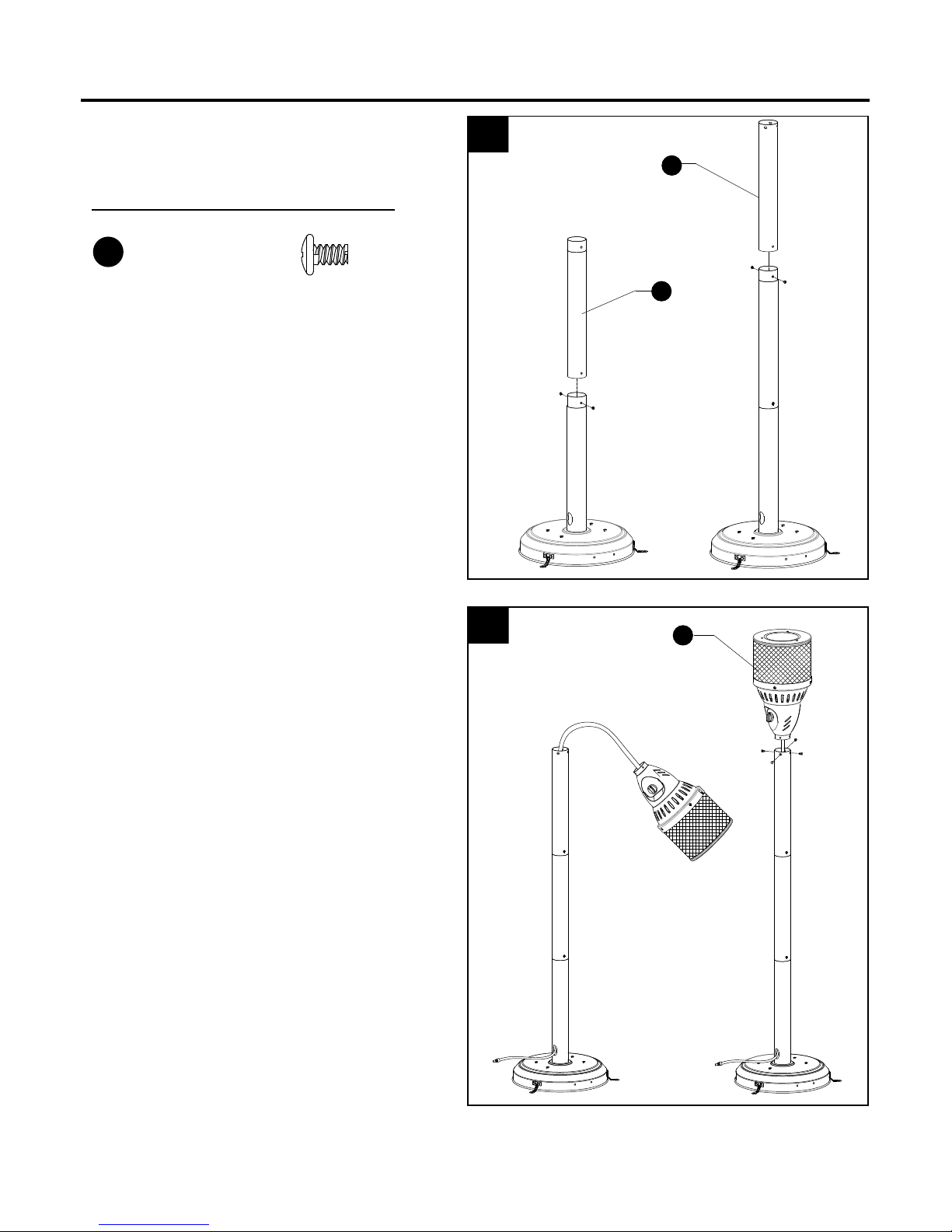

3.Attach lower post and upper post to the each
end of middle post.Using 4 screws to fasten
them.
4.Attach Head Assembly to Post
Screw off 4 small bolts.
Load Head Assembly by inserting hose into
post.
Insert Head Assembly into post.
Control knob should be above decal on post.
Attach Head Assembly to post, and loosely
install four small bolts.
Tighten bolts securely.
Hose is not included in the product.
Need Purchase Separately.
E
C
D
FF x 4
Small Screw

8
ASSEMBLY INSTRUCTIONS
Hardware Used
II
GG
JJ
5. Remove protective cover from reflector
panel and reflector plate.
Note: In order to achieve proper alignment of
reflector sections, it may be necessary to
loosen the preassembled bolts prior to
assembly and retighten once complete.
6. Attach reflector panels together using
Small Screw and Small Flat Washer . Secure
loosely with cap nuts .
x 3
x 3
x 3
Small Flat Washer
Small Screw
Cap Nut
JJ
II
GG
5
6
A
B

9
ASSEMBLY INSTRUCTIONS
Hardware Used
7
8

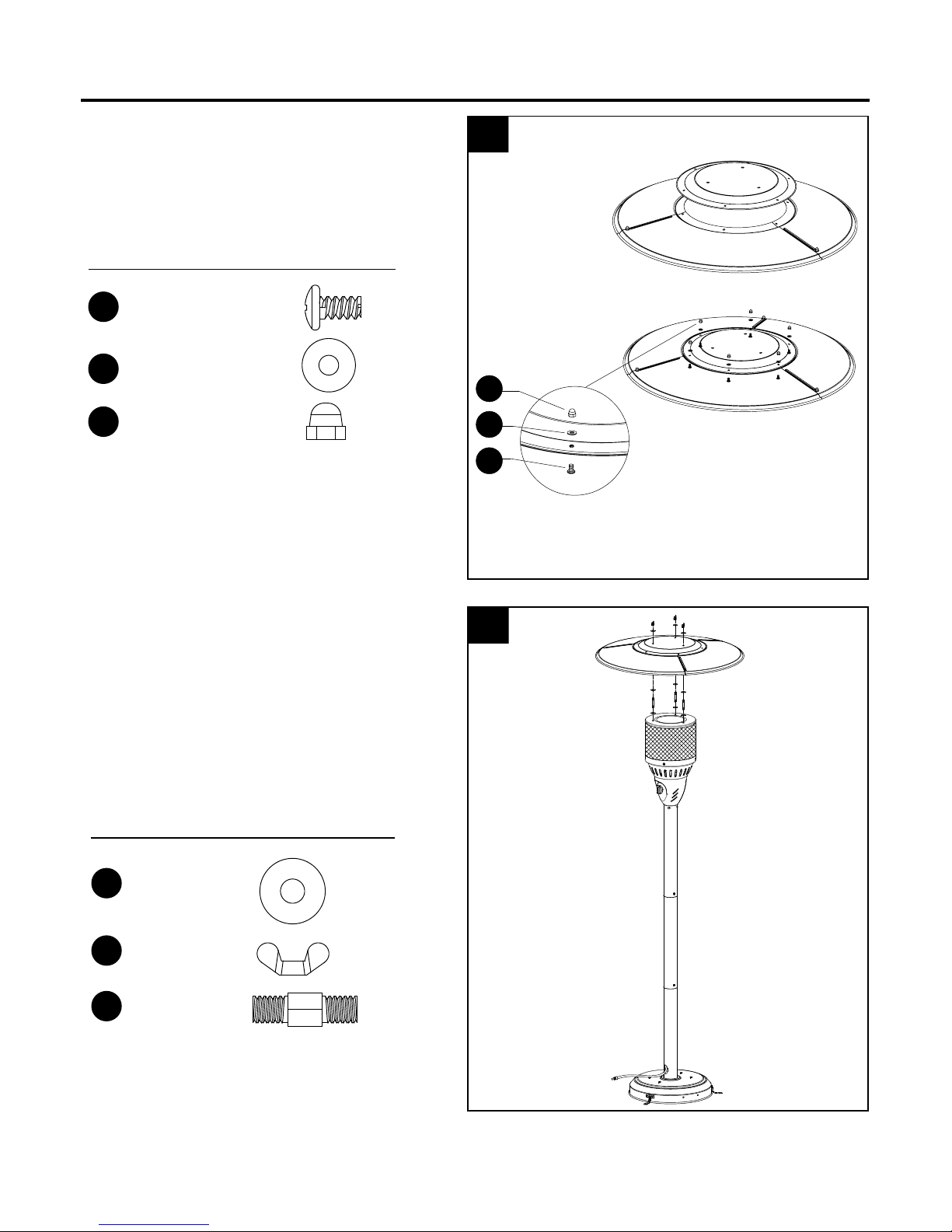

7. Attach reflector plate to reflector panels
using Small Screw and Small Flat Washer.
Secure loosely with cap nuts . Once properly
aligned, tighten all screws and the
preassembled bolts.
HH x 9
Large Flat
Washer
8. Insert 3 Reflector Studs & 3 Flat Washers.
Tighten studs securely.
Support Heater.
Slide 3 Large Flat Washers over threaded end
of Studs.
Locate Reflector Assembly on 3 studs.
Install large flat washers on studs & securely
tighten wing nuts but do not over-tighten!
JJ
II
GG
Hardware Used
II
GG
JJ
x 3
x 3
x 3
Small Flat Washer
Small Screw
Cap Nut
KK x 3
Wing Nut
LL x 3
Reflector
Stud

10
ASSEMBLY INSTRUCTIONS

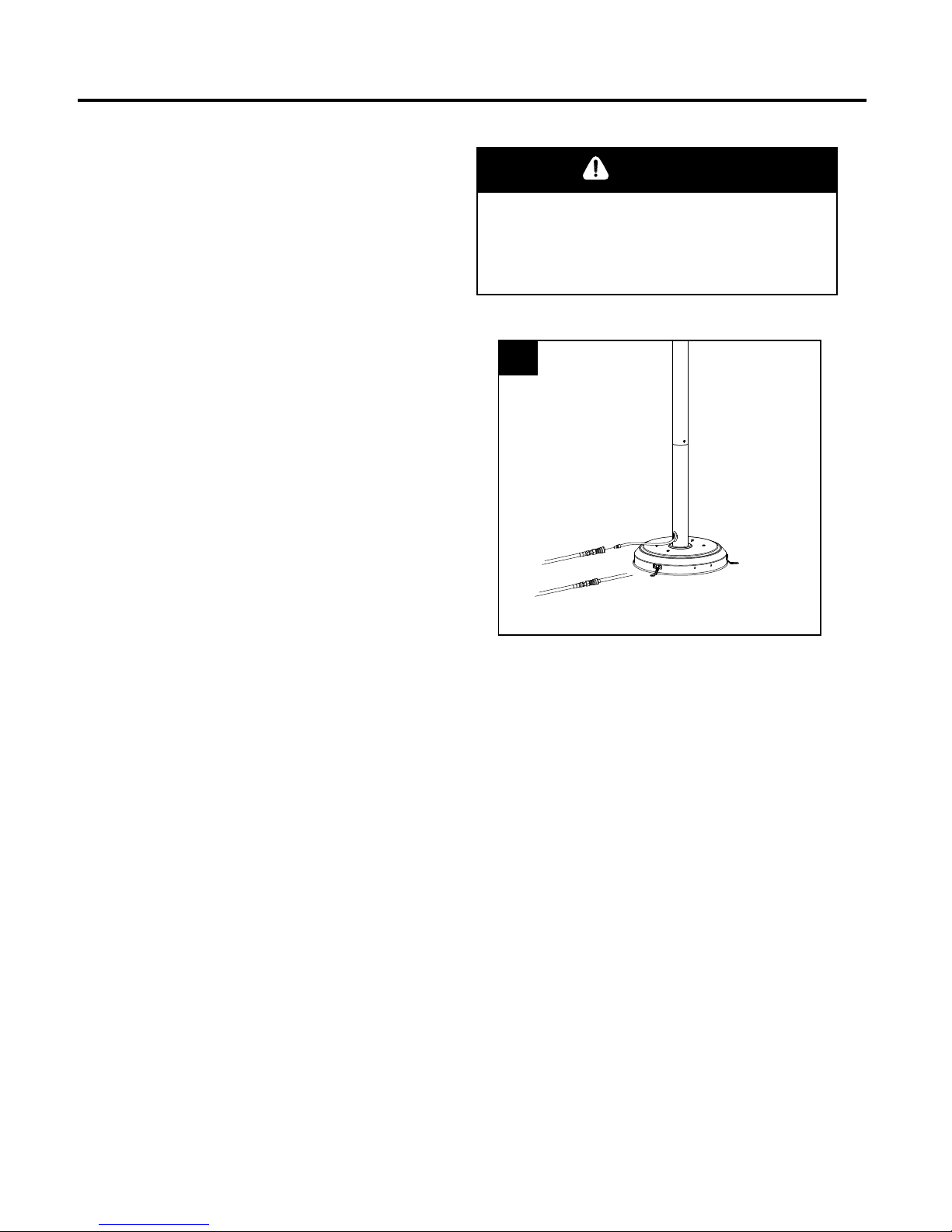

9. Connect Hose
You must provide natural gas.
Use this heater only with a natural gas vapor withdrawal supply system.
A minimum supply pressure of 0.12 p.s.i. is required for the purpose of input adjustment for natural
gas.ANS Z223.1/NFPA54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane
Storage and Handling Code, B149.2.
The installation must conform with local codes, or in the absence of local codes,with National Fuel
Gas Code, ANS Z223.1/NFPA54, Natural Gas and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2.
A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your
cylinder supplier. Never use a propane cylinder with a damaged valve connection.
Screw regulator onto gas hose. Do not cross-thread.
Tighten securely.
Attach regulator to hose.
Complete attachment.

11
OPERATION INSTRUCTIONS
To check for a leak:
1. Make 2-3 oz. of leak check solution (one part
liquid dishwashing detergent and three parts
water).
2. Apply several drops of solution where hose
attaches to regulator.
3. Apply several drops of solution where regulator
connects to Natural gas Valve.
4. Make sure all Patio Heater & Light valves are OFF.
5.Turn Natural gas Valve ON.
If bubbles appear at any con nection, there is a
leak.
1. Turn Natural gas Valve OFF.
Turn Natural gas Valve OFF.
Complete installation.
2. If leak is at Hose/Regulator connection: tighten
connection and perform another leak test. If bubbles
continue appearing should be returned to Hose’s
place of purchase.
3. If leak is at Regulator/Natural gas Valve
connection:disconnect, reconnect, and perform
another leak check. If you continue to see bubbles
after several attempts, Natural gas Valve is defective
and should be returned to cylinder’s place of
purchase.
If NO bubbles appear at any connection, the connections are secure.
NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.
Hose / Regulator
Connection
WARNING
• Perform all leak tests outdoors.
• Extinguish all open flames.
• NEVER leak test when smoking.
• Do not use the heater until all connections have been
leak tested and do not leak.
1

12
OPERATION INSTRUCTIONS
DANGER
• CARBON MONOXIDE HAZARD
• For outdoor use only. Never use inside house, or other
unventilated or enclosed areas. This heater consumes air
(oxygen). Do not use in unventilated or enclosed areas to
avoid endangering your life.
Before Turning Gas Supply ON:
The appliance must be isolated from the gas supply piping system by closing its individual manual
shoutoff valve during any pressure testing of the gas supply piping system at test pressures equal to
or less than 1/2 psig (3.5kPa).
1. Your heater was designed and approved for outdoor use only. Do NOT use it inside a building,
garage, or any other enclosed area.
2. Make sure surrounding areas are free of combustible materials, gasoline, and other flammable
vapors or liquids.
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and
there are no leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during assembly or
servicing is replaced and fastened prior to starting.
Before Lighting:
1. Heater should be thoroughly inspected before each use, and by a qualified service person at least
annually. If relighting a hot heater, always wait at least 5 minutes.
2. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas
should be leak tested. If the hose leaks, it must be replaced prior to operation. Only use the
replacement hose assembly specified by manufacturer.Pressure regulator and hose assembly supplier
with the appliance must be used,and a statement that replacement pressure regulators and hose
assemblies must be those specified by the appliance manufacturer.
Lighting:
Note: This heater is equipped with a pilot light that allows
for safer startups and shutdowns.
Pilot must be lit before main burner can be started.
1. Turn the control knob to the “OFF” position.
2. Fully open Natural gas Valve.
Note: For initial start or after any cylinder change,
hold control knob in for 2 minutes to purge air from
gas lines before proceeding.
Caution: Do not attempt to operate until you have read & understand all General Safety Information
in this manual and all assembly is complete & leak checks have been performed.
2
O
F
F
P
u
s
h
t
o
T
t
u
O
r
L
n
I
P
LOW
HIGH
O
F
F
P
u
s
h
t
o
T
t
u
O
r
L
n
I
P
LOW
HIGH

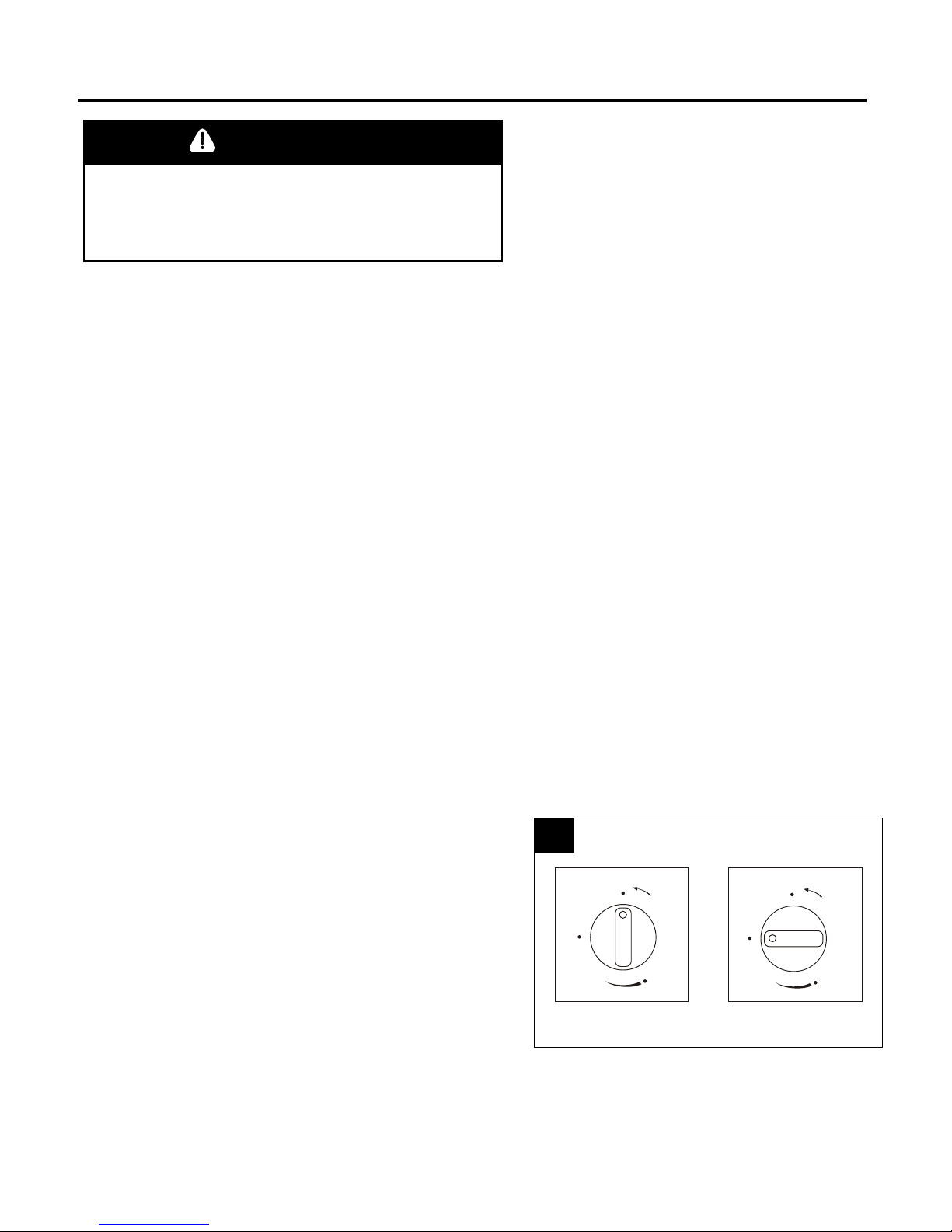

Figure a Figure b

13
OPERATION INSTRUCTIONS
3. Push in gas Control Knob and turn counterclockwise to
“IGNITER” then to “PILOT” (Figure b) to light the pilot. If needed,
keep depressing and turning Control Knob counterclockwise until
the pilot lights (You should heater 2 clicking sounds).
4. Once the pilot is lit, continue to depress the control Knob for
30 seconds.
5. If the pilot dose not stay lit, repeat steps 3 and 4.

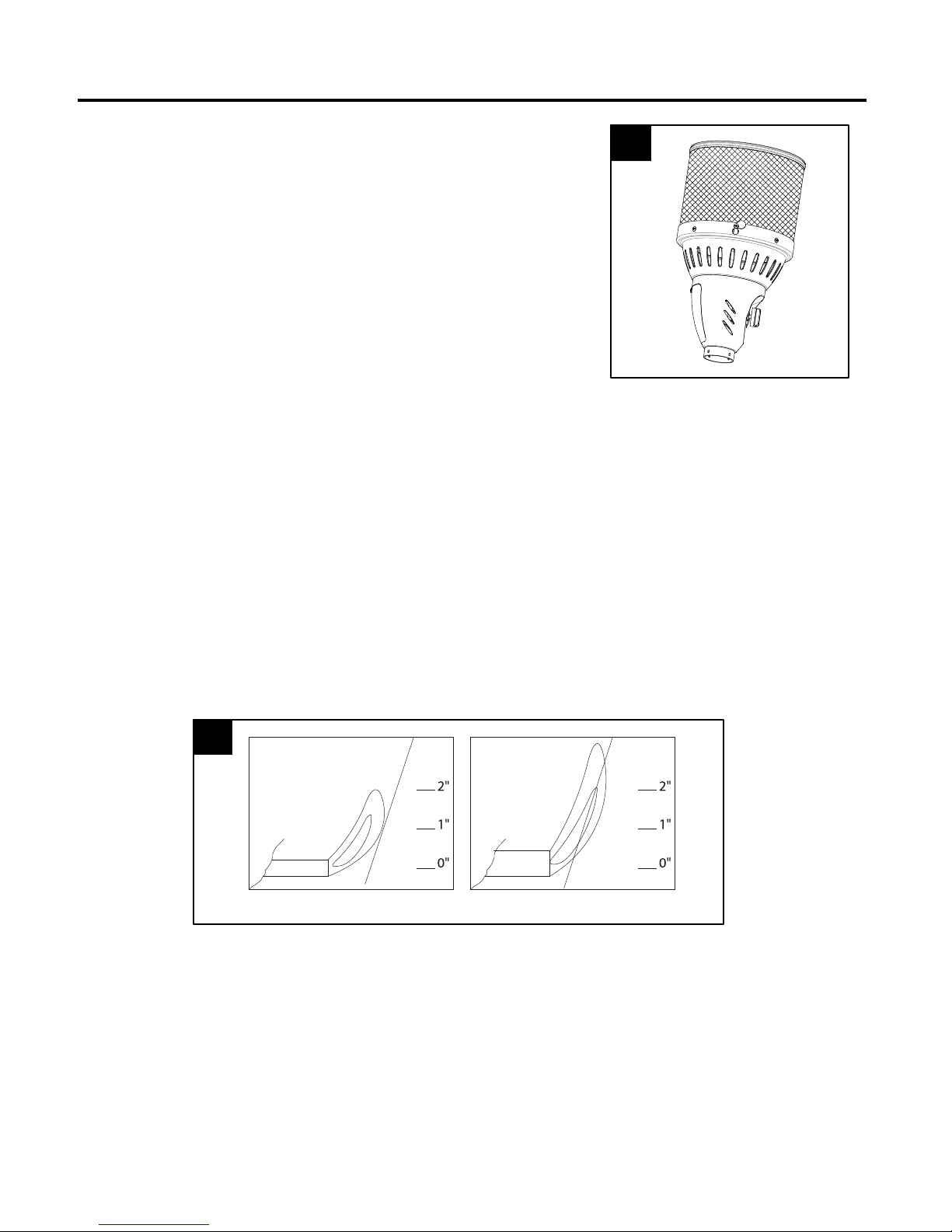

Figure c
6. If after repeating steps 3 & 4 unit does not light, then
-Push in Control Knob and turn counterclockwise to “PILOT”.
-As you are depressing the Control Knob, place long stem lighter
into the ignition hole (Figure c) on the Emitter Screen to light the
pilot.
-Repeat step 4.
7. Push in and turn the Control Knob to the “LOW” position, then release Control Knob. If you want a
higher temperature,push in the Control Knob and turn counterclockwise to the “HIGH” position.
-The burner may be noisy when initially turned on, To eliminate excessive noise form the burner, set
the Control Knob to “LOW”, then turn the Control Knob to heat level desired.
White smoke may appear around the Emitter Screen during the first few minutes of initial lighting.
This is the heater burning up the oil used in manufacturing. Both smoke and odor will dissipate after
approximately 30 minutes.
After First Lighting
Note:
3
4
If pilot fails to remain lit, all valves should be closed and a waiting period of at least 5 minutes should
pass before attempting to light.
If you experience any ignition problem please consult “Troubleshooting” ” on page 17.
Caution: Avoid inhaling fumes emitted from the heater’s first use. Smoke and odor from the burning of
oils used in manufacturing will ap pear. Both smoke and odor will dissipate after approximately
30 minutes.The heater should NOT produce thick black smoke.
Note: The burner may be noisy when initially turned on. To eliminate excessive noise from the burner,
turn the Control Knob to the Pilot position. Then, turn the knob to the level of heat desired.
Normal Abnormal

14
OPERATION INSTRUCTIONS
OPERATION CHECKLIST
Shut Down:
1. Turn control knob clockwise to PILOT. (Normally, burner will make a slight popping sound when
extinguished.) Burner will extinguish but PILOT will remain ON.
2. To extinguish PILOT, depress control knob and continue to turn it clockwise to OFF.
3. Turn natural gas Valve clockwise to OFF and disconnect Regulator when heater is not in use.
Note: After use, some discoloration of the emitter screen is normal.
For a safe and pleasurable heating experience, perform this check before each use.
Before Operating:
When Heater is ON:
Emitter screen will become bright red due to intense heat. The color is more visible at night.
Burner will display tongues of blue and yellow flame. These flames should not be yellow or produce
thick black smoke, indicating an obstruction of airflow through the burners. The flame should be blue
with straight yellow tops. If excessive yellow flame is detected, turn off heater and consult
“Troubleshooting” on page 17.
Re-lighting:
Note: For your safety, control knob cannot be turned OFF without first depressing control knob in
PILOT position and then rotating it to OFF.
1. Turn control knob to OFF.
2. Wait at least 5 minutes, to let gas dissipate, before attempting to relight pilot.
3. Repeat the “Lighting” steps on prior page.
WARNING
FOR YOUR SAFETY
Be careful when attempting to manually ignite this
heater. Holding in the control knob for more than 10
seconds before igniting the gas will cause a ball of
flame upon ignition.
WARNING
FOR YOUR SAFETY
Heater will be hot after use. Handle with extreme care.
I am familiar with entire owner’s manual and understand all precautions noted.
All components are properly assembled, intact and operable.
No alterations have been made.
All gas connections are secure and do not leak.
Wind velocity is below 10 mph.
Unit will operate at reduced efficiency below 40°F.
Heater is outdoors (outside any enclosure).
There is adequate fresh air ventilation.

15
OPERATION INSTRUCTIONS
CARE AND MAINTENANCE
After Operation
1. Gas control is in OFF position.
2. Gas Hose valve is OFF.
3. Disconnect Gas line.
WARNING
FOR YOUR SAFETY:
• Do NOT touch or move heater for at least 45 minutes after use.
• Reflector is hot to the touch.
• Allow reflector to cool before touching.
Keep exterior surfaces clean.
To enjoy years of outstanding performance from your heater, make sure you perform the following
maintenance activities on a regular basis:
Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
While cleaning your unit, be sure to keep the area around the burner and pilot assembly dry at all
times. Do not submerge the control valve assembly. If the gas control is submerged in water, do
NOT use it. It must be replaced.
Keeping the appliance area clear and free from combustible materials , gasoline and other flammable
vapors and liquids.
Not obstructing the flow of combustion and ventilation air.
KeeKeeping the ventilation opening(s) of the cylinder enclosure free and clear from debris.
Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of
possible blockage include:
Heater is away from gasoline or other flammable liquids or vapors.
Heater is away from windows, air intake openings, sprinklers and other water sources.
Heater is at least 24" on top and at least 36" on sides from combustible materials.
Heater is on a hard and level surface.
There are no signs of spider or insect nests.
All burner passages are clear.
All air circulation passages are clear.
Children and adults should be alerted to the hazards of high surface temperatures and should stay
away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the area of the heater.
Clothing or other protective material should not be hung from the heater, or placed on or near the heater.
Any guard or other protective device removed for servicing the heater must be replaced prior to
operating the heater
Installation and repair should be done by a qualified service person. The heater should be inspected
before use and ate least annually by a qualified service person.
More frequent cleaning may be required as necessary. It is imperative that control compartment, burner
and circulating air passageways of the heater be kept clean.

16
CARE AND MAINTENANCE
Gas odor with extreme yellow tipping of flame.
Note:In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal.
Frequently check for corroded areas and repair them promptly.
Between uses:
Turn Control Knob OFF.
Disconnect LP source.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages.
Note:Wait until heater is cool before covering.
During periods of extended inactivity or when transporting:
Turn Control Knob OFF.
Disconnect natural gas source and move to a secure, well-ventilated location outdoors.
Store heater upright in an area sheltered from direct contact with inclement weather (such as rain,
sleet, hail, snow, dust and debris).
If desired, cover heater to protect exterior surfaces and to help prevent build-up in air passages.
Note: Wait until heater is cool before covering.
Service
Storage
Repair to gas passages and associated components should be done only by a qualified service person.
Caution: Always allow heater to cool before attempting service.
Heater does NOT reach the desired temperature.
Heater glow is excessively uneven.
Heater makes popping noises.
Carbon deposits may create a fire hazard. Clean dome and burner screen with warm soapy water if
any carbon deposits develop.
Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and
render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may
help clear away smaller particles.
TIP:
Use high-quality automobile wax to help maintain the appearance of your heater. Apply to exterior
surfaces from the pole down. Do not apply to emitter screen or domes.

17
TROUBLESHOOTING
NOITCAEVITCERROCESUACELBISSOPMELBORP
Pilot won’t light
Pilot won’t stay lit
Burner won’t light
Burner flame is low
Thick black smoke
1. Natural gas valve is close 1. Open valve
2. Blockage in orifice or pilot tube
3. Air in gas line
4. Low gas pressure with natural gas valve
fully open
5. Igniter fails
1. Gas pressure is low
2. Blockage in orifice
3. Control knob is not in ON position
1. Gas pressure is low
4. Control knob fully ON
1. Blockage in burner 1. Remove blockage and clean
burner inside and outside
4. Check burner and orifices for
3. Clean burner and orifices
blockage
2. Outdoor temperature is less than 40ºF and
is less than 1/4 full
1. Turn natural gas valve OFF and
replacegas valve
2. Use a full natural gas valve
3. Turn control knob to ON
1. Dirt built up around pilot
2. Connection between gas valve and pilot
assembly is loose
3. Thermocouple is not operating correctly
2. Clean or replace orifice or pilot
tube
3. Open gas line and bleed it
(pressing control knob in) for not
more than 1 - 2 minutes or until
you smell gas
4. Turn natural gas valve OFF and
replace gas valve
5 .Use match to light pilot; obtain new
igniter and replace
1. Clean dirt from around pilot
2. Tighten connection and perform
leak check
3. Replace thermocouple
1. Turn natural gas valve OFF and
replace gas valve
2. Clear blockage
Note: Heater operates
at reduced efficiency
below 40ºF(5ºC)
3.Spiders and insects nest in burner or orifices.
Carbon build-up 1.Dirt or film on reflector and burner screen 1.Clean reflector and burner screen

18
ONE-YEAR LIMITED WARRANTY
CUSTOMERS IN USA
Do not return this product to the store where you purchased it. Please call 1-888-775-1330
for assistance.
CUSTOMERS IN CANADA
Only return this product to the store if it was purchased within 90 days. If you have problems
after 90 days of purchase, please CALL 1-888-775-1330. DATED PROOF OF PURCHASE
REQUIRED FOR WARRANTY SERVICE.
This product is inspected, tested and carefully packaged to minimize the chance of damage
during shipment. If a part (excluding light bulbs and fuses*) within one year from the date of
purchase proves to be defective in material or fabrication under normal use, the part will be
repaired or replaced. The Company's obligation under the warranty is to replace or repair
defective parts at our discretion. Any expenses or damage resulting from the installation,
removal or transportation of the product will the responsibility of the owner and are not
covered by this warranty. The owner assumes all other risks arising out from the use or
misuse of the product. The warranty will be void if the product damage or failure is deemed
by the Company to be caused by accident, alteration, misuse, abuse, incorrect installation or
removal, or connection to an incorrect power source by the owner. The Company neither
assumes, nor authorizes any person or entity to assume for it any obligation or liability
associated with its products.
* Light bulbs and fuses are not covered under this warranty.
If you have any questions regarding the warranty or service, please call our toll
free number: 1-888-775-1330.
Distributed by:
AZ Patio Heaters, LLC
Toll Free Number 1-888-775-1330
Sales Service and Repair
www.azpatioheaters.com

REPLACEMENT PARTS LIST
19
Printed in China
For replacement parts, call our customer service department at 1-888-775-1330,
7 a.m. - 4 p.m., PST, Monday - Friday.
NOITPIRCSEDTRA YTITNAUQP
A
Reflector Panel 3
LL Reflector Stud
3
B
Reflector Plate
1
1
C
Heater Burner Screen
Upper Post
D
Middle Post
Lower Post
E
Base
1
1
1
1
F
3
G
H
Ground Fixer
B
LL
C
D
E
F
G
H
A
