INSTRUCTION MANUAL
Model: DEF963739
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
LCD Convector Heater
2300W
2
THE HEATER CAN BE FREE STANDING OR WALL MOUNTED.
FOR ASSEMBLY INSTRUCTIONS SEE BELOW:
FREE STANDING
WALL MOUNTING THE HEATER
Caution:
- There should be a distance of at least 50cm between the lower part of the
appliance and the oor.
- There should be a distance of at least 1 metre between the upper part of the
appliance and the ceiling.
- The feet must be removed before mounting the appliance on the wall.
1. Measure the distance between the two slots situated at the back of the appliance
(see picture A)
2. Drill two holes at the same distance in the wall and insert a plug in each hole you just drilled. Place
the brackets facing the holes as indicated on picture B and attach them in this position with the
screws supplied.

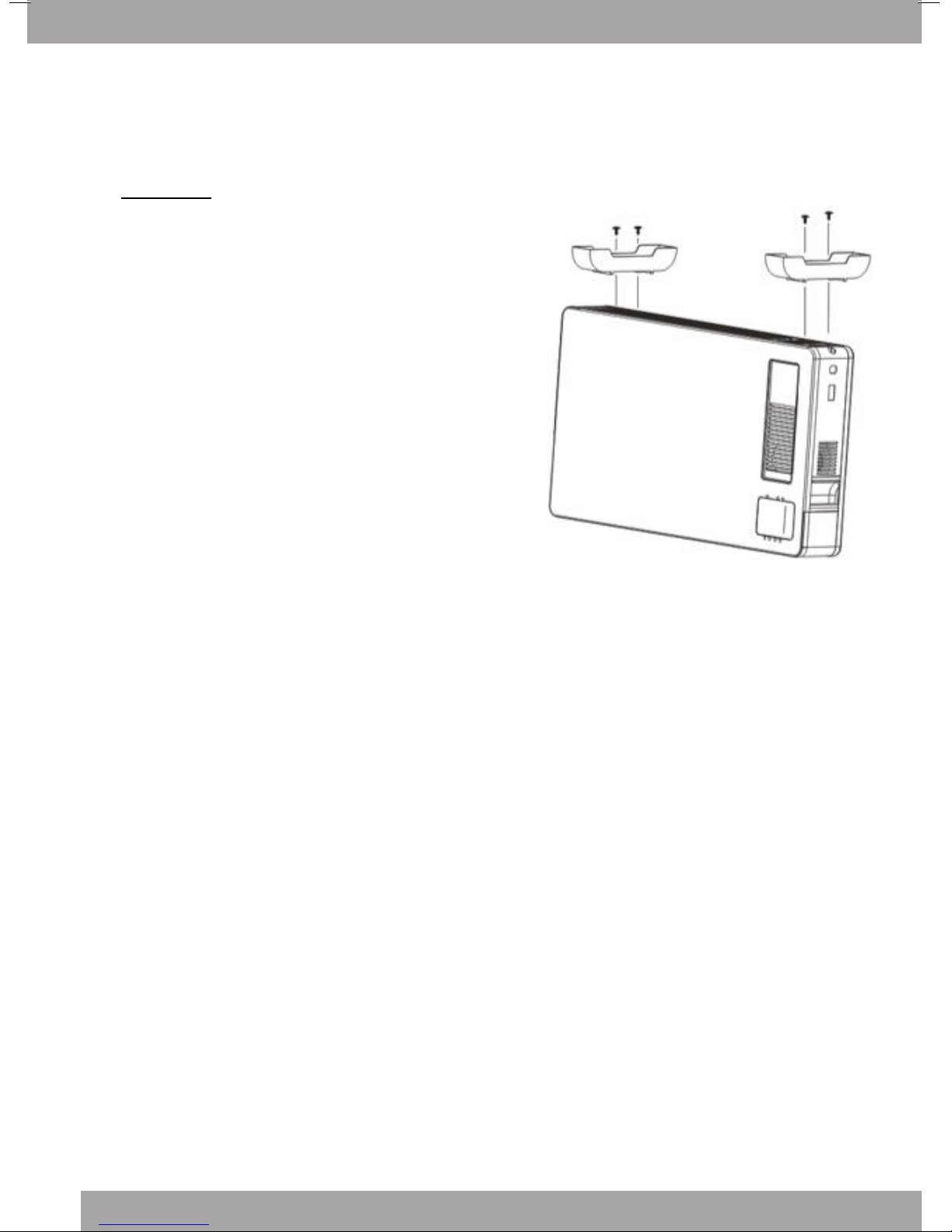

3. Before attaching the appliance on the brackets, attach the two other brackets underneath the
appliance as indicated on picture C.
4. Attach the appliance on the wall. To do so, hold it in such way that the slots are facing the brackets;
insert the appliance halfway onto the brackets until the appliance can go down into the grooves of
the brackets.
5. As soon as the appliance is positioned correctly, take a pencil and mark a dot in the hole of each
bracket situated underneath the appliance.
6. Then take o the appliance by proceeding the other way around compared to point 4 above.
7. Drill a hole in the wall on each dot you just marked and insert a plug in each hole.
8. Attach the appliance back on the wall as indicated in point 4, insert screws through the brackets
underneath the appliance and tighten without forcing.
Assembly Of The Heater
Components
ASSEMBLY
Before using the heater, the feet (supplied
separately in the carton), must be fitted to the unit.
The screw pack to attach the feet to your heater will
be taped to either one of the feet for your heater, or
taped to the plug.
Carefully turn the Main Body upside-down on ascratch-
free and stable surface. Be careful to prevent damage
to the cosmetic finish or your floor surfacing.
Each foot requires two screws to attach them securely
to the heater. Two holes are pre-drilled in each foot and
in the base of the heater. Align the feet with the holes,
insert the screws and use a screwdriver to secure the
feet to the base of the heater. Return to upright position.
Feet x2
Screws x4Main Body x1
WARNING: Operate the heater in the normal
upright position only with the feet attached to the
bottom. Any other position could create a
hazardous situation.
3
WALL MOUNTING
A B
C
1
4
5
2
3

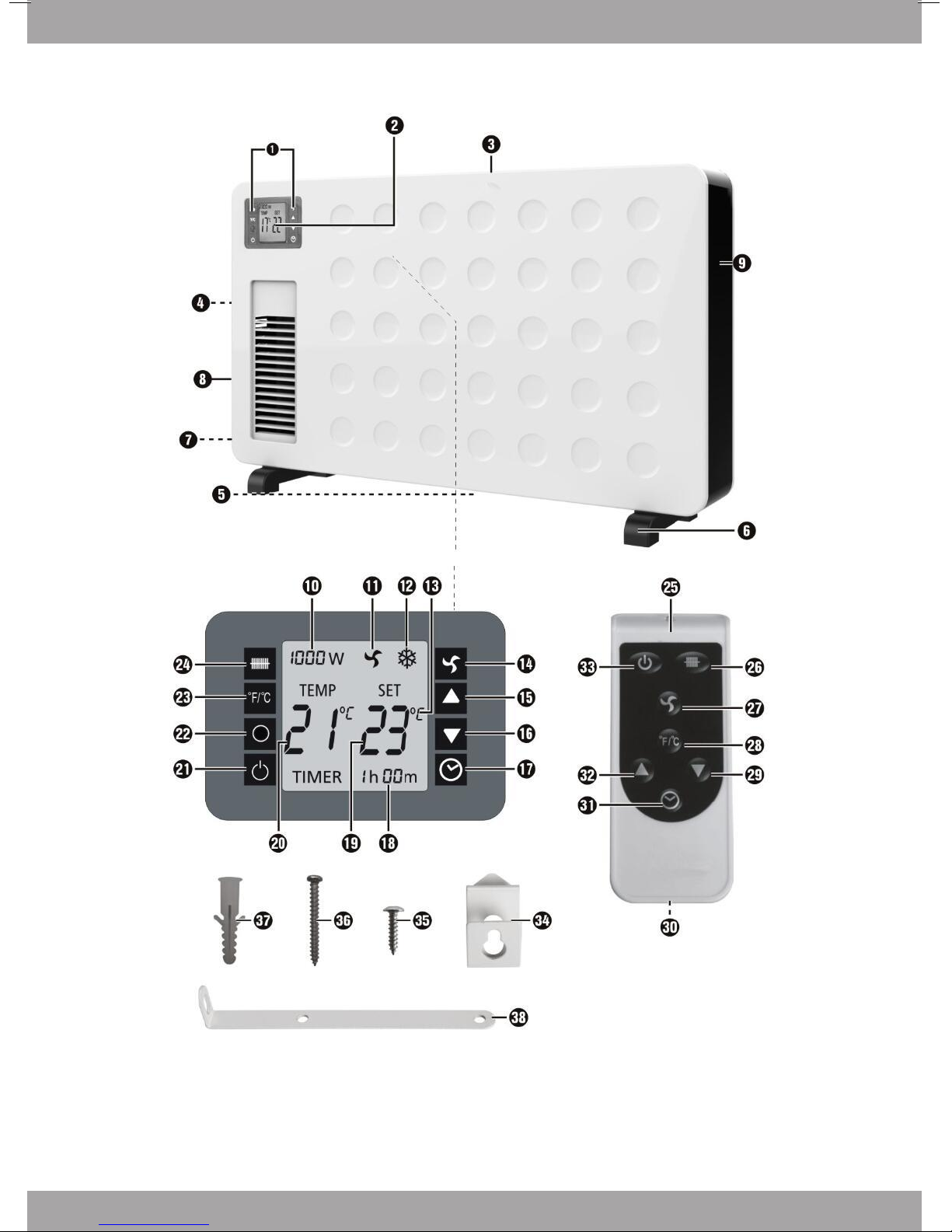

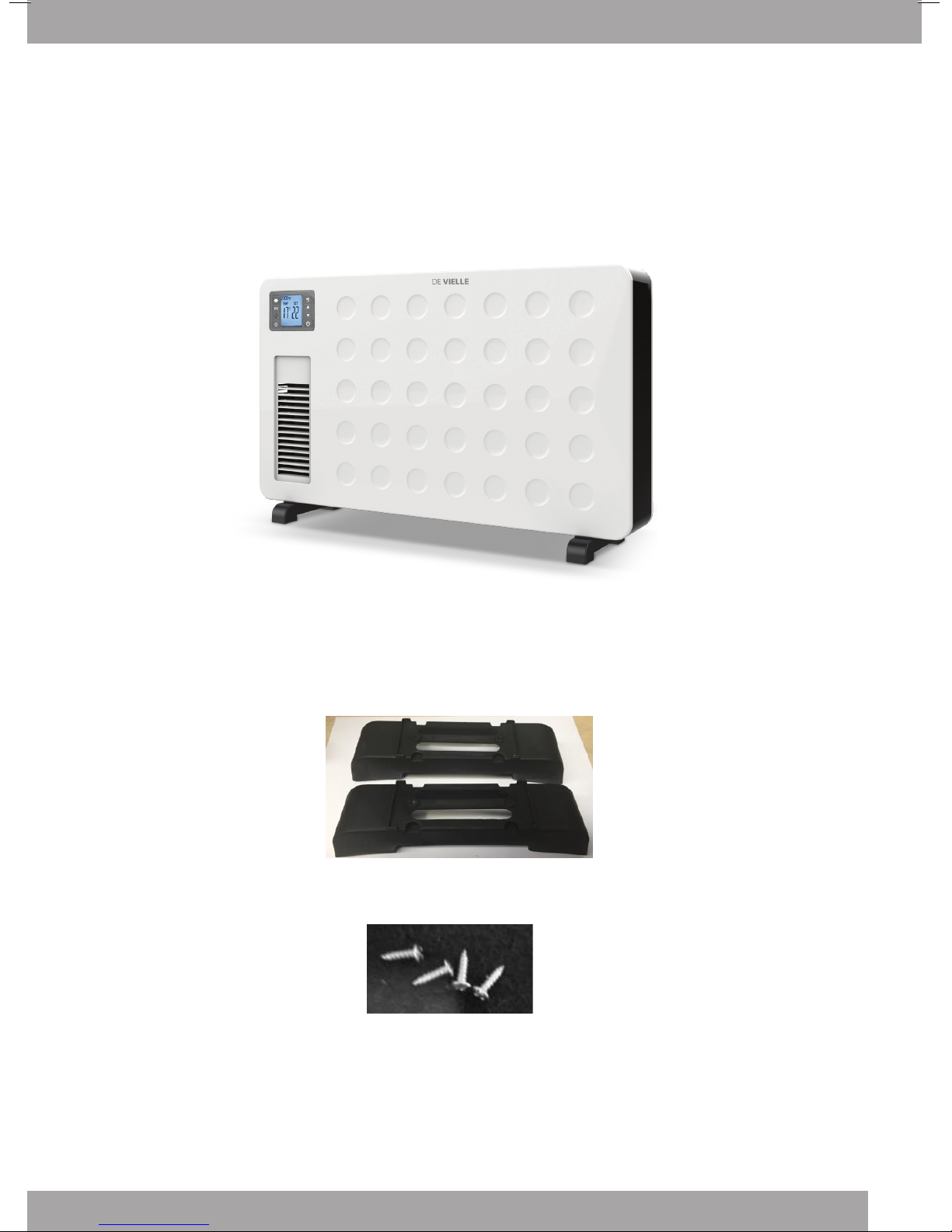

1 Front Cover
2 Display
3 Turbo
4 Rear Cover
5 Feet
x4 x4 x4 x2
x2
4
Assembly Of The Heater
4
5
Fitting the feet
1. Place the appliance on a soft surface with the base uppermost.
2. Fit the feet to the bottom of the appliance using 2 screws on each feet.
Wall mounting

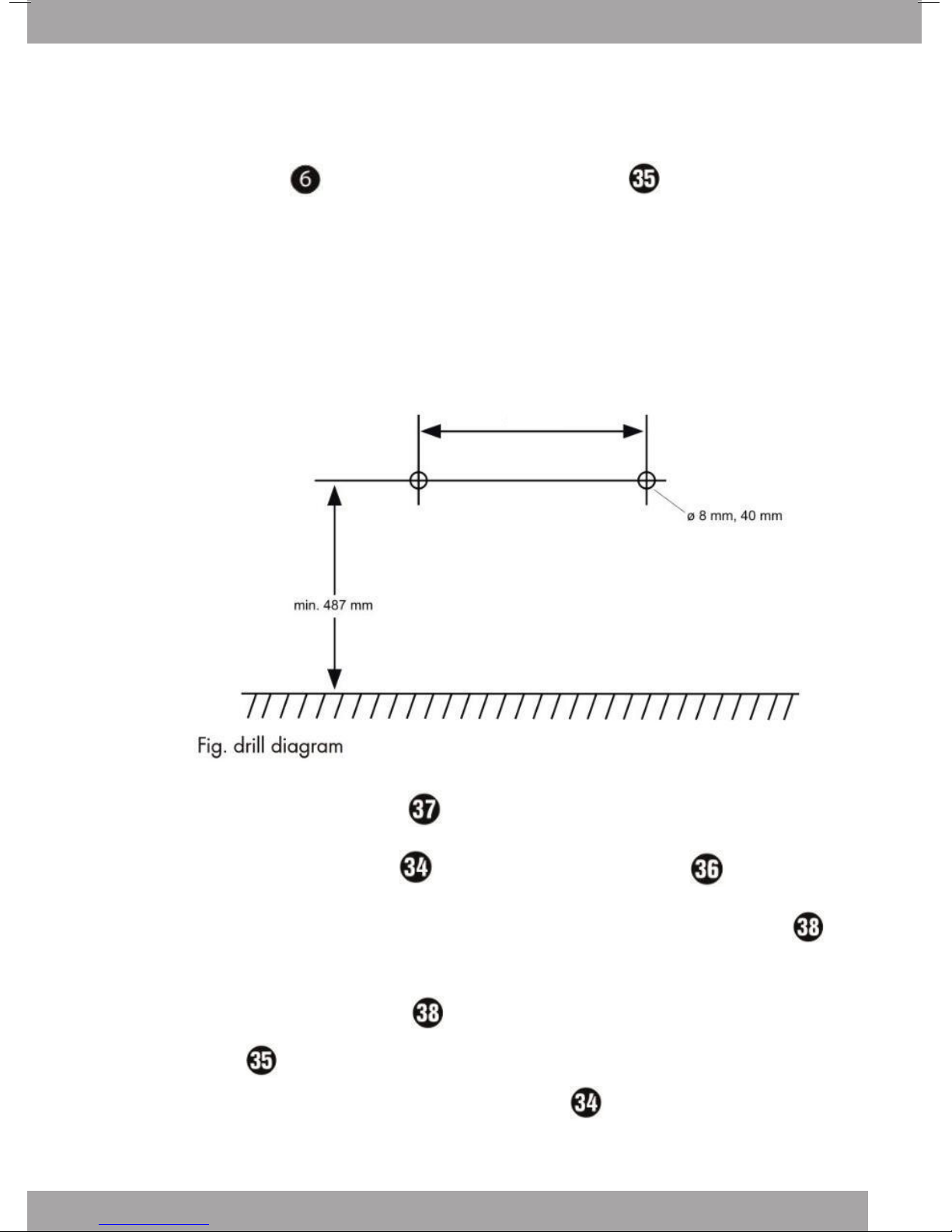

1. Mark two drilled holes at a minimum height of 487mm and at a distance of 575mm(see fig.
Drill diagram).
2. Use a drill and an 8mm drill bit, drill two holes with a minimum depth of 40mm.
3. Insert the supplied wall plugs into the holes.
4. Screw the two wall brackets to the wall using the supplied screws .
5. To ensure that the appliance hangs vertically on the wall, the other two wall brackets
are used as spacers (see Fig. spacers).
6. Screw the two wall brackets onto the underside of the appliance with the supplied
screws .
7. Hang the appliance from the top into the wall brackets .
575mm
6
General Care and Safety Guide
Thank you for choosing a De Vielle Convector Heater. This appliance has
been designed and manufactured to high standards of engineering and with
proper use and care, as described in this booklet, will give you years of useful
service. Please read these instructions carefully and keep for future reference.
YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF
THE INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.
1. WARNING you must not cover this appliance. Covering
this appliance presents fire risk and will activate the
safety fuse; permanently disabling the unit.
2. Use only the voltage specified on the rating label of the
appliance.
3. Keep all objects at least 1 metre from the front, sides
and rear of the appliance.
4. This appliance is intended for household use only and
not for commercial or industrial use.
5. Indoor use only.
6. Do not use abrasive cleaning products on this
appliance.Clean with a damp cloth (not wet) rinsed in
hot soapy water only.Always remove plug from the
mains supply before cleaning.
7. The common cause of overheating is deposits of dust
or fluff in the appliance.Ensure these deposits are
removed regularly by unplugging the appliance and
vacuum cleaning the air vents and grills.
8. Always unplug appliance when not in use.
9. When the appliance has been unpacked, check it for
transport damage and ensure all parts have been
delivered. If parts are missing or the appliance has
been damaged, contact the De Vielle Customer Services
Team.
10. If your appliance does not work, or is not working
properly, contact the place of purchase or the De Vielle
Customer Services Team.
11. Do not connect the appliance to mains supply until
completely assembled and adjusted.
12. Ensure hands are dry before handling the plug or main
unit.
13. Do not locate the appliance directly below any power
socket outlet.
14. Ensure appliance is on a flat, stable, heat-resistant
surface.
15. Do not operate with cord set coiled up as aheat build
up is likely, which could be sufficient to become a
hazard.
16. Carry out regular checks of the supply cord to ensure
no damage is evident.
17. Do not operate this appliance with a damaged cord,
plug or after the appliance malfunctions or has been
dropped or damaged in any manner. Return to a
qualified electrical person for examination, electrical
service or repair.
18. Do not remove plug from power socket by pulling cord;
always grip plug.
19. Do not twist, kink or wrap the cord around the
appliance, as this may cause the insulation to weaken
and split. Always ensure that all cord has been
removed from any cord storage area and is unrolled
before use.
20. It is recommended that this appliance is plugged
directly into the wall socket. The use of power boards
is not recommended as many power boards are not
designed to supply power to high wattage appliances.
21. A correctly specified, undamaged extension cord may
be used with this appliance provided it is used in asafe
manner.
22. Use this appliance only as described in this manual.
Any other use is not recommended by the
manufacturer and may cause fire, electric shock or
injury.
23. Do not remove plug from power socket until the
appliance has been switched off.
24. Do not place cord under carpet or cover with rugs or
furniture. Arrange the cord so it cannot be tripped over.
25. Do not place appliance on bedding or on thick & long
carpet where the openings may get blocked.
26. Switch off and use handle provided when moving.
27. Do not place appliance close to radiant heat source.
28. Never use the appliance to dry clothes.
29. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening, as this may cause an
electric shock, fire or damage to the appliance.
30. Do not sit on the appliance.
31. Do not operate in areas where petrol, paint or other
flammable liquids are used or stored.
32. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities or lack of experience and
knowledge, unless they are supervised or have been
given instruction concerning the use of the appliance
by aperson responsible for their safety.
33. Children should be supervised to ensure that they do
not play with the appliance.
34. Do not use this appliance in the immediate surrounds
of abath, ashower, or a swimming pool or other
liquids. The appliance must not be immersed in any
liquids.
35. There are no user serviceable parts installed in the
unit.
36. Do not place the unit in wardrobes or other enclosed
spaces as this may cause fire hazards.
37. This unit is not supposed to be used in or around
locations where foodstuffs, works of art or delicate
articles of science, etc are stored.
