Hill Audio IMM-2320V2 User manual

RevB 06-2017

Welcome
Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your
expectations and provides long-term, reliable performance, please read and follow this instruction
manual carefully.
Important safety instructions
Read these instructions and all markings on the product. Keep these instructions.
Heed all warnings and instructions, both in this manual and on the product.
Clean only with a dry cloth. Unplug from AC supply before cleaning.
Do not use this product near water and avoid any exposure to water.
Before connecting this product to any AC supply, make sure you check whether the AC mains vol-
tage and frequency match the indication on the product and its packaging.
Only connect this product to an AC supply with sufficient power handling, protective earth con-
nection, ground-fault (earth-fault) protection and overload protection.
Disconnect the product from the AC supply during thunderstorms. Also disconnect from the mains
supply if the product is not being used for long periods.
Make sure any heat sink or other cooling surface, or any air convection slot , is exposed sufficiently
to free air circulation and is not blocked.
Do not operate this product in environmental temperatures exceeding 35 degrees Celsius and/or
85% relative humidity.
Position the product in a safe and stable place for operation, out of reach of unauthorized persons.
Make sure any cable connections to and from the product are neither subject to potentially des-
tructive mechanical impact nor present any risk of stumbling or other accident risk to people.
Audio equipment may generate sound pressure levels sufficient to cause permanent hearing
damage to persons. Always start up at low volume settings and avoid prolonged exposure to sound
pressure levels exceeding 90 dB.
Do not open this product for service purposes. There are no user-serviceable parts inside.
Warranty will be void in any case of unauthorized service by the user or other unauthorized persons.
Take any precaution required by local law, applicable regulations or good business practice to avoid
injury to people or material damage by use of this product.
Explanation of symbols used in this manual and on the product:
DANGER!
Safety hazard.
Risk of injury or death.
WARNING!
Fire hazard.
WARNING!
Hazardous voltage.
Risk of severe or fatal
electric shock.
ATTENTION!
Read manual
before installation
and operation.
Manual Language
UK This user manual is written in English. For other languages, visit www.hill-audio.com
FR Ce guide est écrit en anglais. Pour les autres langues, visitez: www.hill-audio.com
DE Diese Anleitung ist in Englisch verfasst. Für andere Sprachen: www.hill-audio.com
ES Este manual está escrito en Inglés. Para otros idiomas, visite: www.hill-audio.com
PT Este manual está escrito em Inglês. Para outros idiomas, visite: www.hill-audio.com
IT Questo manuale è scritto in inglese. Per altre lingue, visitare: www.hill-audio.com
PAGE 1
USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER

PAGE 2
Health advice
This unit produces and absorbs electromagnetic radiation. The strength of radiation and the sensitiv-
ity for disturbing interference matches the CE and FCC requirements. A corresponding sign is printed
on the backside of the unit. Any change or modification may affect the behavior of the unit concerning
electromagnetic radiation and it may not then meet CE requirements. The manufacturer takes no
responsibility in this case.
Functional advice
This unit is immune to the presence of electromagnetic disturbances – both conducted and radiated
- up to a certain level. Under peak conditions, the unit is classified to show a “class C” performance
criteria and may encounter temporary degradation or loss of function which may need manual help
to recover. In such case, disconnect the AC power from the unit and reconnect it again to recover.
Environmental advice
This unit is built to conform to the ROHS standards and the WEEE directive 2002/96/EC of the
European Parliament and of the Council of the European Union. Under these regulations, the product
shall not be discarded into regular garbage at the end of its life, but shall be returned to authorized
recycling stations.
Unpacking
Please check that the box contains the following items:
Main parts: 1 pc. IMM-2320V2 or IMM-2320V2B main unit
1 pc. Mains cable
1 pc. FM antenna adapter
1 pc. IR remote control
1 pc. Operation manual
If any part is missing, please contact your dealer immediately.
Warning
After unpacking, and before plugging the AC cord in the wall outlet, check whether the
AC mains voltage and frequency is compatible with this product (see rear panel of
product). Whenever the specified voltage or your AC plug should not match the local
conditions, do NOT plug the AC cord into the wall outlet and contact your dealer in
order to change the AC supply voltage settings pursuant below instructions.
Description
The IMM-2320V2 is a combination of a basic audio mixer for stereo music sources and two micro-
phones with a media player including FM tuner and IR remote control. It perfectly serves applications
where foreground or background music is mixed with vocal announcements, as it frequently occurs
in fitness and hospitality applications. Specifically in fitness music applications, the IR remote control
and the automatic music level reduction when the microphone is spoken into, greatly facilitate
efficient instructor work. A Bluetooth receiver feature is available optionally (version IMM-2320V2B).
Maintenance and warranty
While we have chosen the best components to make this product as rugged and reliable as possible,
some parts in audio products (potentiometers, faders, switches) are subject to wear which is a
matter of operation cycles, and not of time. While providing a full time-based warranty according to
the country’s of purchase requirements on the function of the electronic circuitry, we hence have to
limit the warranty on such electro-mechanical parts to 90 days from the date of purchase.
Kindly note that any warranty is void if the unit has been modified ar attempted to be reparied by inap-
propriate means or a non-qualified service center.
USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER

PAGE 3
USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER
Microphone emergency setting
In the case of an external emergency signal muting the unit’s outputs, an internal jumper can be set
to either mute the connected microphones (”off”) as well or to to keep them active (so that aside of a
emergency message broadcasted, additional instructions can be given by a local microphone - “on”).
To make the setting, locate and set the jumper on the
front PCB as shown below.
WARNING - DANGER
Changing the internal settings requires to open the unit. Prior to opening the unit, the
unit shall be disconnected from any AC supply. Any work on an open unit shall be expe-
dited only by qualified, certified personnel.
EMERGENCY
MIC JUMPER: OFF (DEFAULT)
ON
AC mains voltage setting
AC Voltage
Selector Switch
If the AC mains voltage of your power
outlet and the setting of the AC supply
voltage on your unit do not match, contact
your dealer, contractor or a qualified
service workshop to change the setting of
the AC voltage selector. The AC voltage
selector switch is located on the side panel
of the unit, close to the AC inlet.
WARNING - RISK OF FIRE
Changing the AC supply voltage setting can result in a fire hazard if the settings are
made incorrectly. Any change of AC supply voltage setting shall be expedited only by
qualified, certified personnel.
Internal Settings
Antenna Mounting (BT version only)
To achieve acceptable Bluetooth reception
distances, the Bluetooth version of this product
(IMM-2320V2B) must be operated with an
antenna in line-of-sight to the paired device. If the
unit is placed on a tabletop, the antenna can be
mounted directly to the rear-panel antenna socket
(A); If the unit is mounted in a cabinet or rack, the
included antenna front-mounting kit must be used.
The cable is mounted to the rack ear of the unit
and plugged into the rear antenna socket; the
antenna is then plugged into the rack-ear mounted
antenna socket (B).

PAGE 4
USER MANUAL - IMM2320V2 INSTALLATION MEDIA MIXER

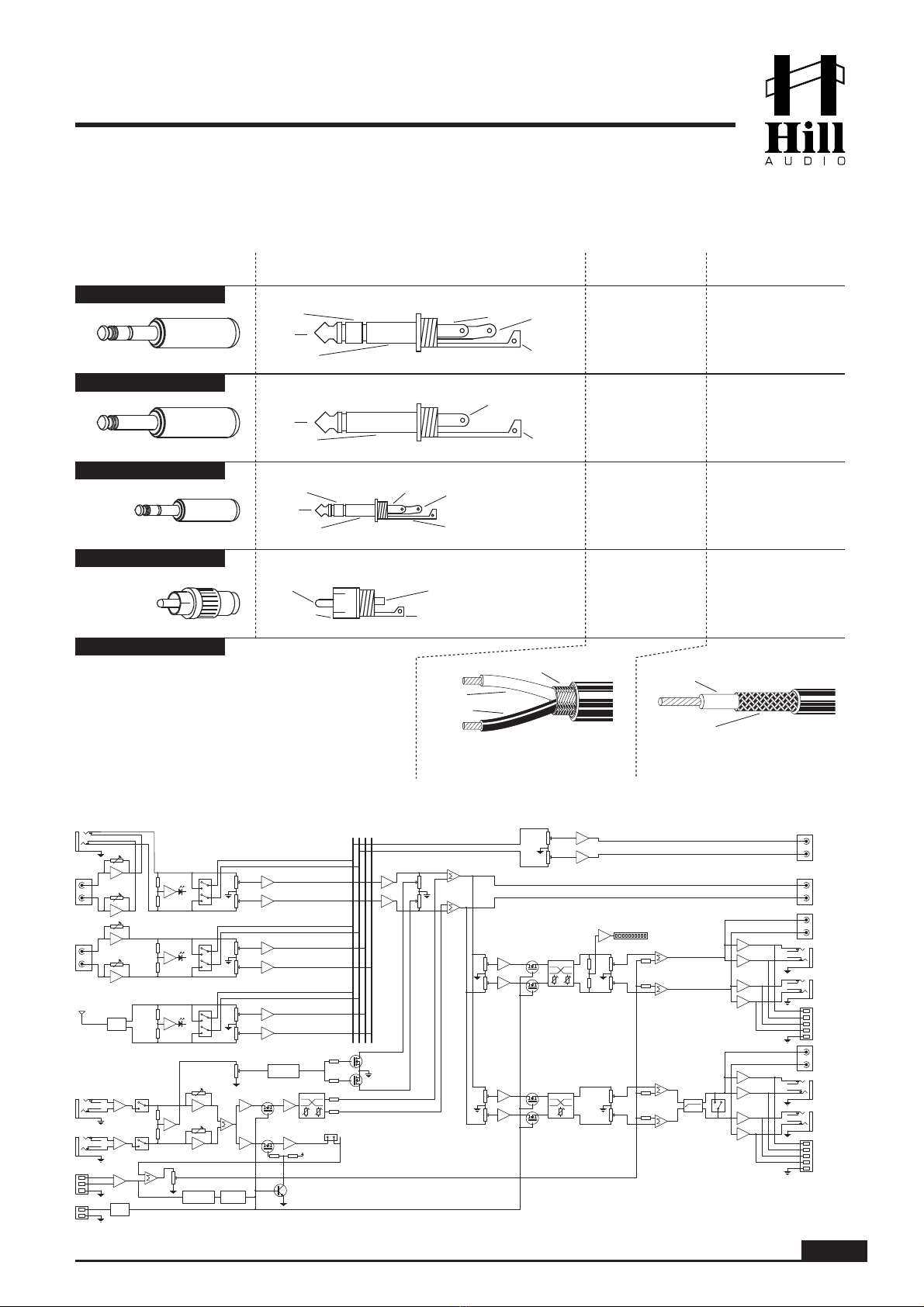

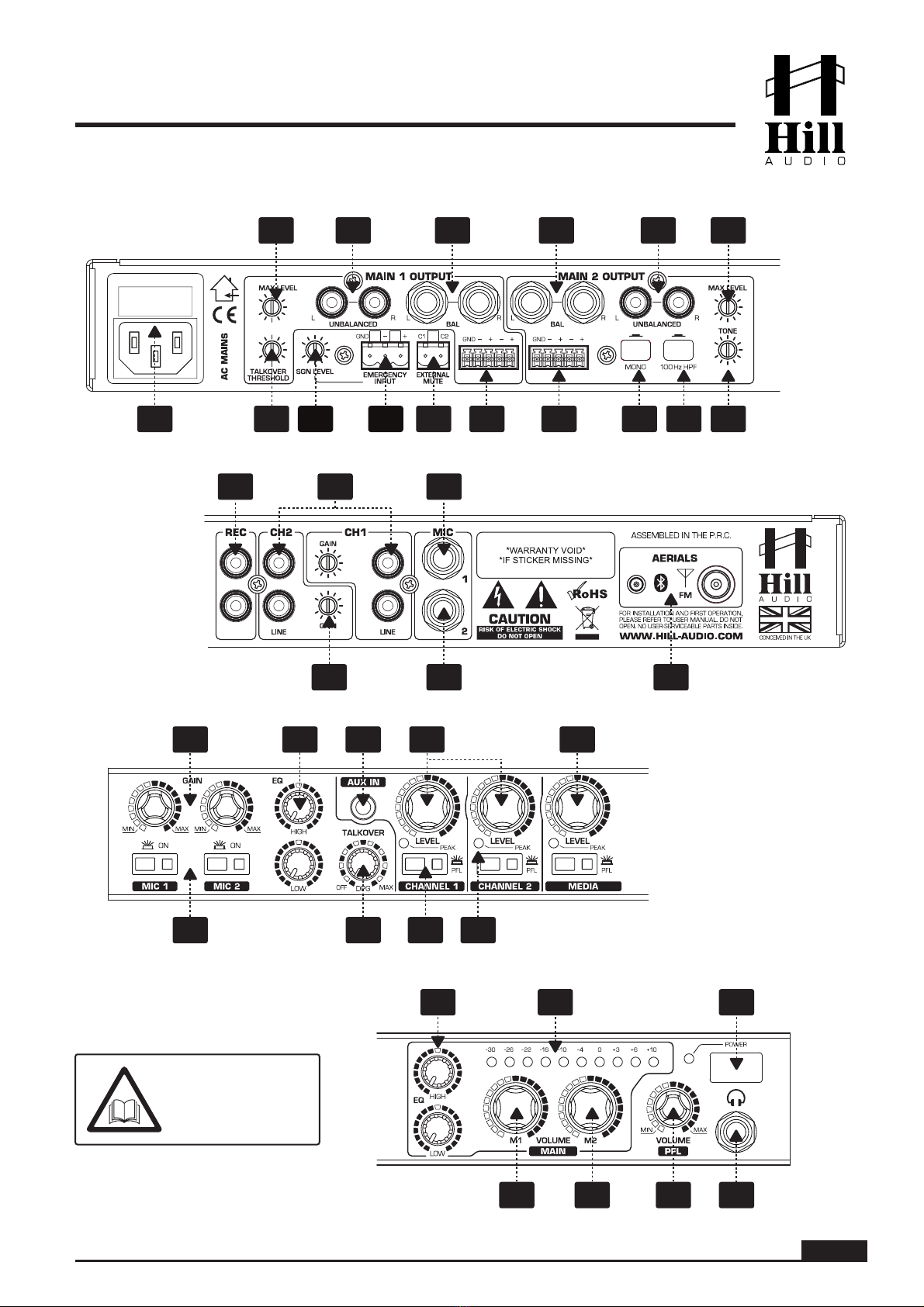

Controls and Connections
Rear: Input & Record Section
Rear: Output Section
1516
114
8
6
12
410
23
9
7
11
5
13
21 22
20
18
19
17
2923
24
25 27 28
26 30 31
32
33 34
35 36 37
38
Front: Input Section
Front: Output Section
Media Player
Instructions:
Please see below
