Hill Laboratories Air-Flex User manual

H ll A r-Flex Table
Owner’s Man al
Q ality and Innovation Since 1945.

Hill Laboratories has been making quality a family business since 1945.
Your new Air-Flex is built on an established Hill tradition of innovation and
value. Our reputation rests on the confidence that your Hill Table will strengthen
this legacy by providing you with solid, reliable service for many years to come.
Congratulat ons!
And welcome to the Hill Laboratories family.

Your Hill Laboratories table has been thoroughly tested and
inspected before shipment. All parts are guaranteed against defect
in materials for one full year from the date of purchase. During this
period, any such defect will be remedied by Hill Laboratories or by
a factory-authorized repair service at no charge. Tables damaged by
mishandling or accident will be repaired at a reasonable charge. All
correspondence should be directed to your local dealer, or when
this is not possible, to Hill Laboratories directly.
For tables beyond the warranty period, our service technicians
are standing by to serve you. They can be reached toll-free at
1-877-445-5020 from 9 am - 5 pm E.S.T., Monday through Friday.
After hours, please leave your name, phone number and a brief
description of your concern. Your call will be returned promptly the
next business day.
We appreciate your business and your confidence in our products.
Our aim is to provide you with excellent service and satisfaction for
many years to come.
President, Hill Laboratories
At Your Serv ce
The Hill Laboratories G arantee.

© Copyright 2016, Hi Laboratories
H ll A r-Flex Manual
Table of Contents
Product Features
Basic Table Components _________________________________________________1.1
Specifications __________________________________________________________1.2
Table Care
Cleaning your Table______________________________________________________2.1
Caution and Symbol Explanation __________________________________________2.2
Bas c Table Operat on
Preparing the Air-Flex for your Patient_______________________________________3.1
Height Pedal ___________________________________________________________3.2

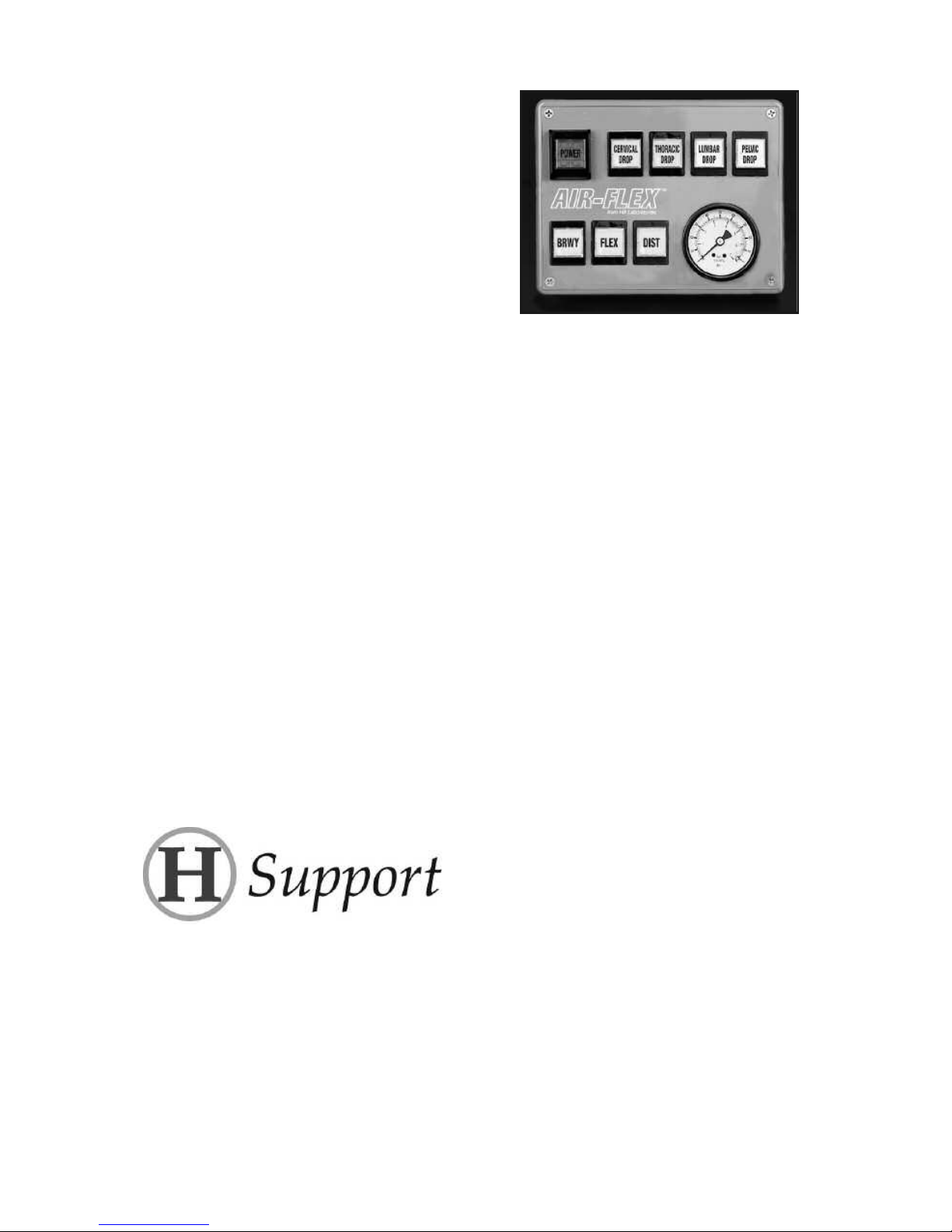

The Control Panel _______________________________________________________3.3
Manual Thoracic Release/Thoracic Air-Breakaway ____________________________3.4
Basic Distraction ________________________________________________________3.5
Basic Flexion (Balancing the Patient) _______________________________________3.6
Us ng the Rotat on Lock
Using the Rotation Feature________________________________________________4.1
Returning the Rotation Feature to the Horizontal Position ______________________4.2
Us ng A r-Drops
Drop Selector Switches __________________________________________________5.1
Headp eces
Tilting Headpiece________________________________________________________6.1
Dual Drop Headpiece ____________________________________________________6.2
Raised Headpiece_______________________________________________________6.3
Cervical Flexion Headpiece _______________________________________________6.4
Translation/CBP Headpiece _______________________________________________6.5
Instruct ons for the Auto-Flex on Opt on
The Auto-Flexion Touchscreen_____________________________________________7.1
Switching to Auto-Flex ___________________________________________________7.2
Instruct ons for the Auto-D stract on Opt on

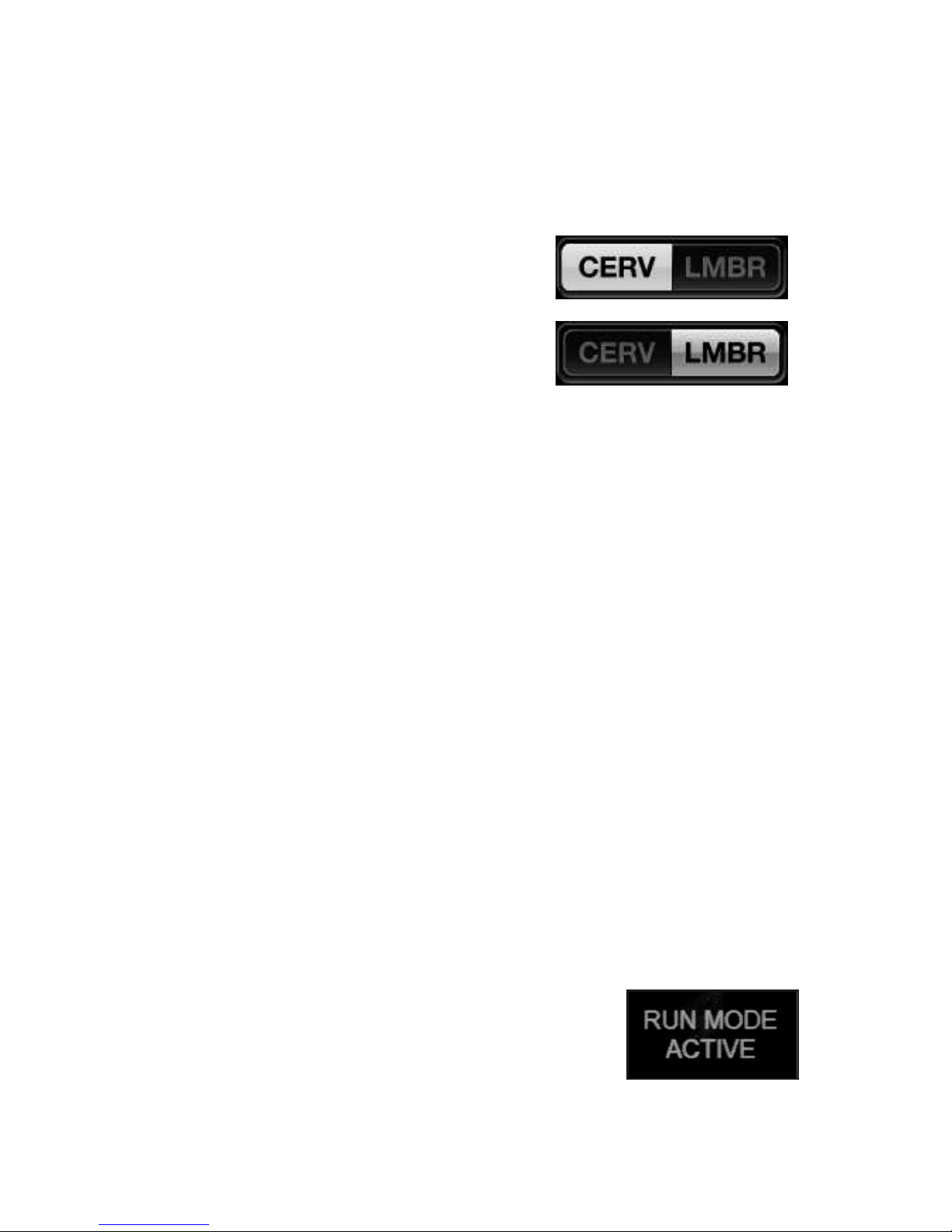

The Auto-Distraction Touchscreen__________________________________________8.1
Manual/Auto Mode ______________________________________________________8.2

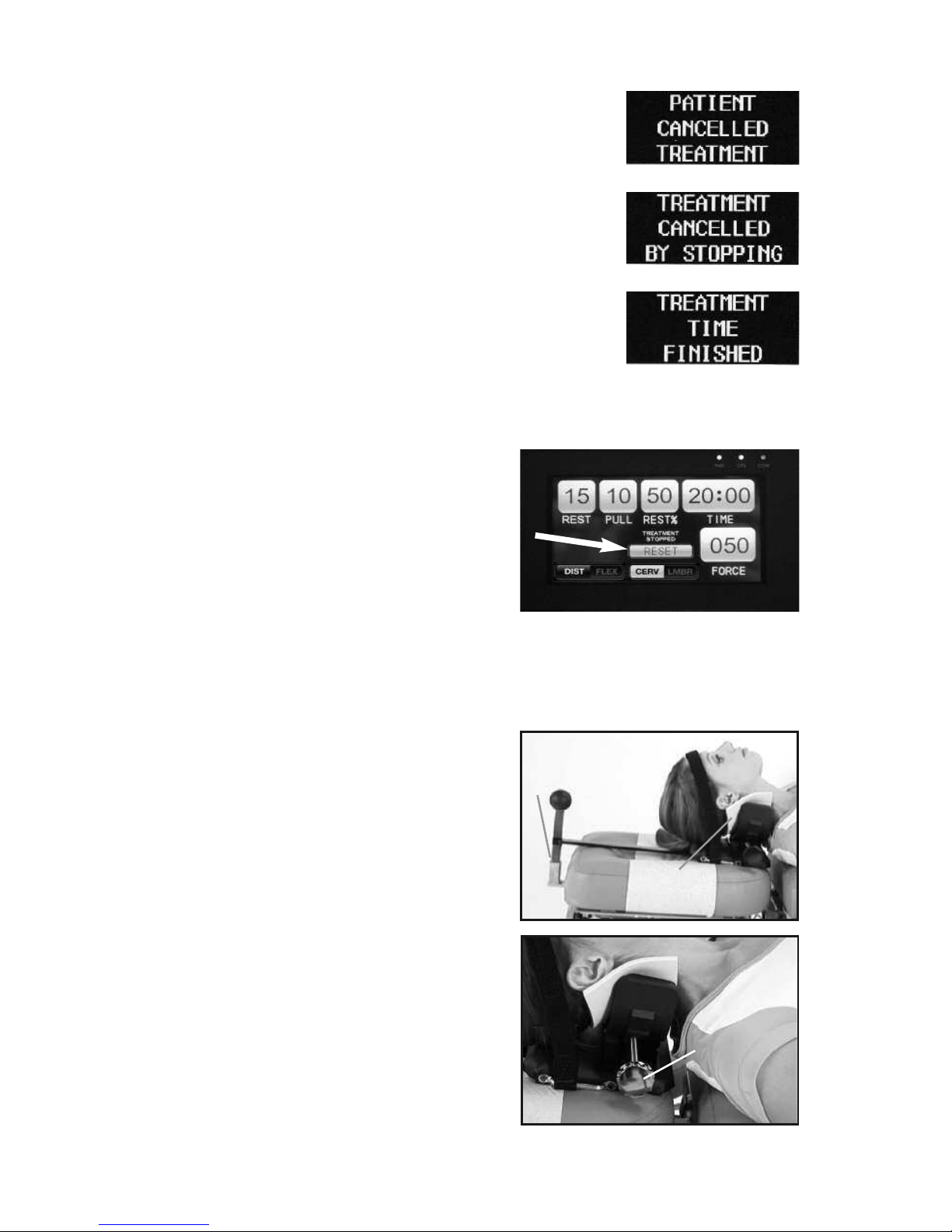

Cervical Auto-Distraction _________________________________________________8.3
Trouble Shoot ng _____________________________________________Pages 16-17
W r ng D agrams _____________________________________________Pages 18-20
Index of Terms _______________________________________________Pages 21-22

Product Features
1.1 Basic Table Components and Options
1. Tilting Headpiece. May include several options
2. Thoracic Drop with Thoracic Release/Breakaway
3. Lumbar Drop
4. Pelvic Drop / Rotation and Lateral Flexion with locking mechanisms
5. Removable Flexion Tiller Bar
6. Slide-out Ankle Support with Ankle Harnesses
7. LCD Touchscreen Control (optional)
8. Armrest
9. Corded Height Pedal
10. Optional Rocker Foot Pedal

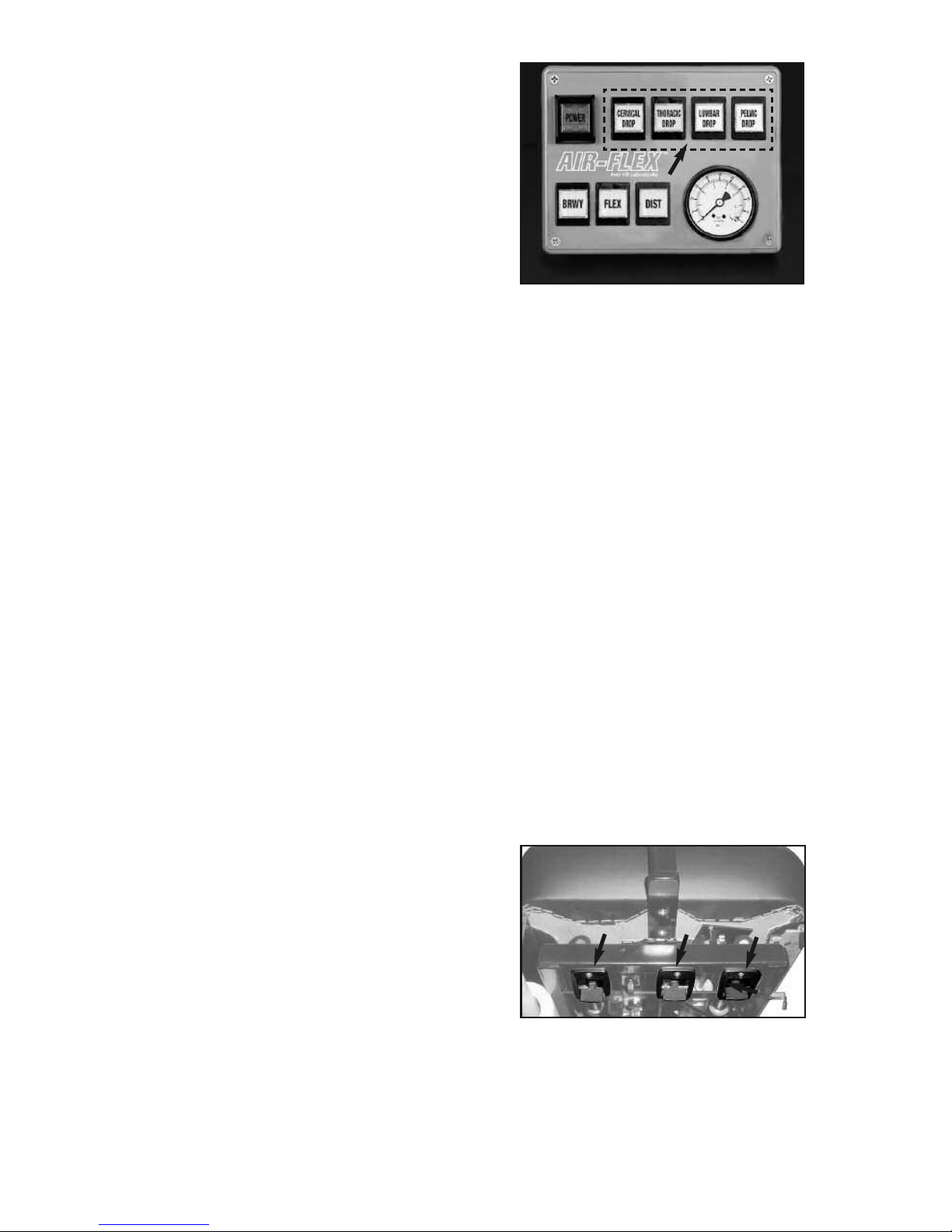

11. Power and Air-Drop Control Panel
12. Power Foot Strips for activating Air-Drops (optional)
13. Air Tank
14. Air-Pressure Foot Pedal
15. Drop-Tension Control Knobs
1.2 Specifications
• Electric requirement 115 v~, 60 Hz, 5 A or 230v~, 50 Hz
Important: See note about using a voltage regulator on page 19
• Lifting capacity - 450 pounds
• Acrylic thermo-plastic base
• Ultra-Cell®foam for comfort and shape retention
• Height Range - 211/2”-28” or 221/2”-29”
• Shipping weight approximately 250 lbs.
• Standard width 24”, optional 22”, and 27”
2
© Copyright 2016, Hi Laboratories
1234
5
6
7
8
9
11
12
13
14
15
10
