Hill Laboratories Hi-Lo User manual

Hill Hi-Lo a d HA90AM Table
Owner’s Man al
Q ality and Innovation Since 1945.

Hill Laboratories Company has been making quality a family business since
1945. Your Hill Hi-Lo or HA90AM Table is built in a tradition of innovation
and value that Hill Laboratories products have become known for. Our good
name rests on the confidence that your Hill Table will provide you with solid, re-
liable service for many years to come.
Co gratulatio s!
And welcome to the Hill Laboratories family.

Your Hill Laboratories table has been thoroughly tested and
inspected before shipment. All parts are guaranteed against defect
in materials for one full year from the date of purchase. Tables dam-
aged by mishandling or accident will be repaired at a reasonable
charge. All correspondence should be directed to your local dealer,
or when this is not possible, to Hill Laboratories directly.
We appreciate your business and your confidence in our products.
Our aim is to provide you with excellent service and satisfaction for
many years to come.
Howard A. Hill
President, Hill Laboratories
At Your Service
The Hill Laboratories G arantee.

© Copyright 2018, Hill Laboratories
Hill Hi-Lo/HA90AM Ma ual
Table of Contents
Product Features
Basic Table Components _________________________________________________1.1
Specifications __________________________________________________________1.2
Table Care
Cleaning your Table______________________________________________________2.1
Caution and Symbol Explanation __________________________________________2.2
Basic Table Operatio - Hill HA90AM
Height Pedal ___________________________________________________________3.1
Basic Table Operatio - Hill Hi-Lo
Tilt Pedal_______________________________________________________________3.2
Table Features
Face Cut-Out___________________________________________________________4.1
Angled Foot Section _____________________________________________________4.2
Standing Foot Board (Hi-Lo) ______________________________________________4.3
Patient Gripper Bar (Hi-Lo)________________________________________________4.4
Paper Tray (Hi-Lo) _______________________________________________________4.5
Mai te a ce a d Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages 6
Wiri g Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages 7, 8
I dex of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Pages 9

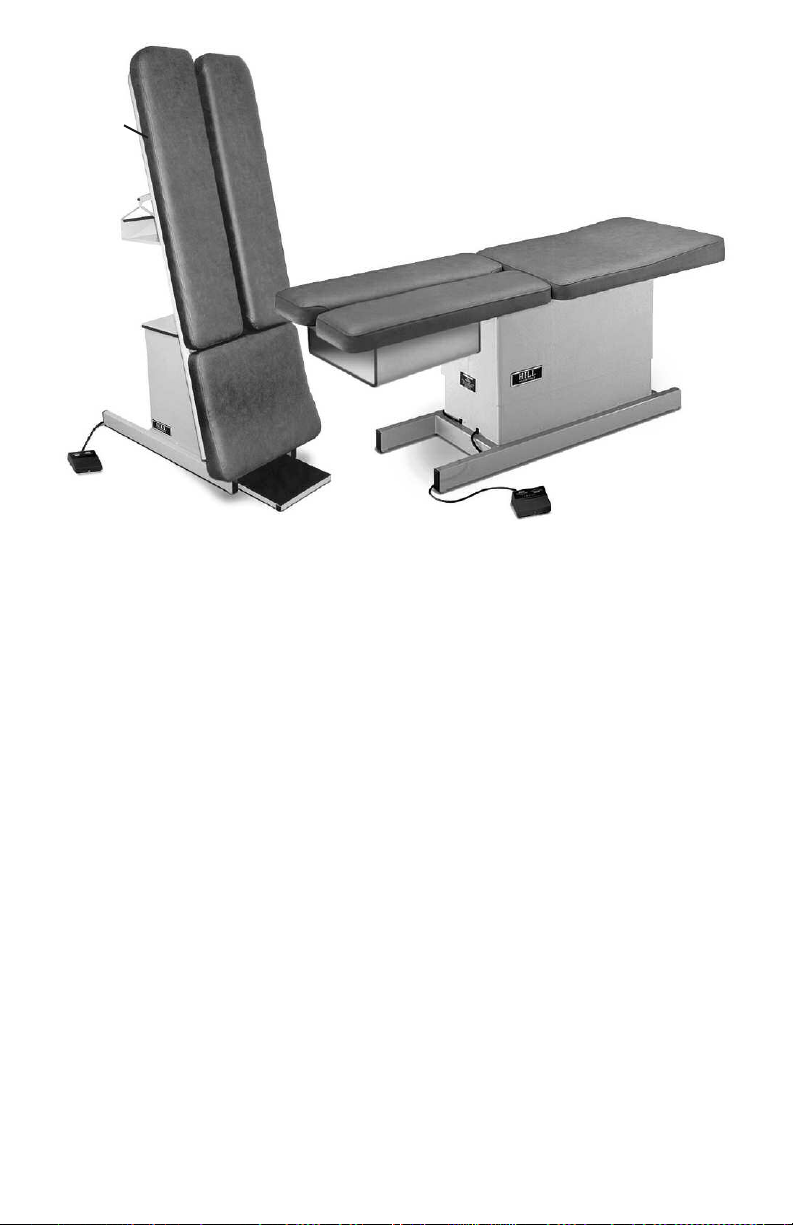

1.1 Basic able Components and Options
1. Full-length face cut-out
2. Angled Foot Section
3. Auto-Drop Foot Board
4. Protective Acrylic Base Cover
5. Electric Foot Pedal for Tilt (Hi-Lo) or Height (HA90AM)
6. High-Capacity Paper Tray
7. Patient Gripper Bar
1.2 Specifications
• Electric requirement 60 Hz, 115 v~, 5.0 A (or 230 v~, 50 Hz)
• Lifting capacity - Hi-Lo: 350 pounds; HA90AM: 450 pounds
• Acrylic thermo-plastic base skirting
• Ultra-Cell®foam for comfort and shape retention
• Tilt (Hi-Lo) - 0°-80° (in full-tilt position)
• Height Range - HA90AM: 22” - 35”
Hi-Lo - Fixed Flat Height - 28", 30" or 34"
• Length - Hi-Lo: 6' ; HA90AM: 6'3”
• Width - Both tables: 27”, optional 30”
• Shipping weight approximately 250-300 lbs.
2
© Copyright 2018, Hill Laboratories
1
3
4
6
2
5
7
1
2
2
4
5
Hi-Lo
HA90AM
Product Features

Table Care
2.1 Cleaning your able
Hill table upholstery may be cleaned with Hill Laboratories' Vinyl and
Leather Cleaner or any household dishwashing liquid mixed with water. Hill
also offers Protex™Disinfectant Spray and wipes to protect against
pathogens, such as MRSA, HIV, Staph and the H1N1 Swine Flu Virus. Many
stubborn stains can be removed by applying 91% rubbing alcohol (isopropyl
alcohol) to the stain and wiping with a dry, soft, lint-free cotton cloth, towel or
soft bristle brush.
Caution: These solvents are highly flammable; do not use near open flame
or intense heat. Wear rubber gloves during all cleaning activities. When
cleaning other parts of your table (besides upholstery) use only nonabrasive
household detergents and water.
2.2 Caution and Symbol Explanation
Caution: Children should never be left alone in a room with the table but
should always be accompanied by an adult.
Caution: Always unplug the table before performing any maintenance.
Caution: Check table once a year to make sure all internal and external
bolts are secure.
Caution: The power cord should be located to avoid risk of tripping or
having objects rolled over or placed on top of it. Damaged cords should
be replaced with another of hospital grade.
Caution: Grounding reliability can only be achieved when connected to an
equivalent receptacle marked hospital only or hospital grade.
Symbols - Each of the symbols below are used in your table labeling.
An explanation of each is below.
~
Attention Symbol
consult accompanying
documents
Dangerous Voltage
Symbol
Type BF Applied
Part Symbol
Ground
Symbol
Alternating
Current
Symbol
3
© Copyright 2018, Hill Laboratories
Don’t Touch
Symbol

4
© Copyright 2018, Hill Laboratories
Basic Table Operatio - Hill HA90AM
3.1 Height Pedal

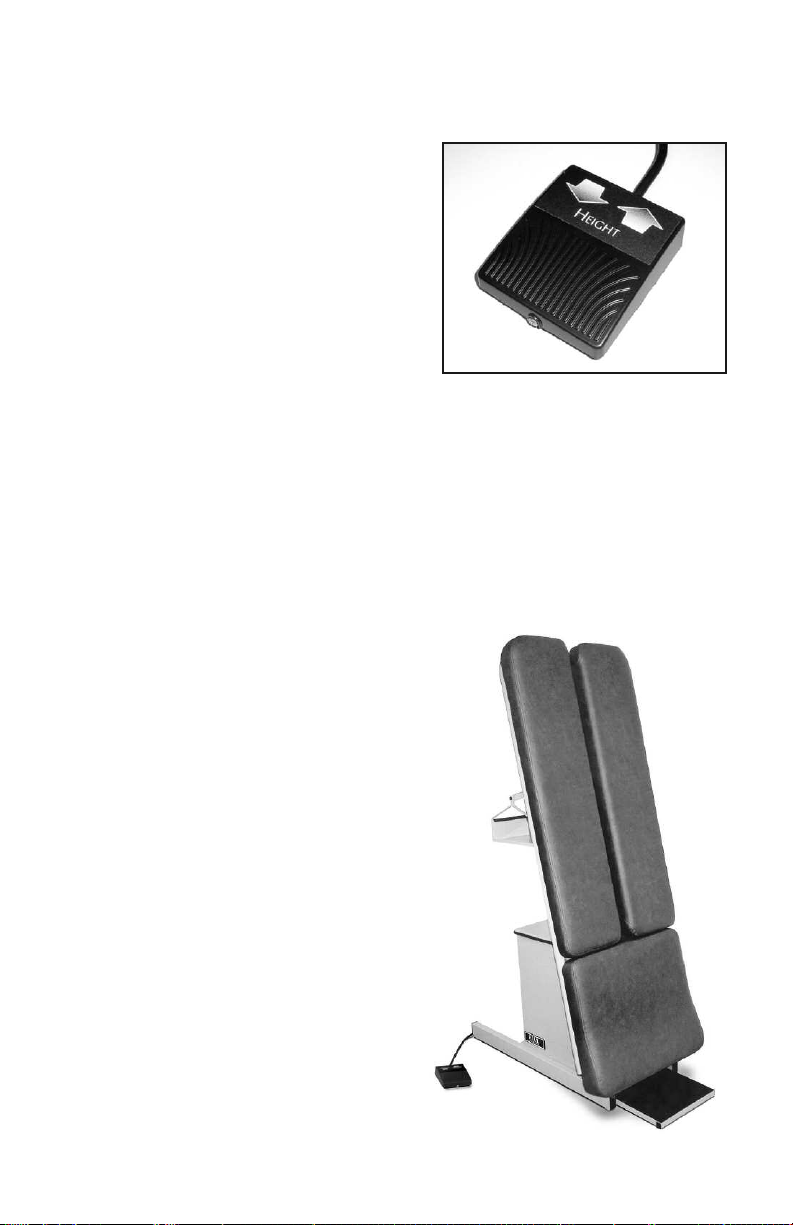

The HA90AM is equipped with a corded
foot pedal which controls the table height
from 22” - 35” . Press the right side of the
pedal to elevate; the left side to lower.
Auto- ouch Foot Pedal (option)
The Auto-Touch Foot Pedal option main-
tains upward or downward motion after
releasing the pedal.
o operate:
- When the table is at the lowest height, double-touch the “UP” arrow and re-
lease. The table will continue upward until you tap either side of the pedal again.
- When the table is at maximum height, double-touch the “DOWN” arrow and re-
lease. The table will continue downward until you tap either side of the pedal again.
- When the table is at any starting height in between, a single-touch up or down
will start and stop the motion.
Basic Table Operatio - Hill Hi-Lo
The Hill Hi-Lo features electric foot-pedal
controlled movement and smooth transition
between soft start-up and landing, the Hill
Hi-Lo will not disturb the patient with sudden
stopping or bumping. The standing foot board
automatically folds down as the table top is
lowered.
3.2 ilt Pedal
The Hill Hi-Lo is equipped with a corded foot
pedal which controls the table’s angle of tilt from
horizontal to a 80° standing position.
Press the right side of the pedal to elevate; the
left side to lower.

Table Features

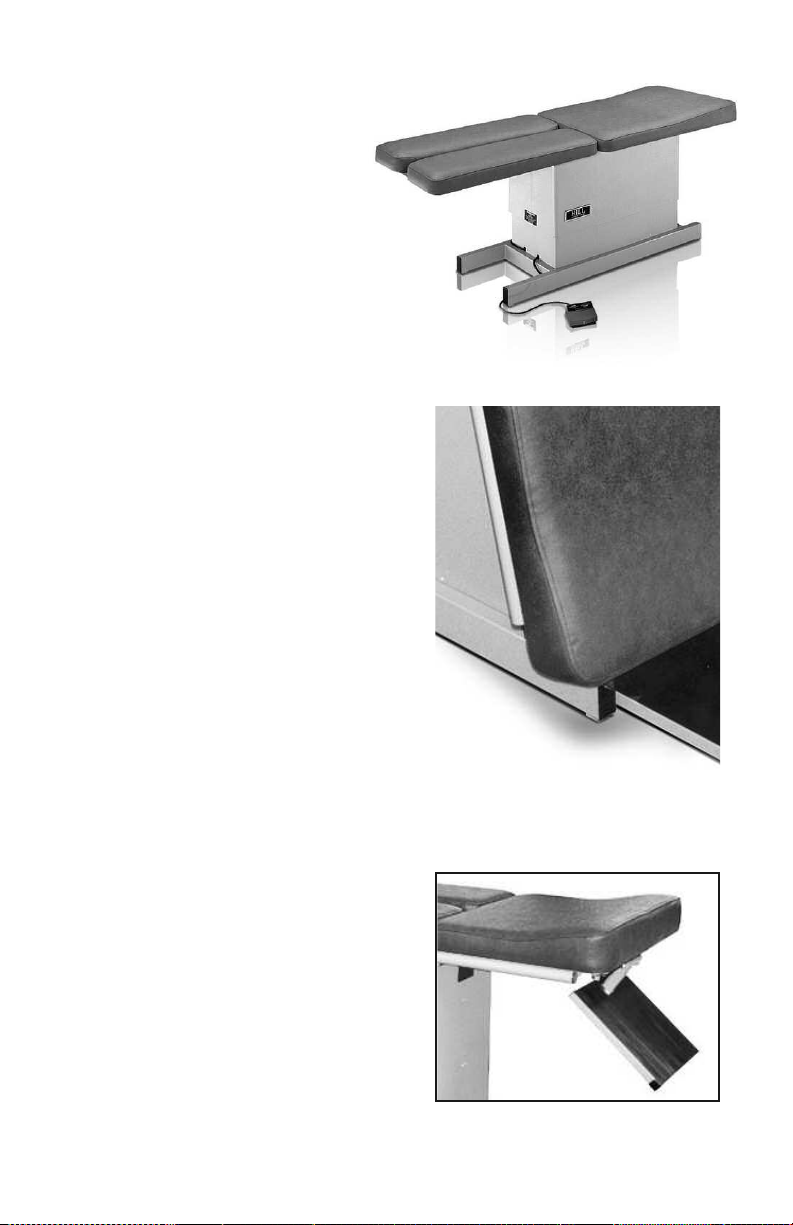

4.1 Face Cut-Out
Both the HA90AM and the
Hill Hi-Lo have a 36" extended
face cut-out to accommodate
any size patient.
4.2 Angled Foot Section
Both the HA90AM and the Hill Hi-Lo
feature an angled foot section which
aids patient comfort. The wedge-
shape conforms to the angle of the
leg (Some models may be equipped
with the optional flat cushion).
4.3 Standing Foot Board (Hi-Lo)
The standing foot board automatically
folds down as the table top is tilted to
support the patient’s weight in the
standing position.
5
© Copyright 2018, Hill Laboratories

6
© Copyright 2018, Hill Laboratories
4.4 Patient Gripper Bar (Hi-Lo)
A Patient Gripper Bar surround the perimeter of the table top. Patients should
firmly grasp the gripper bar when the table is in motion.
4.5 Paper ray (Hi-Lo)
For storage and easy access to patient
files or other items. The paper tray pivots
to stay parallel with the floor when the
table is in motion.
Mai te a ce
Regular Maintenance
Your Hill HA90AM or Hill Hi-Lo are practically maintenance free.
There is no lubrication of parts needed.
Additional service needed? Contact your local dealer or reach us directly:
Phone: [phone]
Fax: [phone]
Email: [e-mail]
echnicians are available 9 am - 4 pm E.S. ., Monday - Friday.

7
© Copyright 2018, Hill Laboratories
Wiring Diagram - Hi-Lo
Height System for all Hi-Lo Models.

Wiring Diagram - HA90AM
Height System for all HA90AM Models.
8
© Copyright 2018, Hill Laboratories

9
© Copyright 2018, Hill Laboratories
A
Angl d Foot S ction 2, 5
Auto-Drop Foot Board 2, 5
Auto-Touch Foot P dal 2, 4
B
Basic Tabl Compon nts 2
C
Cl aning your Tabl 3
Cautions and Symbols 3
D
Diagrams (S Wiring Diagrams)
E
El ctrical sp cifications 2
El ctrical Sch matics 7, 8
F
Fac Cut-out 2, 5
Foot Board 2, 5
Foot P dal
- Cord d 2, 4
- Auto-Touch 4
G
Gripp r Bar 2, 6
H
H ight P dal 2, 4
H ight Rang 2
L
Lifting Capacity 2
M
Maint nanc 6
P
Pap r Tray 2, 6
S
S rvic and Support 6 and intro, “At Your S rvic ”
Sp cifications 2
T
Tabl Compon nts 2
Tilt P dal 2, 4
W
Warranty S intro, “At Your S rvic ”
Wiring Diagrams 7, 8
