Hillyard Trident HIL 560 Series User manual

8.644-075.0-2 10/09/19
by HILLYARD
Vacuum
HIL 560xx
Operating instructions (ENG)
MODEL: V15S
1.012-630.0
From Serial No. # G567001001
If Serial Number not listed,
Contact Manufacturer

28.644-075.0 Manual - Trident Hillyard V15S
Machine Data Label
Warranty Registration
Thank you for purchasing a HILLYARD product.
Please register your machine for warranty through your Authorized Trident Dealer.

3
Table of Contents
Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . 3
How To Use This Manual . . . . . . . . . . . . . . . . . . . 4
Safety
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . 5
Grounding Instructions . . . . . . . . . . . . . . . . . . . . . 6
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Extension Cords . . . . . . . . . . . . . . . . . . . . . . . . . . 6
IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . 7
Operation
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Filter level indicator . . . . . . . . . . . . . . . . . . . . . . . . 9
Brush controller. . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maintenance
Fitting a New Exhaust Filter . . . . . . . . . . . . . . . . 10
Brush Roller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Removing Blockages . . . . . . . . . . . . . . . . . . . . . 11
Technical Details. . . . . . . . . . . . . . . . . . . . . . . . . 13
Parts
Filter Bag Housing . . . . . . . . . . . . . . . . . . . . . . . 16
Power Head - V15S . . . . . . . . . . . . . . . . . . . . . . 18
Power Head - V15S - continued . . . . . . . . . . . . . 20
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.644-075.0 Manual - Trident Hillyard V15S

4
How To Use This Manual
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
• Parts List
The HOW TO USE THIS MANUAL section will tell
you how to find important information for ordering
correct repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA
box is located on the inside of the front cover of this
manual.
The model and serial number of your machine is
located on the bottom-back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the
operator with the operation and function of the
machine.
The MAINTENANCE section contains preventive
maintenance to keep the machine and its compo-
nents in good working condition. They are listed in
this general order:
• Dust Bag
• Filters
• Brush roller
• Blockage
• Technical Details
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts
lists include a number of columns of information:
•ITEM – column refers to the reference num-
ber on the parts illustration.
•PART NO. – column lists the part number for
the part.
•REF NO. – reference number.
•DESCRIPTION – column is a brief descrip-
tion of the part.
•NOTES – column for information not noted by
the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement
parts numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower right corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
8.644-075.0 Manual - Trident Hillyard V15S

5
Safety
IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
2. Connect to a properly grounded outlet only. See Grounding Instructions.
3. Do not use outdoors or on wet surfaces.
4. Do not use near small children. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
5. Use only as described in this manual. Use only manufacturer's recommended attachments.
6. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped
into water, return it to a service center.
7. Do not pull or carry by the cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run
appliance over cord. Keep cord away from heated surfaces.
8. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
9. Do not handle plug or appliance with wet hands.
10. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce
air flow.
11. Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts. Do not place fingers or other body parts
under vacuum unless unplugged.
12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
13. Do not use without dust bag and/or filters in place. Do not wash filters.
14. Turn off all controls before unplugging.
15. Use extra care when cleaning on stairs.
16. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may have been present.
17. Do not operate this machine near flammable fluids, dust or vapors.
18. Maintenance and repairs must be done by qualified personnel.
19. Use only identical replacement parts. See instructions for Servicing of Appliances.
20. Do not use machine as a step.
21. If used on plush carpet or carpet with thick padding, do not leave machine in one place with machine turned on.
22. Do not use the handle in the dust bag housing to carry the machine.
23. Always turn off this appliance before connecting or disconnecting motorized nozzle.
24. Brush may unexpectedly restart. To reduce the risk of injury from moving parts. – Unplug before servicing.
25. The vacuum has a manual reset thermal protector. The protector is reset by switching off the vacuum. The thermal protector needs
some time to cool down after switching off! Check the vacuum for air blockages or mechanical failures before switching on.
26. Store the vacuum in a dry place at room temperature. When the vacuum is not in use, you should wrap the cord on the cable hooks.
27. Any other servicing should be performed by an authorized service representative.
28. Make sure your extension cord is in good condition and is the correct size for your appliance. The table on the Grounding Instructions
page shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord. An undersized extension cord will cause a drop in line voltage resulting in loss of
power and overheating.
29. Use only three-wire outdoor extension cords that have three-prong grounding plugs and grounding receptacles that accept the appli-
ance's plug.
30. To reduce the risk of personal injury due to a loose electrical connection between the appliance's plug and extension cord, firmly and
fully attach the appliance plug to the extension cord. Periodically check the connection while operating to ensure it is fully attached. Do
not use an extension cord that provides a loose connection. A loose connection may result in overheating, fire, and increases the risk
of a burning.

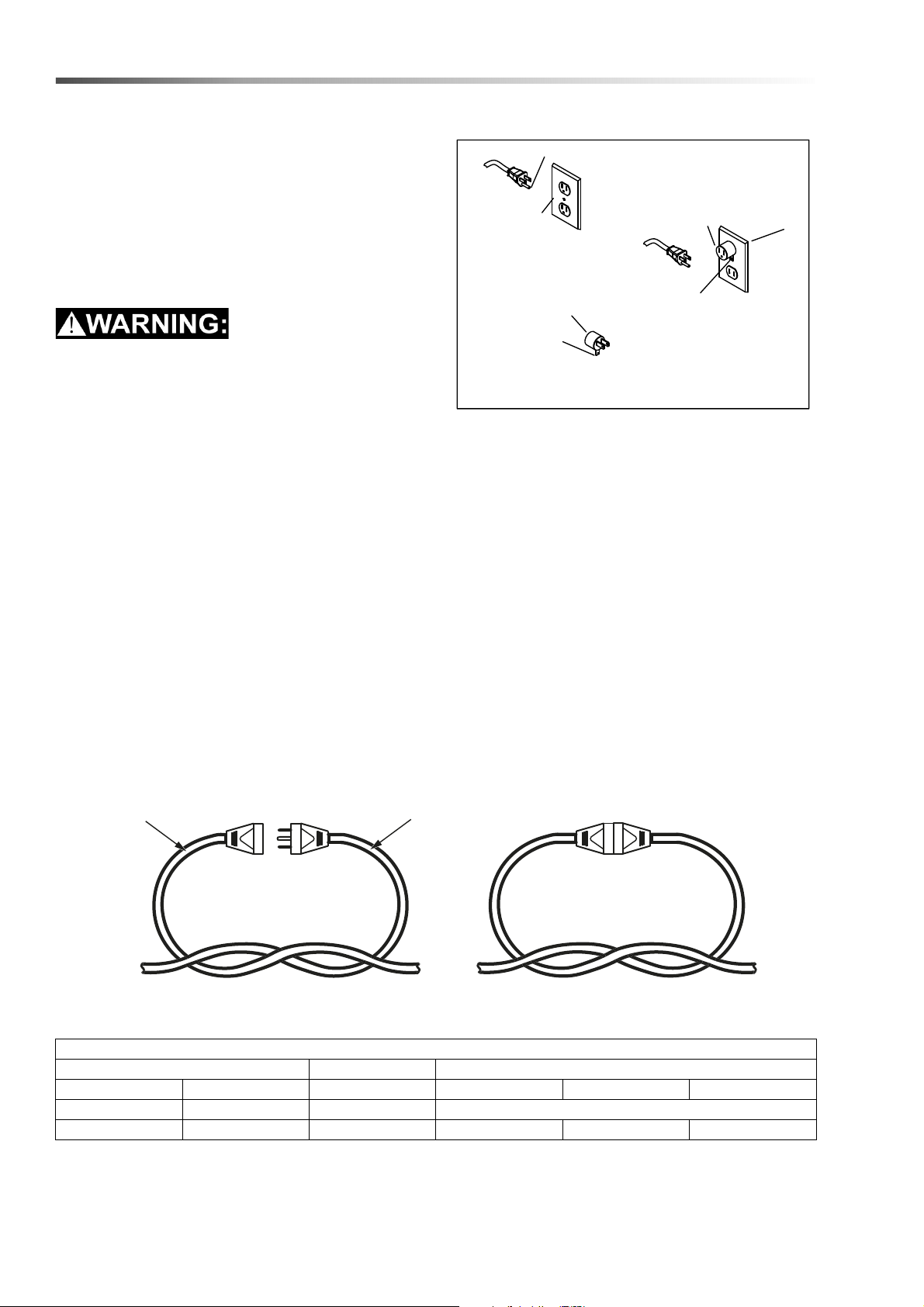

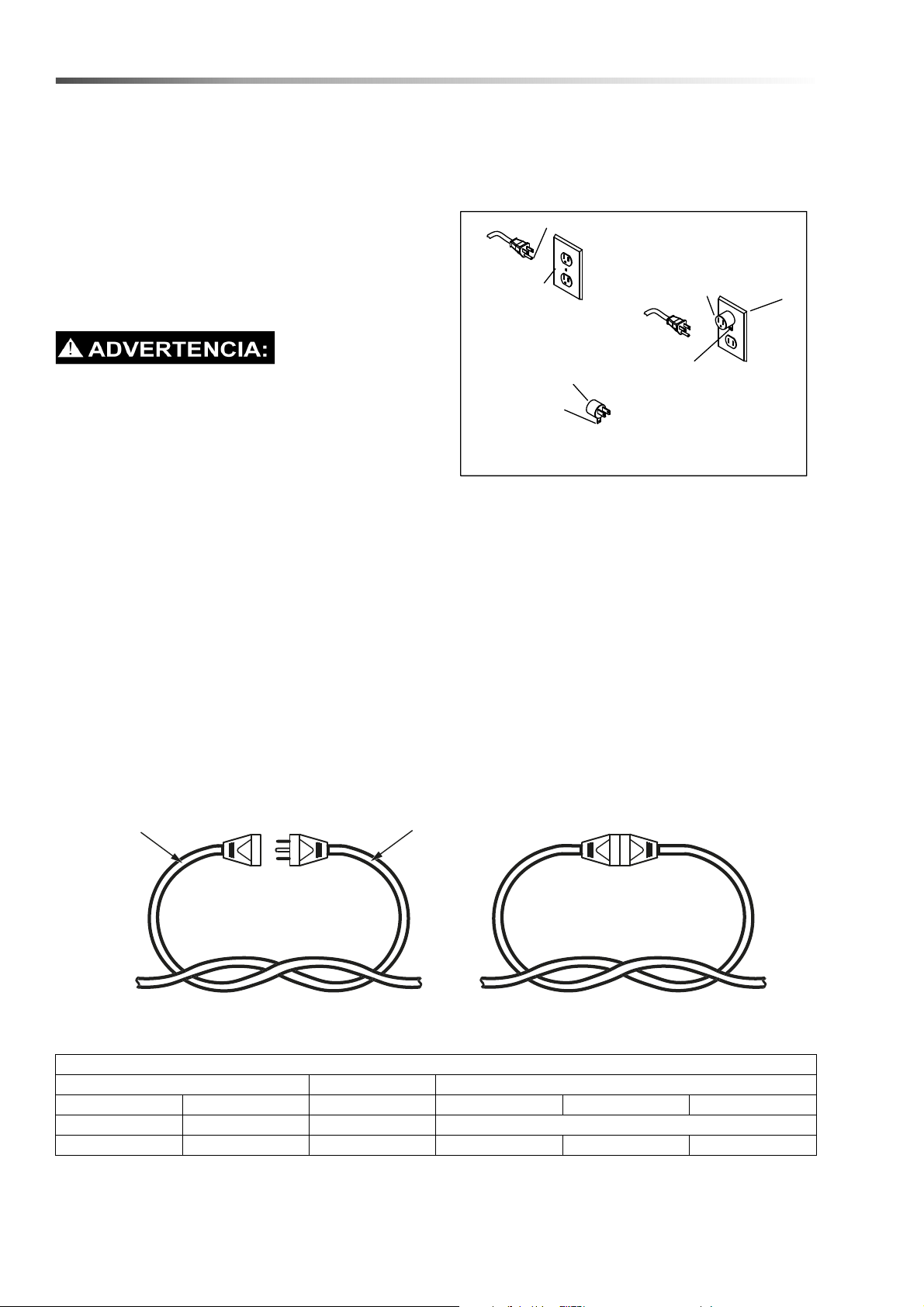

31. To reduce the risk of disconnection of the appliance cord from the extension cord during operating, make a knot as shown under
Grounding Instructions.
32. Maintain Appliance With Care - Inspect extension cords periodically and replace if damaged.
READ AND SAVE THESE INSTRUCTIONS
