Network Bullet Camera
Quick Start Guide

Network Bullet Camera·Quick Start Guide
1
Quick Start Guide
COPYRIGHT © 2018 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures,
graphs are the properties of Hangzhou Hikvision Digital Technology
Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”).
This user manual (hereinafter referred to be “the Manual”) cannot
be reproduced, changed, translated, or distributed, partially or
wholly, by any means, without the prior written permission of
Hikvision. Unless otherwise stipulated, Hikvision does not make any
warranties, guarantees or representations, express or implied,
regarding to the Manual.
About this Manual
This Manual is applicable to Network Bullet Camera.
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The
information contained in the Manual is subject to change, without
notice, due to firmware updates or other reasons. Please find the
latest version in the company website
(http://overseas.hikvision.com/en/).
Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the
properties of Hikvision in various jurisdictions. Other trademarks and
logos mentioned below are the properties of their respective
owners.

Network Bullet Camera·Quick Start Guide
2
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE
PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND
FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,
AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, MERCHANTABILITY,
SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND
NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL
HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE
LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR
LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF
DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF
THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF
PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL
NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER
ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET
SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL
RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS
PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE
APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT
THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

Network Bullet Camera·Quick Start Guide
3
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE
APPLICABLE LAW, THE LATER PREVAILS.
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the EMC Directive 2014/30/EU, the RoHS
Directive 2011/65/EU.

Network Bullet Camera·Quick Start Guide
4
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information see:
www.recyclethis.info
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your
supplier or to a designated collection point. For more information
see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards
requirements.
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.

Network Bullet Camera·Quick Start Guide
5
Warnings
For Network Camera:
●Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
●In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
●Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 12 VDC according
to the IEC60950-1 standard. Please refer to technical
specifications for detailed information.
●Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
●Please make sure that the plug is firmly connected to the power
socket. When the product is mounted on wall or ceiling, the
device shall be firmly fixed.
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.

Network Bullet Camera·Quick Start Guide
6
●If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
For NVR Device:
●Proper configuration of all passwords and other security
settings is the responsibility of the installer and/or end-user.
●In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
●Input voltage should meet both the SELV (Safety Extra Low
Voltage) and the Limited Power Source with 100~240 VAC, 48
VDC or 12 VDC according to the IEC60950-1 standard. Please
refer to technical specifications for detailed information.
●Do not connect several devices to one power adapter as
adapter overload may cause over-heating or a fire hazard.
●Please make sure that the plug is firmly connected to the power
socket.
●If smoke, odor or noise rise from the device, turn off the power
at once and unplug the power cable, and then please contact
the service center.
●If the POE ports of device do not comply with Limited Power
Source, the additional equipment connected to POE ports shall
have fire enclosure.
●The USB interface of the /P devices can be connected with the
mouse and U-flash disk storage device only.

Network Bullet Camera·Quick Start Guide
7
Cautions
For Network Camera:
●Make sure the power supply voltage is correct before using the
camera.
●Do not drop the camera or subject it to physical shock.
●Do not touch sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe it
gently. If the camera will not be used for an extended period,
please replace the lens cap to protect the sensor from dirt.
●Do not aim the camera at the sun or extra bright places.
Blooming or smearing may occur otherwise (which is not a
malfunction), and affect the endurance of sensor at the same
time.
●The sensor may be burned out by a laser beam, so when any
laser equipment is in using, make sure that the surface of
sensor will not be exposed to the laser beam.
●The operating temperature shall be -30°C to +60°C (-22 °F to
+140 °F). Do not place the camera in extremely hot, cold, dusty
or damp locations, and do not expose it to high electromagnetic
radiation.
●To avoid heat accumulation, good ventilation is required for
operating environment.
●Keep the camera away from liquid while in use.

Network Bullet Camera·Quick Start Guide
8
●While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
●Regular part replacement: a few parts (e.g. electrolytic
capacitor) of the equipment shall be replaced regularly
according to their average enduring time. The average time
varies because of differences between operating environment
and using history, so regular checking is recommended for all
the users. Please contact with your dealer for more details.
●Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
●If the product does not work properly, please contact your
dealer or the nearest service center. Never attempt to
disassemble the camera yourself. (We shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)
For NVR Device:
Before connecting and operating your device, please be advised of
the following tips:
●Ensure unit is installed in a well-ventilated, dust-free
environment.
●Unit is designed for indoor use only.
●Keep all liquids away from the device.
●Ensure environmental conditions meet factory specifications.

Network Bullet Camera·Quick Start Guide
9
●Ensure unit is properly secured to a rack or shelf. Major shocks
or jolts to the unit as a result of dropping it may cause damage
to the sensitive electronics within the unit.
●Use the device in conjunction with an UPS if possible.
●Power down the unit before connecting and disconnecting
accessories and peripherals.
●A factory recommended HDD should be used for this device.
●Improper use or replacement of the battery may result in
hazard of explosion. Replace with the same or equivalent type
only. Dispose of used batteries according to the instructions
provided by the battery manufacturer.
Power Supply Instructions for NVR Device:
Use only power supplies listed in the user instructions.
Standard
Power
Supply
Models
Manufacturer
European
MSA-C2000IC
12.0-24P-DE
MOSO POWER SUPPLY
TECHNOLOGY CO.,LTD
ADS-26FSG-1
2 12024EPG
SHENZHEN HONOR
ELECTRONIC CO.,LTD
British
MSA-C2000IC
12.0-24P-GB
MOSO POWER SUPPLY
TECHNOLOGY CO.,LTD
ADS-26FSG-1
2 12024EPB
SHENZHEN HONOR
ELECTRONIC CO.,LTD

Network Bullet Camera·Quick Start Guide
10
Table of Contents
1 Introduction .............................................................................11
1.1 Application.........................................................................11
1.2 NVR Appearance................................................................12
1.2.1 Front Panel.............................................................. 12
1.2.2 Rear Panel...............................................................13
1.3 Camera Appearance ..........................................................14
2 NVR Installation........................................................................16
2.1 Precautions ........................................................................16
2.2 Hard Disk Installation ........................................................16
3 Camera Installation...................................................................19
3.1 Antenna Installation ..........................................................19
3.2 Wall/Ceiling Mounting ......................................................20
Waterproof Measures....................................................... 23
3.3.1 Waterproof Network Cable ...................................23
3.3.2 Waterproof Other Cables ......................................25
4 Menu Operation .......................................................................27
4.1 Startup and Shutdown ......................................................27
4.2 Activate Your NVR..............................................................27
4.3 Use the Setup Wizard........................................................28
4.4 Add IP Cameras..................................................................29
4.4.1 Wi-Fi Kit Cameras...................................................29
4.4.2 Other Cameras .......................................................29
4.5 Hik-Connect Setup.............................................................29

Network Bullet Camera·Quick Start Guide
11
1Introduction
1.1 Application

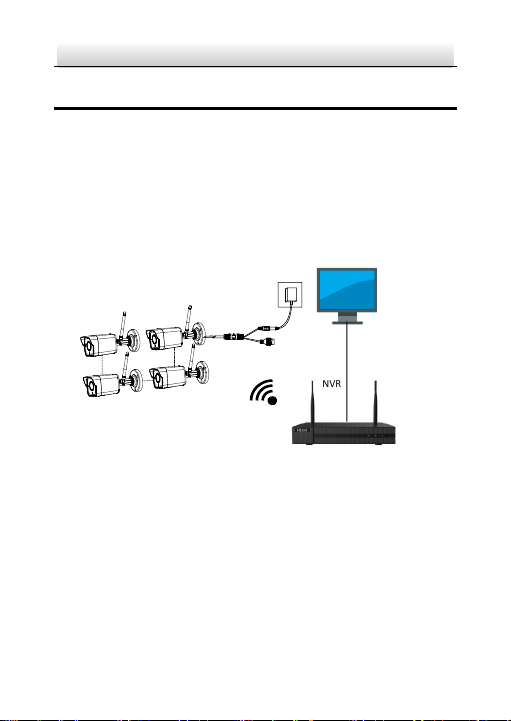

The Wi-Fi kit includes four network cameras and a NVR
device. The NVR works as a wireless network router, and the
camera connects to the NVR's Wi-Fi automatically after the
camera is powered on.
VGA/HDMI
Wi-Fi Camera
NVR
Monitor
Note:
If you want to access the NVR via Internet, connect your NVR
with the router.

Network Bullet Camera·Quick Start Guide
12
1.2 NVR Appearance
1.2.1 Front Panel
Front Panel
Description
No.
Icon
Description
1
Indicator turns red when NVR is
powered up.
2
Indicator lights in red when there is
data transmission.
3
Indicator blinks blue when network
connection is functioning properly.

Network Bullet Camera·Quick Start Guide
13

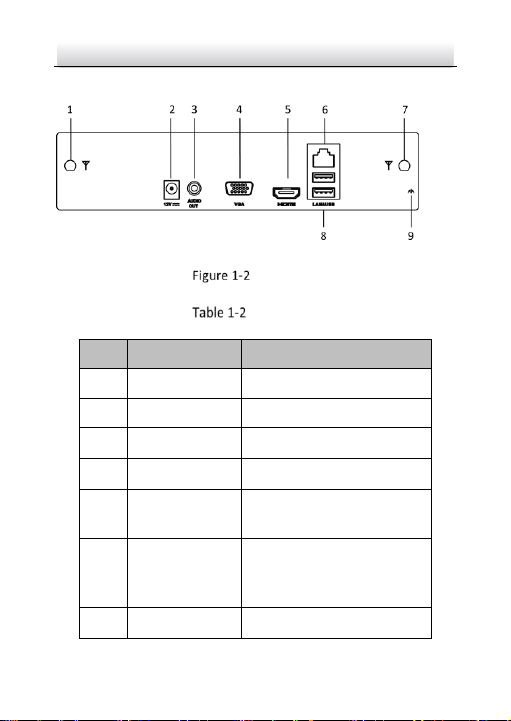

1.2.2 Rear Panel
Rear Panel
Description
No.
Icon
Description
1
Wi-Fi Antenna
Wi-Fi antenna interface.
2
Power supply
12 VDC power supply.
3
Audio out
One audio output.
4
VGA
VGA interface
5
HDMI
HDMI video output
connector.
6
LAN
One RJ-45 10M/100M
self-adaptive Ethernet
interface
7
Wi-Fi Antenna
Wi-Fi antenna interface.

Network Bullet Camera·Quick Start Guide
14
No.
Icon
Description
8
USB
Two USB 2.0 interface.
9
Ground
Ground (needs to be
connected when device
starts up).

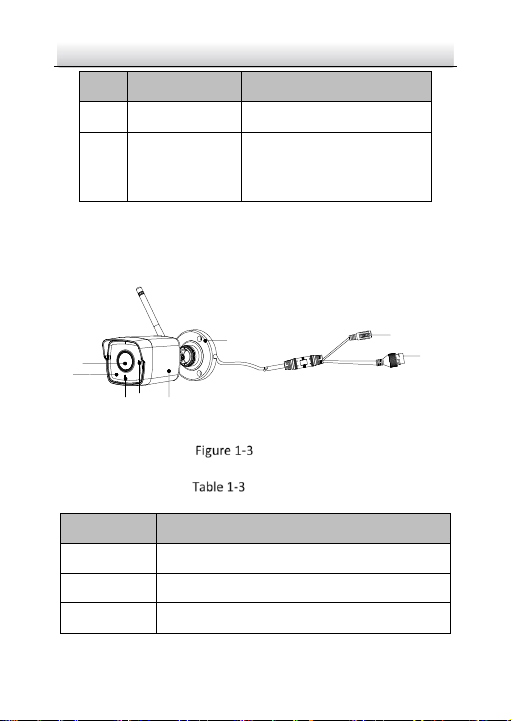

1.3 Camera Appearance
1
2
3
45
67
8
Overview
Description
No.
Description
1
Lens
2
IR LED Cover
3
Mic

Network Bullet Camera·Quick Start Guide
15
No.
Description
4
Status Indicator
●Flashing Blue: Normal Wi-Fi connection.
●Solid Red: The camera is during startup.
●Flashing red and blue: The camera has
started and starts Wi-Fi configuration.
●Flashing Red:
Fast Flashing: The network connection
failed.
Slow Flashing: Memory card error or
other problems.
5
Camera Body
6
Bracket
7
Power Interface
8
Network Interface

Network Bullet Camera·Quick Start Guide
16
2NVR Installation
2.1 Precautions
During installation of the NVR:
Use brackets for rack mounting.
Ensure ample room for audio and video cables.
When routing cables, ensure that the bend radius of the cables
is no less than five times than its diameter.
Connect the alarm cable.
Allow at least 2cm (≈0.75-inch) of space between racks
mounted devices.
Ensure the NVR is grounded.
Environmental temperature should be within the range of -10
to +55 °C, +14 to +131 °F.
Environmental humidity should be within the range of 10% to
90%.
2.2 Hard Disk Installation
Before you start:
If the NVR has been installed with hard disks, skip this section.
Disconnect the power from the NVR before installing a hard
disk drive (HDD). A factory recommended HDD should be used
for this installation.
Tools Required: Screwdriver.

Network Bullet Camera·Quick Start Guide
17
Steps:

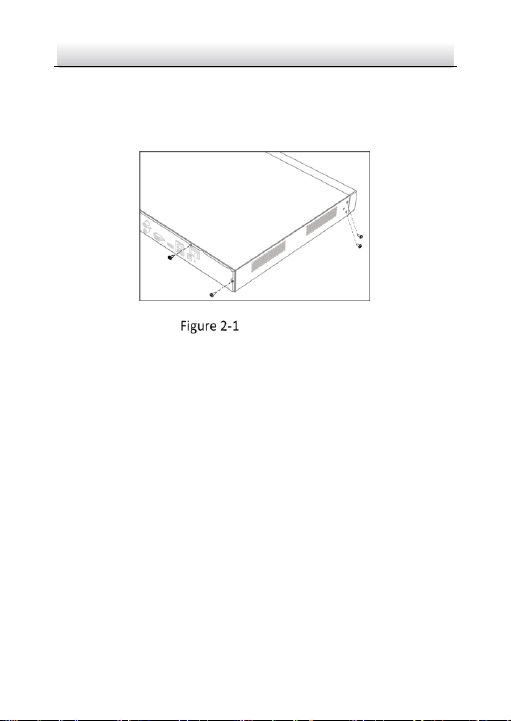

1. Remove the cover from device by unfastening the screws on
panels.
Remove Cover
2. Connect the data cable and power cable.
a) Connect one end of data cable to the device motherboard.
b) Connect the other end of data cable to HDD.
c) Connect one end of power cable to HDD.
d) Connect the other end of power cable to the device motherboard.

Network Bullet Camera·Quick Start Guide
18

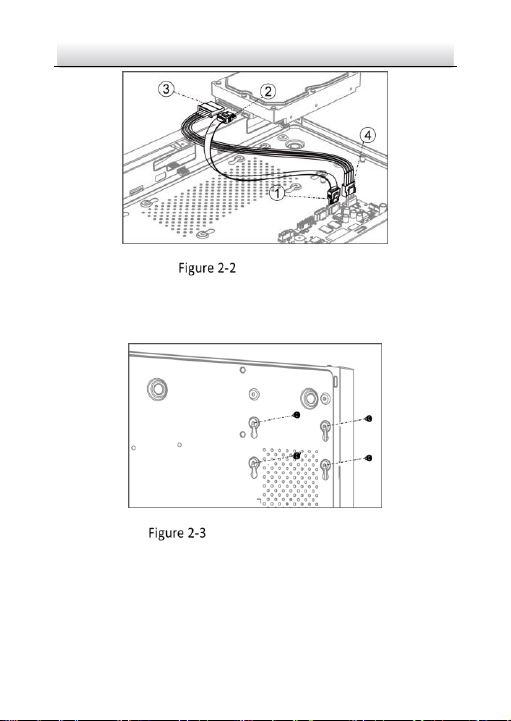

Connect Cables
3. Set the device up, match HDD screw threads with the reserved
holes on the device bottom, and fix HDD with screws.
Fix HDD to Device Bottom
4. (Optional) Repeat the steps above to install other HDDs.
5. Reinstall the device cover and fasten screws.

Network Bullet Camera·Quick Start Guide
19
3Camera Installation
Before you start:
●Make sure the device in the package is in good condition and all
the assembly parts are included.
●The standard power supply is 12 VDC. Make sure your power
supply matches with your camera.
●Make sure all the related equipment is power-off during the
installation.
●Check the specification of the products for the installation
environment.
●Make sure that the wall is strong enough to withstand four
times the weight of the camera and the bracket.
For the camera that supports IR, you are required to pay attention to
the following precaution to prevent IR reflection:
Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing reflection.
3.1 Antenna Installation
Steps:
Align the antenna to the interface and rotate it clockwise to install
it to the camera.
