Smart Photoelectric Smoke Sensor
Introduction
This product is a Smart Photoelectric Smoke Sensor, with ultra-low-power ZigBee wireless
network technology design. It is an warning device, cannot sense gas, heat, or flame, cannot
prevent or put out fire. It is capable of real-time detecting the presence of smoke, detection of
visible particles (smoldering fire) faster than ionization smoke alarms. Red LED flashes rapidly
and detectors sound alarm once detecting smoke fire danger, can alert you and your family timely.
Smoke alarms should be installed in all rooms, living room, storage areas, basements and attics
unit that fire may happen.
Technical Information
Compatible with any ZigBee network controller
CT-SMZB2007-HM
Smart Photoelectric Smoke Sensor

HIOTH User Manual
CAP-TECH INTERNATIONAL CO.,LTD.
Battery powered and cost savings
Sensitivity and small size
Specifications
Radio protocol: ZigBee（IEEE 802.15.4）
Operating voltage: DC 3V(CR123A Lithium Battery)
Static current: ≤10μA
Alarm current: ≤60mA
Networking way: ZigBee Ad-Hoc Network
Sound level: 85dB/3m
RF range: ≤70m (open area)
Working Temperature: -10℃~+50℃
Working humidity: ≤95%RH
Dimension: 606049.2mm
Operation
As shown in figure 1, there is a Reset button (which is used to carry out inclusion, exclusion or
reset), a Test/Mute button and a network status indicator LED on the surface of the Smart
Photoelectric Smoke Sensor, and the functions are introduced as follows:
Networking Button (Reset Button)
(1) If the Smart Photoelectric Smoke Sensor has not been included into the network, short
press the Reset button to enter the network inclusion condition, at this time the network status

HIOTH User Manual
CAP-TECH INTERNATIONAL CO.,LTD.
indicator LED flash (3 times/second). If the network inclusion success, the network status
indicator LED will long on for 2 seconds and then go out. If the network inclusion failure, the
network status indicator LED will go out.
(2) If the Smart Photoelectric Smoke Sensor has been included into the network, and want to
include into the new network, you must reset the device. Please long press the Reset button
for 10 seconds, LED will flash slowly for 2 seconds.
Fig.1
Network Indicator
Test/Mute Button
Please make sure that there is no real danger of fire when using mute function. Under known
and non-fire alarm condition, please do not block or by any other form to prohibit alarming.
Press the Test/Mute button to lower sensitivity and relieve alarm.
Reset button
Network indicator

HIOTH User Manual
CAP-TECH INTERNATIONAL CO.,LTD.
Fig.2
Press and hold the test panel Test/Mute button for 3 seconds, as above picture shows, until
alarm status (see status table). Testing is recommended to be done at least once a week. Do
not use flame for testing. Once the alarm is sure, please pay attention to it.
ZIGBEE NETWORK INCLUSION
1) Connect the power supply
2) Press the Reset button for 2 seconds until see green LED blinking fast (Refer to the above
steps).
Note: if you need to change the network, you need to check the reset button for 10 seconds
3) Choose "FBee" to enter the Network Inclusion mode on the APP, then click " ".
4) When prompt a message “Request Access Success”, please go to the device list interface, and
refresh the device list, the device will be displayed.

HIOTH User Manual
CAP-TECH INTERNATIONAL CO.,LTD.
Installation Instructions
After the Smart Photoelectric Smoke Sensor completing the network inclusion, it will enter
the detection state. Once the Smart Photoelectric Smoke Sensor detects smoke fire hazard, and
smoke concentration reaches the alarm threshold, it will send alarm signal, red LED flashes
rapidly and detectors sound alarm, which can alert you and your family timely. In addition, if the
user do the SMS alarm or Email alarm configuration. When the alarm is triggered, mobile
terminal will receive alarm information, you can clicks the alarm information to view the detailed
information.
In order to ensure the detection effect, this product should be placed in a good permeability
area, do not install it at positions of rain and snow. In addition, the installation of this wireless
smoke detector is very easy, no additional wiring.
Installation Renderings
Ceiling mounting

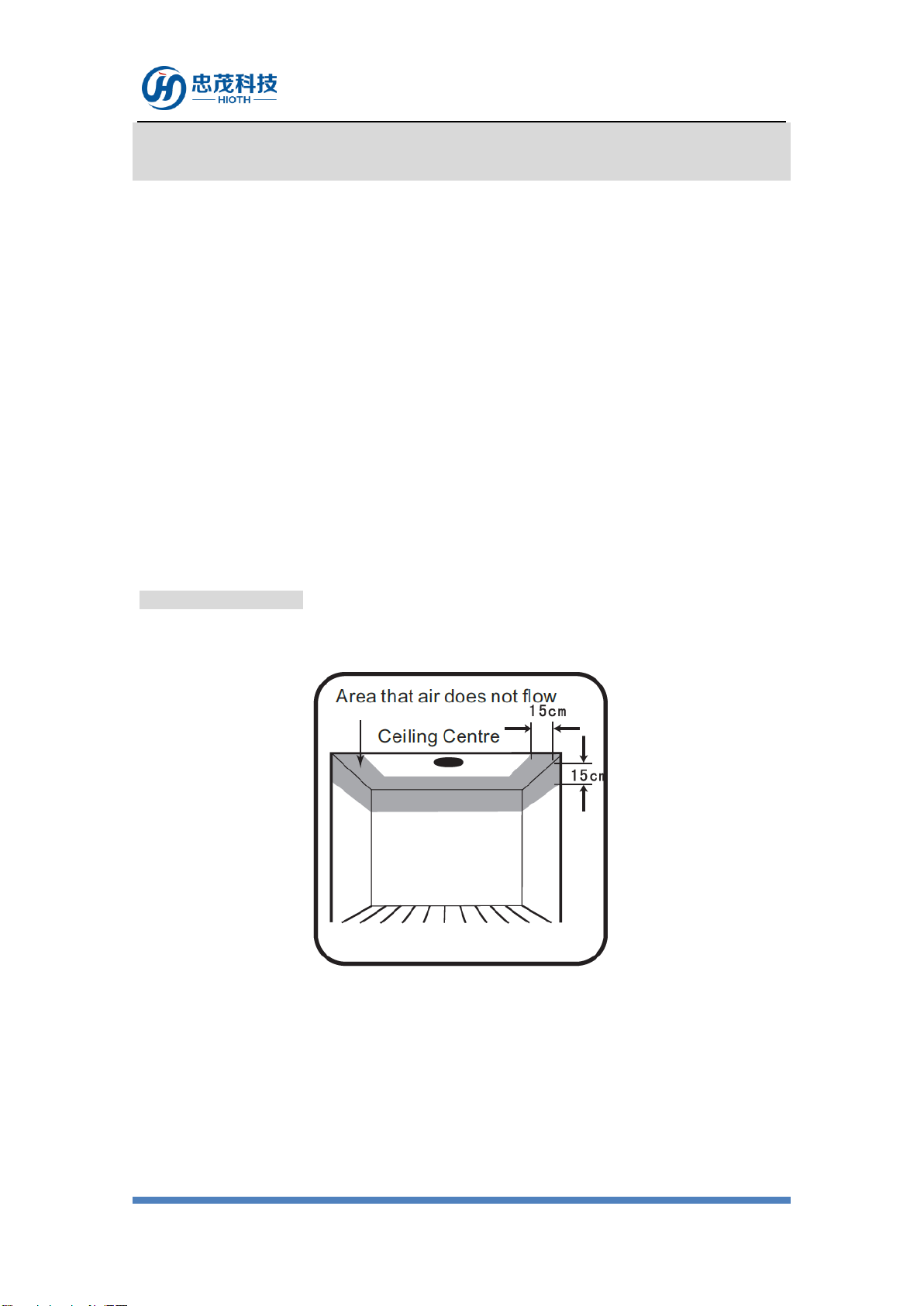

Fig.4 Recommended and Avoided Installation Position
The preferred location to install smoke alarm is in the centre of the ceiling because Smoke, heat
and combustion products rise to the ceiling and will lateral spread. Keep at least 30 cm distance
from lights or decorations, and at least 15 cm away from walls and corner. If hall is more than 12
meters wide, please install at 2 sides of the hall.

HIOTH User Manual
CAP-TECH INTERNATIONAL CO.,LTD.
Sloping ceiling mounting
Fig.5 Sloping Ceiling Mounting Position
If ceiling is sloping, please install the smoke alarm at horizontal distance 90cm away from the
ceiling top.
Smart Photoelectric Smoke Sensor Installation
1. Anticlockwise rotating the bracket out from the installation base, then remove the battery
insulating strip to make detector on power.
Factory default built in a CR123A 3V lithium battery inside the detector and used a Mylar
film to isolate batteries from electric circuit of the detector. Remove the battery Mylar film
when ready to let the detector work.
If there is no battery inside the detector or need to replace a new battery, please insert the
battery first.

HIOTH User Manual
CAP-TECH INTERNATIONAL CO.,LTD.
Fig.6
2. Make sure the device has been included into the network normally.
3. Remove the double-sided adhesive membrane on the mounting bracket, and rotating the
smoke alarm into the bracket.
Fig.7
Safety Notice
This device is a wireless communication product; please do not place the device to work in
the metal container, in case the signal is blocked.
The working temperature is -10°C to +50°C.
This detector is designed specifically for home use, may not able to provide sufficient fire
alert for public areas.

HIOTH User Manual
CAP-TECH INTERNATIONAL CO.,LTD.
Please avoid installation in bathrooms and other very humid places, dusty or greasy areas, or
very airy place with air conditioning, ceiling fans, etc.
Please keep detectors clean, and do not let dust accumulated. It is recommended to clean
every 6 months with a household cleaner and a soft brush.
The effective life span is 10 years. Replacement every 10 years, regardless of breakdown or
not (battery life: 3 years).
Please pay attention if it alarms. Besides proper use of alarm, we should also strengthen the
consciousness of fire safety.
