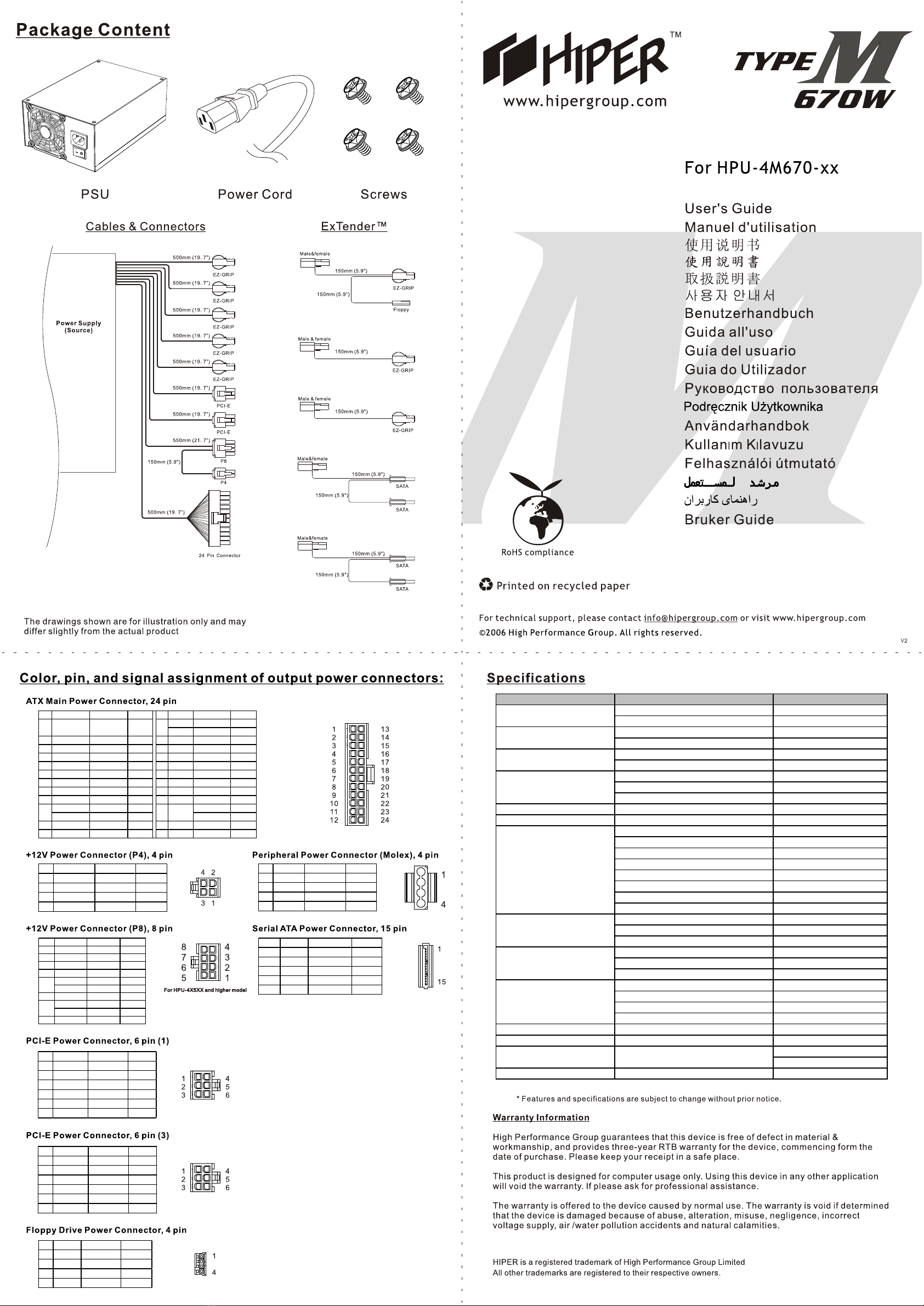

Hiper HPU-4M670 Series User manual

Pin Color Wire Size Signal
1 Yellow UL 1007 #18 +12V4dc
2 Black UL 1007 #18 COM
3 Black UL 1007 #18 COM
4 Red UL 1007 #18 +5Vdc
Pin Color Wire Size Signal
1 Black UL 1007 #18 COM
2 Black UL 1007 #18 COM
3 Yellow/Black UL 1007 #18 +12V2dc
4 Yellow/Black UL 1007 #18 +12V2dc
Pin Color Wire Size Signal
1 Yellow/Black UL 1007 #18 +12V1dc
2 Yellow/Black UL 1007 #18 +12V1dc
3 Yellow/Black UL 1007 #18 +12V1dc
4 Black UL 1007 #18 COM
5 Black UL 1007 #18 COM
6 Black UL 1007 #18 COM
Pin Color Wire Size Signal
1 Yellow UL 1007 #22 +12V4dc
2 Black UL 1007 #22 COM
3 Black UL 1007 #22 COM
4 Red UL 1007 #22 +5Vdc
Specification Description HPU-4M670-xx
Rated Wattage 670 Watts
Peak Load 720 Watts
Manual Rocker
Auto Standby ATX Logic
80 x 80 x 25 mm - R.P.M. 1500 ~ 3100 R.P.M.
Bearing Type Dual Ball Bearing
Voltage Range 100 - 240V
Current 9A
Frequency Range 50 - 60 Hz
SSI EPS12V 2.91
Efficiency Average
up to 80%
+5V (± 5%) 0.5A - 30A
+12V 1 (± 5%) 0.5A - 16A
+12V 2 (± 5%) 0.5A - 16A
+12V 3 (± 5%) 0.5A - 16A
+12V 4 (± 5%) 0.5A - 16A
-12V (± 10%) 0A - 0.8A
+5VSB (± 5%) 0A - 3A
+3.3V (± 5%) 0.5A - 25A
+12V1 & +12V2 & +12V3 & +12V4 < 465W
+3.3V & +5V < 170W
+3.3V, +5V & +12V < 635W
+3.3V < 4.5V
+5V < 6.5V
+12V < 14.5V
Rise Time < 10 ms
Signal On 100 - 500 ms
Signal Off < 1 ms
Power Hold 16 ms min
Chassis Thickness 1.0 mm
PFC Power Factor Correction Active
150 x 180 x 86 mm
5.9" x 7.1" x 3.4"
Weight Net Weight 3.0kg
Output Parameter
Unit Size Dimension
Output Load Regulation
Output Voltage Protection
Power Good Signal
Input Parameter
Wattage
Switch Type
Rear Fan
Pin Color Wire Size Signal Pin Color Wire Size Signal
Orange UL 1007 #16 +3.3Vdc
Brown UL 1007 #24 +3.3Vs.
2 Orange UL 1007 #16 +3.3Vdc 14 Blue UL 1007 #18 -12Vdc
3 Black UL 1007 #18 COM 15 Black UL 1007 #18 COM
4 Red UL 1007 #18 +5Vdc 16 Green UL 1007 #22 PS-ON
5 Black UL 1007 #18 COM 17 Black UL 1007 #18 COM
6 Red UL 1007 #18 +5V 18 Black UL 1007 #18 COM
7 Black UL 1007 #18 COM 19 Black UL 1007 #18 COM
8 Gray UL 1007 #22 POK 20 N.C.
9 Purple UL 1007 #18 +5Vsb 21 Red UL 1007 #18 +5Vdc
Yellow/Green UL 1007 #18 +12V3 UL 1007 #18 +5Vdc
Yellow/Green UL 1007 #22 +12Vs3 UL 1007 #24 +5Vs.
11 Yellow UL 1007 #18 +12V3 23 Red UL 1007 #18 +5Vdc
12 Orange UL 1007 #16 +3.3Vdc 24 Black UL 1007 #18 COM
10
Orange1
Red22
UL 1007 #16 +3.3Vdc 13
Pin Color Wire Size Signal
1 Black UL 1007 #18 COM
2 Black UL 1007 #18 COM
3 Black UL 1007 #18 COM
4 Black UL 1007 #18 COM
Yellow/Black UL 1007 #24 +12Vs1
Yellow/Black UL 1007 #18 +12V1dc
6 Yellow/Black UL 1007 #18 +12V1dc
Yellow/Blue UL 1007 #24 +12Vs2
Yellow/Blue UL 1007 #18 +12V2dc
8 Yellow/Blue UL 1007 #18 +12V2dc
5
7
Pin Color Wire Size Signal
1 Yellow/Green UL 1007 #18 +12V3dc
2 Yellow/Green UL 1007 #18 +12V3dc
3 Yellow/Green UL 1007 #18 +12V3dc
4 Black UL 1007 #18 COM
5 Black UL 1007 #18 COM
6 Black UL 1007 #18 COM
Pin Color Wire Size Signal
1-3 UL 1007 #20 NC
4-6 Black UL 1007 #20 COM
7-9 Red UL 1007 #20 +5Vdc
10-12 Black UL 1007 #20 COM
13-15 Yellow UL 1007 #20 +12V4dc

Devices +5V +12V Total (A)
High performance fan 0.25 0.25
High performance hard drive 0.8 2 2.8
CD-RW 1.2 0.8 2
DVD 1.2 1.1 2.3
Floppy 0.8 0.8
PCI-E VGA Card 7 7
Typical Current Consumption (Estimates)
