Hisense H230RRE-WD Mounting instructions

TYPE NUMBER:H230RRE-WD

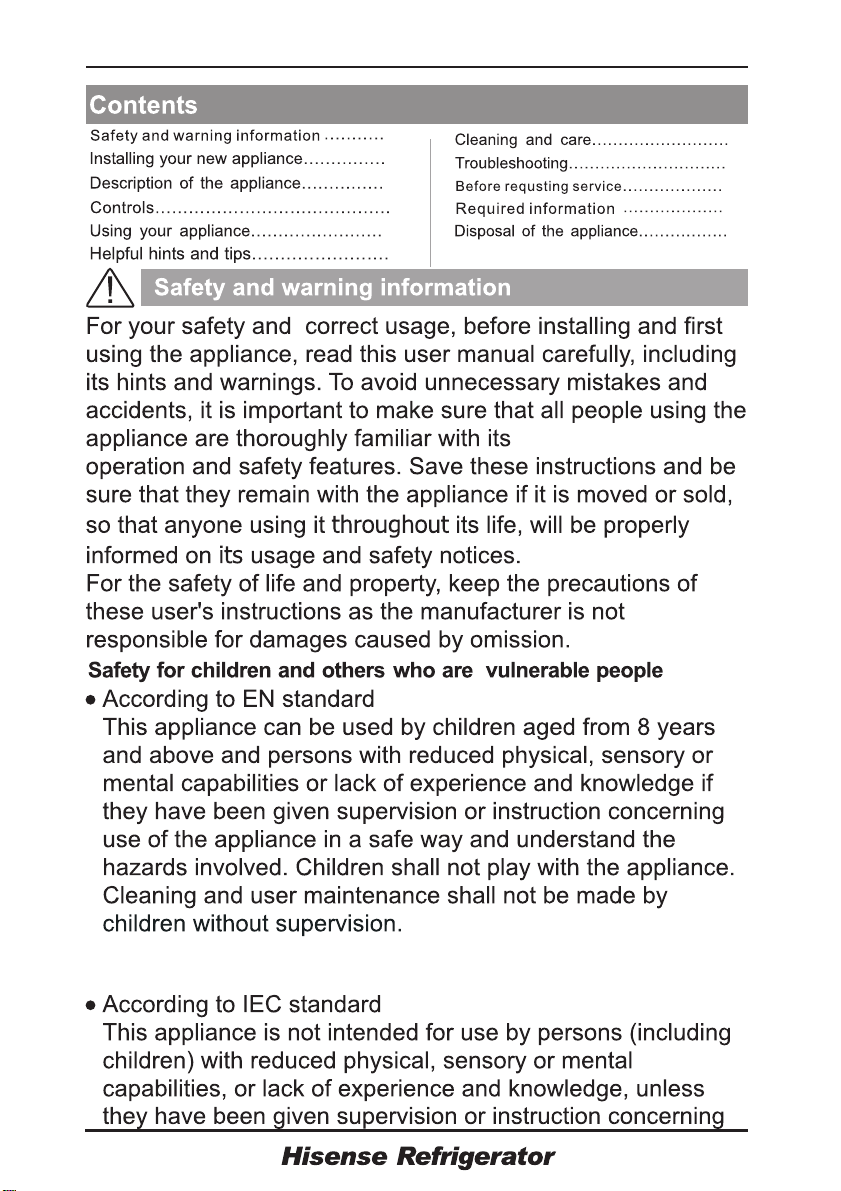

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.2
11
8
2
9
10
14
18
17
13
15
17

Children should be supervised to ensure that they do not play with the appliance. 3

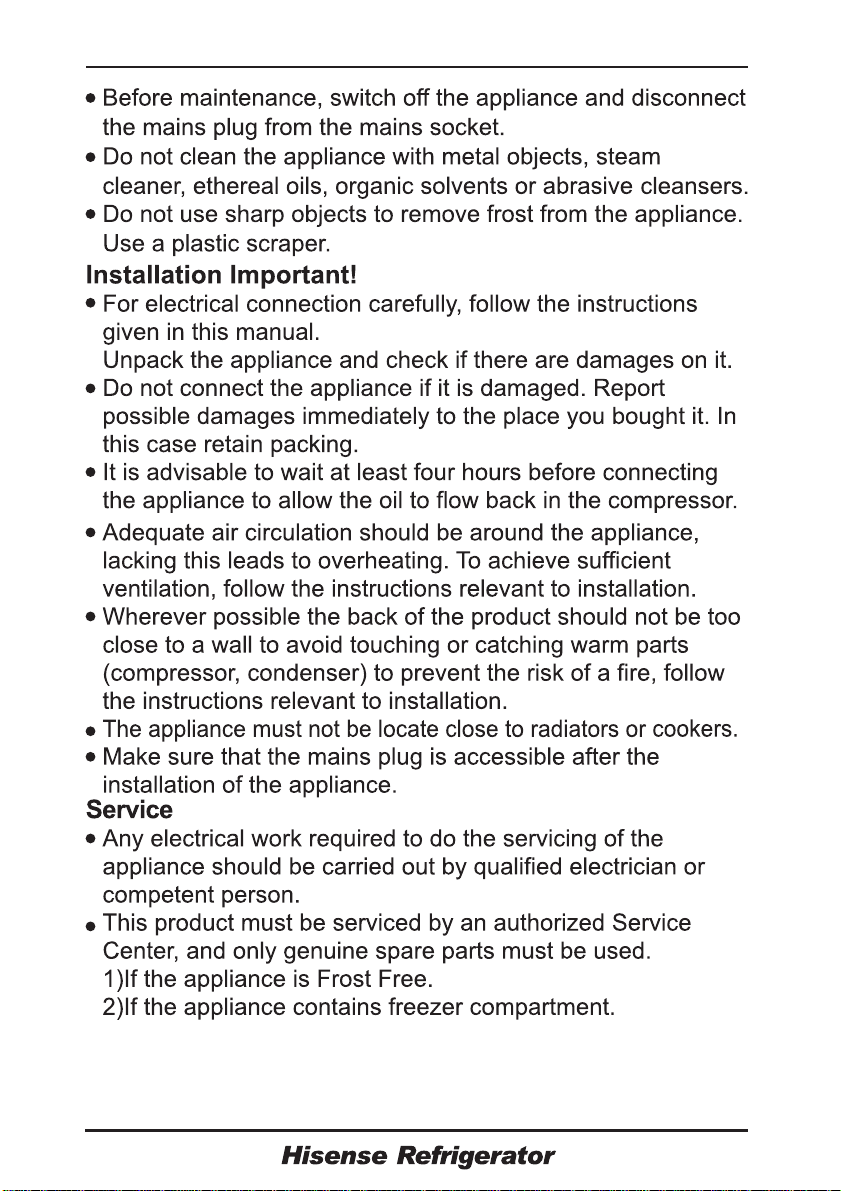

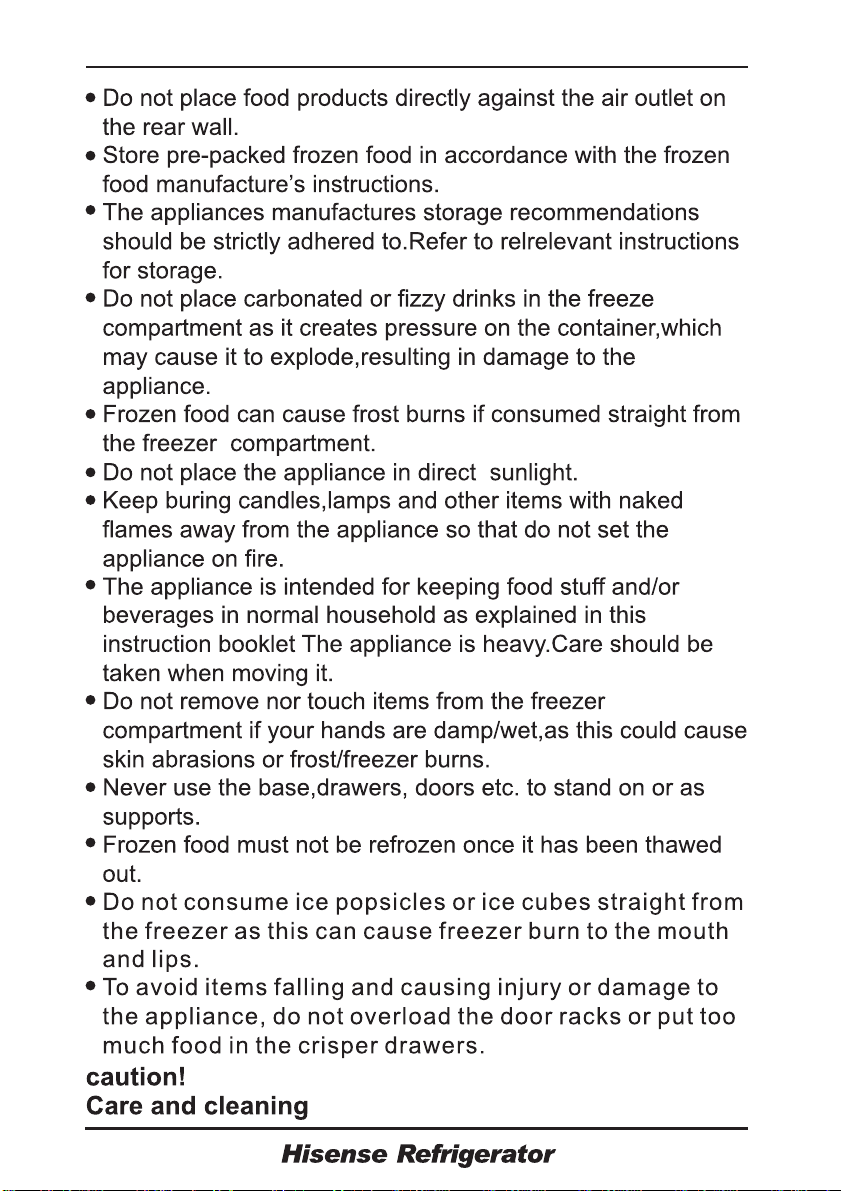

The symbol is a warning and indicates the refrigerant and insulation blowing gas are flammable. Warning: Risk of fire / flammable materials 4

5

6

7

Description of the appliance
15
16
17
18
View 2 of the appliance
1
2
3
4
5
6
7
8
9
10
11
12
13
14
View 1 of the appliance
1.Huge freezer
2.Huge freezer cover
3.Control knob
4.Button
5.Ice tray
6.Draining box
7.Shelf part
8.Crisper cover
9.Fruit and vegetable crisper
10.Door seal
11.Water storage box
12.Lamp bulb or LED
13.Lamp cover
14.Door rack
15.Cabinet
16.Bottom feet
17.Fridge door
18.Water dispenser
NOTE: Due to unceasing modification of our products, your refrigerator may be slightly different from
this instruction manual
,
while functions and usin
g
methods remain the same.
9

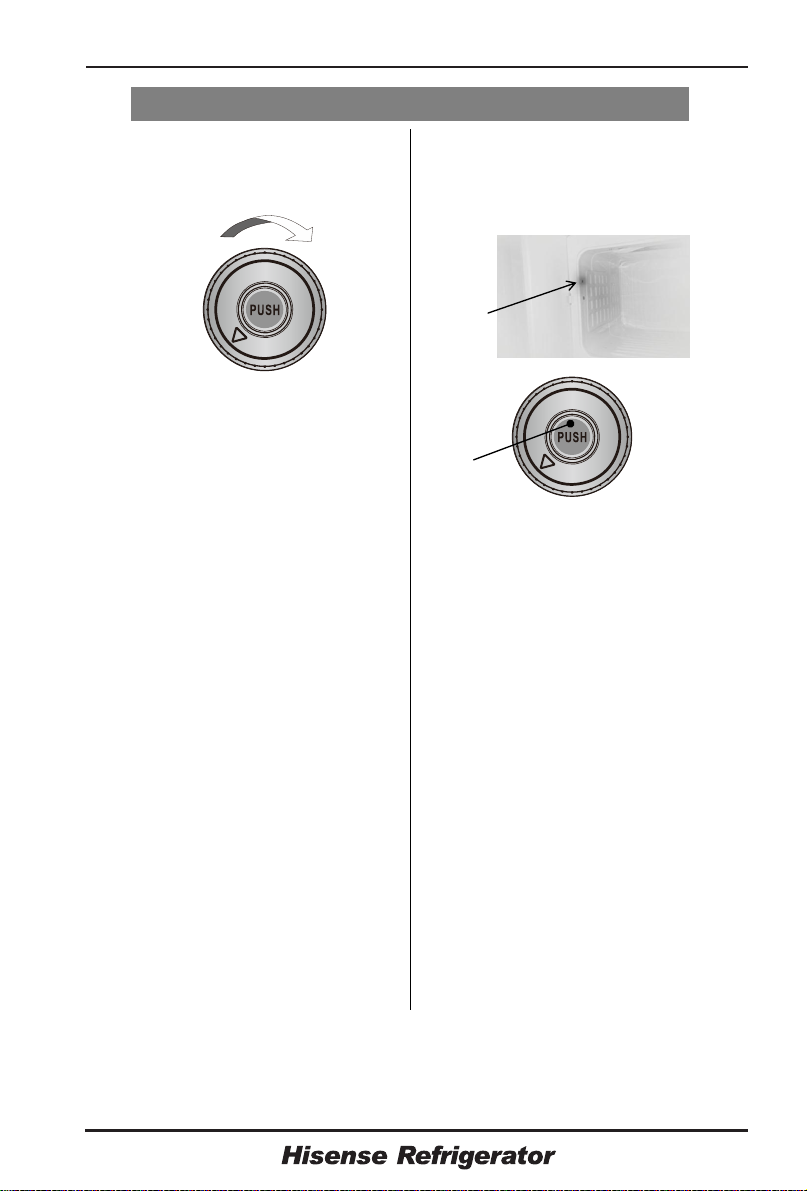

Controls
yThe appliance has 7 choices of
temperature; you can turn the knob
clockwise to the proper position by your
requirement.
Off
1
2
3
4
5
6
7
Te m
p
.control
Starting
yWhen you use your appliance for the first
time, please turn the control knob at
SRVLWLRQ ³´NHHS WKH DSSOLDQFH UXQQLQJ
about 2 or 3 hours unload inside to
stabilize the temperature.
yIf interrupted, please restart again 5
minutes later.
Temperature control
yFor normal operation, the control knob is
DGYLVHGWREHVHWDWSRVLWLRQ³´RU³´
yIn case of the maximum amount of food
to be stored or the requirement of a colder
temperature, you can turn the control knob
to a higher position.
yIf you only want to store small food, or
the ambient temperature is low, you may
turn the control knob to a lower position.
yIf there is no need to use the appliance,
you can turn the control knob to the
SRVLWLRQ³2))´WRVKXWRIIWKHDSSOLDQFH
Defrosting
In order to keep high efficiency of the
appliance, it is necessary to defrost
regularly. If the frost on the huge freezer
grows up to 5mm, or the frost is going to
exceed the defrosting indicator, please
press the defrost button to defrost. The
button will return to normal position
automatically about 3 to 4 hours later
when defrosting completes and the
appliance operates properly.
Off
1
2
3
4
5
6
7
Te m
p
.control
yIf there is a need to use huge freezer
during defrost, or you want to discontinue
the defrosting process, turn the control
NQRE WR SRVLWLRQ ³2))´ DQG WKHQ VHW WKH
control knob to the proper position you
need. And then the appliance will operate
properly.
Note:
1. Before starting defrosting, please
remove the food in the huge freezer and
the draining box. It is recommended to
start defrosting when there is no food
needed to be frozen in case of being
thawing.
2. When defrosting completes, remove the
draining box, empty the water and residual
ice, Put the draining box back to the
proper position. Clean and dry the interior
thoroughly.
3. If the thickness of frost got over the
defrost indicator, the defrosted water may
flow over the evaporating pan. Please pay
attention to this regard.
Defrosting
indicator
Defrost
button
10

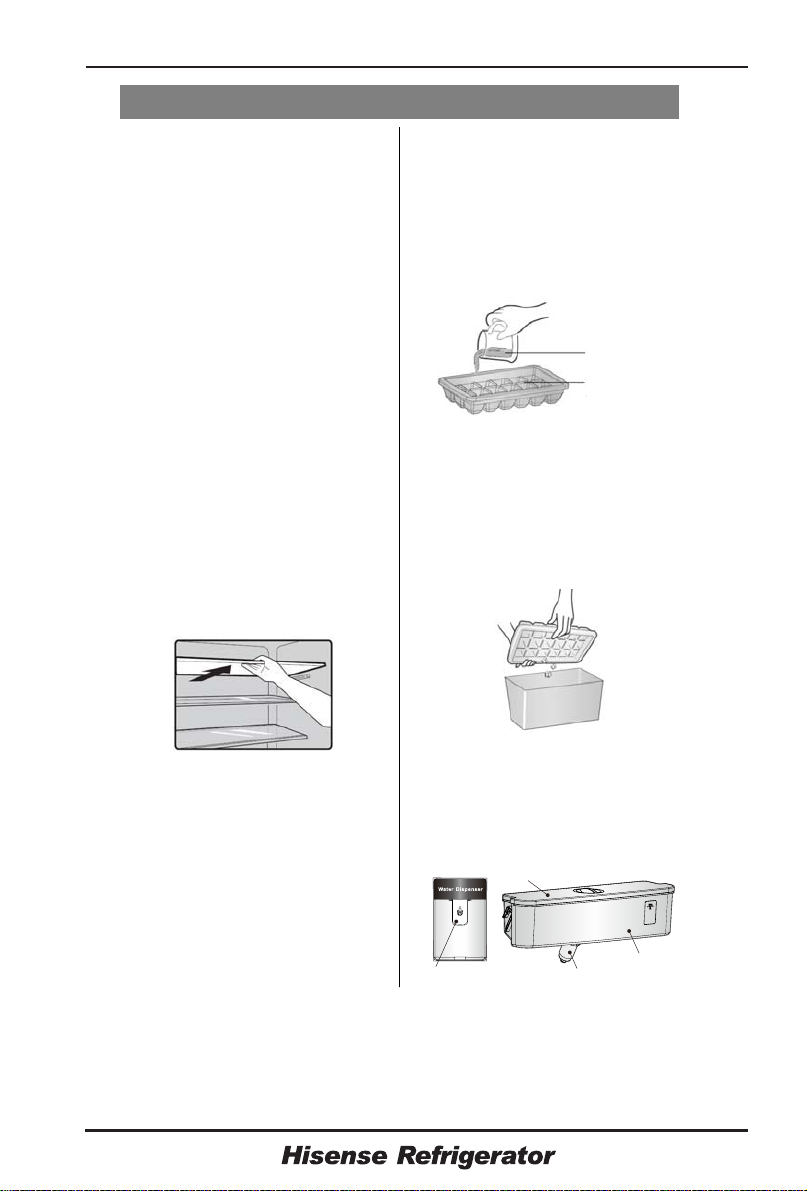

Using your appliance
Door rack
yIt is suitable for the storage of eggs,
canned liquid, bottled drinks and packed
food, etc.. Do not place too many heavy
things in the racks.
Note: There are egg trays in the upper
shelf.
Huge freezer
yIt is suitable for storing the food needed
to be frozen.
Note:
1 'RQ¶W VWRUH ERWWOHG RU FDQQHG GULQNV
(especially carbonated drinks) in the
freezer compartment. Bottles and cans
may explode.
2. Keep the food in label bags or
containers in order to keep the taste and
nutrients.
Shelf in Refrigerator chamber
yThere are two shelves in refrigerator
chamber, and they can be taken out to be
cleaned or get a larger space.
Crisper cover
yIt is for controlling the temperature of the
crisper and avoiding the vegetable losing
moisture.
Fruit and vegetables crisper
yIt is suitable for the storage of fruits and
vegetable.
Ice tray
yIt is used for making ice.
yThere are some notes during the ice
making:
1. If the ice tray is used for the first time or
has not been used for a long time, please
clean it before using.
2. When you pour water into the ice tray,
the water level shall not exceed the top
line.
3. The ice tray should be carefully placed
in the huge freezer without the water spilt
otherwise the spilt water will be frozen and
cause the ice tray stuck.
4. To make the ice quickly, you¶UH advised
WRVHWWKHFRQWUROEXWWRQSRVLWLRQ³´
5. To take out the ice cubes, you should
gently twist the ice tray but bend it over.
Water Dispenser
The water dispenser, located in fridge door,
is used for storing drinking water. This
feature provides chilled water easily
without opening refrigerator.
Water dispenser lever
Water storage box cover
Water storage box
Head
Water
the top line
of water
11

yBefore using
Please clean the water dispenser parts
before using this appliance for the first
time.
1. Hold two sides of the water storage box
tightly, then lift it up and put it out carefully.
2. Unscrew the head in counterclockwise,
then wash the head, water storage box
and cover (including large lid and small lid)
lightly (especially interior) with clean water.
3. Dry it in natural way or using a dryer.
Large lid
Water stor ag e bo
x
Head
Small lid

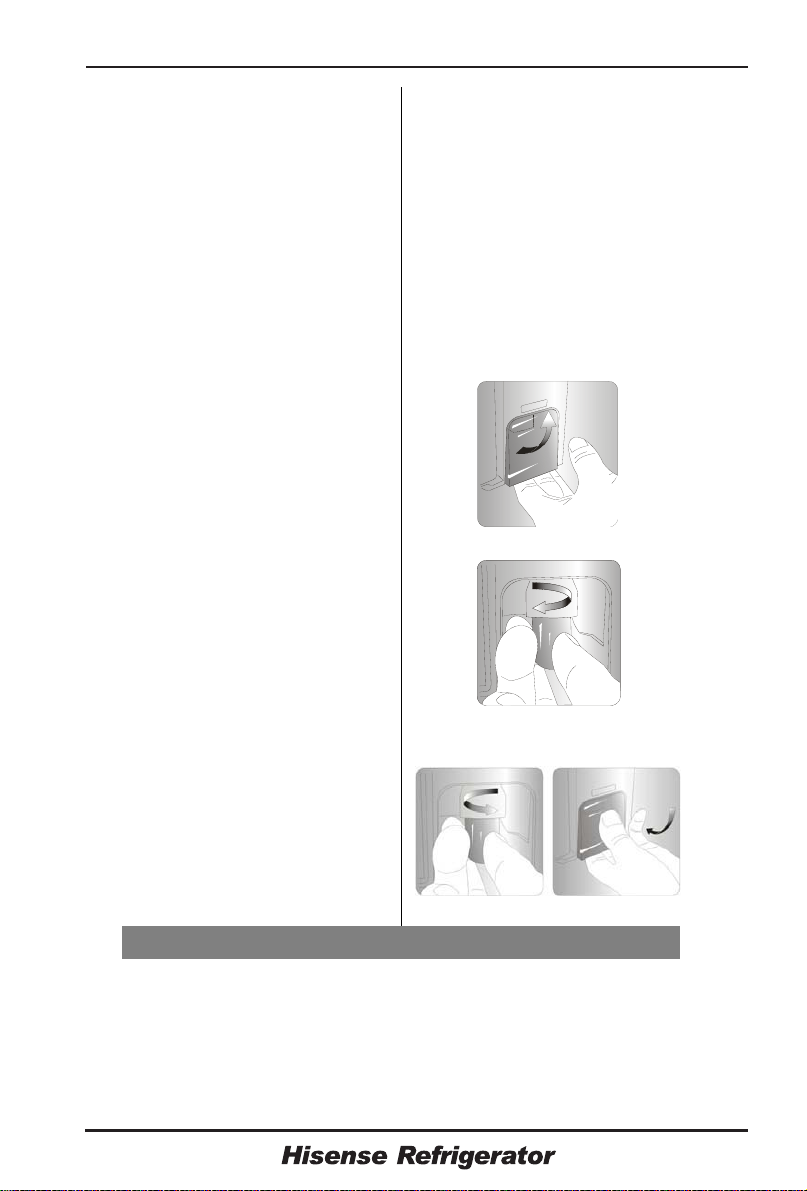

yAssembling
After cleaning, please assemble these
parts together, with reverse sequence of
cleaning procedure; and then fit them on
the door according to the following
procedure.
(1) check sealing washer before fitting on
water storage box, if the washer was
extruded out from fix holder, set it clingy
into the hole;
(2) ensure that the head be inserted into
the hole first;
then hold two sides of the water storage
box (3); and press it down until you hear a
click sound (4).
sealing
washer
fix holder
yFilling water
Before filling water, make sure that water
storage box part is steady and in correct
position.
To prevent from water overflowing or
spilling, fill with water below WKH³0D[´OLQH
which is approximately about 2.0L
(suggested volume).
The following two ways were
recommended to fill water.
1. Uncover the small lid (counterclockwise)
and fill water through the inlet of large lid.
2. Uncover the water storage box cover
(from corner) and fill water directly.
Large lid
Water storage box cover
Small lid
Scheme 2
Scheme 1
12

Warning!
--Don't touch other parts when filling water,
which may cause water leakage.
--Other beverage (milk, juice, carbonated
beverage etc.) were not suggested to be
filled in except for drinking water,
especially beverage including particles
(which may result in function failure).
--Hot water was forbidden to be filled into
the water storage box.
yDispensing water
1) Make sure the water storage box cover
be fitted on.
2) Close the door and check water
dispenser.
3) Use a cup with suitable size to receive
water below the water dispenser.
Press lever
Suggested
position
Warning!
--Don't push the water dispenser lever
forward without a cup below since it may
cause water spilling.
--To avoid cold air leaking out form cabinet,
keep the water dispenser parts
(especially the water storage box and
head) still be installed even if the water
dispenser was out of use.
yCleaning
After using for a period, water
accumulated in receiving tank might
overflow, thus you should clean it with dry
towel regularly to avoid water spilling out
onto the floor.
Receiving tank
Note: In case of stained by dust or other
pollutant, dispensing water with
unpleasant smell, etc., water dispenser
parts should be cleaned thoroughly. Put
the water storage box out from refrigerator
door, wash the head, water storage box
and cover carefully, and then dry them by
natural drying or using a dryer.
Helpful hints and tips
Energy saving tips
We recommend that you follow the tips
below to save energy.
yTry to avoid keeping the door open for
long periods in order to conserve energy.
Ensure the appliance is away from any
sources of heat (Direct sunlight, electric
oven or cooker etc.).
y'RQµW VHW WKH WHPSHUDWXUH FROGHU WKDQ
necessary.
y'RQ¶W VWRUH ZDUP IRRG RU HYDSRUDWLQJ
liquid in the appliance.
yPlace the appliance in a well-ventilated,
humidity free, room. Please refer to
³Installing your new appliance´chapter.
yIf the diagram shows the correct
combination for the drawers, crisper and
shelves, do not adjust the combination as
this is designed to be the most energy
efficient configuration.
13

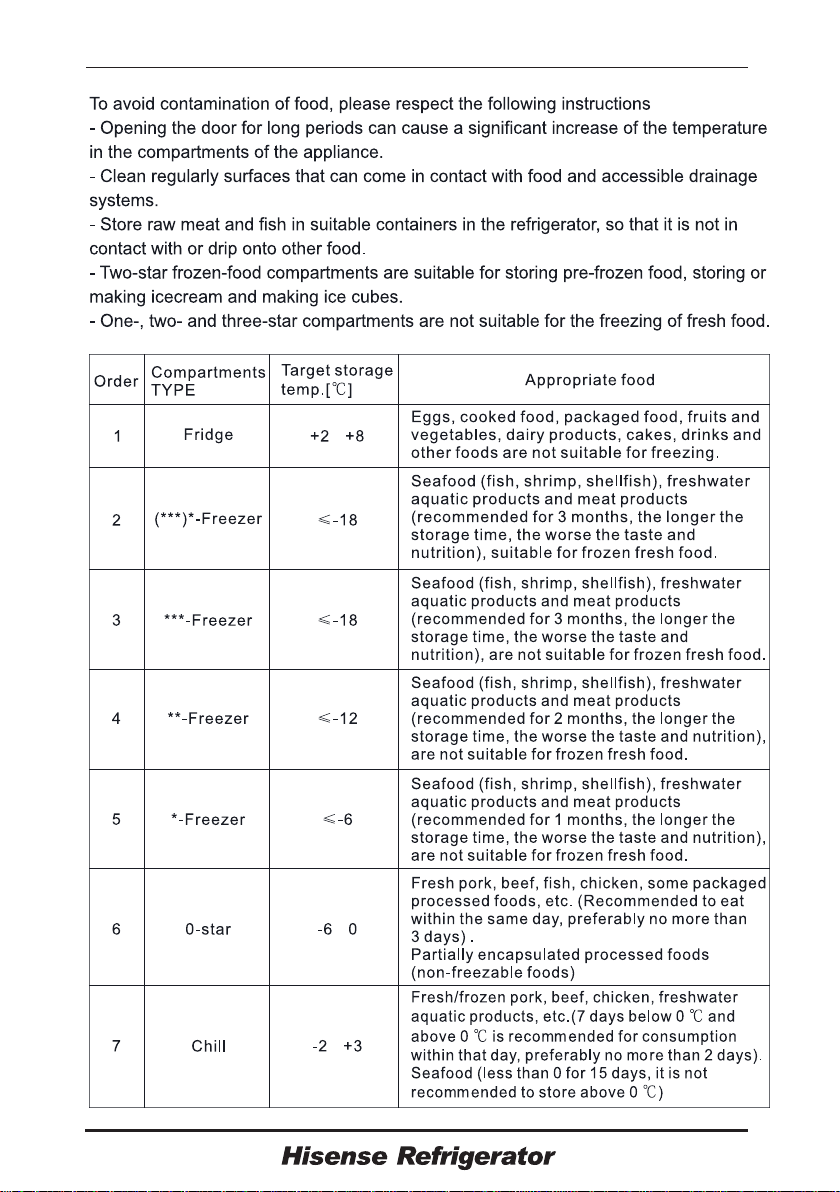

Hints for fresh food refrigeration
yDo not place hot food directly into the
refrigerator or freezer, the internal
temperature will increase resulting in the
compressor having to work harder and will
consume more energy.
yDo cover or wrap the food炻particularly if
it has a strong flavor.
yPlace food properly so that air can
circulate freely around it.
Hints for refrigeration
yMeat (All Types) Wrap in polythene food:
wrap and place on the shelf above the
vegetable drawer. Always follow food
storage times and use by dates suggested
by manufacturers.
yCooked food, cold dishes, etc.:
They should be covered and may be
placed on any shelf.
yFruit and vegetables:
They should be stored in the fruit
and vegetable crisper provided.
yButter and cheese:
Should be wrapped in airtight foil or plastic
film wrap.
yMilk bottles:
Should have a lid and be stored in the
door racks.
Hints for freezing
yWhen first starting-up or after a period
out of use, let the appliance run at least 2
hours on the higher settings before putting
food in the compartment.
yPrepare food in small portions to enable
it to be rapidly and completely frozen and
to make it possible to subsequently thaw
only the quantity required.
yWrap up the food in aluminum foil or
polyethylene food wraps which are airtight,
yDo not allow fresh炻unfrozen food to
touch the food which is already frozen to
avoid temperature rise of the latter.
yIced products炻if consumed immediately
after removal from the freezer
compartment, will probably cause frost
burns to the skin.
yIt is recommended to label and date
each frozen package in order to keep track
of the storage time.
Hints for the storage of frozen food
yEnsure that frozen food has been stored
correctly by the food retailer
yOnce defrosted 炻food will deteriorate
rapidly and should not be re-frozen. Do not
exceed the storage period indicated by the
food manufacturer.
Switching off your appliance
If the appliance needs to be switched off
for an extended period, the following steps
should be taken prevent mould on the
appliance.
1. Remove all food.
2. Remove the power plug from the mains
socket.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged
open slightly to allow air to circulate.
Cleaning and care
For hygienic reasons the appliance
(including exterior and interior accessories)
should be cleaned regularly at least every
two months.
Caution! The appliance must not be
connected to the mains during cleaning.
Danger of electrical shock! Before
cleaning switch the appliance off and
remove the plug from the mains socket.
Exterior cleaning
To maintain good appearance of your
appliance, you should clean it regularly.
14

(or LED)
--Spray water onto the cleaning cloth
instead of spraying directly on the
surface of the appliance. This helps
ensure an even distribution of moisture to
the surface.
--Clean the doors, handles and cabinet
surfaces with a mild detergent and then
wiped dry with a soft cloth.
Caution!
--'RQ¶WXVHVKDUSREMHFWVDVWKH\DUHOLNHO\
to scratch the surface.
--'RQ¶WXVH7KLQQHU, Car detergent, Clorox,
ethereal oil, abrasive cleansers or
organic solvent such as Benzene for
cleaning. They may damage the surface
of the appliance and may cause fire.
Interior cleaning
yYou should clean the appliance interior
regularly. It will be easier to clean when
food stocks are low. Wipe the inside of the
fridge freezer with a weak solution of
bicarbonate of soda, and then rinse with
warm water using a wrung-out sponge or
cloth. Wipe completely dry before
replacing the shelves and baskets.
Thoroughly dry all surfaces and removable
parts.
Caution! 'RQ¶W XVH VKDUS REMHFWV WR
remove frost from the freezer
compartment. Only after the interior is
completely dry should the appliance be
switched back on and plugged back into
the mains socket.
Door seals cleaning
Take care to keep door seals clean. Sticky
food and drinks can cause seals to stick to
the cabinet and tear when you open the
door. Wash seal with a mild detergent and
warm water. Rinse and dry it thoroughly
after cleaning.
Caution! Only after the door seals are
completely dry should the appliance be
powered on.
Replacing the lamp bulb (or LED):
Warning: The LED must not be replaced
by the user! If the LED is damaged,
contact the customer helpline for
assistance. To replace the Lamp bulb (or
LED), the below steps can be followed:
1. Unplug your appliance.
2. Remove lamp cover by pushing out.
3. Swivel out the Lamp bulb (or LED).
4. Replace Lamp bulb and
push light cover to correctly position.
Troubleshooting
If you experience a problem with your appliance or are concerned that the appliance is not
functioning correctly, you can carry out some easy checks before calling for service,
15

Ensure that door is
please see below. You can carry out some easy checks according to this section before
calling for service.
Warning! 'RQ¶WWU\WRUHSDLUWKHDSSOLDQFH\RXUVHOI,IWKHSUREOHPSHUVLVWVDIWHU\RXKDYH
made the checks mentioned below, contact a qualified electrician, authorized service
engineer or the shop where you purchased the product.
Problem Possible cause & Solution
Appliance is not working
correctly
Check whether the power cord is plugged into the power outlet
properly.
Check the fuse or circuit of your power supply, replace if
necessary.
The ambient temperature is too low. Try setting the chamber
temperature to a colder level to solve this problem.
It is normal that the freezer is not operating during the defrost
cycle, or for a short time after the appliance is switched on to
protect the compressor.
Odours from the
compartments
The interior may need to be cleaned
Some food, containers or wrapping cause odours.
Noise from the appliance
The sounds below are quite normal:
yCompressor running noises.
yGurgling sound similar to water boiling.
yClicking noise before the compressor starts.
Other unusual noises are due to the reasons below and may
need you to check and take action:
The cabinet is not level.
The back of appliance touches the wall.
Bottles or containers fallen or rolling.
The motor runs
continuously
It is normal to frequently hear the sound of the motor, it will
need to run more when in following circumstances:
yTemperature setting is set colder than necessary
yLarge quantity of warm food has recently been stored within
the appliance.
yThe temperature outside the appliance is too high.
yDoors are kept open too long or too often.
yAfter your installing the appliance or it has been switched off
for a long time.
A layer of frost occurs in
the compartment
fully closed. To remove the
frost, please refer to ³Defrosting´chapter.

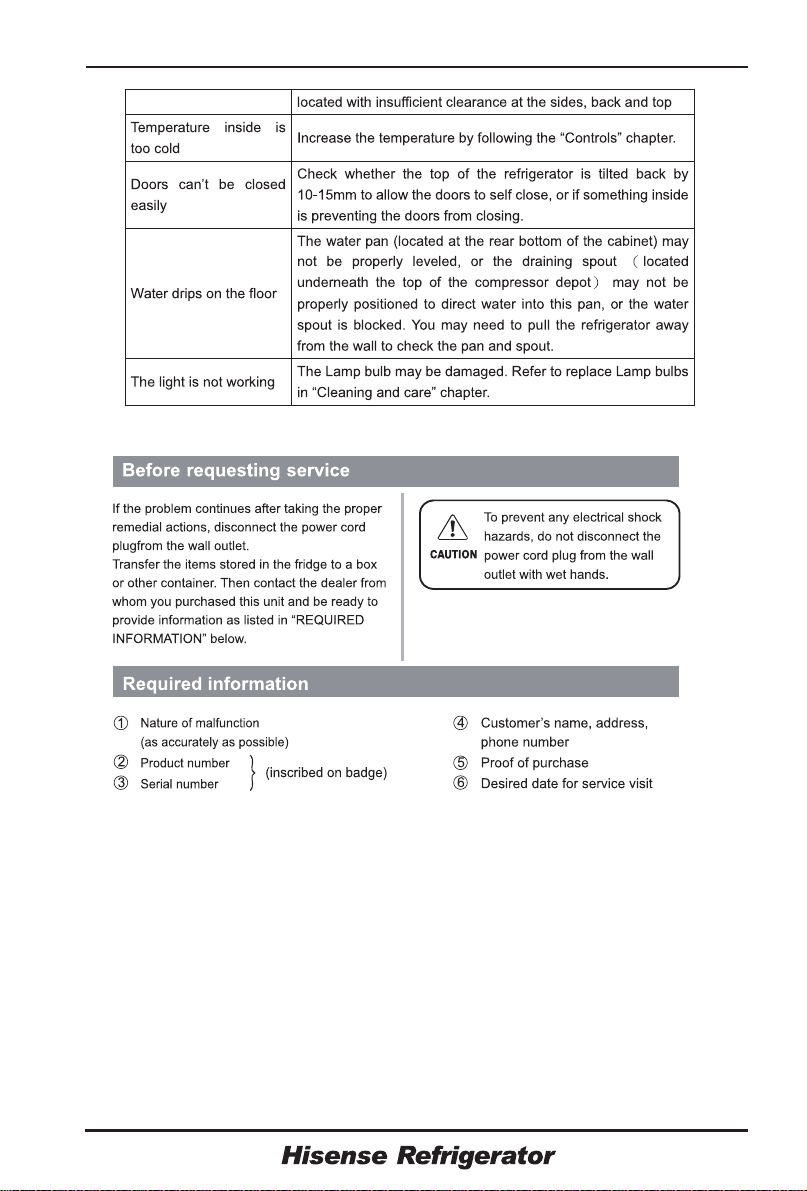

Temperature inside is
too warm
You may have left the doors open too long or too frequently; or
the doors are kept open by some obstacle; or the appliance is
16

17

18

~
~
~
19
