Hisense 55K220PWG User manual

55K220PWG
English
ES-A153508-1
QUICK SETUP GUIDE
Before using the TV, please read this guide thoroughly
and retain it for future reference. For more detailed
instructions, please see the User Manual.

1
Contents
Contents
Accessories List..............................................................................................................1
Installing the Stand.........................................................................................................2
TV Front..........................................................................................................................3
TV Rear ..........................................................................................................................4
Making Connections.......................................................................................................4
Remote Control ............................................................................................................10
Turning the TV on for the First Time.............................................................................12
Specifications ...............................................................................................................15
TV Base Stand User Manual
Quick Setup Guide Warranty Card Remote Control
AAA Batteries × 2 (M4 × 20) × 4 Power cord
Accessories List
The following accessories are included with TV:
Quick Setup Guide
HiSmart
CH
MENU
RETURN
MUTE
FAV
PRE CH
OFF
ON
DMP
EXIT
CHLIST
SOURCE
LANG.
P.MODE
S.MODE
SIZE
SUBT.
TEXT
INDEX
SUBPAGE
PVR
I/II
Anyview Cast
ER- 2265 4HS
0
123
456
78 9
OK
VOL
INFO
EPG
Warranty
Card
The Pictures are Only for Reference !

2
Installing the Stand
Installing the Stand
CAUTION
Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount
brackets.
The LED display is very fragile, and must be protected at all times when installing
the base stand. Be sure that no hard or sharp object, or anything that could scratch
or damage the LED display, comes into contact with it. DO NOT exert pressure on
the front of the TV at any time because the screen could crack.
Follow the illustrations and textual instructions below to complete the installa-
tion steps:
Product images are only for reference, actual product may vary in appearance.
NOTE
1. Carefully place your TV faceup on a soft, flat surface to prevent damage to the TV
or scratching to the screen.
2. Remove the 2 stands from the accessory bag and then insert the stands into the
bottom slots of the TV.
3. Secure the BASE STAND to the TV with the 4 screws in accessary tightly.
WALL-MOUNT BRACKET (not provided)
9.5~11.5mm
BASE STAND Screws: M4×20
Wall-Mount hole pattern (mm) 200 x 200
Wall-Mount screw size (mm) M6

3
TV Front
TV Front
NOTES
The Picture is Only for Reference.
Powering on the TV requires several seconds to load program. Do not rapidly turn
the TV off as it may cause the TV to work abnormally.
Item Description
Power switch Turn the main power ON or OFF.
Remote sensor
Receives remote signals from the remote control.
Do not put anything near the sensor, as its function may be
affected.
Power indicator The light is blue when turned on, and it is red in standby mode.
MENU Display an on-screen menu to setup your TV’s features.
Source Select among the different input signal sources.
VOL +
/ - Adjust the volume.
CH +
/ - Select the channel.
Power button
Turn on the TV or put the TV in standby mode.
Caution: The TV continues to receive power even in standby
mode. Unplug the power cord to disconnect power.
Remote sensor
Power indicator
Power switch
VOL +
Power
MENU
CH +
CH -
Source
VOL -

4
TV Rear & Making Connections
TV Rear
NOTES
Check the jacks for position and type before making any connections.
Loose connections can result in image or color problems. Make sure
that all connections are tight and secure.
Not all A/V devices have the ability to connect to a TV, please refer to
the user’s manual of your A/V device for compatibility and connections
procedure.
Before connecting external equipment, remove the mains plug from the wall socket.
This may cause electric shock.
TV JACK Outdoor
Antenna
Antenna Cable (75Ω)
or ANT OUT
Cable
VHF/UHF Antenna
ANT Connect an outdoor VHF/UHF antenna or cable.
ANT
(DVB-T/C)
(not included)
TV Bottom Panel LAN HDMI 2 / ARC
HDMI3
SERVICE Y
L
PB
R
PR
COMP/AV IN
VIDEO
TV Side View
USB
DC 5V 0.5A(MAX)
ANT
HDMI 1/MHL
HEADPHONE
OPTICAL

5
ARC Connect an HDMI cable from an external digital audio system.
ARC enables the TV to directly output the digital sound through an HDMI cable.
Please note that it works only when the TV is connected to the audio receiver that
supports the ARC (Audio Return Channel) function.
When this port is used as the ARC function, it can't be used as signal input at the
same time.
Making Connections

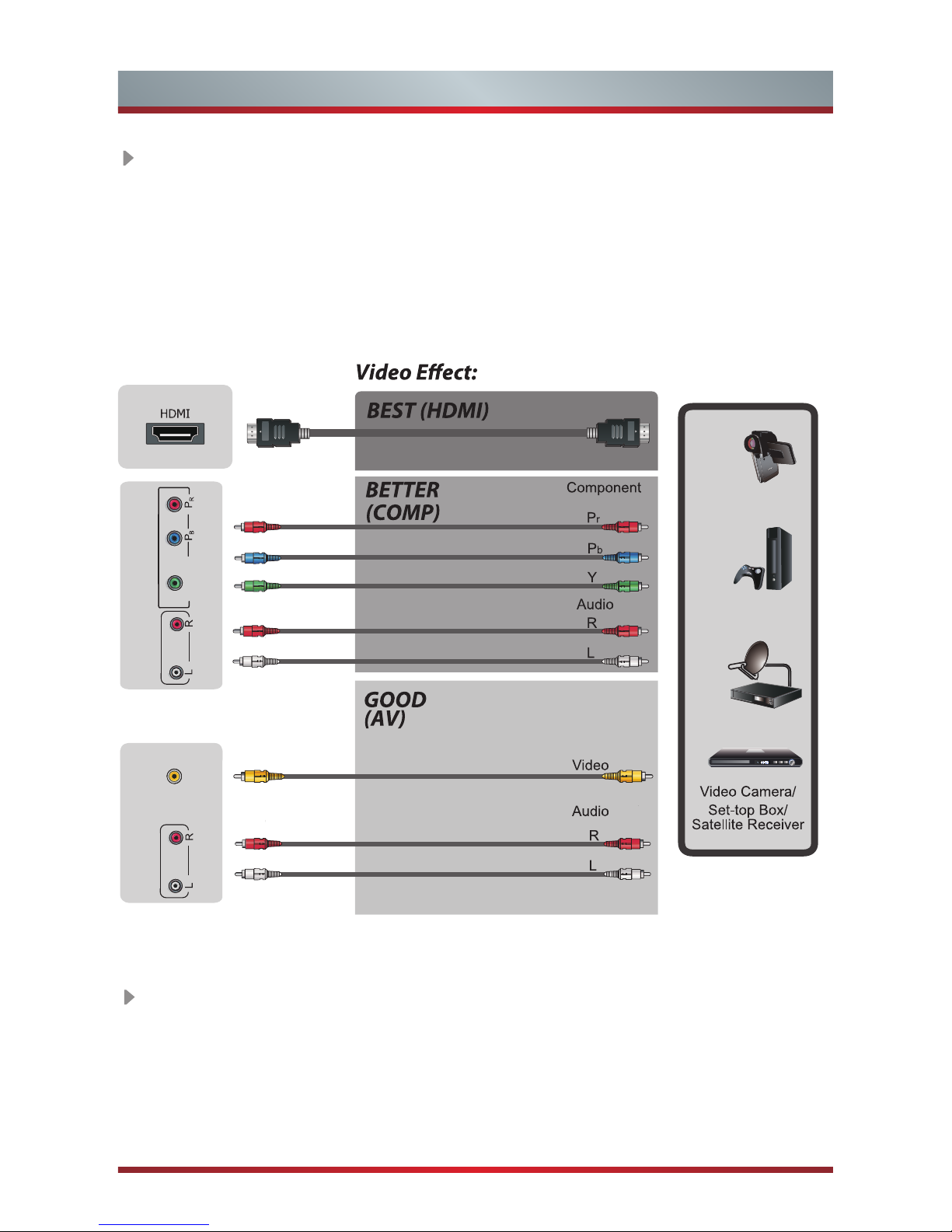

HDMI/COMP/AV
Connect a HDMI / Comp / AV cable from an external A/V equipment. No sound
connection is needed for HDMI to HDMI connection. If the signal resolution does not
match the specification table, you need to change the setting of device according to
the table. Please consult your device user manual for instruction.
·To select the HDMI / Component / AV
Press [Source] button, when the list of input Source appears, press [▲/▼] to select
the source [HDMI] / [Component] / [AV], then press [OK] to connect.
Red(PR/CR)
Blue(PB/CB)
Green(Y)
Red(R)
White(L)
Yellow(Video)
Red(R)
White(L)
Y
VIDEO

6
TV JACK
HDMI cable (not included)
HDMI2/ARC
HDMI
Audio Amplier/Speaker
Making Connections
OPTICAL Connect an optical cable from an external digital audio system
Optical S/PDIF—is a type of digital audio interconnect cable used in consumer audio
equipment to output audio over reasonably short distances. The signal is transmitted over a
fibre optical cable.
Before connecting a digital audio system to the OPTICAL jack, you should decrease the
volume of both the TV and the system to avoid that the volume suddenly become bigger.
TV JACK
OPTICAL cable (not included)
Audio Amplier/Speaker
OPTICAL
HDMI 1
(MHL)
MHL-enabled Device
MHL Connect an MHL cable (not provided) from your MHL-enabled device, such as a cell
phone.

7
Making Connections
USB
Connect the USB1.1 and USB2.0 devices such as hard drives, USB sticks and
digital cameras for browsing photos, listening music and watching recorded movies.
You can record live TV program (refer to PVR in user Manual). At the same time
update is also an easy thing and will be done just by plugging the USB with the
updating files into the USB interface.
NOTES
TV JACK
USB
DC 5V 0.5A(MAX)
HEADPHONE Connect Headphone for audio out of the TV.
The built-in speakers will be disabled once the headphone is connected.
TV JACK
Headphone (not included)
HEADPHONE
When connecting a hard disk or a USB hub, always connect the mains adapter of
the connected device to the power supply. If a USB 1.1 or USB2.0 device requires
more than 500mA or more than 5V, the USB device may not be supported.
Exceeding the max supported current may result in damage or data loss.
If you want to store the video streaming of a DTV program, the transfer rate of the
USB storage device must not be less than 5MB/s. Approximately 20GB of storage
is required to record 2.5 hours of HD video.

8
Making Connections
LAN (Wired setup)
Connect your TV to your network by connecting the LAN port on the back of your
TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the
illustration below.
·We recommend to use a modem or router that supports Dynamic Host
Configuration Protocol (DHCP). Modems and routers that support DHCP
automatically provide the IP address, subnet mask, gateway, and DNS, so you
don’t have to enter them manually. Most home networks already have DHCP.
Wireless setup
Connect your TV to your network wirelessly, you need a wireless router or modem.
See the illustration below.
·The TV’s built-in Wireless LAN Adapter supports the IEEE 802.11 b/g/n
communication protocols. We recommend using IEEE 802.11n router. Low
transfer rates for b/g may have the influence on the quality of streamed videos
and other media.
Wireless router with DHCP
LAN Cable
Wireless LAN Adapter
built-in TV set
TV JACK
Modem CableLAN CableLAN Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN

9
Making Connections
▲/▼/◄/►
Navigate Up/Down/Left Right
or adjust on-screen menu
settings
I/II: Select Mono/Stereo
/Dual Nicam mode
NOTES
You must use the built-in Wireless LAN Adapter to use a wireless network because
the set doesn’t support external USB network adapter.
If the wireless router supports DHCP, your TV can connect more easily to the
wireless network.
If you apply a security system other than the systems listed below, it will not work with
the TV.
security system : WPA, WEP, WPA2.
In order to guarantee smooth network, the distance between router and TV is less
than 10 meters.
