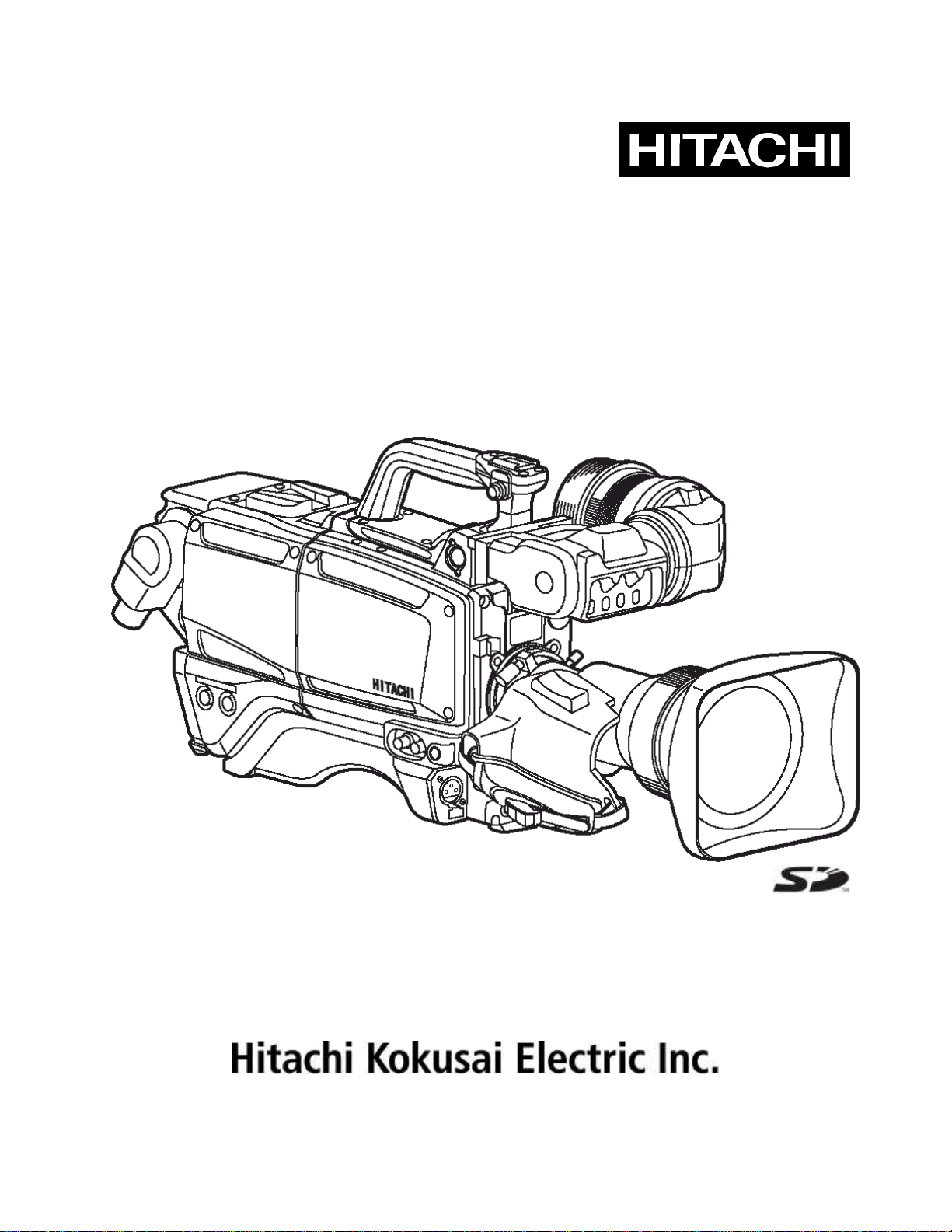

Hitachi Kokusai Electric Z-HD5500 User manual

HD COLOR CAMERA
Z-HD5500
OPERATING INSTRUCTIONS
Please read these operating instructions carefully for proper operation
and keep them for future reference.

Note: The model and serial numbers of your product are important for you to keep for your
convenience and protection. These numbers appear on the nameplate located on bottom of the
product. Please record these numbers in the spaces provided below, and retain this manual for
future reference.
Model No. Serial No.

说明书（环境方面：补充资料） 对象产品：彩色摄像机
Z-HD5500/Z-HD5500E
１．电子产品污染控制标志
此标志是根据 2006年2月28日公
布的《电子信息产品污染控制管理办
法》以及 SJ/T11364-2006《电子信
息产品污染控制标识要求》而制定
的，是用来表示适用于在中华人民共
和国流通的电子信息产品的环保使
用期限。
只要遵守此类产品的安全事项以及使用上应注意的问题，从制造日
起到此年限内，不会发生产品中的有害物质外泄、突变等，不会对环境、人体以及财产产生
严重影响。同时，此年限是除去必须定期交换的保守部品的，是其他产品的环保使用期限。
产品在正常情况下使用完毕要废弃时，请遵守各地区对电子信息产品的回收・再利用的相关
各项法律、法规。
另外，从第三者处转买的情况下即使在本期限内也视为失去效力。
２．产品中有毒有害物质或元素的名称及含量
部件名称
有毒有害物质或元素
铅
(Pb)
水银
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴
联苯
(PBB)
多溴
二苯醚
(PBDE)
１
主机
×
○
×
○
○
○
○：表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定
的限量要求以下。
×：表示该有毒有害物质至少在该部件的某一均材料中的含量超出 SJ/T11363-2006 标准
规定的限量要求。
(COLOR CAMERA)

A
SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual and safety Instructions on your equipment.
Follow recommended precautions and safe operating practices.
SAFETY ALERT SYMBOL
This is the “Safety Alert Symbol.”
This symbol is used to call your attention to items or operations that could be dangerous to you
or other persons using this equipment. Read these messages and follow these instructions
carefully.
It is essential that you read the instructions and safety regulations before you attempt to assemble or use this
equipment.
The definitions of signal words are as follows:
WARNING: Personal danger
Warning notes indicate any condition or practice, which if not strictly observed, could
result in personal injury or possible death.
CAUTION: Possible damage to equipment
Caution notes indicate any condition or practice, which if not strictly observed or
remedied, could result in damage or destruction of the equipment.
NOTE: Notes indicate an area or subject of special merit, emphasizing either the
products capabilities or common errors in operation or maintenance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
COLOR CAMERA TO RAIN OR MOISTURE.
AVERTISSEMENT
Afin d’éviter tout risque d’incendie ou d’électrocution, ne pas exposer l’appareil á la pluie ou á l’humidité.
Afin d’écarter tout risque d’électrocution, garder le coffret fermé.
Ne confier l’entretien de l’appareil qu á un personnel qualifié.
VORSICHT
Um Feuergefahr und die Gefahr eines eiektrischen Schiages zu vermeiden, darf das Gerät weder Regen
noch Feuchtigkeit ausgesetzt werden.
Um einen elektrischen Schiag zu vermeiden, darf das Gehäuse richt geöffnet werden.
Überiassen Sie Wartungsarbeiten stets nur einem Fachmann.
WARNING
CAUTION
NOTE
!
!
!

B
IMPORTANT SAFETY INSTRUCTIONS
1. Read Instructions
All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Heed Warnings
All warnings on the product and the operating instructions should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall,
causing serious injury to a child or adult, and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any
mounting of the product should follow the manufacturer's instructions, and should use a mounting
accessory recommended by the manufacturer.
9. Moving
A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to
overturn.
10. Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the
product and to protect it from overheating, and these openings must not be blocked or covered.
The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar
surface. This product should not be placed in a built-in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer's instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of power source indicated on the marking label.
If company. For products intended to operate from battery power, or other sources, refer to the
operating instructions.
12. Grounding or Polarization
This product is equipped with a three-wire grounding-type plug a plug having a third (grounding) pin.
This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do
not defeat the safety purpose of the grounding-type plug.
13. Power-Cord Protection
Power-supply cords should be routed to that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at plug, convenience receptacles,
and the point where they exit from the product.

C
14. Lightning
For added protection for this product during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet. This will prevent damage to the
product due to lightning and power-line surges.
15. Overloading
Do not overload wall outlets, extension cords or integral convenience receptacles as this can result in
a risk of fire or electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous
voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any
kind on the product.
17. Inflammable and Explosive Substance
Avoid using this product where there are gases, and also where there are inflammable and explosive
substances in the immediate vicinity.
18. Heavy Shock or Vibration
When carrying this product around, do not subject the product to heavy shock or vibration.
19. Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
a. When the power-supply cord or plug is damaged.
b. if liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions as an improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in performance-this indicates a need for service.
21. Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
22. Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating condition.
23. Wall or Ceiling Mounting
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
24. Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.

D
WICHTIGE SICHERHEITSANWEISUNGEN
1. Alle Anweisungen lesen.
Vor Betrieb des Erzeugnisses sollten alle Sicherheits-und Bedienungsanleitungen gelesen werden.
2. Die Anweisungen aufbewahren.
Die Sicherheits-und Bedienungsanleitungen sollten fünftigen Bezug aufbewahrt werden.
3. Warnungen beachten.
Die Warnungen auf dem Erzeugnis und in den Bedienungsanleitungen solten beachtet werden.
4. Anweisungen befolgen.
Alle Bedienungsanleitung-und
Verwendungsanweisungen sollten befolgt werden.
5. Reinigung
Den Stecker des Geräts vor Reinigung aus der Steckdose ziehen. Keine flüssigen Reinigungsmittel
oder Aerosolreiniger verwenden. Zum Reinigen einen feuchten Lappen verwenden.
6. Zubehör
Nur vom-Hersteller des Erzeugnisses empfohlenes Zubehör verwenden, da es sonst zu Störungen
kommen kann.
7. Wasser und Feuchtigkeit
Dieses Erzeugnis nicht in der Nähe von Wasser verwenden - z.B, in der Nähe einer Badewanne, eines
Waschbeckens, einer Küchenspüle, eines Waschzubers, in einem nassen Keller, in der Nähe eines
Schwimmbeckens usw.
8. Aufstellung
Das Erzeugnis nicht auf einen unstabilen Wagen, Stand, Dreifuß, Träger oder Tisch stellen.
Das Erzeugnis kann sonst herunterfallen und ein kind oder einen Erwachsenen schwer verietzen.
Außerdem kann das Gerät schwer beschädigt werden. Nur mit einem Wagen, Stand, Dreifuß,
Träger oder Tisch verwenden, der vom Hersteller empfohlen oder mit dem Erzeugnis verkauft
worden ist. Für jegliche Anbringung sollten die Anweisungen des Herstellers befolgt werden, und
das vom Hersteller empfohlene Anbringungszubehör sollte verwendet werden.
9. Eine Kombination von Erzeugnis und Wagen sollte vorsichtig bewegt werden.
Schneller Halt, übermäßige Krafteinwirkung und unebene Oberflächen können Umkippen der
kombination von Erzeugnis und Wagen verursachen.
10. Ventilation
Schlitze und Öffnungen im Gehäuse dienen der Ventilation. Sie sind für zuverlässigen Betrieb des
Gerätes und Schutz vor Überhitzung erforderlich und dürfen nicht blockiert oder abgedeckt werden.
Die Öffnungen sollten niemals dadurch blockiert werden, daß, das Gerät auf ein Bett, ein Sofa, einen
Teppich oder eine ähnliche Oberfläche gestellt wird.
Das Gerät sollte nur dann in Einbauinstallierung wie in einem Bücherschrank oder einem Gestell
verwendet werden, wenn angemessene Ventilation vorgesehen ist bzw. Die Anweisungen des
Herstellers befolgt worden sind.
11. Stromversorgung
Dieses Erzeugnis sollte nur an der auf dem Typenschild angegebenen Stromversorgungsart betrieben
werden. Wenn Sie nicht sicher sind, was für eine Stromversorgung Sie haben, so wenden Sie sich
bitte an Ihren Erzeugnishändler oder an das lokale Elektrizitätswerk. Beziehen Sie sich für
Batteriebetrieb oder andere Stromquellen vorgesehene Erzeugnisse bitte auf die
Bedienungsanleitungen.
12. Erdung oder Polarisierung
Dieses Erzeugnis ist mit einem Schutzkontaktstecker mit drei Leitern ausgerüstet, mit einem
Erdungskontakt. Dieser Stecker paßt nur in ein schuko-Steckdose. Dies ist eine
Sicherheitsmaßnahme. Wenn Sie den Stecker nicht in die Steckdose stecken können, so wenden Sie
sich bitte an ihren Elektriker, damit er die veraltete Schuts des Schutzkontaktsteckers unwirksam.
13. Netzkabelschutz
Netzkabel sollten so verlegt werden, deß möglichst nicht darauf getreten wird und daß sie nicht
eingeklemmt werden, mit besonderer Beachtung der kabel an Stackern, Verlängerungskabeln und
dem Austritt des Kabels aus dem Erzeugnis.

E
14. Blitzschlag
Für zusätzlichen Schutz des Erzeugnisses während eines Gewitters oder bei Nichtverwendung für
lange Zeit den Stecker aus der Steckdose ziehen. Dies verhütet Beschädigung durch Blitzschlag und
Netzspannungsstöße.
15. Überlastung
Wandsteckdosen, Verlängerungskabel und eingebaute Bequemlickkeitssteckdosen nicht überlasten,
da dies Feuer oder elektrischen Schlag verursachen kann.
16. Eindringen von Fremdkörpern und Flüssigkeit
Niemals Objekte irgendwelcher Art durch die Öffnungen in das Gerät schieben, da diese unter hoher
Spannung stehende Teile berühren oder kurzschließen können, wodurch es zu Feuer oder
elektrischem Schlag kommen kann. Niemals Flüssigkeiten irgendwelcher Art auf das Erzeugnis
verschütten.
17. Entflammbare und explosive Substanzen
Vermeiden Sie Verwendung dieses Erzeugnisses an Orten mit Gasen bzw. entflammbaren oder
explosiven Substanzen in der direkten Umgebung.
18. Starke stöße oder Vibrationen
Setzen Sie das Erzeugnis beim Transport nicht starken Stößen oder Vibrationen aus.
19. Wartung
Versuchen Sie nicht, dieses Erzeugnis Selbst zu warten, da Sie sich durch Öffnen bzw. Entfernen
von Abdeckungen hohen Spannungen und sonstigen Gefährdungen ausserzen können.
Beziehen Sie sich für jegliche Wartung auf qualifiziertes Wartungspersonal.
20. Beschädigung, die Wartung erfordert
Ziehen Sie den Stecker dieses Erzeugnisses aus der Steckdose und wenden Sie sich an qualifiziertes
Wartungspersonal, wenn eine der folgenden Bedingungen vorliegt:
a. Wenn das Netzkabel oder der Stecker beschädigt ist.
b. Bei Eindringen von Flüssigkeit oder Fremdkörpern in das Gerät.
c. Wenn das Erzeugnis Regen oder Wasser ausgesetzt worden ist.
d. Wenn das Erzeugnis bei Befolgen der Bedienungsanleitungen nicht normal funktioniert.
Nur die Regelelemente verstellen, die in den Bedienungsanleitungen behandelt werden, da
unangemessene Einstellung anderer Regelelemente Beschädigung verursachen kann und oft
beträchtliche Arbeit durch einen qualifizierten Techniker erfordert, um das Erzeugnis wieder, zu
normalem Betrieb zurückzubringen.
e. Wenn das Erzeugnis fallen gelassen oder beschädigt worden ist.
f. Wenn das Erzeugnis eine klare Änderung in der Leistung zeigt-dies weist darauf hin, daß
Wartung erforderlich ist.
21. Ersatzteile
Wenn Ersatzteile erforderlich sind, darauf achten, daß der Wartungstechniker nur die vom Hersteller
festgelegten Ersatzteile oder Teile mit den gleichen Charakteristiken wie die ursprünglichen Teile
verwendet. Unautorisierte Ersatzteile können Feuer, elektrischen Schlag oder sonstige
Gefährdungen verursachen.
22. Sicherheitsprüfung
Bitten Sie den Wartungstechniker nach der Vollendung von Wartung oder Reparaturarbeiten an
diesem Erzeugnis um die Durchführung von Sicherheitsprüfungen, um zu bestimmen, daß das
Erzeugnis im angemissenen Betriebszustand ist.
23. Anbringung an der Wand oder an der Decke
Das Erzeugnis sollte nur entsprechend den Empfehlungen des Herstellers an einer Wand oder an der
Decke angebracht werden.
24. Wärme
Das Erzeugnis sollte fern von Wärmequellen wie Radiatoren, Heizwiderständen, Öfen und anderen
Wärme erzeugenden Erzeugnissen (einschließlich Verstärkern) aufgestellt werden.

F
MISES EN GARDE IMPORTANTES
1. Lire les instructions
Lire toutes les instructions de sécurité et de fonctionnement avant de faire fonctionner l’appareil.
2. Conserver ces instructions
Conserver les instructions de sécurité et de fonctionnement á des fins de référence ultérieure.
3. Tenir compte des avertissements
Tous les avertissements qui figurent sur l’appareil et dans le mode d’emploi devront être respectés.
4. Observer les instructions
Observer toutes les instructions de fonctionnement et d’utilisation.
5. Nettoyage
Avant de procéder au nettoyage, débrancher l’appareil de la prise secteur. Ne pas utiliser de
produits de nettoyage liquides ou en aérosol.
Nettoyer l’appareil avec un chiffon humide.
6. Fixations
Ne pas utiliser de fixations non recommandées par le fabricant de l’appareil car elles pourraient être
source de danger.
7. Eau et humidité
Ne pas utiliser l’appareil á proximité d’eau-par exemple prés d’une baignoire, d’un lavabo, d’un évier
ou d’un bac á lessive, dans un sous-sol humide, ou prés d’une piscine, etc.
8. Accessoires
Ne pas placer l’appareil sur un chariot, un socle, un pied, un support ou one table instables
L’appareil pourrait tomber, blessant griévement des enfants ou des adultes, et étant sérieusement
endommagé.
Utiliser exclusivement le chariot, le socle, le pied, le support ou la table recommandés par le fabricant,
ou vendus avec l’appareil. Pour tout montage de l’appareil, respecter les instructions du fabricant, et
utiliser á cette fin l’accessoire de montage recommandé par le fabricant.
9. L’appareil monté sur son chariot devra être déplacé avec précaution.
Des arrêts brusques, une force excessive et des surfaces irréguliéres pourraient provoquer le
renversement de l’ensemble appareil-chariot.
10. Ventilation
Les fentes et les ouvertures du coffret sont prévues pour la ventilation ainsi que pour garantir un
fonctionnement en toute sécurité de l’appareil et le protéger de toute surchauffe, et ces ouvertures ne
devront donc être ni obstruées ni recouvertes. Ne jamais obstruer les ouvertures en placant
l’appareil sur un lit, un sofa, un tapis ou toute surface similaire. Ne jamais placer l’appareil dans un
support confiné, par exemple une bibliothéque ou une é tagé re, sans ventilation suffisante ou sans
repecter les instructions du fabricant.
11. Sources d’allmentation
L’appareil devra être alimenté exclusivement sur le type d’alimentation indiqué sur l’étiquette
signalétique. Sil’on n’est pas sûr du type d’alimentatio du local, consulter le revendeur de l’appareil
ou la compagnie d’électricité locale. Pour les appareils qui fonctionnent sur batterie ou sur d’autres
sources, voir le mode d’emploi.
12. Mise á la terre ou polarisation
L’appareil est doté d’une fiche trifilaire avec mise á la terre, dont la troisiéme broche assure la mise á
la terre. Cette fiche ne rentrera que dans les prises trifilaires de mise á la terre. Ceci est une
mesure de sécurité. Si la fiche ne rentre pas dans la prise, faire remplacer la prise désuéte par un
électricien.
Ne pas rendre vaine la measure de sécurité assurée par cette prise avec mise á la terre.
13. Protection du cordon d’alimentation
Acheminer les cordons d’alimentation de facon qu’on ne risque pas de marcher dessus ou de les
coincer sous un objet placé dessus ou contre eux.
Faire particuliérement attention aux fiches des cordons, á la proximité des prises, et á l’endroit oú ils
ressortent de l’appareil.

G
14. Foudre
Pour renforcer la protection de l’appareil pendant un orage, ou si l’on s’en éloigne ou qu’on reste
longtemps sans l’utiliser, le débrancher de la source d’alimentation. Ceci permettra d’éviter tout
dommage de l’appareil dú á la foudre et aux surtensions de ligne.
15. Surcharge
Ne pas surcharger les prises, rallonges et prises multiples car cela pourrait entraîner un risque de feu
ou de choc électrique.
16. Pénétration d’objets et de liquides
Ne jamais enfoncer d’objets d’aucune sorte dans les ouvertures de l’appareil car ils pourraient toucher
des points de tension dangereuse ou court-circuiter des piéces, ce qui pourrait provoquer un feu ou un
choc électrique. Ne jamais renverser de liquide d’aucune sorte sur l’appareil.
17. Substances inflammabes et explosives
Eviter d’utiliser l’appareil en présence de gaz, ainsi qu’á proximité immédiate de substances
inflammables et explosives.
18. Chocs ou vibrations violents
Lorsqu’on transporte l’appareil, ne pas le soumettre á des chocs ou des vibrations violents.
19. Réparations
Ne pas tenter de réparer l’aapareil soi-même car le fait d’ouvrir ou de retirer les caches risque
d’exposer l’utilisateur á des tensions dangereuses notamment. Confier toute réparation á un
personnel qualifié.
20. Dommages nécessitant réparations
Débrancher l’appareil de la source d’alimentation et confier les réparations á un personnel qualifié
dans les cas suivants:
a. Lorsque le cordon d’alimentation ou sa fiche sont endommagés
b. Si du liquide s’est renversé sur l’appareil ou que des objets sont tombés dedans
c. Si l’appareil a été exposé á la pluie ou á l’eau.
d. Si l’appareil ne fonctionne pas normalement lorsqu’on observe les instructions d’utilisation.
Ne régler que les commandes couvertes par le mode d’emploi ; en effet, un réglage incorrect des
autres commandes pourrait entrainer des dommages et nécessiteront souvent des travaux de
réparation coûteux par un technicien qualifié pour remettre l’appareil en état de marche.
e. Si l’appareil est tombé ou qu’il a été endommagé.
f. Si l’appareil affiche une nette modification de ses performances, cela signifie qu’il a besoin
d’être réparé.
21. Piéces de rechange
Si l’on a besoin de piéces de rechange, veiller á ce que le technicien de réparation utilise
exclusivement les piéces de rechange spécifiées par le fabricant ou des piéces ayant les mêmes
caractéristiques que les piéces d’origine. Les piéces de rechange non autorisées risquent de
provoquer un feu, un choc électrique et autres dangers.
22. Vérificaton de sécurité
Aprés tout travail d’entretien ou de réparation de l’appareil, demander au technicien de réparation
d’effectuer les vérifications de sécurité pour s’assurer que l’appareil est en bon état de marche.
23.Montage au mur ou au plafond
L’appareil ne pourra être monté au mur ou au plafond que de la maniére recommandée par le
fabricant.
24. Chaleur
Eloigner l’appareil des sources de chaleur, telles que radiateurs, appareils de chauffage, cuisiniéres,
et de tour produit engendrant de la chaleur (y compris les amplificateurs).

H
IMPORTANT NOTICE
For USA
These products have been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this product in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
WARNING
Changes or modifications not expressly approved by Hitachi Kokusai Electric responsible for
compliance could void the user’s authority to operate the equipment.
For Canada
This product does not exceed the class A/class B limits for radio noise emissions from digital
apparatus as set out in the radio interference regulations.
Le présent appareil n’émet pas de bruits radioélectriques dépassant les limités applicable aux
appareils numériques de classe A prescrites dans le rVglement sur le brouillage radioélectrique
édicter par le ministére des communications du canada.
NOTICE
These specifications are subject to change without prior notice due to product improvement.
Confirm the most recent specifications at time of order.
Hitachi Kokusai Electric certifies this product complies with the standard warranty conditions of Hitachi
Kokusai Electric, and that quality control is implemented to the extent required to comply with those
conditions.
Warranty and service
(1) The guarantee period is one year after the data purchase. However, the defects due to erroneous use or
intentional act are excluded.
(2) As the defect after expirations of the guarantee period, where product repair is possible, repair will be
performed at charge.
(3) The present Warranty pertains only to the camera unit. Secondary malfunctions attributable to camera
failures as well as expenses incurred by disassembly and reassembly of the related system, are beyond
the scope of this Warranty.
(4) Compensation for loss of business, loss or damage to software, database and other contingent losses
are beyond the scope of this Warranty.
(5) Hitachi Kokusai Electric Inc. is not liable for the losses caused when the equipment is used in a system,
use for business trades, production process, medical fields, crime prevention applications, etc.
(6) The parts used in the equipment have their respective lives. The lives of such parts will be shortened
under the environments of high temperature or high humidity.
When the stable operation is required for a long time, it is recommended to perform periodical
maintenance and inspection every year or every two years.
(7) In the case of camera trouble by miss wiring of cable, it will be considered as out of warranty.

Contents
Outline and features ................................................................................................................................................1
Warnings and cautions when using.........................................................................................................................3
Facility names and functions ..................................................................................................................................5
Lens installation.....................................................................................................................................................12
Lens flange back adjustment.................................................................................................................................13
White shading adjustment.....................................................................................................................................14
Tripod mounting.....................................................................................................................................................17
Viewfinder adjustment ...........................................................................................................................................18
Viewfinder indications............................................................................................................................................20
Filter selection........................................................................................................................................................21
White and black balance adjustment.....................................................................................................................22
Electronic shutter setting .......................................................................................................................................27
Setup card .............................................................................................................................................................29
Function menu.......................................................................................................................................................36
Specifications.........................................................................................................................................................67
Studio system operation ........................................................................................................................................72
Service information................................................................................................................................................73
Application note: Connecting prompter power.......................................................................................................75
Notice for a studio box lens use.............................................................................................................................76

1
Outline and features
The Z-HD5500 is a high-performance portable
HDTV Studio and EFP camera.
With its new developed 2.2 million pixels 3-CMOS
sensor, the Z-HD5500 provides outstanding
performance. The camera offers sharper and
cleaner HD images due to Hitachi’s
implementation of the latest digital processing
technology. The camera achieves outstanding high
sensitivity and no vertical smear specification.
Outstanding Features
New sensor
The New developed 2.2 million pixels full HD
2/3-inch equivalent CMOS image sensor
provides high sensitivity, low noise, and high
resolution excellent picture.
Latest generation Digital technology
The brand new, power efficient Digital Signal
Processor provides very faithful video image
reproduction and quality.
Digital video processing and encoding provide
low interference and high stability.
High sensitivity and Signal to Noise ratio
Low-noise circuit technology provides a signal to
noise ratio of 62dB.
Even at high gain, clear images are obtained
with little noise.
The standard sensitivity is rated sensitivity
should be F10 at 2000 lx.
In addition, the high gain mode can increase the
gain up to +24 dB to reproduce dark images
with a minimum illumination of 2 lx (F1.4).
Body design
The streamlined dockable camera body design
has a low center of gravity for ease of use on the
shoulder.
The lightweight, 2-piece dockable-style camera
body is designed with a robust ENG Viewfinder
attachment, and active cooling side panels.
Versatile Electric shutter
Three modes of shutter operation are provided:
Five PRESET electronic shutter speeds
LOCK SCAN to image computer monitors
without flicker
Automatic Electronic Shutter (AES) maintains
the video level with the lens iris and shutter
speeds.
Setup card
A small plug-in setup card (SD card) stores the
user setup and Scene File information.
Digital processing improves Image Highlight
Quality
･Real-time Lens Aberration Correction ( RLAC )
Lens chromatic aberration of magnification is reduced
by digital processing with supporting lenses.
･Knee saturation and auto-knee
The auto knee provides a wide dynamic range by
dynamically compressing the video level above 100％.
Knee saturation restores color saturation to scene
highlights above 100％.
･12-Vector and Linear Matrix masking
The 12-vector and linear matrix provide the user a
wide latitude in subject image color control. The 6-axis
linear matrix provides overall color control and the
12-vector color corrector provides independent control
of the hue and saturation for each of the three primary
and the three secondary colors.
･Skin tone detail
New generation Skin tone detail function provides
natural smooth skin tone picture.
･Skin tone masking
Skin tone masking provides “fine” “Painting” (hue
and saturation) of Skin tones without affecting other
colors in the scene.
･Automatic skin tone detail circuits
Skin tone detail smoothes and softens facial lines and
blemishes without sacrificing overall scene detail, also
provides two separate settings that can be used
separately or simultaneously.
Automatic skin tone detail provides an easy and fast
means to optimize skin tone detail.
･Variable Detail Boost Frequency
The detail frequency can be adjusted to provide
coarse or fine contours around edges of subjects in the
scene thereby reproducing a natural and pleasing
picture.
･Gamma Table
Adjusts the initial gamma gain to optimize the
reproduction of the dark scene components.
･Gray Scale Automatic Setup
This “through the lens” automatic setup is uses a
standard gray scale chart to automatically setup gain,
gamma, black and flare thus saving the video operator
time and effort.

2
Outline and features
･Automatic White Shading
Automatic white shading corrects white vertical and
horizontal shading at the push of a button. This
function provides separate memory of lens’
modulation shading characteristics to optimize the X1
and X2 lens extender positions.
･Preset Masking
Color matrix can be changed to several broadcast
camera standards.
･Paint Memory
Paint value which are gain, black and gamma, can be
stored to memory in camera.
･Ultra Gamma
Contrast can be set like film.
･High Dynamic Range (HDR)
HDR extends gradation (width of the brightness) of
highlight and shade of the picture.
Monitor must support HDR to display.
This camera HDR consists of Hybrid Log-Gamma
(HLG) and Perceptual Quantization (PQ).
Extensive User-Friendly
Quick focus
Quick Focus automatically opens the iris then
sets the video level with the electric shutter.
With the resulting shallow depth of focus, the
exact focus point can be set easily.
User-Programmable Switches (CS-1)
The user can assign Zebra, marker, VFDTL,
Quick Focus, FAW or Digital Extender to
either of the programmable switches for ease of
operation.
Scene Files
Gain, detail, masking, gamma and other
settings can be stored in eight scene file
memories.
Audio test tone (1kHz) is output when color
bars are selected.
Microphone input accepts phantom power
supply.
Viewfinder displays
Two mode zebra
Menu selection of over-level or between range
zebra is provided.
Safety zone and center mark display
Focus assist indicator is displayed on a view
finder to help adjust focus position.
Auto focus lens area marker can be displayed.
High performance viewfinder (VF-402)
2-inch black and white CRT monitor, aspect
16:9.
High VF resolution allows easy focusing.
Improved viewing angle and distance from eye
with employed larger VF lens.
Adjustable mechanical VF positioning and tilt
to set best viewing.
Built-in top tally
Red tally and green tally provided
Low center of gravity design.
Main operating switches are grouped forward
for easy access.
Featherweight design is ideal for portable use.
Remote control filter wheel
A convenient remote controller can be used to
select optical filters.
Studio system configurations
The Z-HD5500 can be constructed a fiber cable
system and triax cable system.
CU-HD500/CU-HD1000, CA-HF1000
For optical fiber 1080i system
CU-HD1200, CA-HF1200
For optical fiber 1080p/1080i system
CU-HD1300T/FT, CX-HD1300
For triax 1080p/1080i system.
RU-1000, RU-1500
Remote control unit
VF-402
2-inch black and white ENG viewfinder.
VF-L20HD
2-inch Color ENG viewfinder.
VF-HD500
5-inch black and white studio viewfinder.
HDF-700
7-inch color LCD studio viewfinder.
VF-L90HD
9-inch color LCD studio viewfinder

3
Warnings and cautions when using
WARNING
Viewfinder lens hazard
Do not point the eyelens toward the sun or
other bright light source. There is danger of
physical burns and loss of eyesight.
Do not place the viewfinder with the lens
pointed toward the sun. There is risk of burn
damage to the viewfinder interior.
CAUTION
Power supply
The specified power supply input voltage of this
camera is 12VDC. Be sure to use the designated
power supply.
Do not disassemble or modify
The camera contains precision internal
components. Do not open the cover or disturb
switches and controls other than designated.
There is risk of impaired performance and
damage.
Keep foreign object out of interior
Entry of water, metallic or other foreign
materials can cause failure and damage.
Select use and storage locations carefully
Avoid using or storing the equipment in the
following types of locations. Impaired
performance and damage can be caused.
Extremely hot or cold locations (exceeding -10
to 45°C), such as in enclosed vehicles.
Subject to strong vibration.
Humid or dusty locations.
Salt spray or corrosive gases.
Strong electromagnetic fields (e.g., near TV
or radio transmitters).
Where exposed to rain.
Do not cover or otherwise obstruct camera
heat dissipation during operation.
WARNING
Viewfinder high voltage
Do not open the viewfinder cover. There is
danger of touching internal high voltage
components.
CAUTION
When connecting and disconnecting
A lens, microphone and other cables, grasp the
connector by the body, not the attached cable.
Cables can be damaged by pulling on them.
Note when transporting
When transporting by hand, use the carrying
case. If shipping by truck or other means, pack
in the carrying case, then use further cushioning
and pack in a sturdy carton.
Tripod
Use a recommended tripod and install the
camera correctly.
Cleaning
Use a photographers air blower to clear dust
from the lens and filters. Wipe the case with a
soft dry cloth. Do not use volatile solvents, as
these may deform the materials.
In event of difficulty
Disconnect from power and contact the nearest
Hitachi Kokusai Electric service agency.
Note MOS image sensor characteristic phenomena
The following types of phenomena are innate characteristics of a MOS image sensor and are not
malfunctions. Be aware of these when using a MOS camera for broadcast or other demanding
applications.
Phenomena by shooting condition
With very bright flash light, picture has very bright portion and very dark portion in one frame like
partial exposure. At shooting fast object, the object image might be to wobble.
Dead pixel
If cosmic rays go through an image sensor, a pixel may have damage, and then a dead pixel will appear
on a screen. In high temperature or high gain, it is easier to see dead pixels than in normal conditions.
NoteDamage by laser
Laser light may do damage to image sensor. When you use laser light, be careful not to irradiate it on
the image sensor surface. The image sensor breakage by laser light is out of warranty.
( The repair is not free of charge)

4
Warnings and cautions when using
Optical Fiber Camera Cable & Connector Handling
This camera is using the optical fiber cable & connector which is required special technique for
handling.
1. Cable Connector & Receptacle
(1) FCF (Fiber Cable Female)
(2) FCM (Fiber Cable Male)
(3) FCFR (Female Receptacle)
(4)FCMR (Male Receptacle)
2. Maintenance tool & information
(1) Cleaning Stick (CANARE CLETOP 2.5/2.0)
(2) CLEANING KIT
Fiber optical cable assembly manufacture “CANARE” has Cleaning kit for the optical fiber cable
& connector available. Detail is in URL http://www.canare.co.jp

5
Facility names and functions A
A1
Accessory shoe
A small spotlight can be attached without the
light striking the lens, viewfinder or
microphone.
A2
Viewfinder front to rear lock screw
Secures the front to rear position adjustment
of the 2-inch viewfinder.
A3
Lens mount
B4 Bayonet type lens mount.
A4
Setup card slot(SD card)
Slot for inserting setup card. (MAX 2GB)
A5
Shoulder pad
A6
Viewfinder attachment
A7
Shoulder belt hook
Attachment for separately sold shoulder belt.
A8
CALL button
Press to call the CCU.
A9
POWER switch
Power is supplied from external unit via DC
power connector F1 (Refer to page 11.)
EXT: Power supplied via DC input connector.
CCU: Power supplied via fiber cable.
Power is supplied from CCU(Camera
Control Unit) via fiber cable. When this
switch is set to “EXT”, camera cannot be
powered on from CCU.
A10
Filter knob
Selectable Clear, Cross filter or ND filter by
hand.
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10

6
Facility names and functions B
B1
Shoulder belt hook
Attachment for separately sold shoulder belt.
B2
Viewfinder connector
Connector for viewfinder cable.
B3
MON/RET output connector (BNC)
HD-SDI signal output for monitor (75).
The same character signal as the viewfinder
is superimposed on the video signal to allow
checking the setting menu from the monitor
screen.
B4
REMOTE connector (4 pin)
Connector for remote control unit.
B5
RET button
Video return signal of channel1 on/off button.
While pressing this button, HD-SDI output
from “MON/RET output connector”and the
picture on view finder can be switched to
return picture.
B6
CCU connector
Connector for fiber optic cable.
B7
AC230V OUT connector
Maximum 100VA (AC230V) can be supplied
to external unit.
For detail, Refer to page 76.
B8
HD-SDI2 connector (BNC)
CA-HF1000
HD-SDI output.
CA-HF1200
3G HD-SDI output
CX-HD1000
HD-SDI, or SD-SDI output.
B9
PROMPT/GL connector (BNC)
CCU system: Prompter signal output.
Only camera: Genlock signal input.
(Tri-level sync or Black burst)
CAUTION
Do not connect the FS-F5 cable
during the Camera system power on.
B1
B2
B3
B4
B5
B6
B7
B8
B9

7
Facility names and functions C
C1
MIC connector (XLR, 3pin)
Connector for microphone.
The phantom power (DC+48V) can be
supplied to front microphone from camera
menu. (Refer to page 59.)
C2
LENS connector (12 pin)
Connector for lens cable.
C3
SHUTTER switch
Set to on to use the electronic shutter. At the
SEL position, the shutter speed and mode are
changed in the range set beforehand at the
setting menu.
C4
AUTO W/B BAL switch
AWB: AWB(Automatic White Balance) can be
executed by lifting up the switch.
Please set WHITE BAL switch D7 to A
or B before executing AWB.
ABB: ABB(Automatic Black Balance) can be
executed by pushing down the switch.
C5
INCOM MIC on/off button
Intercom microphone can be used while
pressing this button when switch E8 on camera
adaptor shown page 10 is set to “FRONT”.
C6
INCOM LEVEL control
Intercom receive level can be adjusted when
switch The intercom level can be adjusted
when selected E8 on camera adaptor shown
page 10 is set to “FRONT”
C7
MENU SELECT knob/button
On screen menu can be operated.
C1
C5
C6
C7
C2
C3
C4

8
Facility names and functions D
D1
POWER LED
Off: Camera power is off.
On(Green): Camera power is on.
D2
CS-2 button
A function assigned in the CUSTOM SW
menu can be turned ON or OFF.
D3
ND button
ND filter selects.
D4
ECC button
ECC filter selects.
D5
GAIN switch
Selects video circuit gain according to scene
brightness. Low, medium and high are
indicated beforehand in the setting menu.
D6
OUTPUT/AUTO KNEE switch
BAR: Color bar mode.
CAM/AUTO KNEE OFF:
Camera mode with AUTO KNEE off.
CAM/AUTO KNEE ON:
Camera mode with AUTO KNEE on.
D7
WHITE BAL switch
PRE: The white balance is set to the memory
value for 3200K.
A or B: When the AUTO W/B BAL switch C4 is
set to AWB, the white balance is adjusted
automatically.
D8
CS-1/CHECK switch
CHECK: Viewfinder displays camera
operating data such as switch status,
recording elapsed time and audio level.
CS-1: A function assigned in the CUSTOM SW
menu can be turned ON or OFF.
D9
MENU button
The menu is displayed in VF and MON/RET
signal.
D10
POWER switch
The power switch works with only CR-P2HD.
Note
WHITE BAL A and B are for ENG operation,
WHITE BAL A and B become common data
under system operation.
D1
D2
D4
D5
D6
D7
D8
D9
D10
0
C4
D3
