Intellisystem IT-VCHD1600JSE User manual

IT-VCHD1600JSE
HD Color Box Camera
The user manual
V1.5
（English）

1
Contents
1 Notes...........................................................................................................................2
2 Main Features.............................................................................................................2
3 Standard Accessories..................................................................................................3
4 Camera Description....................................................................................................3
5 OSD Menu Operation.................................................................................................4
6 Equipment Setup and internet connection..................................................................8
7 Maintenance and troubleshooting.............................................................................14
8 Fault phenomenon and processing ...........................................................................14
9 Standard Specification..............................................................................................15
10 Dimension ..............................................................................................................16
11 Copyright Notice ....................................................................................................17

2
1 Notes
Electric Safety
Installation and operation must accord with electric
safety standard.
Caution to transport
Avoid stress, vibration and soakage in transport,
storage and installation.
Polarity of power supply
The power supply of the product is +12V, the max
electrical current is 2A .Polarity of the power
supply plug drawing as follows.
Careful of installation
Do not grasp the camera head when carrying the
camera. Don’t turn camera head by hand. Doing so
may result in mechanical damage.
Never power on before installation is not completed.
Don’t dismantle the camera
We are not responsible for any unauthorized
modification or disassemble.
CAUTION!
The specific frequency of electromagnetic field
may affect the image of the camera!
2 Main Features
H.265 Support
Support H.265 encoding, enabling full HD
1080p/60fps video stream by ultra-low bandwidth,
lag-time within 200ms.
1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million
effective pixels high quality HD CMOS sensor, can
reach maximum 1920 x 1080 high resolution and
achieve quality image.
Double Interface
Support 3G-SDI interface, effective transmission
distance up to 150 meters (under 1080p30). SDI,
Network can output at the same time.
Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.
AAC Audio Encoding
Support AAC audio encoding, better sound quality
and smaller bandwidth.
Low-light
High SNR of CMOS sensor combined with 2D and
3D noise reduction algorithm, effectively reduce
the noise, even under low illumination conditions,
picture can still keep clean and clear.
PoE(optional)
Support PoE (802.3af), effectively reduce the cost
of engineering and routing.

3
ICR Infrared Filter
ICR filter with auto switch, keep watch over day and
night.
SDK
Support SDK, easy to implement the custom
requirement
3 Standard Accessories
When opened the package, please check and confirm
that all attachments shall be provided:
HD Color Box Camera x1
The user manual x1
Certificate/warranty card x1
4 Camera Description
Camera appearance
1. Lens focal adjustment after fixed screw holes
2. Lens mounting position (only for C / CS lens *)
3. Aperture control interface (only applicable
DC automatic aperture)
4. The installation location hole
5. Fuselage
Operating tips
Both sides threaded hole is consistent with the
positioning hole size, installation can be used instead
of each other.
Notice
Use C camera lens, you need to use special adapter
ring.
The back of the interface specifications
1. DC 12V power interface
2. Power light
3. Six spring terminals

4
Specific function shown in the table below:
Serial number
function
a
RS 485-
b
RS 485+
c
Alarm input 1
d
Alarm input 2
e
Alarm output 1
f
Alarm output 2
4. MENU key
Move MENU key up and down or so, in order to select
the MENU options. Press down for selected.
5. LINE OUT key
6. CF Card
7. LINE IN key
8. Internet port
9. 3G-SDI interface
Operating tips
Press "MENU" button and then to electricity and keep
holding down the "MENU" button 5 seconds, the
camera will restore factory Settings.
5 OSD Menu Operation
Key Description
The camera uses one buttons, around the menu button,
logo【 】up and down, logo【 】 left and right;
Under normal image press "MENU" key, the screen
displays the main menu, toggle【 】, from top to
bottom cycle options menu item and press select menu
options, use a scroll arrow or highlight the selected
item, press menu button to highlight the menu item;
Each menu page has a "Return" option, to Return to
the superior menu or exit the menu.
MENU(Main Menu)
Directly press "MENU" button to enter the main menu.
Operating tips
Toggle the buttons up and down【 】Choose a menu
item, press MENU to enter submenu.
Choose [Exit] press MENU button to exit menu.
MENU
Exposure
Color
Focus
Noise Reduction
Setting
Information
Restore Factory Settings
Exit

5
EXPOSURE
Operating tips
Mode: Set the camera exposure mode, Optional items:
Full Auto, WDR, Shutter, Priority, and Bright.
Shutter: Set the Shutter values, only when the Mode
for the Shutter Priority Mode and Manual Mode
effective, Optional items: 1/10000s, 1/6000s,
1/4000s,1/3000s,1/2000s,1/1500s,1/1000s,1/725s,1/5
00s,1/350s,1/250s,1/200s,1/125s,1/100s,1/90s,1/60s,
1/30s.
Gain Limit: Set the Gain value, Optional items: 0 ~ 15.
Bright: Set the brightness values, only when the
effective Mode for Bright Mode, Optional items: 0 ~
17.
ExpCompMode: Set the exposure Compensation
mode, can be installed: On, Off.
ExpComp: Set the exposure compensation value, only
when ExpCompMode item to On effective, Optional
items: -7 ~ 7.
Backlight: Set the backlight compensation, Optional
items: On, Off.
DRC Strength: Set up digital wide dynamic strength,
can set up different levels of wide dynamic effect,
Optional items: 0 ~ 8.
Anti Flicker: Set the flashing function, Optional items:
50Hz, 60Hz, Off.
Lens: Optional items: Manual, DC.
Return: get back
COLOR
Operating tips
WB Mode: Set the camera white balance mode,
Optional items: Auto, 3000K/Indoor, 4000K,
5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3, One
Push, Manual.
EXPOSURE
Mode Full Auto
ExpCompMode On
ExpComp -1
Gain Limit 3
Backlight Off
DRC Strength 3
Anti Flicker 50Hz
Lens Manual
Return
COLOR
WB Mode Auto
AWB sens Low
RG Tuning 2
BG Tuning -1
Saturation 100%
Hue 7
Return

6
R Gain: Adjust the camera white balance mode of red
gain, Optional items: 0 ~ 255（Effective only in WB
Mode is Manual).
B Gain: Adjust the camera white balance mode of blue
gain, Optional items: 0 ~ 255（Effective only in WB
Mode is Manual).
RG Tuning: Red gain fine-tuning, Optional items: -10
~ +10（Effective only in WB Mode is Auto）
BG Tuning: Blue gain fine-tuning, Optional items: -
10 ~ +10（Effective only in WB Mode is Auto）
Saturation: Color saturation adjustment, Optional
items: 60% ~ 200%.
Hue: Chroma adjustment, Optional items: 0 ~ 14.
Return: get back.
IMAGE
Operating tips
Luminance: Brightness adjustment, Optional items:
0~14.
Contrast: Contrast adjustment, Optional items: 0~14.
Sharpness: Sharpness adjustment, Optional items:
Auto, 0~15.
Flip-H: Image flipped horizontally. Optional items:
On, Off.
Flip-V: Image Flip Vertical. Optional items: On, Off.
Gamma: Optional items: Default, 0.45, 0.5, 0.56, 0.63
Style: Optional items: Norm, Clarity, Bright, Soft, 5S
LDC: Optional items: Off, 1-10.
Return: get back.
NOISE REDUCTION
Operating tips
2D NR: 2D noise reduction, Optional items: 1 ~ 5,
Close, Auto.
3D NR: 3D noise reduction, Optional items: 1 ~ 8,
Close.
Return: get back.
Luminance 7
Contrast 7
Sharpness 2
Flip-H Off
Flip-V Off
Gamma Default
Style Bright
LDC Off
Return
NOISE REDUCTION
2D NR 3
3D NR 3
Return

7
SETTING
Operating tips
Language: Language Settings, Optional items:
English, Chinese.
Protocol: Communication protocol Settings, Optional
items: VISCA, PELCO-D, PELCO-P.
VISCA Address: Address of the Visca Settings,
Optional items: 0 ~ 7.
P-D Address: P-D address settings, valid in PELCO-
D mode, Optional items: 0 ~ 254.
P-P Address: P-P address settings, valid in PELCO-P
model, Optional items: 0 ~ 31.
Baudrate: Camera baud rate settings, Optional items:
38400, 19200,9600,4800,2400.
Video Format: Camera video format settings,
Optional items: 1080P25, 1080P30, 1080P5, 1080P60,
1080I60, 1080I50, 720P50, 720P60.
EPTZ: Optional items: On, Off.
Zoom Limit: Optional items: 8x, 4x, 3x, 2x, 1.5x
Return: get back.
INFORMATION
RESTOREFACTORY SETTINGS
Operating tips
Yes: verify, press MENU to restore factory Settings.
No: cancel, press MENU to back to menu.
Return: get back.
SETTING
Language English
Protocol VISCA
VISCA Address 1
Baudrate 9600
Video Format 1080P30
EPTZ Off
Return
Information
Verion 7.2.02
Model O9.V
Data 2016-09-08
IP 192.168.100.99
Gateway 192.168.100.1
Netmask 255.255.255.0
Return
RESTORE FACTORY SETTINGS
Yes
No
Return

8
6 Equipment Setup and internet
connection
1Operating Environment
Operating System: Windows
2000/2003/XP/vista/7/8/10
Network Protocol: TCP/IP
Client PC: P4/128MRAM/40GHD/ support scaled
graphics card, support DirectX8.0 or more advanced
version.
2Equipment Installation
1) Connect internet camera to your internet or to your
PC directly via internet cable.
2) Turn on DC12V power.
3) The orange light of internet port lit on, green light
flashing, and the physical connection finished.
3Internet Connection
Connection ways between internet camera and
computer, as picture 1.1 and picture 1.2 shown:
Picture 1.1 connect by internet cable
Picture 1.2 Connect by router /interchanger
4IP camera visited/ controlled by LAN
4.1 Setup IP address
IP camera default IP address"192.168.100.88",
Unknown camera IP, view as below:
Method 1: connect camera to TV, press [menu] of the
behind camera, select "Information", the camera IP
will be show on screen.
Method 2: connect camera to PC with Ethernet cable,
use "upgrade_En.exe" to search for IP address.
Change IP address, 2 methods as below:

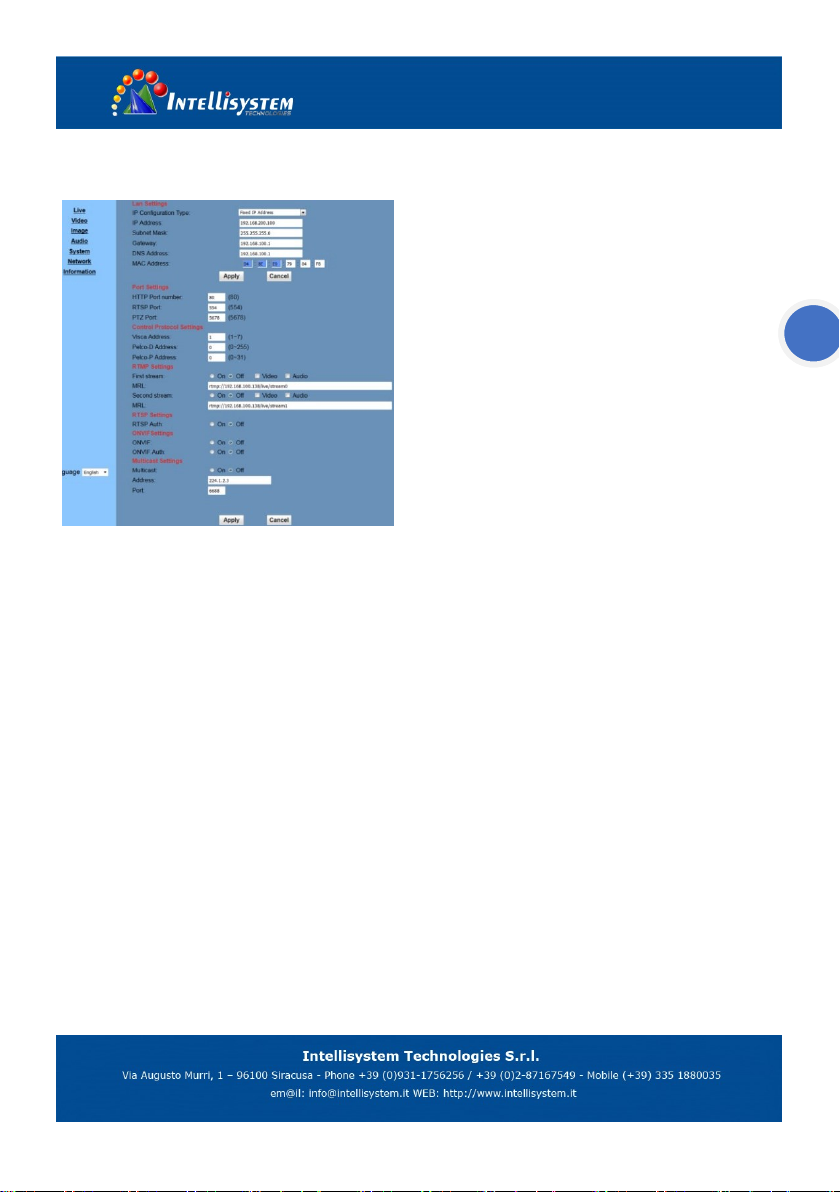

Method 1: On web control page, find "Network"--
->Change IP---->Click "Apply"---->
Restart camera

9
Method 2: Open "upgrade_En.exe", change IP and
click "Set".
NOTE!
IP camera default IP address"192.168.100.88", user
"admin", password "admin". After modified, IP
Camera be restart.
4.2 Visit/Access IP Camera
Input http://192.168.100 to IE (better with IE web
browser, others will cause little latency), a login
window pop up, input login name: admin, password:
admin, shown as below:
After login shown as below:
NOTE！
If user first time use this camera by internet (only for
new user), must install a player software (VLC).
Please go to VLC webside
http://www.videolan.org/vlc, download and Install
VLC (player software).After installation, login again,
will show as above:
5IP Camera accessed/controlled by WAN(internet)
5.1 Setup IPC accessed/controlled by dynamic DNS
2 dynamic DNS available:
Dyndns.org,
3322. Org
Router Port Mapping:
Take TP-LINK router for example, enter
Router Home Page (interface page),select "Transit
control"- "Transit rule"--"Virtual server"--"Virtual
service" ,add a new port number in "Outside Port",
add a new port number in "inside port", put camera IP
address to "IP address", then select "Apply" and

10
"Add", shown as below: (sorry, we do not have
English Version TP-Link here, so put the Chinese
Version picture for reference, the position is the same)
5.2 Dynamic DNS visit camera
Set domain name to camera, setup the parameter, then
dynamic DNS can access camera. Access link:
http://hostname:port number For example, setup host
computer name: youdomain.f3322.org, camera port
number: 554, Access link should be:
http://youdomain.3322.org:554.
NOTE！
If camera port default as 80, then unnecessary to input
port number, use host name can access camera
directly.
5.3 VLC stream media player monitoring
Open VLC media player, click "Media"->
"Open Network Steam", or click "Ctrl+N"; as below:
Input URL address:
Rtsp://ip: port number/1 (First stream);
Rtsp://ip: port number/2 (Second stream).
NOTE！
RTSP port number default value is 554.

11
6IP Camera parameter setup
6.1 Homepage introduction
Menu
All pages include 2 menu bars:
Real time monitoring: displaying video image
Parameter setup: with function buttons
1) Video viewing window
Video viewing window must be same as video
resolution, the bigger the resolution is, the bigger the
playing area is. Double click viewing window, will
show full-screen, double click again, will return to
initialized size.
Status bar in viewing window shown as below
1) Video playback pause button: control real-time
video pause, stop the last picture, click recoverable
video again.
2) Audio control buttons: can set silent mode.
3) Full screen switch button.
2) Language selection
Chinese/English/Russian

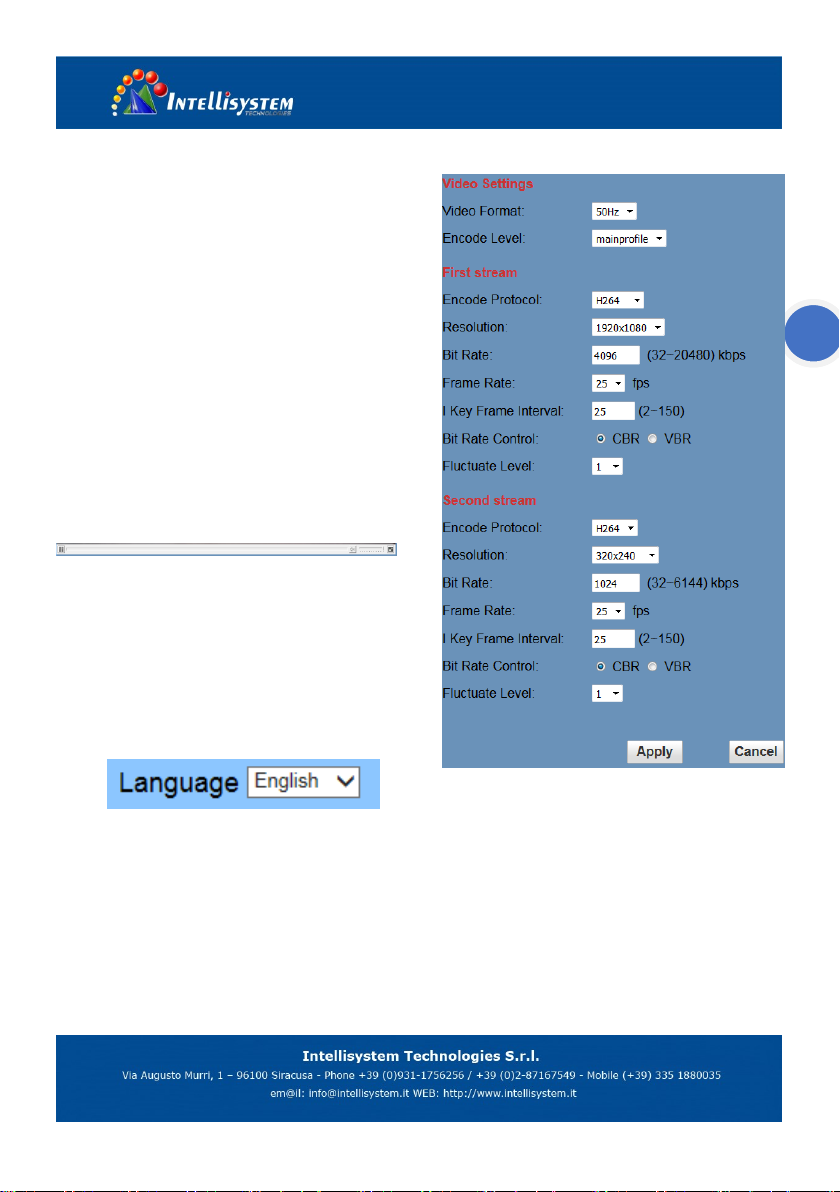

6.2 Media
1) Video format
Support 50HZand 60HZ, and osd three formats.
2) Encode Protocol
Support H.264, H.265and MJEPG three formats.
3) Encode Level
Support baseline, main profile, high profile three
levels

12
4) Resolution
First stream support1920x1080, 1280x720,
1024x576,
960x540, 640x480, 640x360, second stream support
50Hz: 1280x720, 1024x576, 720x576, 720x408,
640x360,480x270,320x240,60Hz:1280x720,1024x5
76,720x480,720x408,640x360,480x270,320x240,the
bigger resolution is, the clearer the image will be,
more network bandwidth will be taken.
5) Bit Rate
User can assign bit flow/stream, normally speaking,
the bigger bit flow is, the clearer the image will be.
The bit allocation must combine with network
bandwidth, when the network bandwidth is too
narrow and the allocated bit flow is too big, will cause
video signal flow not to be transmitted normally, the
video effect will be worse.
6) Frame rate
User can specify the size of the frame rate, generally,
the frame rate greater, the image smoother; Frame rate
is smaller, the more sense of beating.
7) I key frame interval:
Set interval between 2 I frame, the bigger interval is,
the response will be lower from viewing window.
8) Bit Rate control
Code stream control way:
Constant bit rate: video coder will be coding
according to preset speed
Variable bit rate: video coder will adjust the speed
based on preset speed to gain the best image quality.
9) Fluctuate level
Restrain the fluctuation magnitude of variable rate,
grade 1 ~ 6
6.3 System Setting, please click "System"
1) Work Mode
Work Mode RTSP
2) Reboot
Click the "Reboot" button, system restart.
3) User and password
The user can modify the password (letters and
Numbers only)
4) Apply / Cancel
Modify password and click the "apply" button to the
login page, press "cancel" button to cancel password
change.

13
6.4 Network Setting, please click
"Network"
1) Lan Settings
Default the IP address is 192.168.100.88, The MAC
address can be modified.
2) Port Settings
A. HTTP Port
IP address identifies the network device, the device
can run multiple web applications, each network
program using network port to transmit data, so data
transmission to be carried out between the port and
port. Port setting is to set up WEB SERVER program
using which port to transmit. When port mapping,
need to be consistent with the port number (default
port: 80)
B. RTSP Port
Network camera support RTSP protocol, use the VLC
tools broadcast.
C. PTZ Port
Support PTZ protocol, default port: 5678.
3) Control Protocol Setting
Setting camera control communication protocol,
include Visca address, Pelco-D address, Pelco-P
address.
4) RTMP Setting
Setting the camera stream, can set up two stream, in
the two stream selection control code stream of "On",
"Off", "Video", "Audio", etc.
5) RTSP Setting
Setting network camera rtsp protocol of "On", "Off".
6) ONVIF Setting
Setting the ONVIF protocol and ONVIF authorization
"On", "Off".
7) Multicast Setting
Setting multicast "On", "Off", and multicast address
(default address 224.1.2.3) and port (default 6688)
8) Apply / Cancel
Modify network parameters then press "Apply"
button to modify network parameters, press "Cancel"
button to cancel network parameters.

14

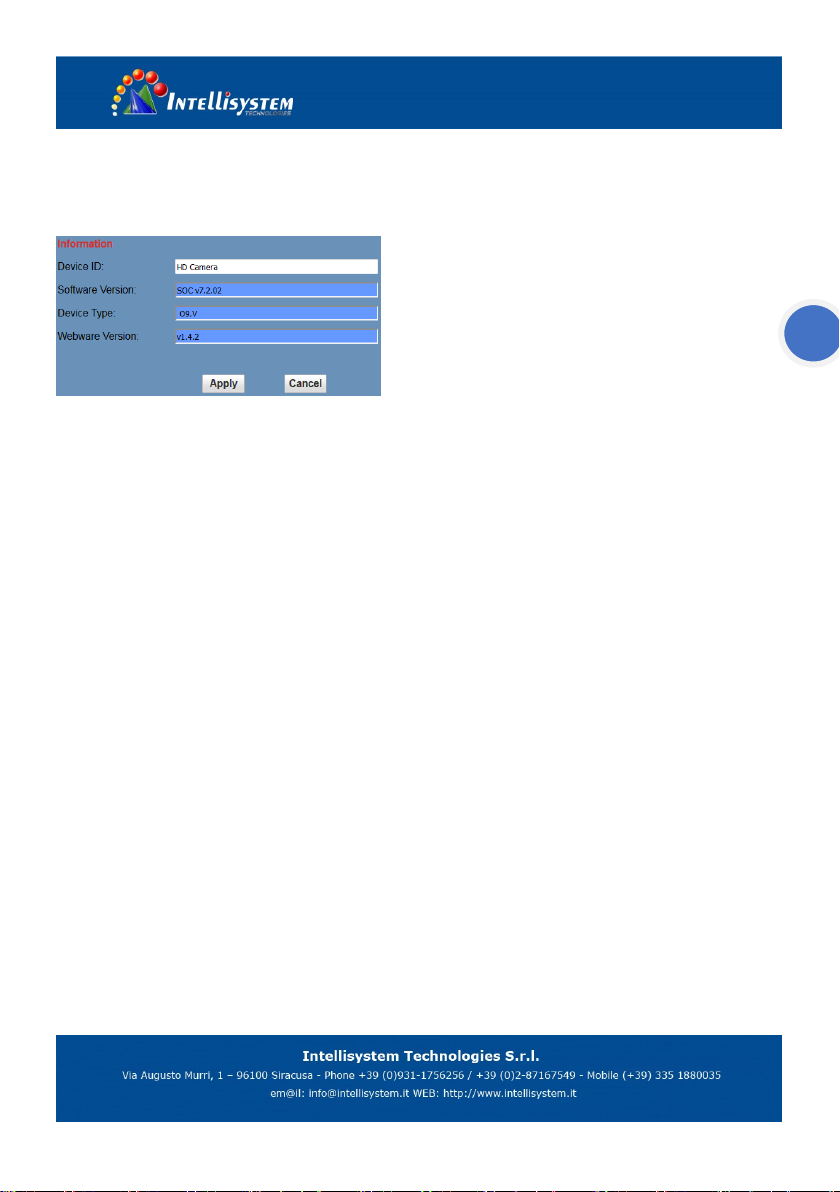

6.5 Device Information, please click
“Information”
Show the current device information, as shown below.
7Download the Network upgrade program
If you need the camera upgrade program, please
contact the manufacturer.
7 Maintenance and troubleshooting
Maintenance of the camera
If the camera is not used for a long time, after use,
please disconnect the power switch, at the same time
the ac power adapter and ac socket to disconnect.
Clear the dust on the camera housing, please use soft
cloth or cotton paper.
Clean the camera lens, please use dry soft cloth to
wipe, such as dirt serious when, please use neutral
detergent wipe gently. Don't use strong or with
corrosive cleaner, so as to avoid the lens scratches,
influence the image effect;
●Beyond the camera work intensity of
illumination
Camera may be more than camera work intensity of
illumination, the image cannot achieve the best effect.
The camera should avoid using at the
Following specific situation
Camera should avoid shooting especially bright
objects, such as sunshine, lamplight, etc.
The camera don't work in lighting conditions unstable
environment, otherwise the image will happen.
Don't can launch a large power of the facilities around
the use of radio waves, such as television or radio
transmitters, etc.
8 Fault phenomenon and processing
Images
Display shows no image
1, Check whether the camera power supply is
connected and the voltage is normal, whether the
power light shine.
2, Check whether video platform, TV cable
connection is normal
3, Check for manual lens aperture and open the
aperture.
Sometimes there is no image
1, Check whether video platform, TV cable
connection is normal.
2, check whether the camera installation safety, if
there is a strong shock.
Image blurring
1, Check whether the lens focusing accurately.
2, Check whether the lens surface is clean.
Control
Serial port can't control
1, The camera control parameters is set up correctly.

15
2, Check whether control line connection is good.
9 Standard Specification
Model
IT-VCHD1600JSE
Name
HD Color box Camera
Camera
Video System
1080P25,1080P30,1080P50,
1080P60,1080I60,1080I50,7
20P50,720P60
Sensor
1/2.7'', CMOS, Effective
Pixel: 2.07M
Scanning Mode
Progressive
Lens Mount
C/CS Mount
Auto Iris
DC Driver
Minimal
Illumination
0.05 Lux @ (F1.8, AGC
ON)
Shutter
1/30s ~ 1/10000s
White Balance
Auto, 3000K/Indoor, 4000K,
5000K/Outdoor, 6500K_1,
6500K_2, 6500K_3, One
Push, Manual
Day-night Mode
IR cut filter with auto switch
Digital Noise
Reduction
2D,3D digital noise
reduction
Backlight
Compensation
Support
PoE
Support(Option)
Ceiling
Installation
Support
IPC Video Features
Video
Compression
H.265/H.264/MJEPG
Video Stream
First Stream, Second Stream
First Stream
Resolution
1920x1080,1280x720,1024
x576,
960x540,640x480,640x360
Second Stream
Resolution
50Hz:
1280x720,1024x576,720x
576,720x408,640x360,480
x270,320x240
60Hz:
1280x720,1024x576,720x
480,720x408,640x360,480
x270,320x240
Video Bit Rate
128Kbps ~ 8192Kbps
Bit Rate Type
Variable Rate, Fixed Rate
Frame Rate
50Hz: 1fps ~ 50fps, 60Hz:
1fps ~ 60fps
Audio
Compression
AAC
Audio Bit Rate
96Kbps, 128Kbps, 256Kbps
Support protocols
TCP/IP, HTTP, RTSP,
RTMP, Onvif, DHCP,
Multicast, etc.
Input/Output Interface

16
HD Output
1x3G-SDI: BNC type,
800mVp-p, 75Ω, Along to
SMPTE 424M standard
Network Interface
1xRJ45:10M/100M adaptive
Ethernet ports
Audio Interface
1-ch: 3.5mm Audio
Interface, Line In
Power Connector
JEITA（DC IN 12V）
Reset Button
Support
Generic Specification
Input Voltage
DC 12V / PoE (802.3af)
(optional)
Current
Consumption
0.5A (Max)
Operating
Temperature
-10°C ~ 40°C (14°F ~
104°F)
Storage
Temperature
-40°C ~ 60°C (-40°F ~
140°F)
Power
Consumption
6W (Max)
MTBF
30000h
Size
127.5mm x 72.0mm x
60.0mm
Net Weight
375g (0.8lb)
10 Dimension
Left view
Front view
Top view

17
11 Copyright Notice
All contents of this manual cannot be cloned, copied
or translated without the permission of our company.
Product specifications and information which were
referred to in this document are for reference only, and
the content will be updated at any time without prior
notice
