INSTRUCTION MANUAL
MODEL
OUTDOOR USE WARNING
WARNING – TO PREVENT FIRE OR
ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
ISD-A20
Color Camera
e
c
o
p
r
o
d
u
c
t
s

Thank you very much for your wise choice of the Ikegami DPS Camera. Please carefully
read this Instruction Manual to keep your camera at full capacity. This DPS camera with
a 1/3” WDR digital image device.
Page
1. Handling precautions ............................................................................... E-1
2. General .................................................................................................... E-1
3. Features ................................................................................................... E-2
4. Names of parts and their functions .......................................................... E-3
5. Operation ................................................................................................. E-5
5-1. User setup ....................................................................................... E-5
5-2. SETUP switches and their functions ............................................... E-6
5-3. Entering the setup mode and its basics .......................................... E-6
5-4. Setup procedures ............................................................................ E-7
6. Warranty and after-sale service ............................................................... E-14
7. Specifications ........................................................................................... E-15
8. Appearance View
9. Setup Menu
Contents
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
NOTE:
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
CAUTION;
ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PART RESPONSIBLE
FOR COMPLIANCE COULD VOID THE USERS AUTHORITY TO OPERATE THE EQUIPMENT.
Instructions for Disposal of Electric and Electronic Equipment in Private Household
Disposal of used Electric and Electronic Equipment
(Applicable in the European Union and other European countries with separate
collection systems)
This symbol on the product, or in the related documents in the package, indicates that this
product shall not be treated as normal household waste. Instead, it should be taken to a proper
applicable collection point or depot for the recycling of electric and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent possible negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste handling of this
product. The recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please contact your local city authority, your
household waste disposal service or the place where you purchased the product.

E-1
1. Handling precautions
• Do not install the camera in a water-splashed or highly humid place.
• Do not use the camera where the ambient temperature drops below -10°C or rises
above +50°C. The images and component parts may be adversely affected or the
camera may get in trouble.
• Never open the case of the camera because there are precision parts inside.
Otherwise a trouble or accident may result.
• Do not put anything metallic and other foreign substances through the vent. A trouble,
fire or electric shock may result.
• Be sure to turn off the power before installing or making connections.
• Do not install the camera in places exposed to vibrations and shocks.
• Be very careful not to drop or shock the camera while carrying it in.
• Do not touch the imaging device
• Do not orient the camera to the sun.
• Some types of lenses may cause hunting, light amount drop or other problems. In
such case, readjust the lenses.
* Because of the digital image device characteristics, images may look rugged at high
temperatures. This does not mean the camera is in trouble.
2. General
This color camera is provided with a 1/3-inch approximate wide dynamic range (WDR)
digital image device. The CCTV camera features wide dynamic range, high sensitivity
and high resolution, and is equipped with the back-light compensation, automatic iris
control, line lock and other functions. The unit is best suit d for general surveillance.

E-2
3. Features
(1)Wide dynamic range (WDR)
The WDR function provides for backlight compensation in a wide dynamic range.
Being shot even in wide-illumination-fluctuating spots, bright-and-dark subjects can
be captured clearly and in a natural look.
(2)Automatic white balance
Thanks to the automatic follow-up white balance control (ATW), the white balance
adjusts itself no matter how greatly the subject's color temperature fluctuates.
(3)High-quality picture and high resolution
The camera is designed for low smear level and low noise. The DSP (Digital Signal
Processor) effectively enhances details, which achieves crisp and sharp images with
high signal-to-noise ratio. The high resolution is backed up by a horizontal resolution
of 480 TV lines and a vertical resolution of 400 TV lines.
(4)High sensitivity
Various modes of automatic gain control (AGC) are available to finely adjust the camera
settings depending on the subject's illumination conditions. With the AGC and slow
shutter in combination, high sensitivities of up to 0.015 lux/F1.4 are achieved.
(5)Camera setup function
The control buttons on the back of the camera enable to change and save the camera's
settings.
(6)Two-way automatic iris control
This function is available to switch between video type iris lens and DC type iris lens.
In other words, almost all types of CCTV automatic iris lenses can be employed.
(7)The flange focal distance adjusting mechanism makes it easy to readjust the focus
tracking when a zoom lens is used.

E-3
4. Names of parts and their
functions
A VIEW
A
COLOR CAMERA MODEL TYPE SER.NO.
IKEGAMI TSUSHINKI CO., LTD.
MADE IN JAPAN
AC24V 50/60Hz 245mA/DC12V 230mA
REV.
ISD
-
A20
CLASS2
AC24V50/60Hz245mA
DC12V230mA
6
2
13
12
34
1
5
7 9 10
11
14
8

E-4
①Lens mount (CS mount)
This is used to mount the lens on the camera. Many types of CS mountlens can be
attached.
②Flange focal distance adjuster
Used to readjust the flange focal distance (distance between lens mounting face and
imaging area), if the camera fails to come into focus with the lens’ focus ring.
③Focus lock screw
Used to lock the camera’s flange focal distance after is has been readjusted.
④Holder mounting screw holes
These holes are used to fix the camera on the camera holder. They are also applicable
to general tripods.
Note
To attach the camera on a tripod or a camera holder, be sure to use mounting
screws. (1/4" -20UNC) that are shorter than 5.5 mm.
⑤Lens selector switch
The switch has two positions, for a video iris lens and a DC iris lens.

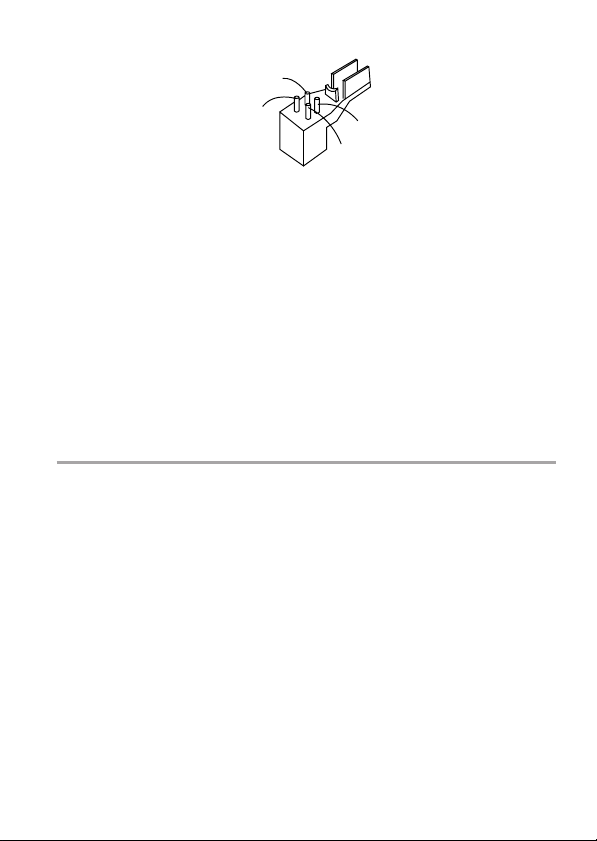

⑥Auto iris lens connector
Specifically used to connect the auto iris lens.
•For the video type auto iris lens
Set the lens selector switch to VIDEO position.
— Connector cable leads —
1. Red (power)
2. Not used
3. White (video)
4. Black (shielded)
*Dress the tip of the green lead to prevent a short-circuit.
•For the DC type auto iris lens
Set the lens selector switch to DC position.
— Connector cable leads —
1. Damping coil (-)
2. Damping coil (+)
3. Driving coil (+)
4. Driving coil (-)
*Connect the leads as shown above.
Refer also to the instructions of the lens.
Auto iris lens
3
2
1
4
Auto iris lens
3
2
1
4

E-5
⑦- ⑪Camera setup function switches
Refer to the Operation chapter.
⑫Video output terminal (VIDEO OUT)
Used to give out the video signal. Connect this to the video input terminal of a monitor,
switcher etc. (To be terminated with 75-ohm impedance.)
⑬Power indicator (POWER)
The LED indicator stays on in green while the camera power is on.
⑭DC12V/AC24V power input terminal
Keep the input power at DC10.5-15.0 V or AC24V±10%.
* This installation should be made by a qualified service person and should conform to
all local codes.
3
2
1
4
Numbers of connector pins
5. Operation
5-1. User setup
This camera can be user-preset for picture quality, synchronization, ID code and others.
The SETUP MENU is displayed in a tree view style, and the settings can be made using
onscreen characters.

E-6
5-2. SETUP switches and their functions
The pushbuttons and their markings at left are provided on the back
of the camera.
Up Switch (U) Used to select SETUP items (up and down).
Down Switch (D)
Right Switch (R) Used to modify the settings.
Left Switch (L)
Enter Switch (E) Used to enter and quit the setup mode and to save the settings.
* To enter the setup mode, hold down the E button longer than 2 seconds.
5-3. Entering the setup mode and its basics
5-3-1. SETUP MENU (Main menu)
Hold down the E button longer than 2
seconds, and the menu at left appears
onscreen. A highlighted item is now selected.
(1)CAMERA ID Up to 24 characters can be displayed onscreen.
(2)LIGHT CONTROL The backlight compensation and spot photometry modes are
selected. The wide dynamic level and DC type iris lens are
adjusted.
(3)GAIN The gain control and electronic sensitivity up modes are selected.
The electronic sensitivity multiplying factor is also selected.
(4)WHITE BALANCE The white balance mode is selected. The manual white balance
settings are made.
(5)SYNC The sync systems (INT and LL) are selected and set up.
(6)MENU LOCK The saved settings can be locked.
(7)SETUP The EXIT, CANCEL or RESET action is selected and executed.
①EXIT: Used to save the settings and to quit the menu.
②CANCEL: Used to return the settings to the previously saved
ones.
③RESET: Used to return the settings to the factory ones.
* New settings are not saved if EXIT is selected to quit the menu.
U
SET UP
D
E
LR
ＳＥＴＵＰ ＭＥＮＵ

→ＣＡＭＥＲＡ ＩＤ ＯＦＦ
ＬＩＧＨＴ ＣＯＮＴＲＯＬ
ＧＡＩＮ
ＷＨＩＴＥ ＢＡＬＡＮＣＥ ＡＴＷ
ＳＹＮＣ ＩＮＴ
ＭＥＮＵ ＬＯＣＫ ＯＦＦ
ＳＥＴＵＰ ＥＸＩＴ

E-7
5-3-2. SPECIAL MENU
Highlight EXIT on the SETUP MENU
screen. Hold down the L and R buttons
together, and the screen at left appears
onscreen.
(Page 1/2 shown at left)
(1) PAGE Selection of page 1/2 or 2/2.
(2) CHROMA Used to adjust the chroma level.
(3) DETAIL Used to adjust the details.
(4) SETUP Used to select the setup levels (0 IRE and 7.5 IRE).
(5) MONITOR Selection of monitor CRT or LCD
(6) DNR Switching on and off of noise reduction.
(7)
VIDEO STANDARD Used to switch between the video signal systems (NTSC/PAL).
(8) COLOR BAR Used to turn on and off the color bars.
(9) RET Used to go back to the main menu screen.
5-4. Setup procedures
5-4-1. CAMERA ID
(1)CAMERA ID ON/OFF setting
Highlight CAMERA ID. Using the E, L
or R button, access the ON/OFF
setting. Decide the ON or OFF setting
with the L or R button.
ＳＰＥＣＩＡＬ ＭＥＮＵ Ｖ１．００

→ＰＡＧＥ １／２
ＣＨＲＯＭＡ 
ＤＥＴＡＩＬ 
ＳＥＴＵＰ ７．５ＩＲＥ
ＭＯＮＩＴＯＲ ＣＲＴ
ＤＮＲ ＯＦＦ
ＲＥＴ
ＳＥＴＵＰ ＭＥＮＵ

→ＣＡＭＥＲＡ ＩＤ ＯＦＦ
ＬＩＧＨＴ ＣＯＮＴＲＯＬ
ＧＡＩＮ
ＷＨＩＴＥ ＢＡＬＡＮＣＥ ＡＴＷ
ＳＹＮＣ ＩＮＴ
ＭＥＮＵ ＬＯＣＫ ＯＦＦ
ＳＥＴＵＰ ＥＸＩＴ

E-8
(2)ID characters setting
Keep CAMERA ID highlighted and press
the E button. The screen at right shows up.
①ID
Press the E button on ID, and the
cursor appears. With the L or R
button, select a character. Press the
E button to save it, and the character
box advances to the next one. To
delete a character, press the E button to go through the code and place the cursor
in the character to delete. Press the L or R button to get the box blank.
②ID ALL CLEAR
Highlight this item and press the E button. The ID code is cleared.
③ID POSITION
Highlight this item and press the L or R button. In this way, the ID code can be
positioned up or down.
④RET
Press the E button to go back to the main menu screen.
5-4-2. LIGHT CONTROL
(1)Select LIGHT CONTROL on the main
menu screen. Press the E button, and
the screen at right shows up.
*The IRIS LEVEL item appears only
when the lens selector switch at the
camera's back is set at DC.
(2)BACKLIGHT CMP.
Highlight this item and the backlight
compensation modes can be selected
(ON, 1SPOT, 2SPOT and OFF).
①ON
Usual backlight compensation is made.
ＩＤ ＥＤＩＴ

→ＩＤ.....................

ＩＤ ＡＬＬ ＣＬＥＡＲ
ＩＤ ＰＯＳＩＴＩＯＮ ＵＰ
ＲＥＴ
ＬＩＧＨＴ ＣＯＮＴＲＯＬ

→ＢＡＣＫＬＩＧＨＴ ＣＭＰ． ＯＦＦ
Ｗ．ＤＹＮＡＭＩＣ 
ＩＲＩＳ ＬＥＶＥＬ 
ＬＥＮＳ ＩＲＩＳ
ＦＦＤ ＯＦＦ 
ＲＥＴ

E-9
②1SPOT
Select “ISPOT” and press the “E” button,
and the screen shown at right appears.
Highlight “ADJUST ZONE” and press
the “E” button, and the photometric
range setting screen shows up.
Each time the E button is pressed, the
photometric frame color turns blue,
green and red in this order
• Blue
Using the U, D, L or R button, the
field can be moved wherever you like.
• Green
Using the U, D, L or R button, the
field can be enlarged.
• Red
Using the U, D, L or R button, the
field can be reduced.
* To quit the field setting screen, hold down the E button longer than 2 seconds.
Once the 1SPOT ZONE screen appears, select RET and press the E button. The
previous menu shows up.
③2SPOT
As with the 1SPOT mode, two photometric fields can be preset. Take the same
procedure as for the 1SPOT mode.
④OFF
The backlight compensation function is off.
(3)W. DYNAMIC
The wide dynamic level can be varied with the L and R buttons. The intermediate
level is initially set. In shooting scenes with greatly fluctuating light quantities, move
the marker to the right to get a higher effect. Position the marker while watching an
actual scene.
(4)IRIS LEVEL
This item appears when the DC type iris lens is in use. Move the marker to the
right, and the lens aperture gets opener (Brightness enhanced). Position the marker
while watching an actual scene.
(5)LENS IRIS
Select the lens’ iris control system. (AUTO, MANUAL)
１ＳＰＯＴ ＺＯＮＥ

→ＡＤＪＵＳＴ ＺＯＮＥ
ＲＥＴ
ＳＰＯＴ ＺＯＮＥ−１ ＥＮＴ：２ＳＥＣ→ＲＥＴ

E-10
①AUTO
The automatic iris lens control function is enabled.
②MANUAL
This is selected with a manual iris lens in use. White saturation at high
illumination is suppressed. In other words, too bright a subject can be reproduced
rather clearly than usual.
(6) FFD
Select this item, and the flicker reduction function can be turned on and off with the
“L” and “R” buttons. (AUTO, OFF, ON)
①AUTO
Flickers are automatically detected. The flicker reduction function works only when
there are flickers.
②OFF
The flicker reduction function is disabled.
③ON
The flicker reduction function is enabled all the time.
* At the AUTO and ON positions, there are the following two choices: FR and FL.
Choose from them according to shooting scenes.
A)FR (Flicker Reduce)
Select this when dynamic range is required.
B)FL (FlickerLess)
Select this to eliminate flickers completely.
(7)RET
Press the E button to go back to the main menu screen.
5-4-3. GAIN
(1)Select GAIN on the main menu screen. Press the E button, and the screen at right
shows up.
(2)GAIN
With the L and R buttons, the gain control
modes can be selected.
①AGC
This mode is initially set to
automatically optimize the sensitivity
and noise levels.
②HYP-AGC
This mode is higher in sensitivity than
AGC. But images may look rugged at higher sensitivities.
ＧＡＩＮ

→ＧＡＩＮ ＡＧＣ
ＳＥＮＳ ＵＰ ＯＦＦ
ＳＬＯＷ ＳＨＵＴＴＥＲ ｘ２
ＲＥＴ

E-11
(3)SENS UP
The electronic sensitivity up modes can be selected with the L and R buttons.
At all the positions but OFF, the automatic gain control function turns on itself.
The HYP-AGC mode can also be switched on.
①OFF (initial setting)
②S/N
The signal-to-noise ratio priority mode is used in shooting subjects that vary in
brightness and move slightly.
③STD
The standard mode is used in shooting subjects in brightness-changing spots to
suppress both blurry images and rugged looks.
④MOVE
The motion priority mode is used in shooting subjects that vary in brightness and
move greatly like on the street and in parking lots.
* Note: With the sensitivity multiplying factor at maximum, the motion-dependent
blurriness and ruggedness look the same in all the 3 modes.
(4)SLOW SHUTTER
The electronic sensitivity multiplying factor can be adjusted with the L and R buttons.
x2, x4, x8, x16, x32
The higher the factor, the higher the sensitivity, but motions at maximum factor look
unnatural.
5-4-4. WHITE BALANCE
The white balance mode is selected. The manual white balance settings are made.
(1)The white balance modes can be switched with the L and R buttons.
①ATW (initial setting)
White balance is automatically followed up.
②ATW Ex
White balance is automatically followed up, but the color temperature range gets
higher than the ATW mode. Compared with the ATW mode, color fading may be
caused under usual light sources.
③LOW
This fixed-gain mode keeps the sensitivity low for brighter spots.
④MID
This fixed-gain mode keeps the sensitivity middle between HIGH and LOW.
⑤HIGH
The fixed-gain mode keeps the sensitivity high for darker spots.

E-12
③AWC
This is the so-called one-push automatic white balance control. Shoot a target
white subject and press the E button, and the white balance will be adjusted.
④MANUAL
Select MANUAL, press the E button
and the screen at left appears
onscreen.
R GAIN is used to adjust the
reddish shades.
B GAIN is used to adjust the bluish
shades.
5-4-5. SYNC
(1)The INT and LL modes can be
selected with the L and R buttons.
(2)INT
The internal sync mode is selected.
(3)LL
The line lock mode is selected. Press the
E button, and the screen at right shows
up.
①PHASE
With the L or R button, move the marker to finely adjust the phase.
②+90DEG
With the E button, the phase angle can be adjusted to 0°, 90°, 180°or 270°in the
increment of 90°.
③RET
Used to go back to the main menu screen.
5-4-6. MENU LOCK
The menu lock function protects saved settings against accidental modifications.
(1)Locking
Get the saved settings locked with the L and R buttons.
(2)Operation
When locked, EXIT alone is effective and all the other actions are inoperative.
(3)Unlocking
Press the U, R, D, L, U, D and E buttons in this order. If a wrong button is pressed
halfway, start all over again.
ＷＨＩＴＥ ＢＡＬＡＮＣＥ

→Ｒ ＧＡＩＮ 

Ｂ ＧＡＩＮ 


ＲＥＴ
ＳＹＮＣ ＬＬ

→ＰＨＡＳＥ 

＋９０ＤＥＧ
ＲＥＴ

E-13
5-4-7. SPECIAL MENU
(1)Highlight SETUP on the main menu
screen and hold down the L and R
buttons together. The SPECIAL MENU
screen at right shows up.
(2)PAGE
Pages can be selected with the “L” and
“R” buttons.
(3)CHROMA
With the L and R buttons, the chroma level can be adjusted. Make the adjustment to
your desired level while watching an image on screen.
(4)DETAIL
With the L and R buttons, the details can be adjusted. Make the adjustment to your
taste while watching an image on screen.
(5)SETUP
With the L and R buttons, the setup level can be selected: 0 IRE and 7.5 IRE.
(6)MONITOR
The optimum picture quality can be selected according to the monitor used (CRT or
LCD).
①CRT
Used when the camera is connected with a CRT (cathode ray tube) monitor.
②LCD
Used when the camera is connected with an LCD monitor.
(7)DNR
The noise reduction function can be switched on and off.
ＳＰＥＣＩＡＬ ＭＥＮＵ Ｖ１．００

→ＰＡＧＥ １／２
ＣＨＲＯＭＡ 
ＤＥＴＡＩＬ 
ＳＥＴＵＰ ７．５ＩＲＥ
ＭＯＮＩＴＯＲ ＣＲＴ
ＤＮＲ ＯＦＦ
ＲＥＴ
ＳＰＥＣＩＡＬ ＭＥＮＵ Ｖ１．００

→ＰＡＧＥ ２／２
ＶＩＤＥＯ ＳＴＡＮＤＡＲＤ 
ＣＯＬＯＲ ＢＡＲ 
ＲＥＴ

E-14
(8)VIDEO STANDARD
The video signal systems (NTSC/PAL)
are switched here. Select VIDEO
STANDARD, press thee button and the
warning screen at right shows up.
①CANCEL
Used to go back to the SPECIAL
MENU screen.
②OK
Used to go to the SELECT VIDEO
STANDARD screen. (See at right.)
Highlight VIDEO STANDARD. With
the L or R button, the NTSC and
PAL systems can be switched each
other.
* Each time another system is
selected, the current settings will
be back to their factory.
Select RET, and the SPECIAL MENU screen reappears.
(9)COLOR BAR
Press the E button to get the color bars displayed. Press the E button again to go back
to the SPECIAL MENU screen.
(10)RET
Used to go back to the main menu screen.
6. Warranty and after-sale service
A warranty accompanies this product. Read and fill out the warranty card that you have
received at your dealer. Keep this card in a safe place.
• Please consult Ikegami Electronics (U.S.A.) Inc. or Ikegami Electronics (Europe)
GmbH or your dealer for full warranty information. Your dealer will repair or replace
free of charge within the warranty period according to the warranty coverage.
• For repairs after the expiration of the warranty period, consult your dealer or sales
representative. It will first be judged whether the trouble is repairable or not. Charged
servicing will then be made upon request of the user.
•Before you ask for servicing, take trouble of reading the Instruction Manual. If the
unit still fails, take note of the model number, date of purchase, problem, etc. in
detail, and inform your dealer or sales representative.
•If you have questions about the after-sale service, contact your dealer or sales
representative.
* We suggest you ask for preventive inspection earlier.
ＷＡＲＮＩＮＧ！！
Ｉｆ ｔｈｅ ｓｅｔｔｉｎｇ ｏｆ ｔｈｅ
ｖｉｄｅｏ ｓｔａｎｄａｒｄ ｉｓ ｃｈａｎｇｅｄ,
ａｌｌ ｔｈｅ ｓｅｔｔｉｎｇｓ ａｒｅ
ｉｎｉｔｉａｌｉｚｅｄ．

Ｄｏ ｙｏｕ ｃｈａｎｇｅ ｔｈｅ ｓｅｔｔｉｎｇ?

→ＣＡＮＣＥＬ
ＯＫ
ＳＥＬＥＣＴ ＶＩＤＥＯ ＳＴＡＮＤＡＲＤ

→ＶＩＤＥＯ ＳＴＡＮＤＡＲＤ ＮＴＳＣ
ＲＥＴ

E-15
7. Specifications
(1) Imaging device: 1/3-inch WDR digital imaging device
(2) No. of effective pixels: Approx. 380,000 pixels, 720(H) x 540(V)
(3) Scanning system: NTSC system
(4) Sync system: INT/Line-Lock (phase adjustable)
(5) Video output: VBS 1.0 Vp-p/75 ohms
(6) Horizontal resolution: 480 TV lines
(7) S/N ratio: 50 dB (luminance signal, at rated illumination, Detail OFF
and Weight ON)
(8) Minimum subject illumination: 0.5 lux/F1.4 (HYPER-AGC ON)
0.015 lux/F1.4 (electronic sensitivity up x32) (Light source
color temperature 3100K, subject reflectance 89.9%)
(9) AGC: ON (AGC, HYPER-AGC)/OFF (LOW, MID, HIGH) selectable
(10) Electronic sensitivity up: Automatic (up to 32 times: interlocked with AGC mode)
(11) White balance: ATW/ATWex/AWC/MANU selectable
(12) WDR function: Variable at 36 levels
(13) Iris level: Adjustable
(14) Camera ID: Up to 24 characters (alphanumeric and symbols)
(15) Power supply: AC 100 V ±10% (50/60 Hz)
(16) Power consumption: AC 24V 245mA
DC 12V 230mA
(17) Ambient operatingtemperature: -10 to +50°C
(18) Camera mount: 1/4" -20UNC (top and bottom mountable)
(19) Outer dimensions: 62(W) x 55(H) x 118(D) mm
(20) Weight: Approx. 420 g
(21) Input/output connectors: • VIDEO OUT: BNC
• LENS; 4P (applicable plug E4-191J-150 or equivalent)
(22) Accessories: • Instruction Manual, 1 copy
* Specifications and design are subject to change for product improvements without
notice.

Muchas gracias por haber elegido sabiamente la cámara DPS de Ikegami. Lea cuidadosamente
este manual de instrucciones para mantener su cámara en las mejores condiciones de funcionamiento.
La cámara DPS está equipada con un dispositivo de imagen digital WDR de 1/3".
Pàgina
1. Precauciones de manejo ......................................................................... S-1
2. Generalidades ......................................................................................... S-1
3. Características ......................................................................................... S-2
4. Nombres de las partes y sus funciones ................................................... S-3
5. Ajuste ....................................................................................................... S-5
5-1. Ajuste del usuario ............................................................................ S-5
5-2. Conmutadores de ajuste y sus funciones ....................................... S-6
5-3.
Entrada en el modo de configuración y sus puntos básicos ......................... S-6
5-4. Procedimientos de configuración .................................................... S-7
6. Garantía y servicio postventa .................................................................. S-15
7. Especificaciones ...................................................................................... S-16
8. Appearance View
9. Setup Menu
Indice
El signo de exclamaci n dentro de un tri ngulo equil tero tiene la finalidad de avisar al usuario de
la presencia de instrucciones de funcionamiento y mantenimiento (reparaciones) importantes en los
manuales que acompa an al aparato.
NOTA:
Este equipo ha sido probado y ha demostrado cumplir con los l mites establecidos para los dispositivos digitales de
la clase A, de conformidad con el Apartado 15 de las normas de la FCC. Estos l mites han sido establecidos para
proporcionar una protecci n razonable contra la interferencia perjudicial cuando el equipo se utiliza en un ambiente
comercial. Este equipo genera, utiliza y puede radiar energ a radioel ctrica, y, si no se instala y utiliza seg n las
indicaciones del manual de instrucciones, puede causar interferencias perjudiciales en las comunicaciones por
radio. El funcionamiento de este equipo en una zona residencial causar probablemente interferencias
perjudiciales, en cuyo caso, el usuario tendr que eliminarlas corriendo el mismo con los gastos pertinentes.
AVISO:
CUALQUIER CAMBIO O MODIFICACI N NO APROBADA EXPRESAMENTE POR LA PARTE RESPONSABLE DEL BUEN
FUNCIONAMIENTO DEL APARATO PODRŒA ANULAR LA AUTORIZACI N DEL USUARIO PARA UTILIZAR EL EQUIPO.
Instrucciones para eliminar equipos eléctricos y electrónicos de una casa privada
Eliminación de equipos eléctricos y electrónicos usados
(Normas aplicables en la Unión Europea y en otros países europeos con diferentes
sistemas de recogida)
Este símbolo en el producto, o en los documentos relacionados, indica que este producto no
deberá ser tratado como un residuo doméstico normal. En cambio, deberá ser llevado a un
punto o lugar donde los equipos eléctricos y electrónicos sean recogidos para ser reciclados.
Asegurándose de que este producto sea eliminado correctamente, usted ayudará a impedir las posibles
consecuencias negativas sobre el medio ambiente y la salud humana que podrían ser causadas por el
manejo inapropiado de este producto como residuo doméstico. El reciclado de los materiales ayudará a
conservar los recursos naturales.
Para conocer una información más detallada acerca del reciclado de este producto, póngase en contacto con
las autoridades de su localidad, con su servicio de recogida de residuos domésticos o con el comercio donde
adquirió el producto.

S-1
1. Precauciones de manejo
• No instale la cámara en un lugar donde se salpique agua o donde haya mucha
humedad.
• No utilice la cámara donde la temperatura ambiental sea inferior a -10°C o superior a
+50°C. Las imágenes y las piezas componentes podrían ser afectadas o la cámara
podría funcionar mal.
• No abra nunca la caja de la cámara porque en su interior hay piezas de alta precisión.
De lo contrario podría producirse un problema o un accidente.
• No meta ningún objeto metálico ni otras sustancias extrañas a través de las aberturas
de ventilación. Podría producirse un problema, un incendio o una descarga eléctrica.
• Asegúrese de desconectar la alimentación antes de instalar la cámara o hacer sus
conexiones.
• No instale la cámara en lugares expuestos a vibraciones o golpes.
• Tenga cuidado para no dejar caer ni golpear la cámara mientras la transporta.
• No toque el dispositivo de imagen.
• No oriente la cámara hacia el sol.
• Algunos tipos de objetivos pueden causar fluctuaciones, reducción de iluminación u
otros problemas. El tal caso, vuelva a ajustar el objetivo.
* Debido a las características del dispositivo de imagen digital, las imágenes pueden
aparecer alteradas a alta temperatura. Esto no significa que la cámara esté estropeada.
2. Generalidades
Esta cámara en color dispone de un dispositivo de imagen digital de gama dinámica
amplia (WDR) de 1/3 de pulgada aproximadamente. La cámara CCTV incorpora una
gama dinámica amplia, alta sensibilidad y alta resolución, y está equipada con
compensación de luz de fondo, control automático del iris, bloqueo de línea y otras
funciones. La cámara es muy apropiada para realizar funciones de vigilancia general.

S-2
3. Características
(1)Gama dinámica amplia (WDR)
La función WDR proporciona compensación de luz de fondo en una amplia gama
dinámica. Filmados incluso en lugares donde la iluminación fluctúa considerablemente,
los motivos brillantes y oscuros se pueden captar claramente con un aspecto natural.
(2)Balance automático del blanco
Gracias al control del balance del blanco de seguimiento automático (ATW), el balance
del blanco se ajusta automáticamente sin importar lo grande que sean las fluctuaciones
en la temperatura del color del motivo.
(3)Imagen de alta calidad y alta resolución
La cámara ha sido diseñada para que tenga niveles de poca borrosidad y poco ruido.
El DSP (procesador de señal digital) mejora eficazmente los detalles, lo que produce
unas imágenes claras y nítidas con una relación señal a ruido alta. La alta resolución
cuenta con el apoyo de una resolución horizontal de 480 líneas de TV y una resolución
vertical de 400 líneas de TV.
(4)Alta sensibilidad
Se encuentran disponibles varios modos de control automático de ganancia (AGC)
para ajustar con exactitud la configuración de la cámara dependiendo de las
condiciones de la iluminación del motivo. Con la combinación del AGC y el obturador
de baja velocidad, se alcanzan sensibilidades de hasta 0,03 luxes/F1,4.
(5)Función de configuración de la cámara
Los botones de control en la parte posterior de la cámara permiten cambiar y guardar
la configuración de la cámara.
(6)Control automático del iris de dos formas
Esta función se encuentra disponible para poder cambiar entre el objetivo con iris tipo
vídeo y el objetivo con iris tipo DC. Es decir, se pueden emplear la mayoría de los
tipos de objetivos con iris automático CCTV.
(7)El mecanismo de ajuste de distancia focal de brida facilita volver a ajustar el
seguimiento de enfoque cuando se utiliza un objetivo zoom.
