Hitachi NEXT Series User manual

INSTRUCTION MANUAL
DSP-132W6N
DSP-145W6N
DSP-160W6N
DSP-200W6N
DSP-240W6N
●This INSTRUCTION MANUAL explains in detail
the important items that require attention;
observed as the following:
●
Always observe notations of WARNING, CAUTION
and IMPORTANT, as they indicate considerable
risks to safety.
NEXTseries
Water-Cooled
GRAPHIC DESCRIPTIONS:
WARNING
CAUTION
IMPORTANT
TWO STAGE
Prior to operation of this air compressor,
ensure that all operators read and
understand this INSTRUCTION MANUAL
completely, thereby operating it safely
and properly.
Place the INSTRUCTION MANUAL near
the air compressor to make it available
at any time, and refer to it as the need
arises.
：This is a warning. If handled improp-
erly, death or severe injury could
result.
：This is a caution. If handled improp-
erly, injury and/or physical damage
could result.
：This graphic is for items that need
attention, other than WARNING and
CAUTION.
：
This graphic is a page number reference.
：This graphic is Variable Speed-control
Drive (VSD) models.
HITACHI Oil-Free Rotary Screw Air Compressor
Fixed Speed
DSP-160V6WN
DSP-240V6WN
Variable Speed Drive Control
Water-Cooled

How to Use This Instruction Manual
■Model Number Nomenclature
●This Instruction Manual covers the standard models of the Hitachi DSP air compressor.
●This Instruction Manual intended to assist daily operators and maintenance personnel
in the installation, operation, control and service of the Hitachi DSP air compressor.
●Prior to operation of this air compressor, ensure that all operators read and understand
this INSTRUCTION MANUAL completely, thereby operating it safely and properly.
Place the INSTRUTION MANUAL near the air compressor to make it available at any
time, and refer to it as the need arises.
●If there are any questions or comments, please contact the local Hitachi distributor or
the nearest Hitachi office.
●
Fill your DSP’s model name, Serial Number, etc. into the back cover of this Instruction Manual.
Such information may be helpful when ordering parts, periodic maintenance, and overhaul.
●Hitachi may make improvements and/or changes in the products described in this publication at any time without notice.
DSP-160VW6N
Dry or Oil-Free Rotary
Screw Air Compressor
Packaged
N-Type (NEXT Series)
Frequency (6: 60 Hz)
W: Water-Cooled
w/ V: VSD, w/o V: Fixed
Motor Output (kW)
WARNING
Never remove a protective device from the air compressor or modi-
fy the air compressor.
It is imperative to install an earth leakage (ground) circuit breaker
on the power cable. This prevents a ground fault accident.
DSP air compressors are not designed, intended or approved for
breathing air applications. Hitachi does not approve specialized
equipment for breathing air applications and assumes no responsi-
bility or liability for compressors used for breathing air services.

1
Contents
1. SAFETY  ………………………………………………………………………………………… 2
2. GENERAL DESCRIPTION
2.1 Appearance……………………………………………………………………… 4
2.2 Components …………………………………………………………………… 5
2.3 Daily Operating Components ………………………………………………… 7
3. OPERATING THE DSP 3.1 Instrument Panel………………………………………………………………… 10
3.2 Start/Stop Operation …………………………………………………………… 12
3.3 How to Use the liquid Crystal Display (LCD)………………………………… 13
3.4 How to Use the Digital Monitor ……………………………………………… 23
3.5 Daily Operation ………………………………………………………………… 30
3.6 Oil Mist Remover Daily Operation…………………………………………… 32
3.7 Adjusting the DSP ……………………………………………………………… 32
4. TROUBLESHOOTING 4.1 Protective Devices ……………………………………………………………… 33
4.2 Troubleshooting the Air Compressor………………………………………… 35
4.3 Troubleshooting the Oil Mist Remover……………………………………… 36
5. INSTALLING 5.1 Unpacking the DSP Air Compressor ………………………………………… 37
AND PIPING THE DSP 5.2 Conveying the DSP Air Compressor ………………………………………… 37
5.3 Installing the DSP Air Compressor  ………………………………………… 38
5.4 Piping the DSP Air Compressor ……………………………………………… 39
5.5 Ventilation of Air Compressor Room………………………………………… 43
6. STARTUP OPERATION 6.1 Air Compressor ………………………………………………………………… 44
6.2 Oil Mist Remover ……………………………………………………………… 46
7. WIRING 7.1 Power Supply Transformer and Power Cable ……………………………… 47
7.2 MIV and WIVM wiring ………………………………………………………… 47
7.3 Connecting a Power Cable …………………………………………………… 47
7.4 Wiring Connection Diagram…………………………………………………… 50
7.5 Control Panel /LCD monitor Specifications ………………………………… 50
8. STANDARD COMPONENTS 8.1 Standard Components ………………………………………………………… 57

AND SUBSYSTEMS 8.2 Air/Oil Flow……………………………………………………………………… 58
8.3 Cooling Water…………………………………………………………………… 61
8.4 Capacity Control System ……………………………………………………… 62
8.5 Outline of Oil Mist Remover Subsystem …………………………………… 66
9. MAINTAINING THE DSP 9.1 Air Compressor Maintenance………………………………………………… 67
9.2 Standard Maintenance Schedule …………………………………………… 68
9.3 Oil Mist Remover Maintenance ……………………………………………… 72
9.4 How to Service the DSP Air Compressor…………………………………… 73
10. PRECAUTIONS WHEN THE COMPRESSOR IS TO BE IDLE FOR AN EXTENDED PERIOD OF TIME …………… 84
11. PARTS LIST  ………………………………………………………………………………………… 85
12. WARRANTY, AFTER-SALES AND SERVICE  …………………………………………………………… 103
13. OPERATION RECORD LOGBOOK…………………………………………………………………………… 104
14. STANDARD SPECIFICATIONS ……………………………………………………………………………… 105

Air End
Discharge Air pipe
Air End
Discharge Air pipe
Intercooler Header
Aftercooler Header
Rotating Parts!
●Keep hands and rods, etc. away from
the rotating parts (Cooling fans, etc.)
●Use caution at all times, when air com-
pressor is powered. The air compres-
sor may be capable of restarting with-
out hitting the START button.
●When the air compressor is operating,
do not remove or open the enclosure
panels and doors.
●Before servicing the air compressor,
stop it, disconnect the power, especially
when accessing any rotating parts.
WARNING
WARNING
WARNING
Hot Surface!
●Do not directly touch any component
inside the air compressor enclosure
when the air compressor is operating
or immediately after it has stopped,
as the components are extremely hot
and can cause severe injury.
●Before servicing the air compressor,
stop it, disconnect the power, then
wait for the air compressor to cool
down.
Heated!!
Hot Surface!
●Do not directly touch any component
inside the air compressor enclosure
when the air compressor is operating
or immediately after it has stopped,
as the components are extremely hot
and can cause severe injury.
●Before servicing the air compressor,
stop it, disconnect the power, then
wait for the air compressor to cool
down.
Heated!!
WARNING
Electric Shock Hazard!
●Before servicing or wiring the
air compressor, disconnect
the power. This will prevent
anyone from turning on the
power and causing an elec-
tric shock that could lead to
severe injury or death.
●Do not allow any unlicensed
person to wire the air compres-
sor. Always use a licensed
electrician.
●Ground the air compressor.
WARNING
Electric Shock Hazard!
●Before servicing or wiring the
air compressor, disconnect
the power. This will prevent
anyone from turning on the
power and causing an elec-
tric shock that could lead to
severe injury or death.
●Do not allow any unlicensed
person to wire the air compres-
sor. Always use a licensed
electrician.
●Ground the air compressor.

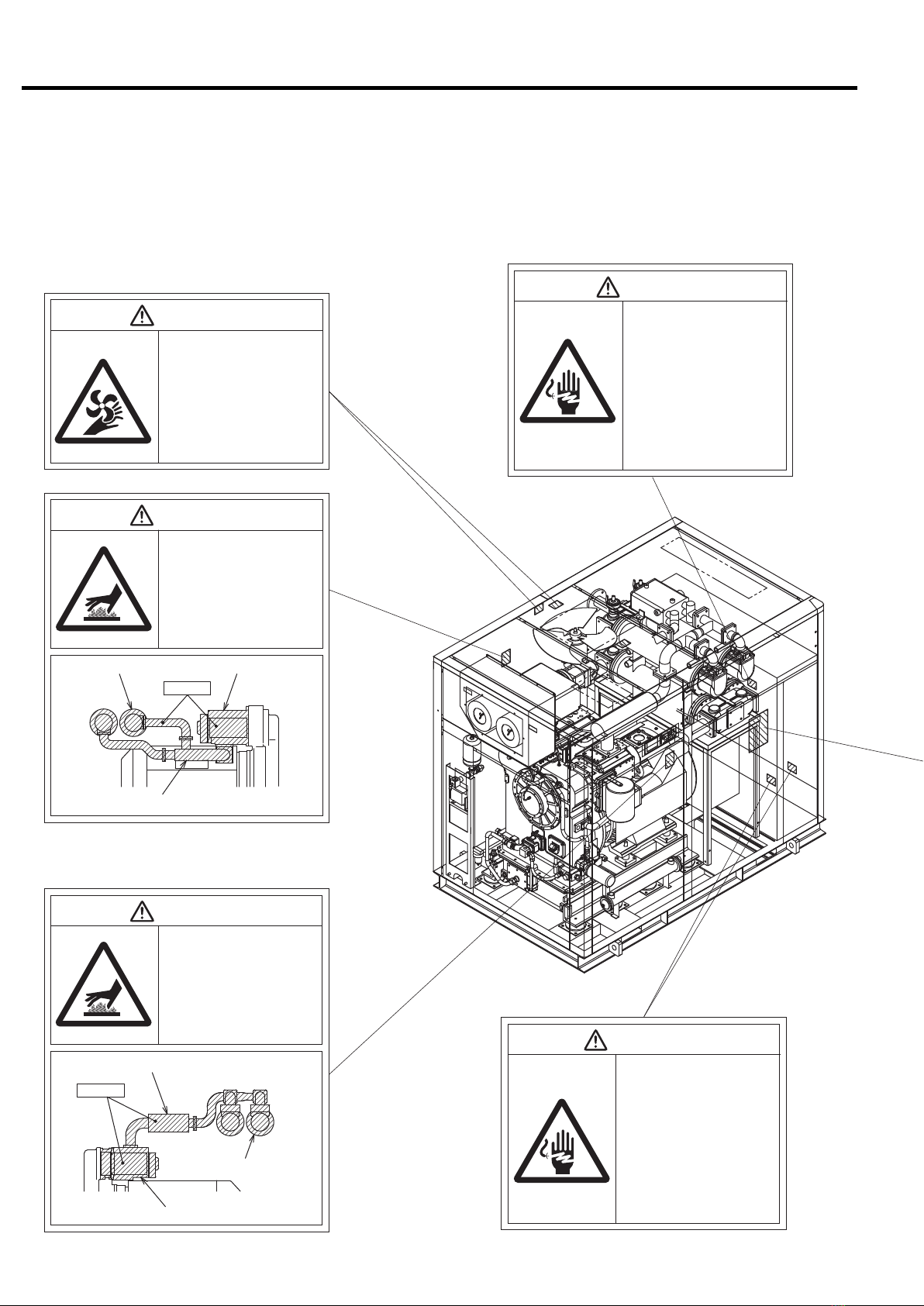

To ensure safe and proper operation of the air compressor, it is indispensable to carefully
read and understand the following warnings and instructions detailed below. These warn-
ings and instructions are attached to the air compressor as shown in the figure below.
2
1. SAFETY

Do Not Breathe Air!
Discharge air can contain Carbon Monoxide and
other contaminants. Breathing the air can cause
severe injury or death.
High Pressure Air!
● High pressure air can cause severe injury or death.
Be careful when air compressor is operating.
Pressurized air can blow out of safety relief valves
and etc. at incredibly high velocities.
●When using compressed air to clean equipment,
use extreme caution and/or wear eye protection.
●Before servicing the air compressor, stop it,
disconnect the power, and relieve pressure before
removing filter, plug, fitting or cover.
Rotating Parts!
●Keep hands and rods, etc. away from the rotating
parts (Cooling fans, etc.)
●Use caution at all times, when air compressor is
powered. The air compressor may be capable of
restarting without hitting the START button.
●When the air compressor is operating, do not
remove or open the enclosure panels and doors.
●Before servicing the air compressor, stop it, dis-
connect the power, especially when accessing
any rotating parts.
Electric Shock Hazard!
● Before servicing or wiring the air compressor,
disconnect the power. This will prevent anyone
from turning on the power and causing an electric
shock that could lead to severe injury or death.
● Do not allow any unlicensed person to wire the air
compressor. Always use a licensed electrician.
●Ground the air compressor.
WARNING WARNING
WARNING
WARNING
Hot Surface!
●Do not directly touch the air end, discharge air
pipe,and coolers when the air compressor is
operating and immediately after it has stopped,
because these parts are heated then.
●
Before servicing the air compressor (especially
when accessing to the heated parts), stop it, discon-
nect the power, and wait until it is cooled down.
WARNING
CAUTION
Preoaution against Fire!
● Keep any other hazardous materials such as
flammable solvents away from the air compressor.
Also do not use fire nearby it; otherwise a spark
may enter the air compressor and burn it internally.
●Do not remove any protective relayʼs. Also do
not make a modification of the control circuit that
may result in impairing the protective relayʼs
function. Remember that the loss of the protective
relayʼs function may cause serious damage.
●Install an earth leakage circuit breaker between
the air compressor and the power supply. Do not
use a disconnector such as a knife switch
because it cannot protect the air compressor and
may cause burnout of the air end if a ground fault
has occurred.
3
1. SAFETY

4
2. GENERAL DESCRIPTION
Front Left Door
Model designation,
manufacturing number
and specification are
printed.
This panel discharges
the hot air generated
in the air compressor.
Compressor Name plate
Instrument Panel
See page p. 10, chap-
ter 3, for details.
Open the front left
door only when servic-
ing the DSP air com-
pressor. Keep it closed
when operating the
DSP air compressor.
Air Exhaust
(Air Compressor Package)
Enclosure
Enclosure panels
lower the sound level
of the air compressor
package.
Plate of Operating /
Servicing Instructions
Read carefully the
plate before operating
and servicing the DSP.
Power Supply Port
Check the specifica-
tions, power supply
and voltage before
connecting the power
supply.
Air Exhaust
Air Exhaust
Air Exhaust
Air Intake
Air Intake
Oil Filling Port
Use the port to fill the
gear case with oil.
OMR
See page 55 for the
details
Oil Level Gauge
This indicates the
quantity of the oil in
the gear case. Check
the oil level before
starting the DSP and
when operating it.
Sling Fitting
Use the sling fitting
when moving and
installing the DSP air
compressor.
Air Intake
(Air Compressor Package)
Compressed Air Discharge
Air Intake
(Inlet to the Air End)
2.1 Appearance
2.1.1 Fixed Speed
This section illustrates and describes the major components of the DSP air compressor. Be familiar
with the name, location and function of each component before using the DSP air compressor.
[Front View]
[Rear View]

5
2. GENERAL DESCRIPTION [Appearance]
2.1.2 Variable Speed Drive Control
[Front View]
Air Exhaust
Air Exhaust
Air Exhaust
Air Intake
Air Intake
Instrument Panel
See page p. 10, chap-
ter 3, for details.
Front Left Door
Open the front left
door only when servic-
ing the DSP air com-
pressor. Keep it closed
when operating the
DSP air compressor.
Power Supply Port
Check the specifica-
tions, power supply
and voltage before
connecting the power
supply.
This panel discharges
the hot air generated
in the air compressor.
Air Exhaust
(Air Compressor Package)
Enclosure
Enclosure panels
lower the sound level
of the air compressor
package.
Plate of Operating /
Servicing Instructions
Read carefully the
plate before operating
and servicing the DSP.
Sling Fitting
Use the sling fitting
when moving and
installing the DSP air
compressor.
Air Intake
(Air Compressor Package)
Compressed Air Discharge
Air Intake
(Inlet to the Inverter)
Oil Filling Port
Use the port to fill the
gear case with oil.
OMR
See page 66 for the
details
Oil Level Gauge
This indicates the
quantity of the oil in
the gear case. Check
the oil level before
starting the DSP and
when operating it.
Compressed Air Discharge
[Rear View]

6
2. GENERAL DESCRIPTION [Components]
2.2 Components
Ventilating Fan
Check Valve
Intercooler
Aftercooler
Oil Filter
Air Intake Filter
1st-Stage Air end
2nd-Stage Air end
Main Motor
Oil Mist Remover
Discharge Pipe
(Compressed Air Discharge)
Oil Level Gauge
Common Base
Starter /
Control Box
Safety Relief Valve
Enclosure
Instrument Panel
Gear Case
Oil Filling Port
Oil Pump
Oil Cooler
Intercooler
Blow-off air cooler

7
2. GENERAL DESCRIPTION [Daily Operating Components]
●Verify that the oil level of the lubricating oil is
between the red lines during operation.

Lubricating oil circulates in the cooler and piping during
operation, so the position of the oil level differs when the
compressor is running and when it is off. The level rises
when the compressor stops running.
Oil Filling Port
Oil Level Gauge
●Indicates the operation control section.
( For more information, see Chapter 3, on
page 10.)
●Operation ON →POWER light on.
●Start: Press START button →Operation Light on
during operation
●Stop: Press UNLOAD STOP button →
unloading
stops for 5 minutes →Operation Light off during
operation
●Power OFF: →POWER light off
2.3 Daily Operating Components
Controls on the Instrument Panel
Aftercooler and Intercooler - Condensate Drain Valve Lubricating Oil
Oil Level Gauge
1 2
3 4
Oil: Use genuine Hitachi GL-68 DSP Compressor Oil.
Replace the oil every 8,000h operating hour or
every 2-year, whichever comes earlier.
モニタ
メニュー
リセット
遠方
機能
電源
運転 停止
運転状況
故障
運転管理
負荷
遠方
起動待ち
設定
自動
UP/
DOWN
警報
記憶
表示切替/
ワ イド モ ード
＋／−
AUTO
MONITOR
MENU
SET

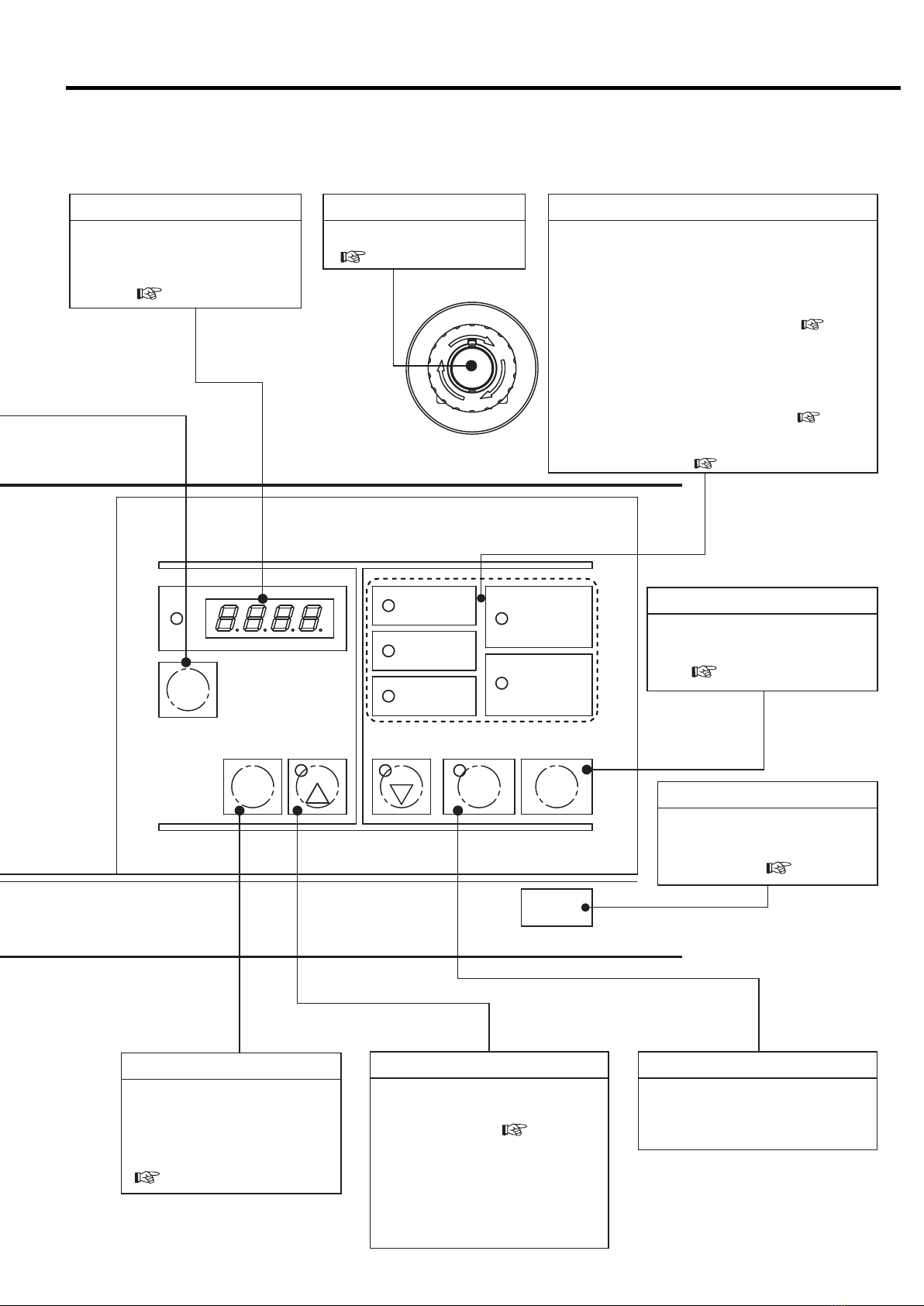

SELECT/WIDE
2
RUNNINGCONTROL
STARTREMOTE
1
FUNC
［× 10h］
ALARM
STR
REMOTE
RUNNINGMODE
AUTOSTART
POWER
LOAD
RESET
SHUTDOWN
STOP
MONITOR
UNLOAD STOP
Intercooler
drain port
After cooler
drain port
●Verify that air containing drainage is discharged
intermittently from the intercooler and after cooler
drain ports.

The higher the temperature and humidity, the more drainage
is produced. Drainage may not be produced on the intercool-
er side during winter.

8
2. GENERAL DESCRIPTION [Daily Operating Components]
Control Line Filter (Fixed Speed)
6
●Check the condensate drain discharge from the
control line filter by checking the sight glass on the
control line filter.
Control Line Filter
Sight Glass
①Shut off the cooling water when the compressor is
off.
②Open the peacock for draining water. Also open
the valve of the water drain port and drain the
cooling water.
③Be especially careful of freezing during the winter.
( For details, see page 61.)
Water drain peacock
Water drain port
Cooling Water
5

9
2. GENERAL DESCRIPTION [Daily Operating Components]
●Normally use UNLOAD STOP button to stop the
compressor. The compressor then unloads for 5
minutes and stops running.
(In the case of an emergency, press the STOP
button to stop operation.)
Stopping operation
7
モニタ
メニュー
リセット
遠方
機能
電源
運転 停止
運転状況
故障
運転管理
負荷
遠方
起動待ち
設定
自動
UP/
DOWN
警報
記憶
表示切替/
ワ イド モ ード
＋／−
AUTO
MONITOR
MENU
SET
SELECT/WIDE
2
RUNNINGCONTROL
STARTREMOTE
1
FUNC
［× 10h］
ALARM
STR
REMOTE
RUNNINGMODE
AUTOSTART
POWER
LOAD
RESET
SHUTDOWN
STOP
MONITOR
UNLOAD STOP
Keeping the second-stage air end as dry as possible is
essential for preventing it from rusting due to a long-
term operation suspension. When stopping the DSP,
therefore, execute an unloading operation and thereby
remove the moisture from the second-stage air end.
IMPORTANT

10
3. OPERATING THE DSP

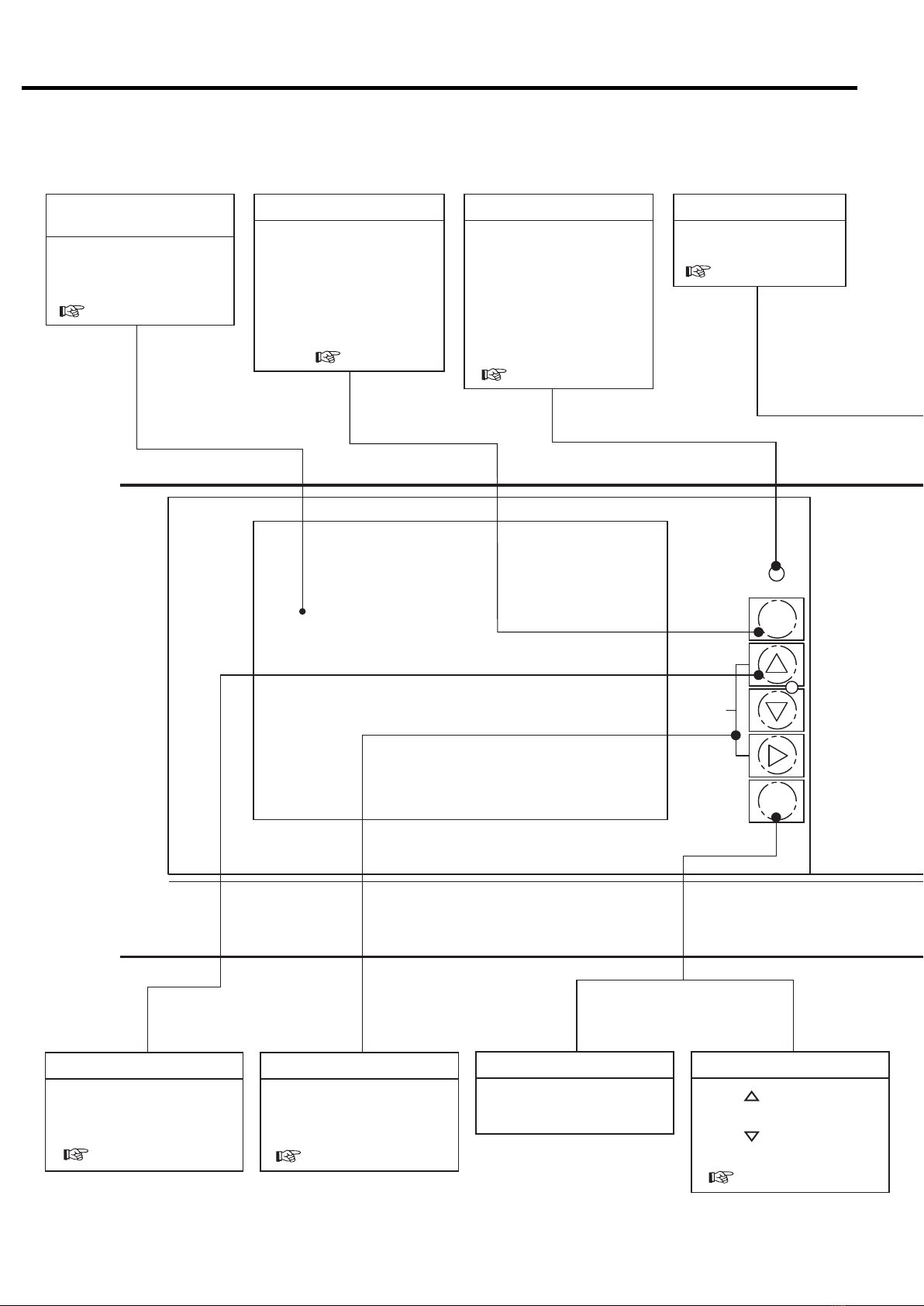

3.1 Instrument Panel
＋／−
AUTO
MONITOR
MENU
SET
MONITOR
モニタ
メニュー
設定
自動
UP/
DOWN
Liquid Crystal Display
(LCD)
Displays the operation data,
various setting, shutdowns/
alarms information, etc
( page 13)
MONITOR Button
Enables movement within
each of the monitoring
displays (M1, M2) and the
message display (M3). This
button also enables you to
return to the M1 display from
the FUNCTION MENU
display ( page 13).
AUTO light (yellow)
ON (glowing) when an
automatic operation (an
AUTO operation, a schedul-
ing operation, or lead/lag
operation) is activated.
ON (flashing) when external
calendar or scheduling
operation is abnormal.
( page 16, 20)
RESET Button
Reset the system or cancels
the shutdown/alarm circuit
( page 15)
MENU Button
Functions to display the
menu screen and move the
cursor.
( page 18)
+/- UP DOWN Buttons SET Button
It saves any adjusted set
points.
Contrast adjustment
SET+[ ] button operation:
Brightens the display.
SET+[ ] button operation:
Darkens the display.
( page 22)
Each of these buttons act as
an up-arrow, down-arrow
and right-arrow key.
( page 18)

11
3. OPERATING THE DSP [Instrument Panel]
SELECT/WIDE
2
RUNNINGCONTROL
STARTREMOTE
1
FUNC
［× 10h］
ALARM
STR
REMOTE
RUNNINGMODE
AUTOSTART
POWER
LOAD
RESET
SHUTDOWN
STOP
リセット
遠方
機能
電源
運転 停止
運転状況
故障
運転管理
負荷
遠方
起動待ち
警報
記憶
表示切替/
ワ イド モ ード
UNLOAD STOP
Digital Monitor
In addition to basic settings, used
to set various types of setting
values in combination with the LCD
monitor. ( page 22)
STOP Button
Used to stop the compressor
immediately without first unload-
ing. ( page 12)
UNLOAD STOP Button
Used for normal stop. Stops
after the compressor and air
hoses are dry. ( page 12)
SELECT/WIDE Button/Light (Yellow)
Press to confirm various types of
setting values, shutdown history,
and setting status. (
page 24, 25 )
To set to ECONOMODE (energy
conservation mode) (standard type
only), press and hold the SELECT/
WIDE button for at least 7 seconds.
The light flashes and ECONOMODE
is set.
START Button
REMOTE Button
Activates or deactivates a remote
start/stop operation locally or on
the instrument panel. it also acts
as a right-arrow key stop
( page 28).
Starts the air compressor.
The OPERATION light (red) turns
on while the compressor is running.
Press this button to stop the air compressor.
The air compressor will stop after removing the
condensate from the air end.
※This stop button is effective while a stand alone operation.
EMERGENCY STOP button
Stops for emergency.
( page 12)
POWER light (yellow):
ON (glowing) when the power to the air compressor is turned on.
REMOTE light (green):
ON (glowing) when the REMOTE button is pressed in
order to activate a remote operation.
ON (flashing) when an external remote-operation-activation switch has
been turned on in order to activate a remote operation.
( page 28)
LOAD light (yellow):ON (glowing) when the air compressor is loading.
AUTO START light (green):
ON (glowing) while the air compressor is in a stop due to an
AUTO operation, lead/lag operation, or scheduling operation.
ON (blinking) while the air compressor is in a stop due to a
restartable instantaneous power interruption. ( page 16)
SHUTDOWN light (red):
ON (either glowing or blinking) when a shutdown/alarm
problem has occurred. ( page 15)
RUNNING MODE Light
S
T
O
P
E
M
E
R
G
E
N
C
Y

3.2.1 Connecting the Power
When you connect the power, the POWER light turns on
and the LCD monitor displays the following screen for 5
seconds, and then switches to the monitor screen (M1)
that displays control settings, discharge air pressure, and
total operating hours.
If phase is reversed, “Connection Error: Reverse
Phase” is displayed on the LCD monitor for setting and
connection inspection. In this case, switch 2 of the 3
main power cables.
If there is no phase, “Connection Error: No Phase” is
displayed on the LCD monitor. In this case, check the
power cables.
3.2 Start/Stop Operation
COMPRESSOR MONITOR
CONTROLLER
㻞㻜㻜㻥䠋㻜㻠䠋㻝㻟 㻝㻥䠖㻜㻞
㼀㼅㻼㻱 䠖㼂㻿㻰㻭
㻰 㻵 㻿䠊㻼㻾㻱㻿㻿 䠖 㻜䠊㻜 㻜 㼜 㼟 㼕
㻾㼁㻺 㻌㻴㻻㼁㻾䠖 㻝 㻞 㻜䡄
㻸㻻㻭㻰 㻌 㻴㻻㼁㻾 䠖 㻡 㻠䡄
㻸㻻㻭㻰 㼀 㻵 㻹㻱㻿 䠖 㻝 㻞 㻟
㻸㻻㻭㻰 㻾㻭㼀㻱 䠖 㻝 㻝䠂
㻸㻻㻭㻰 㼀 㻵 㻹㻱 䠖 㻞 㻠 䡏
㼁㻺㻸㻻㻭㻰 㻌 㼀 㻵 㻹㻱 䠖 㻝 䡏
㻯㼁㻾㻾㻱㻺㼀 䠖 㻡 㻜䠝
㻲㻾 㻱㻽㼁㻱 㻺㻯㼅 䠖 㻞 㻟 㻚 㻤䠤䡖
㻻㼁㼀㻼㼁㼀 䠖 㻝 㻜 㻚 㻡 䡇䠳
＊The asterisk flashes when the clock and total run-
ning hours are engaged.
5 sec
3.2.2 Start/Stop
When the START button is pressed the START light
turns on and the compressor starts operating. When run-
ning, the asterisk on the right side of running hours
flashes and running time is counted.
To stop, press the UNLOAD STOP button. Operation
stops when the air end and the air piping have dried for 5
minutes.
To stop the compressor immediately without unloading,
press the STOP button.
Note: If the STOP button is pressed while unloading, the
compressor stops immediately.
3.2.3 Emergency Stop
Pressing EMERGENCY STOP botton, the DSP com-
pressor immediately.
This switch should only be pressed in emergency.
The compressor can not be restarted until the switch is
manually reset. Turn the switch knob clockwise and
press the RESET button to reset.
12
3. OPERATING THE DSP [Start/Stop Operation]

13
㻞㻜㻜㻥䠋㻜㻠䠋㻝㻟 㻝㻥䠖㻜㻞
㼀㼅㻼㻱 䠖㼂㻿㻰㻭
㻰 㻵 㻿䠊㻼㻾㻱㻿㻿 䠖 㻜䠊 㻜 㻜 㼜 㼟 㼕
㻾㼁㻺 㻌㻴㻻㼁㻾䠖 㻝 㻞 㻜䡄
㻸㻻㻭㻰 㻌 㻴㻻㼁㻾 䠖 㻡 㻠 䡄
㻸㻻㻭㻰 㼀 㻵 㻹㻱㻿 䠖 㻝 㻞 㻟
㻸㻻㻭㻰 㻾㻭㼀㻱 䠖 㻝 㻝䠂
㻸㻻㻭㻰 㼀 㻵 㻹㻱 䠖 㻞 㻠 䡏
㼁㻺㻸㻻㻭㻰 㻌 㼀 㻵 㻹㻱 䠖 㻝 䡏
㻯㼁㻾㻾㻱㻺㼀 䠖 㻡 㻜䠝
㻲 㻾㻱㻽㼁 㻱㻺㻯 㼅 䠖 㻞 㻟 㻚 㻤䠤 䡖
㻻㼁㼀㻼㼁㼀䠖 㻝 㻜 㻚 㻡 䡇䠳
機能
FUNCTION
モニタ
MONITOR
モニタ
MONITOR
モニタ
MONITOR
モニタ
MONITOR
■Monitoring Display（p.12）
M1 Monitoring Display
M2 Monitoring Display
M3 Monitoring Display
■Message Display（p.13）
■Function Menu Display（p.16）
㻞㻜㻜㻥䠋㻜㻠䠋㻝㻟 㻝㻥䠖㻜㻞
㻼㻾㻱㻿㻿㼁㻾㻱
㻵 㻺 㼀 㻿 㼀 㻳 䠊 㻼 䠖 䚷䚷 㻞 㻥 㼜 㼟 㼕
㻻 㻵 㻸 㻌 㻼㻾㻱㻿 䠖 㻌 㻌 㻝 㻡 㼜 㼟 㼕
㻯㻸 㼀䠊㻼㻾㻱 㻿䠖 㻖䠊㻖 㻖 㼜 㼟 㼕
㼀㻱㻹㻼㻱㻾㻭㼀㼁㻾㻱
㻰㻵㻿䠊㼀㻱㻹㻼㻝䠖 㻟㻞㻜䉣
㻰 㻵 㻿䠊㼀 㻱㻹㻼 㻞 䠖 㻟
㻝
㻟㻤䉣
㻻 㻵 㻸 㻌 㼀 㻱㻹㻼 䠖 㻟 㻣 䉣
㻯㻸㼀䠊㼀㻱㻹㻼䠖 㻖㻖㻖䉣
㻞㻺㻰 㻌 㻿㼁㻯㼀䠊㼀䠊䠖 㻜 㻤䉣
㻹㻭 㻵 㻺㼀㻱 㻺㻭㻺㻯㻱
㻴㻾䠊㼀㻻㻌㻹㻭㻵㻺㼀䠖 㻜㻜㻜㻜䡄
㻺㻱㼄㼀㻌 㻹㻭 㻵㻺㼀䠖 㻖㻖㻖㻖
Function Menu Display
㼇 㻲㼁㻺㻯㼀 㻵 㻻㻺 㻹㻱㻺㼁 㼉
㻝䠊㻮㻭㻿 㻵 㻯 㻌 㻿㻱 㼀㼁㻼
㻞 䠊㻹㼁 㻸 㼀 㻵 㻙 㼁 㻺 㻵 㼀
㻟䠊㻯㻭㻼㻭㻯 㻵 㼀 㼅 㻯㻻㻺㼀㻾㻻㻸
㻠䠊㻿㻯㻴㻱㻰㼁㻸㻱
㻡䠊㻻㻼㻱㻾㻭㼀 㻵 㻻㻺 㻰㻭㼀㻭
㻢䠊㻸㻻㻭㻰 㻰㻭㼀㻭
㻣䠊㻭㻸㻭㻾㻹 㻴 㻵 㻿㼀㻻㻾㼅
㻤 䠊 㻿 㻴㼁 㼀 㻰㻻㼃 㻺 㻴 㻵 㻿 㼀 㻻㻾 㼅
㻿㻱㼀䠖㻻㻼㻱㻺 㻹㻻㻺䠖㻮㻭㻯㻷
㻞㻜㻜㻣䠋㻜㻤䠋㻜㻝 㻝㻥䠖㻝㻥 㻖
㼀㼅㻼㻱 䠖㼂㻿㻰㻭 㼀㼁
㻰 㻵 㻿䠊㻼㻾㻱 㻿㻿 䠖 㻜 䠊㻠 㻢 㼜㼟 㼕
䠘㻿 㻴 㼁 㼀 㻰 㻻 㼃 㻺䠚
㻯㻻㻻㻸㻭㻺㼀䠖
㻻㻵 㻸䠖
㻞 䠪㻰 㻌 㻿 㼁 㻯 㼀䠊 㼀 㻱 㼜㼟
㻴㻵㻳㻴 㻌㻰㻵㻿䠊㼀㻱㼜㼟 㼕
㼕
㻯 㻻 㻺 㼀 㻭 㻯 㼀 㻻 㻾 㻌㻱 㻾 㻾 䠖
㻻㼂㻱㻾㻸㻻㻭㻰 䠖
㻸 㻻㼃 㻌 㼃䠊 㻵 㻺 㼀 㻿 㼀 㻳 㻌 㻼 䠊
㻰 㻾 㼅 㻱 㻾 㻌㻌㻌㻌 㼃 䠋 㻻 㻌 㻿 㻱 㻼 䠊
㻱㻸㻱㻹㻱㻺㼀
㻼㼞㼑㼟㼟㻾㻱㻿㻌㼍㼒㼠㼑㼞㻌㻯㻴㻷䠊
㻝

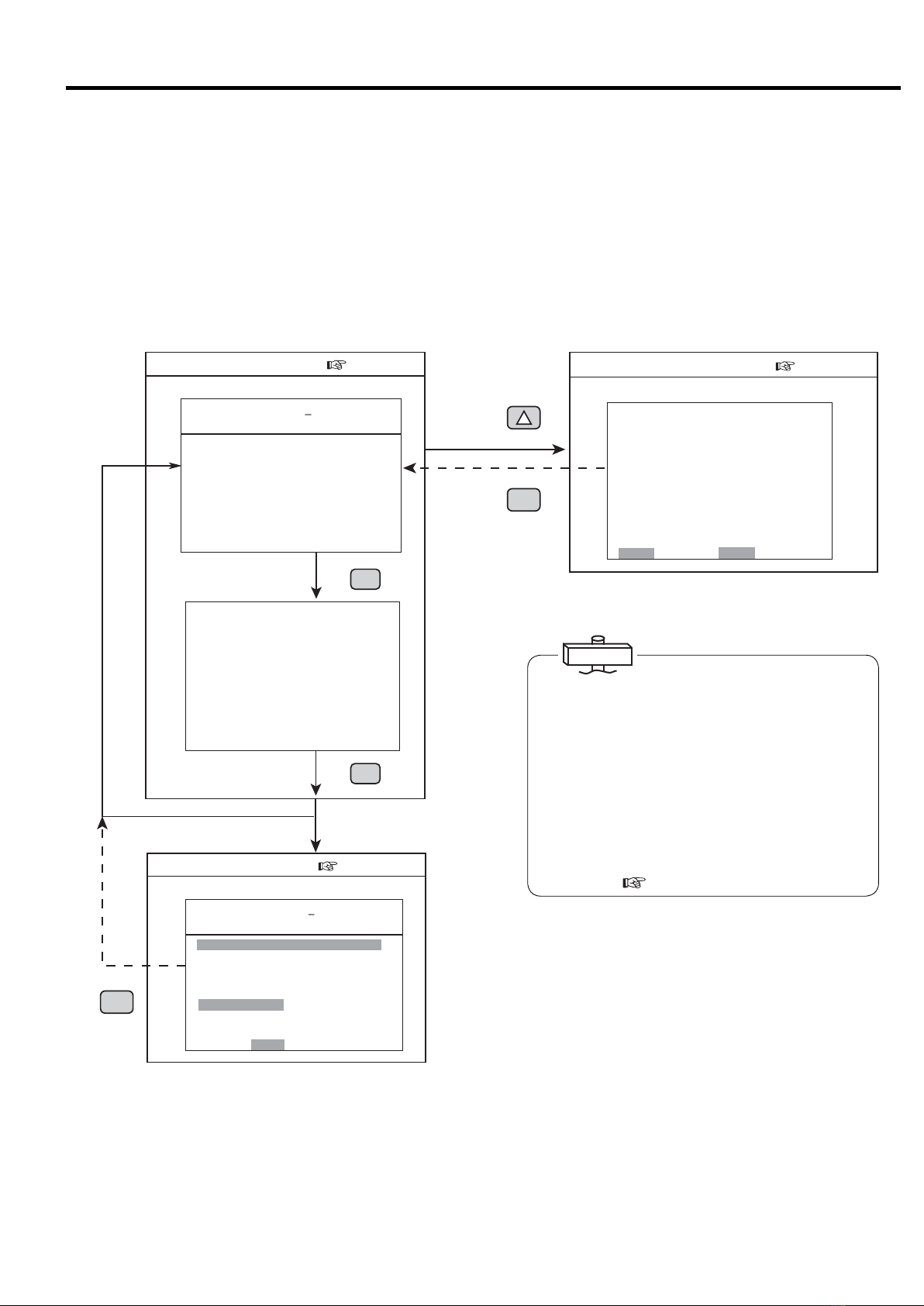

3.3.1 How to Move between the Various Displays
■Menu Displays
Follow the bottom line message on the display.
3.3 How to Use the liquid Crystal Display (LCD)
About the LCD Backlight
(1) In the event that no button has been used for 10
minutes, the LCD backlight automatically turns OFF
for protection to the display panel. It comes ON
again if any button is pressed, other than the
START and STOP buttons.
(2) If an event happens while the LCD backlight is off,
the backlight automatically turns ON and stays ON
as long as the event exists. Remote and instant
stop mode can't be set by the LCD monitor.
Set after referring to “3.4 How to Use the Digital
Monitor.” ( page 21)
■Monitoring Displays
There are three monitoring displays: M1, M2, and
M3. To move between these displays, press the
MONITOR button.
3. OPERATING THE DSP [How to Use the Liquid Crystal Display (LCD)]
■Message Display
There is only one message display: M3 (the contents,
however, vary from time to time). It is available only
when some event (air compressor alarm or shutdown,
maintenance notice, etc.) has occurred. Once an event
happens, however, the M3 message display appears
immediately and automatically. From the M3 display,
pressing the MONITOR button will switch the LCD
to the M1 or M2 monitoring displays; but after
approximately ten (10) seconds, the M1 or M2 moni-
toring displays will revert back to the M3 display.
IMPORTANT

3.3.2 Typical Monitoring Displays
VSDA＊SAVE
ECOMODE
(Energy Conservation Mode)
“SAVE” is displayed on the monitor
screen.
Displayed when stop is limited for AUTO opera-
tion (standard: no symbol).
INTE ：Fixed speed type control (load/unload operation)
AUTO ：Fixed speed type control
(AUTO operation ＊optional)
VSDB ：V type control (AUTO function off)
VSDA ：V type control (with AUTO function, V type standard)
EXIT ：Setting display when capacity control is executed
externally
MR ：Multiple unit control connection by communication
control
（1）
（2）
（3）
（4）
（5）
（6）
（7）
（8）
（9）
㻞㻜㻜㻥䠋㻜㻠䠋㻝㻟 㻝㻥䠖㻜㻞
㼀㼅㻼㻱 䠖㼂㻿㻰㻭
㻰 㻵 㻿䠊㻼㻾㻱㻿㻿 䠖 㻜䠊㻜 㻜 㼜 㼟 㼕
㻖
㻖
㻾㼁㻺 㻌㻴㻻㼁㻾䠖 㻝 㻞 㻜䡄
㻸㻻㻭㻰 㻌 㻴㻻㼁㻾 䠖 㻡 㻠 䡄
㻸㻻㻭㻰 㼀 㻵 㻹㻱㻿 䠖 㻝 㻞 㻟
㻸㻻㻭㻰 㻾㻭㼀㻱 䠖 㻝 㻝䠂
㻸㻻㻭㻰 㼀 㻵 㻹㻱 䠖 㻞 㻠 䡏
㼁㻺㻸㻻㻭㻰 㻌 㼀 㻵 㻹㻱 䠖 㻝 䡏
㻯㼁㻾㻾㻱㻺㼀 䠖 㻡 㻜䠝
㻲㻾 㻱㻽㼁㻱 㻺㻯㼅 䠖 㻞 㻟 㻚 㻤䠤䡖
㻻㼁㼀㻼㼁㼀 䠖 㻖 㻖 㻚 㻖䡇䠳
㻹㻭㻿 㼀㻱 㻾
（10）
（11）
㻞㻜㻜㻥䠋㻜㻠䠋㻝㻟 㻝㻥䠖㻜㻞
㻼㻾㻱㻿㻿㼁㻾㻱
㻵 㻺㼀㻿 㼀㻳䠊㻼 䠖 㻌 㻌 㻞 㻥 㼜 㼟 㼕
䠆
㻻 㻵 㻸 㻌 㻼㻾㻱㻿 䠖 㻌 㻌 㻝 㻡 㼜 㼟 㼕
㻯㻸㼀䠊㻼㻾㻱㻿䠖 㻖䠊㻖 㻖 㼜 㼟 㼕
㼀㻱㻹㻼㻱㻾㻭㼀㼁㻾㻱
㻰㻵㻿䠊㼀㻱㻹㻼㻝䠖 㻟㻞㻜䉣
㻰 㻵 㻿䠊㼀 㻱㻹㻼 㻞 䠖 㻟
㻝
㻟㻤䉣
㻻 㻵 㻸 㻌 㼀 㻱㻹㻼 䠖 㻟 㻣䉣
㻯㻸㼀䠊㼀㻱㻹㻼䠖 㻖㻖㻖䉣
㻞㻺㻰 㻌 㻿㼁㻯㼀䠊㼀䠊䠖 㻜 㻤䉣
㻹㻭 㻵 㻺㼀㻱㻺㻭㻺㻯㻱
㻴㻾䠊㼀㻻㻌㻹㻭㻵㻺㼀䠖 㻜㻜㻜㻜䡄
㻺㻱㼄㼀㻌 㻹㻭 㻵㻺㼀䠖 㻖㻖㻖㻖
㻝
(1) Displays current time. Asterisk flashes.
(2) Indicates a capacity control type.
(3) Displays compressor discharge port pressure.
(4) Indicates total running hours (RUN HOUR), total
loaded hours (LOAD HOUR), and total number of
loads (LOAD TIMES.).
Blink asterisk indicates running time is being mea-
sured.
(5) Indicates a percentage of load to unload of the DSP air
compressor (LOAD RATE), For Vtype, the rate is cal-
culated based on only frequency. Indicates “＊＊＊”,
if PQ wide mode is selected.
When the DSP is operating normally, typical monitoring
displays appear as follows.
M1 Monitoring Display
M2 Monitoring Display
(6) Indicates the amperage current of the main motor
(CURRENT).
(7) Displays an operating frequency of main motor.
(V type only. Fixed speed type displays ＊＊．＊)
(8) Indicates “＊＊＊ ” for this air compressor.
(9) Displays master or slave control status when in lead/
lag operation mode.
(10) Displays various pressures and temperatures.
(Asterisk indicates not in use.)
(11) Displays time remaining till next inspection as main-
tenance period and next maintenance period.
Current is an approximate S-phase ampere.
Output is reference value of calculated power.
IMPORTANT
14
3. OPERATING THE DSP [How to Use the Liquid Crystal Display (LCD)]

■Alarm Messages
① In the case an alarm occurs for the compressor, the ALARM light and contents / details displayed on alarm screen on
the LCD monitor flash and operation continues. There are 2 types of alarm screens: ALARM andPROBLEM.
②Take the proper corrective action, and press the RESET button.
③For further information, see pages 33, 34.
NOTE) Malfunction detection of water failure is available for only water cooled single stage compressor. Malfunction
detection of dryer is available for only built-in dryer models. Malfunction detection of oil water separator and
element is not available.
3.3.3 Message Displays
■Shutdown Messages
①When a shutdown occurs for the compressor, the SHUTDOWN light and shutdown contents on the LCD monitor
(contents are displays on the left side and details are displayed on the right side) flash and the compressor stops run-
ning. There are 2 types of screens for shutdown: SHUTDOWN and FAILURE.
㻞㻜㻜㻣䠋㻜㻤䠋㻜㻝 㻝㻥䠖㻝㻥 㻖
㼀㼅㻼㻱 䠖㼂㻿㻰㻭 㼀㼁
㻰 㻵 㻿䠊㻼㻾㻱㻿㻿 䠖 㻌 㻌 㻢 㻣 㼜 㼟 㼕
䠘㻿 㻴 㼁 㼀 㻰 㻻 㼃 㻺䠚
㻯㻻㻻 㻸 㻭㻺 㼀 䠖
㻻㻵 㻸䠖
㻞䠪㻰 㻌 㻿㼁㻯㼀䠊㼀㻱㻹㻼
㻴㻵㻳㻴 㻌㻰㻵㻿䠊㼀㻱㻹㻼䠖
㻌
㻯 㻻 㻺 㼀 㻭 㻯 㼀 㻻 㻾 㻌㻱 㻾 㻾 䠖
㻻㼂㻱㻾㻸㻻㻭㻰 䠖
㻸 㻻㼃 㻌 㼃䠊 㻵 㻺 㼀 㻿 㼀 㻳 㻌 㻼 䠊
㻰 㻾 㼅 㻱 㻾 㻌㻌㻌㻌 㼃 䠋 㻻 㻌 㻿 㻱 㻼 䠊
㻱㻸㻱㻹㻱㻺㼀
㻼 㼞 㼑 㼟 㼟㻾㻱㻿 㻌 㼍 㼒 㼠 㼑 㼞 㻌 㻯㻴㻷䠊
②Take the proper corrective action, and press the RESET button.
③For further information, see pages 33, 34.
NOTE) Malfunction detection of water failure is available for only water cooled single stage compressor. Malfunction
detection of dryer is available for only built-in dryer models. Malfunction detection of oil water separator and
element is not available.
(Example)
Example of temperature sensor malfunction, sensor 1 discon-
nection FAILURE and TEMPERATURE SENSOR flash and
the location of the abnormality is indicated.
㻞㻜㻜㻥䠋㻜㻤䠋㻜㻝 㻝㻥䠖㻝㻥 㻖
㼀㼅㻼㻱 䠖 㼂㻿㻰㻭㻌 㻌㻌 㻌㻌㻌
㻰 㻵 㻿 䠊 㻼 㻾 㻱 㻿 㻿 䠖 䚷䚷 㻢 㻣 㼜 㼟 㼕
䠘㻲 㻭 㻵 㻸 㼁 㻾 㻱䠚
㻿 㼅 㻿 㼀㻱㻹 㻱㻾 㻾 䠖 㼙㼙㼙㼙
㻿㼅㻿㼀㻱㻹㻌 㻾㻱㼀㻾㼅
㻼㻯㻮㻌㻱㻾㻾䠖 㼚㼚㼚㼚㼚㼚
㻼㻾㻱㻿㻿䠊㻿㻺㻿㻾 㻌 㻱㻾㻾䠖 㼛
㼀㻱㻹㻼䠊㻿㻺㻿㻾 㻱㻾㻾䠖 㼜
㻰䡅 㼟㼏㼛㼚㼚㼑㼏㼠 㼜㼛㼣㼑㼞
㼟㼚㼐 㼏㼛㼚㼠㼍㼏㼠
㼐 㼕 㼟 㼠 㼞 䡅 㼎㼡㼠㼛㼞
㻞㻜㻜㻥䠋㻜㻤䠋㻜㻝 㻝㻥䠖㻝㻥 㻖
㼀㼅㻼㻱 䠖 㼂㻿㻰㻭㻌 㻌㻌 㻌㻌㻌
㻰 㻵 㻿 䠊 㻼 㻾 㻱 㻿 㻿 䠖 䚷䚷 㻢 㻣 㼜 㼟 㼕
䠘㻼 㻾 㻻 㻮 㻸 㻱 㻹䠚
㻯㻻㻺㻺㻱㻯㼀 㻵 㻻㻺 㻌 㻱㻾㻾 䠖㻌 㻌 㻌
㻾㼑㼏㼛㼚㼚㼑㼏㼠 㻌 㼜㼛㼣㼑㼞䠊
㻹㼁㻸㼀 䠥 㻙㼁 㻿㻱㼀 㻱㻾㻾
㻿㻯㻴㻱㻰㼁㻸㻱 㻌 㻿㻱㼀 㻌 㻱㻾㻾
㻯㻻㻹䠊㻱㻾㻾㻌㻿㼀㻻㻼䠖㻌㻌㻌㻌㻌
㻯㻻㻹䠊㻱㻾㻾㻌㻭㻸㻹䠖 㻌㻌㻌㻌㻌
㻮㻭㼀㼀㻱㻾㼅 㻌㻻㼁㼀
㻼 㼞 㼑 㼟 㼟㻾㻱㻿 㼍 㼒 㼠 㼑 㼞 㻯 㻴㻷䠊
㻞㻜㻜㻥䠋㻜㻤䠋㻜㻝 㻝㻥䠖㻝㻥 㻖
㼀㼅㻼㻱 䠖
㼂
㻿㻰㻭㻌 㻌㻌 㻌㻌㻌
㻰 㻵 㻿 䠊 㻼 㻾 㻱 㻿 㻿 䠖 䚷䚷 㻢 㻣 㼜 㼟 㼕
䠘㻭 㻸 㻭 㻾 㻹䠚
㻰㻵㻿䠊㼀㻱㻹㻼䠖䠄㻌 㻌 㻌 䠅㻖㻖㻖䉣
㻻㻵 㻸㻌㼀㻱㻹㻼䠖 㻖㻖㻖䉣
㻸㻻㼃㻌㻻䠊㻼䠊䠖 㻖䠊㻖㻖㼜㼟 㼕
㻯㻸㼀䠊㼀㻱㻹㻼䠊䠖 㻖㻖㻖䉣
㻸 㻻㼃 㻌 㻯 㻸 㼀 䠊㻼 䠖 㻖 䠊 㻖 㻖 㼜 㼟 㼕
㻞䠪㻰 㻙 㻿 䠊㼀 㻱 㻹㻼 㻌 㻲 㻵 㻺 㻙 㼀
㻸㻻㼃 㻌 㼃䠊 㻸㻻㼃 㻌 㻻 㻵 㻸
㻰㻾㼅㻱㻾 㻭 㻵 㻾 㻌㻲㻵 㻸㼀㻱㻾
㻸䠊㻯㻻㼁㻺㼀 㻌 㻻㼂㻱㻾 㻌 㼃䠋㻻 㻌 㻿䠊
㻼㼞㼑㼟䡏㻾㻱㻿 㼍㼒㼠㼑㼞㻌㻯㻴㻷䠊
(Example)
In the case the thermal relay trips and the compressor stops
running, SHUTDOWN and OVERLOAD flash and the mal-
function part of the main circuit is indicated.
15
3. OPERATING THE DSP [How to Use the Liquid Crystal Display (LCD)]
(Example)
In the case ALARM and AIR FILTER flash while the com-
pressor is running, it indicates the filter is clogged.
(Example)
Example of battery replacement period.
ALARM and PROBLEM messages are treated as alarms, but aside from connection abnormalities that make operation impos-
sible such as reverse phase and no phase when power is turned on, they also may indicate shutdown due to malfunction of the
communication status.
IMPORTANT

■Messages of Automatic Stop Display and Automatic Restart Display
When the DSP air compressor has automatically stopped, the following screen is displayed, the AUTO START light
flashes/lights, and the RESTART message screen and details of contents flash on the LCD monitor.
㻞㻜㻜㻥䠋㻜㻤䠋㻜㻝 㻝㻥䠖㻜㻞 㻖
㼀㼅㻼㻱 䠖 㼂㻿㻰㻭㻌 㻌㻌 㻌㻌㻌
㻰 㻵 㻿 䠊 㻼 㻾 㻱 㻿 㻿 䠖 䚷䚷 㻢 㻣 㼜 㼟 㼕
䠘㻾㻱㻿㼀㻭㻾㼀䠚
㻾 㻱 㻿 㼀 㻭 㻾 㼀 㻭 㼀 䠖 䠆䠆 䠖 䠆䠆
㻾㻱㻿㼀㻭㻾㼀 㼃㻭 㻵 㼀䠖 㻌 㻞 㻣䡏
㻺㻻㼃䠈 㻿 㼀 㻻㻼 㻼 㻱 㻰 䠞䠵 䠖
㻿㻯㻴㻱㻰㼁㻸㻱 㻿㼀㻻㻼
㻭㼁㼀㻻㻹㻭㼀 㻵 㻯 㻿㼀㻻㻼
㻰㻾㼅㻱㻾 㻼㻾㻱㻿㼀㻭㻾㼀㻱㻰
㻰㼁㻭㻸䠋㻮㻭㻯㻷㼁㻼
㻵 㻼 㻵 㻌 㻾㻱㻿㼀㻭㻾㼀
㻯㼀㻸㻾䠊㻾㻱㼀㻾㼅
16
3. OPERATING THE DSP [How to Use the Liquid Crystal Display (LCD)]
●SCHEDULED STOP: Schedule operation setting
＜AUTO light ON＞
When schedule is set on the scheduled operation
screen, displays state of operation being stopped by
preset time. Operation starts automatically when the
preset restart time comes.
●LEAD/LAG OPERATION STOP
(Note: applies only to machines equipped with two-
unit alternate operation.)
＜AUTO light ON＞
When the operation control mode is set to dual or
backup on the operation mode setting screen, standby
status of the slave machine in dual or backup operation
is indicated.
●DRYER PRESTARTED
(Note: Applies only to machines equipped with a
built-in dryer.)
＜AUTO START light flashes＞
When dryer prestart is set, the dryer starts operating
in advance, and compressor stopped status is indicat-
ed.
RESTART WAIT time is counted down.
●AUTO OPERATION
(Note: Applies only to machines equipped with
AUTO function)
＜AUTO START light ON＞
Indicates status stopped by low load when set to
AUTO operation. AUTO START light flashes during
restart limit while stopped, and RESTART WAIT time
is counted down.
●INSTANT STOP / RETRY
(Note: Retry applies to V type only.)
＜AUTO START light flashes＞
Displays status of restart for instantaneous power
interruption (IPI) restart and V type retry.
RESTART WAIT time is counted down.

■Maintenance Notice Messages
A maintenance date is determined by the amount of total operating hours or an elapsed calendar period, whichever
comes first. When the maintenance date or time arrives, the maintenance notice message appears on the display under
the heading of MAINTenance.
This function is an alarm display only, and does not output alarm externally.
Replace suction throttle valve consumable parts when inspection maintenance is displayed or the 1 million unloader
count alarm is given, whichever comes first.
If the inspection/maintenance is displayed, check the display contents, refer to maintenance standards
given in the compressor instruction manual and perform inspection/maintenance as soon as possible.
When inspection is complete, press and hold the SET button for at least 7 seconds.
The LCD monitor display contents then move to “Maintenance initial value completed” of the message
screen, and then return to the monitor screen 1 minute later.
■Other Messages
(3) UNLOAD STOP
If the UNLOAD STOP button is used, the display
flashes. The compressor unloads for 5 minutes and
then stops.
17
3. OPERATING THE DSP [How to Use the Liquid Crystal Display (LCD)]
㻞㻜㻜㻥䠋㻜㻤䠋㻜㻝 㻝㻥䠖㻜㻞 㻖
㼀㼅㻼㻱 䠖 㼂㻿㻰㻭㻌 㻌㻌 㻌㻌㻌
㻰 㻵 㻿䠊㻼㻾㻱 㻿㻿 䠖 㻌 㻌 㻢 㻣 㼜 㼟 㼕
䠘㻹㻱㻿㻿㻭㻳㻱䠚
㻹㻭 㻵 㻺㼀䠊 䠖㻝 㼅 㻱 㻭㻾㻌 㻌
㻹㻭 㻵 㻺 㼀 䠊䠯䠟䠤䠡䠠䠱 㻸 䠡 䠖 㻭
㻼 㼞 㼑 㼟 㼟 㻿㻱㼀 㻌 㼍 㼒 㼠 㼑 㼞 㻌 㻯㻴㻷䠊
㻹㻭 㻵 㻺㼀䠊㻯㻻㻹㻼 㻸 㻱 㼀㻱 㻰
㻿㼃 㻵 㼀㻯㻴㻱㻰 㻌 㼀㻻 㻌 㻸㻻㻯㻭㻸
㻵 㻺 㻌 㻻㼂㻱㻾䠮 㻵 㻰㻱 㻹㻻㻰㻱
㻵㻺㻌㼁㻺㻸㻻㻭㻰㻌㻿㼀㻻㻼
㻿㼃 㻵 㼀 㻯㻴 㻱 㻰 㻌 㼁 㻌 㻹㻻㻰 㻱
Every these calendar periods: Service the DSP according to the schedules:
0.5 years, 1.5 years, 2.5 years
3.5 years, 4.5 years, 5.5 years Half-Yearly
1.0 years, 5.0 years Yearly + Half-Yearly
2.0 years, 4.0 years 2-Yearly + Yearly + Half-Yearly
3.0 years 3-Yearly + Yearly + Half-Yearly
6.0 years (for overhauling) 6-Yearly + 3-Yearly + 2-Yearly + Yearly + Half-Yearly
AStandard Maintenance Schedule (A) (for yearly 8,000-or-less operating hours)
BStandard Maintenance Schedule (B) (for yearly 4,000-or-less operating hours)
(1)
(2)
(3)
CAUTION
NOTES:
1. MAINTenance can be reset, if the servicing is done earlier than expected and if the remaining operating time to next maintenance
is less than 2,000h in the case of A, 1,000h in the case of B.
2. On the contrary, if the servicing is done after the maintenance notice has appeared, the remaining operating hours to the next main-
tenance has been zero until the maintenance is done. After maintenance and resetting the counter, new counting time starts just
after the maintenance notice message has appeared on the display.
(1)SWITCHED TO LOCAL.
If set to local by remote operation following shut-
down restoration, operation automatically returns
to local when shutdown occurs, and the message is
displayed for 1 minute. For setting details, see
“3.4 How to Use the Digital Monitor.”
( page 25)
(2) IN OVERRIDE MODE.
This message blinks when the DSP is in an over-
ride mode.

㻝㻹㻻㻰 㻱 䠖
㻞䠊㻰㼁㻭㻸 㻌 㼀 㻵 㻹㻱䠖 㻌 㻤䠊㻜㼔
㻟 䠊㻹㻱 㼀 㻴㻻㻰 䠖
㻠䠊㻿㼃 㻵 㼀㻯㻴㻻㼂㻱㻾䠖 㻜 㻝 㻡 㼟
㻳㻸㻿㻺
㻭㻼㻻㼂㻾㻾㻸
㻝㻹㻻㻰 㻱 䠖
㻞䠊㻰㼁㻭㻸 㻌 㼀 㻵 㻹㻱䠖 㻌 㻤䠊㻜㼔
㻟 䠊㻹㻱 㼀 㻴㻻㻰 䠖
㻠䠊㻿㼃 㻵 㼀㻯㻴㻻㼂㻱㻾䠖 㻜 㻝 㻡 㼟
㻳㻸㻿㻺
㻭㻼㻻㼂㻾㻾㻸
㻝㻹㻻㻰 㻱 䠖
㻞䠊㻰㼁㻭㻸 㻌 㼀 㻵 㻹㻱䠖 㻌 㻡䠊㻜㼔
㻟 䠊㻹㻱 㼀 㻴㻻㻰 䠖
㻠䠊㻿㼃 㻵 㼀㻯㻴㻻㼂㻱㻾䠖 㻜 㻝 㻡 㼟
㻳㻸㻿㻺
㻭㻼㻻㼂㻾㻾㻸
㻝㻹㻻㻰 㻱 䠖
㻞䠊㻰㼁㻭㻸 㻌 㼀 㻵 㻹㻱䠖 㻌 㻡䠊㻜㼔
㻟 䠊㻹㻱 㼀 㻴㻻㻰 䠖
㻠䠊㻿㼃 㻵 㼀㻯㻴㻻㼂㻱㻾䠖 㻜 㻝 㻡 㼟
㻳㻸㻿㻺
㻭㻼㻻㼂㻾㻾㻸
3.3.4 How to Move within a Menu Display and to Change a Setting
ー[FUNCTION MENU] and [MAINTenance DATA MENU] ー
The method and procedure for altering settings is displayed using the following as an example.
①Press the MENU button displayed on monitor screen
1 – 2.
②Select the number of the item to be set with the
△▽buttons.
③Enter with the SET button. The display then switches
to the detail setting screen for that item.
The following explanation uses [2. Operation Mode
Setting Screen] as an example.
㼇 㻲㼁㻺㻯㼀 㻵 㻻㻺 㻹㻱㻺㼁 㼉
㻝䠊㻮㻭㻿 㻵 㻯 㻌 㻿㻱㼀㼁㻼
㻞 䠊㻹㼁 㻸 㼀 㻵 㻙 㼁 㻺 㻵 㼀
㻟䠊㻯㻭㻼㻭㻯 㻵 㼀㼅 㻯㻻㻺㼀㻾㻻㻸
㻠䠊㻿㻯㻴㻱㻰㼁㻸㻱
㻡䠊㻻㻼㻱㻾㻭㼀 㻵 㻻㻺 㻰㻭㼀㻭
㻢䠊㻸㻻㻭㻰 㻰㻭㼀㻭
㻣䠊㻭㻸㻭㻾㻹 㻴 㻵 㻿㼀㻻㻾㼅
㻤 䠊 㻿 㻴㼁 㼀 㻰㻻㼃㻺 㻴 㻵 㻿 㼀 㻻㻾 㼅
㻿 㻱㼀 䠖 㻻㻼㻱 㻺 㻹㻻㻺䠖 㻮㻭㻯㻷
㻝㻹㻻㻰 㻱 䠖
㻞䠊㻰㼁㻭㻸 㻌 㼀 㻵 㻹㻱䠖 㻌 㻡䠊㻜㼔
㻟 䠊㻹㻱 㼀 㻴㻻㻰 䠖
㻠䠊㻿㼃 㻵 㼀㻯㻴㻻㼂㻱㻾䠖 㻜 㻝 㻡 㼟
㻭㻼㻻㼂㻾㻾㻸
㻳㻸㻿㻺
①When the display switches to the details screen, move
to the line to be altered with the △▽but-
tons.
②
Move to the item to be altered with the
▽
button.
③ Alter the setting value with the
△
▽
buttons.
④After altering the setting value, press the SET button.
The cursor moves to the number.
⑤Press the SET button again.
The cursor moves to the first number at the top of the
screen and the setting contents are entered.
When setting is complete, pressing the MONITOR but-
ton once returns the display to the MENU screen, and
pressing it again returns to MONITOR screen 1.
The same procedure is used to alter settings for other
menus.
㼇㻹㼁㻸㼀 㻵 㻙㼁㻌 㻿㻱㼀㼀 㻵 㻺㻳㼉
㻝㻹㻻㻰 㻱 䠖 㻳㻸
㻞䠊㻰㼁㻭㻸 㻌 㼀 㻵 㻹㻱䠖 㻌 㻤䠊
㻌 㻿㻺
㻜㼔
㻟 䠊㻹㻱 㼀 㻴㻻㻰 䠖 㻭㻼
㻠䠊㻿㼃 㻵 㼀㻯㻴㻻㼂㻱㻾䠖 㻜 㻝 㻡 㼟
㻡䠊㻮㻭㻯㻷㼁㻼 䠖 䚷䚷 䚷㻣 㼜
㻻㼂㻾㻾㻸
㼟㼕
㻢䠊㼁㻺 㻸㻻㻭㻰 䠖 䚷䚷 䚷㻟 㼜 㼟 㼕
㻣㻭㻸㼀䠊㼀 㻵㻹㻱䠖㻌 㻠㻤㻜㻹㻵㻺
㻤㻯㻻㻺㼀㻾㻻㻸 㻹㻻㻰㻱 䠖 㻮
㻿㻱㼀䠖㻿㼀㻻㻾㻱 㻌㻹㻻㻺䠖㻮㻭㻯㻷
When altering settings of the LCD screen, number update
by button operation is slow. Press the buttons slowly
when altering settings.
IMPORTANT
Items with a dash next to their number cannot be altered
on the LCD monitor. In this case, alter from the digital
monitor while referring to the instructions manual for the
compressor.
IMPORTANT
①
③
④
⑤
②
18
3. OPERATING THE DSP [How to Use the Liquid Crystal Display (LCD)]
1How to Move within a [FUNCTION MENU] Display
2How to Select or Change a Setting within a Setting Display
