ELECTRIC TOOL PARTS LIST
LIST NO. E933

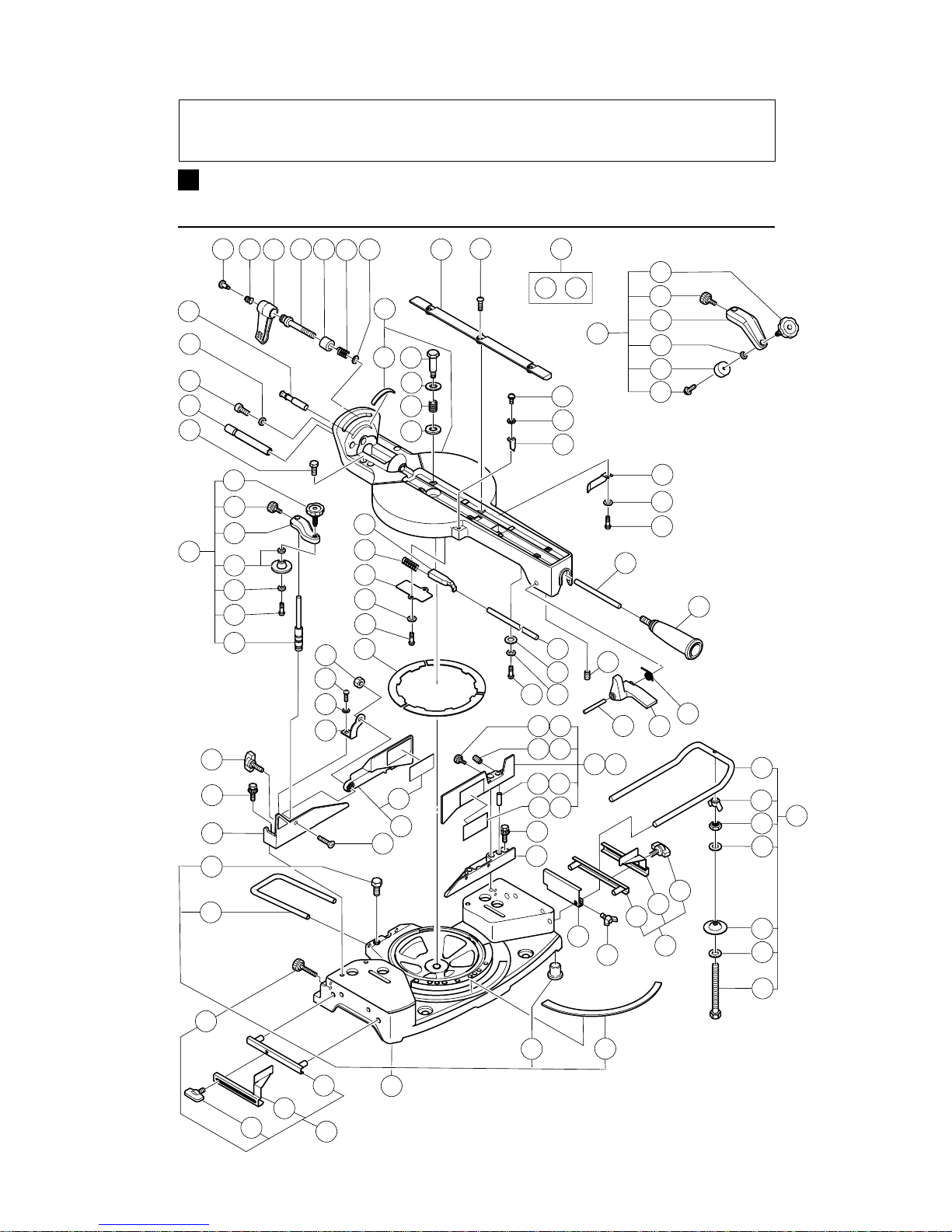

SLIDE COMPOUND SAW
Model C 10FSB
2004
•
2
•
13
(E2)
Hitachi Power Tools
12
34567
8
9
10
11
12
21
22
23
24
25
26
27 28
29
29
30
31
32
33
9
10
34
35
10
9
36
37
38
39
40 41
10
9
42
43
9
10
44
45
46
47
9
10
56
57
58
60
59
48
49 50 51
22
52
53A
54 55
601
602
603
604
605
606
607
608
609
610
611
612
618
619
620
621 622 623
624
625
626
627
630
628
629
13
14
15
16
17
18
19
20
615
616
617
613
614
618
631
628
602

--- 2 --- 2 -- 04

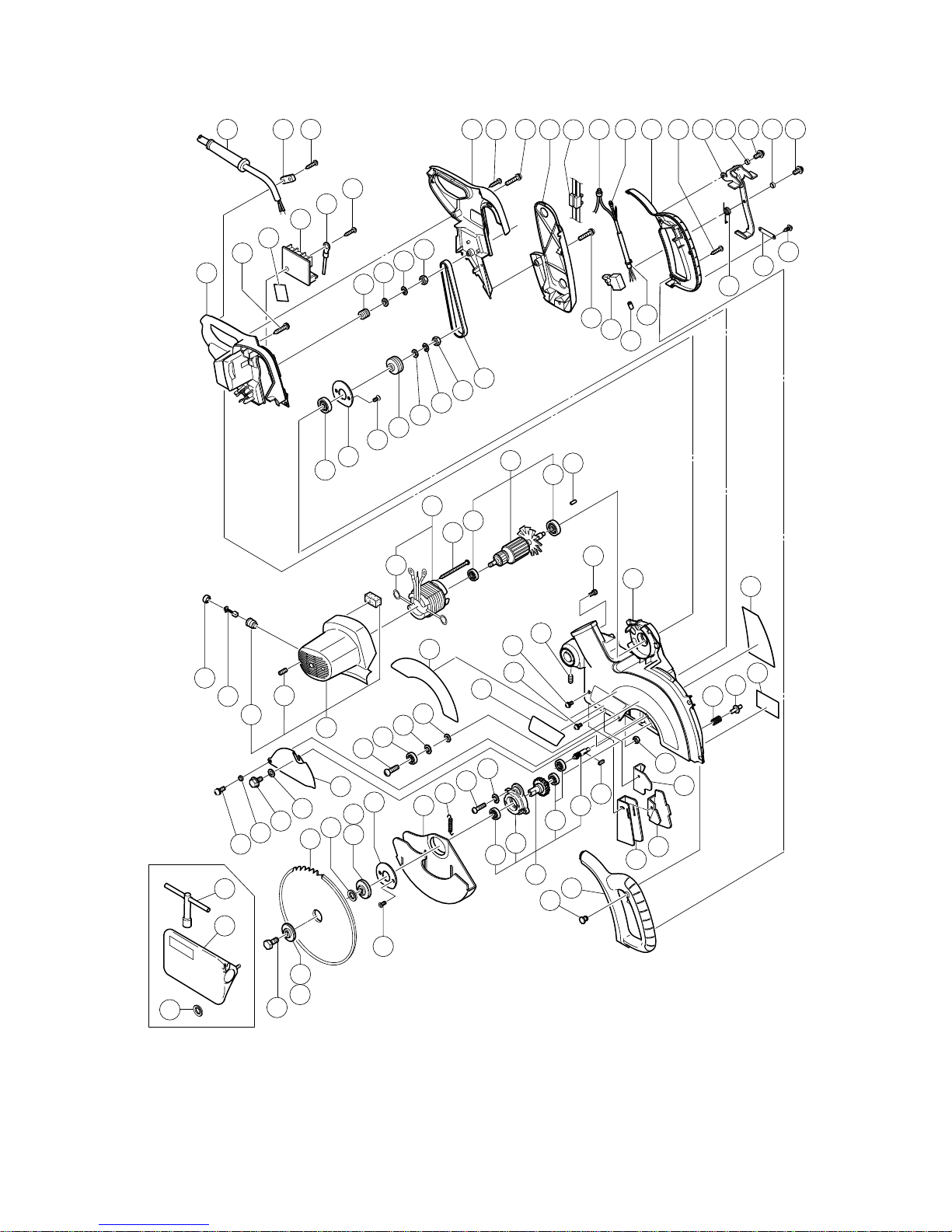

C 10FSB
71 72 73
74 75
76
77
78
79
80 81
82
83 84 85 86
87 72 88
89
71
90 91 92
93
94 95
96
97
98
99
91
73 72
73
100
102
109
110
111
103
104
108
105
106
72
101
107
112
113 114
115
118
117
116

--- 3 ---2 -- 04
C 10FSB
121 122 123
123
124
125 126
127 128
129 130 131 132 133 134 135 199
208 201
130
202
203 204
136 137 138 139
140 141
142 143 137 138 139 144
131145 146
147
148
149
150 151
152 153
154
155
156
157
158
159160 161
162
197
163164 165 166
167
168
169
170
171 172
173 174
205
206
198
175 176 177 178 179
180
174
181
182
183 184
185 186 187
188
189 190 191
192 193
210
194 195
501
502
503
103
196
207
200 201
209

*ALTERNATIVE PARTS
--- 4 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
2 -- 04
C 10FSB
1 305-180 CLUTCH SCREW 1
2 305-179 CLUTCH SPRING 1
3 312-488 CLAMP LEVER 1
4 307-725 BOLT (LEFT HAND) M10 1
5 315-195 SLEEVE 1
6 305-190 METAL SPRING (A) 1
7 965-077 SPECIAL WASHER 1
8 321-330 SET PIN (A) 1
9 949-429 BOLT WASHER M4 (10 PCS.) 8
10 949-215 MACHINE SCREW M4X8 (10 PCS.) 8
11 320-141 HINGE SHAFT (A) 1
12 303-409 NYLOCK BOLT M8X25 2
13 321-370 VISE ASS’Y 1 INCLUD. 14-20
14 308-396 KNOB BOLT M10 1
15 998-836 KNOB BOLT M6X11 1
16 SCREW HOLDER 1
17 319-974 VISE PLATE SET 1
18 996-722 WASHER 1
19 996-247
MACHINE SCREW (W/WASHERS) M5X12 (BLACK) 1
20 321-371 VISE SHAFT 1
21 302-459 WING BOLT M6X17 1
22 307-221 BOLT (W/WASHERS) M8X35 (BLACK) 4
23 321-346 FENCE (B) 1
24 949-610 BOLT M6X10 (10 PCS.) 1
25 998-844 HOLDER 1
26 321-412 TURN TABLE ASS’Y 1 INCLUD. 27
27 321-343 SCALE (B) 1
28 312-480 SHAFT (B) 1
29 949-437 BOLT WASHER M12 (10 PCS.) 2
30 312-481 SPRING 1
31 321-335 STOPPER (A) 1
32 321-417 SPRING (E) 1
33 321-336 PIN COVER 1
34 998-811 LINER 3
35 311-144 NYLON NUT M6 1
36 321-331 PLATE 1
37 321-386 WARNING LABEL (H) 1
38 321-385 SUB FENCE (B) ASS’Y 1 INCLUD. 37
39 949-342 FLAT HD. SCREW M6X25 (10 PCS.) 1
40 998-818 TABLE INSERT 2
41 949-258 MACHINE SCREW M6X20 (10 PCS.) 6
42 321-329 INDICATOR 1
43 321-342 SPACER (A) 1
44 321-341 SHAFT (A) 1
45 976-805 SIDE HANDLE 1
46 321-337 SHAFT (C) 1
47 875-249 THRUST WASHER 2
48 987-860 SEAL LOCK HEX. SOCKET SET SCREW M6X6 1
49 321-339 LEVER SHAFT 1
50 321-338 LEVER 1
51 321-340 SPRING (D) 1

*ALTERNATIVE PARTS --- 5 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
2 -- 04
C 10FSB
52 321-345 FENCE (A) 1
* 53A 322-197 BASE ASS’Y 1 INCLUD. 24, 25, 54, 55
* 53A 321-372 BASE ASS’Y 1 INCLUD. 24, 25, 54, 55 FOR USA, CAN
54 312-672 BASE RUBBER 4
55 315-210 SCALE (A) 1
* 56 949-616 BOLT M6X25 (10 PCS.) 1 EXCEPT FOR USA, CAN, AUS, NZL
* 57 987-860 SEAL LOCK HEX. SOCKET SET SCREW M6X6 2 EXCEPT FOR USA, CAN, AUS, NZL
* 58 321-552 PIN 2 EXCEPT FOR USA, CAN, AUS, NZL
59 CAUTON LABEL (Q) 1 EXCEPT FOR USA, CAN, AUS, NZL
* 60 322-617 SUB FENCE (A) ASS’Y1
INCLUD. 56-59 EXCEPT FOR USA, CAN, AUS, NZL
71 996-227 PACKING COVER 2
72 949-429 BOLT WASHER M4 (10 PCS.) 5
73 949-215 MACHINE SCREW M4X8 (10 PCS.) 4
* 74 322-198 HINGE (B) ASS’Y 1 INCLUD. 89 FOR AUS, NZL
* 74 322-653 HINGE (B) ASS’Y 1 INCLUD. 89
* 74 321-391 HINGE (B) ASS’Y 1 INCLUD. 89 FOR USA, CAN
75 996-276 SLEEVE 1
76 321-332 SPRING 1
77 961-554 HEX. SOCKET SET SCREW M8X10 1
78 302-518 STOPPER PIN ASS’Y 1 INCLUD. 79
79 984-528 O-RING (P-6) 1
80 949-312 WING NUT M8 (10 PCS.) 1
81 949-633 BOLT M8X50 (10 PCS.) 1
82 320-141 HINGE SHAFT (A) 1
83 949-237 MACHINE SCREW M5X12 (10 PCS.) 1
84 949-454 SPRING WASHER M5 (10 PCS.) 1
85 998-980 SPACER 1
* 86 322-199 LINK 1
* 86 321-368 LINK 1 FOR USA, CAN
87 949-217 MACHINE SCREW M4X12 (10 PCS.) 1
* 88 948-614 NYLON CLIP 1 FOR AUS, NZL
* 88 966-803 NYLON CLIP 1
* 88 948-193 NYLON CLIP 1 FOR USA, CAN
* 89 322-619 SUPPORT 1
* 89 321-352 SUPPORT 1 FOR USA, CAN, AUS, NZL
90 321-347 BALL BUSHING 1
91 996-226 FELT 2
92 996-223 BUSHING 2
93 949-568 LOCK NUT M8 (10 PCS.) 2
94 974-500 HEX. SOCKET SET SCREW M8X16 2
95 302-459 WING BOLT M6X17 1
96 947-859 LOCK SPRING 1
97 963-174 CLAMP PIECE (B) 1
98 320-206 CAUTION LABEL (A) 1
99 321-375 HOLDER (A) 1
100 949-686 ROLL PIN D6X40 (10 PCS.) 2
101 321-329 INDICATOR 2
102 303-409 NYLOCK BOLT M8X25 1
103 307-956 SEAL LOCK HEX. SOCKET SET SCREW M6X10 2
* 104 302-503 KNOB BOLT M6X22 1 FOR USA, CAN, AUS, NZL
105 321-333 GUARD (A) 1

*ALTERNATIVE PARTS
--- 6 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
2 -- 04
C 10FSB
106 321-394 GUARD HOLDER 1
* 107 500-234Z CORD 1
* 107 500-241Z CORD 1 FOR USA, CAN
* 107 500-435Z CORD 1 FOR GBR (230V)
* 107 500-463Z CORD 1 FOR GBR (110V)
* 107 500-447Z CORD 1 FOR SUI
* 107 500-439Z CORD 1 FOR AUS, NZL
* 108 960-092 WAVE WASHER 1 FOR USA, CAN
109 322-210 LINER (A) 1
* 110 949-332 FLAT HD. SCREW M5X12 (10 PCS.) 2 FOR AUS, NZL
* 111 322-206 SUB COVER 1 FOR AUS, NZL
* 112 311-144 NYLON NUT M6 1 EXCEPT FOR USA, CAN, AUS, NZL
* 113 948-363 GAUGE SPRING 1 EXCEPT FOR USA, CAN, AUS, NZL
* 114 963-836 SPECIAL BOLT M6 1 EXCEPT FOR USA, CAN, AUS, NZL
* 115 322-620 VINYL TUBE (A) 1 EXCEPT FOR USA, CAN, AUS, NZL
* 116 949-455 SPRING WASHER M6 (10 PCS.) 1 EXCEPT FOR USA, CAN, AUS, NZL
* 117 949-342 FLAT HD. SCREW M6X25 (10 PCS.) 1 EXCEPT FOR USA, CAN, AUS, NZL
* 118 322-621 BOLT COVER 1 EXCEPT FOR USA, CAN, AUS, NZL
121 938-051 CORD ARMOR D10.1 1
122 937-631 CORD CLIP 1
123 984-750 TAPPING SCREW (W/FLANGE) D4X16 3
124 321-392 HANDLE (L) 1
125 305-558 TAPPING SCREW (W/FLANGE) D5X25 (BLACK) 3
126 321-355 SHEET 1
* 127 321-354 CONTROLLER 100V-120V 1
* 127 322-200 CONTROLLER 220V-240V 1
128 930-804 TERMINAL M4.0 (10 PCS.) 1
129 321-393 HANDLE (R) 1
130 301-653 TAPPING SCREW (W/FLANGE) D4X20 (BLACK) 6
131 880-734
MACHINE SCREW (W/WASHERS) M5X25 (BLACK) 4
132 321-383 PULLEY COVER 1
133 959-141 CONNECTOR 50092 (10 PCS.) 2 FOR USA, CAN, AUS, NZL
* 134 980-063 TERMINAL 1
* 135 322-451 SWITCH HANDLE (R2) 1
* 135 321-381 SWITCH HANDLE (R) 1 FOR USA, CAN, AUS, NZL
136 321-356 PULLEY (A) 1
137 949-426 WASHER M8 (10 PCS.) 2
138 978-559 SUPER LOCK WASHER 2
139 949-558 NUT M8 (10 PCS.) 2
140 620-1VV BALL BEARING 6201VVCMPS2L 1
141 307-731 COVER 1
142 949-322 FLAT HD. SCREW M4X10 (10 PCS.) 2
143 321-357 PULLEY (B) 1
144 307-736 BELT (170H10) 1
* 145 998-868 SWITCH (2P PILLAR TYPE) W/O LOCK 1
* 145 998-839 SWITCH (1P PILLAR TYPE) W/LOCK 1 FOR USA, CAN
* 146 981-373 TUBE (D) 4
* 146 981-373 TUBE (D) 3 FOR USA, CAN
* 147 322-207 INTERNAL WIRE (A) ASS’Y 1 INCLUD. 134, 146
* 147 321-532 CORD (A) ASS’Y 1 INCLUD. 134, 146 FOR USA, CAN
* 148 930-703 BRUSH TERMINAL 2 INCLUD. 134, 146 FOR USA, CAN

*ALTERNATIVE PARTS --- 7 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
2 -- 04
C 10FSB
* 149 340-555C STATOR ASS’Y 110V 1 INCLUD. 148
* 149 340-539D STATOR ASS’Y 120V 1 INCLUD. 148
* 149 340-555F STATOR ASS’Y 230V-240V 1 INCLUD. 148
150 953-174 HEX. HD. TAPPING SCREW D5X55 2
151 321-399 BALL BEARING 608VVC2NS7L 1
* 152 360-588U ARMATURE ASS’Y 110V-120V 1 INCLUD. 151, 196
* 152 360-588E ARMATURE ASS’Y 230V 1 INCLUD. 151, 196
* 152 360-588F ARMATURE ASS’Y 240V 1 INCLUD. 151, 196
153 976-441 BEARING LOCK 1
154 945-161 BRUSH CAP 2
155 999-043 CARBON BRUSH (1 PAIR) 2
* 156 960-685 BRUSH HOLDER 2
* 156 958-900 BRUSH HOLDER 2 FOR USA, CAN
157 938-477 HEX. SOCKET SET SCREW M5X8 2
* 158 322-208 HOUSING ASS’Y 1 INCLUD. 156, 157
* 158 321-379 HOUSING ASS’Y 1 INCLUD. 156, 157 FOR USA, CAN
* 159 996-247
MACHINE SCREW (W/WASHERS) M5X12 (BLACK) 1 EXCEPT FOR NZL
* 160 998-980 SPACER 1 EXCEPT FOR NZL
* 161 996-577 BOLT (W/WASHERS) M6X12 (BLACK) 1
* 161 998-836 KNOB BOLT M6X11 1 FOR AUS
* 162 318-958 SPINDLE COVER 1 FOR USA, CAN, AUS
* 162 322-622 SPINDLE COVER (A) 1 EXCEPT FOR NZL
163 949-258 MACHINE SCREW M6X20 (10 PCS.) 1
164 606-ZZM BALL BEARING 606ZZC2PS2L 1
165 949-455 SPRING WASHER M6 (10 PCS.) 1
166 949-425 WASHER M6 (10 PCS.) 1
167 HITACHI LABEL 1
168 WARNING LABEL (G) 1 FOR USA, CAN
169 304-043
MACHINE SCREW (W/WASHERS) M4X10 (BLACK) 1
170 877-839 SEAL LOCK HEX. SOCKET HD. BOLT M5X10 1
171 321-384 GEAR CASE 1
172 WARNING LABEL (G) 1 FOR USA, CAN
* 173 322-443
TCT SAW BLADE 255MM-D30 HOLE-NT40 1
* 173
TCT SAW BLADE 262MM-D25.4 HOLE-NT60 1 FOR AUS, NZL
* 173 310-878 TCT SAW BLADE 255MM-D15.88 HOLE-NT40 1 FOR USA, CAN
* 174 308-789 WASHER (D) 2 FOR USA, CAN, AUS, NZL
175 307-731 COVER 1
* 176 322-452 LOWER GUARD 1
* 176 321-367 SAFETY COVER 1 FOR USA, CAN, AUS, NZL
* 177 322-453 RETURN SPRING (A) 1
* 177 315-710 RETURN SPRING 1 FOR USA, CAN, AUS, NZL
178 949-241 MACHINE SCREW M5X20 (10 PCS.) 2
179 949-454 SPRING WASHER M5 (10 PCS.) 2
180 998-335 BOLT (LEFT HAND) W/WASHER M7X17.5 1
181 949-322 FLAT HD. SCREW M4X10 (10 PCS.) 2
182 308-787 SPINDLE ASS’Y 1 INCLUD. 183-186
183 600-3DD BALL BEARING 6003DDCMPS2S 1
184 308-788 BEARING HOLDER 1
185 608-VVM BALL BEARING 608VVC2PS2L 2
186 PINION 1
187 931-008 FEATHER KEY 4X4X12 1

*ALTERNATIVE PARTS
--- 8 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
PARTS
2 -- 04
C 10FSB
* 188 949-555 NUT M5 (10 PCS.) 1 EXCEPT FOR NZL
189 988-821 LOCK SPRING 1
190 307-732 STOPPER PIN 1
191 NAME PLATE 1
* 192 322-454 DUST GUIDE 1
* 192 321-364 DUST GUIDE 1 FOR USA, CAN
193 312-492 GUIDE HOLDER 1
* 194 951-895 LOCK-OFF BUTTON 1 FOR USA, CAN
* 195 322-455 SWITCH HANDLE (L2) 1
* 195 321-382 SWITCH HANDLE (L) 1 FOR USA, CAN
* 195 322-209 SWITCH HANDLE (L) 1 FOR AUS, NZL
196 321-398 BALL BEARING 6201VVCMNS7S 1
* 197 949-432 BOLT WASHER M6 (10 PCS.) 1 FOR AUS
* 198 976-819 COLLAR (B) FOR D25.4 HOLE 1 FOR AUS, NZL
* 199 322-456 LEVER 1 EXCEPT FOR USA, CAN, AUS, NZL
* 200 302-757 SPACER 2 EXCEPT FOR USA, CAN, AUS, NZL
* 201 935-196
MACHINE SCREW (W/WASHERS) M4X12 (BLACK) 3 EXCEPT FOR USA, CAN, AUS, NZL
* 202 322-457 LEVER SPRING 1 EXCEPT FOR USA, CAN, AUS, NZL
* 203 322-458 PLATE (C) 1 EXCEPT FOR USA, CAN, AUS, NZL
* 204 306-371
TAPPING SCREW (W/FLANGE) D3X10 (BLACK) 2 EXCEPT FOR USA, CAN, AUS, NZL
* 205 322-459 WASHER (A) 1 EXCEPT FOR USA, CAN, AUS, NZL
* 206 318-962 WASHER (B) 1 EXCEPT FOR USA, CAN, AUS, NZL
* 207 958-308Z PILLAR TERMINAL (A) 1 EXCEPT FOR USA, CAN, AUS, NZL
* 208 305-171 SPACER 1 EXCEPT FOR USA, CAN, AUS, NZL
* 209 304-043
MACHINE SCREW (W/WASHERS) M4X10 (BLACK) 1 EXCEPT FOR USA, CAN, AUS, NZL
* 210 322-623 SUB COVER (A) 1 EXCEPT FOR USA, CAN, AUS, NZL

*ALTERNATIVE PARTS --- 9 ---
STANDARD ACCESSORIES
OPTIONAL ACCESSORIES
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
2 -- 04
C 10FSB
501 940-543 BOX WRENCH 10MM 1
502 998-845 DUST BAG 1
* 503 974-663Z COLLAR (A) FOR D30 HOLE 1 FOR AUS
601 321-434 CROWN MOLDING VISE ASS’Y 1 INCLUD. 602, 618
602 321-388 VISE (B) ASS’Y 1 INCLUD. 603-608
603 321-551 KNOB BOLT M10X54 1
604 998-836 KNOB BOLT M6X11 1
605 SCREW HOLDER (B) 1
606 306-985 WASHER (H) 1
607 964-851 BASE RUBBER 1
608 304-043
MACHINE SCREW (W/WASHERS) M4X10 (BLACK) 1
* 609 960-017 KNOB BOLT M6X32 1 FOR USA, CAN, AUS, NZL
* 610 987-860 SEAL LOCK HEX. SOCKET SET SCREW M6X6 2 FOR USA, CAN, AUS, NZL
* 611 321-552 PIN 2 FOR USA, CAN, AUS, NZL
612 WARNING LABEL (L) FOR USA, CAN, AUS, NZL 1
* 613 321-387 SUB FENCE (A) ASS’Y1
INCLUD. 609-612 FOR USA, CAN, AUS, NZL
614 960-017 KNOB BOLT M6X32 1
615 301-806 WING BOLT M6X15 1
616 CROWN MOLDING STOPPER (L) 1
617 321-390 CROWN MOLDING STOPPER HOLDER 1
618 321-374 CROWN MOLDING STOPPER (L) ASS’Y 1 INCLUD. 614-617
619 974-561 STOPPER 1
620 949-404 WING BOLT M6X20 (10 PCS.) 1
621 321-390 CROWN MOLDING STOPPER HOLDER 1
622 CROWN HOLDING STOPPER (R) 1
623 301-806 WING BOLT M6X15 1
624 321-373 CROWN MOLDING STOPPER (R) ASS’Y 1 INCLUD. 614,621-623
625 321-549 HOLDER 2
626 949-313 WING NUT M6 (10 PCS.) 2
627 949-556 NUT M6 (10 PCS.) 2
628 967-329 WASHER (H) 4
629 996-261 VISE PLATE 2
630 996-283 HIGH TENSION BOLT M6X65 2
631 321-553 GUIDE ASS’Y 1 INCLUD. 614, 619, 620, 625-630
* 632 322-444 TCT SAW BLADE 255MM-D30 HOLE-NT72 1
* 632 307-713
TCT SAW BLADE 255MM-D25.4 HOLE-NT72 1 FOR AUS, NZL

--- 1 0 ---
ITEM
NO. CODE NO. DESCRIPTION REMARKS
NO.
USED
2 -- 04
C 10FSB
Printed in Japan
(040213N)
