HITCHFIRE LEDGE User manual

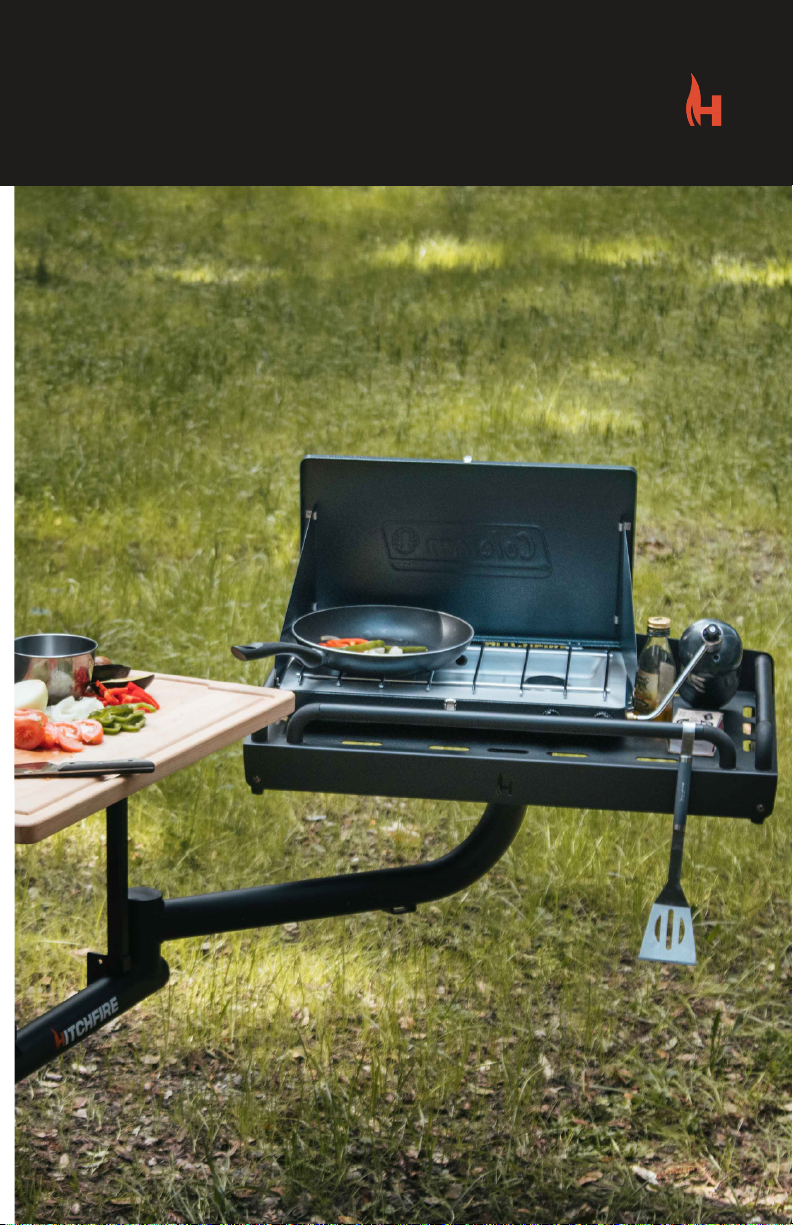

HITCHFIRE LEDGE
OWNER’S MANUAL
Read this manual carefully before assembly, using, or servicing this grill.
FOR OUTDOOR USE ONLY
PATENT PENDING

2
TABLE OF CONTENTS
OPERATING INSTRUCTIONS
PARTS LIST
4
5

3

4
1. Slide the swing away arm assembly into your hitch and secure it with the
hitch stabilizer bolt
A. Tighten the bolt using a wrench, make sure to tighten the bolt all the
way through to the other side of the hitch, slide the cotter pin into the bolt.
2. Pull out and twist the hinge spring lock. ‘
A. Release the slam-latch by pressing down on the lever.
3. Swing the arm away from the vehicle and lock at 90 degree position for
stability. Place the Ledge platform onto the arm.
4. Clamp the quick release lever to secure the Ledge platform.
5. Lock the ledge platform head onto the arm with a padlock. (Not
included)
6. Swing the arm closed, pushing towards the vehicle until the slam-latch
is fully engaged.
7. Rotate the hinge spring lock to engage the plunger.
Use of phillips or flat head screw driver can be utilized to remove side rails
to allow for larger
***The maximum allowable weight on the Ledge is 100 lbs when used with
an adequate hitch receiver. Please consult your vehicle user manual to
confirm Class III hitch classification.
OPERATING INSTRUCTIONS

5
PARTS LIST
Hinge Spring Lock
Slam Latch
Quick Release Lever
Hitch Stabilizer
Bolt
Removable Side Rails

6

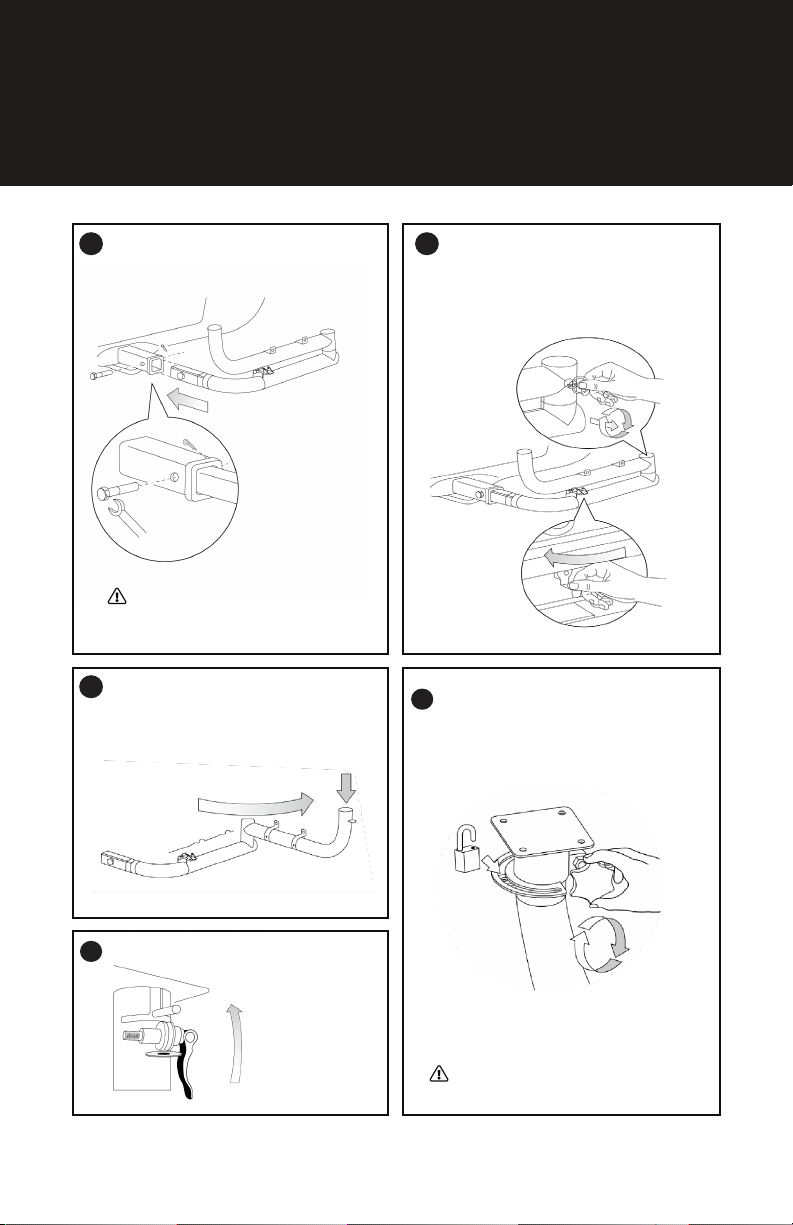

ASSEMBLY - ATTACHING THE GRILL
Slide the swing away arm assembly
into your hitch and secure it with
the hitch stabilizer bolt.
A.Pull out and twist the hinge spring lock.
B.Release the slam-latch by pressing
down on the lever.
Swing the arm away from the vehicle and
lock at the 90 degree position for stability.
Place the Ledge platform onto the arm.
Clamp the quick release
lever to secure the grill
to the arm.
Lock the ledge onto the arm with a padlock.
(Not included.)
Tighten the bolt using
a wrench, make sure
to tighten the bolt all
the way through to
the other side of the
hitch, slide the cotter
pin into the bolt.
DO NOT MOVE VEHICLE UNLESS THE
SWING AWAY ARM ASSEMBLY IS
SECURELY BOLTED ONTO THE HITCH.
DO NOT MOVE VEHICLE UNLESS THE
LEDGE IS LOCKED IN PLACE.
1 2
3
4
5

7
Rotate the hinge spring lock to engage the
plunger.
Swing the arm closed, pushing towards the
vehicle until the slam-latch is fully engaged.
Close hinge spring lock and slam-latch.
DO NOT MOVE VEHICLE UNLESS THE
HINGE SPRING LOCK & SLAM-LATCH
ARE SECURE.
6
7
8

8
LIMITED WARRANTY
What Is Covered
HitchFire, warrants to the original purchaser that its products listed below
are free from defects in material and workmanship, for the term described,
except as qualified below. The life of the product is determined from the
date of purchase until such time as the product is no longer serviceable
due to normal wear and tear.
Steel & Aluminum Castings
Cooking Grates
Burners
Spark Igniters
All Remaining Parts
When Assembled and operated in accordance with the accompanying
printed instructions.
What Is Not Covered
HitchFire shall not be responsible for the natural breakdown of materials
that occurs inevitably with extended use (e.g., Ultra Violet (UV) light
damage on grill, or defects caused by accident, abuse, alteration, animal
attack, storm damage, misuse or improper care, vandalism, improper
installation improper maintenance or service, failure to perform normal
and routine maintenance, including but not limited to, damage caused by
insects within the burner tubes, as set out in this owner’s manual warranty
section.
Deterioration or damage due to severe weather conditions such as hail,
hurricanes, earthquakes, or tornadoes including rust, discoloration due to
exposure to chemicals (including salt) either directly or in the atmosphere,
or very high humidity, is not covered by this limited Warranty.
THERE ARE NO OTHER EXPRESS WARRANTIES BEYOND THE TERMS OF
THIS LIMITED WARRANTY. IN NO EVENT SHALL HitchFire BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply
to you.

9
What HitchFire Will Do
If after inspection we find that a product failed due to a manufacturing or
material defect, we will repair or replace the product, at our option, without
charge.
How To Obtain Warranty Service
Return the product, freight prepaid, to the HitchFire Dealer from whom it
was purchased; or, contact HitchFire Customer Satisfaction Department
for return authorization: toll free 1-800-515-5286. Collect shipments or
shipments without return authorization cannot be accepted.
REPAIRS
If your HitchFire product needs service or repair due to normal wear and
tear, animal attack, accident or some other reason that is not covered
under the warranty we will provide the necessary service for a reasonable
charge, plus shipping and handling. We require that products accepted
for any repair be properly cleaned according to our recommended care
instructions. Please send your product that requires repair, postage
prepaid, along with a description of what needs attention. For service and
repairs, please contact our Customer Satisfaction Department: toll free
1-800-515-5286
How State Law Relates To This Warranty
This warranty gives you specific legal rights, and you may have other rights
that vary from state to state.
Warranty Term
Limited two year warranty applies to all grill components.

10
IMPORTANT USER/ CONSUMER:
